Barndominium Plans

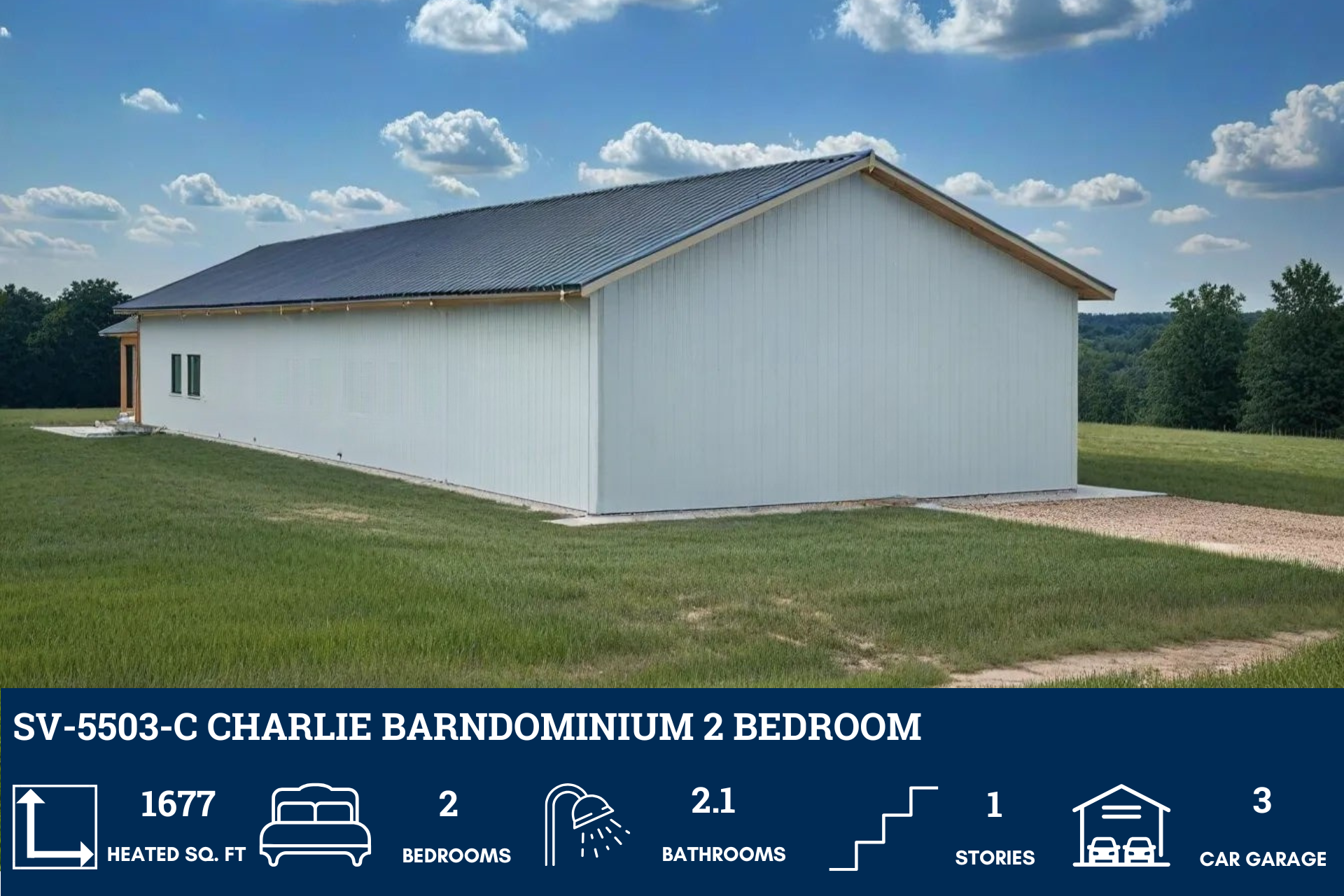

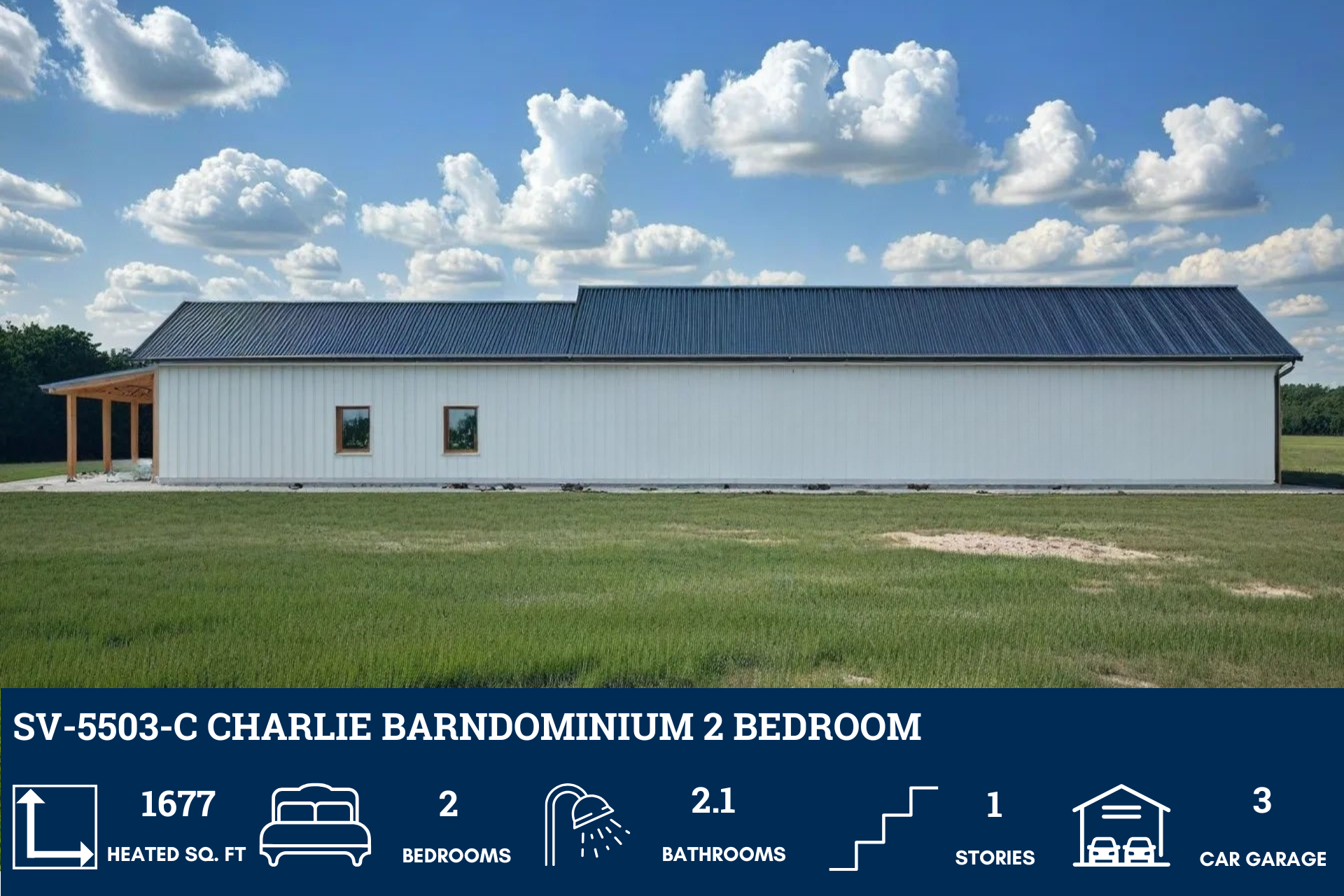

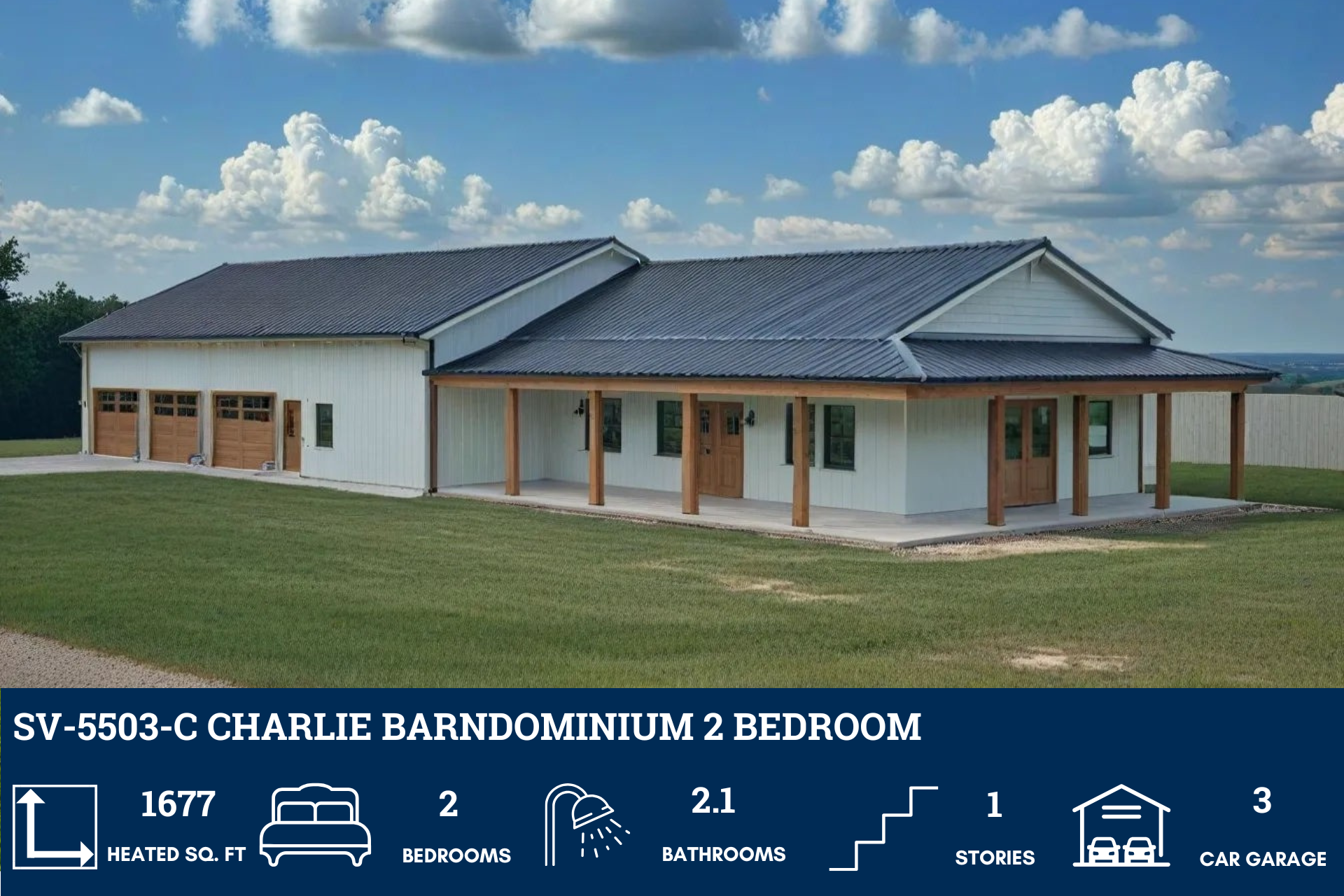

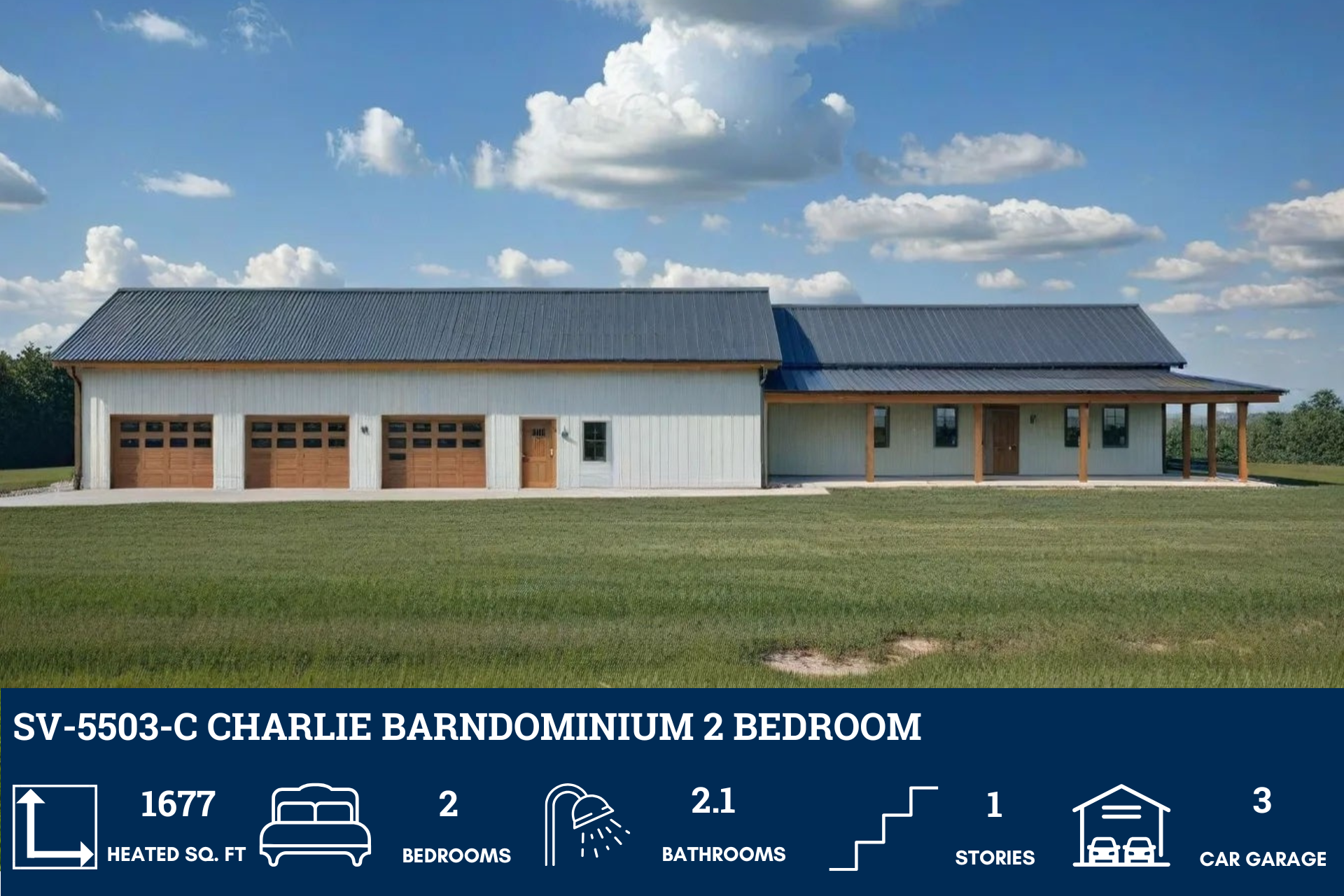

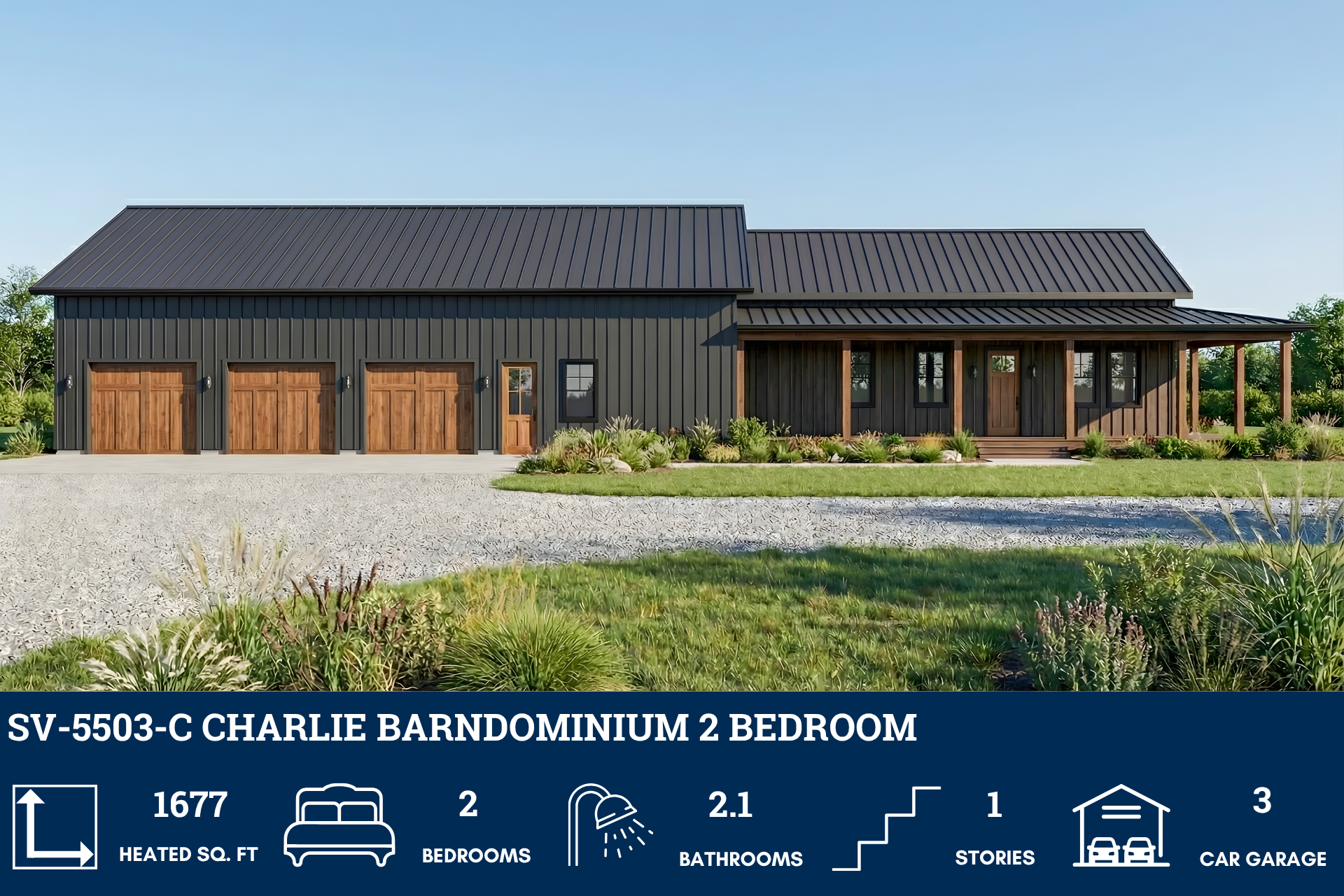

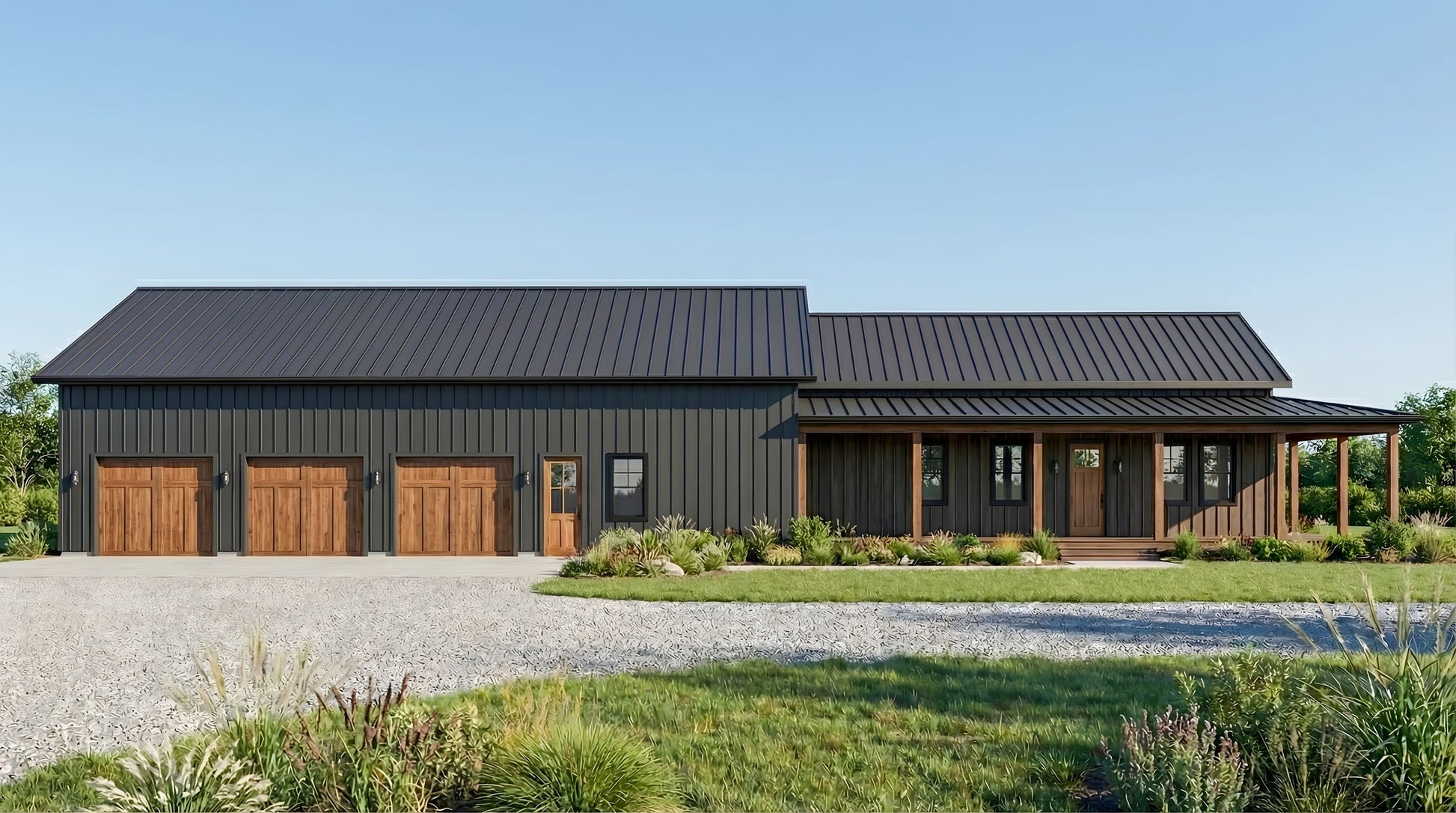

SV-5503-C Charlie Barndominium House Plan
Regular price
$849.99 USD
Regular price
Sale price
$849.99 USD
Unit price
per

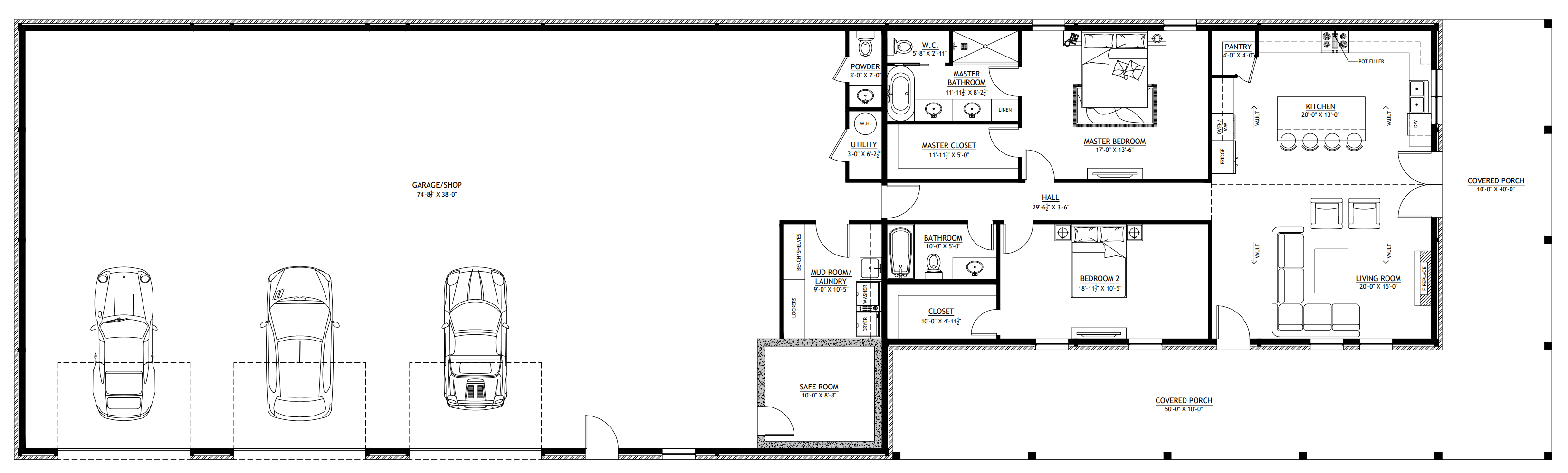

Floor Plan
DETAILS
HEATED SQ FT
First Floor:
1,677 SF
Second Floor:None
Total Heated Sq Ft:1,677 SF
UNHEATED SQ FT
Total Unheated Area:
PORCH 900 SF, GARAGE/SHOP 2888 SF, SAFE ROOM 135 SF = TOTAL 3.923 SF
Carport:None
Bedrooms:
2
Full Baths:
2.1
Floors:
1
Garage Size:
2,888 SF
Width:
140'
Depth:
40'
Height:
24'-0 3/4"
Foundation:
Concrete Slab
Main Roof Pitch:
5:12
Exterior Framing:
Stick-Frame
CEILING HEIGHTS
First Floor:
10'
SV-5503-C Charlie Barndominium House Plan
About this barndominium house plan:
- 1677 Heated square feet
- 2 Bedrooms
- 2.1 Bathrooms
- Single Story
- Open concept
- Utility room
- Safe room
- Mudroom
- Covered porch
- 3-car Garage/shop
- Smartly sized at 1,677 square feet—designed for comfort, flow, and functional elegance.
- Two dreamy bedrooms tailored for restful nights and personalized escapes.
- Two full baths plus a sleek half bath—perfect for busy mornings and effortless entertaining.
- Breathe easy in this open layout where living, dining, and kitchen spaces connect seamlessly.
- Out of sight but never out of reach—this utility room keeps laundry day neat and efficient.
- Peace of mind built in—this reinforced safe room adds a layer of security without sacrificing style.
- Your front-line defense against the mess—this transitional mudroom keeps life tidy and organized.
- Sip, sit, and savor—this charming covered porch beckons for breezy afternoons and quiet evenings.
- More than a parking spot—this versatile garage/shop is a hobbyist’s haven and a storage dream.
What's included in SV-5503-C:
Cover Page
Floor Plan
Roof Plan

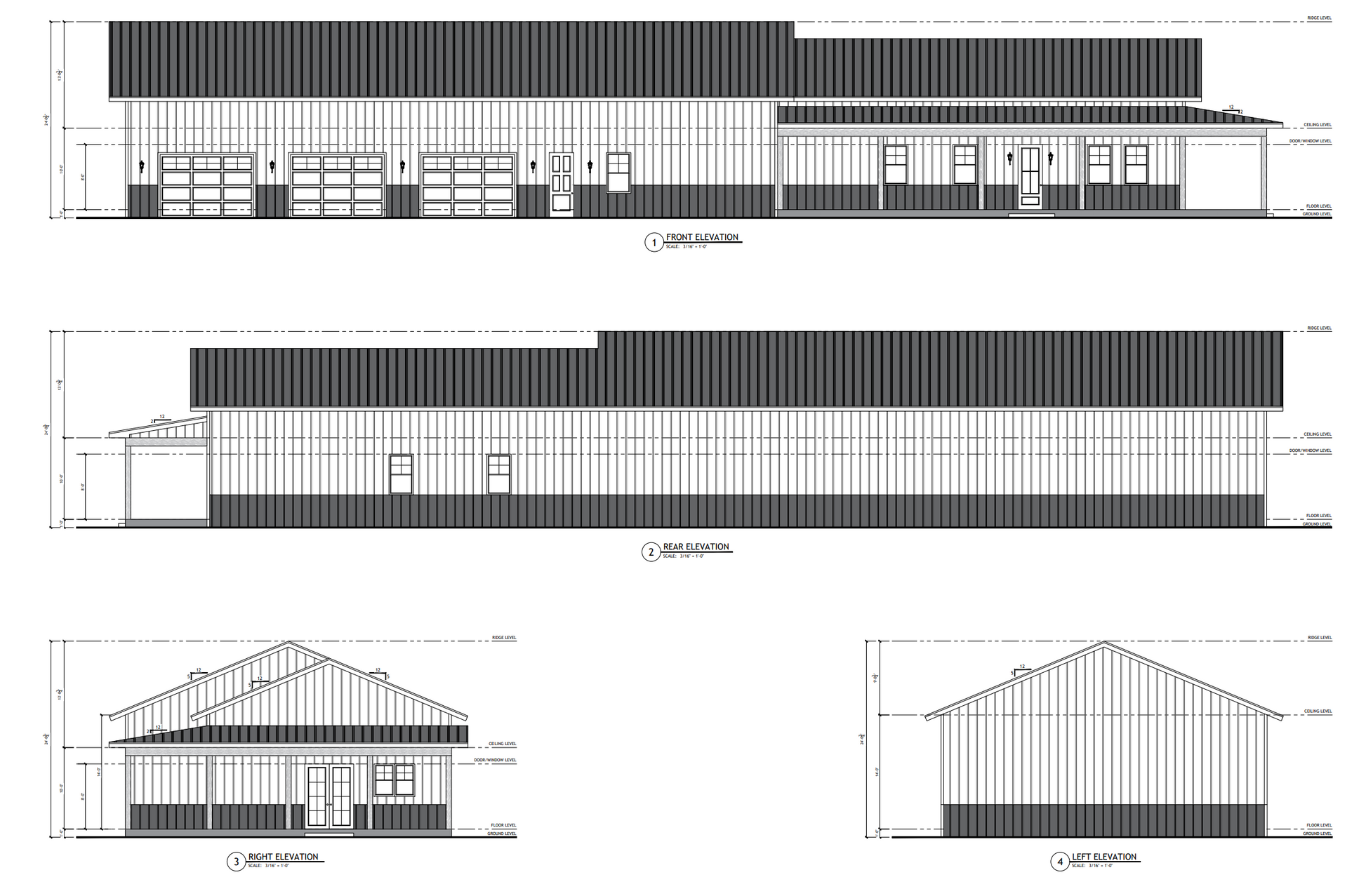

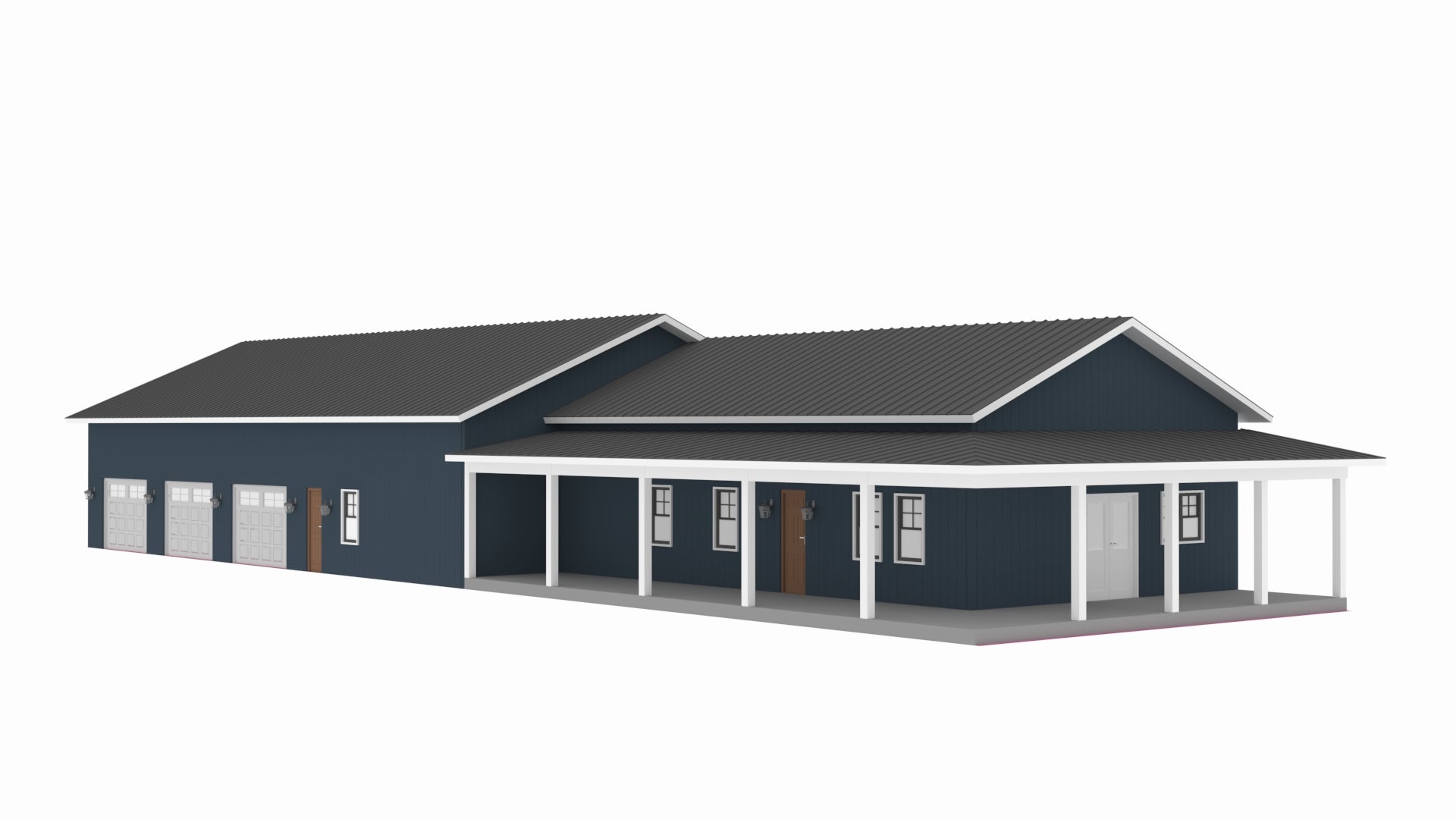

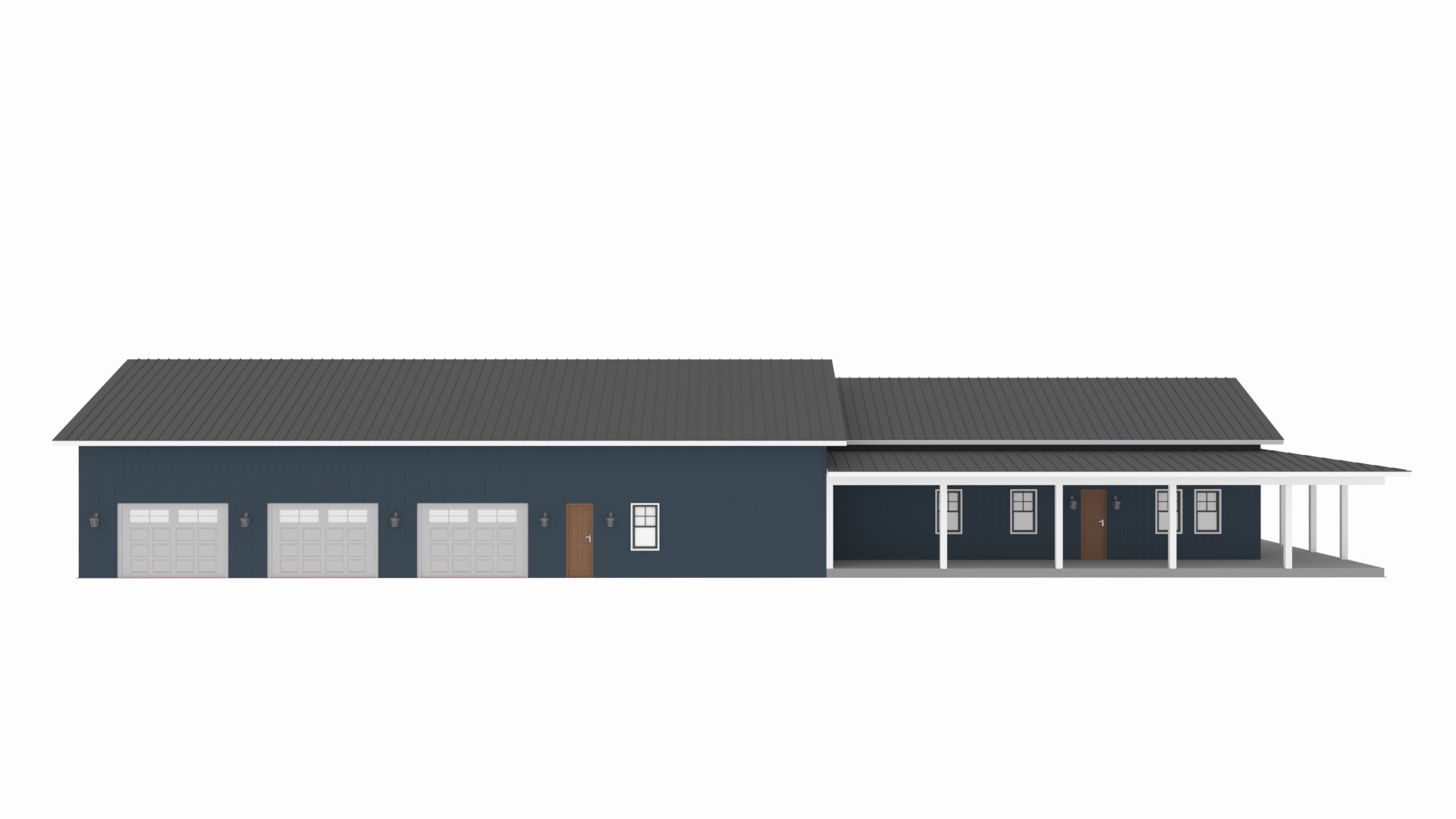

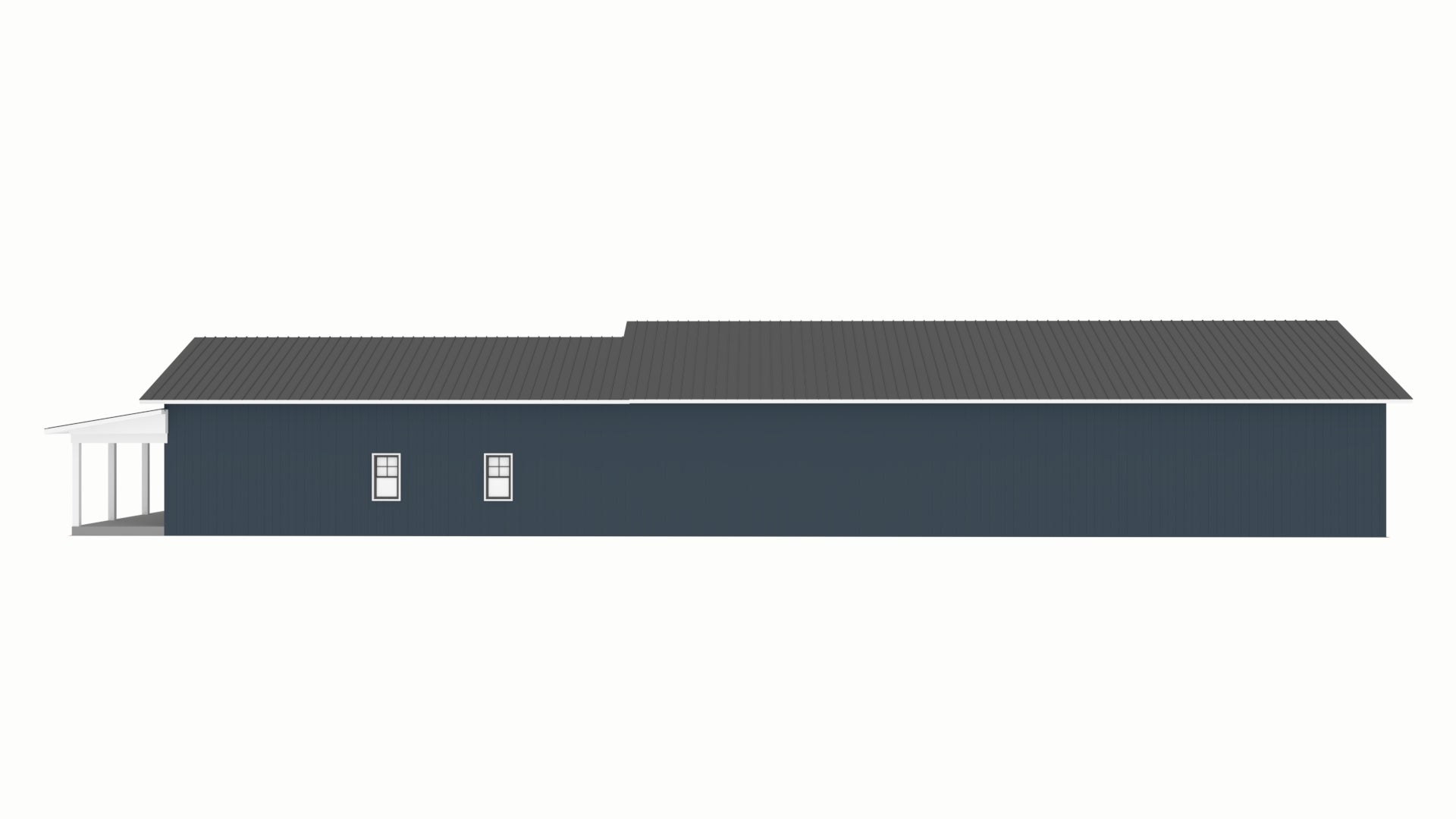

Elevations
Electrical Plan
Plumbing Plan
Hvac Plan
Roof Framing Plan
Foundation Plan
Foundation Detail
Interior Bearing Footing
C-Typical Column Detail
Wall Section
For more barndominium floor plans, check out our complete collection of 2-bedroom barndominium floor plans.
Need to make changes? Submit a modification request using the button that says Modify This Plan (below the Add To Cart Button). We will get you a free price quote within 72 hours
Please note all square footage are estimates.
What's Included
What's Included
Our house plan sets typically have the following details:
4 Elevations – Front, Back, Both Sides
Detailed Floor Plan Drawing
Electrical Plans with placements for HVAC
Plumbing Plans with Placements
Flooring Plan
Roof Plan
Foundation Plan
For more information on what's included and examples of what your plans will look like, go here -> https://barndominiumplans.com/pages/whats-included
Please Note: We work with many different draftspeople who work in many different ways. It should be noted that their plans may contain different details.
What's Not Included
What's Not Included
The following items are NOT included:
Architectural or Engineering Stamp. Our plans are engineering-ready! Can take them to a local engineer in your state.
Site Plan - We can provide this if needed for $300 additional.
Materials List - handled locally when required
Energy calculations - handled locally when required
Snow load calculations - handled locally when required
Delivery
Delivery
This plan is available as a digital product or printed + shipped.
If you select digital, the plan will be delivered to you via email as a PDF file, no matter what time it is.
If you select printed + shipped, your order will ship in 24x36 format within 1 business day of your order.
We ship from the midwest in order to serve the entire country within 3-5 business days!
Return policy
Return policy
All barndominium house plan purchases are FINAL. There are no exchanges or refunds due to the digital nature of the product. Please make sure that the plan you have selected is going to fit your needs.
💥
