Barndominium Plans

PL-71101-P Angel Barndominium House Plan

$1,499.99 USD
$1,499.99 USD
Sale Sold out
Add To Wishlist
1 9

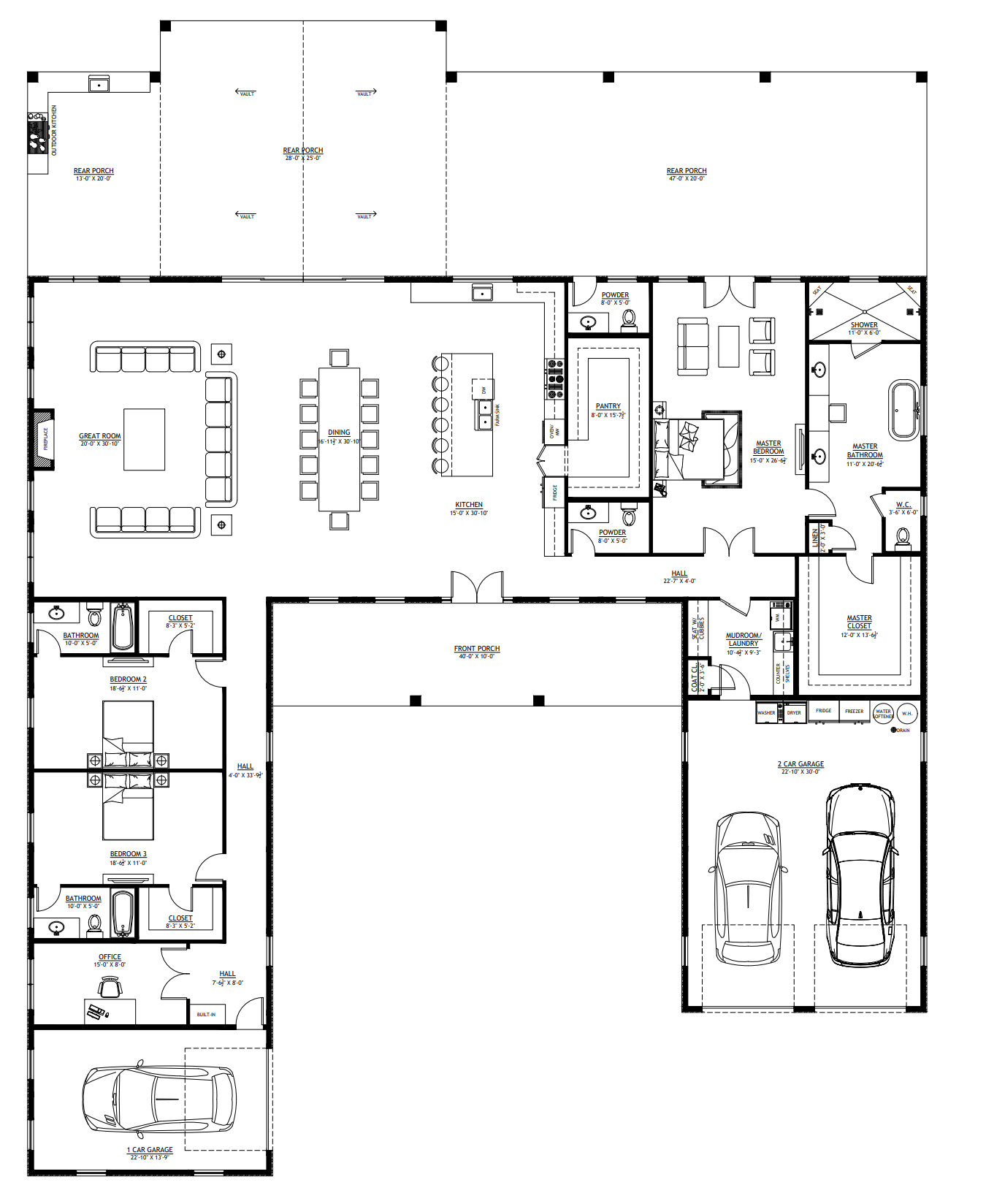

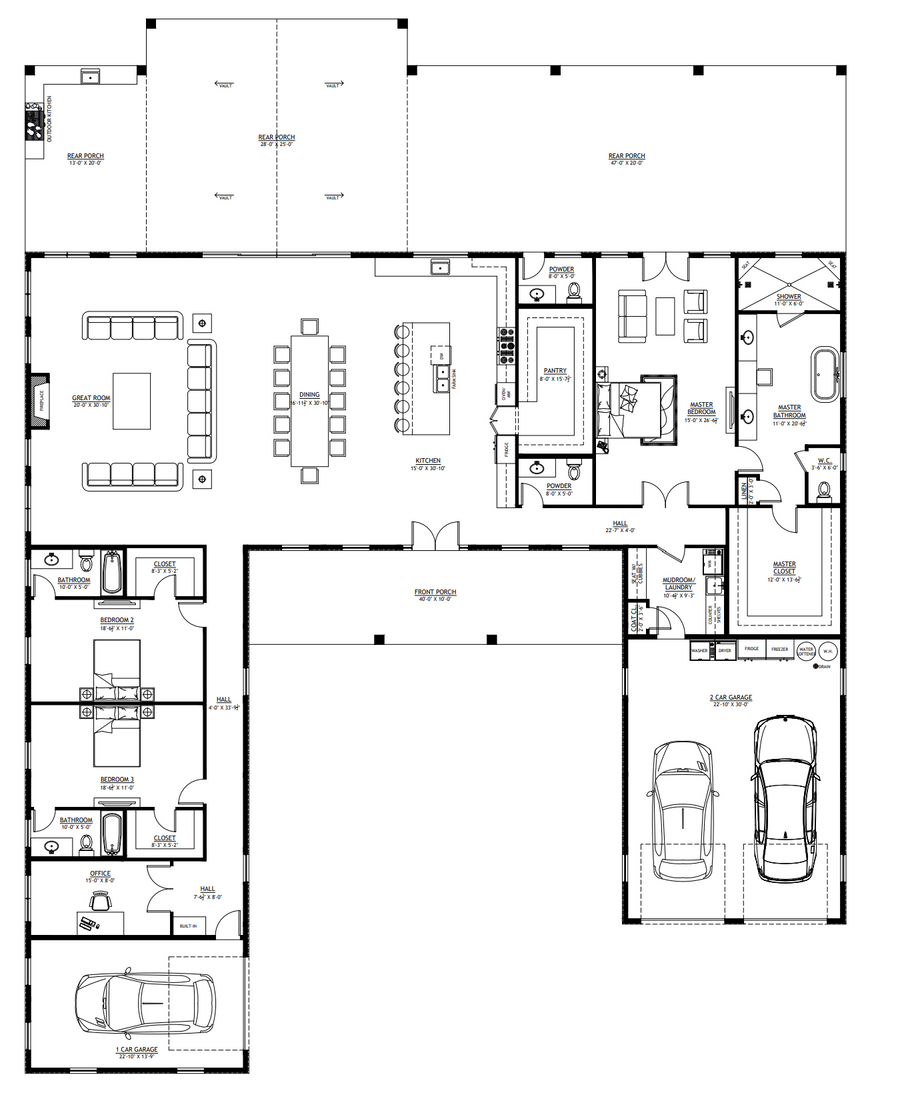

Floor Plan

DETAILS

HEATED SQ FT

First Floor:

4,020 SF

Second Floor:

None

Total Heated Sq Ft:

7,420 SF

UNHEATED SQ FT

Total Unheated Area:

1-car garage 355 SF, 2-car garage: 745 SF, Porches 2,300 SF TOTAL = 3,400 SF

Carport:

None

Bedrooms:

3

Full Baths:

3

Floors:

1

Garage Size:

1-car garage 355 SF, 2-car garage 745 SF

Width:

88'

Depth:

72'

Height:

23'-0 ½"

Foundation:

Concrete Slab

Main Roof Pitch:

4:12

Exterior Framing:

Stick-Frame

CEILING HEIGHTS

First Floor:

10'

PL-71101-P Angel Barndominium House Plan

Looking for this plan, but a bit smaller? Discover a similar floor plan here that's 4150 sq ft.



About this barndominium house plan:

  • 4020 Heated Square Feet
  • 3 Bedrooms
  • 3.2 Bathrooms
  • Single-story
  • Open-concept
  • Mudroom/Laundry
  • Office
  • Great room
  • Fireplace
  • Front & rear porch
  • Outdoor Kitchen
  • 2- Car Garage (845 Sq Ft)
  • 1-Car Garage (355 Sq Ft)





  • A generous 4,020 square feet of climate-controlled living space offers room to breathe, grow, and entertain—designed with comfort and elegance in every corner.
  • Three thoughtfully placed bedrooms provide private sanctuaries for rest and rejuvenation, each tailored for tranquility and personal retreat.
  • Each bedroom enjoys its own full bath, ensuring privacy and convenience, while two additional powder rooms add a touch of luxury for guests and daily living.
  • Effortless flow meets timeless design in this single-story layout, where open-concept living invites natural light and seamless connection between spaces.
  • A dual-purpose mudroom and laundry zone keeps life organized and mess-free, with built-in storage and smart design that simplifies daily routines.
  • A dedicated office space offers a quiet haven for productivity, creativity, or remote work—complete with natural light and flexible design potential.
  • The heart of the home, this expansive great room features a cozy fireplace and soaring ceilings—ideal for gatherings, quiet evenings, or showcasing your personal style.
  • From welcoming guests at the front to unwinding in the rear, these porches extend your living space outdoors, blending charm with functionality for every season.
  • Elevate alfresco dining with a fully equipped outdoor kitchen—perfect for weekend grilling, sunset cocktails, or hosting under the stars.
  • An oversized two-car garage offers 845 square feet of secure storage and parking, with room for tools, gear, and weekend projects.
  • A separate 355-square-foot garage adds flexibility—ideal for a third vehicle, workshop, or hobby space with easy access and privacy.



What's included in PL-71101-P:

Cover Page
Floor Plan
Roof Plan

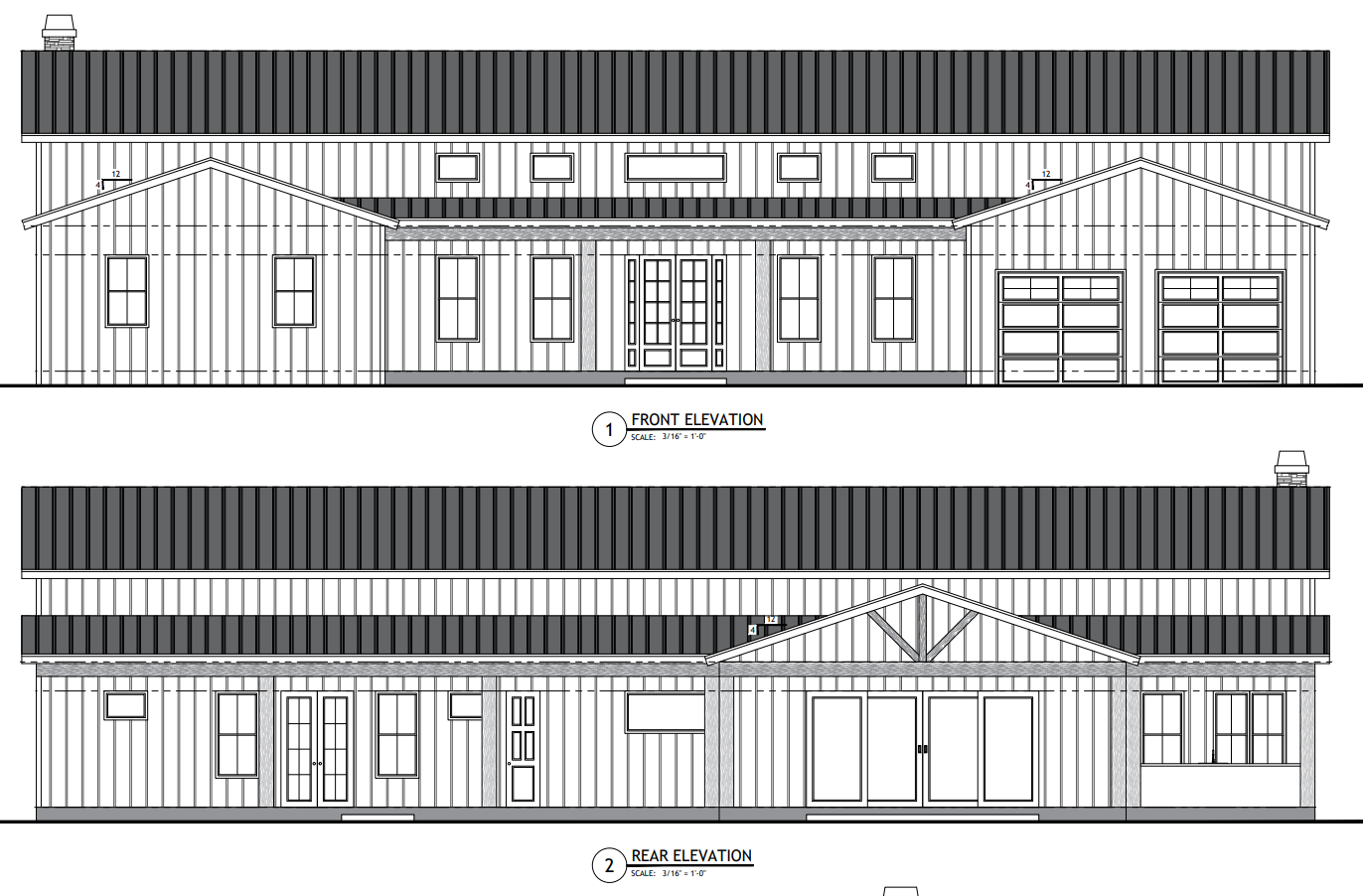

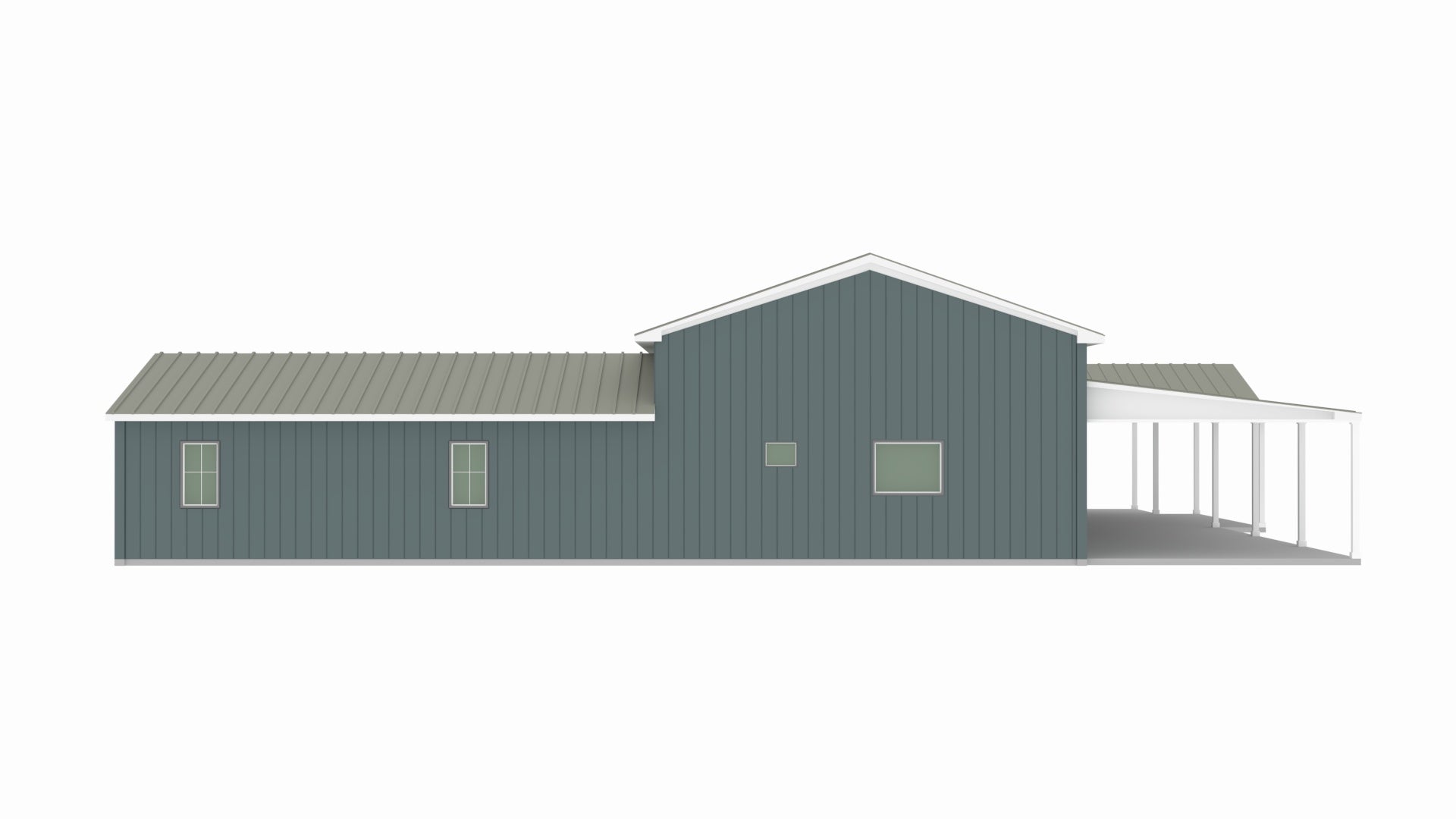

Elevations
Electrical Plan
Plumbing Plan
Hvac Plan
Roof Framing Plan
Foundation Plan
Slab Detail
Porch Post Detail
Wall Section



For more barndominium floor plans, check out our complete collection of 3-bedroom barndominium floor plans.



Need to make changes? Submit a modification request using the button that says Modify This Plan (below the Add To Cart Button). We will get you a free price quote within 72 hours

Please note all square footage are estimates.

What's Included

Our house plan sets typically have the following details:

4 Elevations – Front, Back, Both Sides

Detailed Floor Plan Drawing

Electrical Plans with placements for HVAC

Plumbing Plans with Placements

Flooring Plan

Roof Plan

Foundation Plan

For more information on what's included and examples of what your plans will look like, go here -> https://barndominiumplans.com/pages/whats-included

Please Note: We work with many different draftspeople who work in many different ways.  It should be noted that their plans may contain different details.

What's Not Included

The following items are NOT included:

Architectural or Engineering Stamp. Our plans are engineering-ready! Can take them to a local engineer in your state.

Site Plan - We can provide this if needed for $300 additional.

Materials List - handled locally when required

Energy calculations - handled locally when required

Snow load calculations - handled locally when required

Delivery

This plan is available as a digital product or printed + shipped.

If you select digital, the plan will be delivered to you via email as a PDF file, no matter what time it is.

If you select printed + shipped, your order will ship in 24x36 format within 1 business day of your order.

We ship from the midwest in order to serve the entire country within 3-5 business days!

Return policy

All barndominium house plan purchases are FINAL. There are no exchanges or refunds due to the digital nature of the product. Please make sure that the plan you have selected is going to fit your needs.
