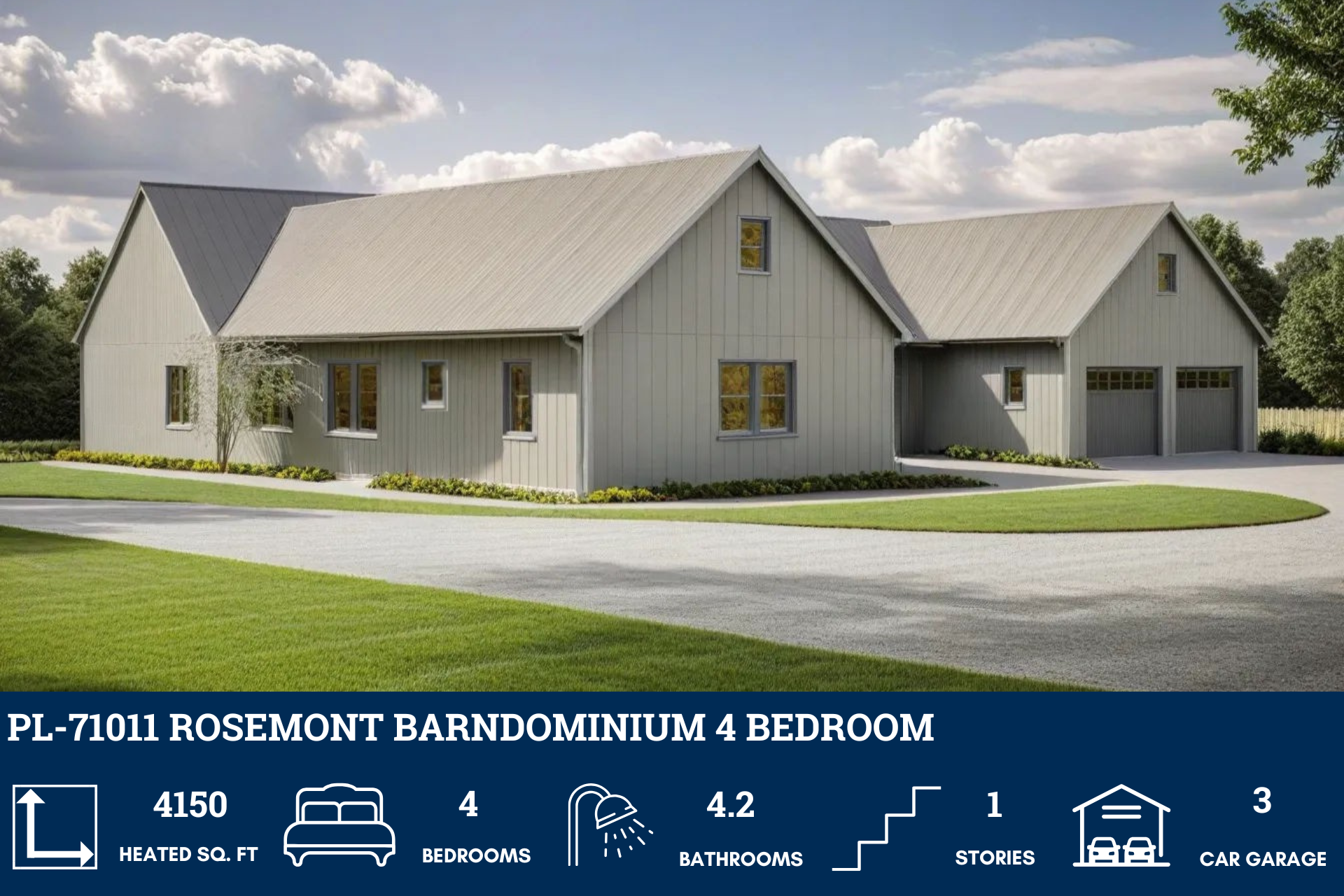

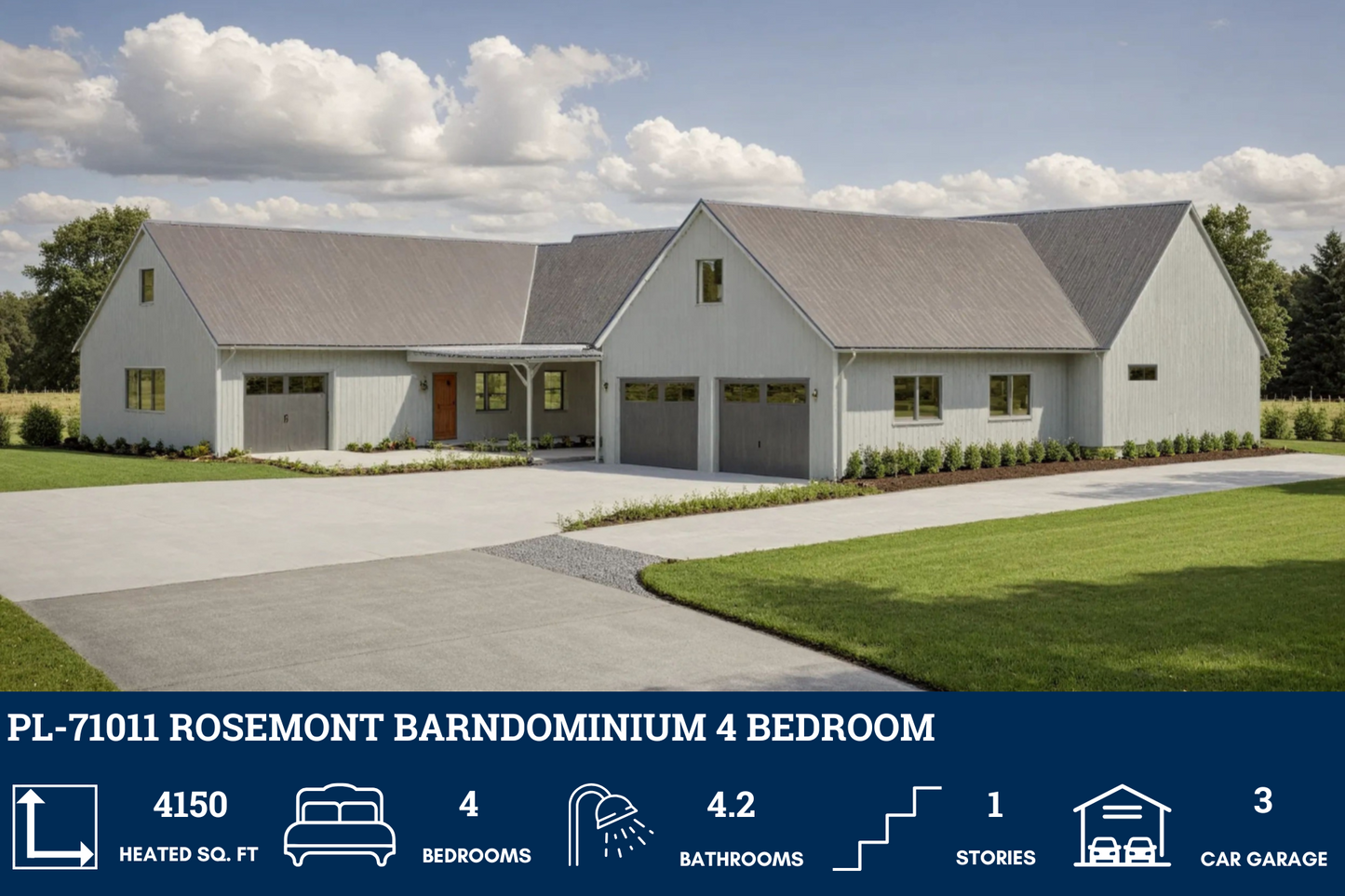

PL-71011 Rosemont Barndominium House Plans

$1,499.99 USD
$1,499.99 USD
Sale Sold out
Add To Wishlist
1 19
Bedrooms 4 Bedrooms
Floors 1 Floors
Full Baths 4 Full Baths
Total Heated Area 4,150 Total Heated Area

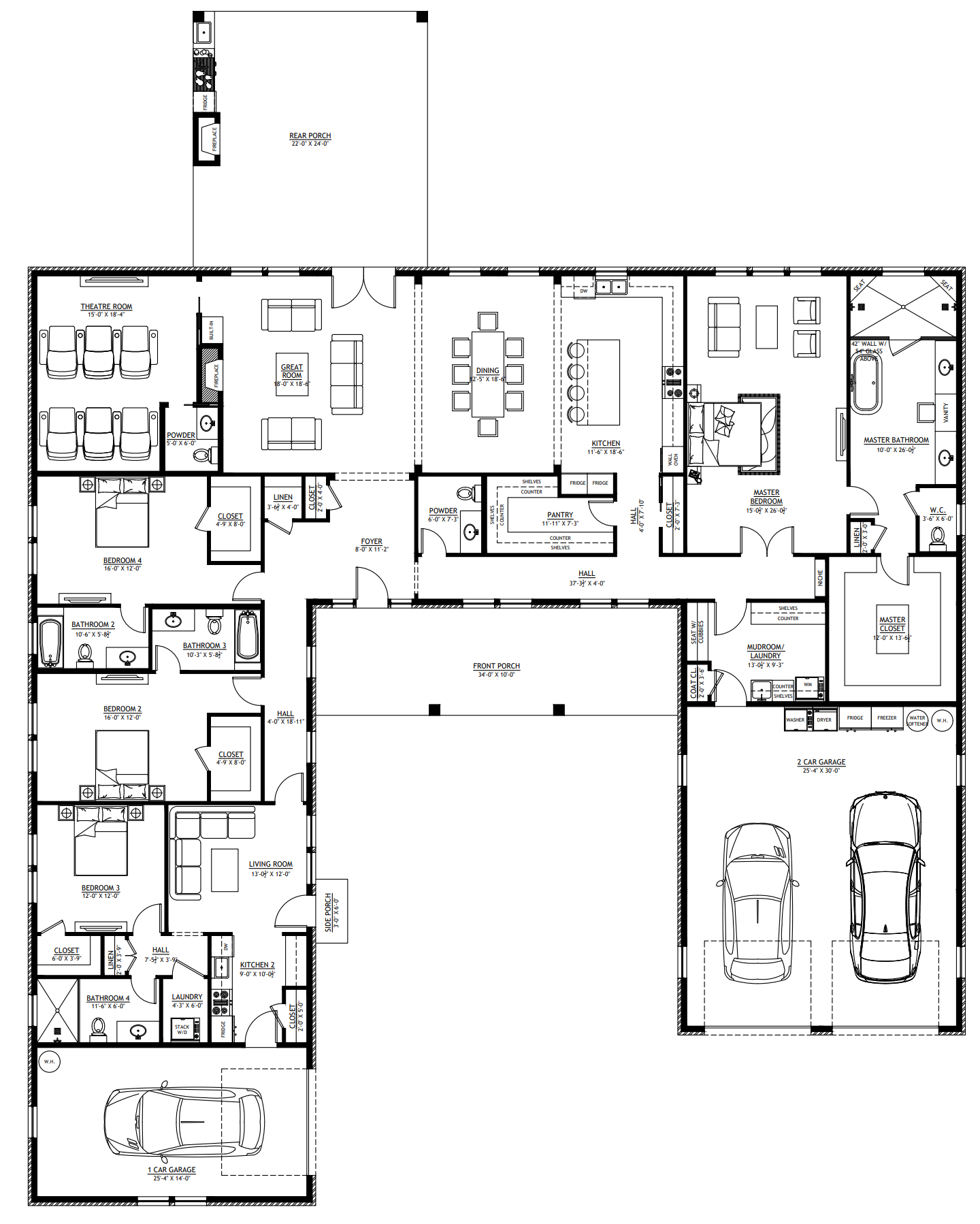

Floor Plan

DETAILS

HEATED SQ FT

First Floor:

4,150 SF

Second Floor:

None

Total Heated Sq Ft:

4,150 SF

UNHEATED SQ FT

Total Unheated Area:

Garages 1,258 SF, Porches 892 = TOTAL 2,150 SF

Carport:

None

Bedrooms:

4

Full Baths:

4

Floors:

1

Garage Size:

845 SF

Width:

88'

Depth:

72'

Height:

25'2"

Foundation:

Concrete Slab

Main Roof Pitch:

10:12

Construction Type:

Metal Shell

CEILING HEIGHTS

First Floor:

10'

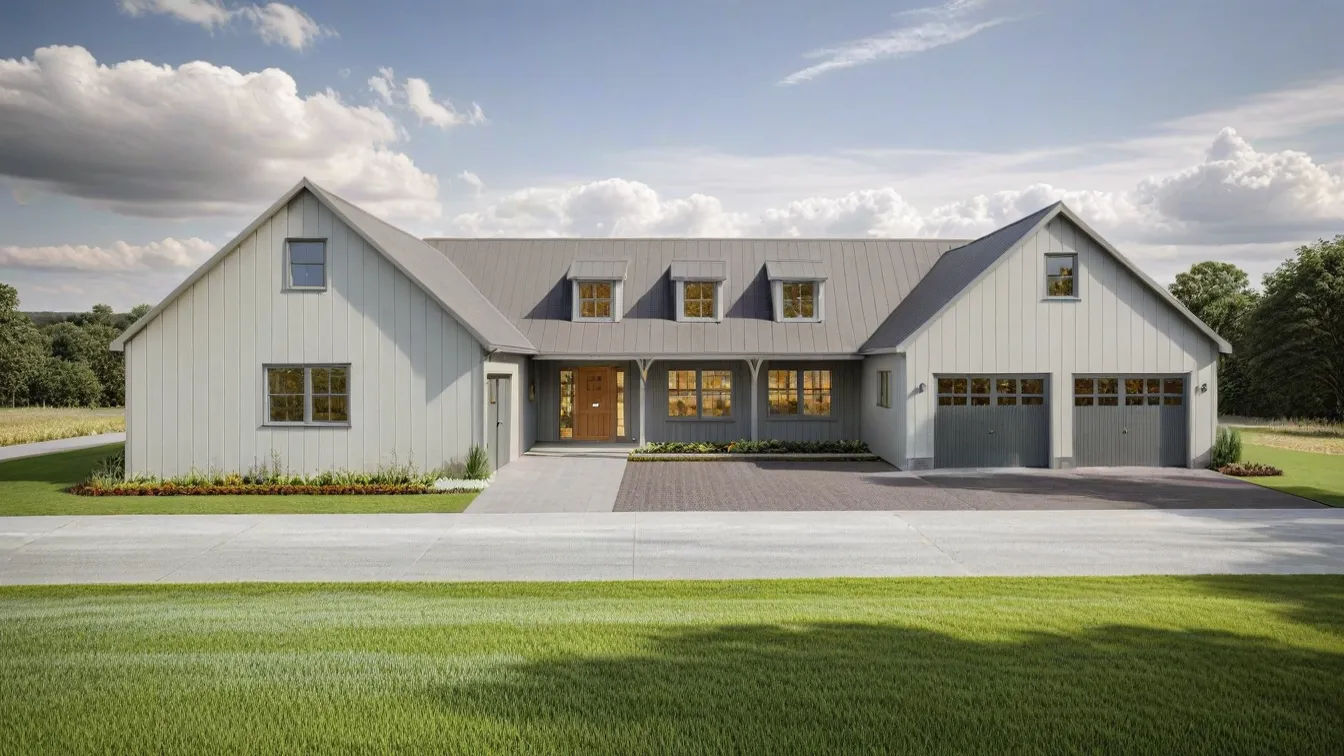

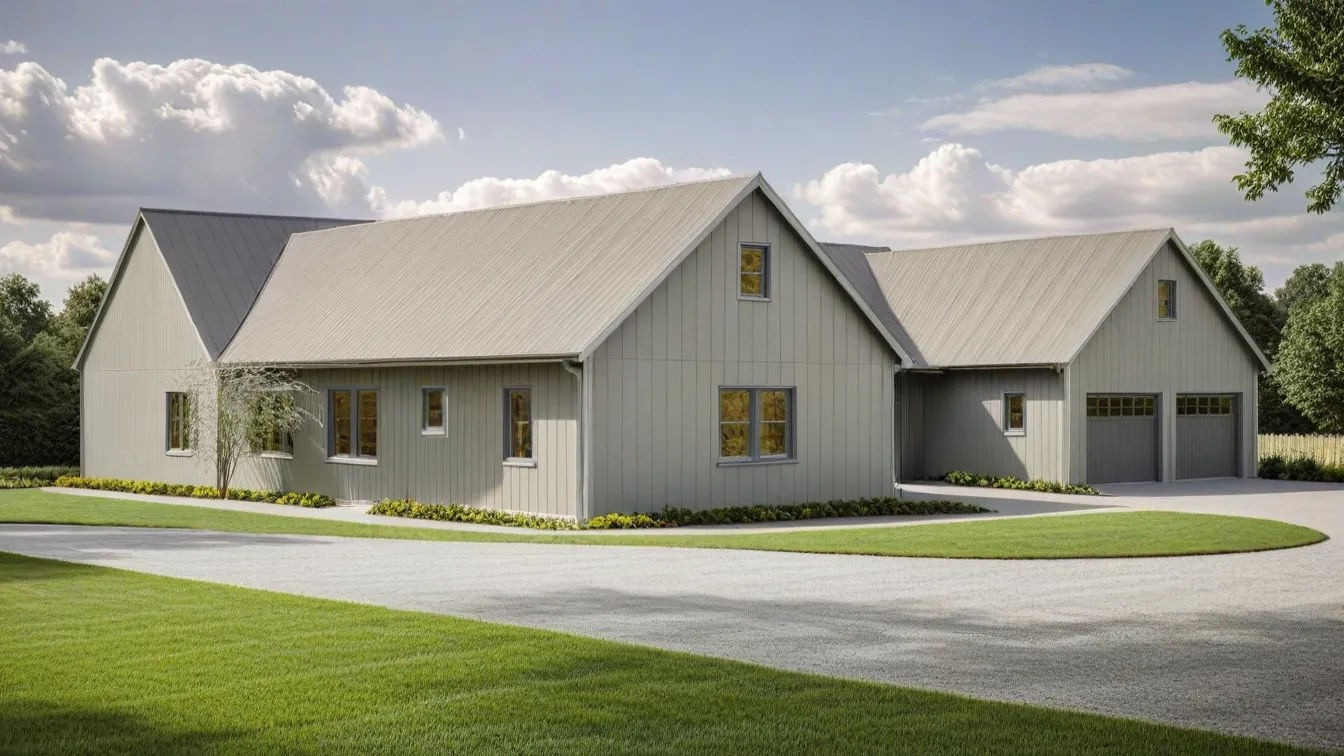

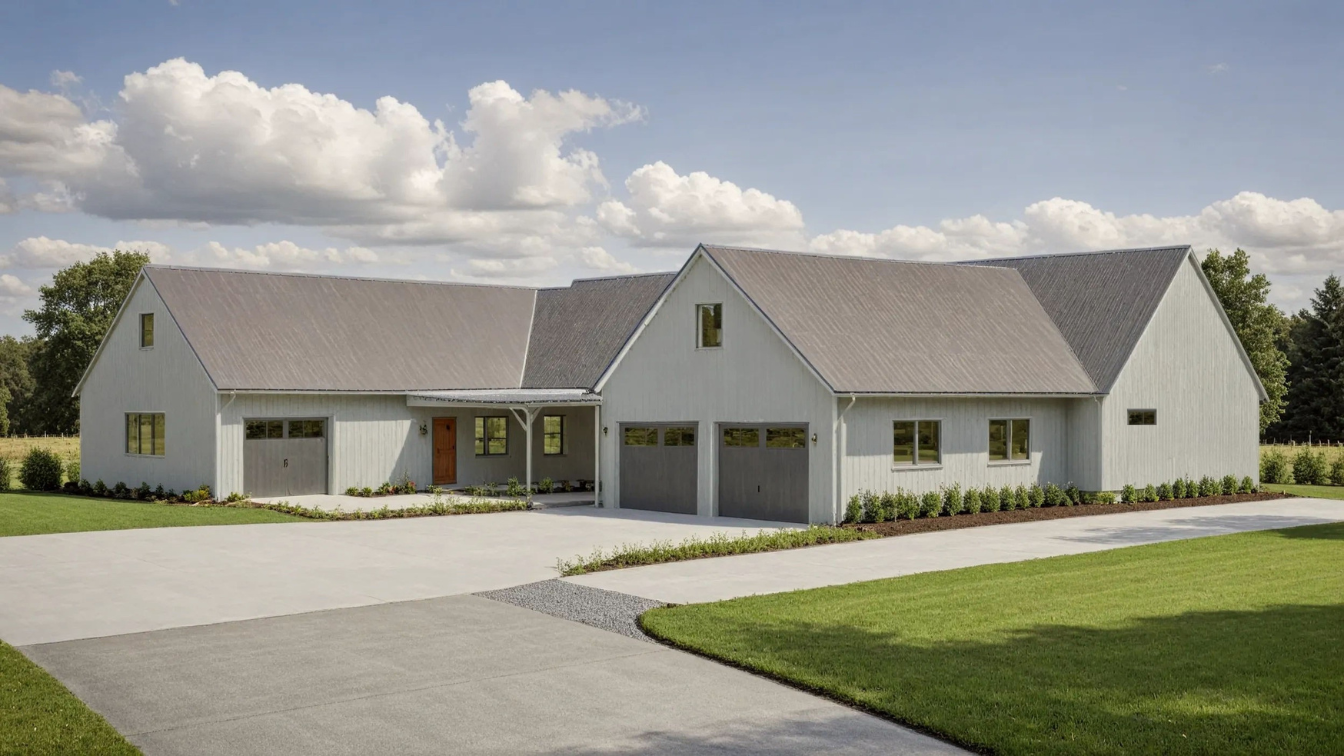

PL-71011 Rosemont Barndominium House Plans

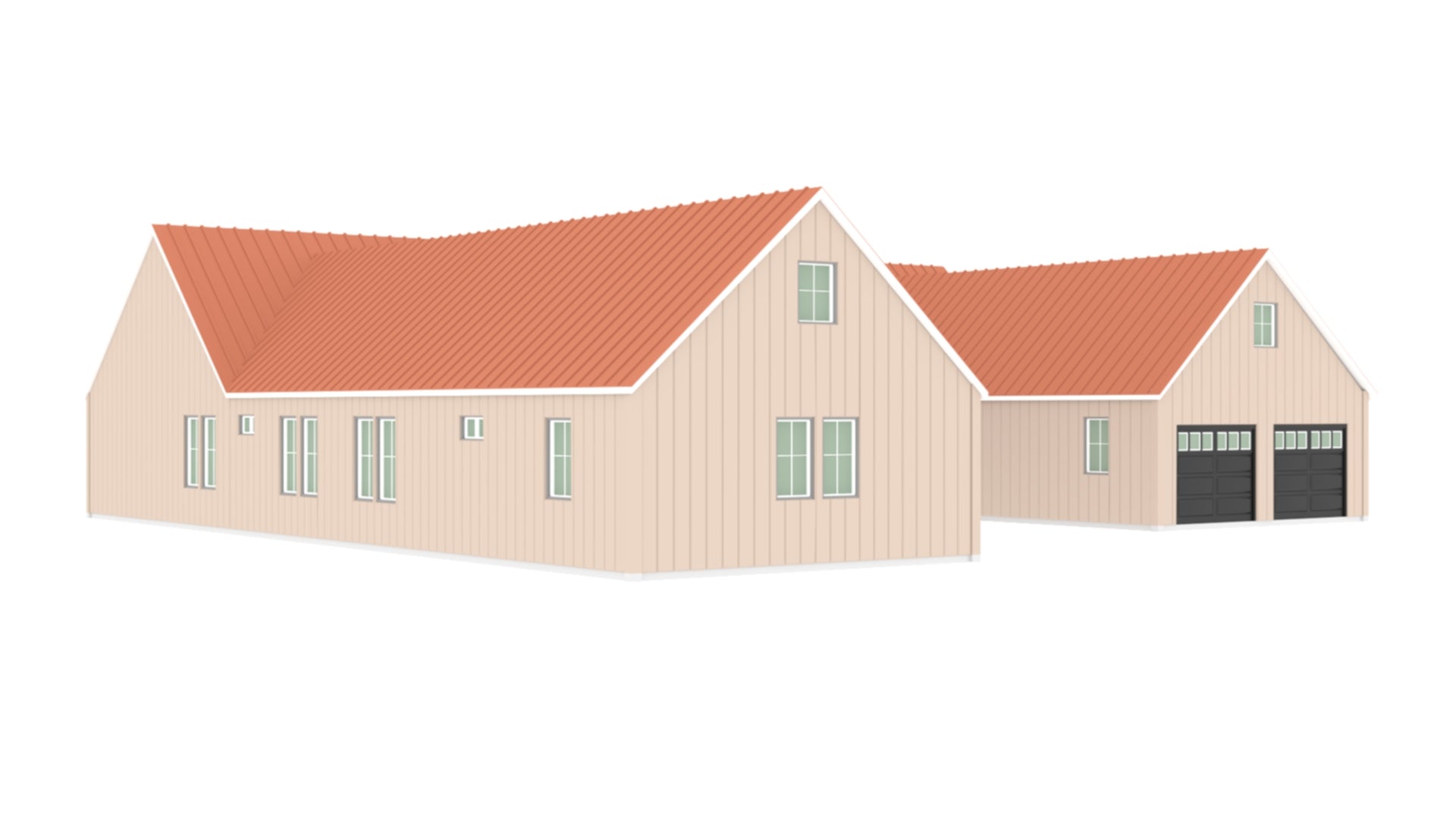

Step inside this barndominium! View all 3D interior walkthrough images at https://www.barndominiumlife.com/barndominium-plans/pl-71011/



About this barndominium house plan:

  • 4150 Heated Square Feet
  • 4 Bedrooms
  • 4.2 Bathrooms
  • Single-story
  • Open-concept
  • Mudroom
  • Great room
  • Living room near the 3 bedrooms
  • Foyer
  • Indoor and Outdoor Fireplace
  • Theatre room
  • Front, rear, and side porches
  • Kitchen 2 adjacent to the living room
  • Outdoor Kitchen
  • 2 Laundry rooms
  • 2- Car Garage (845 Sq Ft)
  • 1-Car Garage (413 Sq Ft)



  • This expansive single-story residence boasts 4,150 square feet of climate-controlled space, ensuring comfort in every corner. Enjoy the ease of single-story living with all essential areas accessible on one level, enhancing mobility and convenience.
  • The layout seamlessly combines the great room, dining room, and main kitchen, creating an open space perfect for entertaining and daily life. Centrally located, this room serves as the heart of the home with its cozy built-in indoor fireplace.

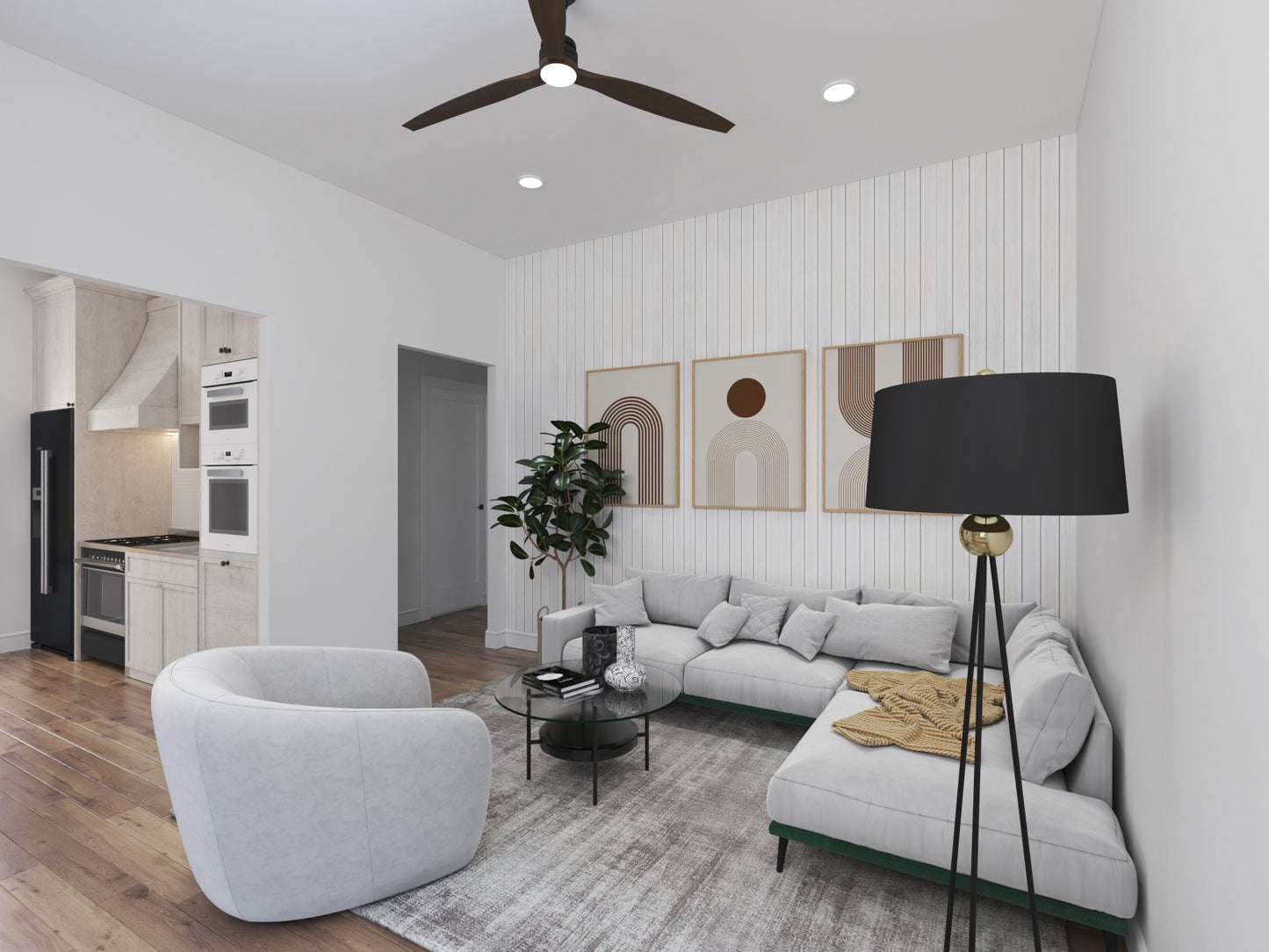

  • The living room is positioned near Bedrooms 2, 3, and 4 on the left side and offers a comfortable area for relaxation and family time and the adjacent secondary kitchen is ideal for additional cooking needs.
  • A welcoming spacious foyer sets the tone for the home and provides a great first impression for guests.

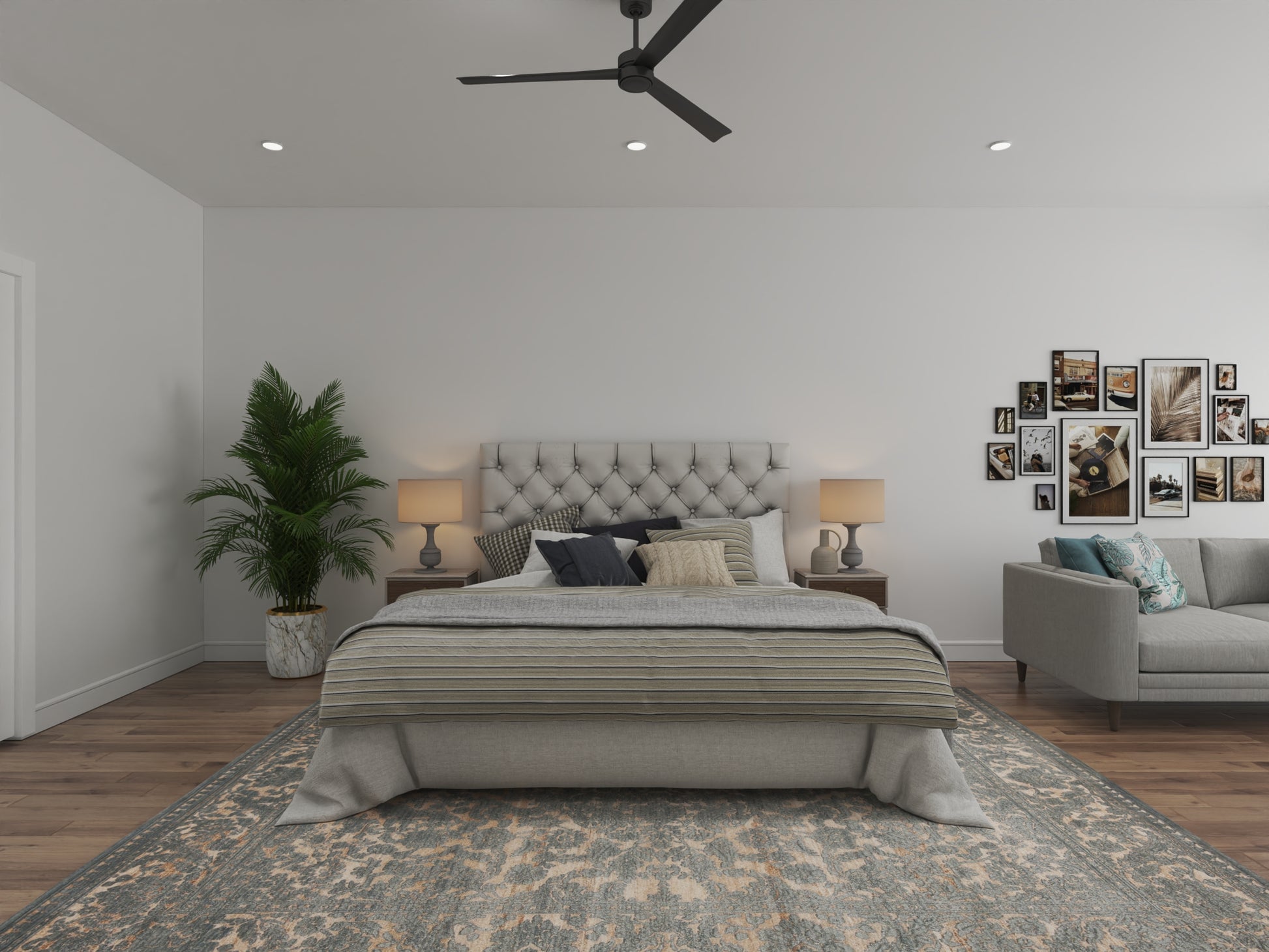

  • The master bedroom is on the right side, offering privacy with its own ensuite bathroom while the 3 bedrooms are on the left side, near the living room, a setup ideal for guests or family members desiring more secluded space.
  • The master bathroom is connected to the master bedroom for private convenience. Two bedrooms each have bathrooms and another common bathroom for easy access. In addition, there are two half baths, one by the foyer for guests and quick usage and another in the theatre room.
  • Located conveniently, the theatre room is perfect for enjoying movies and entertainment in the comfort of your own home.
  • Near the 2-car garage, this practical mudroom space helps keep your home tidy by providing a spot for shoes and outerwear.
  • The indoor fireplace in the great room adds warmth and charm, while the outdoor fireplace on the rear porch enhances the outdoor living experience.
  • The front porch welcomes visitors, the rear porch with an outdoor kitchen is perfect for gatherings, and the side porch by the living room offers a relaxing outdoor retreat.
  • With 845 sq ft, this 2-car garage offers ample room for vehicles and additional storage while another 1-car garage with 413 sq ft of space on the left side offers extra room for another vehicle and storage needs.





What's included in PL-71011:

Cover Page
Floor Plan
Roof Plan

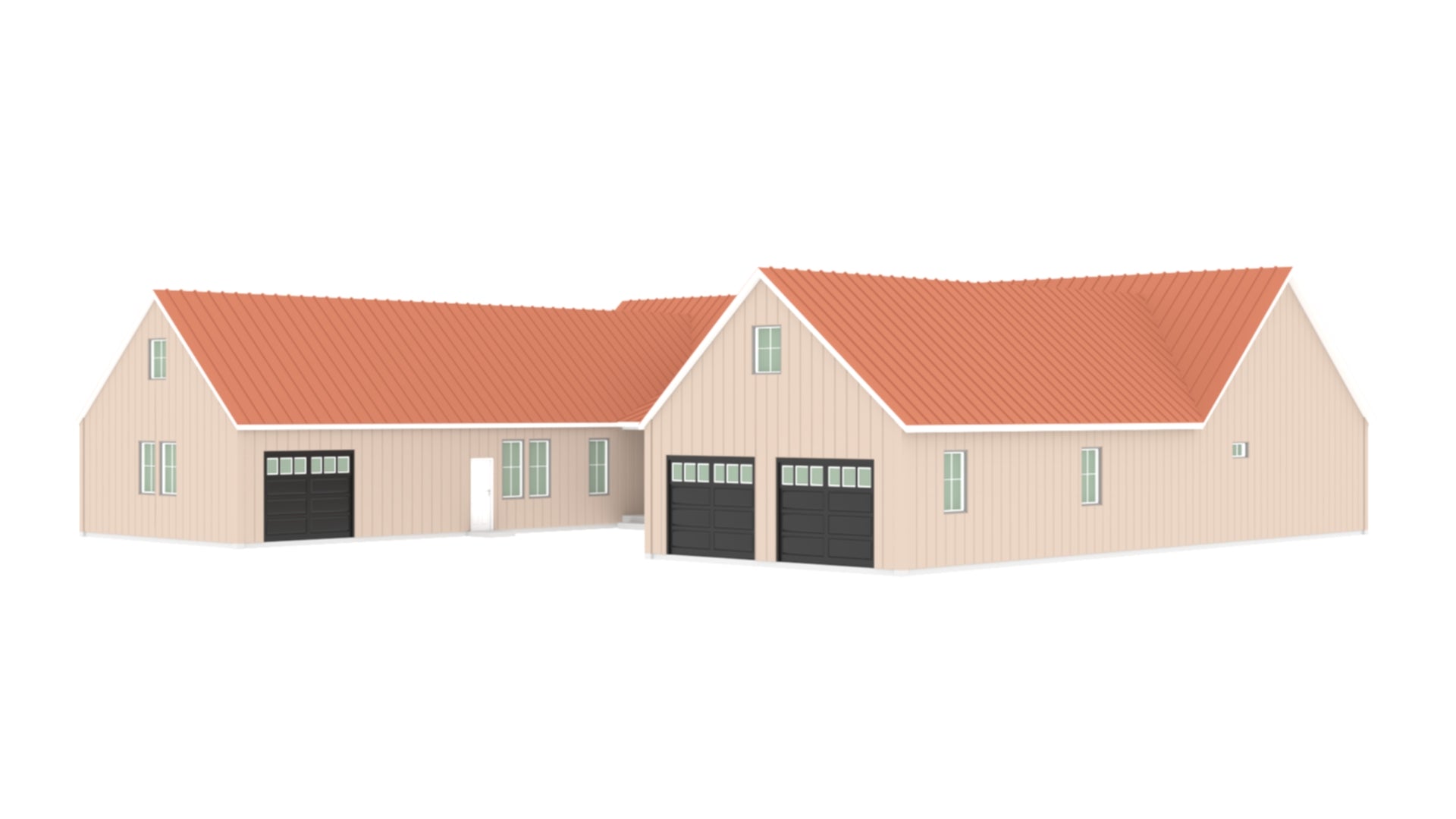

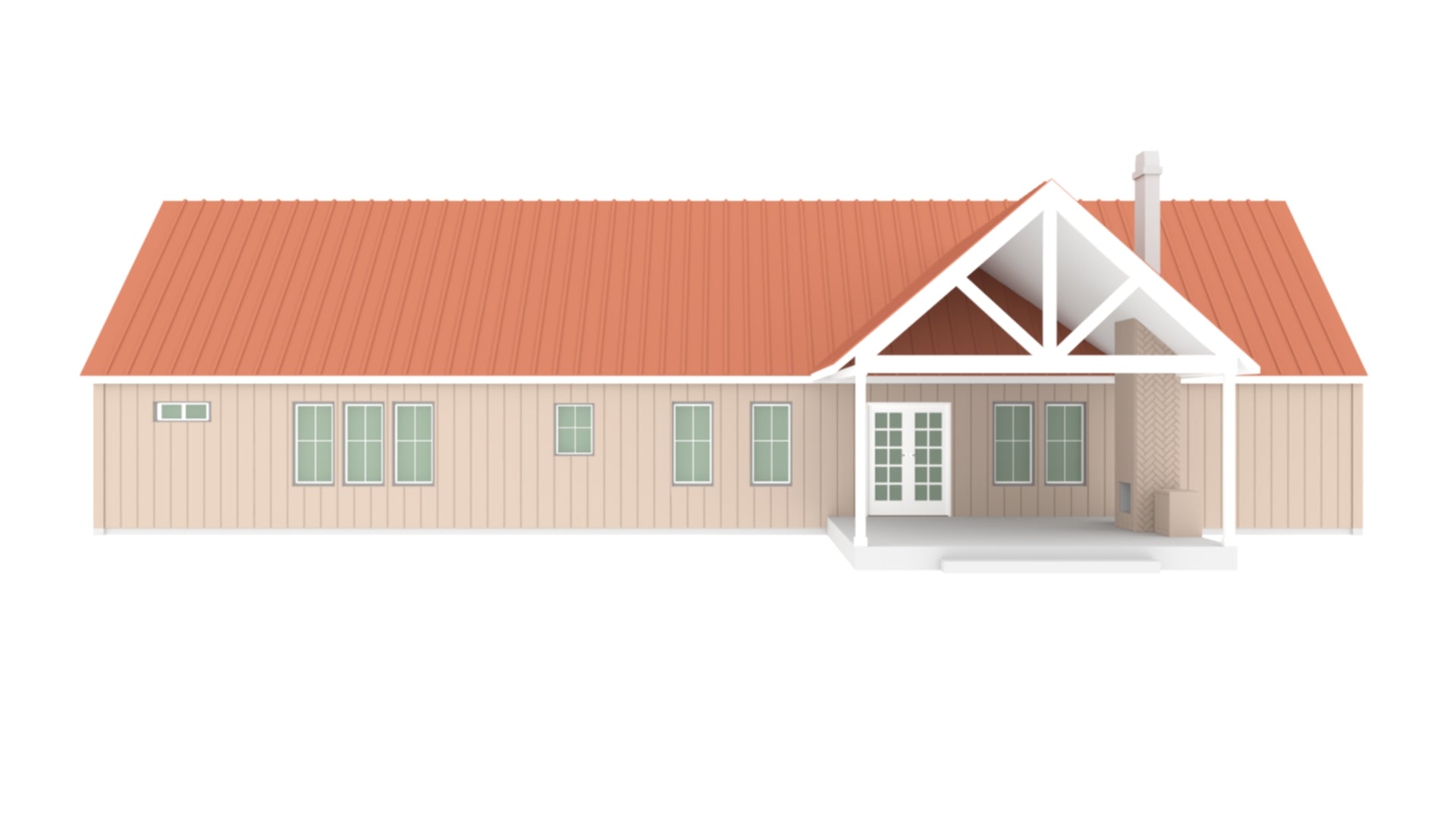

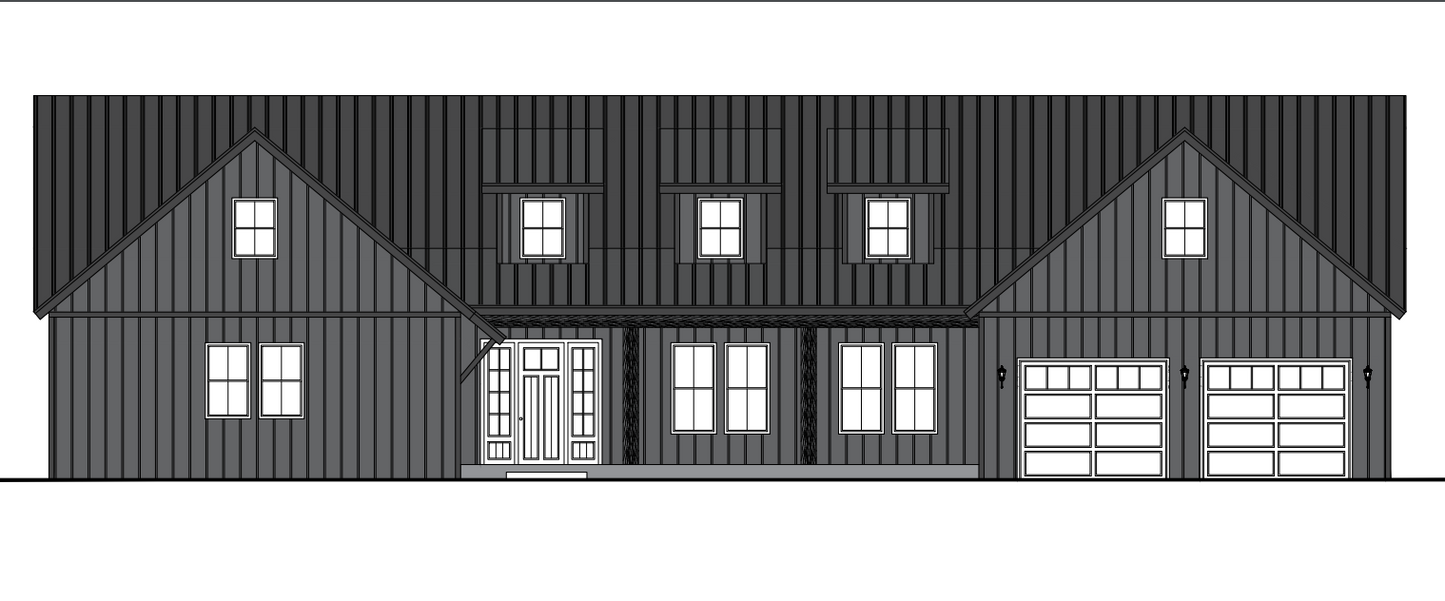

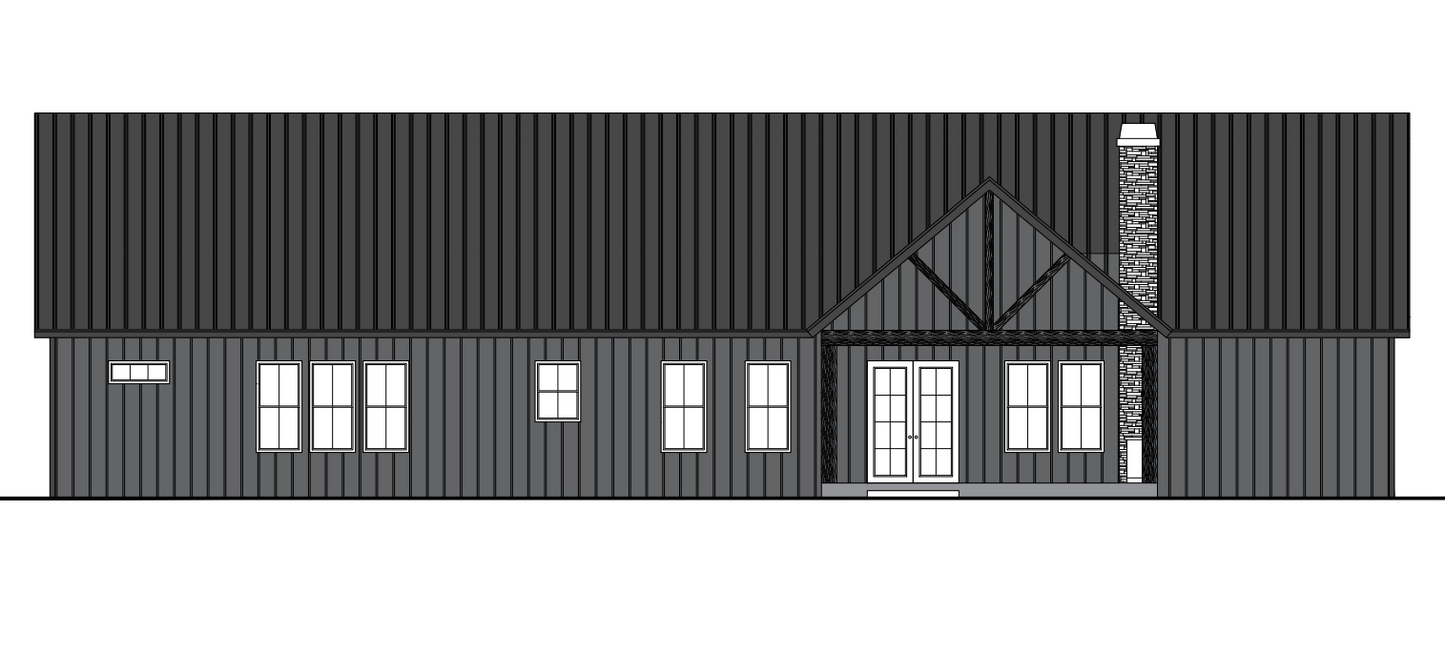

Front And Rear Elevation

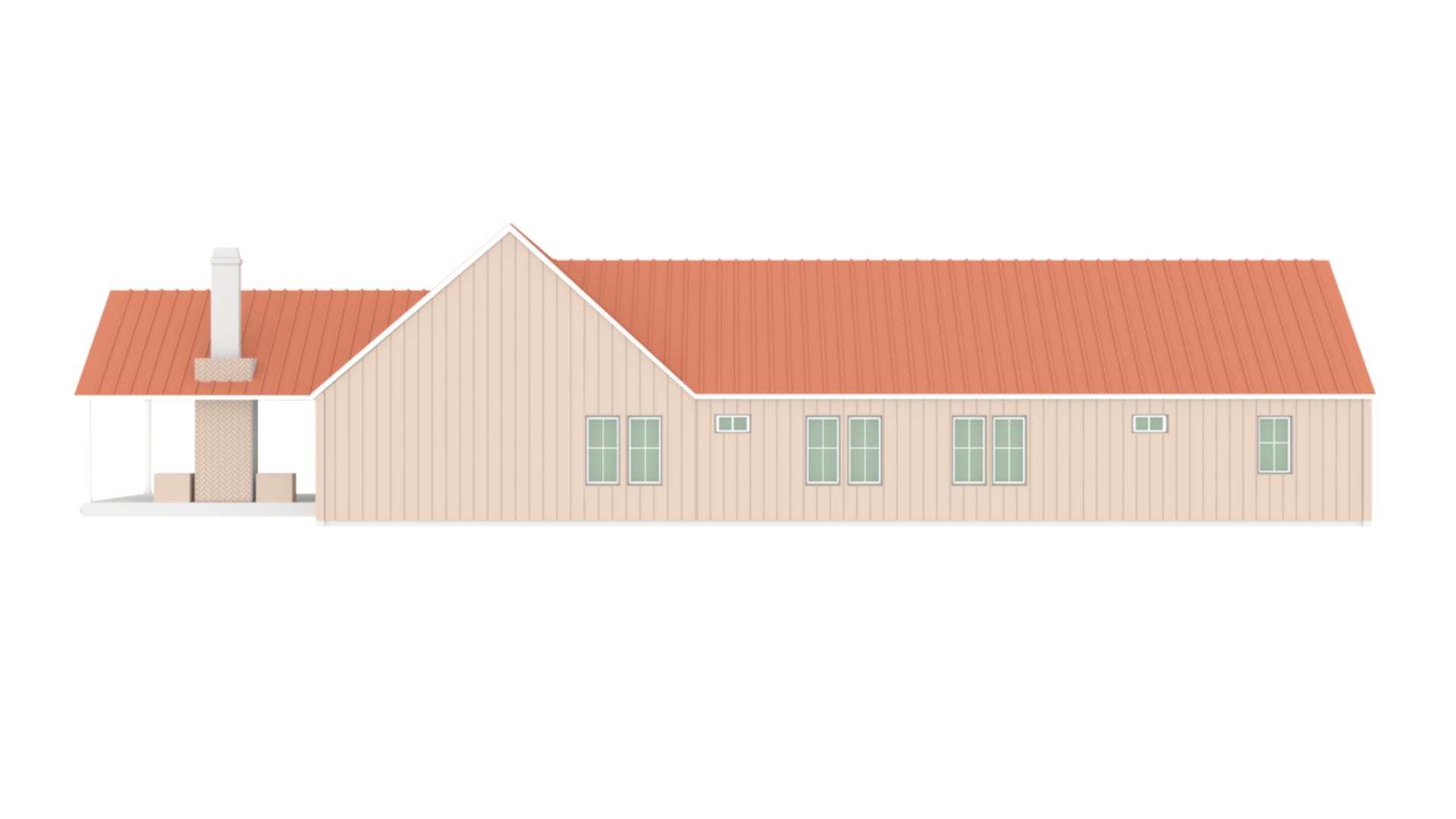

Right And Left Elevation
Electrical Plan
Plumbing Plan
Hvac Plan
Roof Framing Plan
Foundation Plan
Foundation Detail
Interior Bearing Footing
C-Typical Column Detail
Wall Section



For more barndominium floor plans, check out our complete collection of 4-bedroom barndominium floor plans.



Need to make changes? Submit a modification request using the button that says Modify This Plan . We will get you a free price quote within 72 hours

What's Typically Included

THE SPECIFC DETAILS OF WHAT'S INCLUDED ON THESE PLANS IS CONTAINED IN THE PRODUCT DESCRIPTION. PLEASE SCROLL UP AND YOU WILL FIND IT UNDER "WHAT'S INCLUDED"

Our house plan sets typically have the following details:

4 Elevations – Front, Back, Both Sides

Detailed Floor Plan Drawing

Electrical Plans with placements for HVAC

Plumbing Plans with Placements

Flooring Plan

Roof Plan

Foundation Plan

For more information on what's included and examples of what your plans will look like, go here -> https://barndominiumplans.com/pages/whats-included

Please Note: We work with many different draftspeople who work in many different ways.  It should be noted that their plans may contain different details. THE SPECIFC DETAILS OF WHAT'S INCLUDED ON THESE PLANS IS CONTAINED IN THE PRODUCT DESCRIPTION. PLEASE SCROLL UP AND YOU WILL FIND IT UNDER "WHAT'S INCLUDED"

What's Not Included

The following items are NOT included:

Architectural or Engineering Stamp. Our plans are engineering-ready! Can take to a local structural engineer, but we are not engineers ourselves. Once you've purchased plans, we can make a recommendation in all 50 states.

Septic Drawings - Handled locally

Metal Truss Plans - These are provided by the truss manufacturer

Wind and Snow Loads - Handled locally!

Delivery

This plan is available as a digital product or printed + shipped.

If you select digital, the plan will be delivered to you via email as a PDF file, no matter what time it is.

If you select printed + shipped, your order will ship in 24x36 format within 1 business day of your order.

We ship from the midwest in order to serve the entire country within 3-5 business days!

Return policy

All barndominium house plan purchases are FINAL. There are no exchanges or refunds due to the digital nature of the product. Please make sure that the plan you have selected is going to fit your needs.

Wondering about modifications, and making sure you like the changes? While all plan sales featuring modifications are also FINAL, here's a bit about how the modification process works:

After your order is placed, our team gets started on your modifications.

First, we send over an initial floor plan draft to make sure the modifications are correct. Any "clarifying changes" are included at no additional cost. Things like "Oh I meant for the door to swing this way, not that way" or "kitchen appliances should be arranged in XYZ way". Any major changes to the plan like adding a bedroom, a second story, or a different foundation are an additional fee. 99% of our customers do not incur an additional fee.

After the floor plan is confirmed, we send over the floor plans + elevations. We do the same process, and once you're good with the elevations, we finish up your final plans.
