PL-61303 Brookvale Barndominium

$849.99 USD
$849.99 USD
Sale Sold out
1 10

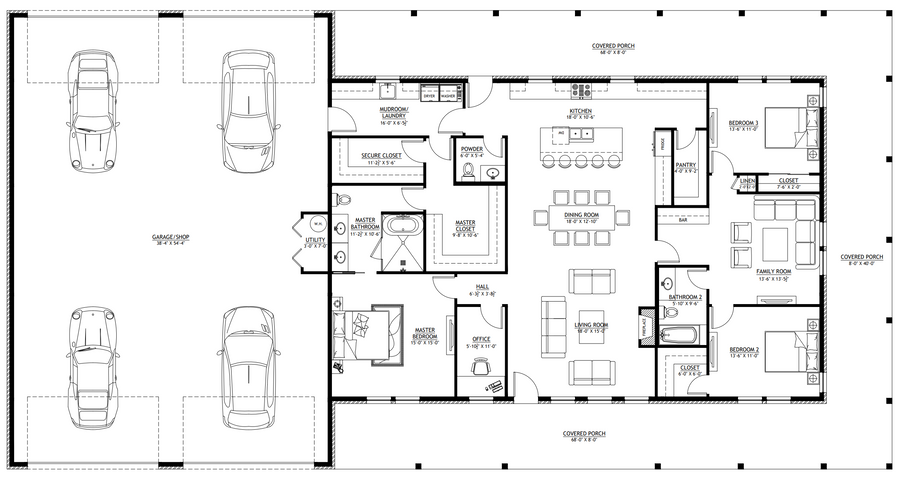

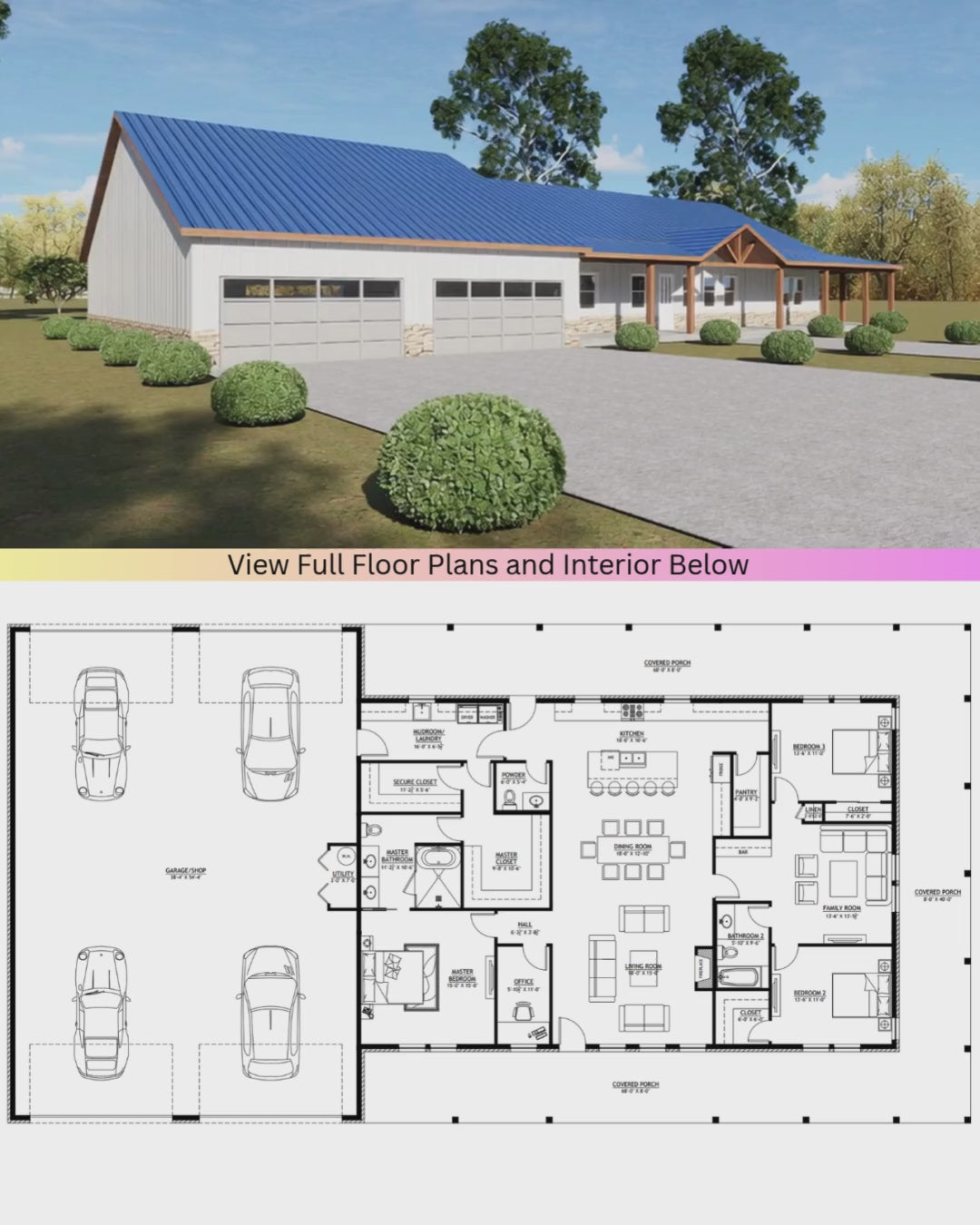

Floor Plan

DETAILS

HEATED SQ FT

First Floor:

2,434 sq ft

Total Heated Sq Ft:

2,434 sq ft

UNHEATED SQ FT

Total Unheated Area:

3,614 sq ft Garage/Shop: 2,206 sq ft Covered Porches: 1,408 sq ft (three porches: 68'x8' front, 68'x8' rear, 40'x8' side)​

Bedrooms:

3

Full Baths:

2.1

Floors:

1

Garage Size:

2,206 sq ft (38'-4" x 54'-4")​

Width:

108'​

Depth:

56'

Height:

25' 9"​ to ridge

Foundation:

5" concrete slab-on-grade, #3 rebar @ 16" O.C.​

Main Roof Pitch:

6:12 on main sections

3:12 on porch roof extensions​

Exterior Framing:

2x6

CEILING HEIGHTS

First Floor:

10'​

PL-61303 Brookvale Barndominium



  • 2434 Heated Square Feet
  • 40x60 living space dimension
  • 3 Bedrooms
  • 2.1 Bathrooms
  • Single story
  • Open concept
  • Mudroom
  • Wraparound porch
  • Utlity
  • Secure closet
  • Office
  • Fireplace
  • Family room
  • 4-car Attached Garage



  • Includes three spacious bedrooms and two full bathrooms featuring modern fixtures and ample space. The open concept layout seamlessly connects the kitchen, dining, and living areas, making it ideal for effortless entertaining.
  • The home also features a practical mudroom, ideal for keeping your home clean and organized, and a charming wraparound porch that provides a lovely outdoor space to enjoy the surroundings.
  • The utility room is conveniently located in the garage/shop for easy access and functionality, while a secure closet in the master bedroom ensures your valuables are safely stored.
  • For those who work from home, the plan includes an office, perfect for managing household affairs.
  • Adding to the charm is a cozy fireplace that adds warmth and ambiance to the spacious family room, making it the perfect spot for gatherings and relaxation.
  • The home also boasts a four-car attached garage, offering plenty of space for vehicles and storage.



What's included in PL-61303

Cover Sheet
Detailed Floor Plan Dimensions
Electrical Plan
Plumbing Plan
HVAC Plan
Roof Framing Plan
Foundation Plan
Wall Section



For more barndominium floor plans, check out our complete collection of 3-bedroom barndominium floor plans.



Need to make changes? Email our modification department. We will get you a free price quote within 72 hours.

Please note all square footage are estimates.

What's Included

Our house plan sets typically have the following details:

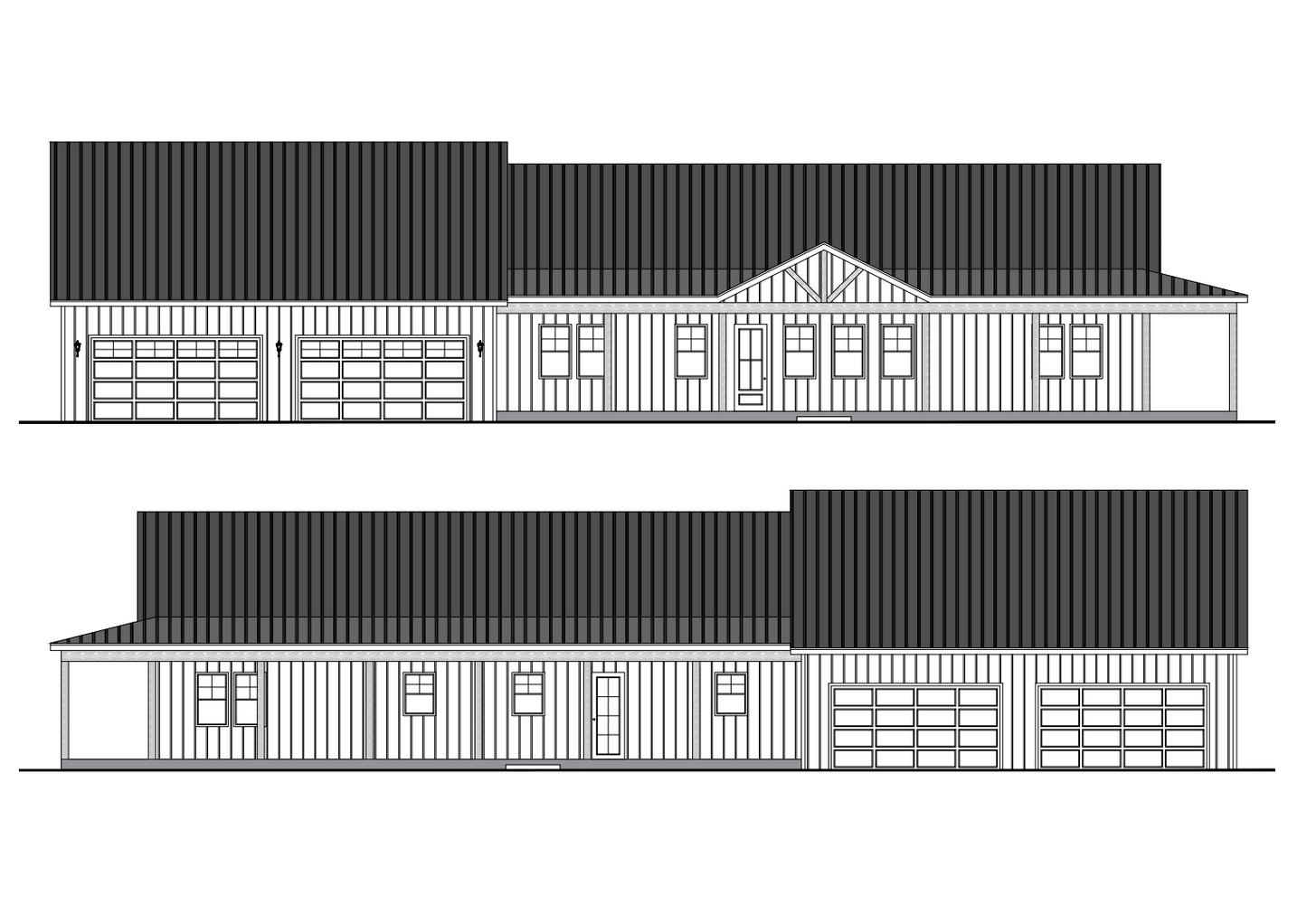

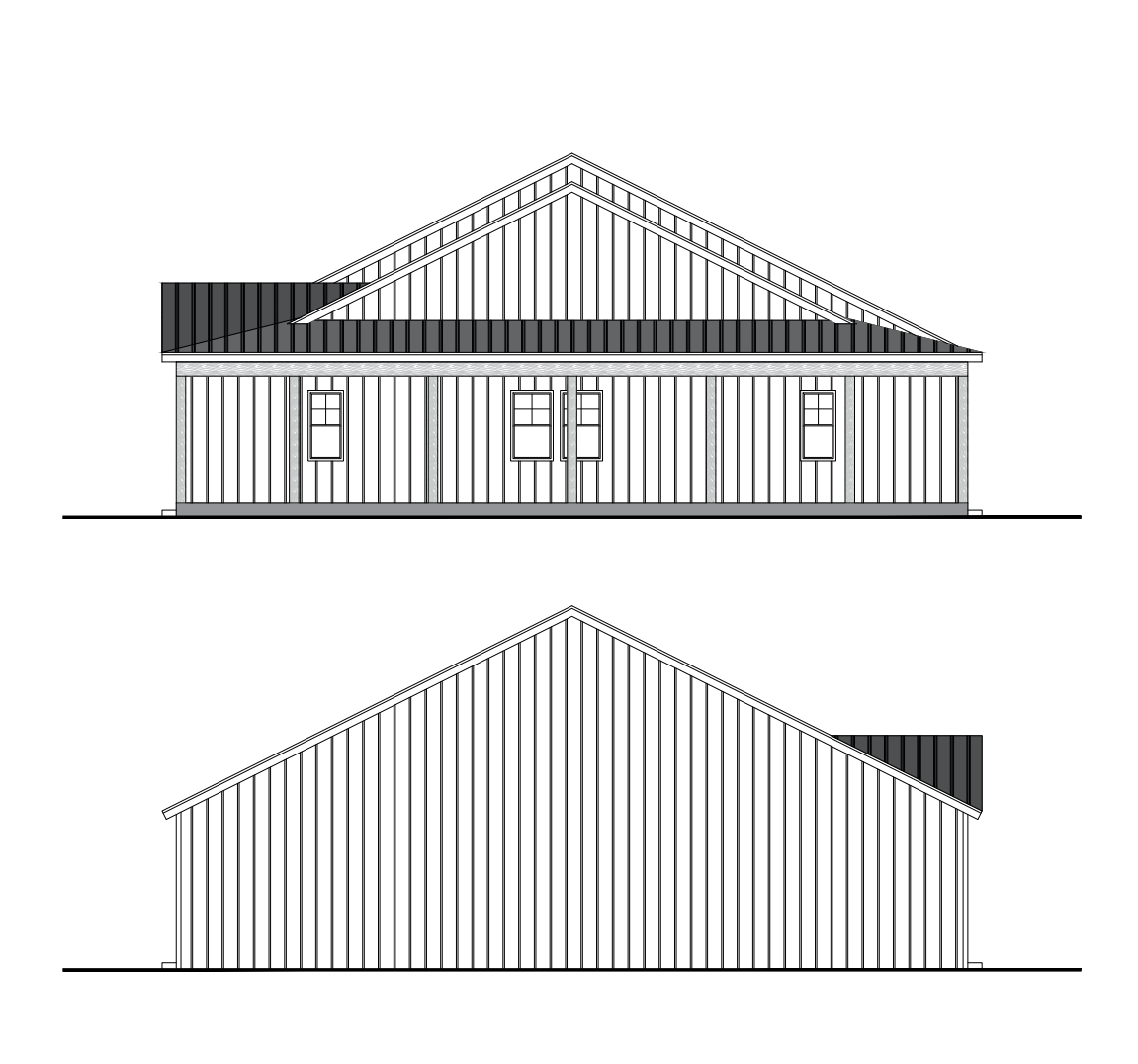

4 Elevations – Front, Back, Both Sides

Detailed Floor Plan Drawing

Electrical Plans with placements for HVAC

Plumbing Plans with Placements

Flooring Plan

Roof Plan

Foundation Plan

For more information on what's included and examples of what your plans will look like, go here -> https://barndominiumplans.com/pages/whats-included

Please Note: We work with many different draftspeople who work in many different ways.  It should be noted that their plans may contain different details.

What's Not Included

The following items are NOT included:

Architectural or Engineering Stamp. We work with a third party to provide an engineering stamp in most states.

Site Plan - We can provide this if needed for $300 additional.

Energy calculations - handled locally when required

Snow load calculations - handled locally when required

Delivery

This plan is available as a digital product or printed + shipped.

If you select digital, the plan will be delivered to you via email as a PDF file, no matter what time it is.

If you select printed + shipped, your order will ship in 24x36 format within 1 business day of your order.

We ship from the midwest in order to serve the entire country within 3-5 business days!

Return policy

All barndominium house plan purchases are FINAL. There are no exchanges or refunds due to the digital nature of the product. Please make sure that the plan you have selected is going to fit your needs.

💥 [COUNT] People are currently viewing this product.
Build
PDF (Single Build) $849.99
PDF (Single Build)

Additional Options
Modify this plan? Want to make adjustments? We’ll provide you with a free price estimate within 1 to 3 business days.
Still making a decision? Get an estimate of the construction cost for this house in your area.

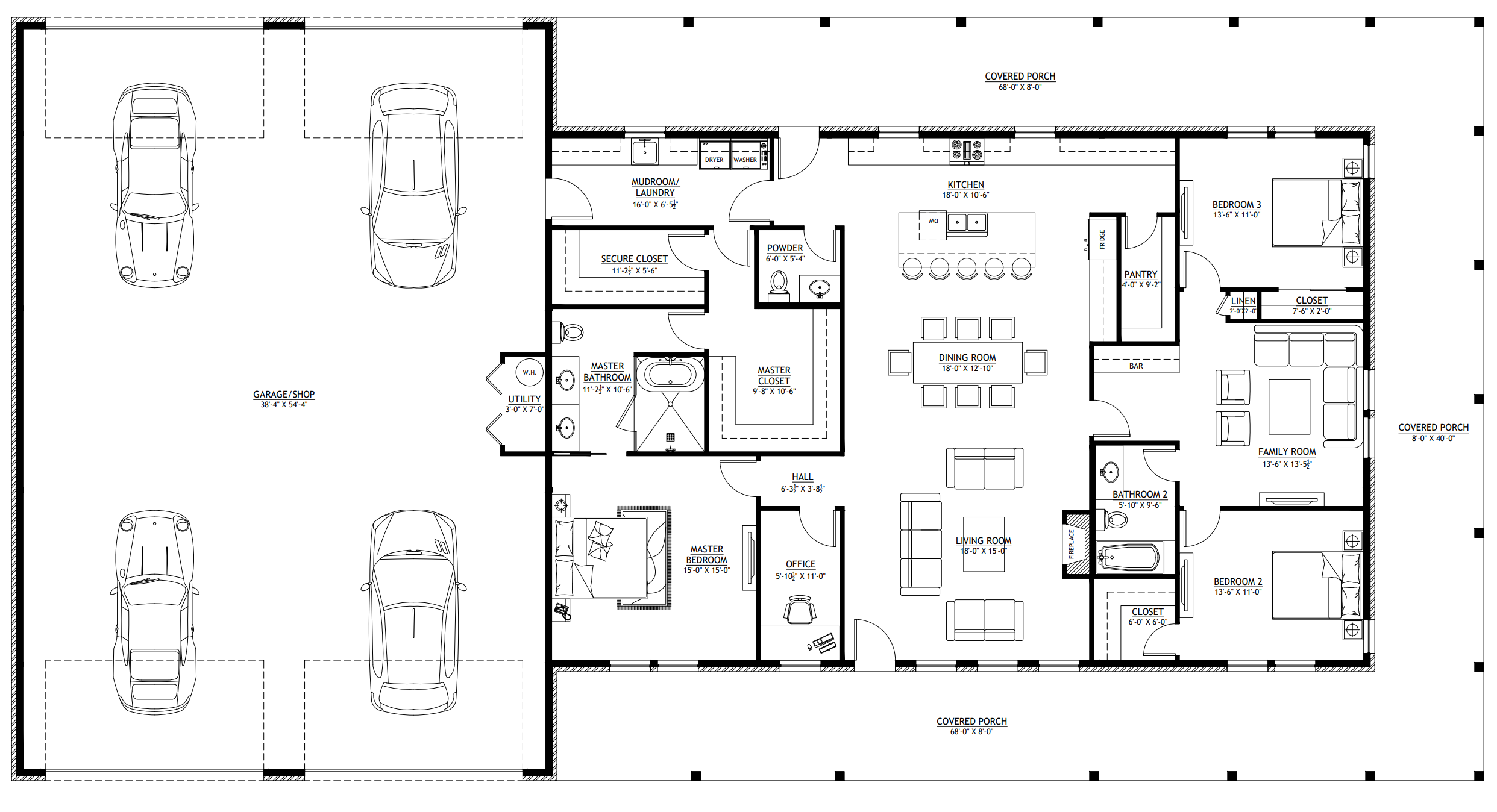

Floor Plan
