HC-24008-M Marcellus Barndominium House Plan

$1,349.99 USD
$1,349.99 USD
Sale Sold out
Add To Wishlist
1 12
Bedrooms 5 Bedrooms
Floors 2 Floors
Full Baths 3 Full Baths
Total Heated Area 3,653 SF Total Heated Area

Floor Plan

DETAILS

HEATED SQ FT

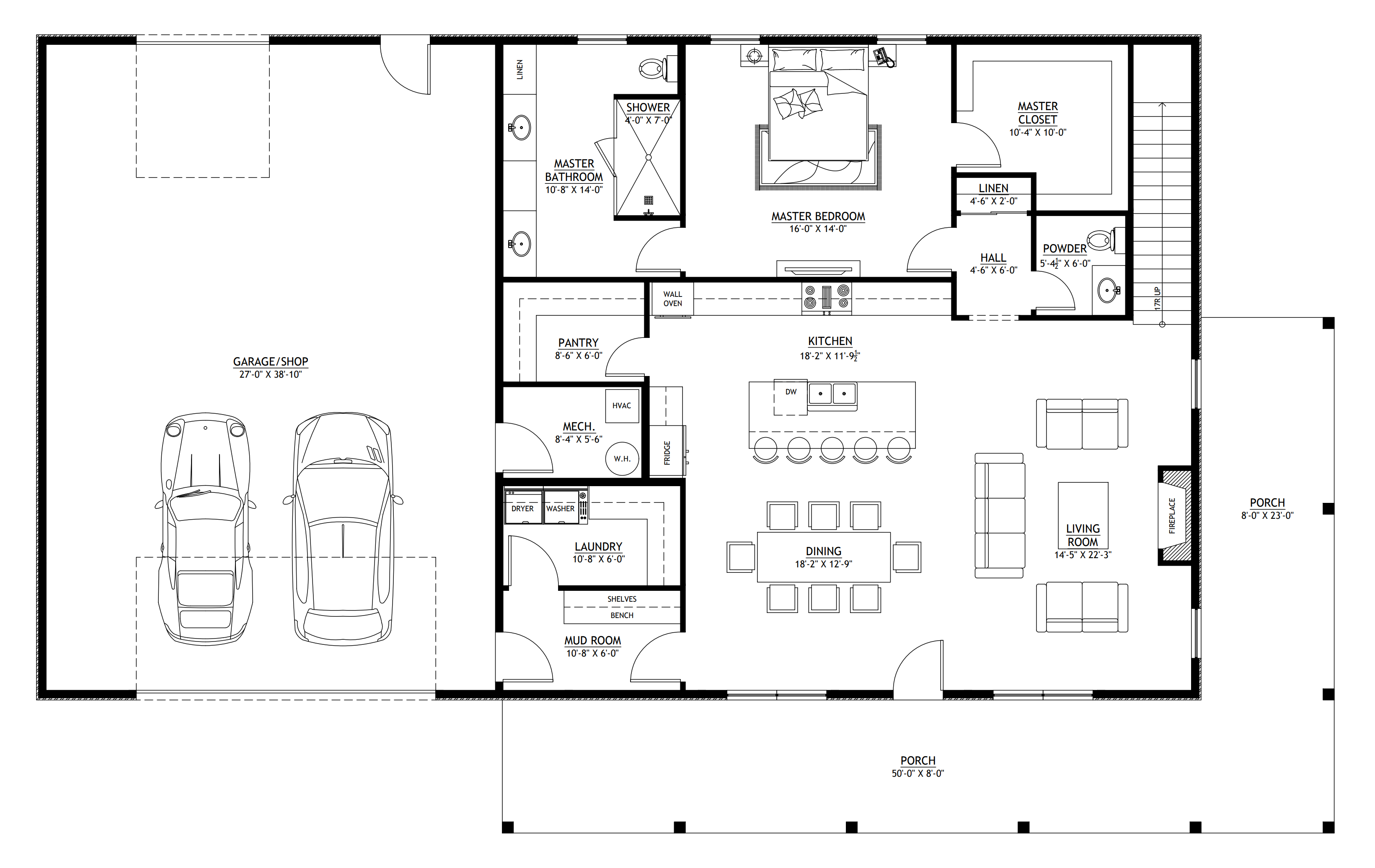

First Floor:

1,700 SF

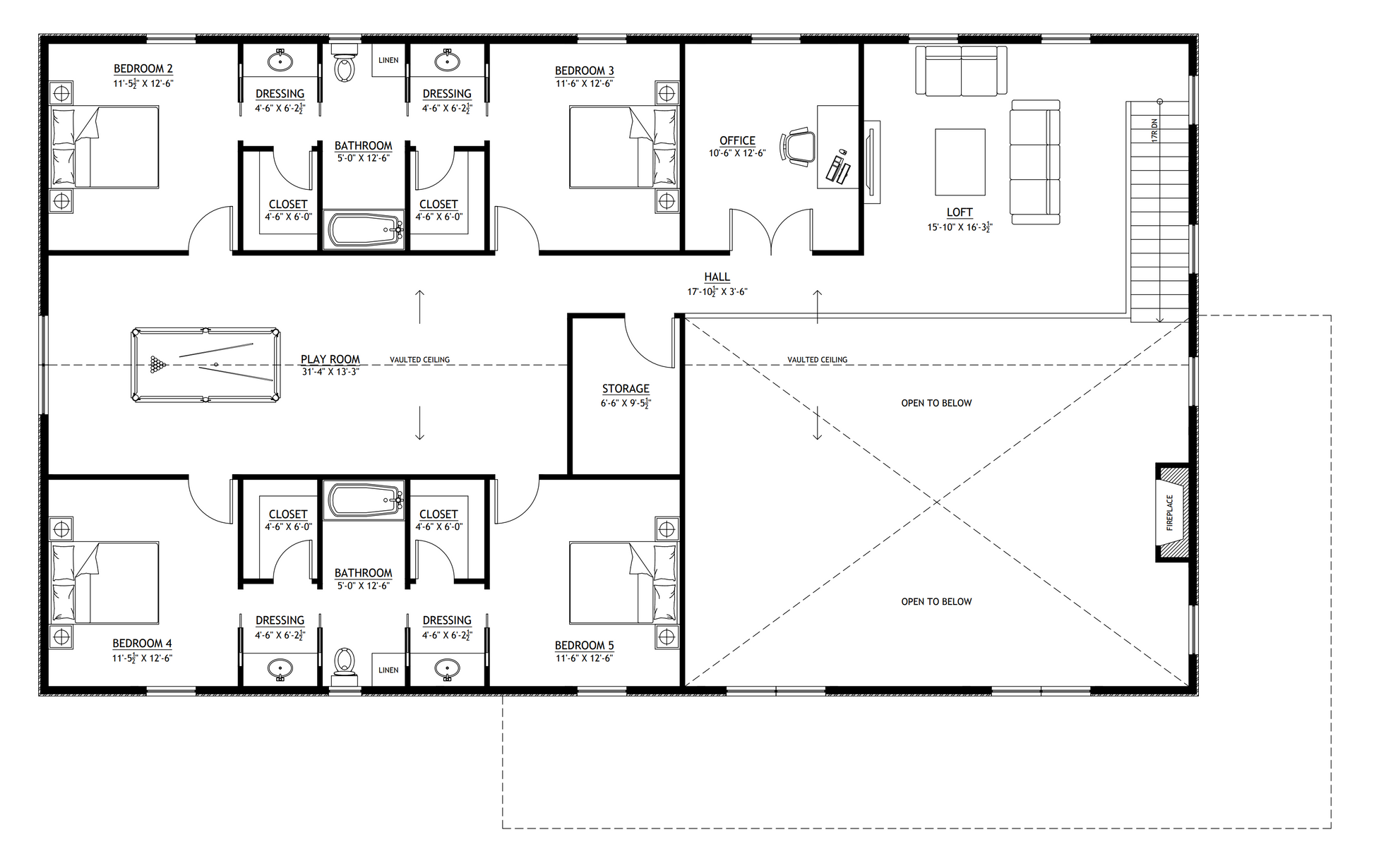

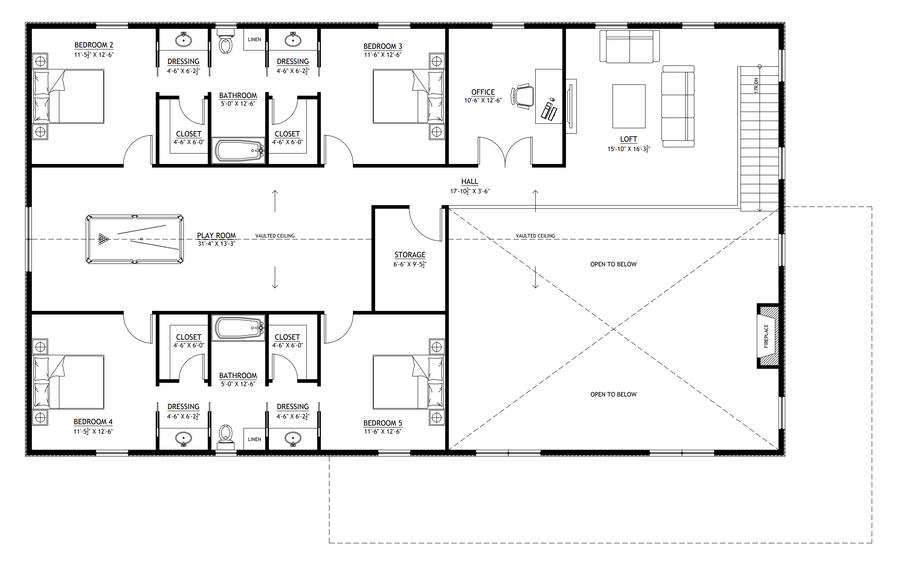

Second Floor:

2,022 SF

Total Heated Sq Ft:

3,653 SF

UNHEATED SQ FT

Total Unheated Area:

Garage 1,100 SF, Porch 584 SF = TOTAL 1,684 SF

Carport:

None

Bedrooms:

5

Full Baths:

3

Floors:

2

Garage Size:

1,100 SF

Width:

78'

Depth:

48'

Height:

30'-6"

Foundation:

Concrete Slab

Main Roof Pitch:

6:12

Exterior Framing:

Post Frame

CEILING HEIGHTS

First Floor:

10'

HC-24008-M Marcellus Barndominium House Plan



Discover a similar floor plan here.



About this barndominium house plan:

  • 3653 Heated Square Feet
  • 5 Bedrooms
  • 3.1 Bathrooms
  • Two Story
  • Loft
  • Open concept
  • Office
  • Playroom
  • Storage
  • Jack & Jill baths
  • Mudroom
  • Mech room
  • Covered porch
  • 1100 Sq Ft Garage/Shop



  • A generous 3,653 sq ft layout designed for growing families, offering spacious living areas across two levels.
  • Five well-sized bedrooms, including a convenient main-floor master suite and four upstairs bedrooms perfect for family living.
  • Three full bathrooms and a half bath, including two Jack & Jill bathrooms upstairs that efficiently serve the second-floor bedrooms.
  • Versatile loft area ideal for relaxing, gaming, or creating a secondary family gathering space.
  • Dedicated office space perfect for remote work, studying, or managing daily tasks.
  • Fun and flexible playroom designed for kids’ activities, hobbies, or creative projects.
  • Additional storage space upstairs helps keep seasonal items and essentials organised.
  • A mudroom and laundry combo that keeps daily routines efficient and clutter under control.
  • Practical mechanical room located in the garage to keep essential systems organised and accessible without taking indoor space.
  • An expansive covered porch extending from the front to the side, creating a welcoming outdoor living space for relaxing or entertaining.
  • A spacious 1,100 sq ft two-car garage and shop area offering excellent room for vehicles, tools, hobbies, or workshop projects.



What's included in HC-24008

Cover Page
First Floor Plan

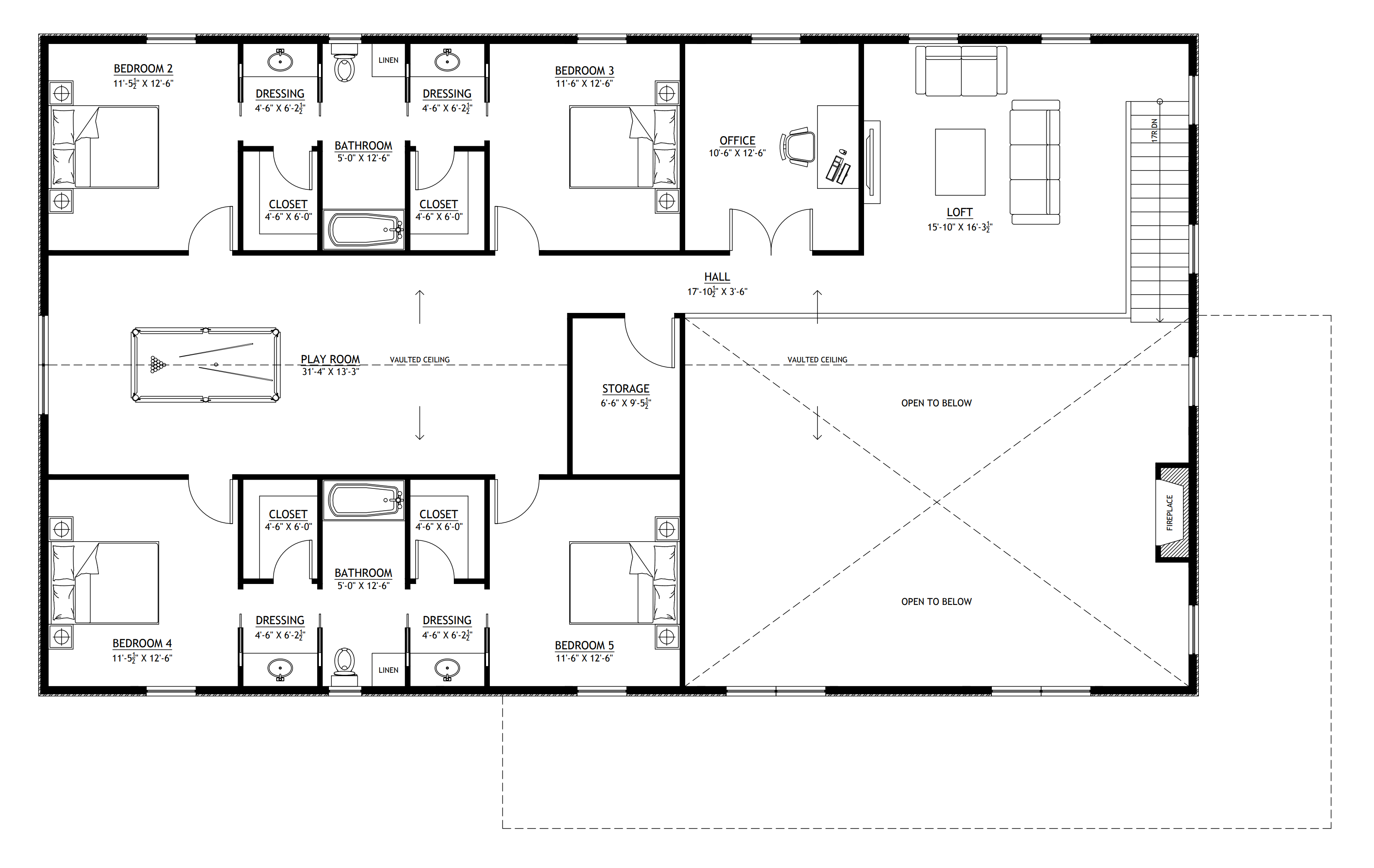

Second Floor Plan
Roof Plan

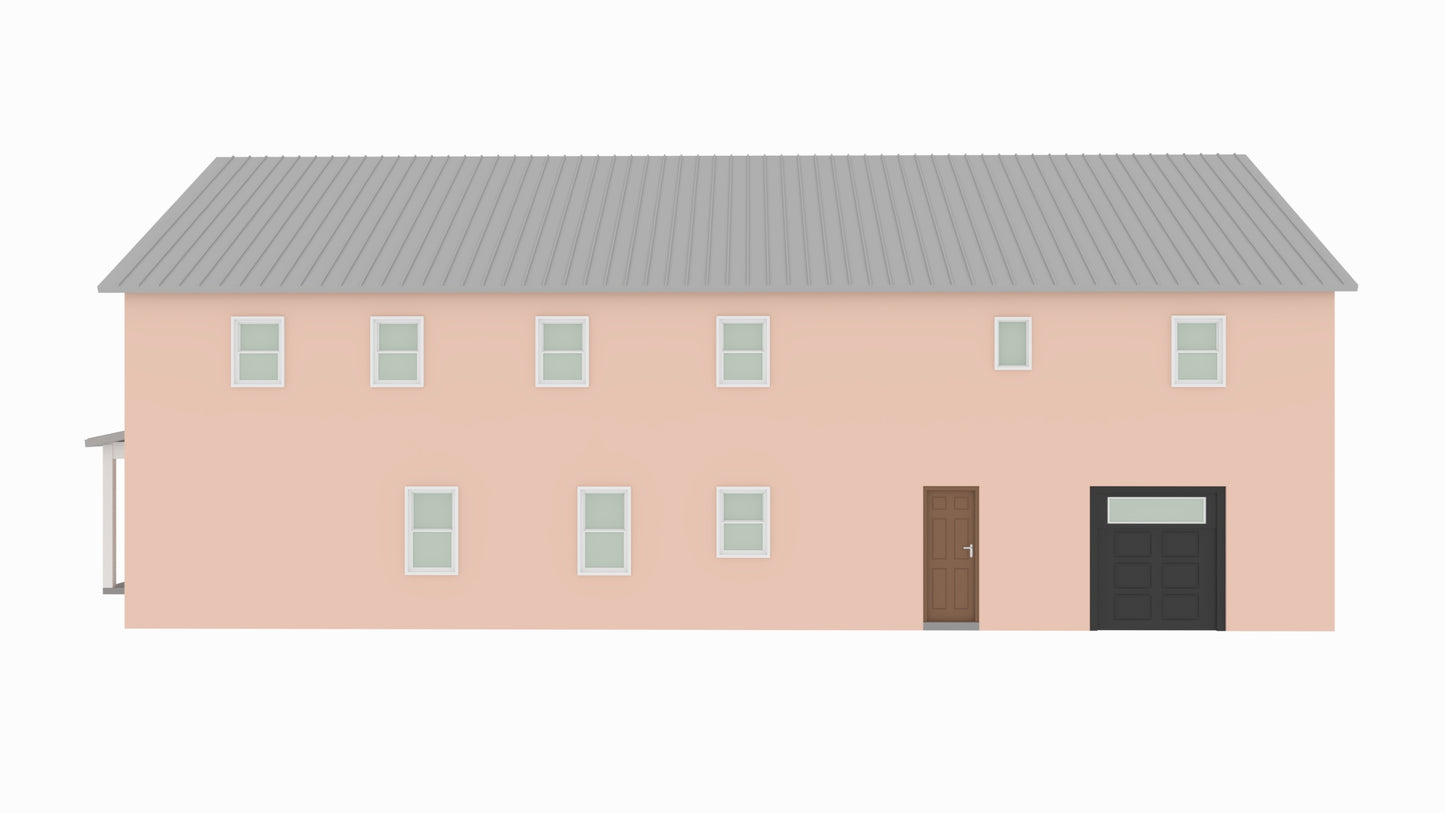

Front and Rear Elevation
Right and Left Elevation
First Floor Electrical Plan
Second Floor Electrical Plan
First Floor Plumbing Plan
Second Floor Plumbing Plan
First Floor HVAC Plan
Second Floor HVAC Plan
Roof Framing Plan
Foundation Plan
Slab Detail
Porch Post Detail
Wall Section



For more barndominium floor plans, check out our complete collection of 5-bedroom barndominium floor plans.



Need to make changes? Submit a modification request using the button that says Modify This Plan. We will get you a free price quote within 72 hours.

What's Typically Included

THE SPECIFC DETAILS OF WHAT'S INCLUDED ON THESE PLANS IS CONTAINED IN THE PRODUCT DESCRIPTION. PLEASE SCROLL UP AND YOU WILL FIND IT UNDER "WHAT'S INCLUDED"

Our house plan sets typically have the following details:

4 Elevations – Front, Back, Both Sides

Detailed Floor Plan Drawing

Electrical Plans with placements for HVAC

Plumbing Plans with Placements

Flooring Plan

Roof Plan

Foundation Plan

For more information on what's included and examples of what your plans will look like, go here -> https://barndominiumplans.com/pages/whats-included

Please Note: We work with many different draftspeople who work in many different ways.  It should be noted that their plans may contain different details. THE SPECIFC DETAILS OF WHAT'S INCLUDED ON THESE PLANS IS CONTAINED IN THE PRODUCT DESCRIPTION. PLEASE SCROLL UP AND YOU WILL FIND IT UNDER "WHAT'S INCLUDED"

What's Not Included

The following items are NOT included:

Architectural or Engineering Stamp. Our plans are engineering-ready! Can take them to a local engineer in your state.

Site Plan - We can provide this if needed for $300 additional.

Materials List - handled locally when required

Energy calculations - handled locally when required

Snow load calculations - handled locally when required

Delivery

This plan is available as a digital product or printed + shipped.

If you select digital, the plan will be delivered to you via email as a PDF file, no matter what time it is.

If you select printed + shipped, your order will ship in 24x36 format within 1 business day of your order.

We ship from the midwest in order to serve the entire country within 3-5 business days!

Return policy

All barndominium house plan purchases are FINAL. There are no exchanges or refunds due to the digital nature of the product. Please make sure that the plan you have selected is going to fit your needs.

Wondering about modifications, and making sure you like the changes? While all plan sales featuring modifications are also FINAL, here's a bit about how the modification process works:

After your order is placed, our team gets started on your modifications.

First, we send over an initial floor plan draft to make sure the modifications are correct. Any "clarifying changes" are included at no additional cost. Things like "Oh I meant for the door to swing this way, not that way" or "kitchen appliances should be arranged in XYZ way". Any major changes to the plan like adding a bedroom, a second story, or a different foundation are an additional fee. 99% of our customers do not incur an additional fee.

After the floor plan is confirmed, we send over the floor plans + elevations. We do the same process, and once you're good with the elevations, we finish up your final plans.
