HC-24008 Jackson Barndominium House Plan

$849.99 USD
$849.99 USD
Sale Sold out
1 10

Floor Plan

DETAILS

HEATED SQ FT

First Floor:

1,642 SF

UNHEATED SQ FT

Total Unheated Area:

1,774 SF (1,158 garage + 616 porch)

Carport:

None included

Bedrooms:

5

Full Baths:

3

Floors:

2

Garage Size:

1,158 SF

Width:

70'

Depth:

40'

Height:

26' 6"

Foundation:

16" and 8" Concrete Stem Wall (Non-engineered)

Main Roof Pitch:

4/12

Exterior Framing:

Post & Frame construction

CEILING HEIGHTS

First Floor:

10'

HC-24008 Jackson Barndominium House Plan



  • 3653 Heated square feet
  • 5 Bedrooms
  • 3.1 Bathrooms
  • Loft
  • Open concept
  • Attached 1158 Sq Ft Garage
  • Office
  • Mechanical room
  • Mudroom
  • Patio



  • An expansive two-story floor plan with 3653 heated square feet offering 5 bedrooms and 3.1 bathrooms, providing ample room for family and guests.
  • The open concept layout on the main floor ensures a smooth flow, perfect for both everyday living and entertaining.
  • The loft-style second floor adds a touch of versatility, while the dedicated office is ideal for remote work or study. Practical features like the mechanical room and mudroom enhance convenience.
  • The attached 1158 sq ft garage offers plenty of space for vehicles and storage and you can enjoy the charm of the patio, perfect for relaxing and enjoying the outdoors.



For more barndominium floor plans, check out our complete collection of 5-bedroom barndominium floor plans.



Need to make changes? Email our modification department. We will get you a free price quote within 72 hours.

Please note all square footage are estimates.

What's Included

Our house plan sets typically have the following details:

4 Elevations – Front, Back, Both Sides

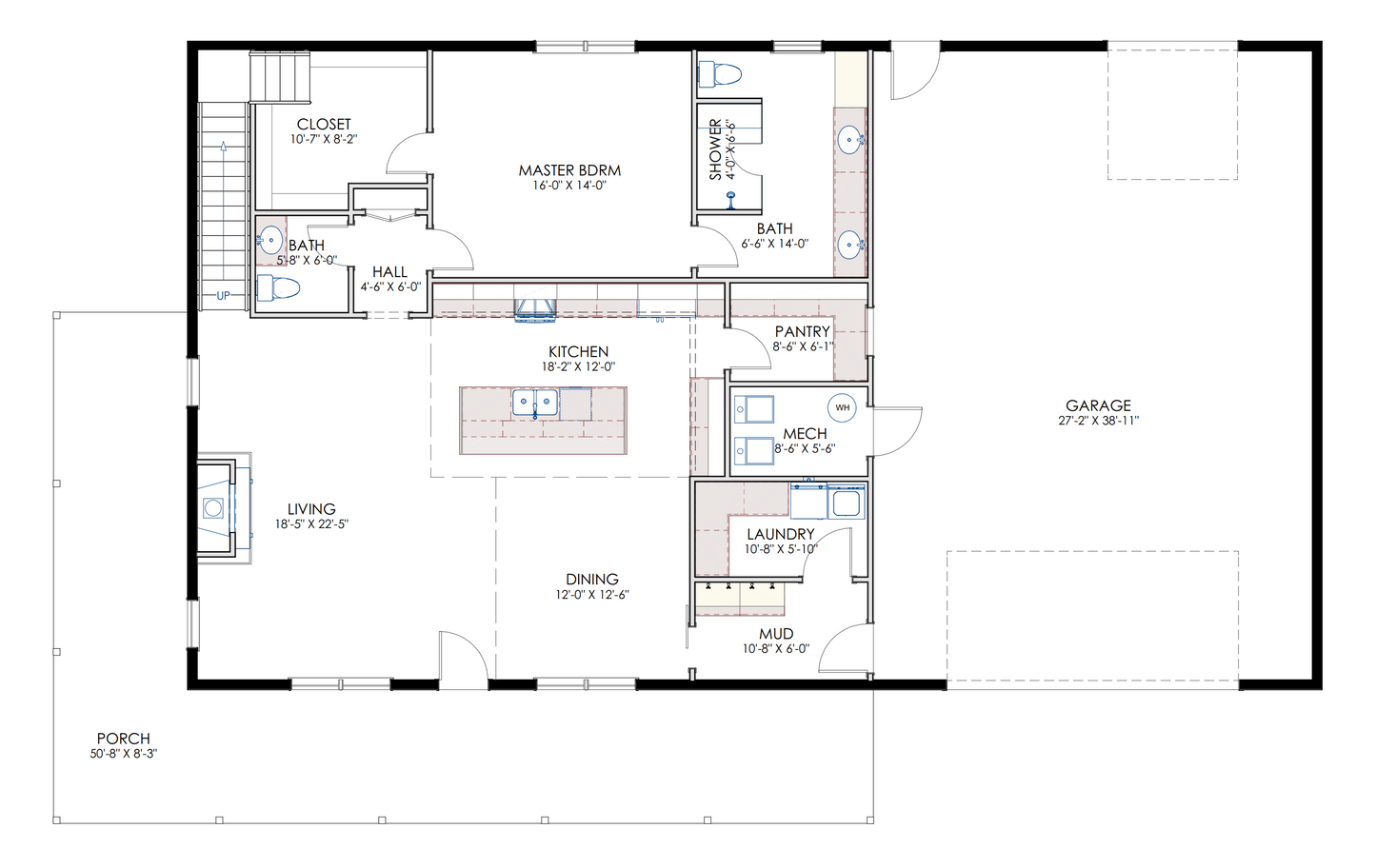

Detailed Floor Plan Drawing
