SV-5529 Bishop Barndominium House Plan

$849.99 USD
$849.99 USD
Sale Sold out
Add To Wishlist
1 3
Bedrooms 3 Bedrooms
Floors 2 Floors
Full Baths 3 Full Baths
Total Heated Area 2,558 Total Heated Area

Floor Plan

DETAILS

HEATED SQ FT

First Floor:

1,569 SF

Second Floor:

989 SF

Total Heated Sq Ft:

2,558 SF

UNHEATED SQ FT

Total Unheated Area:

Garage 807 SF, Porch 448 SF = TOTAL 1,255 SF

Carport:

None

Bedrooms:

3

Full Baths:

3

Floors:

2

Garage Size:

807 SF

Width:

72'

Depth:

49'

Height:

32'-9 5/8"

Foundation:

Concrete Slab

Main Roof Pitch:

8:12

Construction Type:

Stick Frame

CEILING HEIGHTS

First Floor:

10'

SV-5529 Bishop Barndominium House Plan

Ā

About this barndominium house plan:

  • 2558 Heated Square Feet
  • 3 Bedrooms
  • 3 Bathrooms
  • Two Story
  • Loft
  • Open concept
  • Office
  • Walk-in Pantry
  • Laundry/Mudroom
  • Mechanical Room
  • Front and Rear Porch
  • 807 Sq Ft Garage

Ā

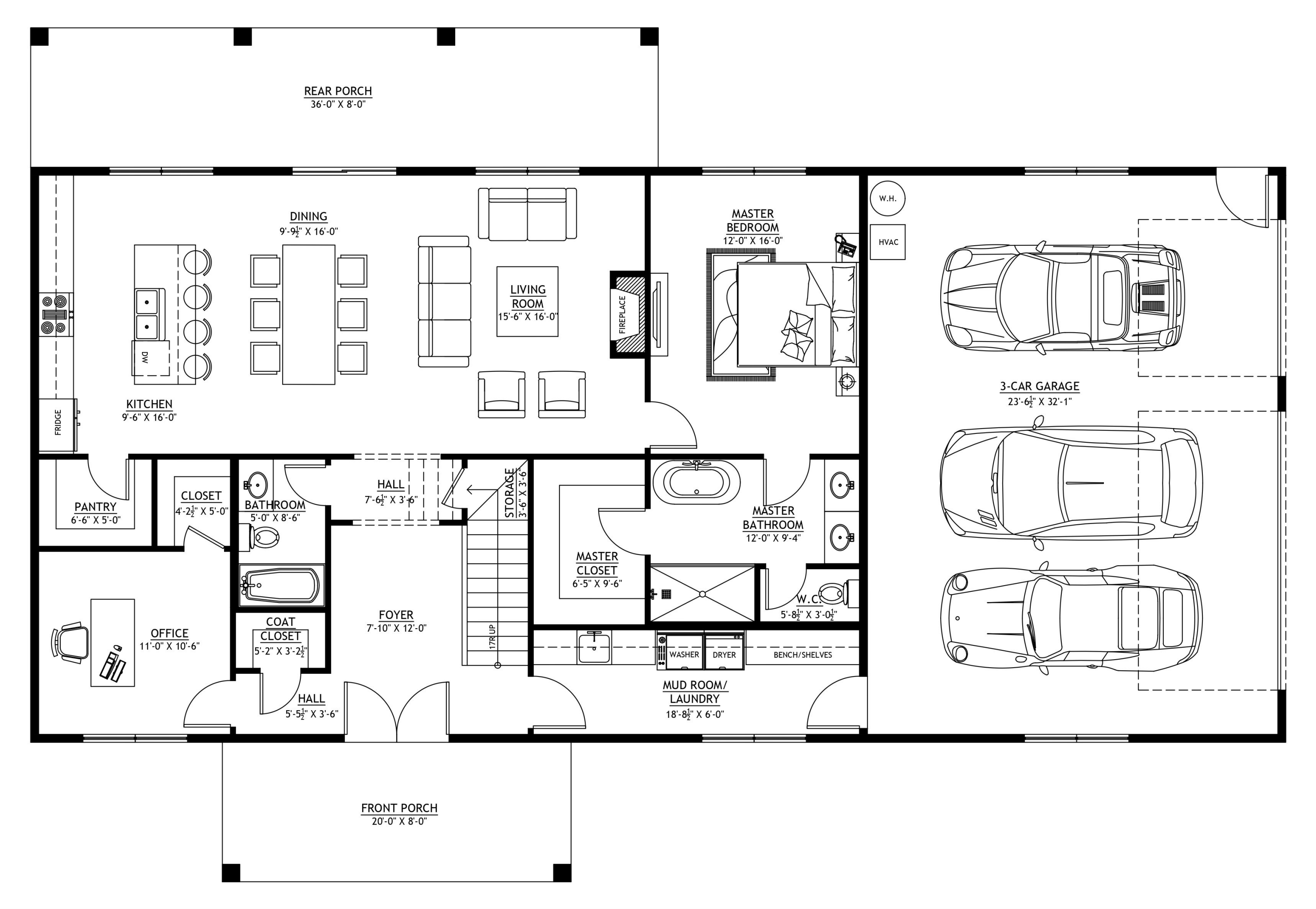

  • Double doors off the front porch welcome you into a defined foyer that opens directly into the main living pavilion, complete with a cozy fireplace.
  • Kitchen layout centers around a large island with bar seating for four, backed by an efficient counter and a walk-in pantry.
  • Primary bedroom sits quietly behind the living room, with an attached master bathroom and direct entry into a walk-in closet.
  • Positioned right near the front foyer is a private office space with its own closet and nearby full bathroom, giving remote work or study sessions a quiet spot.
  • Coming in from the 3-car garage brings you through a long mudroom equipped with built-in benching, shelves, a utility sink, and side-by-side laundry hookups.

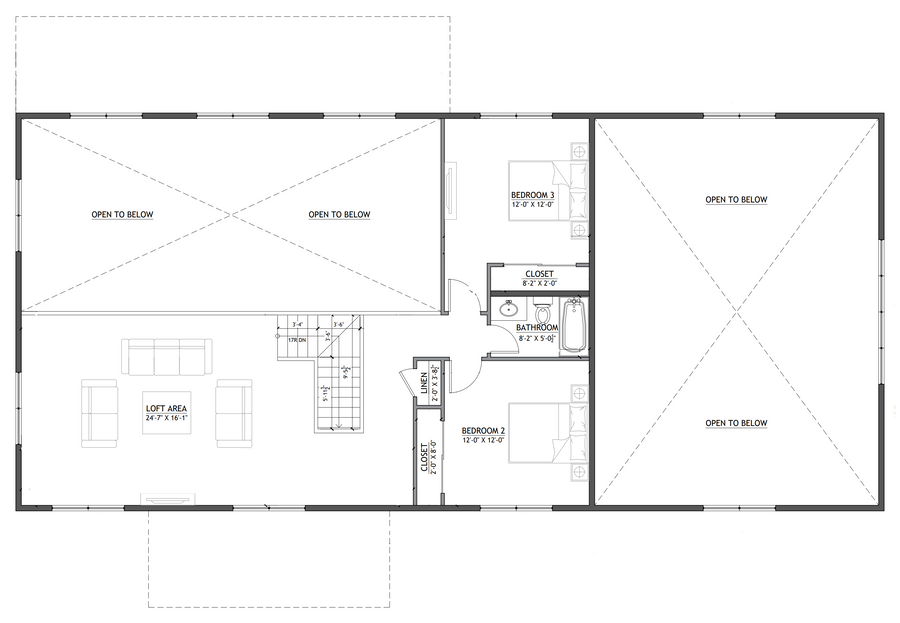

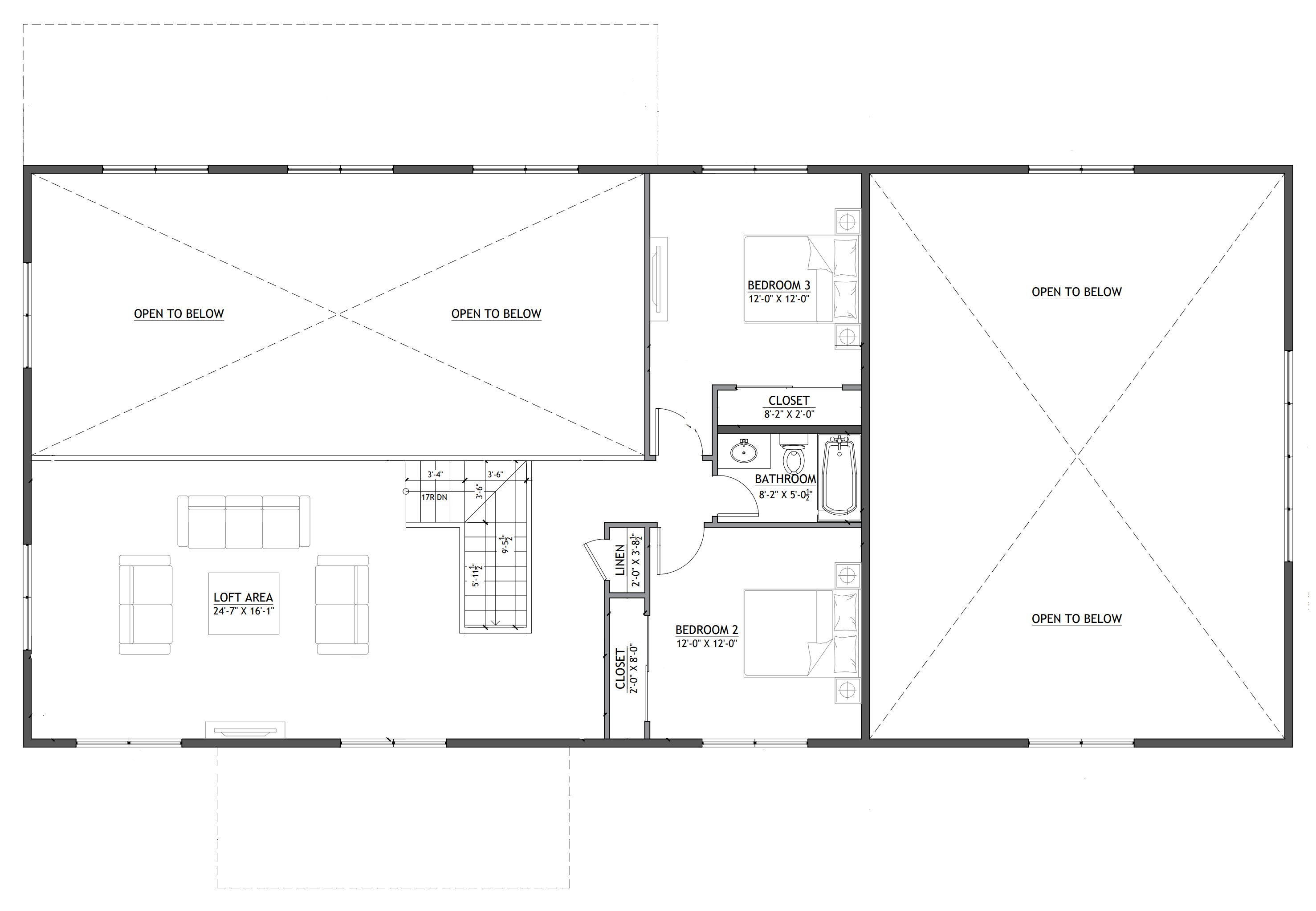

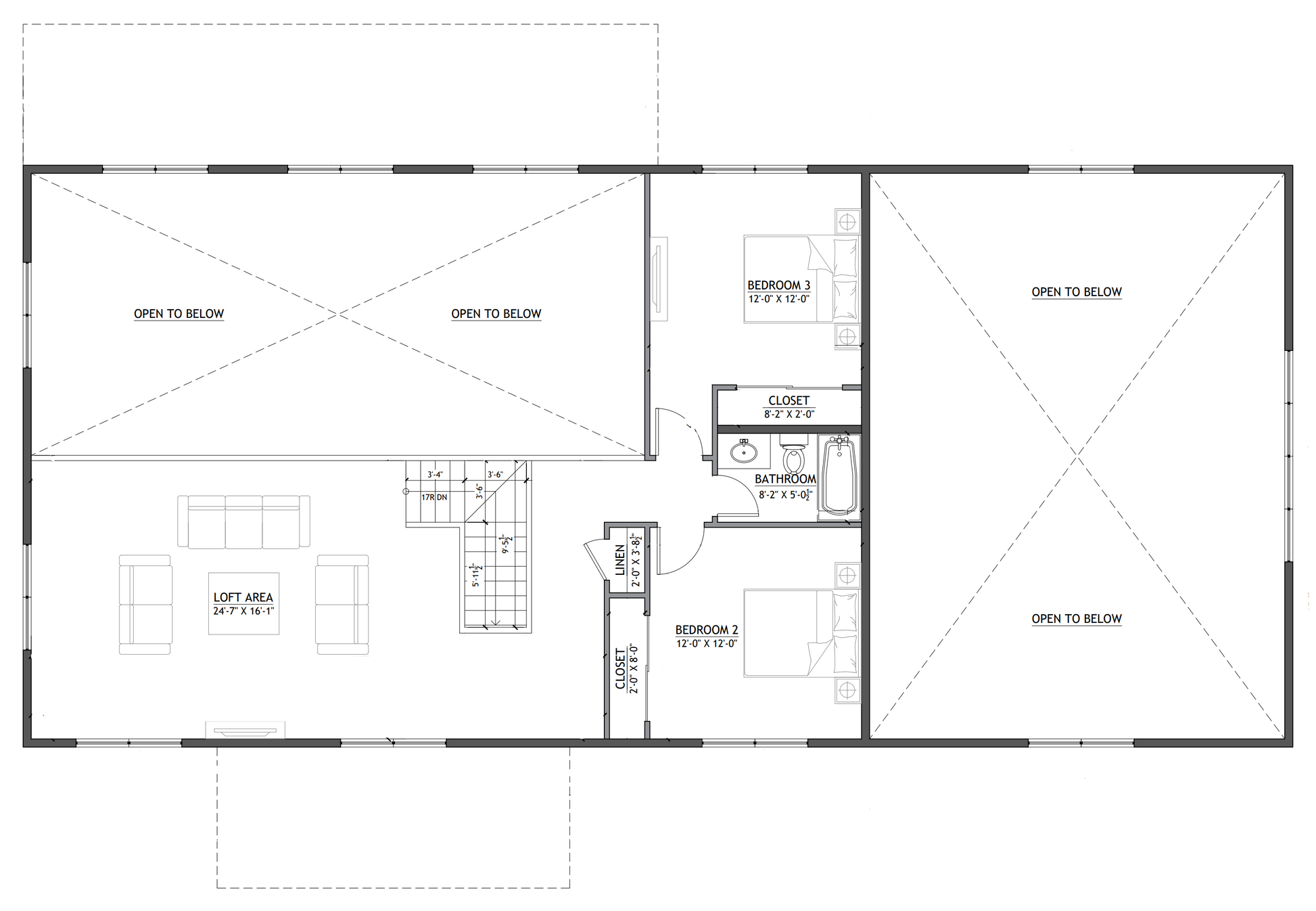

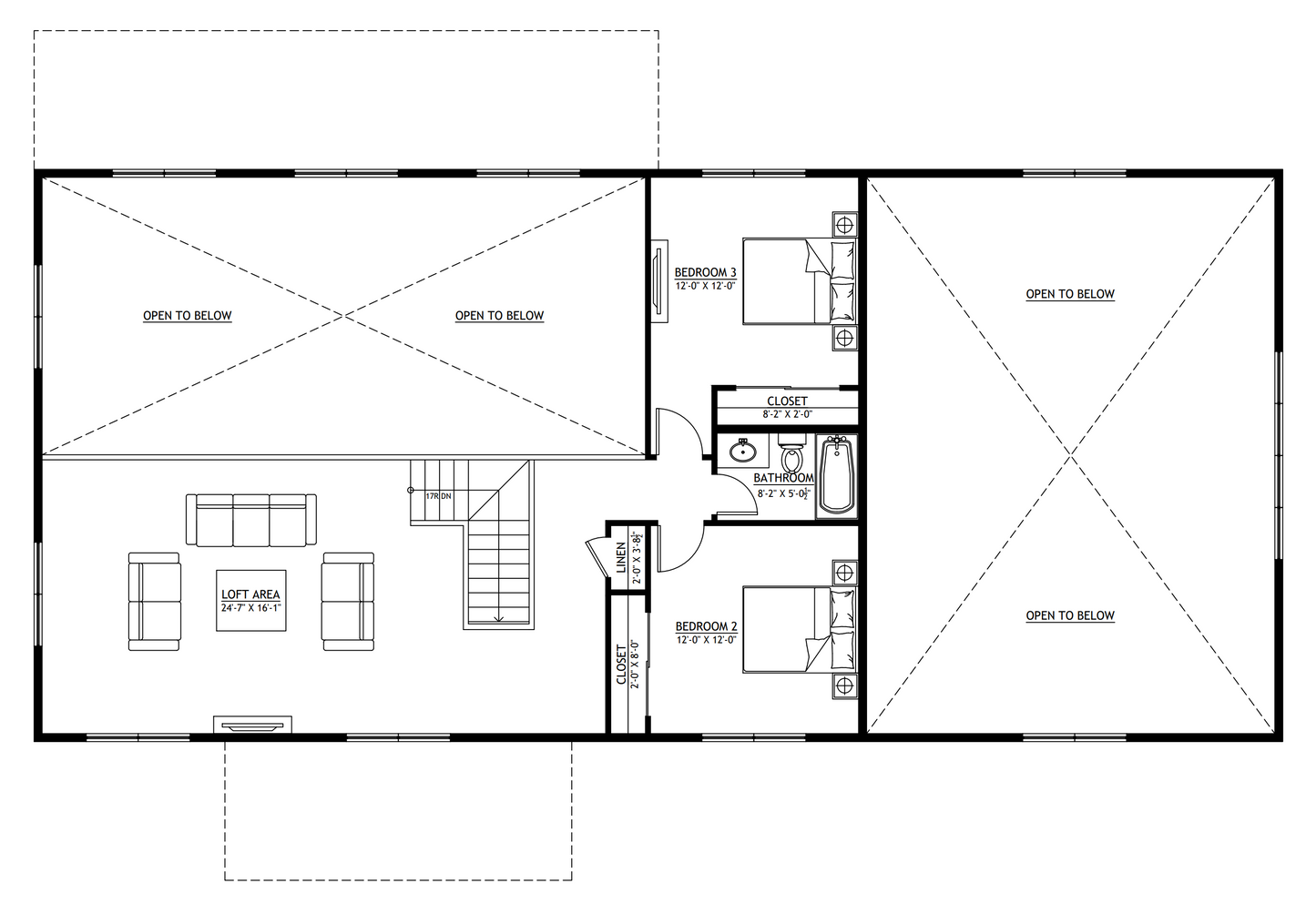

  • Head up the central staircase to land on a expansive loft area overlooking the main living space below that houses two secondary bedrooms and shared full bathroom.
  • Attached garage bay comfortably houses three vehicles while leaving room for water heating and HVAC equipment.Ā
  • Outdoor relaxation is anchored by a sheltered front porch and an expansive rear porch.

Ā

Ā

What's included in SV-5529:

Cover PageĀ
First Floor PlanĀ
Second Floor PlanĀ
Roof PlanĀ
Front And Rear ElevationĀ
Right And Left ElevationĀ
First Floor Electrical PlanĀ
Second Floor Electrical PlanĀ
First Floor Plumbing PlanĀ
Second Floor Plumbing PlanĀ
First Floor HVAC PlanĀ
Second Floor HVAC PlanĀ
Roof Framing PlanĀ
Foundation PlanĀ
Foundation DetailĀ
Interior Bearing FootingĀ
C-Typical Column DetailĀ
Wall SectionĀ

Ā

For more barndominium floor plans, check out our complete collection ofĀ 3-bedroom barndominium floor plans.

Need to make changes? Submit a modification request using the button that saysĀ Modify This Plan. We will get you a free price quote within 72 hours.

What's Typically Included

THE SPECIFC DETAILS OF WHAT'S INCLUDED ON THESE PLANS IS CONTAINED IN THE PRODUCT DESCRIPTION. PLEASE SCROLL UP AND YOU WILL FIND IT UNDER "WHAT'S INCLUDED"

Our house plan sets typically have the following details:

4 Elevations ā€“ Front, Back, Both Sides

Detailed Floor Plan Drawing

Electrical Plans with placements for HVAC

Plumbing Plans with Placements

Flooring Plan

Roof Plan

Foundation Plan

For more information on what's included and examples of what your plans will look like, go here -> https://barndominiumplans.com/pages/whats-included

Please Note:Ā We work with many different draftspeople who work in many different ways.Ā  ItĀ should be noted that their plans may contain different details.Ā THE SPECIFC DETAILS OF WHAT'S INCLUDED ON THESE PLANS IS CONTAINED IN THE PRODUCT DESCRIPTION. PLEASE SCROLL UP AND YOU WILL FIND IT UNDER "WHAT'S INCLUDED"

What's Not Included

The following items areĀ NOTĀ included:

Architectural or Engineering Stamp. Our plans are engineering-ready! Can take to a local structural engineer, but we are not engineers ourselves. Once you've purchased plans, we can make a recommendation in all 50 states.

Septic Drawings - Handled locally

Metal Truss Plans - These are provided by the truss manufacturer

Wind and Snow Loads - Handled locally!

Delivery

This plan is available as a digital product or printed + shipped.

If you select digital, the plan will be delivered to you via email as a PDF file, no matter what time it is.

If you select printed + shipped, your order will ship in 24x36 format within 1 business day of your order.

We ship from the midwest in order to serve the entire country within 3-5 business days!

Return policy

All barndominium house plan purchases are FINAL. There are no exchanges or refunds due to the digital nature of the product. Please make sure that the plan you have selected is going to fit your needs.

Wondering about modifications, and making sure you like the changes? While all plan sales featuring modifications are also FINAL, here's a bit about how the modification process works:

After your order is placed, our team gets started on your modifications.

First, we send over an initial floor plan draft to make sure the modifications are correct. Any "clarifying changes" are included at no additional cost. Things like "Oh I meant for the door to swing this way, not that way" or "kitchen appliances should be arranged in XYZ way". Any major changes to the plan like adding a bedroom, a second story, or a different foundation are an additional fee. 99% of our customers do not incur an additional fee.

After the floor plan is confirmed, we send over the floor plans + elevations. We do the same process, and once you're good with the elevations, we finish up your final plans.
