SV-5523 Cassidy Barndominium House Plan

$849.99 USD
$849.99 USD
Sale Sold out
Add To Wishlist
1 3
Bedrooms 2 Bedrooms
Floors 2 Floors
Full Baths 2 Full Baths
Total Heated Area 1,838 Total Heated Area

Floor Plan

DETAILS

HEATED SQ FT

First Floor:

1,838 SF

Second Floor:

1472

Total Heated Sq Ft:

1,838 SF

UNHEATED SQ FT

Total Unheated Area:

Garage 962 SF, Second Floor 1,472 SF, Porch 192 SF = TOTAL 2,626 SF

Carport:

None

Bedrooms:

2

Full Baths:

2

Floors:

2

Garage Size:

962 SF

Width:

70'

Depth:

48'

Height:

28'-4 3/4"

Foundation:

Concrete Slab

Main Roof Pitch:

5:12

Construction Type:

Post Frame

CEILING HEIGHTS

First Floor:

9'

SV-5523 Cassidy Barndominium House Plan

Ā

About this barndominium house plan:

  • 1838 Heated Square Feet
  • 2 Bedrooms
  • 2 Bathrooms
  • Two Story
  • Open concept
  • Loft
  • Walk-in Pantry
  • Laundry Room
  • Mudroom
  • Front Porch
  • Unfinished Storage
  • 962 Sq Ft Garage

Ā

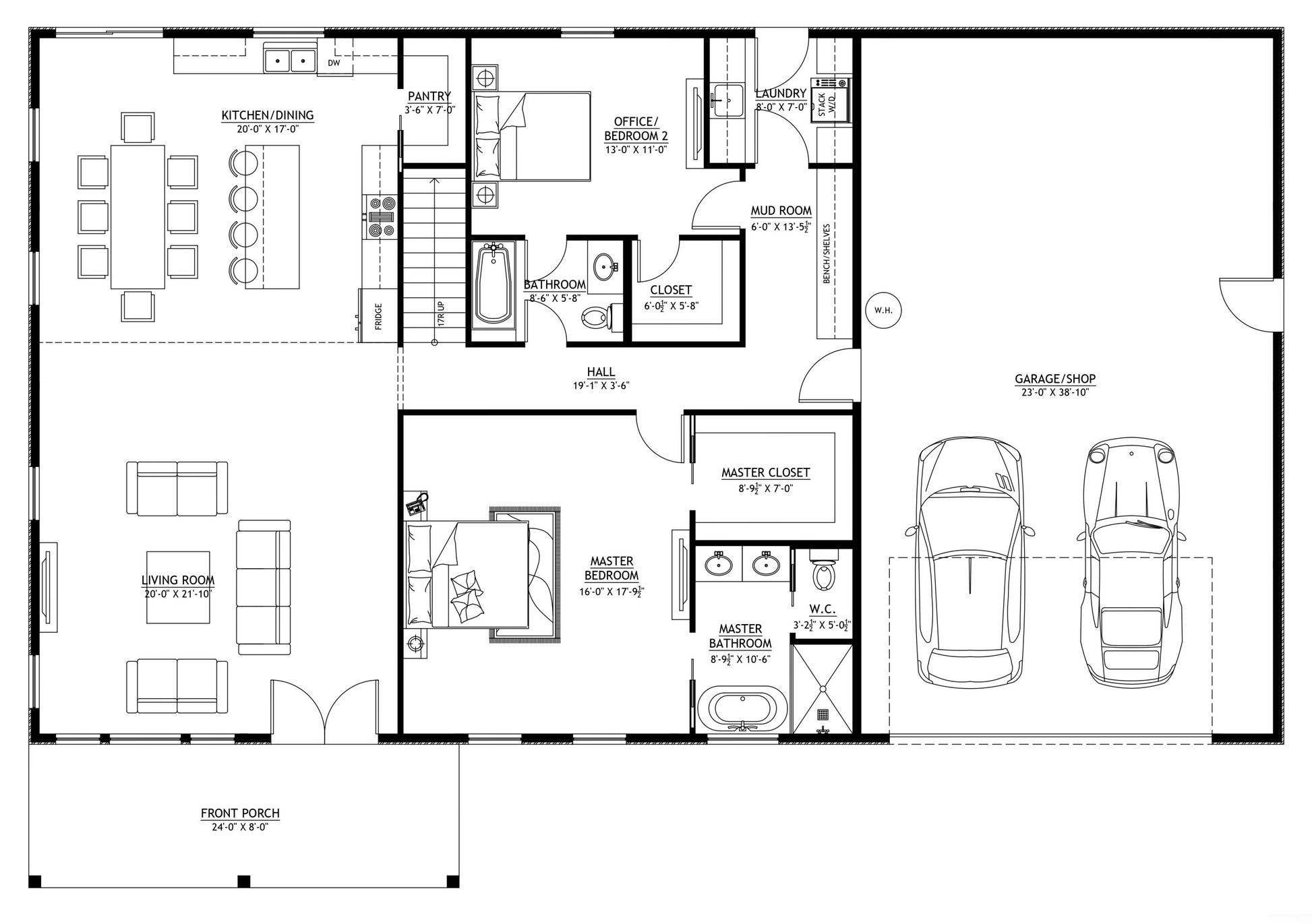

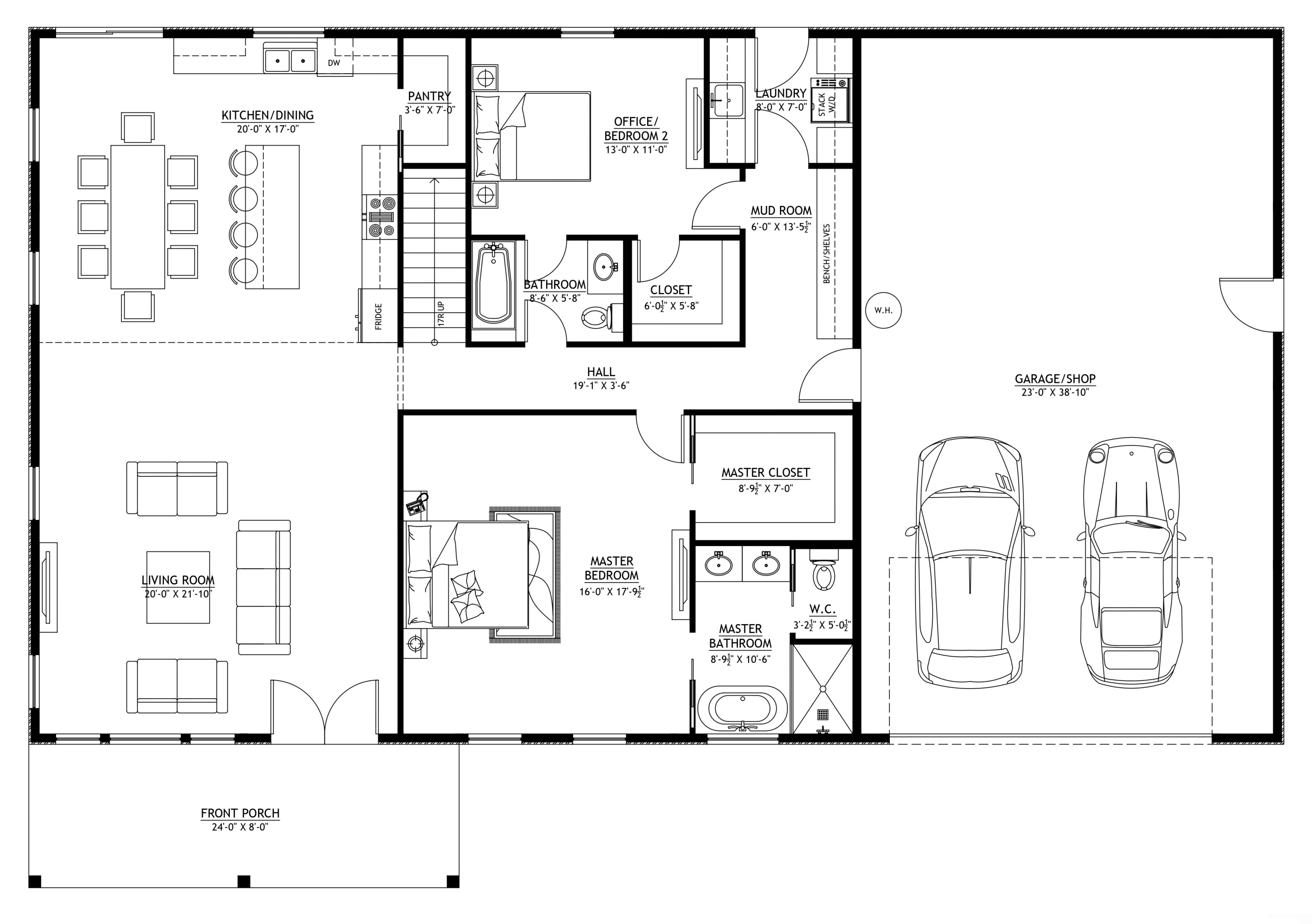

  • Main front double doors open directly into a grand living room core that shares a completely uninterrupted footprint with the kitchen and dining areas.Ā
  • Kitchen area is anchored by an extra-long center island that comfortably accommodates four-person bar seating, and a deep walk-in storage pantry.
  • Primary suite features a generous master bedroom with a spa-style ensuite master bathroom and a massive walk-in wardrobe closet.
  • Nestled near the rear hallway is a highly versatile second bedroom space, perfect for use as a home office, a professional studio, or a comfortable guest suite.Ā
  • Entering from the garage shop drops you straight into an expansive cleanup corridor featuring a mudroom area and the laundry room.
  • A dream setup for trade projects or vehicle collectors, the deep attached garage pavilion offers an abundance of room for multiple vehicles.

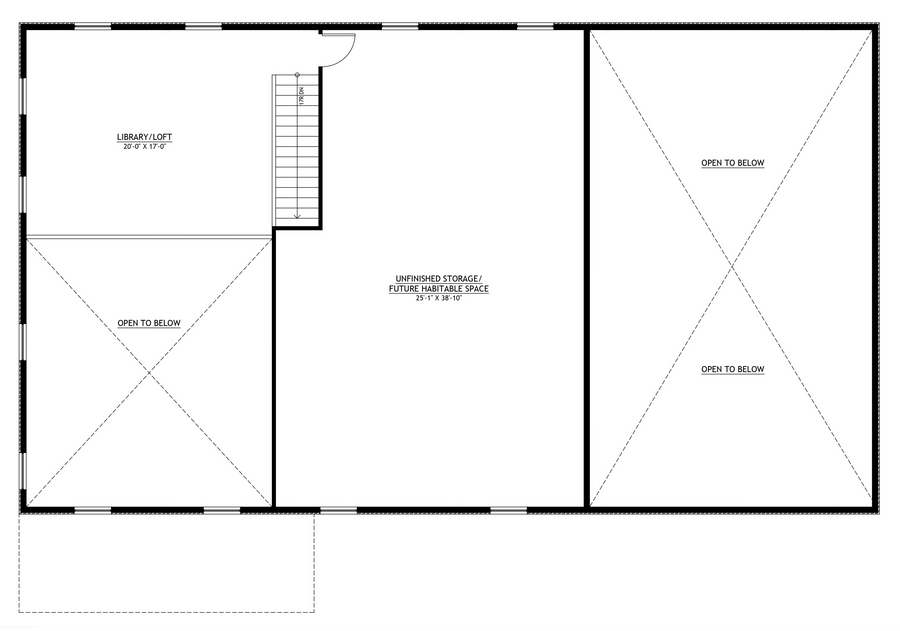

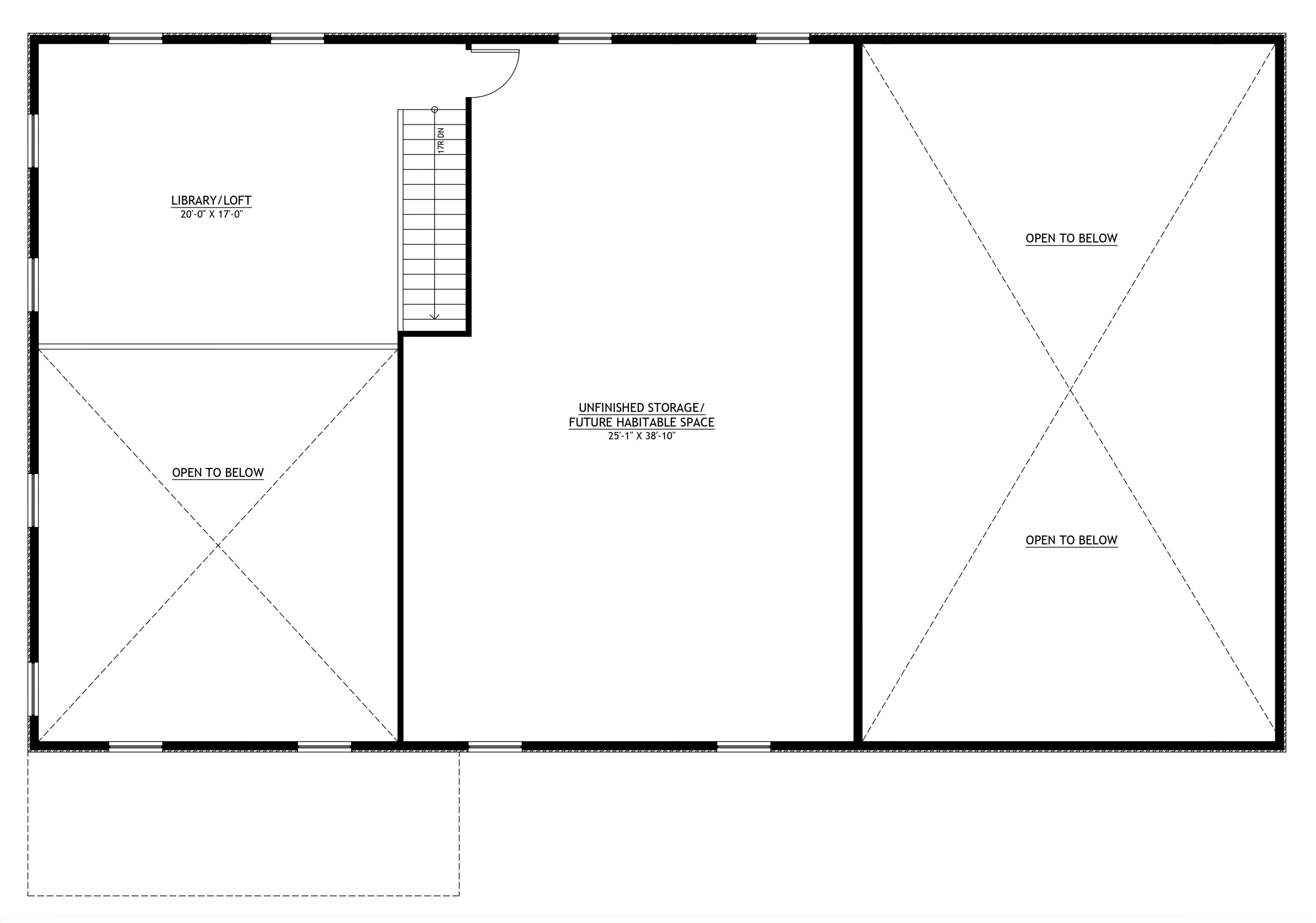

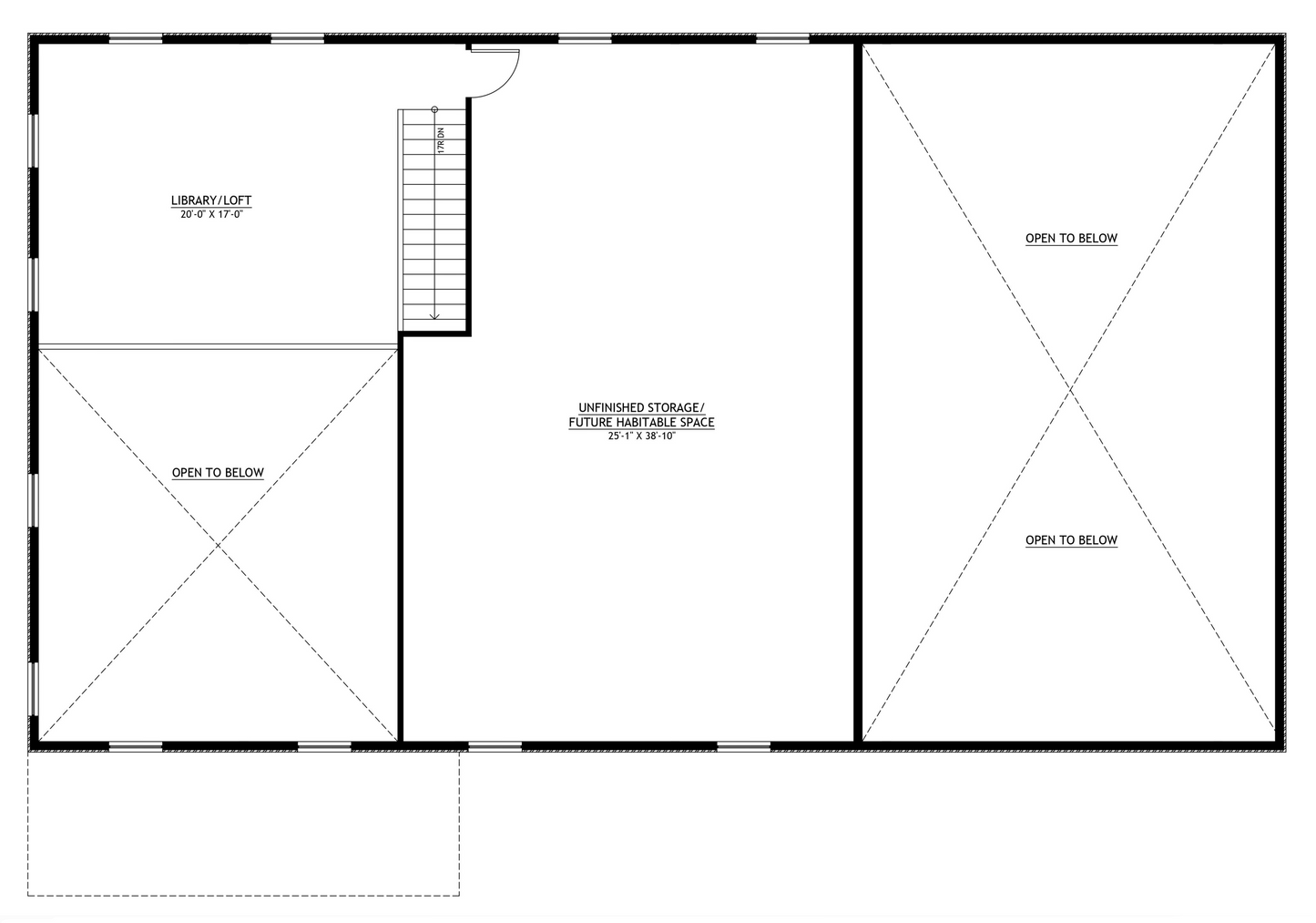

  • The staircase lands in an expansive open-to-below library loft pavilion that looks over the kitchen/dining area below.Ā
  • This upper level also boasts a huge, unfinished storage hall prepped for future habitable expansion.

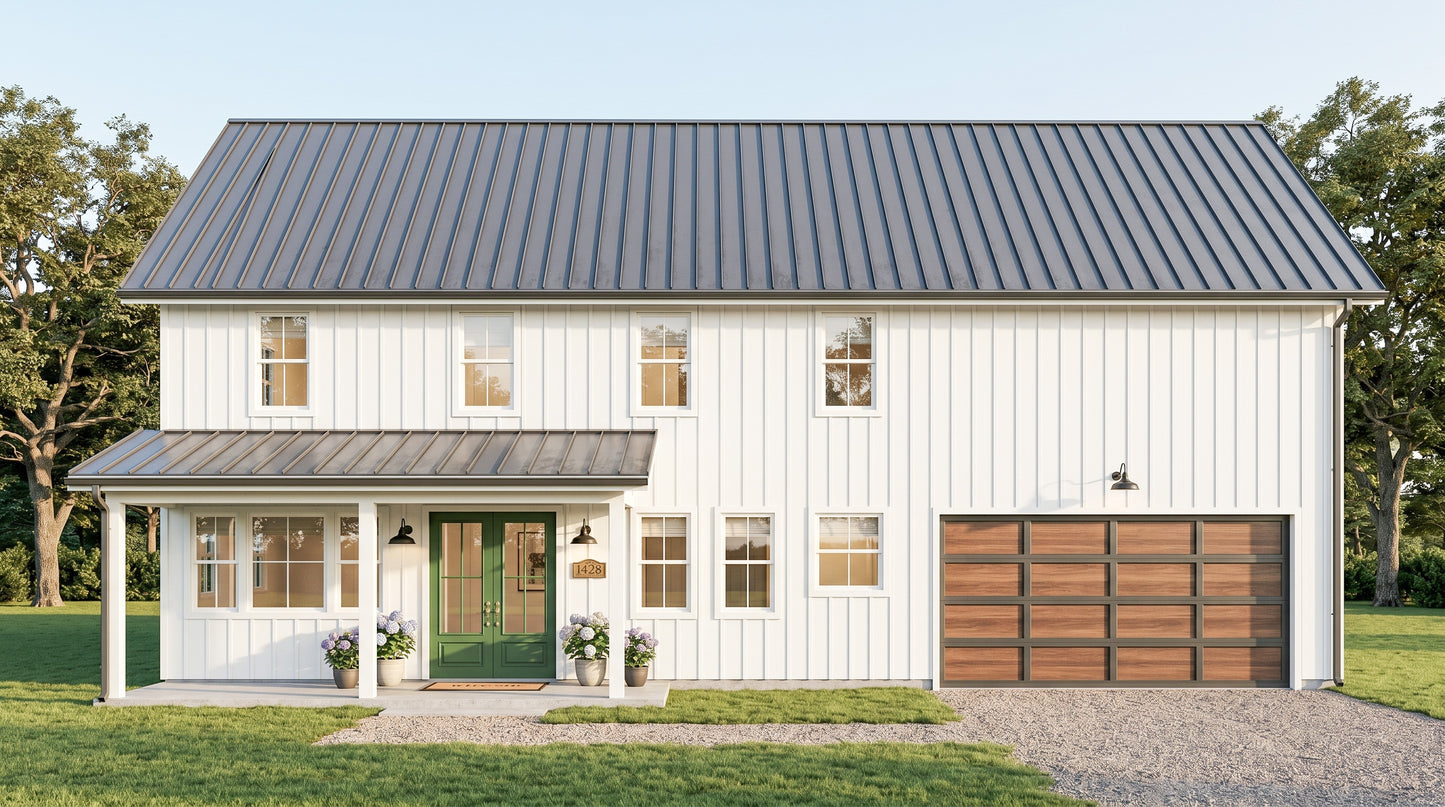

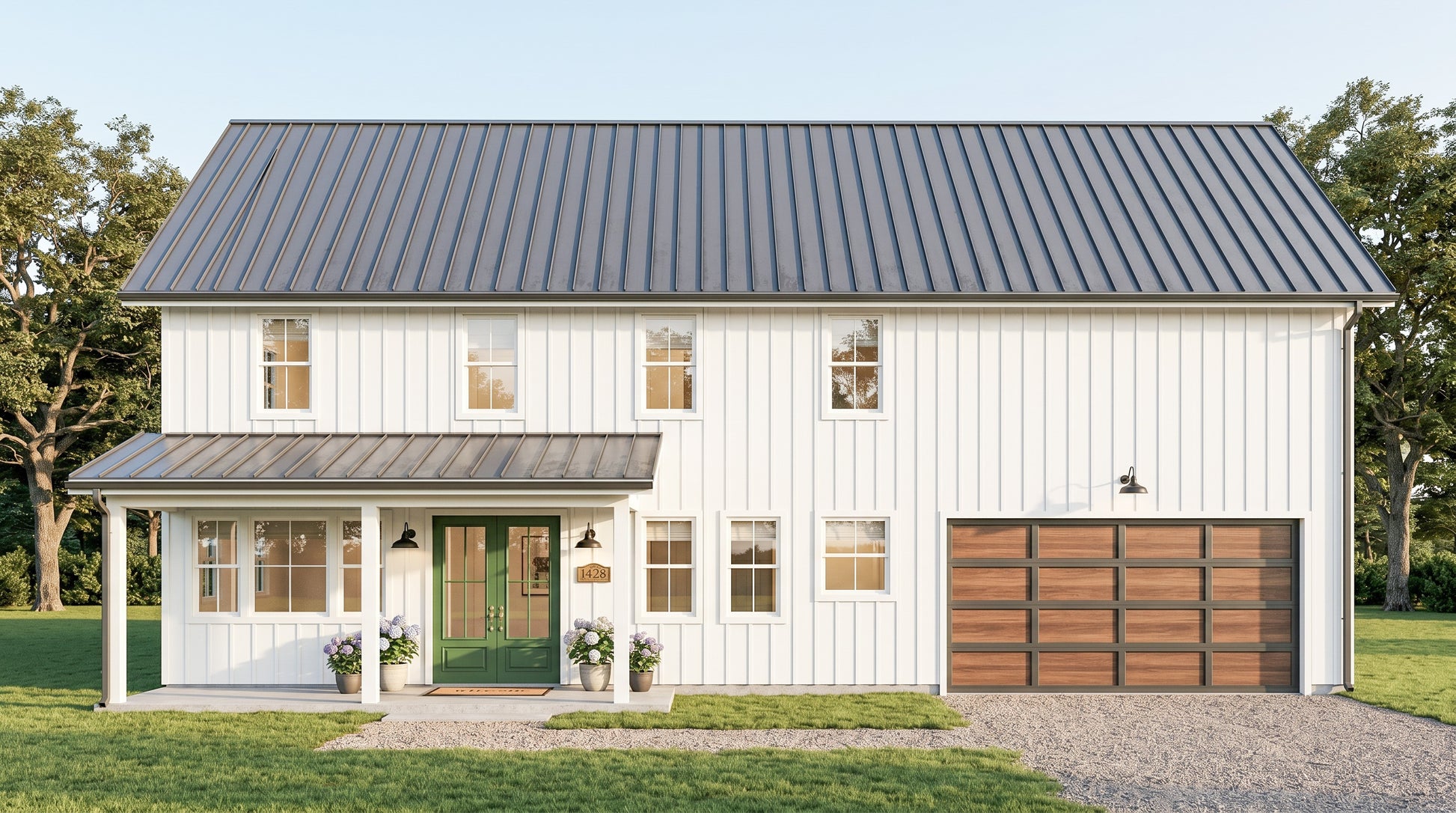

  • A deep covered porch frames the main living room entrance, adding classic country curb appeal and a sheltered environment for open-air relaxation.

Ā

Ā

What's included in SV-5523:

Cover PageĀ
First Floor PlanĀ
Second Floor PlanĀ
Roof PlanĀ
Front And Rear ElevationĀ
Right And Left ElevationĀ
First Floor Electrical PlanĀ
First Floor Plumbing PlanĀ
First Floor HVAC PlanĀ
Roof Framing PlanĀ
Foundation PlanĀ
Slab DetailĀ
Porch Post DetailĀ
Wall SectionĀ

Ā

For more barndominium floor plans, check out our complete collection ofĀ 2-bedroom barndominium floor plans.

Ā

Need to make changes? Submit a modification request using the button that saysĀ Modify This Plan. We will get you a free price quote within 72 hours.

What's Typically Included

THE SPECIFC DETAILS OF WHAT'S INCLUDED ON THESE PLANS IS CONTAINED IN THE PRODUCT DESCRIPTION. PLEASE SCROLL UP AND YOU WILL FIND IT UNDER "WHAT'S INCLUDED"

Our house plan sets typically have the following details:

4 Elevations ā€“ Front, Back, Both Sides

Detailed Floor Plan Drawing

Electrical Plans with placements for HVAC

Plumbing Plans with Placements

Flooring Plan

Roof Plan

Foundation Plan

For more information on what's included and examples of what your plans will look like, go here -> https://barndominiumplans.com/pages/whats-included

Please Note:Ā We work with many different draftspeople who work in many different ways.Ā  ItĀ should be noted that their plans may contain different details.Ā THE SPECIFC DETAILS OF WHAT'S INCLUDED ON THESE PLANS IS CONTAINED IN THE PRODUCT DESCRIPTION. PLEASE SCROLL UP AND YOU WILL FIND IT UNDER "WHAT'S INCLUDED"

What's Not Included

The following items areĀ NOTĀ included:

Architectural or Engineering Stamp. Our plans are engineering-ready! Can take to a local structural engineer, but we are not engineers ourselves. Once you've purchased plans, we can make a recommendation in all 50 states.

Septic Drawings - Handled locally

Metal Truss Plans - These are provided by the truss manufacturer

Wind and Snow Loads - Handled locally!

Delivery

This plan is available as a digital product or printed + shipped.

If you select digital, the plan will be delivered to you via email as a PDF file, no matter what time it is.

If you select printed + shipped, your order will ship in 24x36 format within 1 business day of your order.

We ship from the midwest in order to serve the entire country within 3-5 business days!

Return policy

All barndominium house plan purchases are FINAL. There are no exchanges or refunds due to the digital nature of the product. Please make sure that the plan you have selected is going to fit your needs.

Wondering about modifications, and making sure you like the changes? While all plan sales featuring modifications are also FINAL, here's a bit about how the modification process works:

After your order is placed, our team gets started on your modifications.

First, we send over an initial floor plan draft to make sure the modifications are correct. Any "clarifying changes" are included at no additional cost. Things like "Oh I meant for the door to swing this way, not that way" or "kitchen appliances should be arranged in XYZ way". Any major changes to the plan like adding a bedroom, a second story, or a different foundation are an additional fee. 99% of our customers do not incur an additional fee.

After the floor plan is confirmed, we send over the floor plans + elevations. We do the same process, and once you're good with the elevations, we finish up your final plans.

šŸ”„ [COUNT] shoppers are looking at this plan right now
PDF (Single Build) $849.99
PDF (Single Build)

Modifications

Additional Options
Want the Cost To Build in Your Area? Get an estimate of the cost to build this house in your area.
Modify this Plan? Want to make adjustments? We'll provide you with a price estimate within 1 to 3 business days.
