SV-5521 Mabel Barndominium House Plan

$849.99 USD
$849.99 USD
Sale Sold out
Add To Wishlist
1 2
Bedrooms 5 Bedrooms
Floors 1 Floors
Full Baths 2 Full Baths
Total Heated Area 2,400 Total Heated Area

Floor Plan

DETAILS

HEATED SQ FT

First Floor:

2,400 SF

Second Floor:

None

Total Heated Sq Ft:

2,400 SF

UNHEATED SQ FT

Total Unheated Area:

1,044 SF

Carport:

None

Bedrooms:

5

Full Baths:

2

Floors:

1

Garage Size:

None

Width:

60'

Depth:

82'

Height:

21'-1"

Foundation:

Concrete Slab

Main Roof Pitch:

6:12

Construction Type:

Post Frame

CEILING HEIGHTS

First Floor:

10'

SV-5521 Mabel Barndominium House Plan

Ā

About this barndominium house plan:

  • 2400 Heated Square Feet
  • 5 Bedrooms
  • 2.1 Bathrooms
  • Single Story
  • Open concept
  • Laundry/Mudroom
  • Walk-in Pantry
  • Common Area
  • Front and Rear Porch

Ā

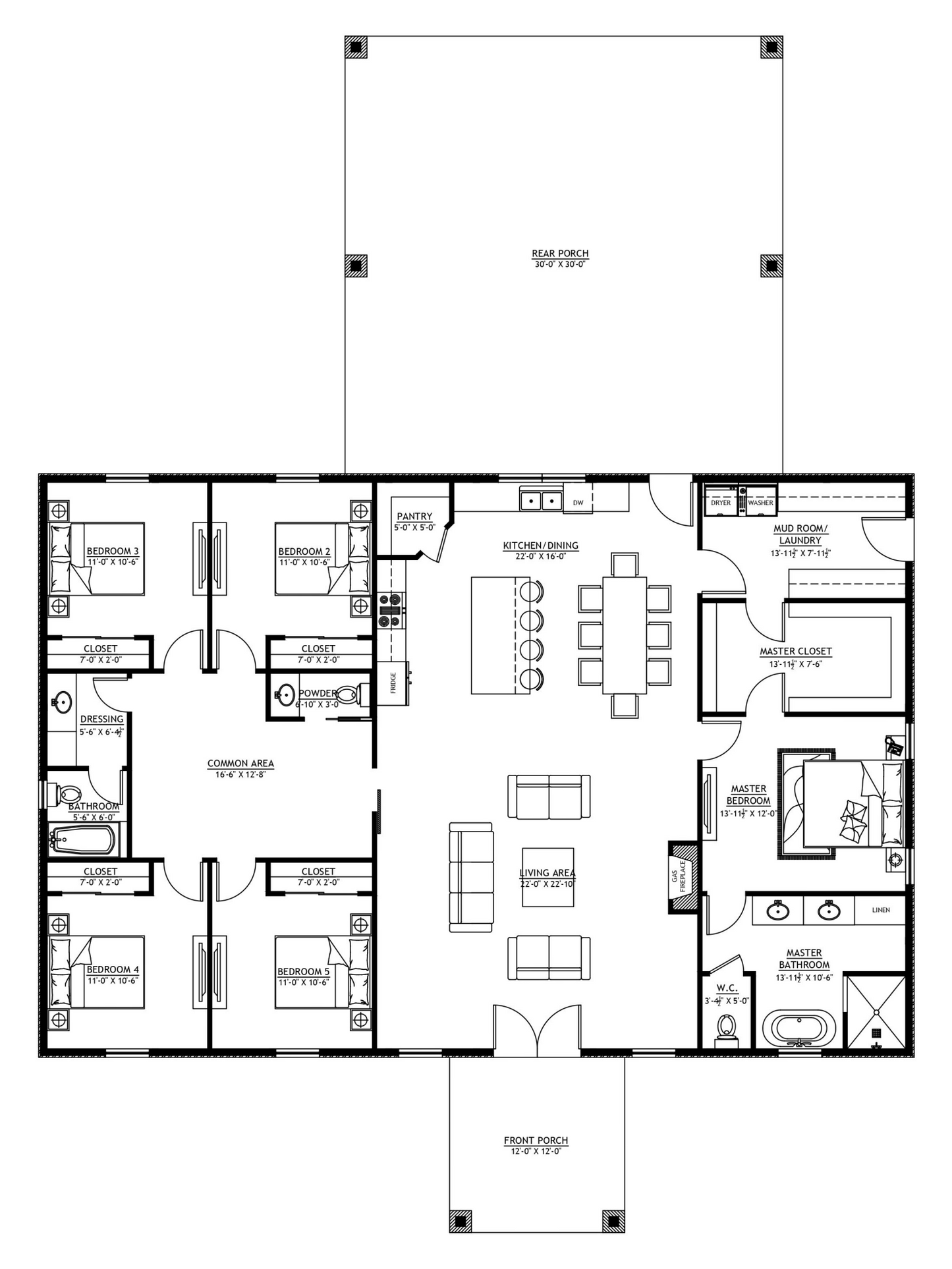

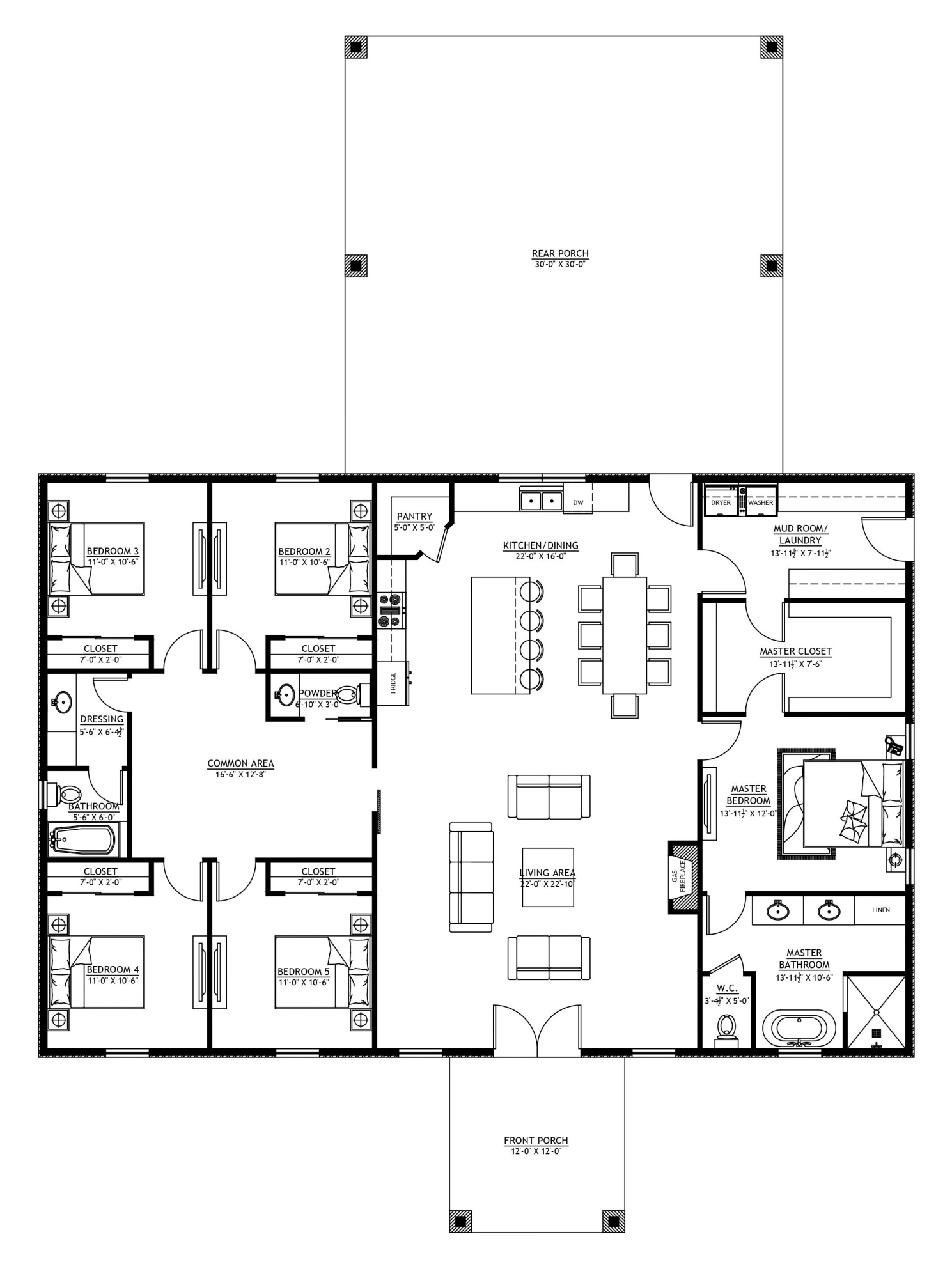

  • The double-door entrance opens into a massive social pavilion combining the living area and the kitchen/dining zone, warmed by a centerpiece gas fireplace.
  • Kitchen features a large center island with casual counter seating for four, and a corner walk-in storage pantry.
  • Primary retreat features a spacious master bedroom with spa-style master bathroom, and a massive walk-in wardrobe.
  • The entire left flank of the home forms a highly structured secondary sleeping wing with four secondary bedrooms, each with its own closet, clustered around a massive centralized common area.Ā
  • The common room wing is supported by a full family bathroom with an integrated dressing area, and a separate powder room for quick access.
  • Positioned off the rear entrance is a high-duty mudroom and laundry room zone Ā that is also accessible from the master suite.
  • Bridging the indoor-outdoor transition, a cozy front porch frames the main entryway, perfectly complemented by a spacious covered rear porch.

Ā

Ā

What's included in SV-5521:

Cover PageĀ
Floor PlanĀ
Roof PlanĀ
Front And Rear ElevationĀ
Right And Left ElevationĀ
Electrical PlanĀ
Plumbing PlanĀ
HVAC PlanĀ
Roof Framing PlanĀ
Foundation Plan
Slab Detail Ā
Porch Post DetailĀ
Wall Section

Ā

For more barndominium floor plans, check out our complete collection ofĀ 5 bedroom barndominium floor plans.

Ā

Need to make changes? Submit a modification request using the button that saysĀ Modify This Plan. We will get you a free price quote within 72 hours.
