RP-10002-P Prestonwood Barndominium House Plans

$849.99 USD
$849.99 USD
Sale Sold out
Add To Wishlist
1 9
Bedrooms 3 Bedrooms
Floors 1 Floors
Full Baths 2 Full Baths
Total Heated Area 1,800 Total Heated Area

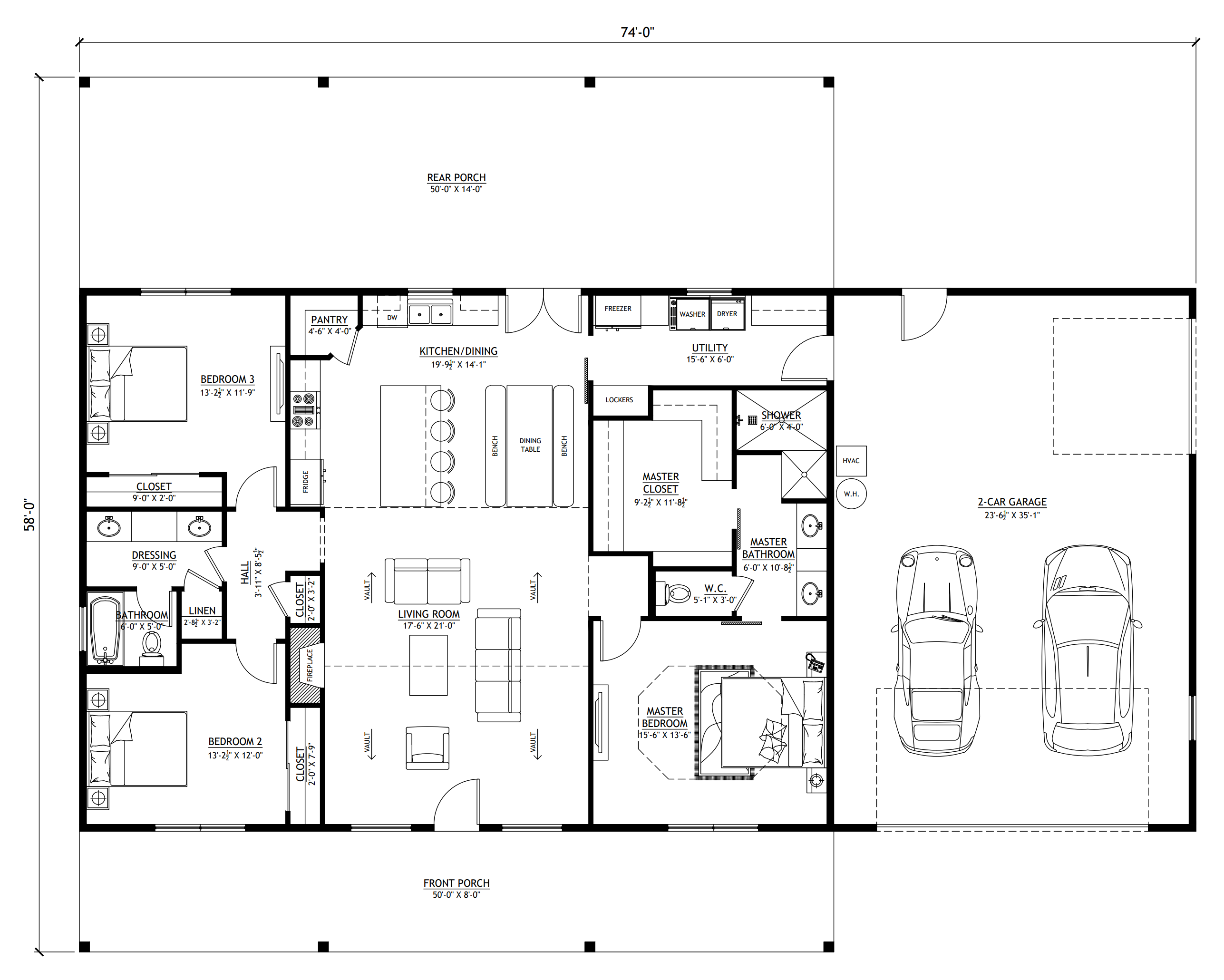

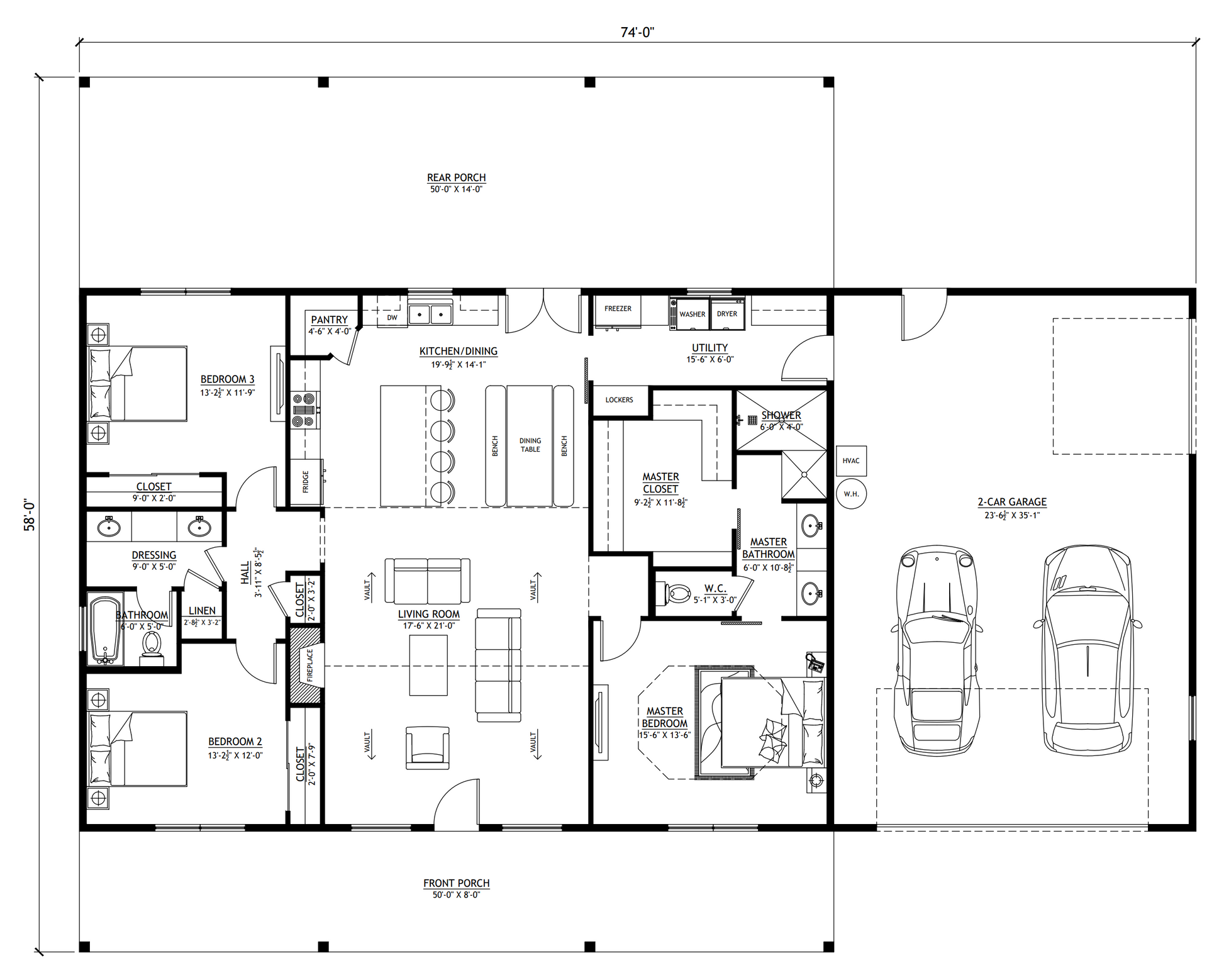

Floor Plan

DETAILS

HEATED SQ FT

First Floor:

1,800 SF

Second Floor:

None

Total Heated Sq Ft:

1,800 SF

UNHEATED SQ FT

Total Unheated Area:

Garage 864 Sf, Porches 1,100 SF = TOTAL 1,964 SF

Carport:

None

Bedrooms:

3

Full Baths:

2

Floors:

1

Garage Size:

864 SF

Width:

74'

Depth:

58'

Height:

22'-9½"

Foundation:

Concrete Slab

Main Roof Pitch:

8:12

Construction Type:

Stick Frame

CEILING HEIGHTS

First Floor:

9'

RP-10002-P Prestonwood Barndominium House Plans



About this barndominium house plan:

  • 1800 Heated Square Feet
  • 36x50 living space dimension
  • 3 Bedrooms
  • 2 Bathrooms
  • Single-story
  • Open-concept
  • Utility room
  • Front & rear porch
  • 864 Sq Ft Garage



  • Step inside to a welcoming foyer that opens into the spacious living room. The living area flows naturally into the kitchen and dining space for easy everyday living.
  • A large kitchen island creates a practical gathering spot while the pantry keeps cooking essentials organized and close at hand.
  • The master suite offers a private retreat with a generous bedroom, walk-in closet, and bathroom. A dedicated dressing area adds convenience to the master suite.
  • Two additional bedrooms provide comfortable accommodations for family members or guests. A shared bathroom serves the secondary bedrooms.
  • A utility room sits near the garage for added household convenience.

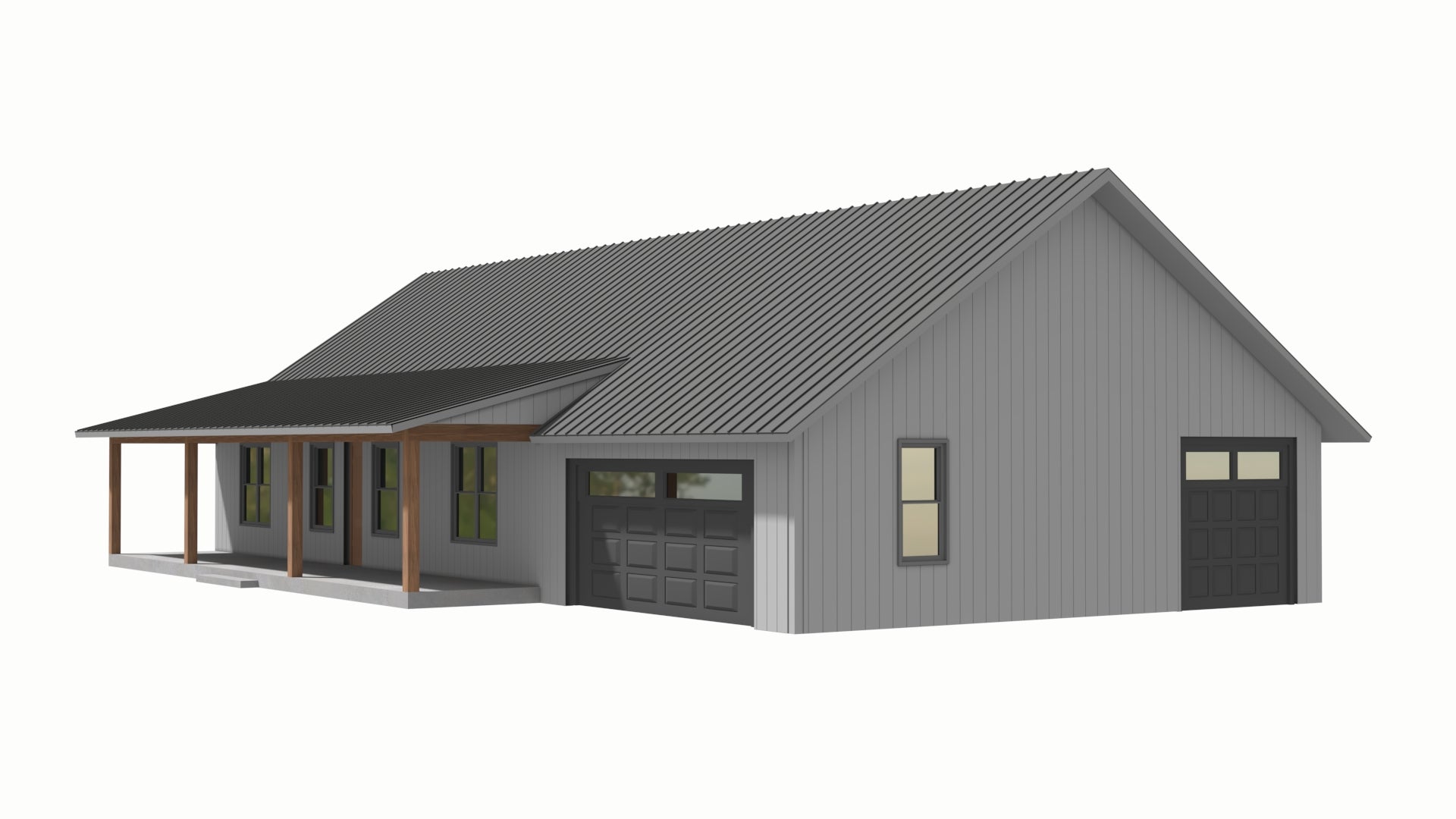

  • The two-car garage provides plenty of room for vehicles and storage.

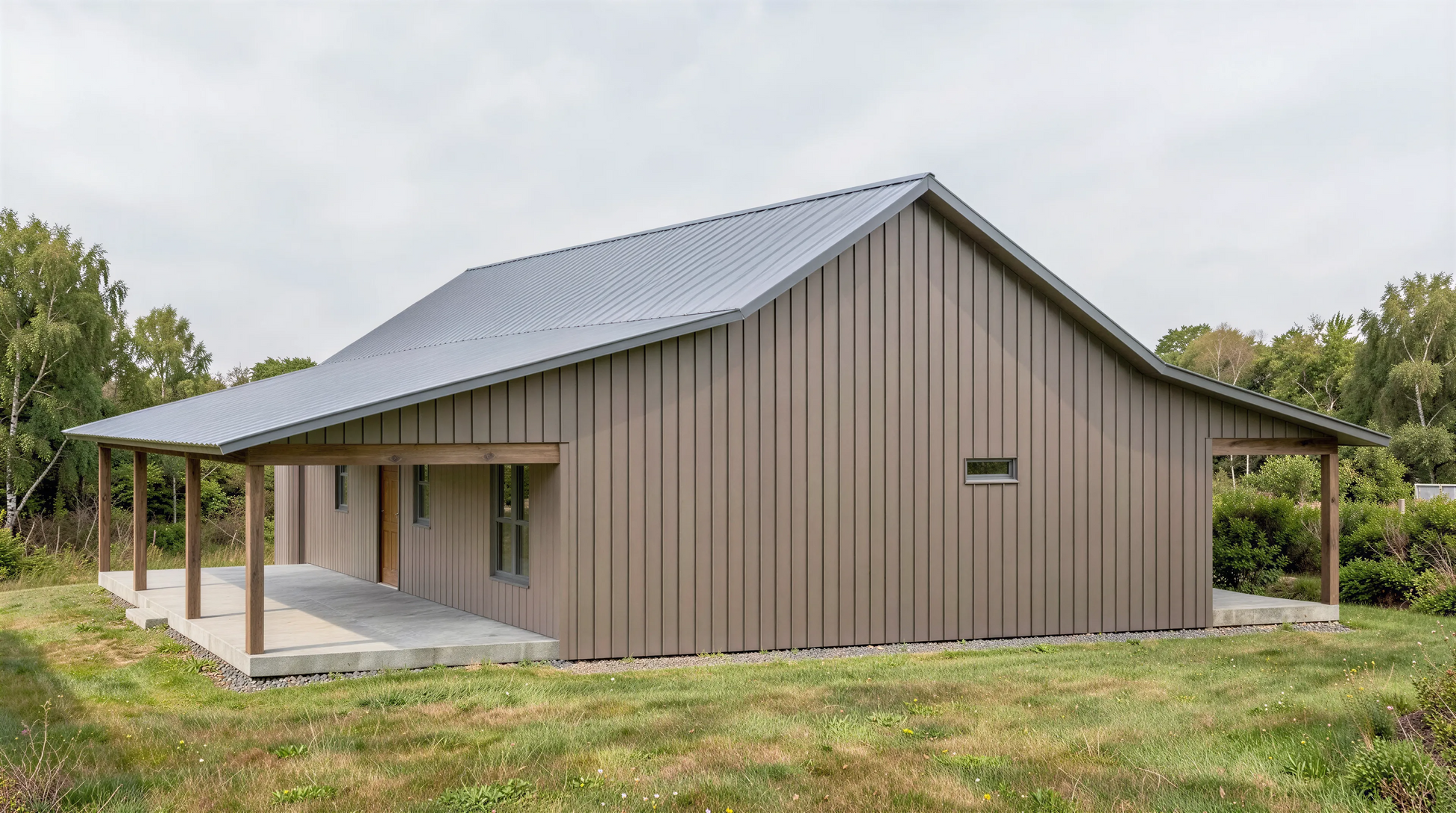

  • Step outside to the expansive rear porch, creating a relaxing extension of the home's living space.

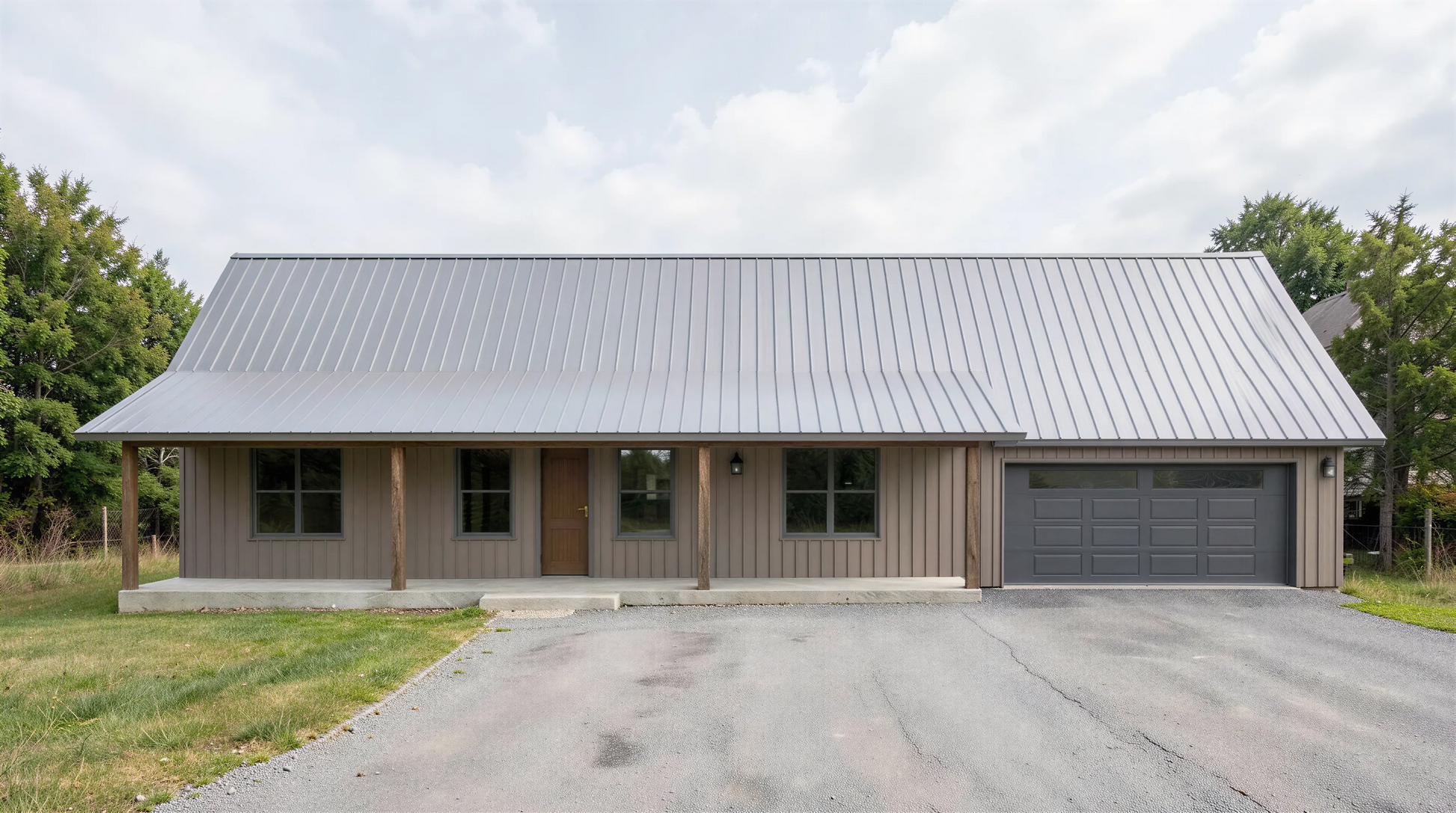

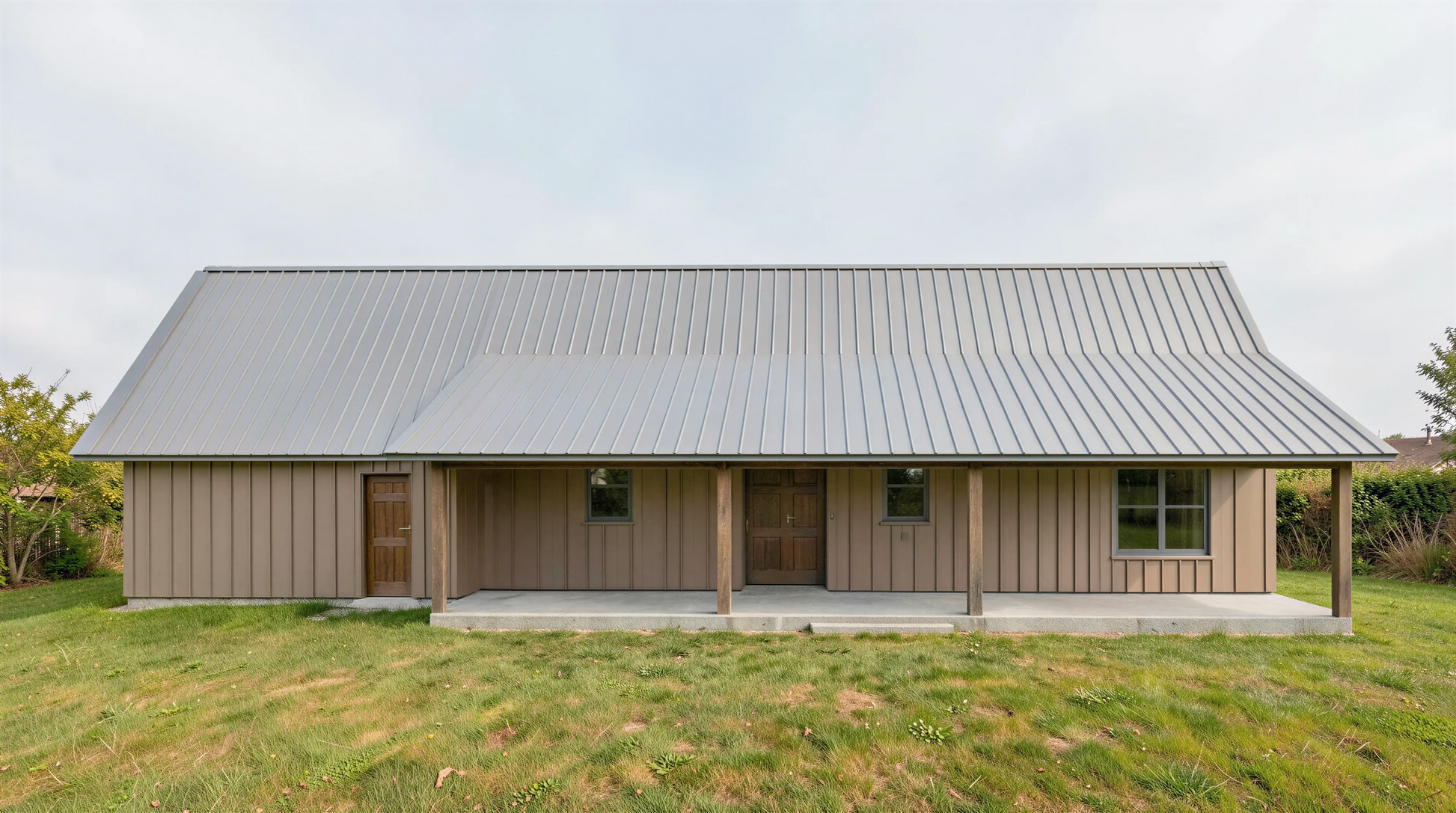

  • A broad front porch adds welcoming outdoor space and enhances the home's country-inspired character.



What's included in RP-10002-P:

Cover Page
Floor Plan
Roof Plan

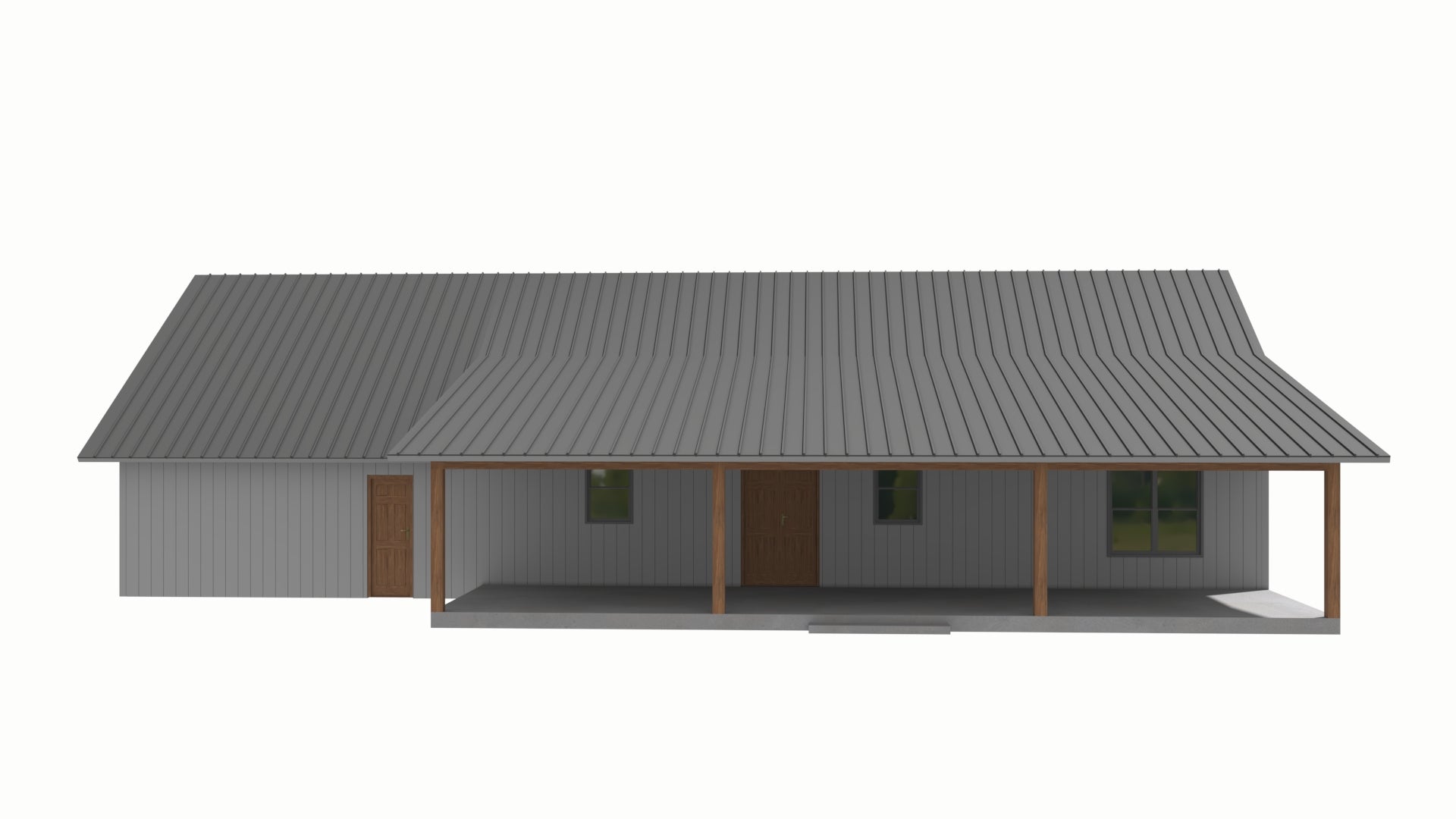

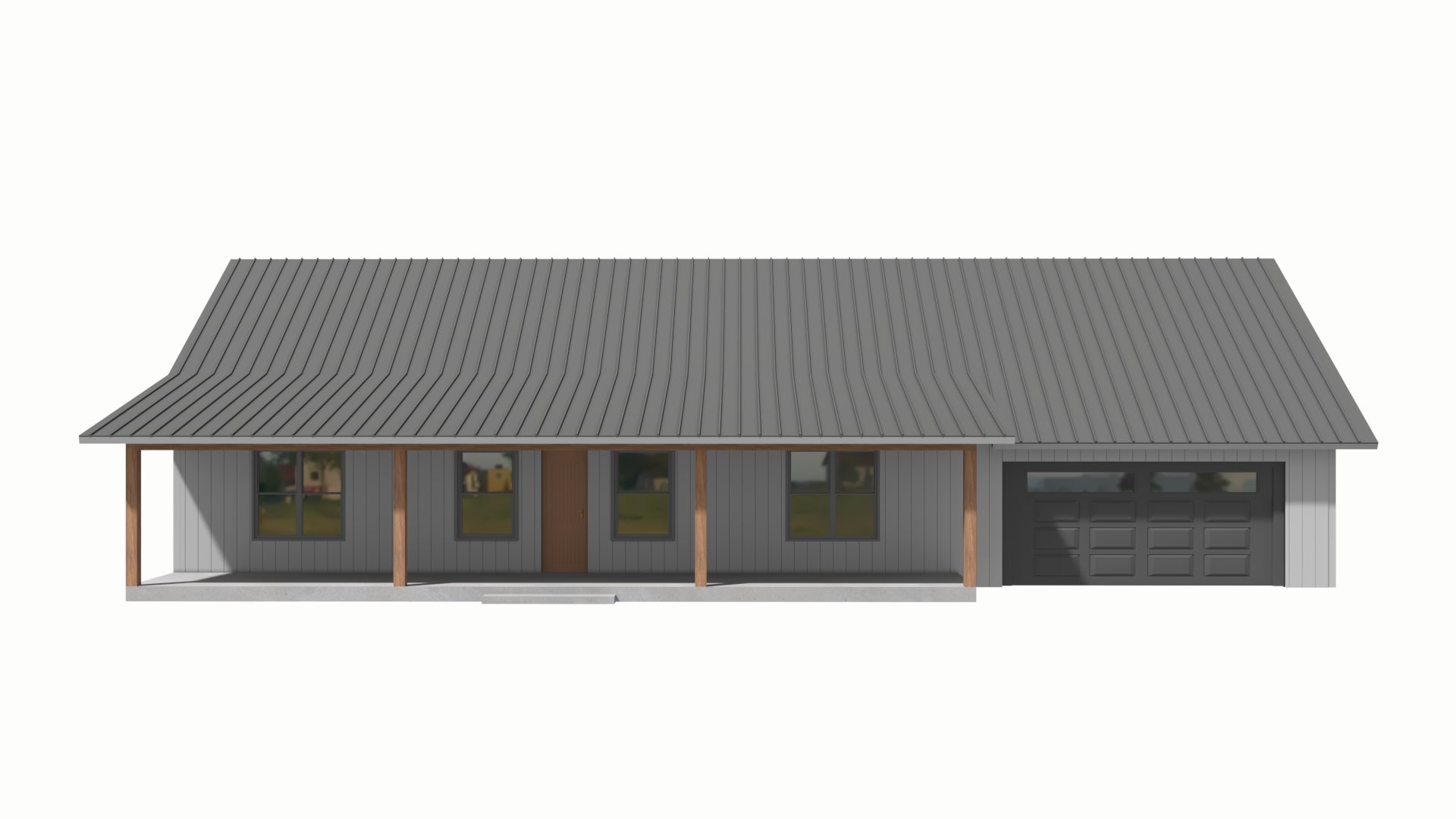

Front And Rear Elevation

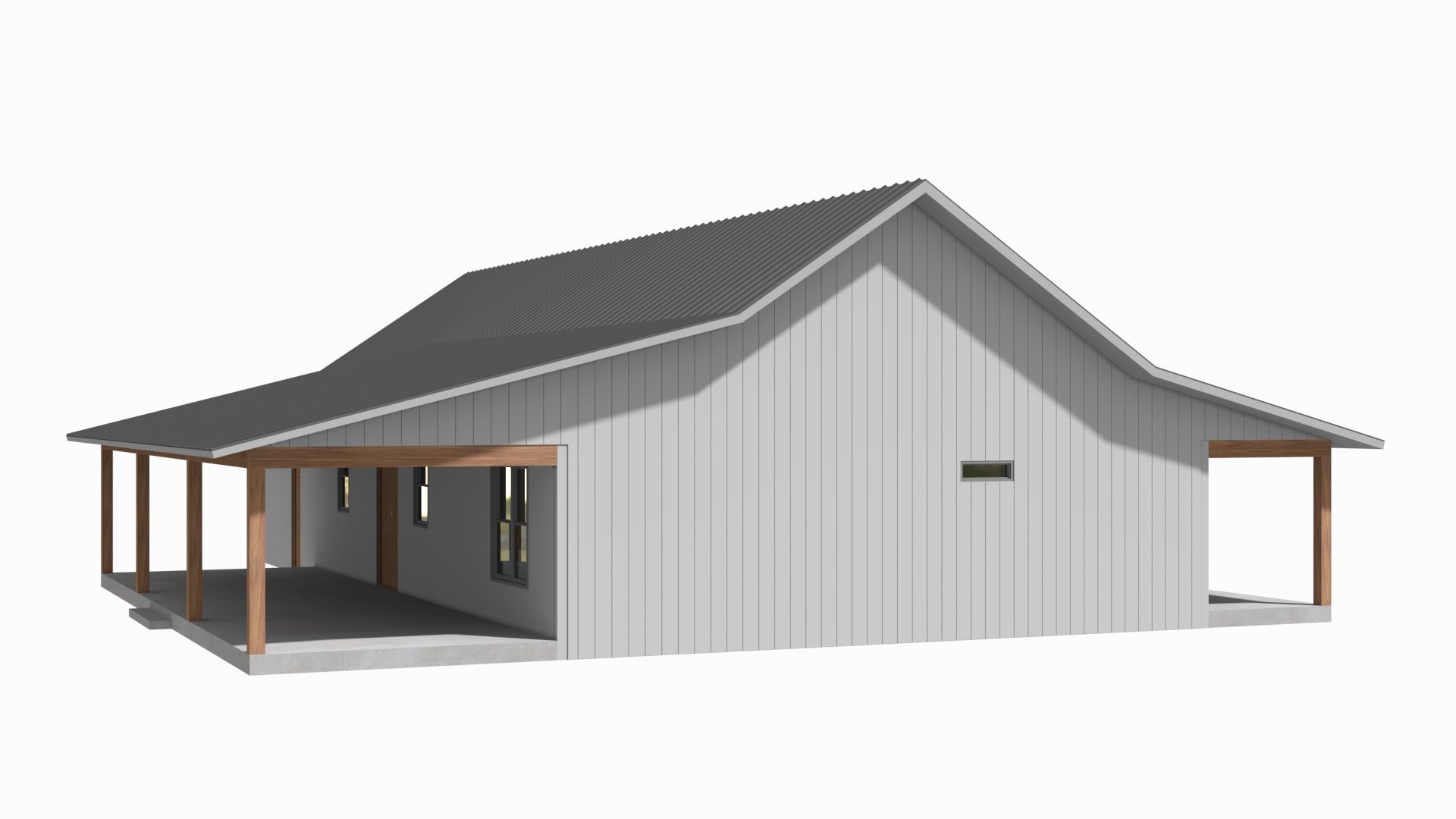

Right And Left Elevation
Electrical Plan
Plumbing Plan
Hvac Plan
Roof Framing Plan
Foundation Plan
Foundation Detail
C-Typical
Column Detail Wall Section



For more barndominium floor plans, check out our complete collection of 3-bedroom barndominium floor plans.



Need to make changes? Submit a modification request using the button that says Modify This Plan. We will get you a free price quote within 72 hours.

What's Typically Included

THE SPECIFC DETAILS OF WHAT'S INCLUDED ON THESE PLANS IS CONTAINED IN THE PRODUCT DESCRIPTION. PLEASE SCROLL UP AND YOU WILL FIND IT UNDER "WHAT'S INCLUDED"

Our house plan sets typically have the following details:

4 Elevations – Front, Back, Both Sides

Detailed Floor Plan Drawing

Electrical Plans with placements for HVAC

Plumbing Plans with Placements

Flooring Plan

Roof Plan

Foundation Plan

For more information on what's included and examples of what your plans will look like, go here -> https://barndominiumplans.com/pages/whats-included

Please Note: We work with many different draftspeople who work in many different ways.  It should be noted that their plans may contain different details. THE SPECIFC DETAILS OF WHAT'S INCLUDED ON THESE PLANS IS CONTAINED IN THE PRODUCT DESCRIPTION. PLEASE SCROLL UP AND YOU WILL FIND IT UNDER "WHAT'S INCLUDED"

What's Not Included

The following items are NOT included:

Architectural or Engineering Stamp. Our plans are engineering-ready! Can take to a local structural engineer, but we are not engineers ourselves. Once you've purchased plans, we can make a recommendation in all 50 states.

Septic Drawings - Handled locally

Metal Truss Plans - These are provided by the truss manufacturer

Wind and Snow Loads - Handled locally!

Delivery

This plan is available as a digital product or printed + shipped.

If you select digital, the plan will be delivered to you via email as a PDF file, no matter what time it is.

If you select printed + shipped, your order will ship in 24x36 format within 1 business day of your order.

We ship from the midwest in order to serve the entire country within 3-5 business days!

Return policy

All barndominium house plan purchases are FINAL. There are no exchanges or refunds due to the digital nature of the product. Please make sure that the plan you have selected is going to fit your needs.

Wondering about modifications, and making sure you like the changes? While all plan sales featuring modifications are also FINAL, here's a bit about how the modification process works:

After your order is placed, our team gets started on your modifications.

First, we send over an initial floor plan draft to make sure the modifications are correct. Any "clarifying changes" are included at no additional cost. Things like "Oh I meant for the door to swing this way, not that way" or "kitchen appliances should be arranged in XYZ way". Any major changes to the plan like adding a bedroom, a second story, or a different foundation are an additional fee. 99% of our customers do not incur an additional fee.

After the floor plan is confirmed, we send over the floor plans + elevations. We do the same process, and once you're good with the elevations, we finish up your final plans.
