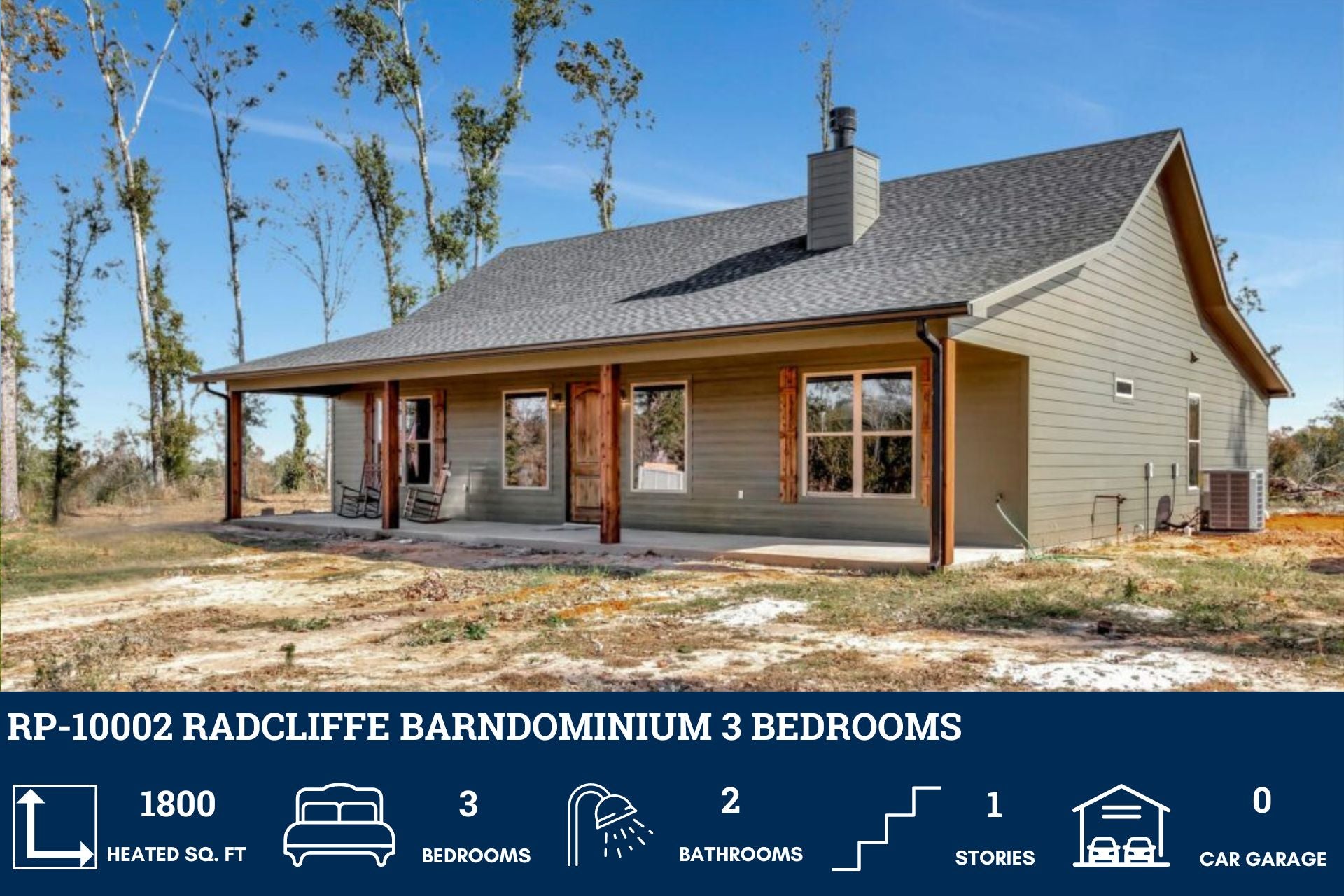

RP-10002 Radcliffe Barndominium House Plans

$1,049.99 USD
$1,049.99 USD
Sale Sold out
Add To Wishlist
1 13
Bedrooms 3 Bedrooms
Floors 1 Floors
Full Baths 2 Full Baths
Total Heated Area 1,800 SF Total Heated Area

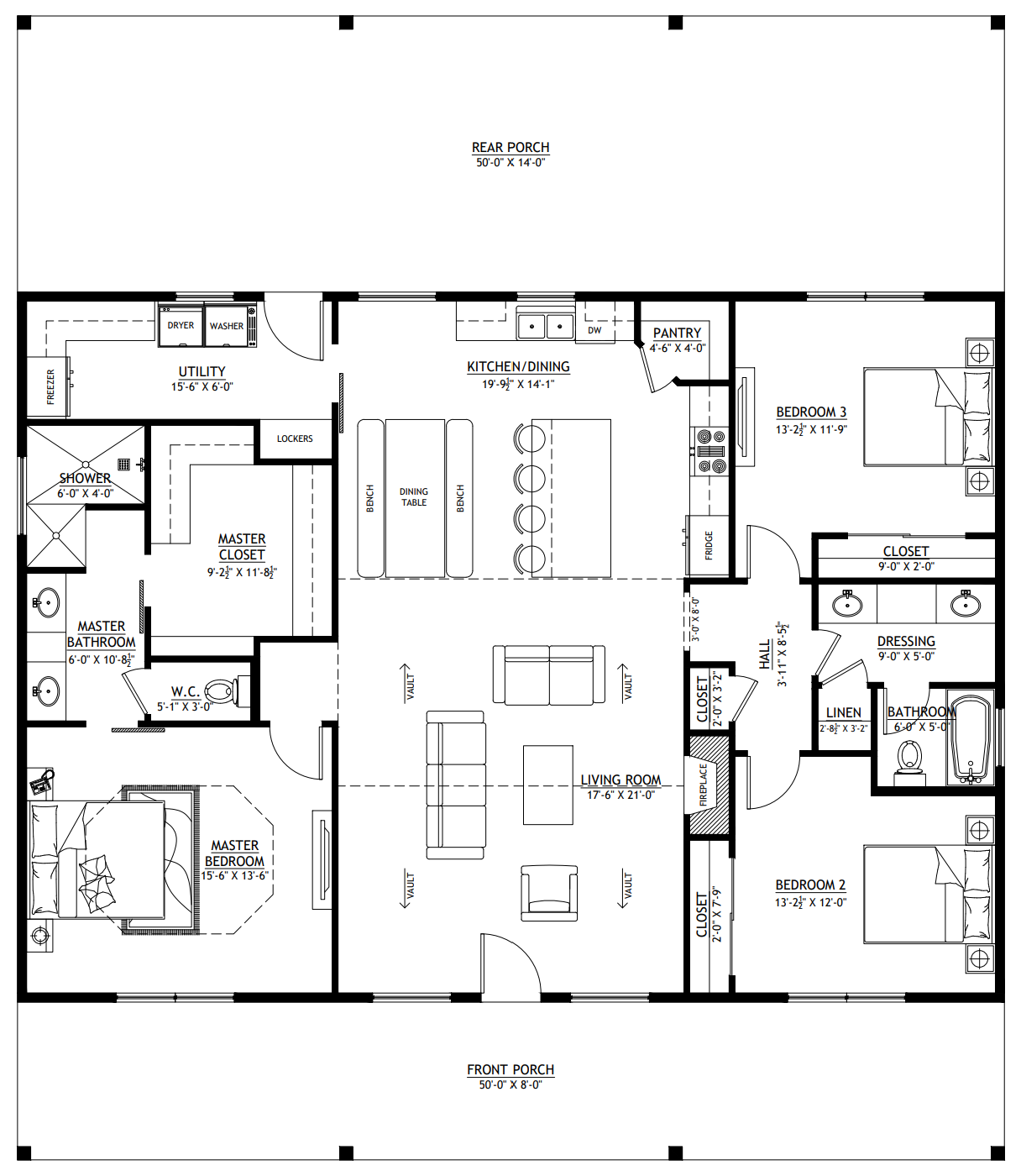

Floor Plan

DETAILS

HEATED SQ FT

First Floor:

1,800 SF

Second Floor:

None

Total Heated Sq Ft:

1,800 SF

UNHEATED SQ FT

Total Unheated Area:

1,100 SF (porches)

Carport:

None

Bedrooms:

3

Full Baths:

2

Floors:

1

Garage Size:

None

Width:

50'

Depth:

58'

Height:

22'-9½"

Foundation:

Concrete Slab

Main Roof Pitch:

8:12, 3:12 on porch roofs

Construction Type:

Stick Frame

CEILING HEIGHTS

First Floor:

9'

RP-10002 Radcliffe Barndominium House Plans

See this home in action! https://www.barndominiumlife.com/3-bedroom-texas-barndominium/

About this barndominium house plan:

  • 1800 Heated Square Feet
  • 36x50 living space dimension
  • 3 Bedrooms
  • 2 Bathrooms
  • Single-story

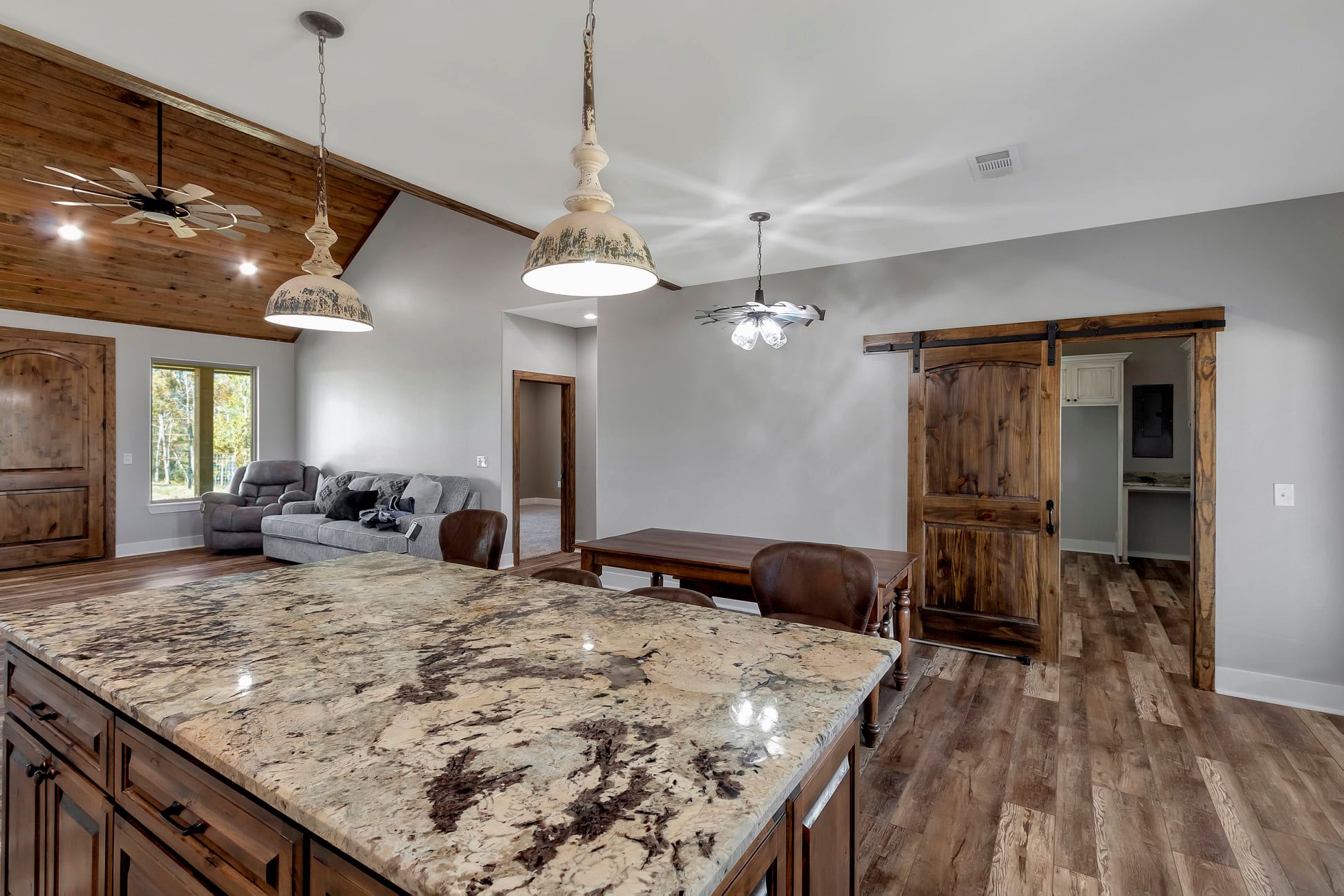

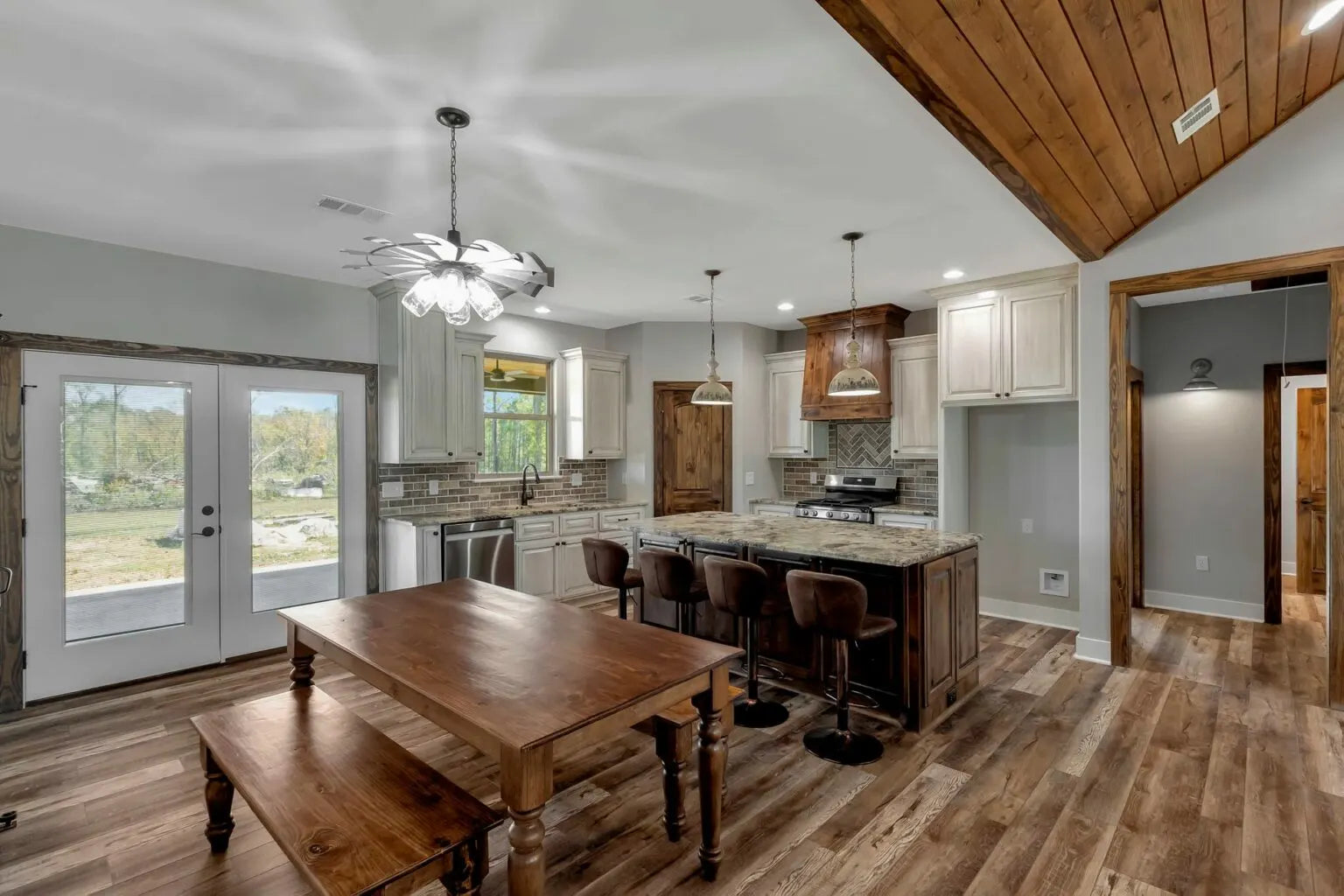

  • Open-concept
  • Utility room

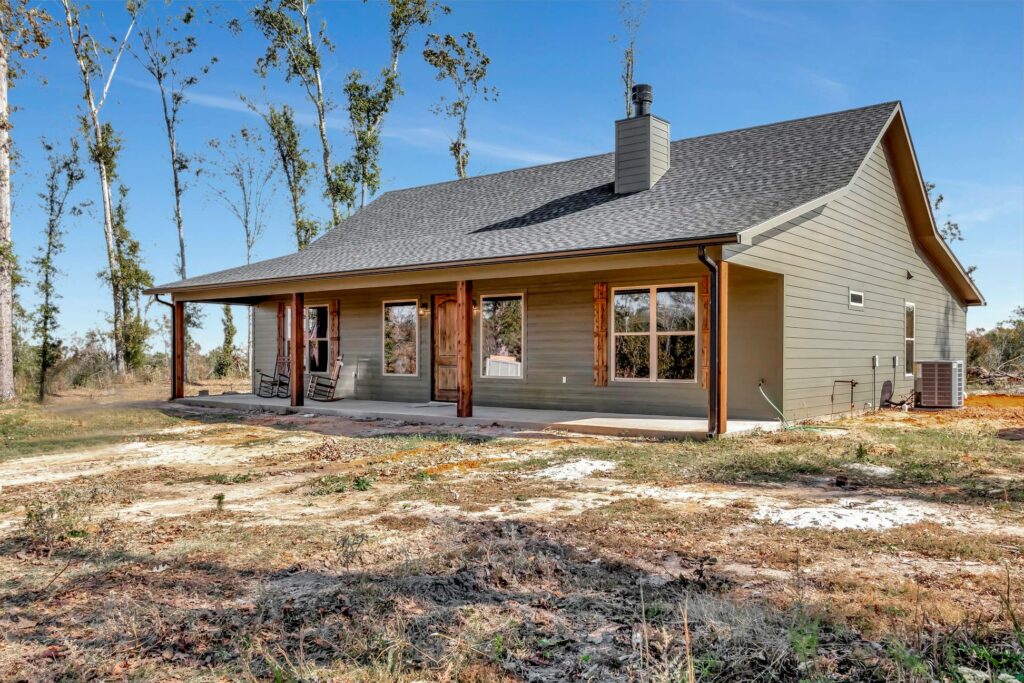

  • Front & rear porch

  • This 1800 sq ft living area is perfect for anyone who desires a spacious and comfortable living space. With its stunning design, this house plan is perfect for those who love the charm of a barn-style home but crave the modern amenities of a new house.
  • This stunning house plan features a giant master bedroom on the opposite end of the home from the other two bedrooms, ensuring privacy and tranquility for those who need it. The master bedroom also boasts an en-suite bathroom and a walk-in closet, adding to its luxury and comfort.
  • The two additional bedrooms are located on the opposite end of the house, with a shared bathroom in between them. This layout is perfect for families or guests, allowing for plenty of personal space while still providing a sense of togetherness. Each bedroom also features a closet, providing ample storage for all of your belongings.

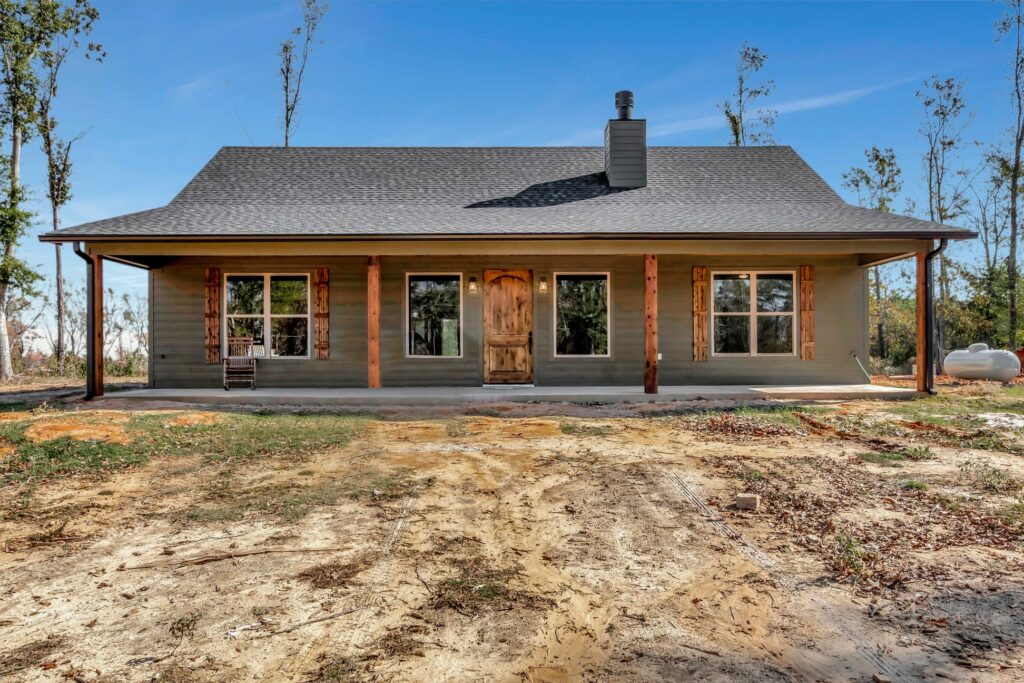

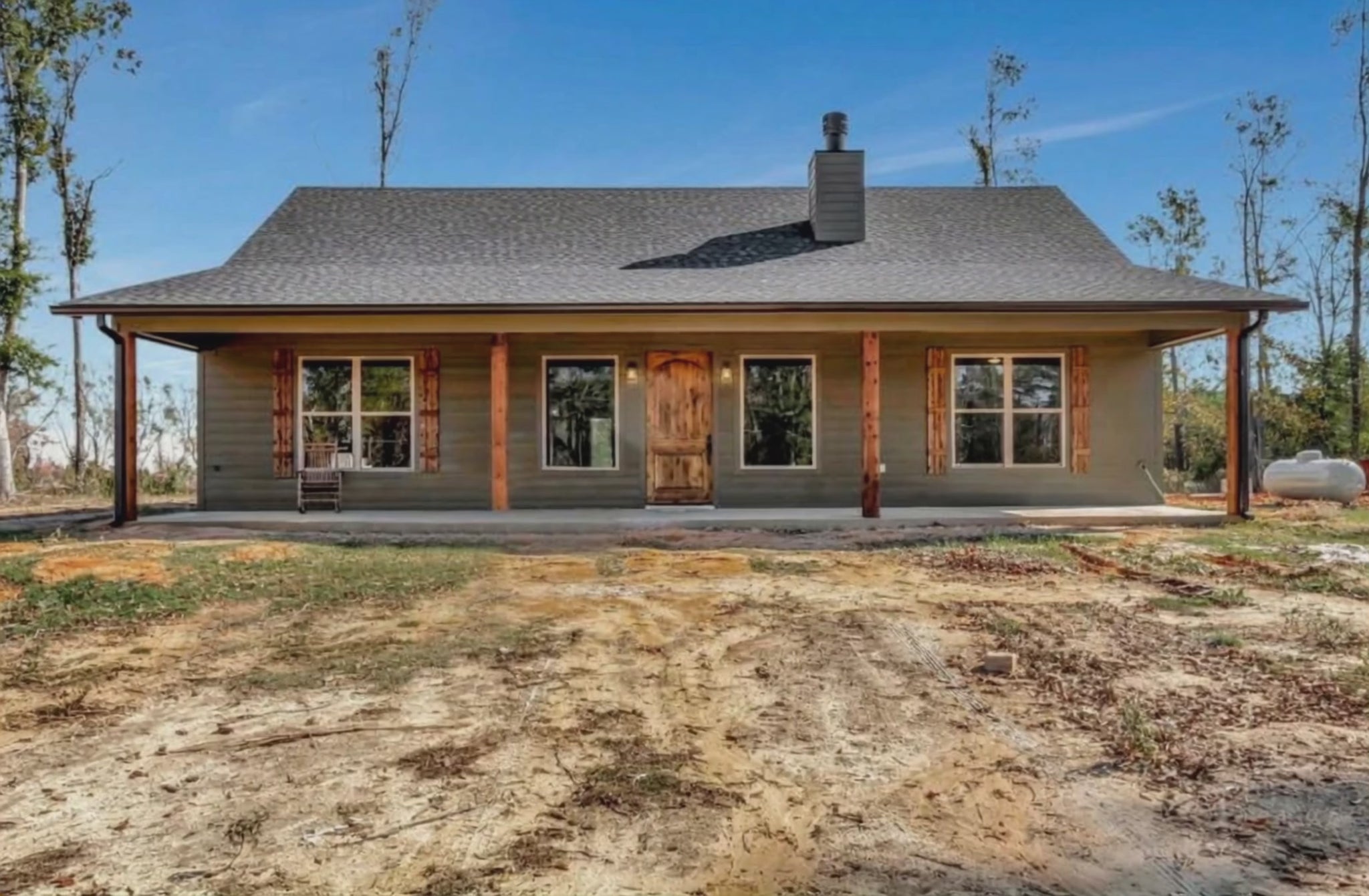

  • One of the standout features of this house plan is its front and back porches. These outdoor spaces are perfect for enjoying the beautiful scenery around your home, hosting a barbecue with friends and family, or simply relaxing with a good book. With plenty of space, you can create an outdoor living area that is perfect for your needs.

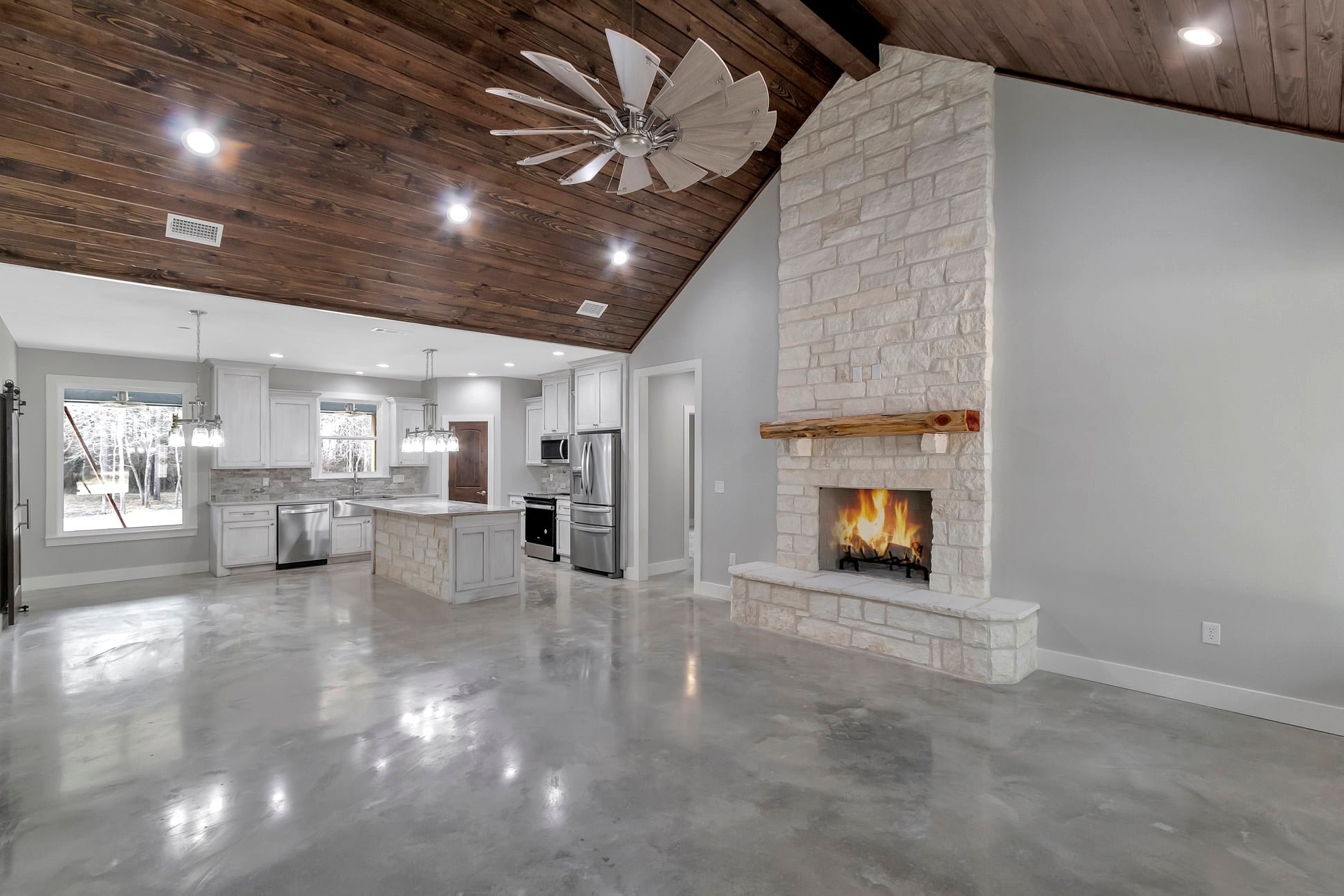

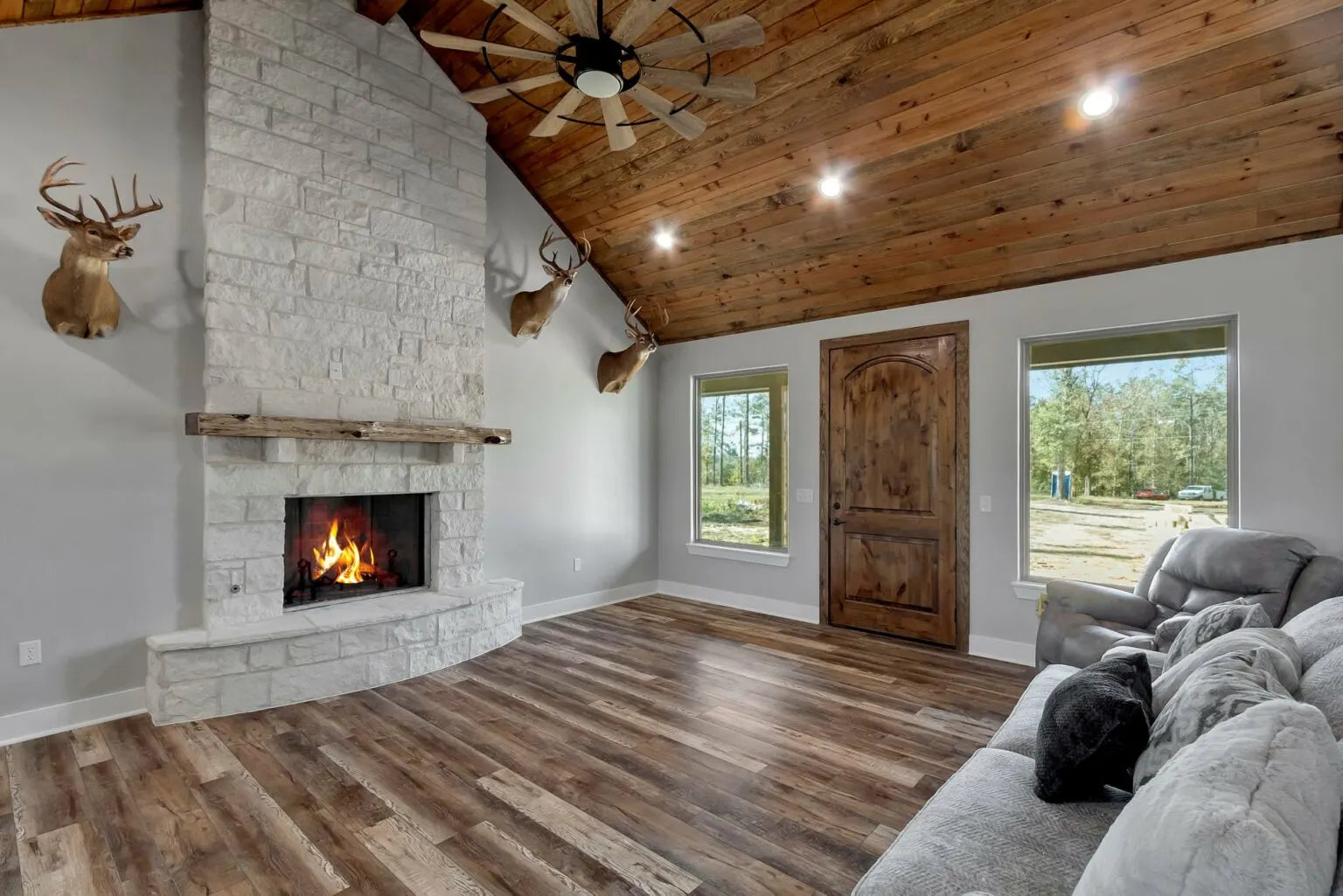

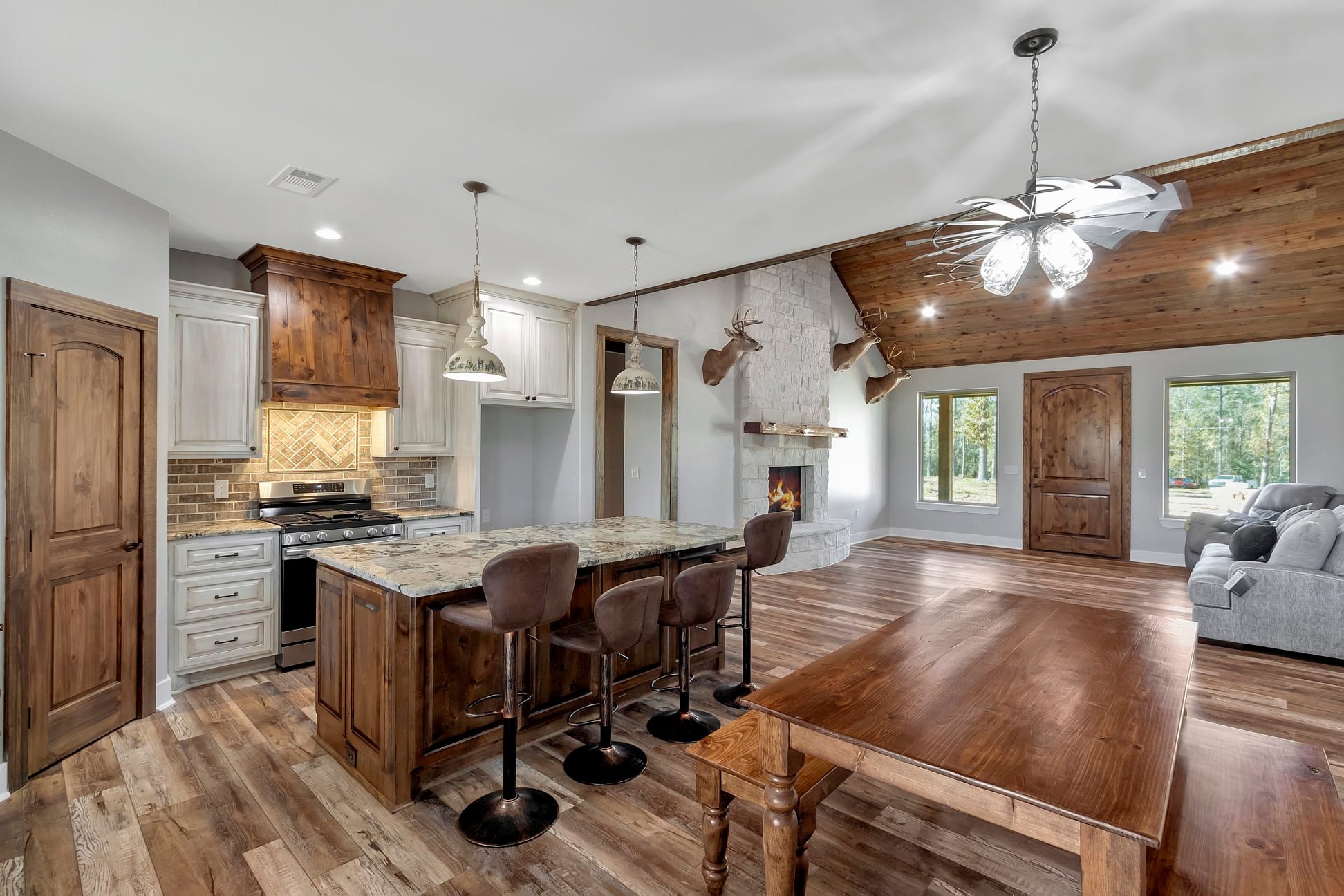

  • The living room of the Radcliffe Barndominium House Plan is a showstopper, featuring a fireplace that is perfect for cozy winter nights. The open-concept design of the living room, dining room, and kitchen creates a very spacious feel.

What's included in RP-10002:

Cover Page
Floor Plan
Roof Plan

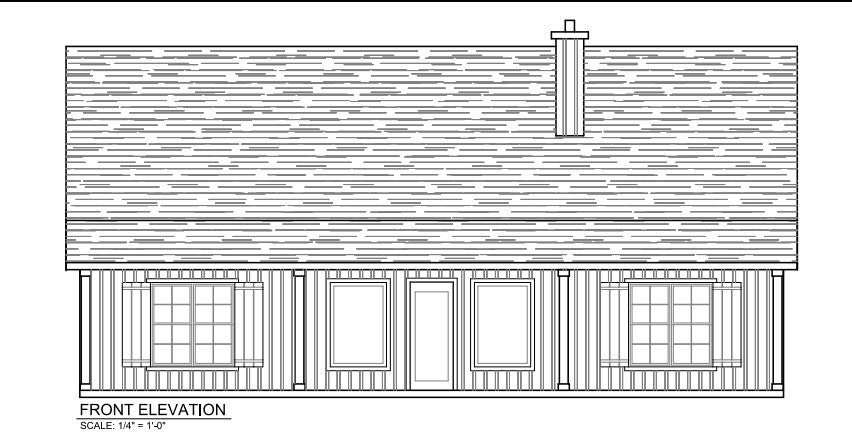

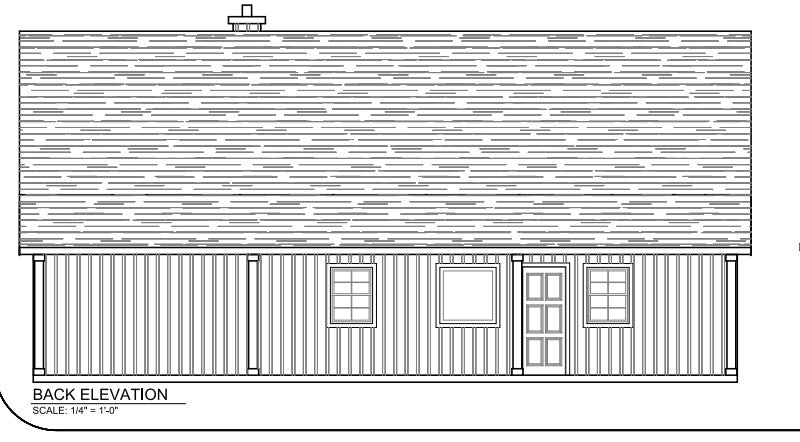

Front And Rear Elevation
Right And Left Elevation
Electrical Plan
Plumbing Plan
Hvac Plan
Roof Framing Plan
Foundation Plan
Foundation Detail
C-Typical
Column Detail Wall Section

For more barndominium floor plans, check out our complete collection of 3-bedroom barndominium floor plans.

Need to make changes? Submit a modification request using the button that says Modify This Plan . We will get you a free price quote within 72 hours

What's Typically Included

THE SPECIFC DETAILS OF WHAT'S INCLUDED ON THESE PLANS IS CONTAINED IN THE PRODUCT DESCRIPTION. PLEASE SCROLL UP AND YOU WILL FIND IT UNDER "WHAT'S INCLUDED"

Our house plan sets typically have the following details:

4 Elevations – Front, Back, Both Sides

Detailed Floor Plan Drawing

Electrical Plans with placements for HVAC

Plumbing Plans with Placements

Flooring Plan

Roof Plan

Foundation Plan

For more information on what's included and examples of what your plans will look like, go here -> https://barndominiumplans.com/pages/whats-included

Please Note: We work with many different draftspeople who work in many different ways.  It should be noted that their plans may contain different details. THE SPECIFC DETAILS OF WHAT'S INCLUDED ON THESE PLANS IS CONTAINED IN THE PRODUCT DESCRIPTION. PLEASE SCROLL UP AND YOU WILL FIND IT UNDER "WHAT'S INCLUDED"

What's Not Included

The following items are NOT included:

Architectural or Engineering Stamp. Our plans are engineering-ready! Can add this onto your order for most plans. We cover most of the US, but not all.

Site Plan - We can provide this if needed for $300 additional.

Materials List - We can add this onto most plans as an additional option.

Delivery

This plan is available as a digital product or printed + shipped.

If you select digital, the plan will be delivered to you via email as a PDF file, no matter what time it is.

If you select printed + shipped, your order will ship in 24x36 format within 1 business day of your order.

We ship from the midwest in order to serve the entire country within 3-5 business days!

Return policy

All barndominium house plan purchases are FINAL. There are no exchanges or refunds due to the digital nature of the product. Please make sure that the plan you have selected is going to fit your needs.

Wondering about modifications, and making sure you like the changes? While all plan sales featuring modifications are also FINAL, here's a bit about how the modification process works:

After your order is placed, our team gets started on your modifications.

First, we send over an initial floor plan draft to make sure the modifications are correct. Any "clarifying changes" are included at no additional cost. Things like "Oh I meant for the door to swing this way, not that way" or "kitchen appliances should be arranged in XYZ way". Any major changes to the plan like adding a bedroom, a second story, or a different foundation are an additional fee. 99% of our customers do not incur an additional fee.

After the floor plan is confirmed, we send over the floor plans + elevations. We do the same process, and once you're good with the elevations, we finish up your final plans.
