PL-71006 Katrina Barndominium House Plan

$849.99 USD
$849.99 USD
Sale Sold out
1 8

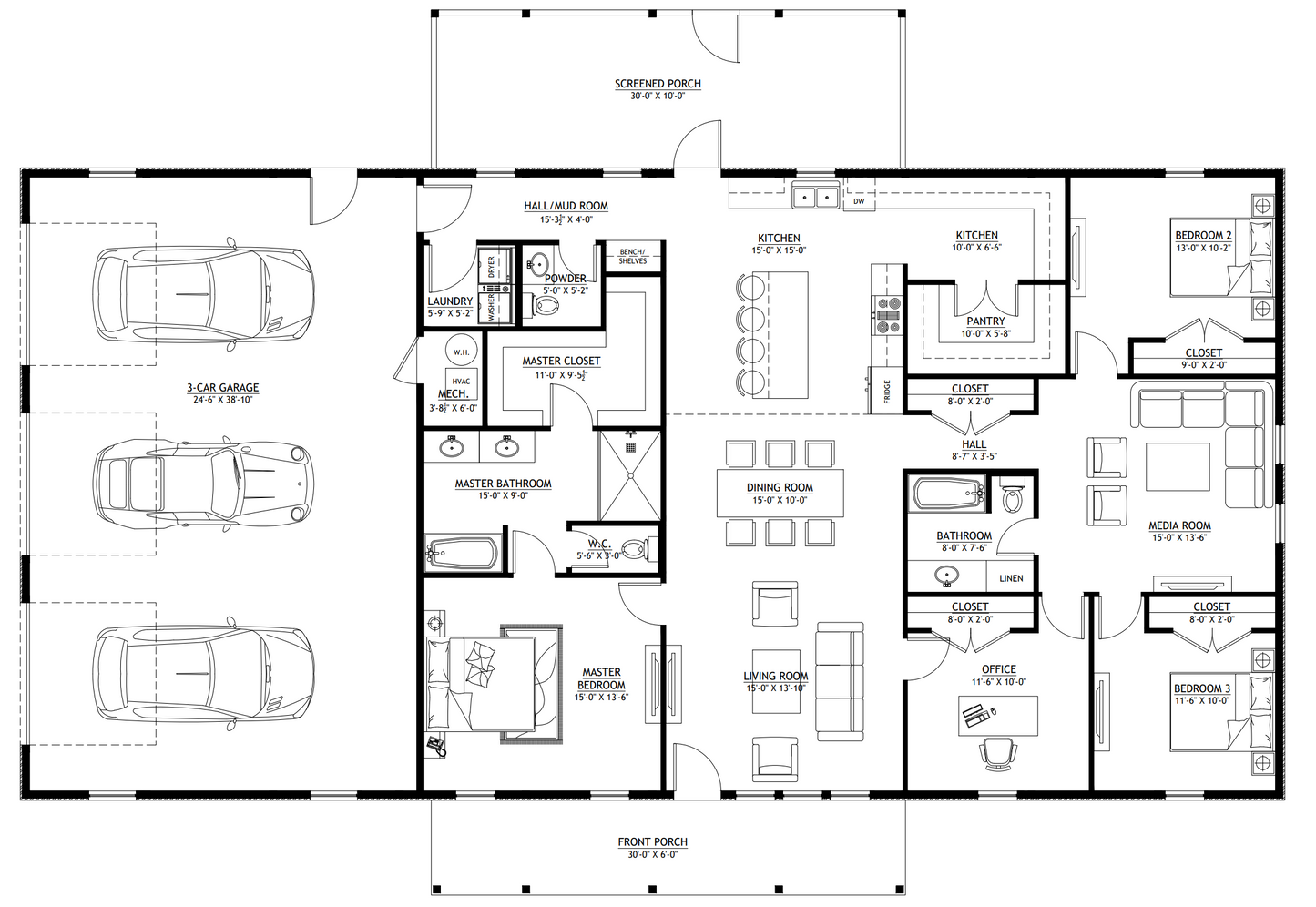

Floor Plan

DETAILS

HEATED SQ FT

First Floor:

2,197 SF

Second Floor:

None

Total Heated Sq Ft:

2,197 SF

UNHEATED SQ FT

Total Unheated Area:

180 SF porch + 300 SF screened porch + 1,003 SF garage = TOTAL 1,483 SF

Carport:

None

Bedrooms:

3

Full Baths:

2

Floors:

1

Garage Size:

1,003 SF

Width:

80'

Depth:

56'

Height:

21'-11"

Foundation:

Concrete Slab

Main Roof Pitch:

6:12

Exterior Framing:

Post-Frame

CEILING HEIGHTS

First Floor:

10'

PL-71006 Katrina Barndominium House Plan


About this barndominium house plan:

  • 2197 Heated square feet
  • 40x54 living space dimension
  • 3 Bedrooms
  • 2.1 Bathrooms
  • Single story
  • Open concept
  • Office
  • Media Room
  • Mechanical Room
  • Mudroom
  • Front & Screened Rear Porch
  • 3-car Garage


  • This house offers a generous total heated area of 2197 square feet laid out on a single-level, open layout, providing easy access to all rooms.
  • It has 3 bedrooms: A spacious and private master's bedroom on the left side, and two cozy and comfortable rooms on the opposite side.
  • The home offers a luxurious master's bathroom, another conveniently placed bathroom near the two bedrooms, and a handy half bathroom when entering from the garage.
  • Other features include an office and a comfortable media room giving space for movie nights and gaming.
  • Practical features include a mechanical room for the home systems, and a mudroom, an organized transition space from the garage with storage for shoes and coats.
  • A charming front porch welcomes you, while the screened back porch is perfect for relaxing and enjoying the outdoors.
  • An attached 3-car garage is great for additional storage while protecting your vehicles.
