Barndominium Plans

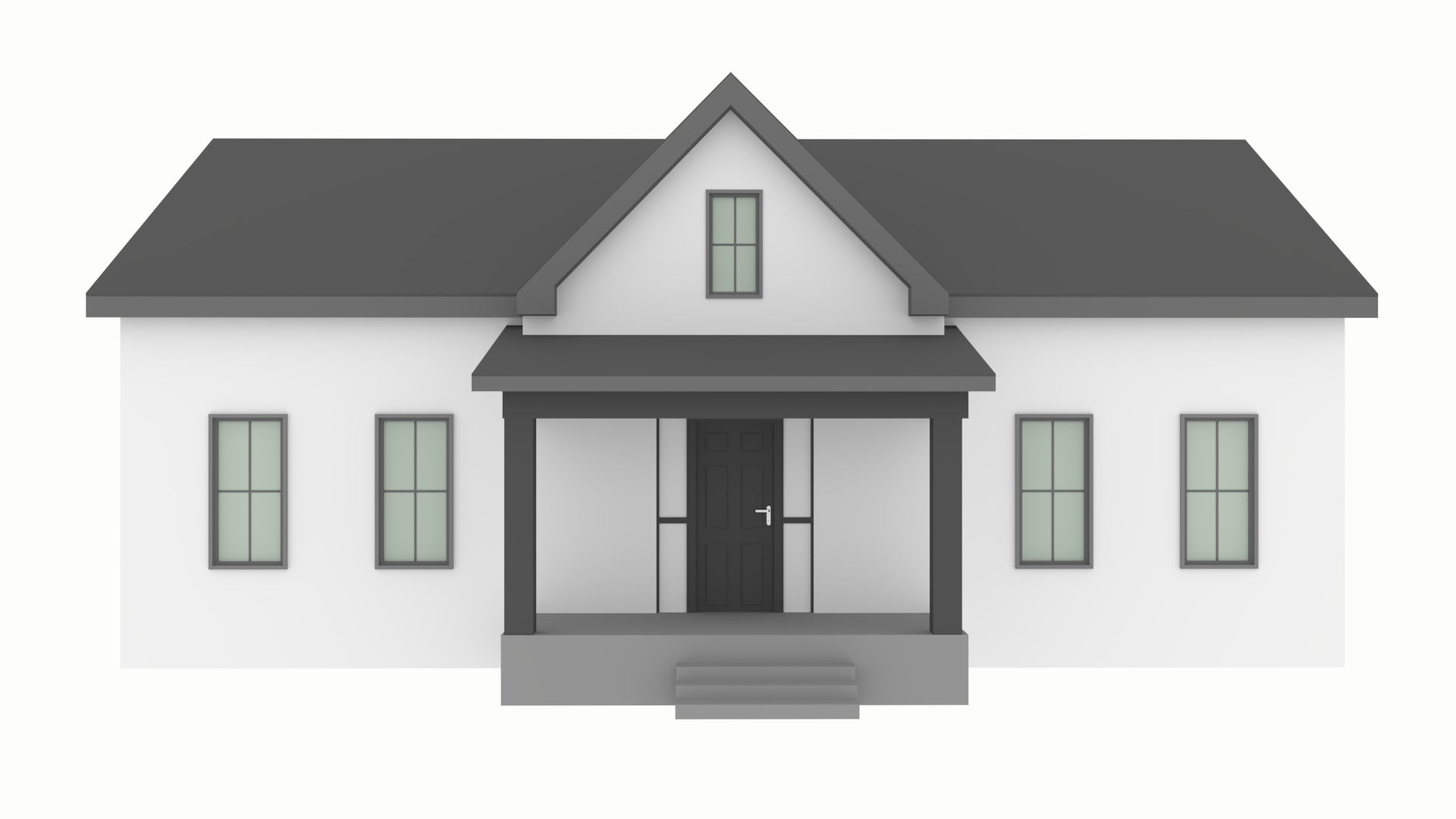

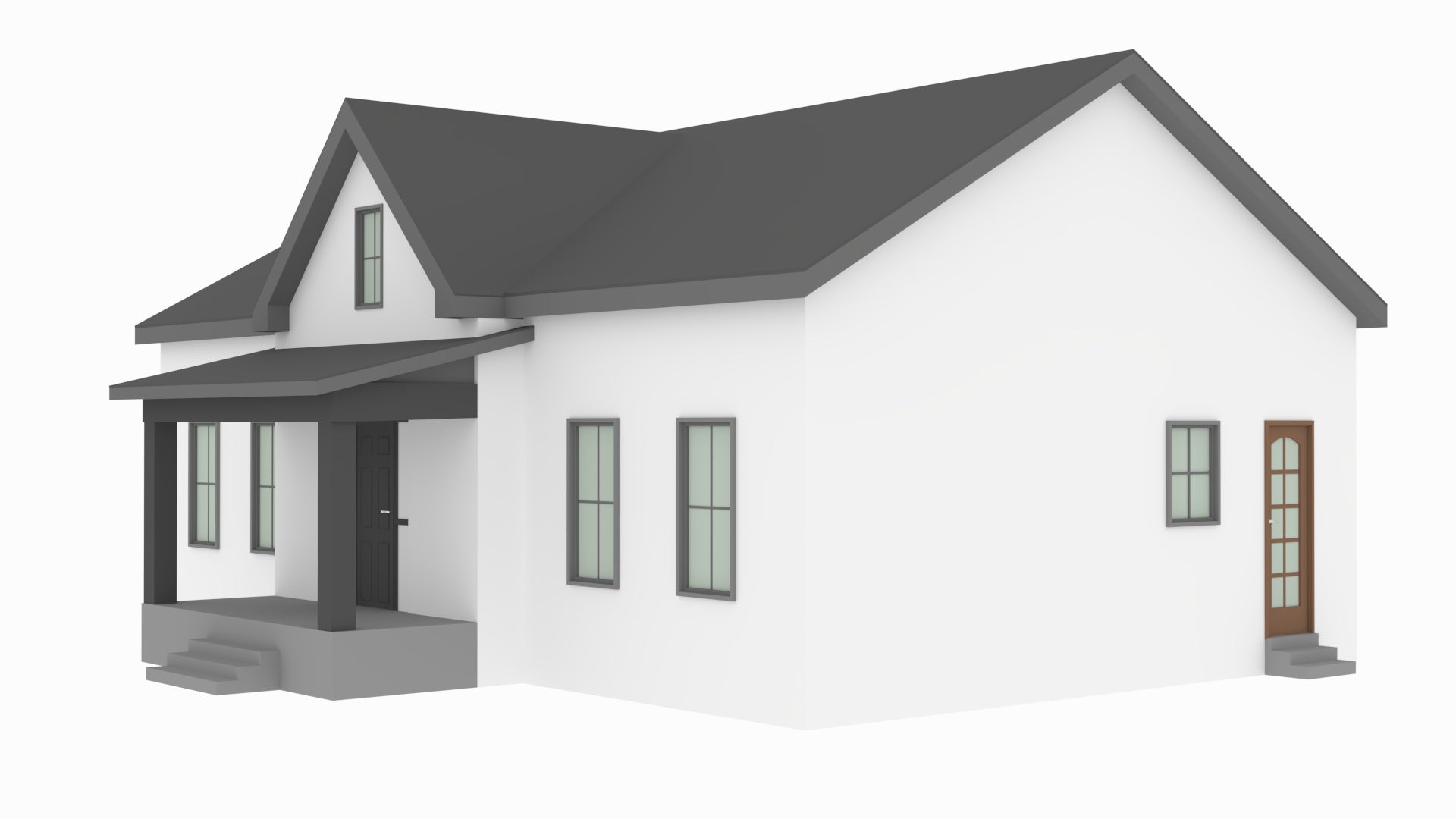

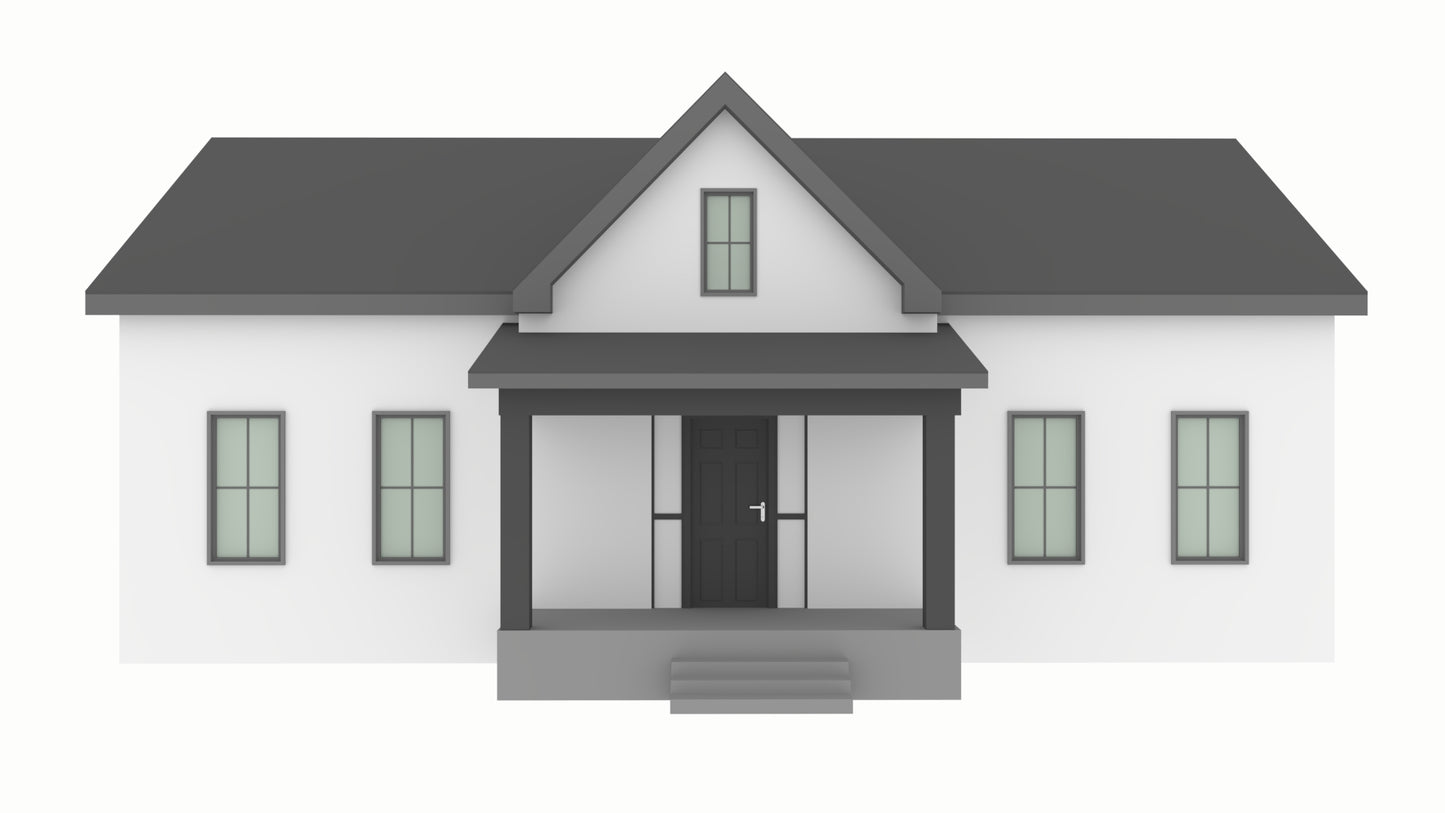

PL-64030 Max Barndominium House Plan
Regular price
$849.99 USD
Regular price
Sale price
$849.99 USD
Unit price
per

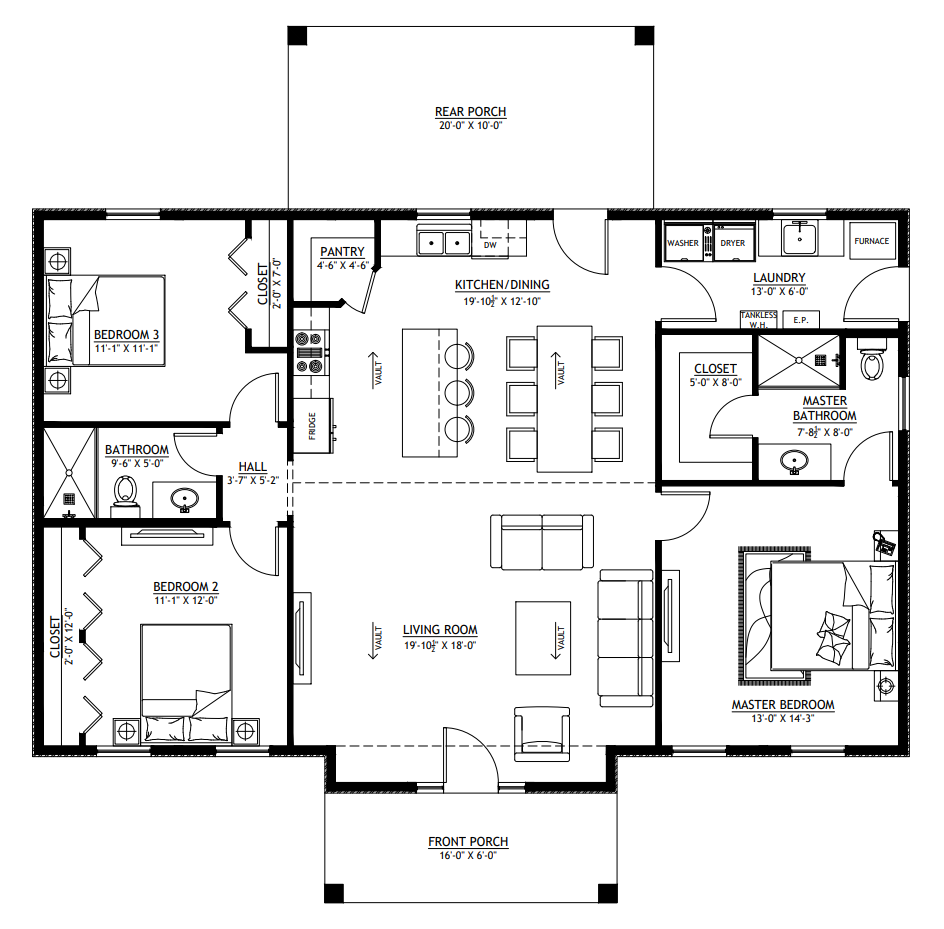

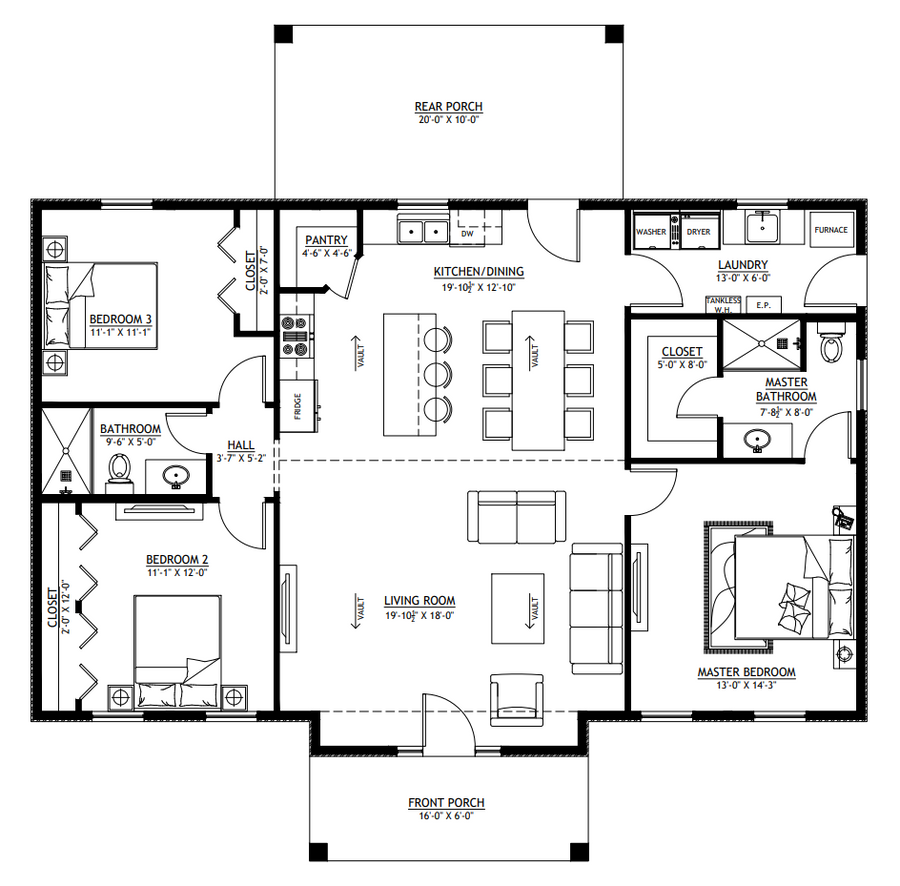

Floor Plan
DETAILS
HEATED SQ FT
First Floor:
1,472 SF
Second Floor:None
Total Heated Sq Ft:1,472 SF
UNHEATED SQ FT
Total Unheated Area:
296 SF
Carport:None
Bedrooms:
3
Full Baths:
2
Floors:
1
Garage Size:
None
Width:
48'
Depth:
48'
Height:
23'-6 1/4"
Foundation:
Crawl Space
Main Roof Pitch:
7:12
Exterior Framing:
Post-frame
CEILING HEIGHTS
First Floor:
9'
PL-64030 Max Barndominium House Plan
About this barndominium house plan:
- 1,472 Heated Sq Ft
- 3 bedrooms
- 2 bathrooms
- Single Story
- Crawl Space Foundation
- Open Concept
- Front porch
- This single-story layout offers 1,472 square feet of conditioned space—designed for simple living with just the right balance of privacy and openness.
- An open-concept floor plan creates a natural flow between kitchen, dining, and living areas—ideal for relaxed routines, easy entertaining, and uncluttered movement.
- The front porch adds a welcoming touch—perfect for morning coffee, quiet evenings, or simply enjoying the rhythm of everyday life.
What's included in PL-64030:
Cover Page
Floor Plan
Roof Plan
Elevations- Front, Rear, Right, and Left
Electrical Plan
Plumbing Plan
HVAC Plan
Roof Framing Plan
Foundation Plan
Slab Detail
Porch Post Detail
Wall Section
For more barndominium floor plans, check out our complete collection of 3 bedroom barndominium floor plans.
Need to make changes? Submit a modification request using the button that says Modify This Plan (below the Add To Cart Button). We will get you a free price quote within 72 hours
Please note all square footage are estimates.
What's Included
What's Included
Our house plan sets typically have the following details:
4 Elevations – Front, Back, Both Sides
Detailed Floor Plan Drawing
Electrical Plans with placements for HVAC
Plumbing Plans with Placements
Flooring Plan
Roof Plan
Foundation Plan
For more information on what's included and examples of what your plans will look like, go here -> https://barndominiumplans.com/pages/whats-included
Please Note: We work with many different draftspeople who work in many different ways. It should be noted that their plans may contain different details.
What's Not Included
What's Not Included
The following items are NOT included:
Architectural or Engineering Stamp. Our plans are engineering-ready! Can take them to a local engineer in your state.
Site Plan - We can provide this if needed for $300 additional.
Materials List - handled locally when required
Energy calculations - handled locally when required
Snow load calculations - handled locally when required
Delivery
Delivery
This plan is available as a digital product or printed + shipped.
If you select digital, the plan will be delivered to you via email as a PDF file, no matter what time it is.
If you select printed + shipped, your order will ship in 24x36 format within 1 business day of your order.
We ship from the midwest in order to serve the entire country within 3-5 business days!
Return policy
Return policy
All barndominium house plan purchases are FINAL. There are no exchanges or refunds due to the digital nature of the product. Please make sure that the plan you have selected is going to fit your needs.
💥
