Barndominium Plans

PL-63002 Graham Barndominium House Plan

$849.99 USD
$849.99 USD
Sale Sold out
1 12

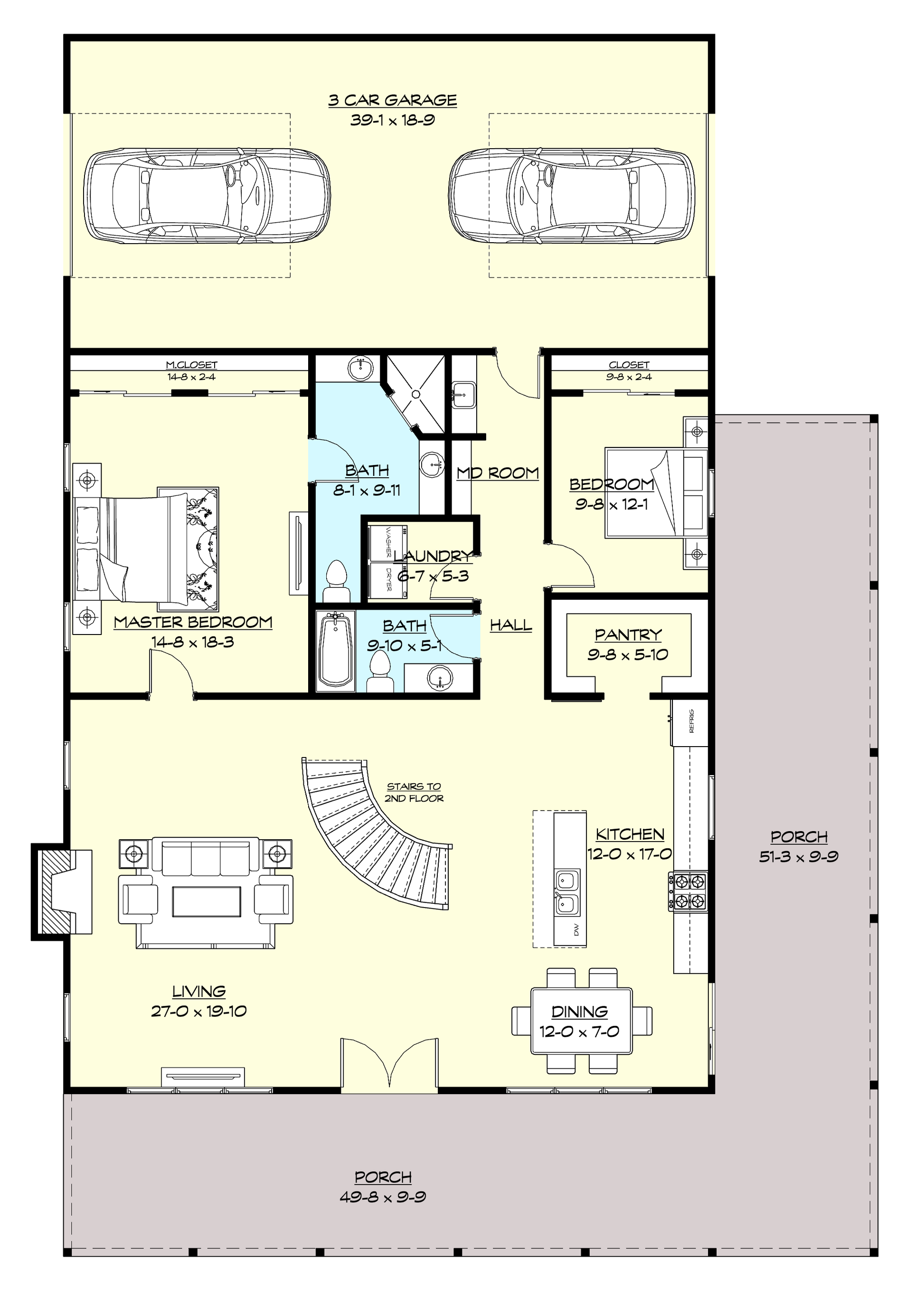

Floor Plan

DETAILS

HEATED SQ FT

First Floor:

1,848 SF

Second Floor:

1,031 SF

Total Heated Sq Ft:

2,879 SF

UNHEATED SQ FT

Total Unheated Area:

900 Sf porch + 778 Sf garage = TOTAL 1,678 SF

Carport:

None

Bedrooms:

3

Full Baths:

3

Floors:

2

Garage Size:

778 SF

Width:

51'-9 3/4"

Depth:

74'-9 3/4"

Height:

23'-7 5/8"

Foundation:

Concrete slab

Main Roof Pitch:

5:12

Exterior Framing:

2x6 studs

CEILING HEIGHTS

First Floor:

9'

PL-63002 Graham Barndominium House Plan

About this barndominium house plan:

  • 1848 Heated square feet
  • 778 square foot Attached 3 car garage
  • 3 bedrooms
  • 3 bathrooms
  • 2 Story
  • Loft
  • Mudroom
  • Media Room
  • Open Concept



  • The Graham barndominium house plan is 1848 heated square feet and features 3 bedrooms, and 3 full bathrooms, with an attached 778 square foot garage.
  • As you enter this home through the double front doors you are immediately wowed by the beautiful staircase that leads upstairs. The family room sits to the right and is large and spacious. You will be drawn to the fireplace as it creates a nice cozy atmosphere.
  • The kitchen is big and perfect for hosting friends and family. The island creates even more space to prep and serve. The walk-in pantry is perfect for storage of small appliances and food. There is even plenty of space for a nice breakfast nook.
  • The first floor features a master bedroom with an ensuite bathroom and master closet.
  • You will also find a secondary bathroom with a full bathroom.
  • Just off the garage is a mudroom perfect for coming in from outside as well as a laundry room.

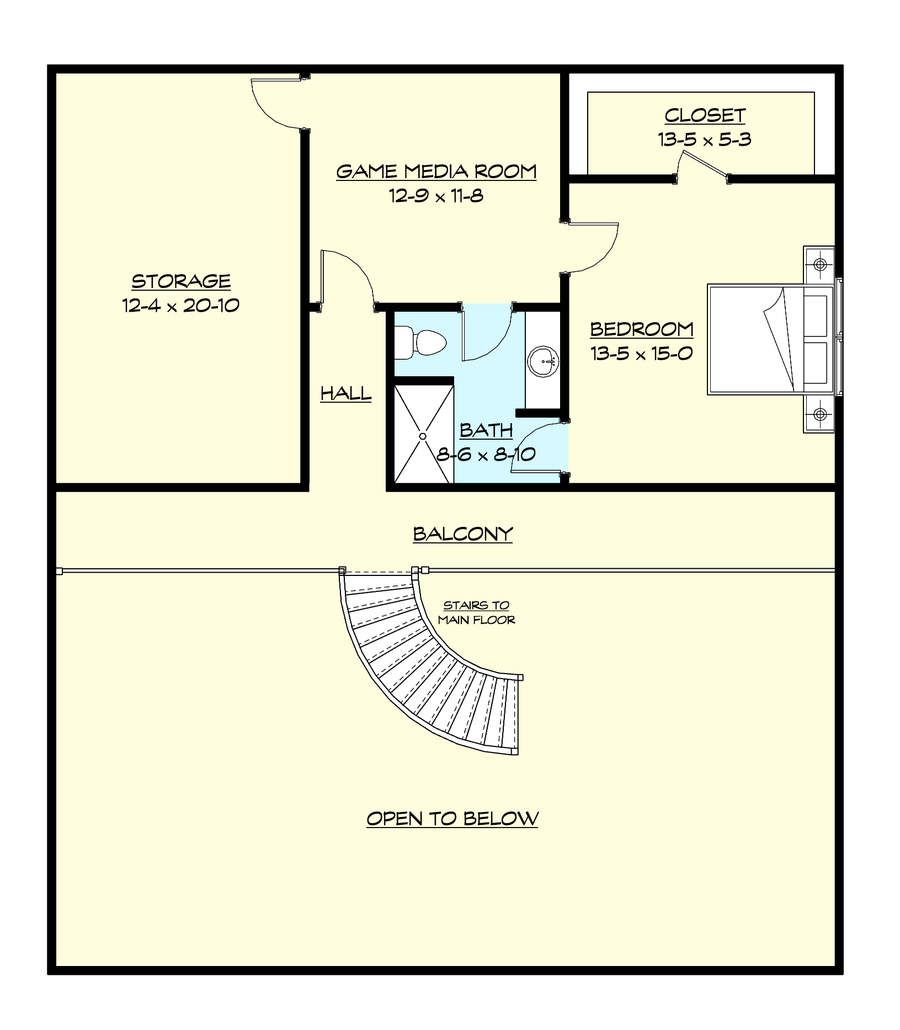

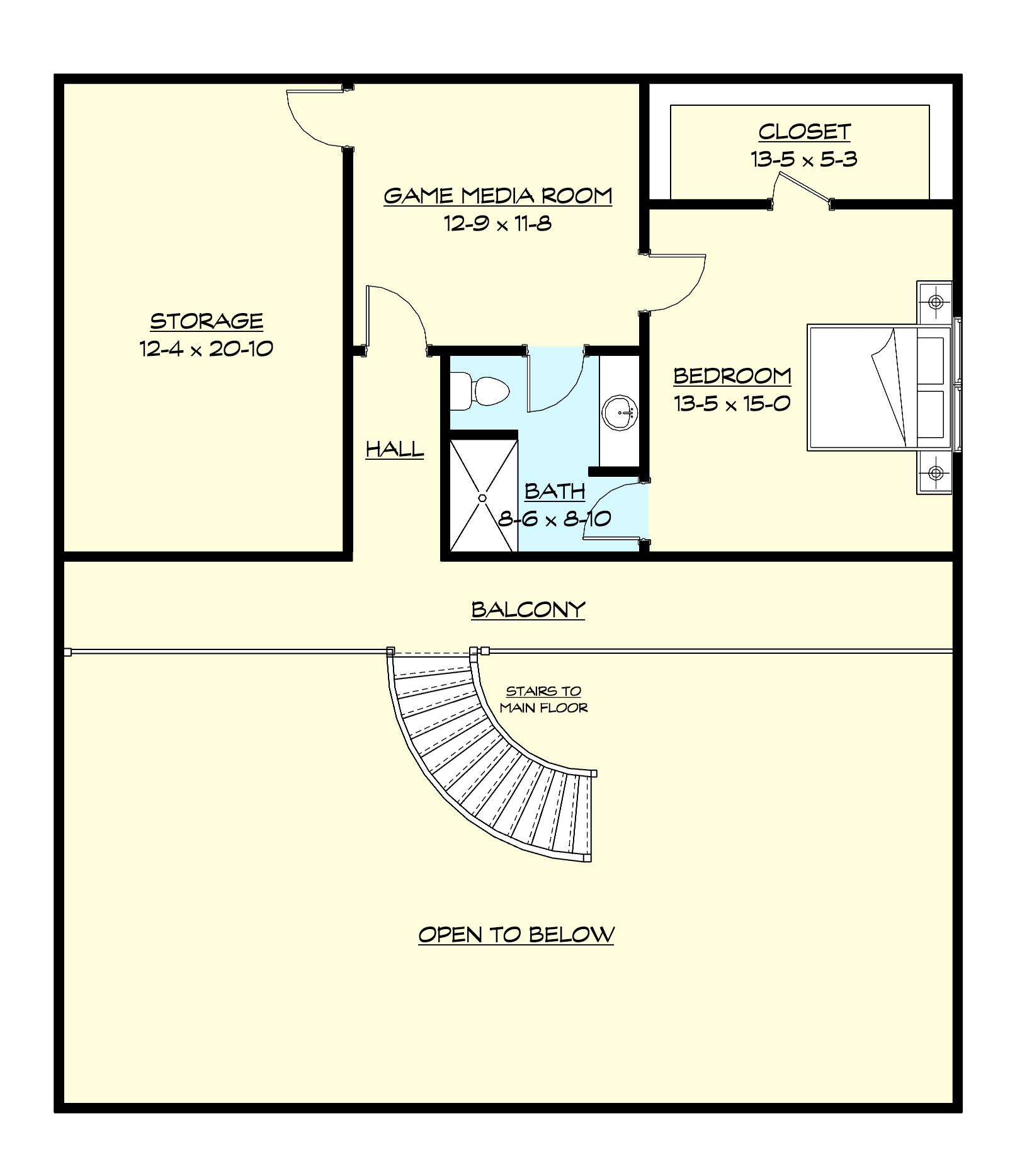

  • As you climb the stairs you will notice a great balcony that overlooks the main areas of the home.
  • You will also find another secondary bedroom with a large closet and bathroom.
  • There is a nice-sized game room that can be used for anything your heart desires.
  • An added bonus upstairs is a huge storage closet perfect for storing toys, holiday decor, and more.
  • The 778-square-foot attached 3-car garage provides ample space for parking and storage.

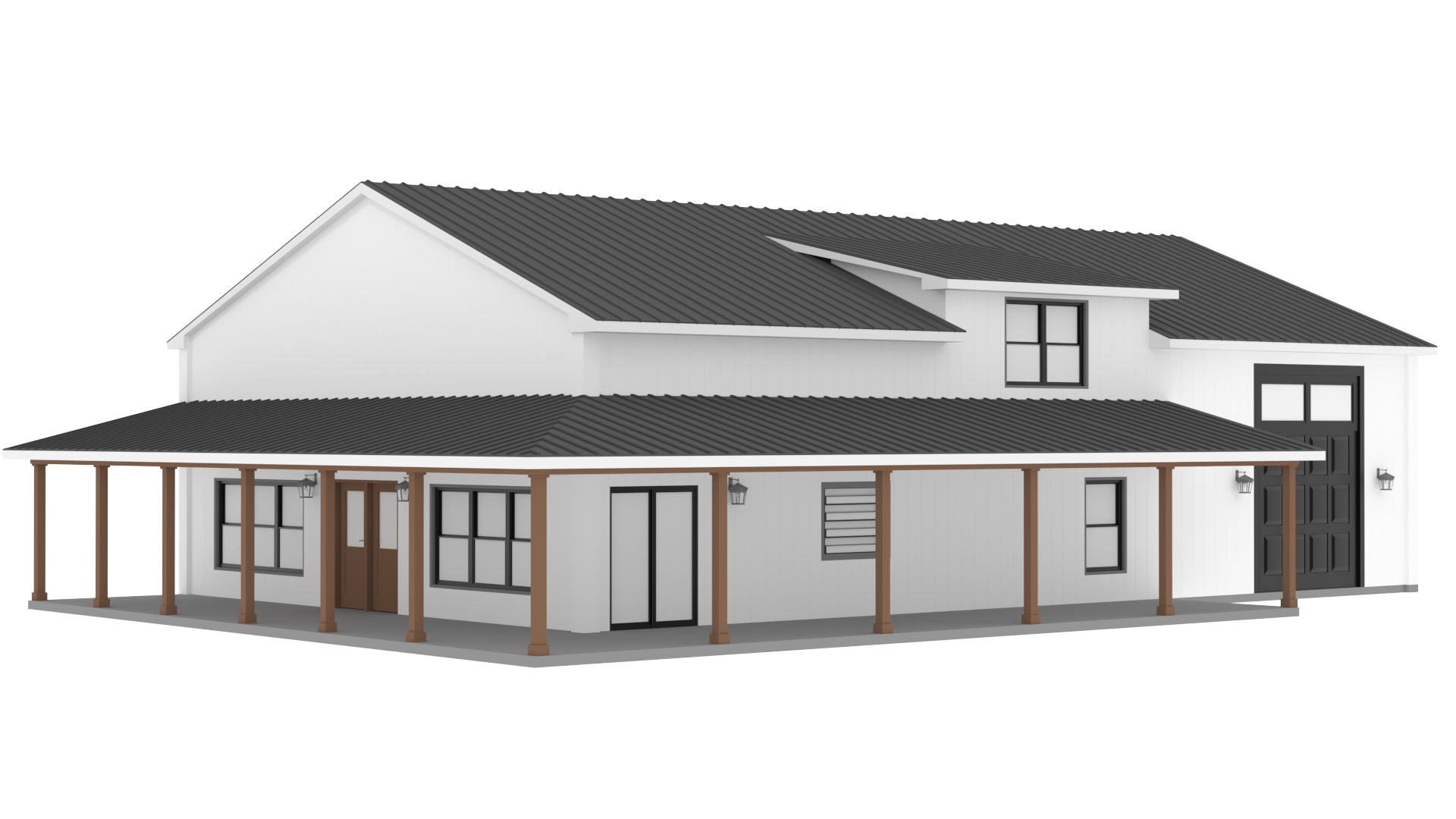

  • You will love how  the front porch extends to the sides, you can enjoy the beautiful scenery and relax in the fresh air.



For more barndominium floor plans, check out our complete collection of 3 bedroom barndominium floor plans.



Need to make changes? Email our modification department. We will get you a free price quote within 72 hours.

Please note all square footage are estimates.

What's Included

Our house plan sets typically have the following details:

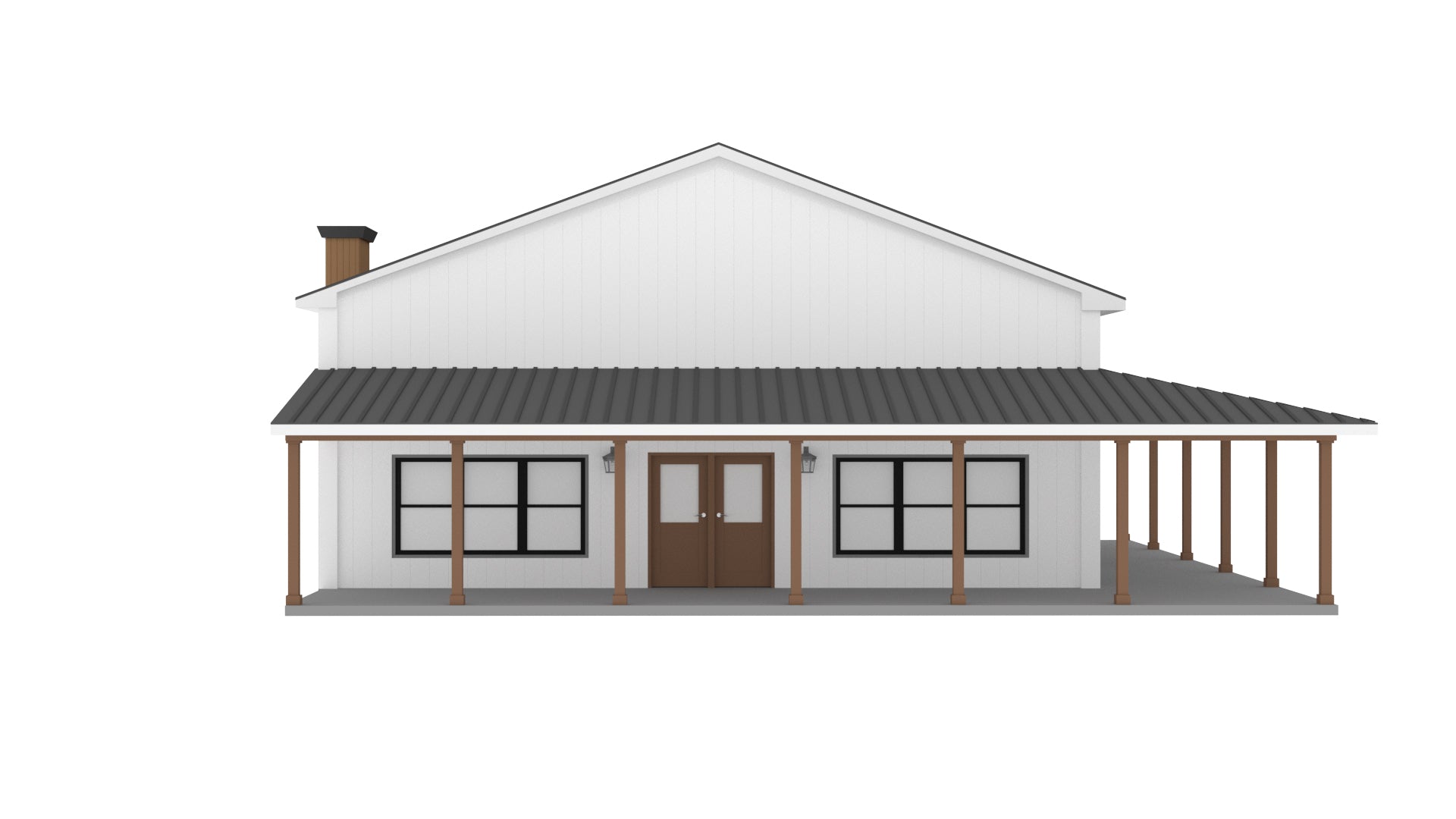

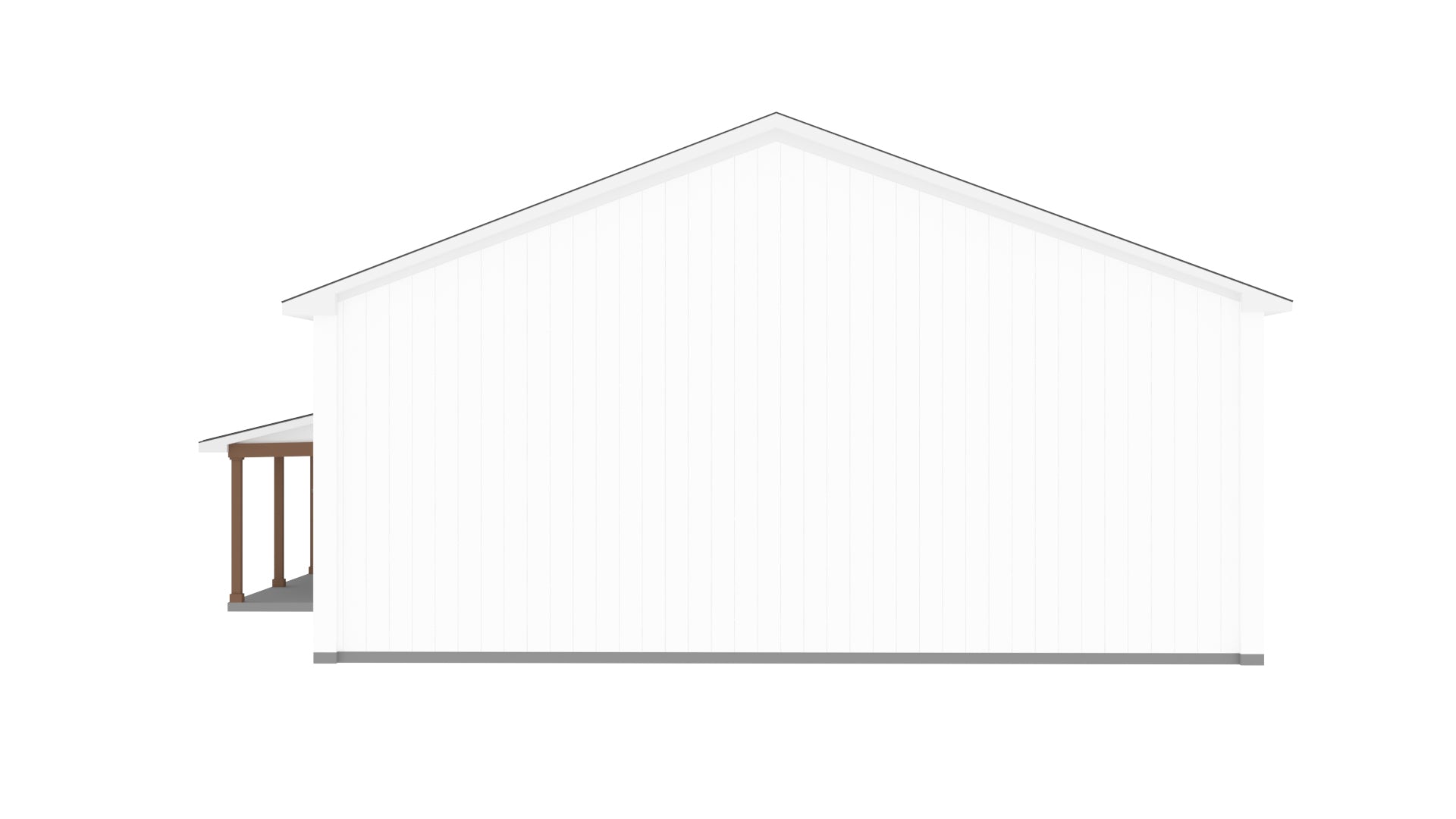

4 Elevations – Front, Back, Both Sides

Detailed Floor Plan Drawing

Electrical Plans with placements for HVAC

Plumbing Plans with Placements

Flooring Plan

Roof Plan

Foundation Plan

For more information on what's included and examples of what your plans will look like, go here -> https://barndominiumplans.com/pages/whats-included

Please Note: We work with many different draftspeople who work in many different ways.  It should be noted that their plans may contain different details.

What's Not Included

The following items are NOT included:

Architectural or Engineering Stamp - handled locally if required. We can help you find a structural engineer locally

Site Plan - handled locally when required

Energy calculations - handled locally when required

Snow load calculations - handled locally when required

Delivery

This plan is available as a digital product or printed + shipped.

If you select digital, the plan will be delivered to you via email as a PDF file, no matter what time it is.

If you select printed + shipped, your order will ship in 24x36 format within 1 business day of your order.

We ship from the midwest in order to serve the entire country within 3-5 business days!

Return policy

All barndominium house plan purchases are FINAL. There are no exchanges or refunds due to the digital nature of the product. Please make sure that the plan you have selected is going to fit your needs.
