Barndominium Plans
PL-62749 Wellington Barndominium House Plan
Regular price
$849.99 USD
Regular price
Sale price
$849.99 USD
Unit price
per

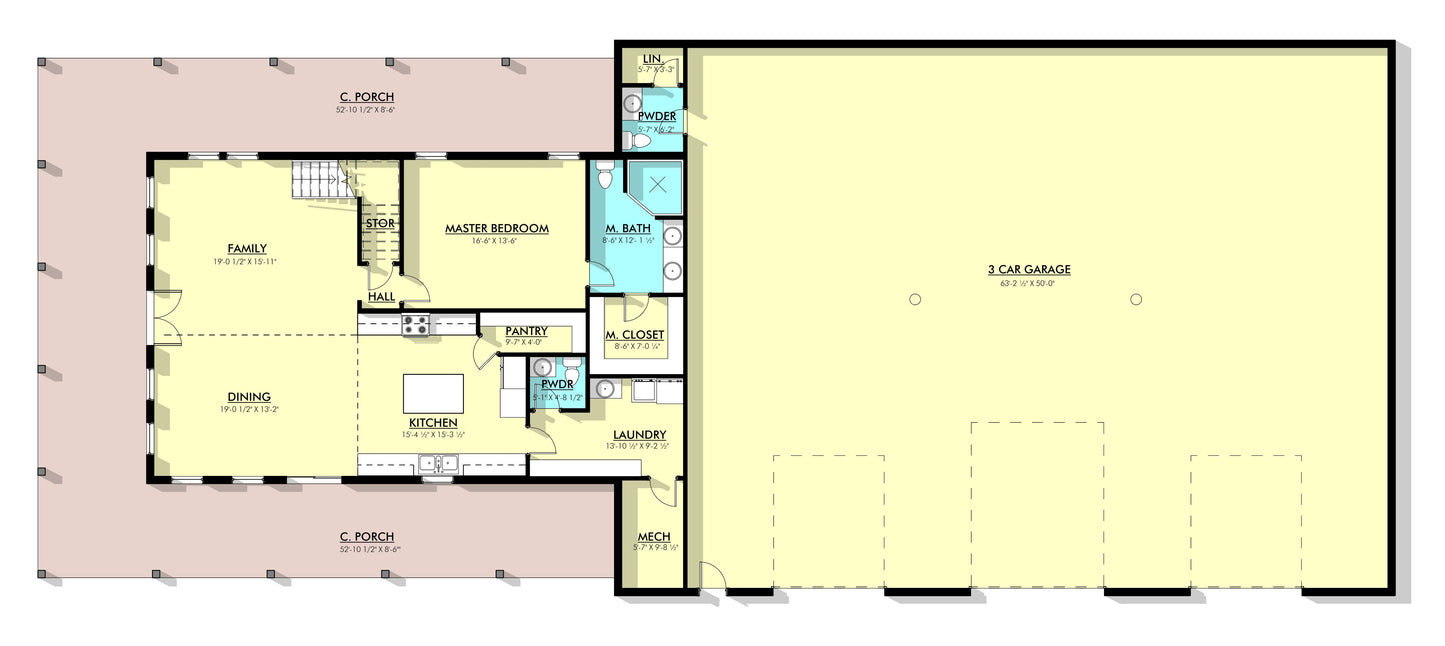

Floor Plan
DETAILS
HEATED SQ FT
First Floor:
1,625 SF
Second Floor:899 SF
Total Heated Sq Ft:2,524 SF
UNHEATED SQ FT
Total Unheated Area:
1,184 SF porch + 3,222 SF garage = TOTAL 4,406 SF
Carport:None
Bedrooms:
3
Full Baths:
2
Floors:
2
Garage Size:
3,222 SF
Width:
122'-10 1/2"
Depth:
50'
Height:
27'-11 1/8"
Foundation:
Concrete slab
Main Roof Pitch:
06:12
Exterior Framing:
Stick Frame
CEILING HEIGHTS
First Floor:
10'
PL-62749 Wellington Barndominium House Plan
About this barndominium house plan:
- 2524 Heated square feet
- 30x43 living space dimension
- 3 bedrooms
- 2.2 bathroom
- 2 Story
- Loft-style
- Open-concept
- Wraparound porch
- 3-Car Garage
- Experience the perfect blend of functionality and style in this 2524 sq ft barndominium. Revel in the spaciousness of its open-concept design and enjoy the serenity of the outdoors on its wraparound porch.

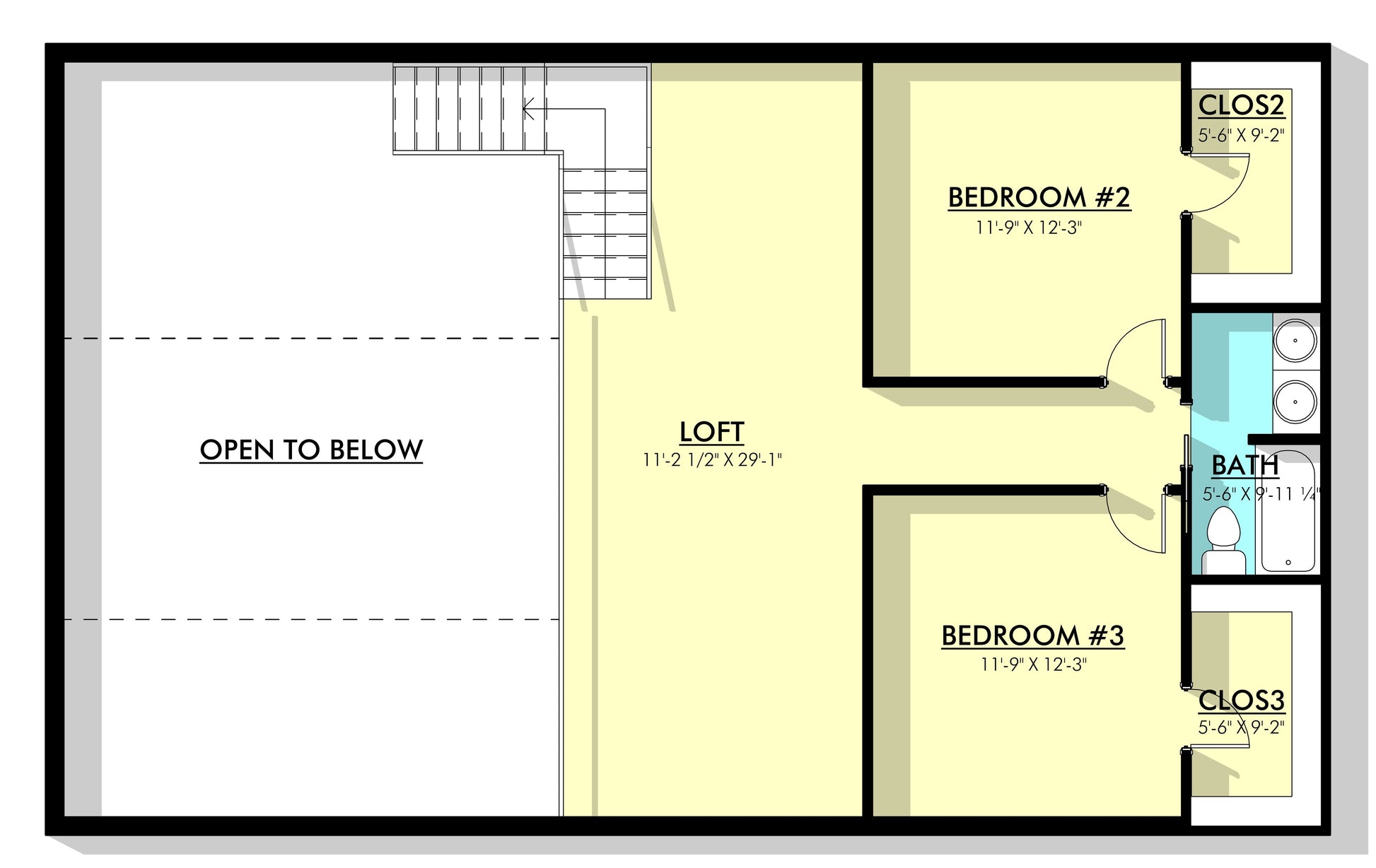

- A two-story barndominium with a loft-style second floor offering a unique blend of rustic appeal and modern living.
- Step into the comfort of this barndominium house plan featuring 3 bedrooms with the master suite on the main floor and 2 additional bedrooms upstairs. Enjoy the convenience of 2 full bathrooms, one in the master suite and another shared by the upstairs bedrooms. Plus, benefit from the practicality of 2 powder rooms, located in the laundry room and garage.
What's included in PL-62749:
Cover Sheet
Detailed Floor Plan Dimensions

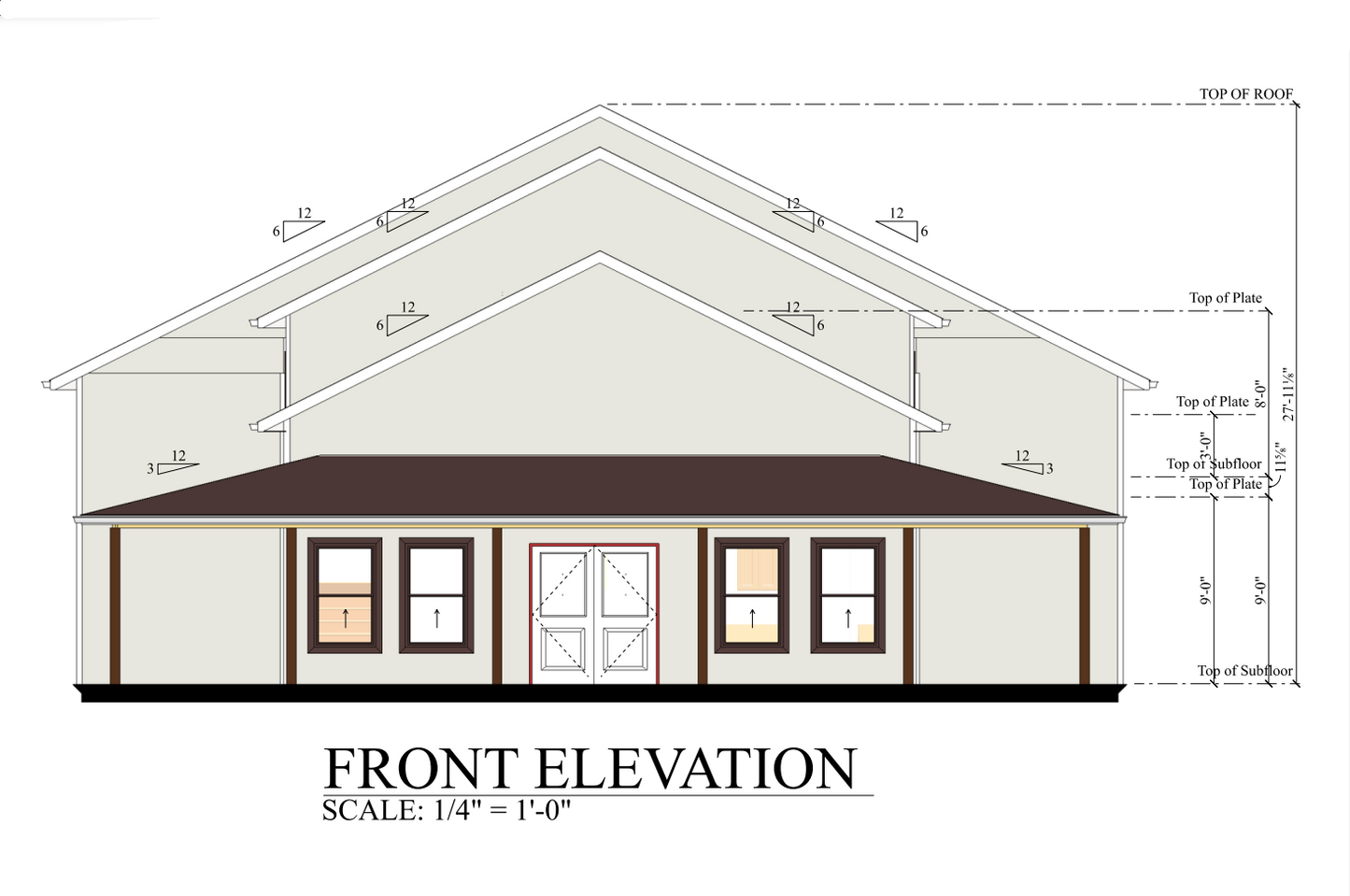

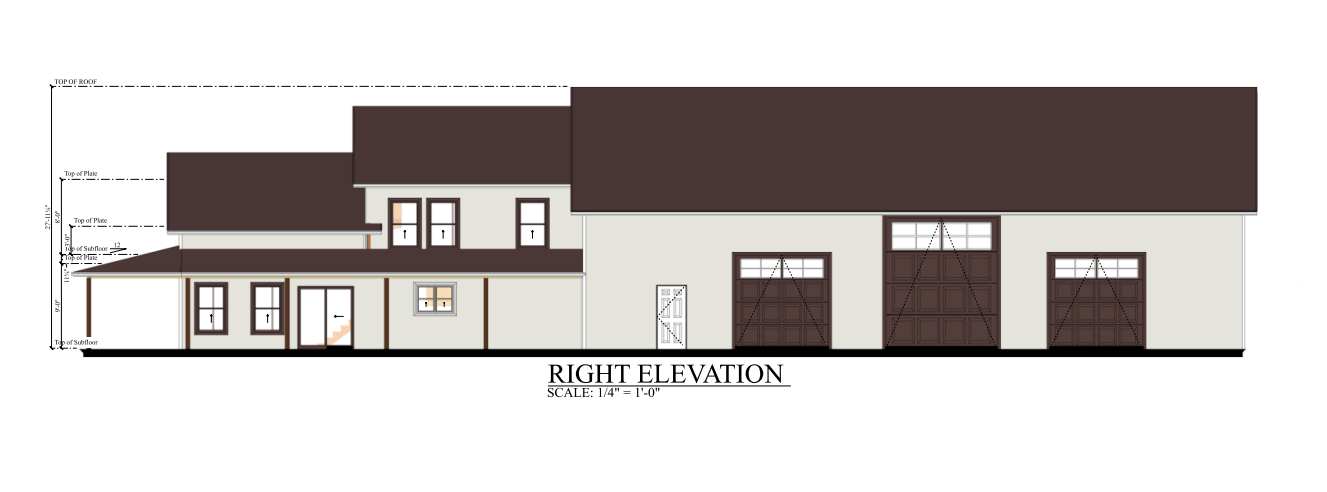

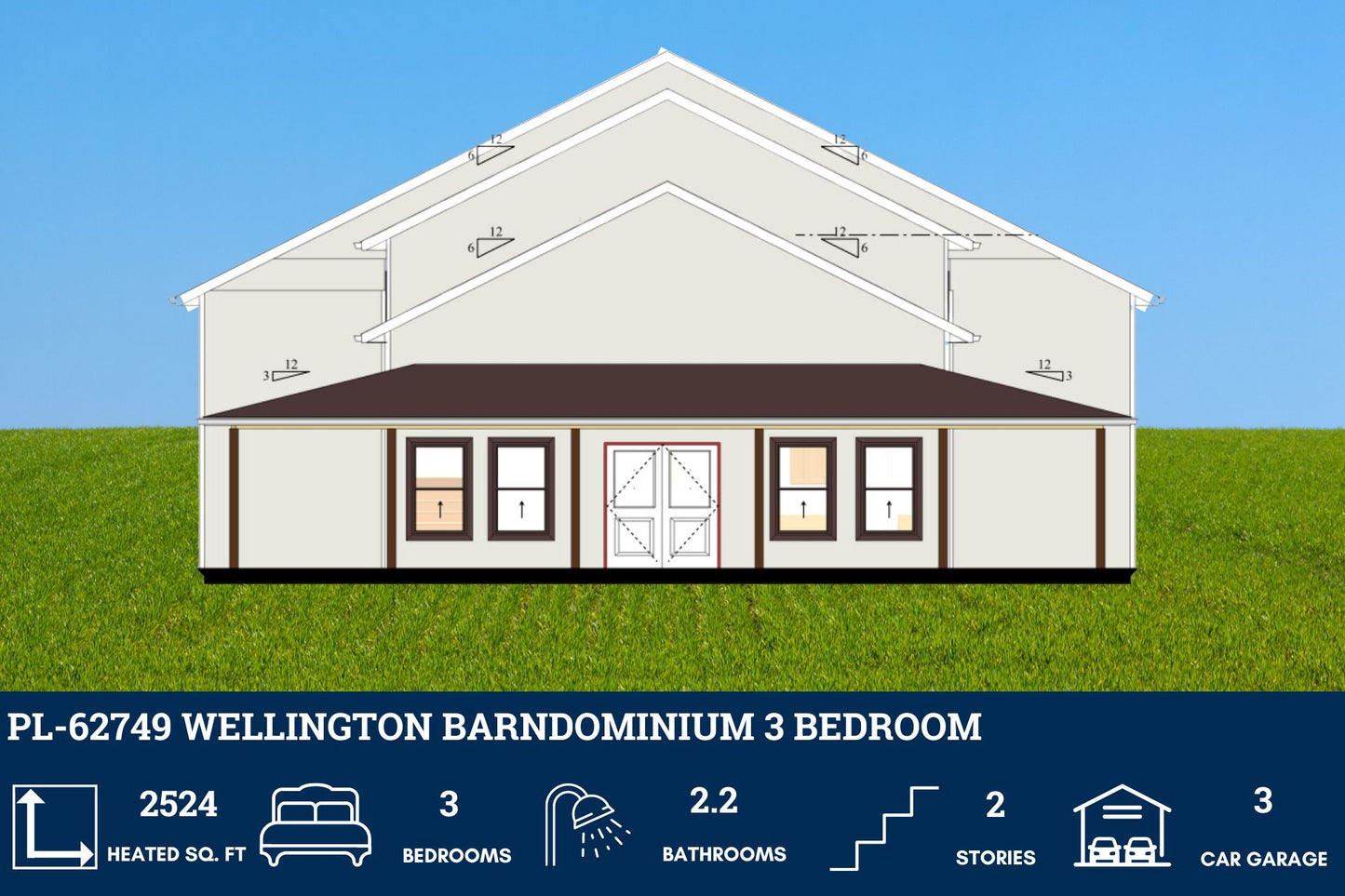

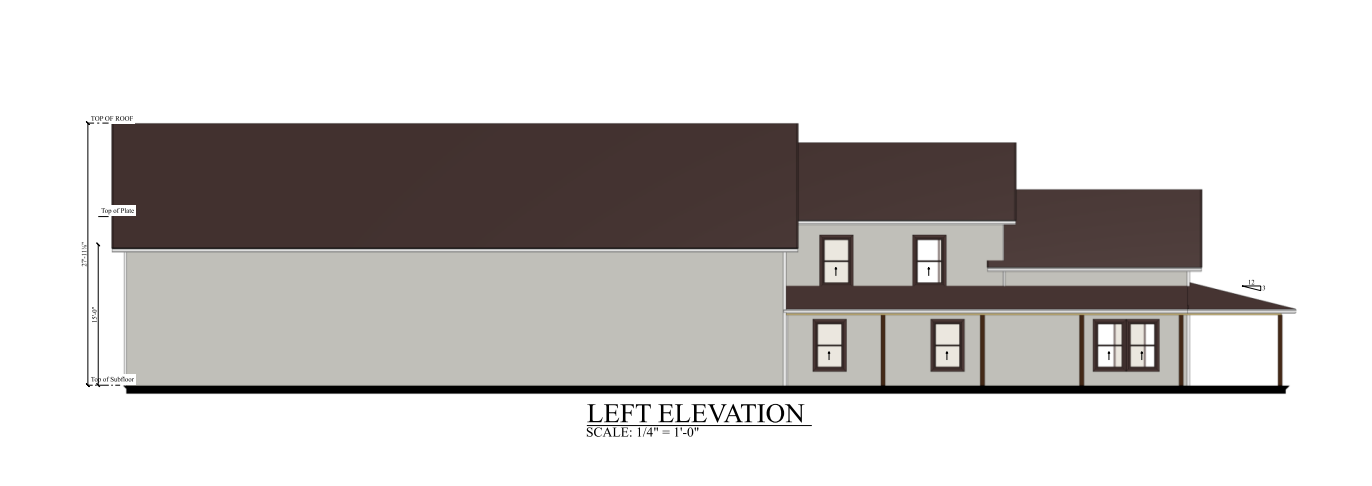

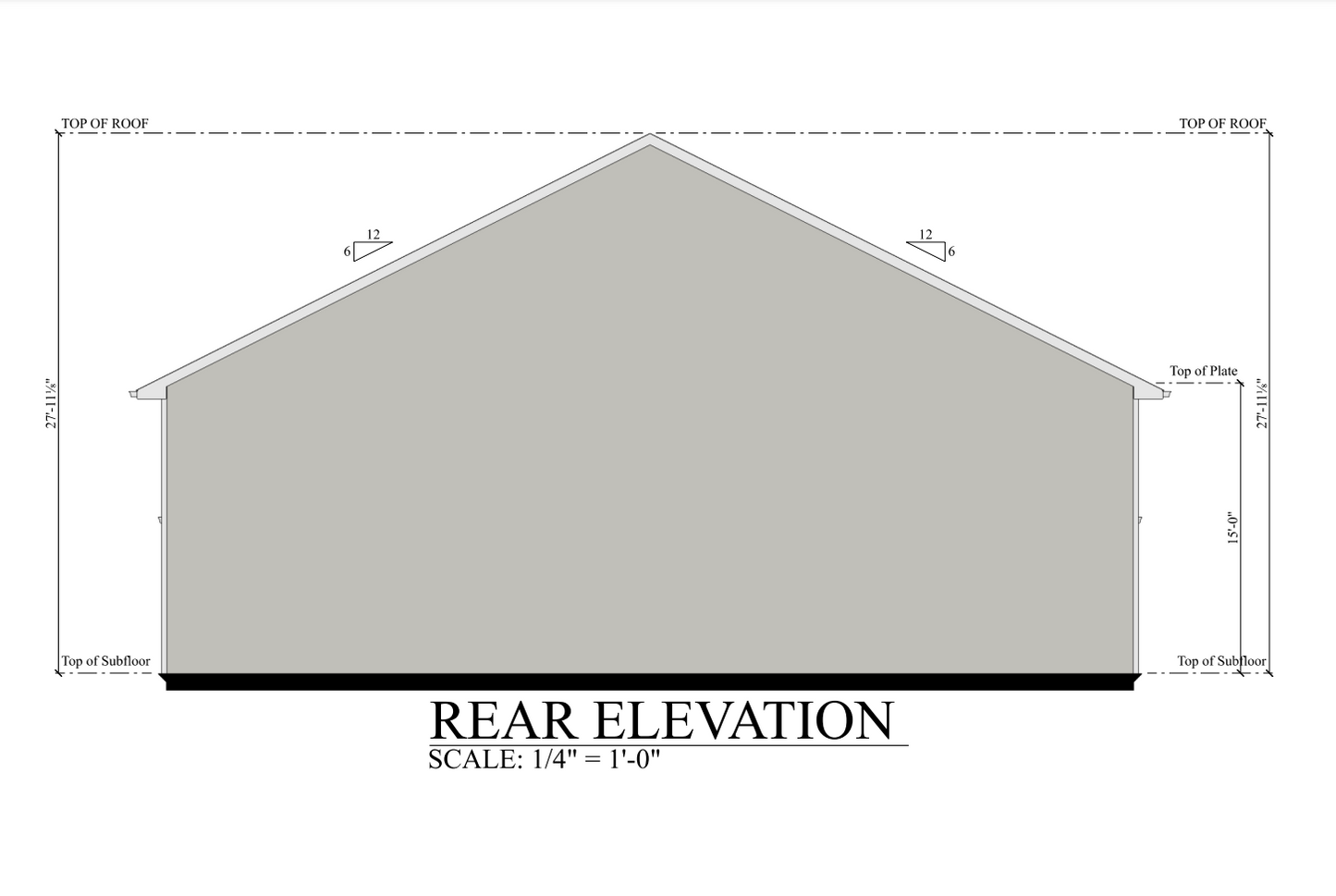

Four Elevations - Front, Back, Left Side, Right Side
Electrical Plan
Plumbing Plan
HVAC Plan
Roof Framing Plan
Foundation Plan
Wall Section
For more barndominium floor plans, check out our complete collection of 3 bedroom barndominium floor plans.
Need to make changes? Submit a modification request using the button that says Modify This Plan . We will get you a free price quote within 72 hours
What's Typically Included
What's Typically Included
THE SPECIFC DETAILS OF WHAT'S INCLUDED ON THESE PLANS IS CONTAINED IN THE PRODUCT DESCRIPTION. PLEASE SCROLL UP AND YOU WILL FIND IT UNDER "WHAT'S INCLUDED"
Our house plan sets typically have the following details:
4 Elevations – Front, Back, Both Sides
Detailed Floor Plan Drawing
Electrical Plans with placements for HVAC
Plumbing Plans with Placements
Flooring Plan
Roof Plan
Foundation Plan
For more information on what's included and examples of what your plans will look like, go here -> https://barndominiumplans.com/pages/whats-included
Please Note: We work with many different draftspeople who work in many different ways. It should be noted that their plans may contain different details. THE SPECIFC DETAILS OF WHAT'S INCLUDED ON THESE PLANS IS CONTAINED IN THE PRODUCT DESCRIPTION. PLEASE SCROLL UP AND YOU WILL FIND IT UNDER "WHAT'S INCLUDED"
What's Not Included
What's Not Included
The following items are NOT included:
Architectural or Engineering Stamp. Our plans are engineering-ready! Can take them to a local engineer in your state.
Site Plan - We can provide this if needed for $300 additional.
Materials List - handled locally when required
Energy calculations - handled locally when required
Snow load calculations - handled locally when required
Delivery
Delivery
This plan is available as a digital product or printed + shipped.
If you select digital, the plan will be delivered to you via email as a PDF file, no matter what time it is.
If you select printed + shipped, your order will ship in 24x36 format within 1 business day of your order.
We ship from the midwest in order to serve the entire country within 3-5 business days!
Return policy
Return policy
All barndominium house plan purchases are FINAL. There are no exchanges or refunds due to the digital nature of the product. Please make sure that the plan you have selected is going to fit your needs.
💥
