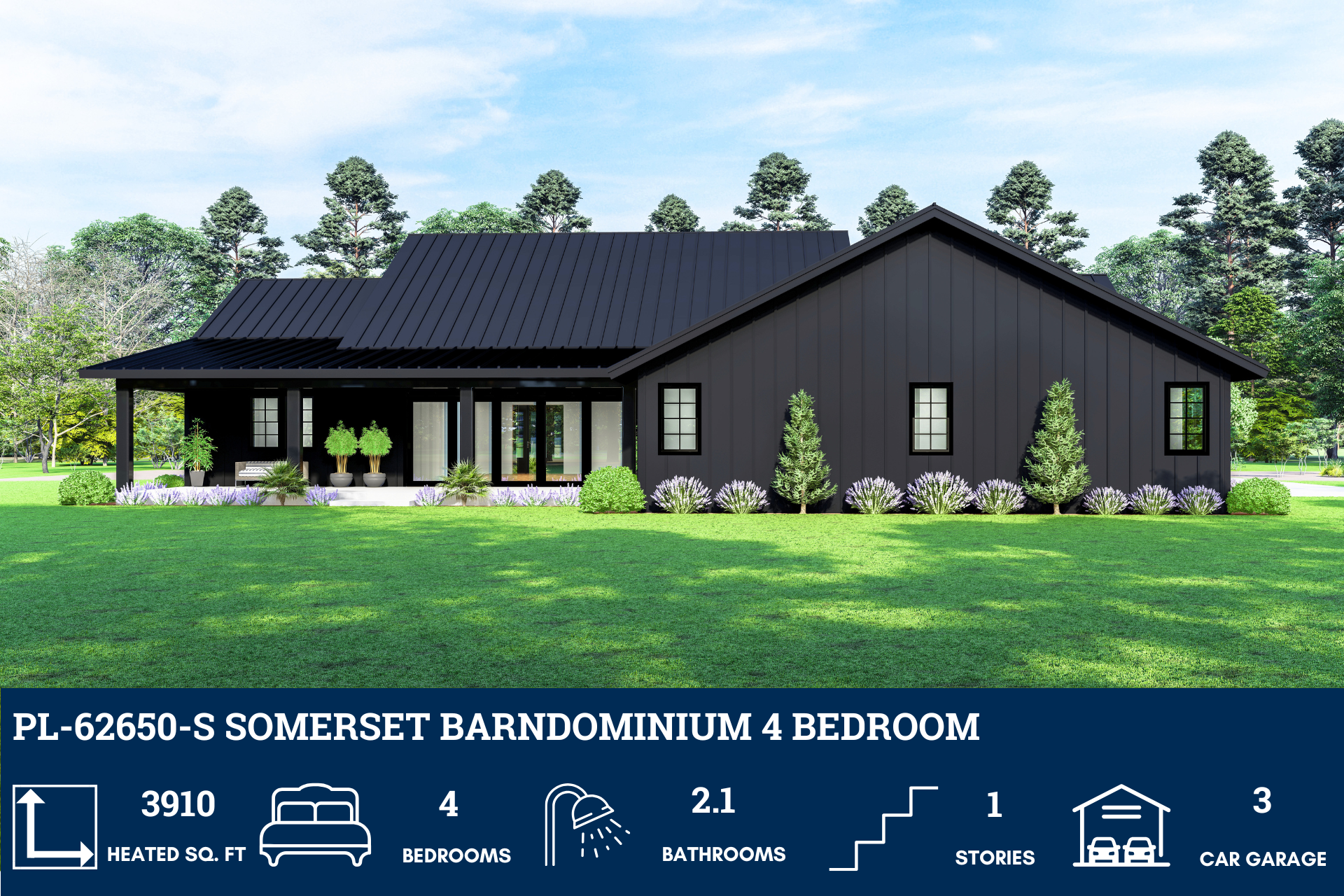

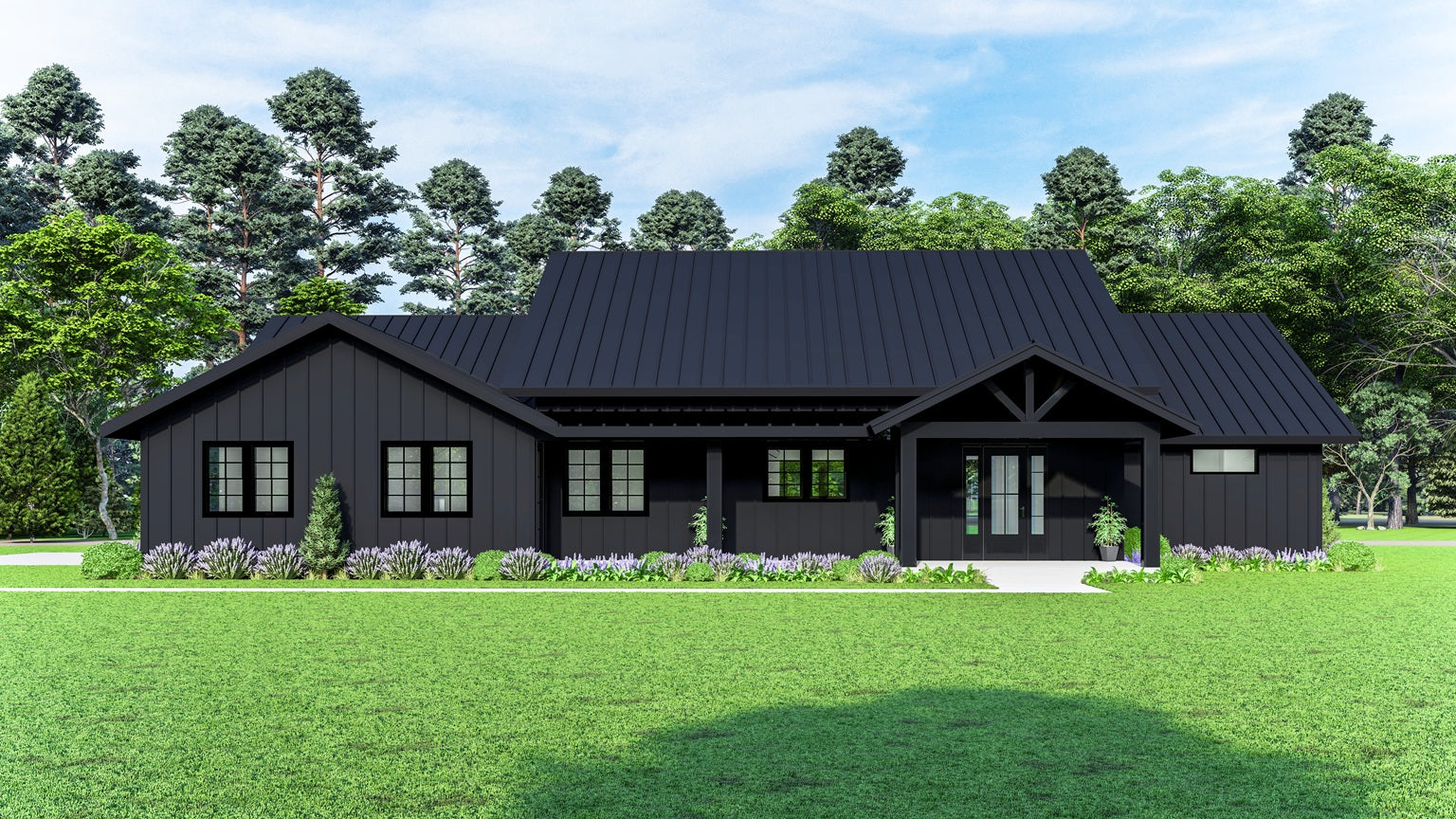

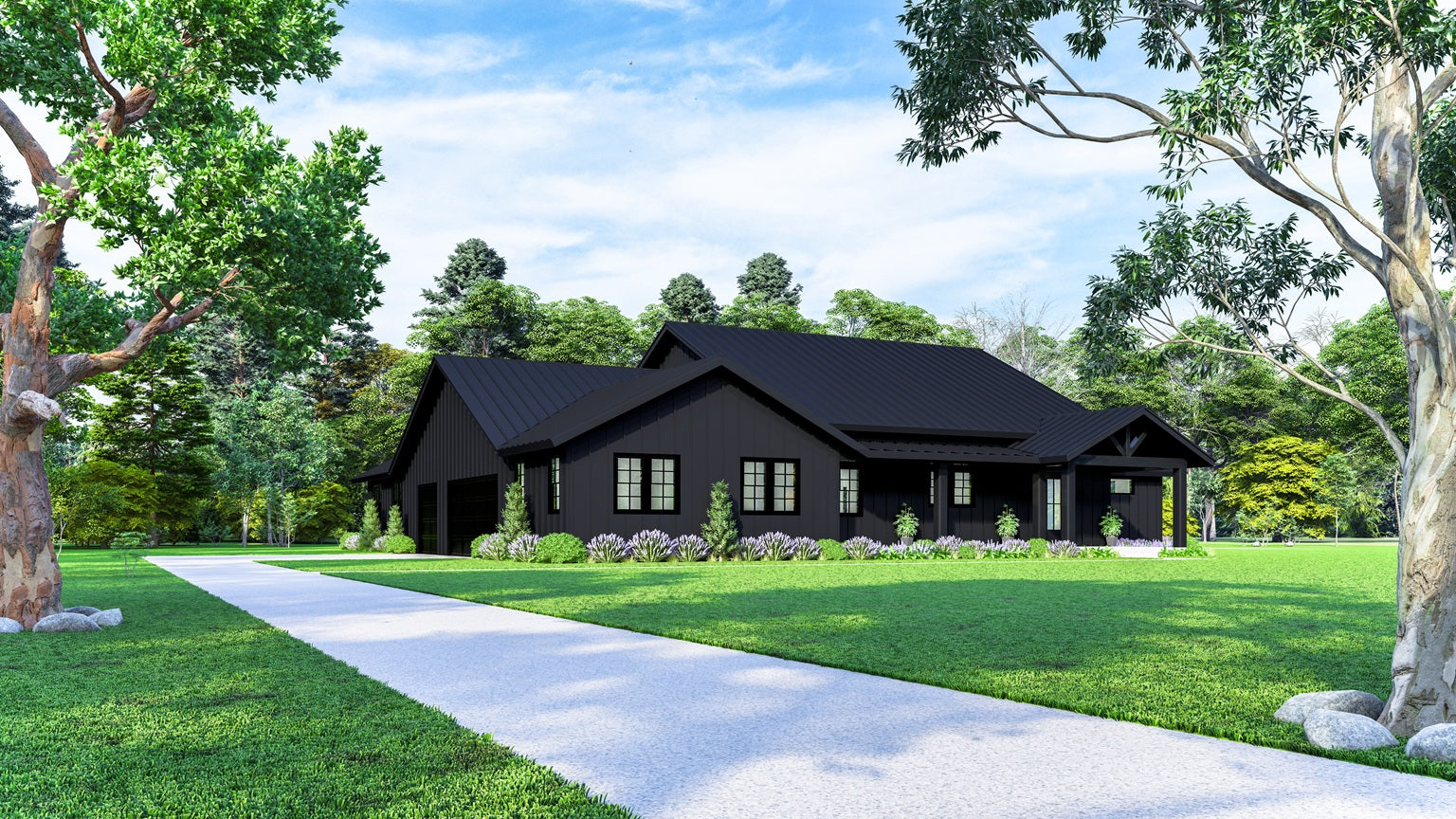

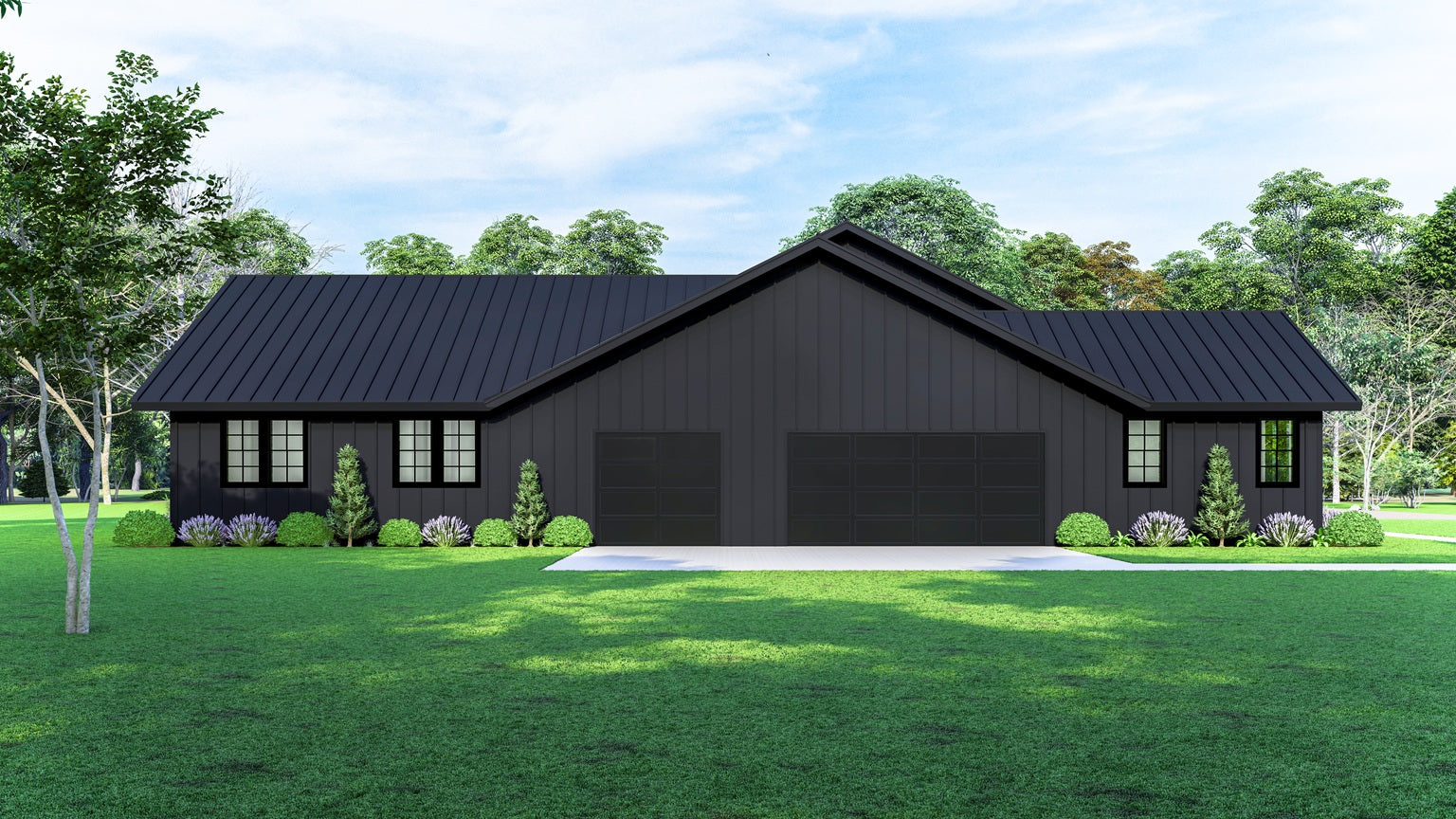

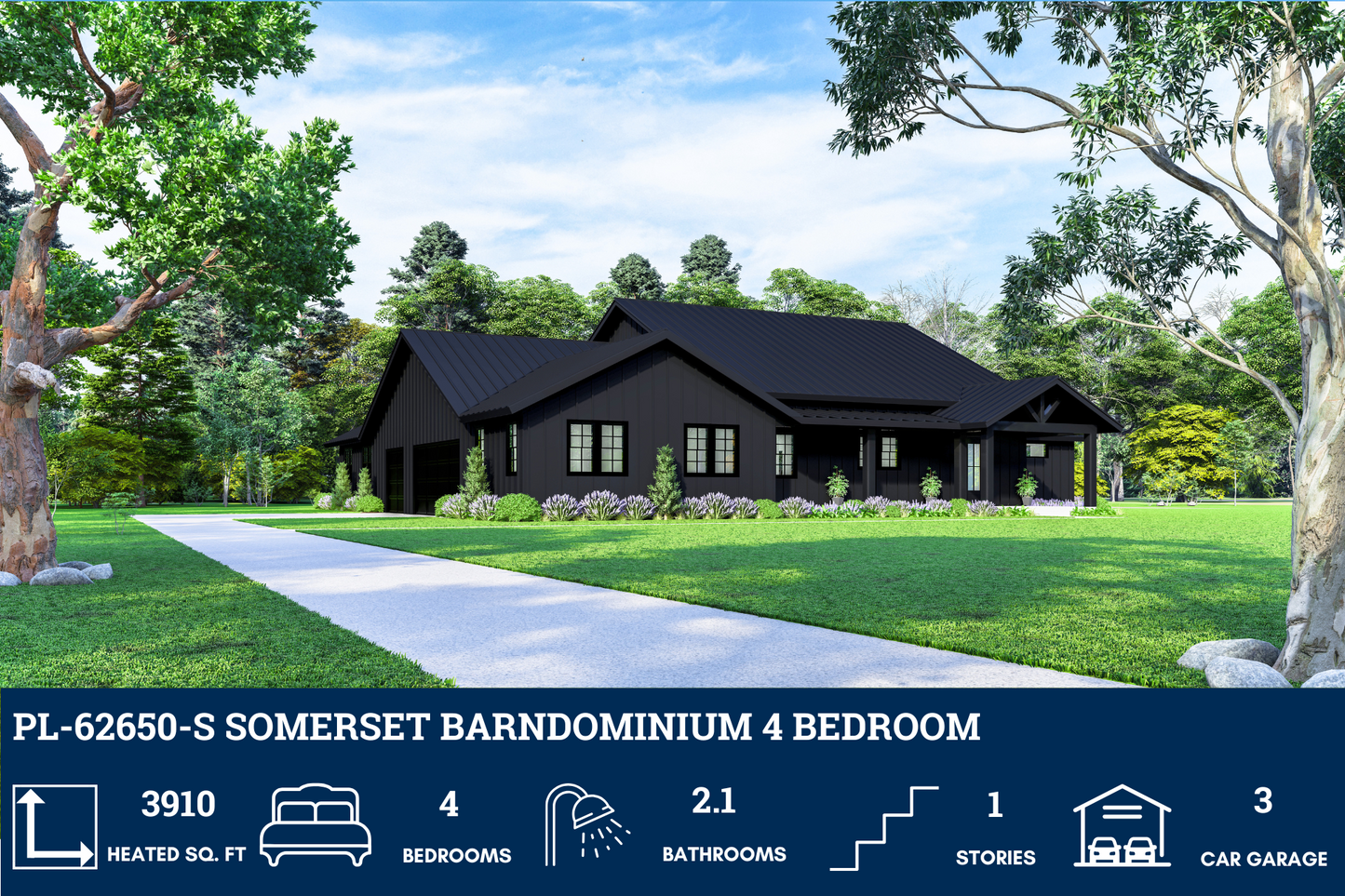

PL-62650-S Somerset Barndominium House Plan

$1,349.99 USD
$1,349.99 USD
Sale Sold out
Add To Wishlist
1 14

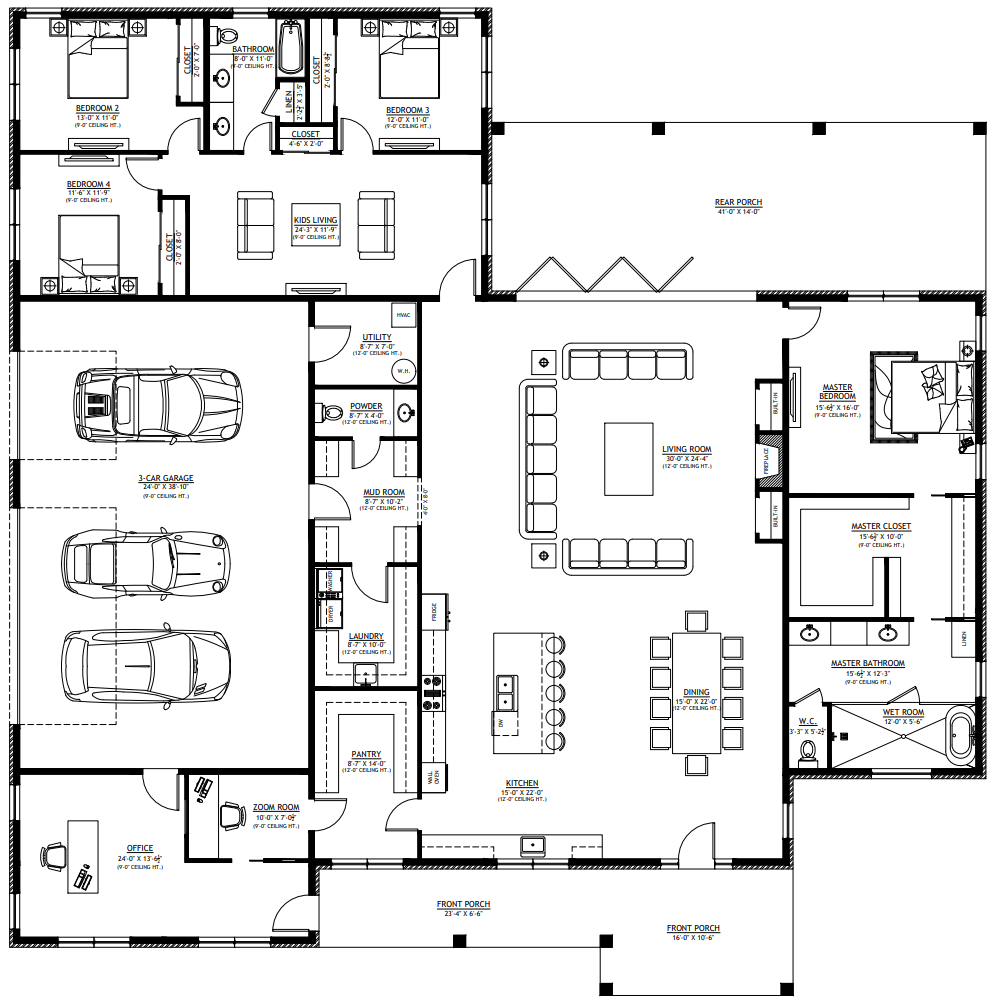

Floor Plan

DETAILS

HEATED SQ FT

First Floor:

3,910 Sf

Second Floor:

None

Total Heated Sq Ft:

3,910 SF

UNHEATED SQ FT

Total Unheated Area:

Garage 964 SF, Porch 894 SF = TOTAL 1,858 SF

Carport:

None

Bedrooms:

4

Full Baths:

2

Floors:

1

Garage Size:

964 SF

Width:

81'

Depth:

82'

Height:

25'-9"

Foundation:

Concrete Slab

Main Roof Pitch:

6:12

Exterior Framing:

Metal Shell

CEILING HEIGHTS

First Floor:

9'

PL-62650-S Somerset Barndominium House Plan

Discover a similar floor plan here - https://barndominiumplans.com/products/pl-62650-oakdale-barndominium-house-plan



About this barndominium house plan:

  • 3,910 Heated Square feet
  • 1 Story
  • 4 Bedrooms
  • 2.1 Bathrooms
  • Office
  • Kids' living room
  • 3-Car Garage
  • Utility room
  • Mudroom
  • Front & rear porch



  • An expansive 3,910 square feet of heated living space offers room to grow, connect, and accommodate multi-generational lifestyles with ease.
  • The single-level layout ensures seamless accessibility and flow—ideal for families of all ages living together under one roof.
  • Four generously sized bedrooms provide privacy and flexibility for parents, children, and extended family members alike.
  • Two full baths and a powder room offer convenience and comfort for busy mornings and shared routines.
  • A dedicated office space supports remote work, study, or household management with quiet focus and natural light.
  • A separate kids' living room creates a playful, relaxed zone for younger generations to gather, learn, or unwind.
  • The spacious three-car garage offers secure parking and storage for multiple vehicles, gear, and lifestyle needs.
  • A well-placed utility room streamlines laundry and household tasks, supporting smooth daily rhythms across generations.
  • The mudroom adds practical charm, keeping shared spaces organized and transitions effortless for active households.
  • Covered porches at both ends of the home invite outdoor living, offering shaded retreats for every generation to enjoy.



What's included in PL-62650-S:

Cover Page
Floor Plan
Roof Plan

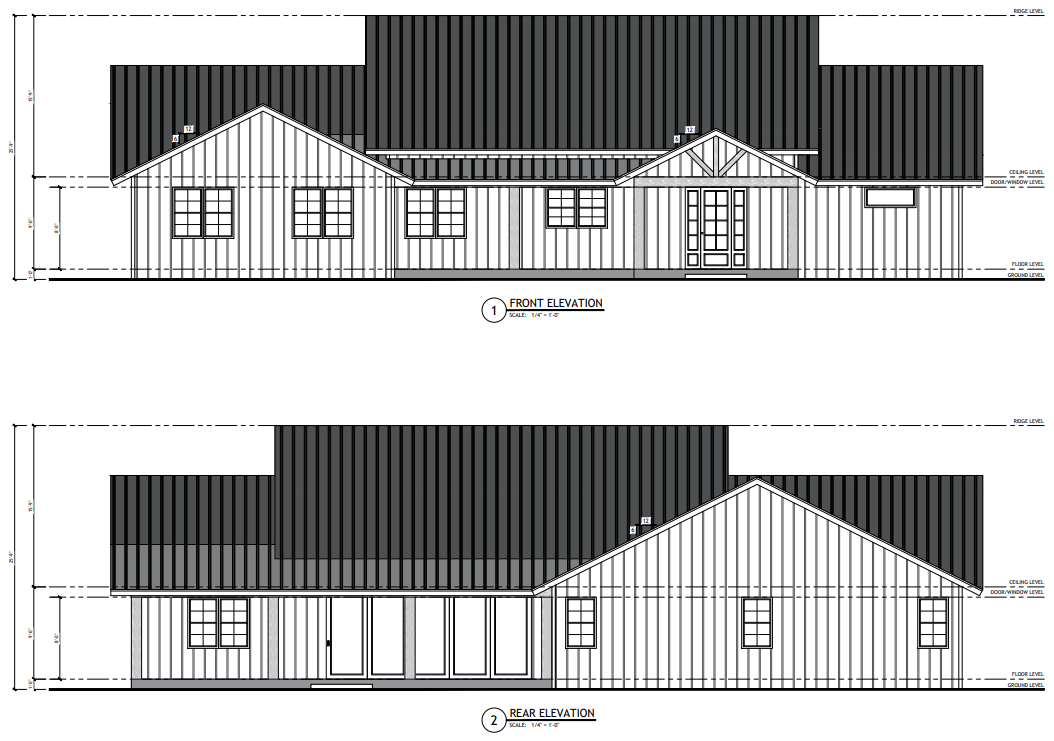

Elevations
Electrical Plan
Plumbing Plan
HVAC Plan
Roof Framing Plan
Foundation Plan
Foundation Detail
Interior Bearing Footing
C-Typical Column Detail
Wall Section



For more barndominium floor plans, check out our complete collection of 4 bedroom barndominium floor plans.



Need to make changes? Submit a modification request using the button that says Modify This Plan (below the Add To Cart Button). We will get you a free price quote within 72 hours

Please note all square footage are estimates.

What's Included

Our house plan sets typically have the following details:

4 Elevations – Front, Back, Both Sides

Detailed Floor Plan Drawing

Electrical Plans with placements for HVAC

Plumbing Plans with Placements

Flooring Plan

Roof Plan

Foundation Plan

For more information on what's included and examples of what your plans will look like, go here -> https://barndominiumplans.com/pages/whats-included

Please Note: We work with many different draftspeople who work in many different ways.  It should be noted that their plans may contain different details.

What's Not Included

The following items are NOT included:

Architectural or Engineering Stamp. Our plans are engineering-ready! Can take them to a local engineer in your state.

Site Plan - We can provide this if needed for $300 additional.

Materials List - handled locally when required

Energy calculations - handled locally when required

Snow load calculations - handled locally when required

Delivery

This plan is available as a digital product or printed + shipped.

If you select digital, the plan will be delivered to you via email as a PDF file, no matter what time it is.

If you select printed + shipped, your order will ship in 24x36 format within 1 business day of your order.

We ship from the midwest in order to serve the entire country within 3-5 business days!

Return policy

All barndominium house plan purchases are FINAL. There are no exchanges or refunds due to the digital nature of the product. Please make sure that the plan you have selected is going to fit your needs.
