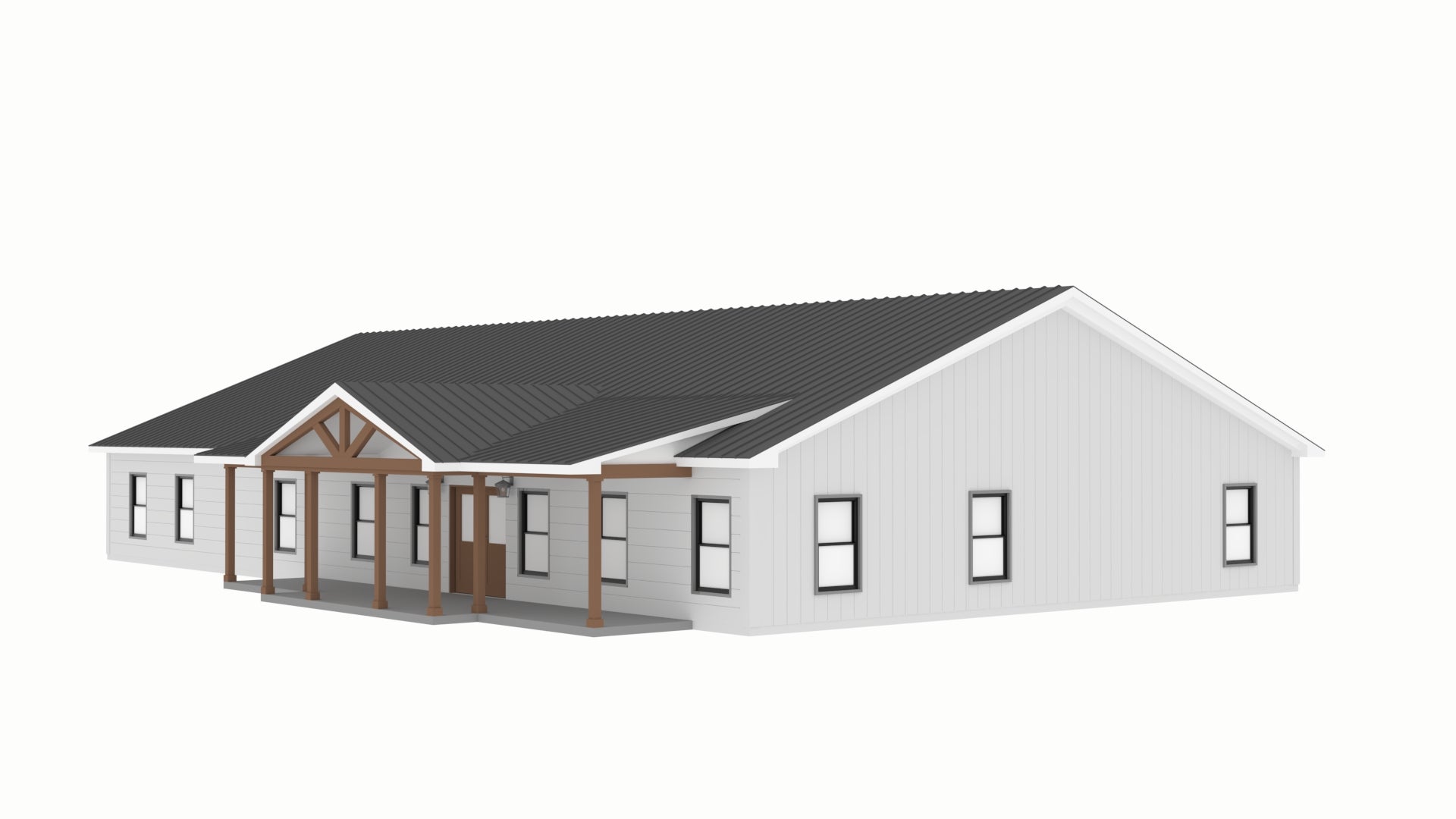

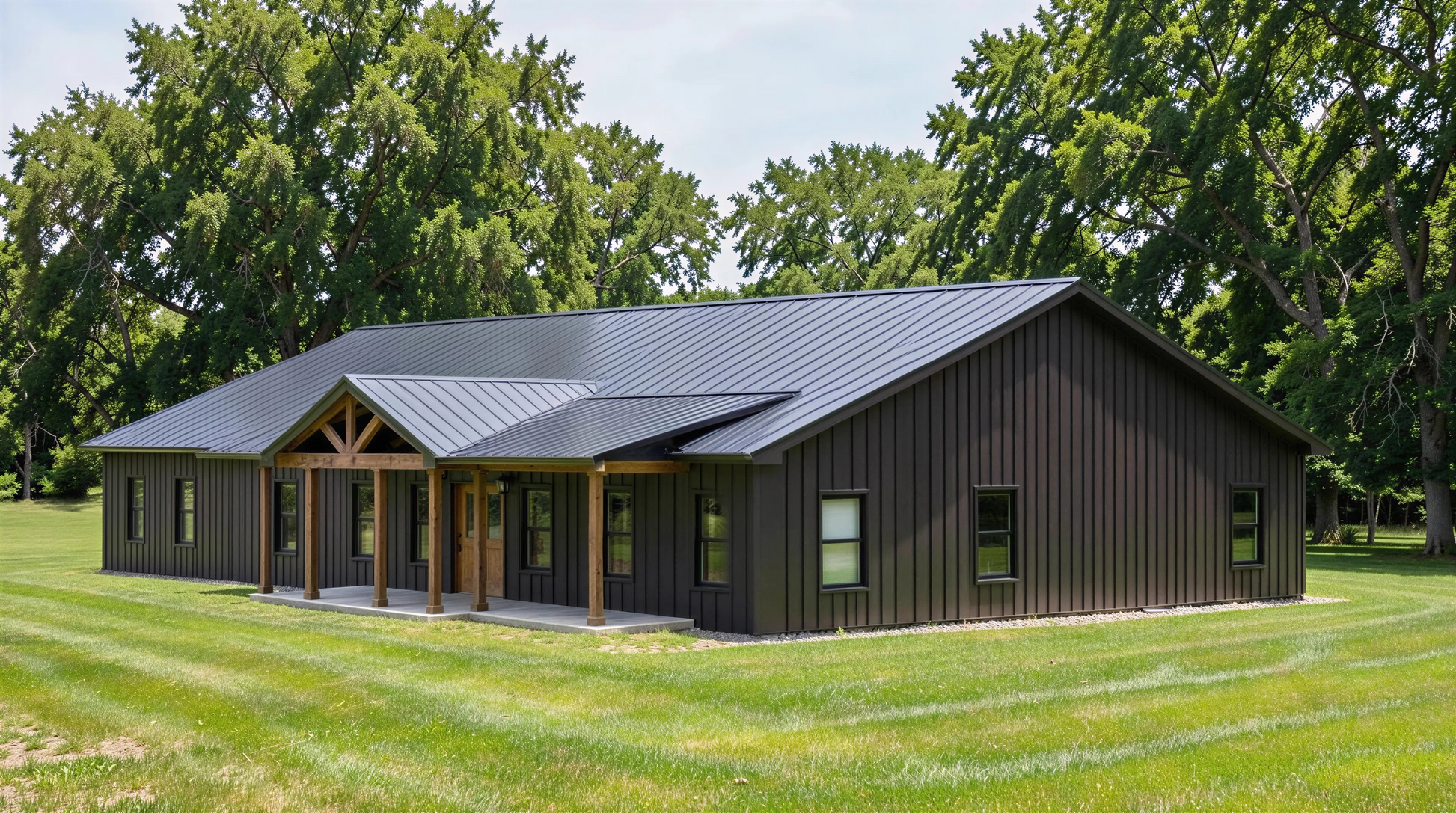

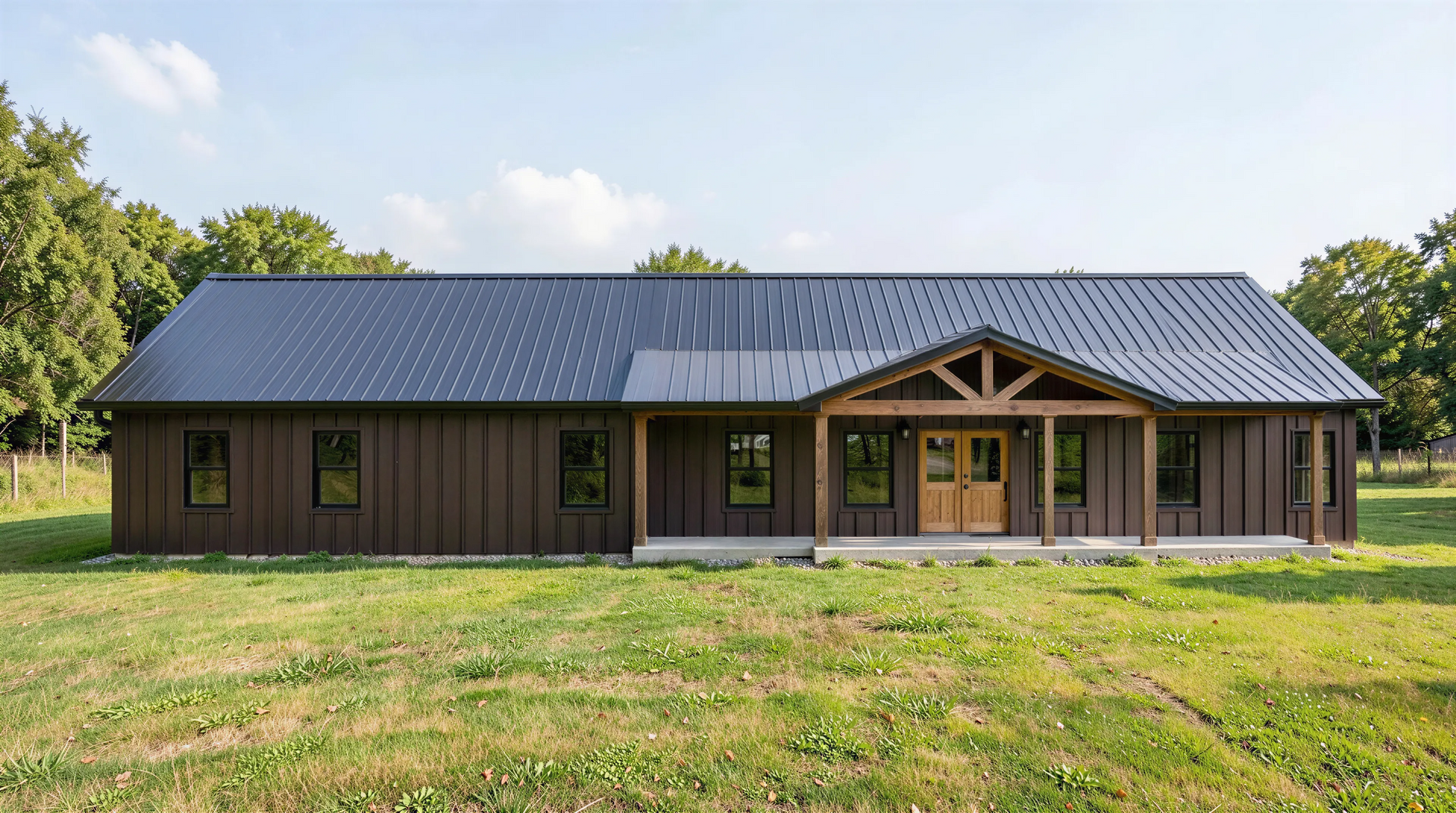

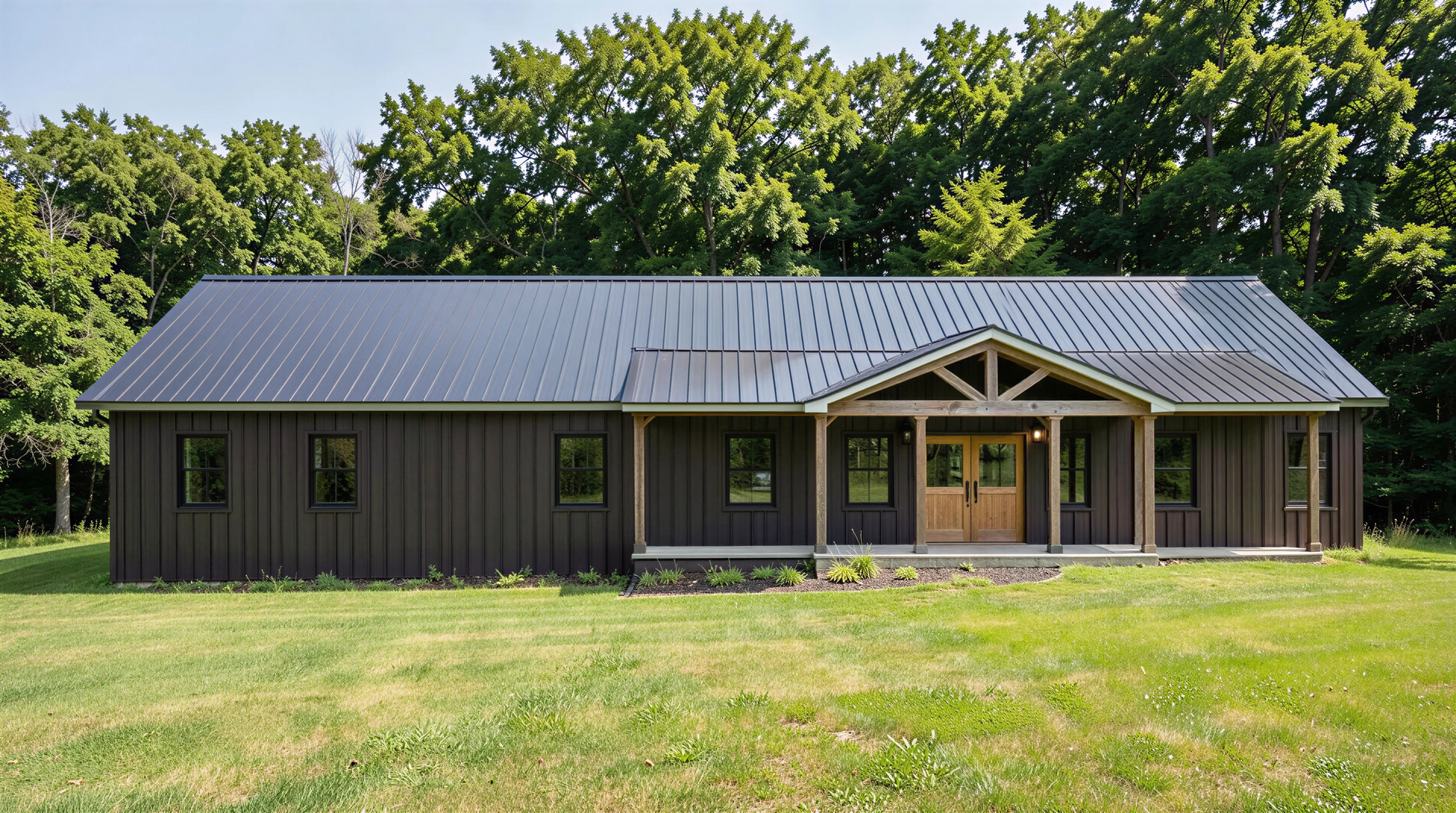

PL-62515 Isabel Barndominium House Plan

$1,349.99 USD
$1,349.99 USD
Sale Sold out
Add To Wishlist
1 8

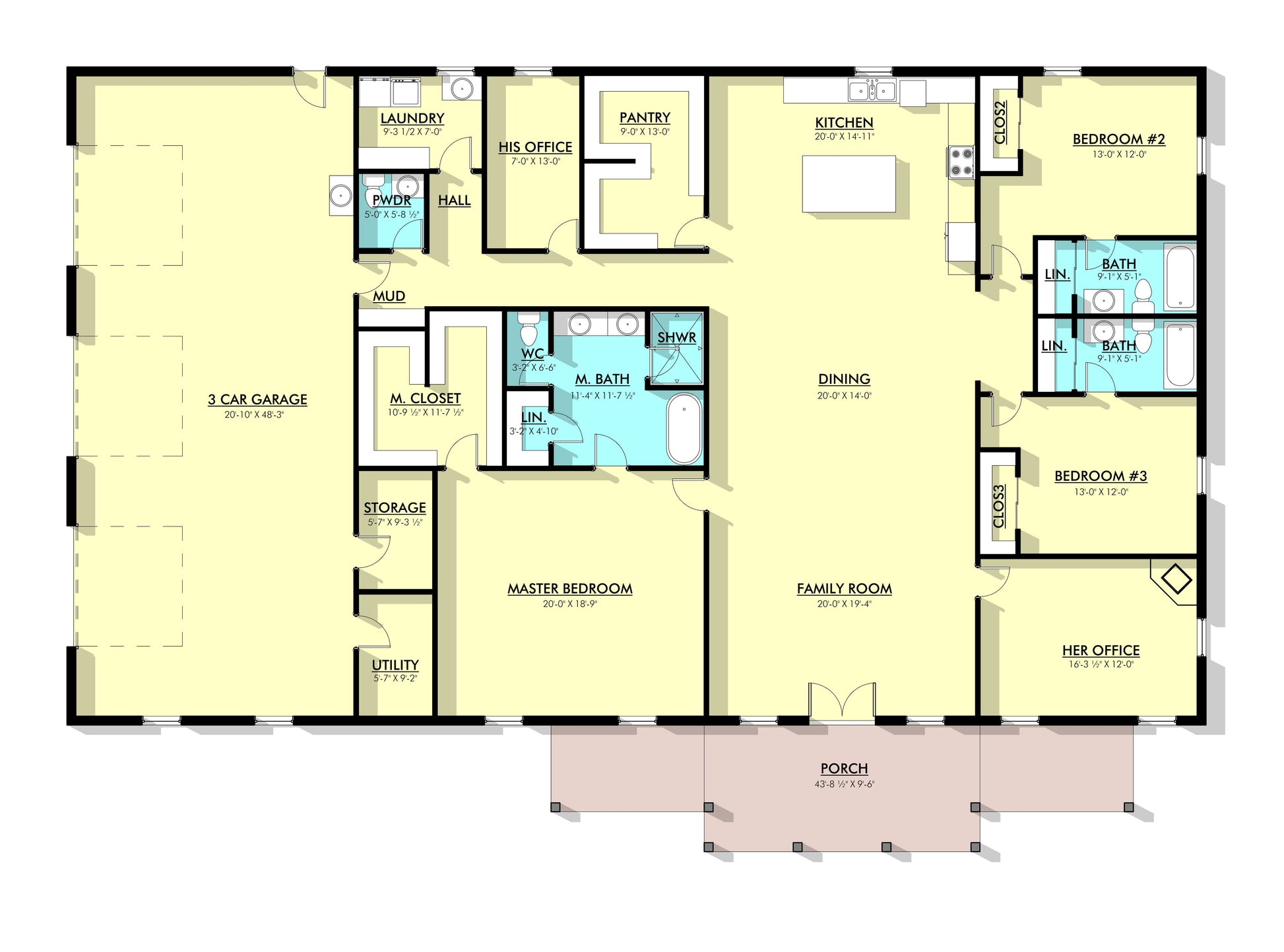

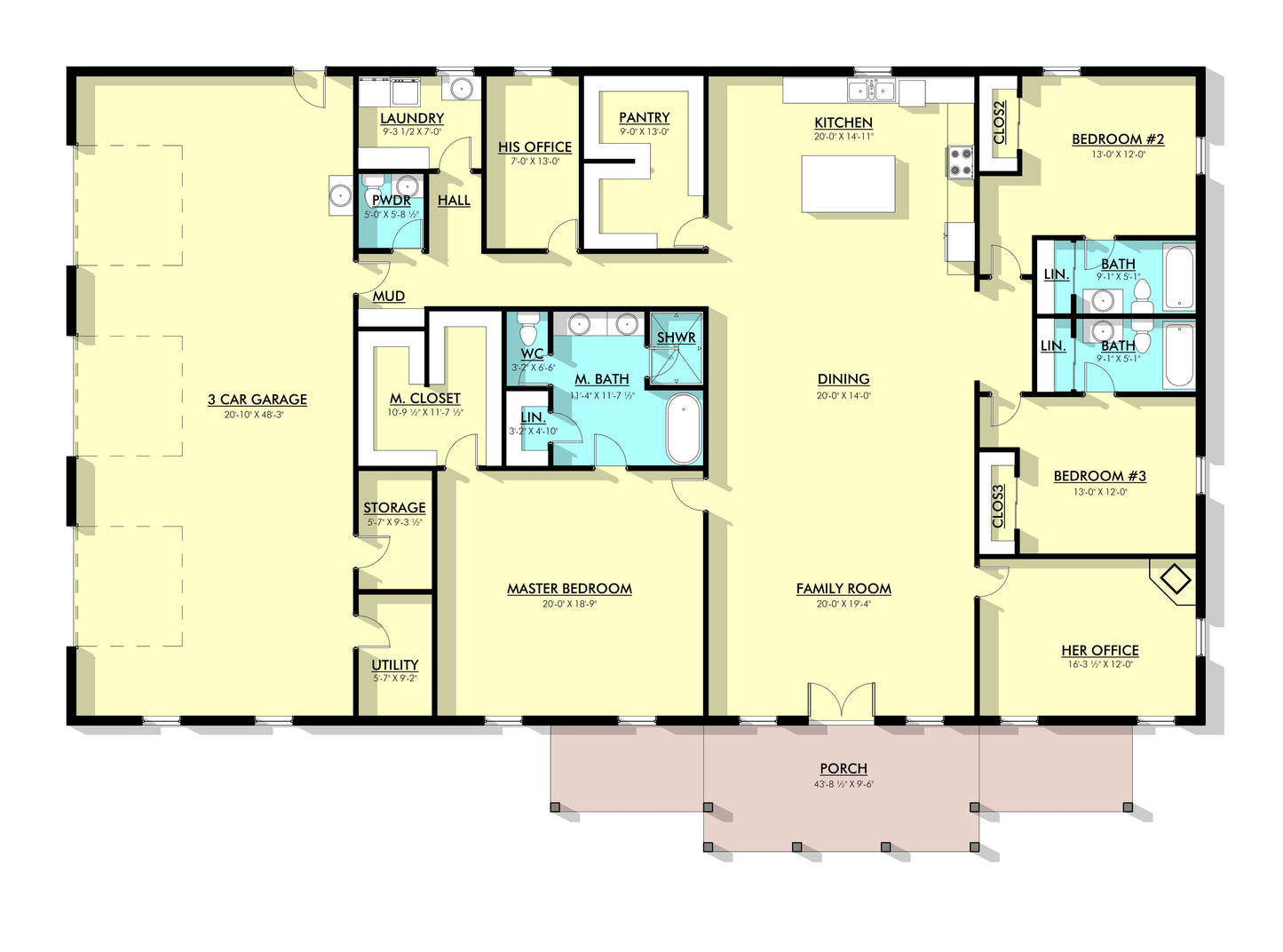

Floor Plan

DETAILS

HEATED SQ FT

First Floor:

3,130 SF

Second Floor:

None

Total Heated Sq Ft:

3,130 SF

UNHEATED SQ FT

Total Unheated Area:

857 SF porch + 1,049 SF garage = TOTAL 1,906 SF

Carport:

None

Bedrooms:

3

Full Baths:

3

Floors:

1

Garage Size:

1,049 SF

Width:

85'

Depth:

58'-8"

Height:

19'-6 9/16"

Foundation:

Concrete Slab

Main Roof Pitch:

05:12

Exterior Framing:

Stick Frame

CEILING HEIGHTS

First Floor:

9'

PL-62515 Isabel Barndominium House Plan

About this barndominium house plan:

  • 3130 Sq Ft Heated Living Space
  • 49x64 living space dimension
  • 3 Bedrooms
  • 3.1 Bathrooms

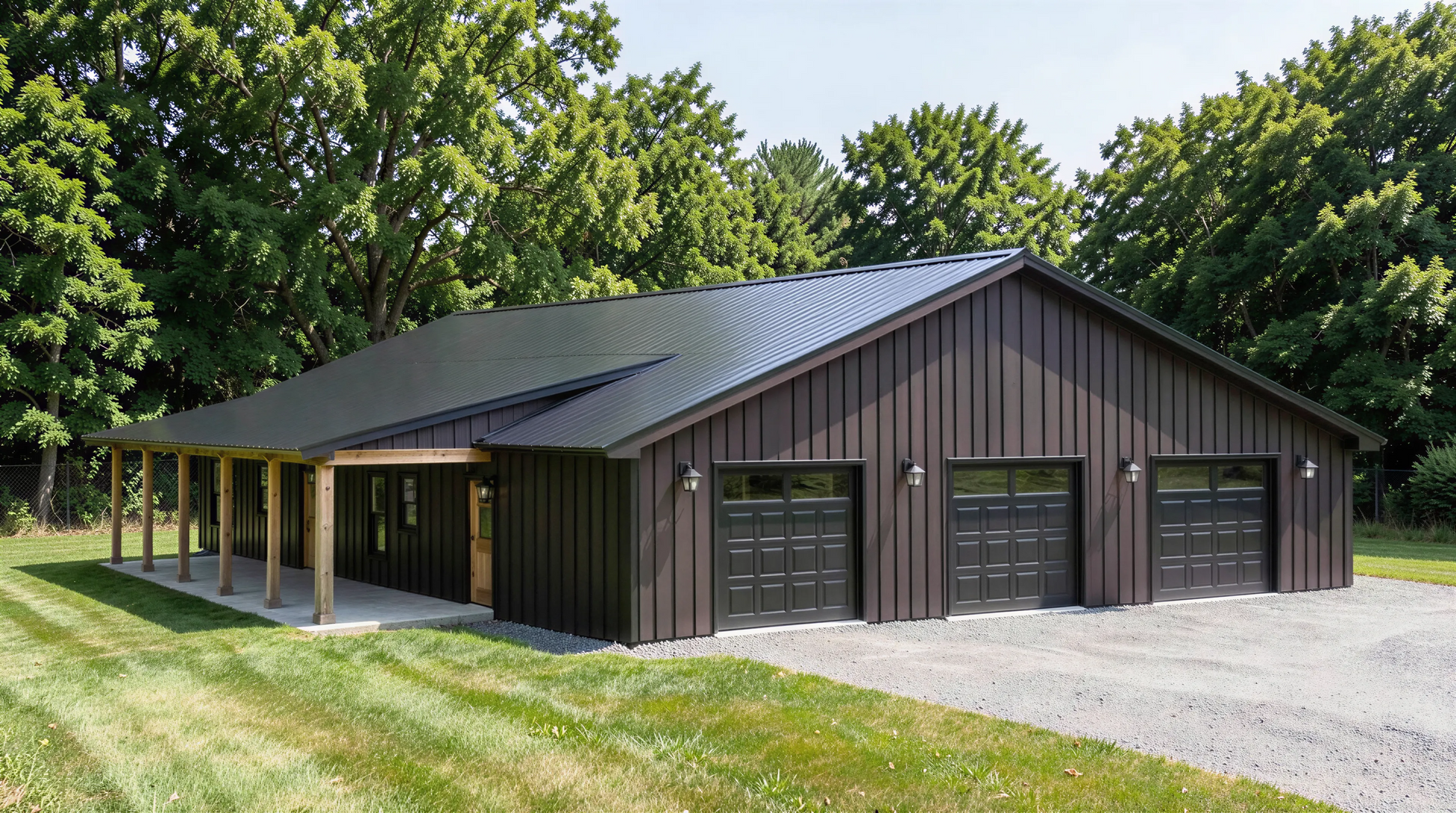

  • Attached 3-Car Garage
  • Garage Storage Room
  • Utility Room
  • 2 Offices

  • Discover spacious luxury in this stunning home boasting 3,130 square feet of heated living space, offering room to breathe and relax.
  • With 3 generously sized bedrooms, there's ample space for everyone in the family to unwind and recharge.
  • Enjoy the convenience of 3.1 bathrooms, ensuring that every member of the household has their own private oasis.
  • The attached 3-car garage not only provides shelter for your vehicles but also adds convenience to your daily routine.
  • A dedicated garage storage room means that everything from tools to holiday decorations can be neatly organized and out of sight.
  • The utility room offers practicality and efficiency for laundry and household tasks, keeping your living spaces clutter-free.
  • Two separate offices, thoughtfully designed for him and her, offer the ideal work-from-home solution in a comfortable and productive environment.



What's included in PL-62515:

Elevations - Front, Back, Left Side, Right Side
Detailed Floor Plan
Electrical Plan
Flooring Plan
Ceiling Joist Plan
Roof Plan
Plumbing Plan
Foundation Plan



For more barndominium floor plans, check out our complete collection of 3 bedroom barndominium floor plans.



Need to make changes? Submit a modification request using the button that says Modify This Plan . We will get you a free price quote within 72 hours

What's Typically Included

THE SPECIFC DETAILS OF WHAT'S INCLUDED ON THESE PLANS IS CONTAINED IN THE PRODUCT DESCRIPTION. PLEASE SCROLL UP AND YOU WILL FIND IT UNDER "WHAT'S INCLUDED"

Our house plan sets typically have the following details:

4 Elevations – Front, Back, Both Sides

Detailed Floor Plan Drawing

Electrical Plans with placements for HVAC

Plumbing Plans with Placements

Flooring Plan

Roof Plan

Foundation Plan

For more information on what's included and examples of what your plans will look like, go here -> https://barndominiumplans.com/pages/whats-included

Please Note: We work with many different draftspeople who work in many different ways.  It should be noted that their plans may contain different details. THE SPECIFC DETAILS OF WHAT'S INCLUDED ON THESE PLANS IS CONTAINED IN THE PRODUCT DESCRIPTION. PLEASE SCROLL UP AND YOU WILL FIND IT UNDER "WHAT'S INCLUDED"

What's Not Included

The following items are NOT included:

Architectural or Engineering Stamp. Our plans are engineering-ready! Can take them to a local engineer in your state.

Site Plan - We can provide this if needed for $300 additional.

Materials List - handled locally when required

Energy calculations - handled locally when required

Snow load calculations - handled locally when required

Delivery

This plan is available as a digital product or printed + shipped.

If you select digital, the plan will be delivered to you via email as a PDF file, no matter what time it is.

If you select printed + shipped, your order will ship in 24x36 format within 1 business day of your order.

We ship from the midwest in order to serve the entire country within 3-5 business days!

Return policy

All barndominium house plan purchases are FINAL. There are no exchanges or refunds due to the digital nature of the product. Please make sure that the plan you have selected is going to fit your needs.

💥 [COUNT] People are currently viewing this product.
Build
PDF (Single Build) $1,349.99
PDF (Single Build)

Modifications

Additional Options
Wondering Cost To Build? Get an estimate of the construction cost for this house in your area.
Modify this Plan? Want to make adjustments? We’ll provide you with a free price estimate within 1 to 3 business days.
