Barndominium Plans

PL-61313-T Trinity Barndominium House Plan

$849.99 USD
$849.99 USD
Sale Sold out
Add To Wishlist
1 9
Bedrooms 3 Bedrooms
Floors 1 Floors
Full Baths 2 Full Baths
Total Heated Area 2,400 Total Heated Area

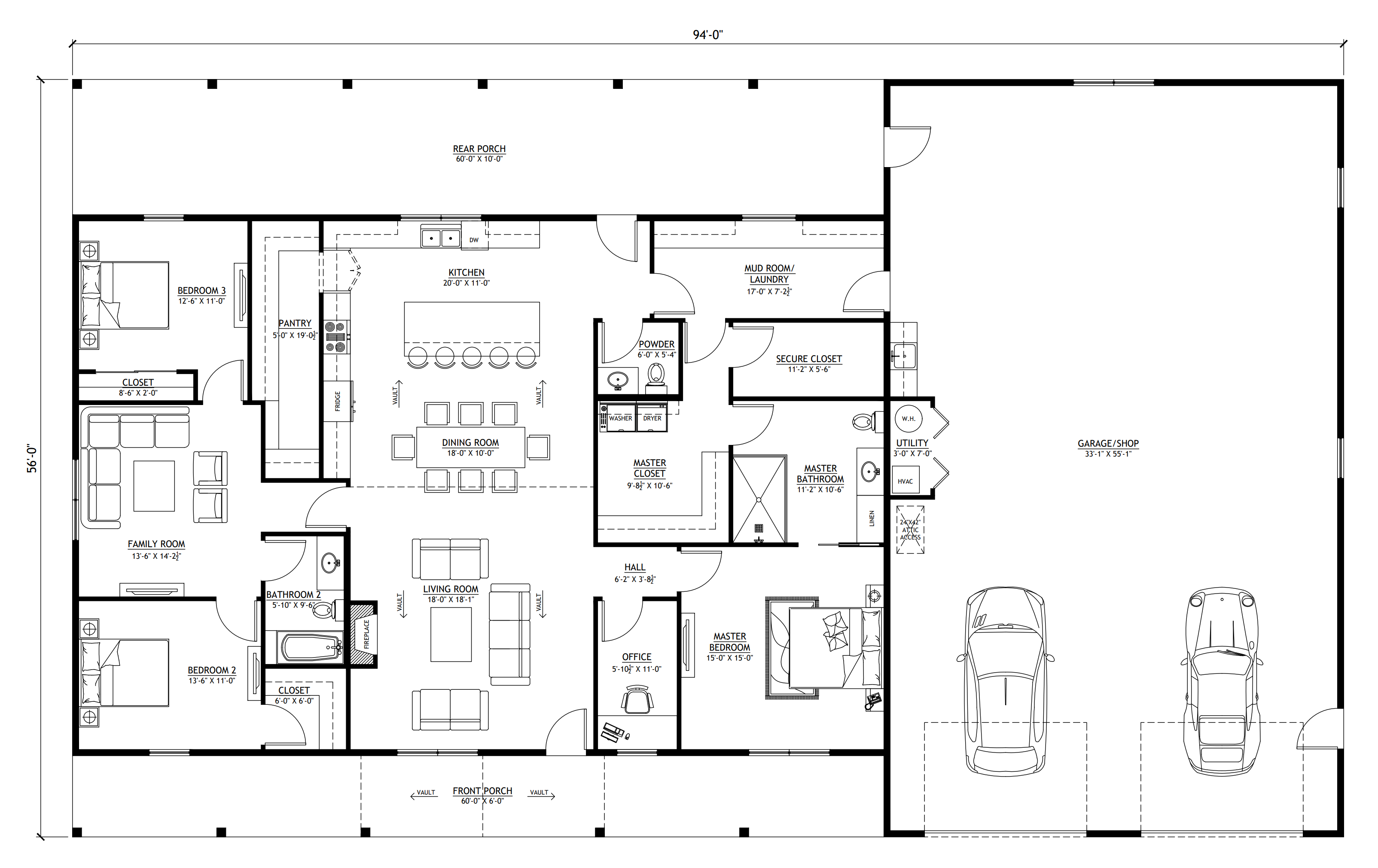

Floor Plan

DETAILS

HEATED SQ FT

First Floor:

2,400 SF

Second Floor:

None

Total Heated Sq Ft:

2,400 SF

UNHEATED SQ FT

Total Unheated Area:

Garage 1,904 SF, Porch 960 SF = TOTAL 2,864 SF

Carport:

None

Bedrooms:

3

Full Baths:

2

Floors:

1

Garage Size:

1,904 SF

Width:

94'

Depth:

56'

Height:

22'-8"

Foundation:

Concrete Slab

Main Roof Pitch:

6:12

Construction Type:

Stick Frame

CEILING HEIGHTS

First Floor:

9'

PL-61313-T Trinity Barndominium House Plan

Ā

About this barndominium house plan:

  • 2400 Heated Square Feet
  • 3 Bedrooms
  • 2.1 Bathrooms
  • Open Concept
  • Single Story
  • Family Room
  • Office
  • Walk-in Pantry
  • Secure Closet
  • Laundry/Mud Room
  • Front and Rear Porch
  • 1904 Sq Ft Garage

Ā

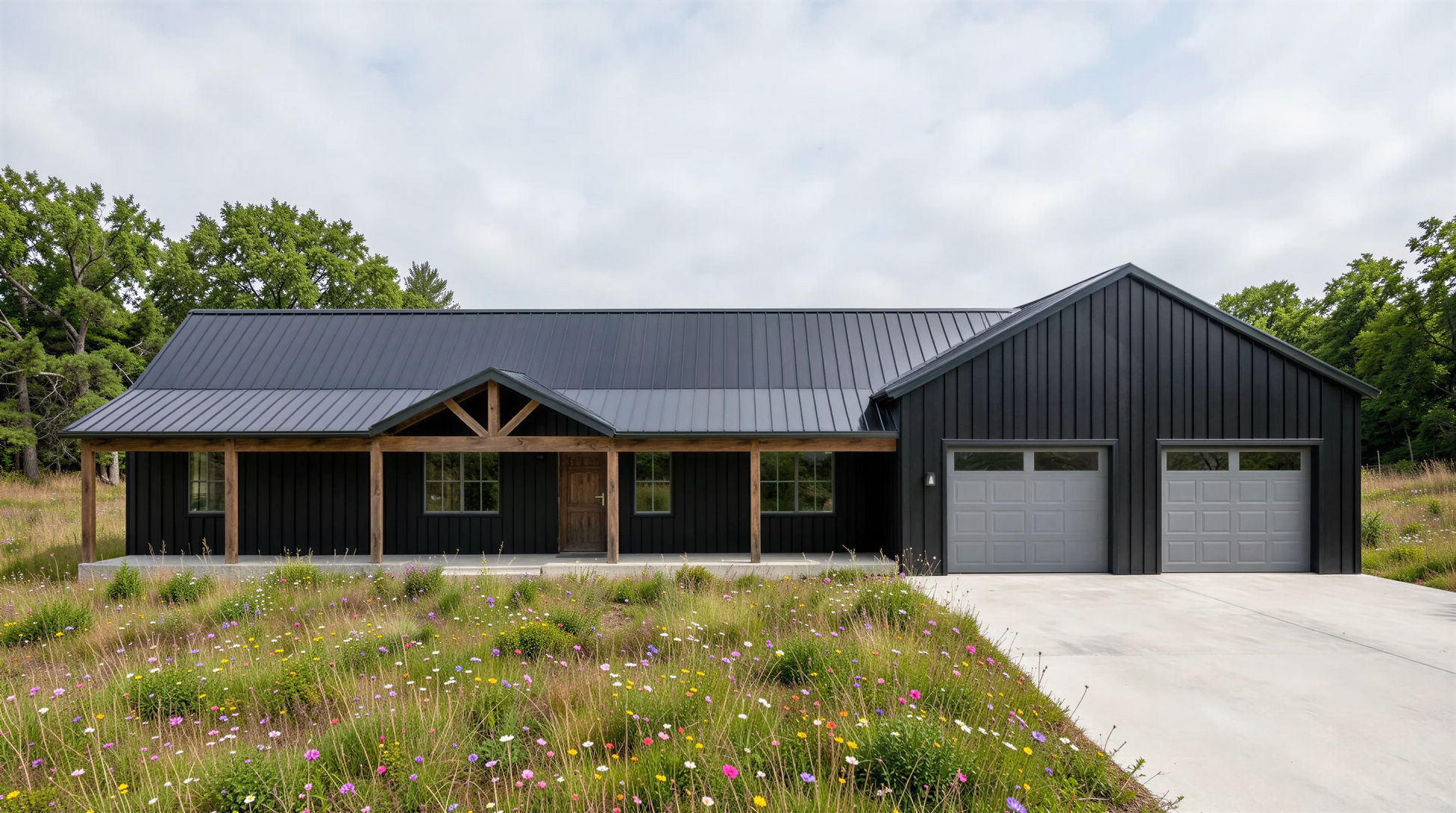

  • Wide front porch welcomes guests into a spacious open-concept layout, with living, dining, and kitchen areas arranged for easy everyday flow.Ā
  • Rear porch extends the living space outdoors and provides a comfortable spot for relaxing or entertaining.

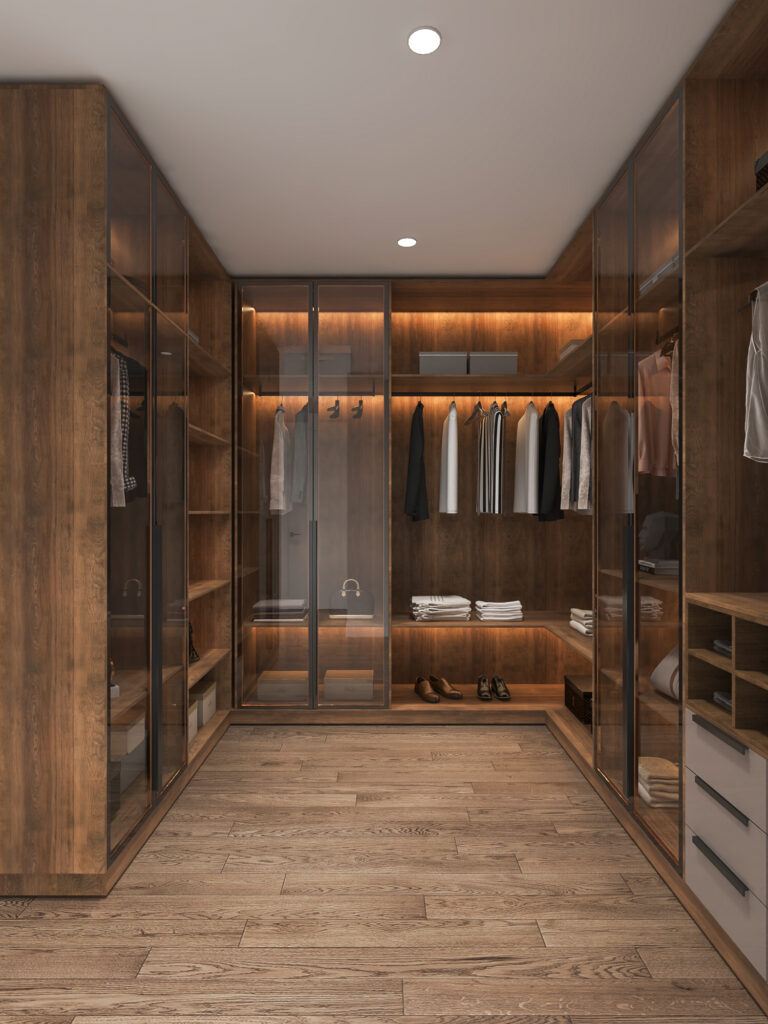

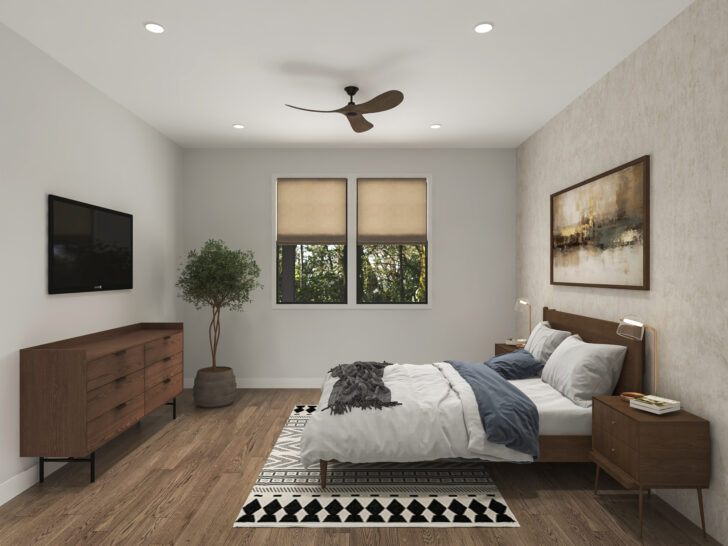

  • Private master suite offers a spacious bedroom, walk-in master closet, and well-appointed bathroom with dual vanities and a large shower.Ā

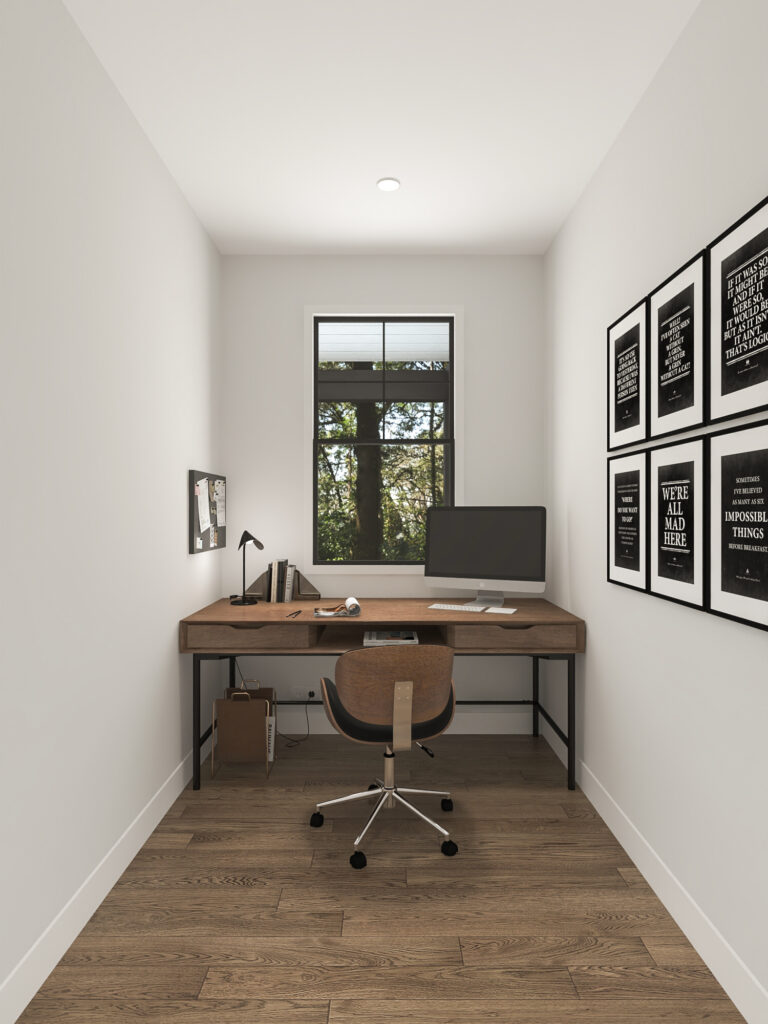

  • Office sits nearby, providing a dedicated workspace without taking away from the main living areas.
  • Two additional bedrooms are positioned on the opposite side of the home and share a conveniently located bathroom.Ā

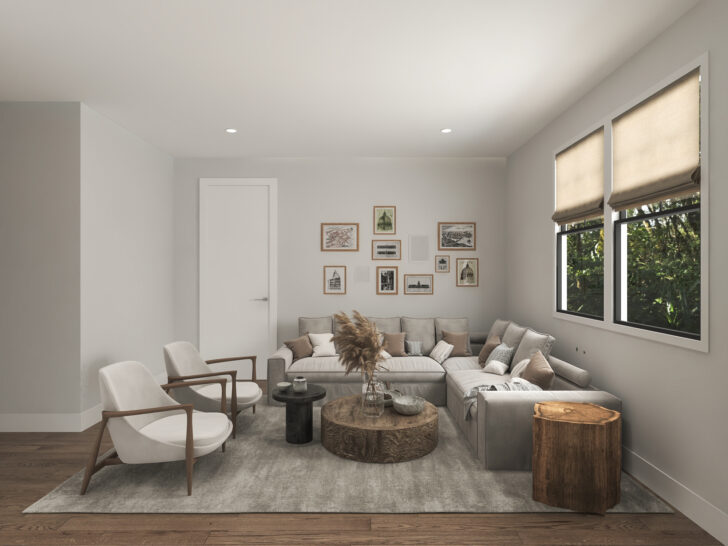

  • Family room adds a separate space for casual lounging, movie nights, or quiet relaxation.

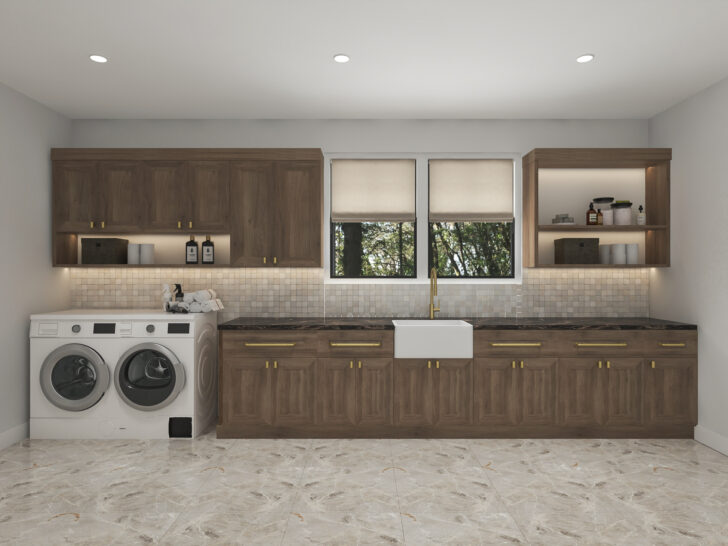

  • Mud room and laundry area sit near the kitchen and garage entry, making daily routines more practical and a secure closet provides extra storage for valuables.
  • Large garage/shop occupies the right side of the home, offering plenty of room for vehicles, equipment, projects, and additional storage.Ā
  • Breezeway-style access creates a practical connection between the main living area and garage.

Ā

Ā

What's included in PL-61313-A:

Cover PageĀ
Floor PlanĀ
Roof PlanĀ

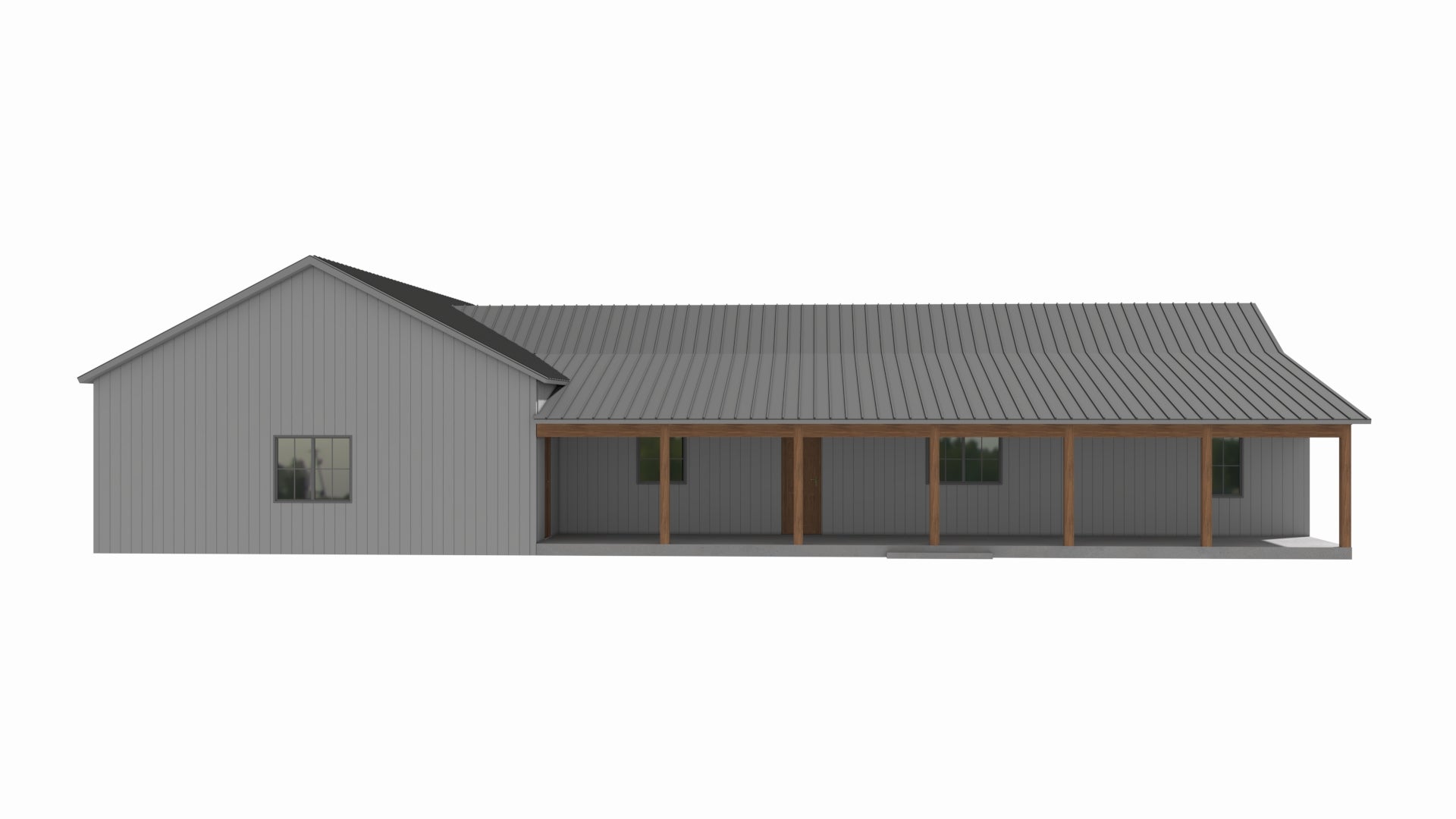

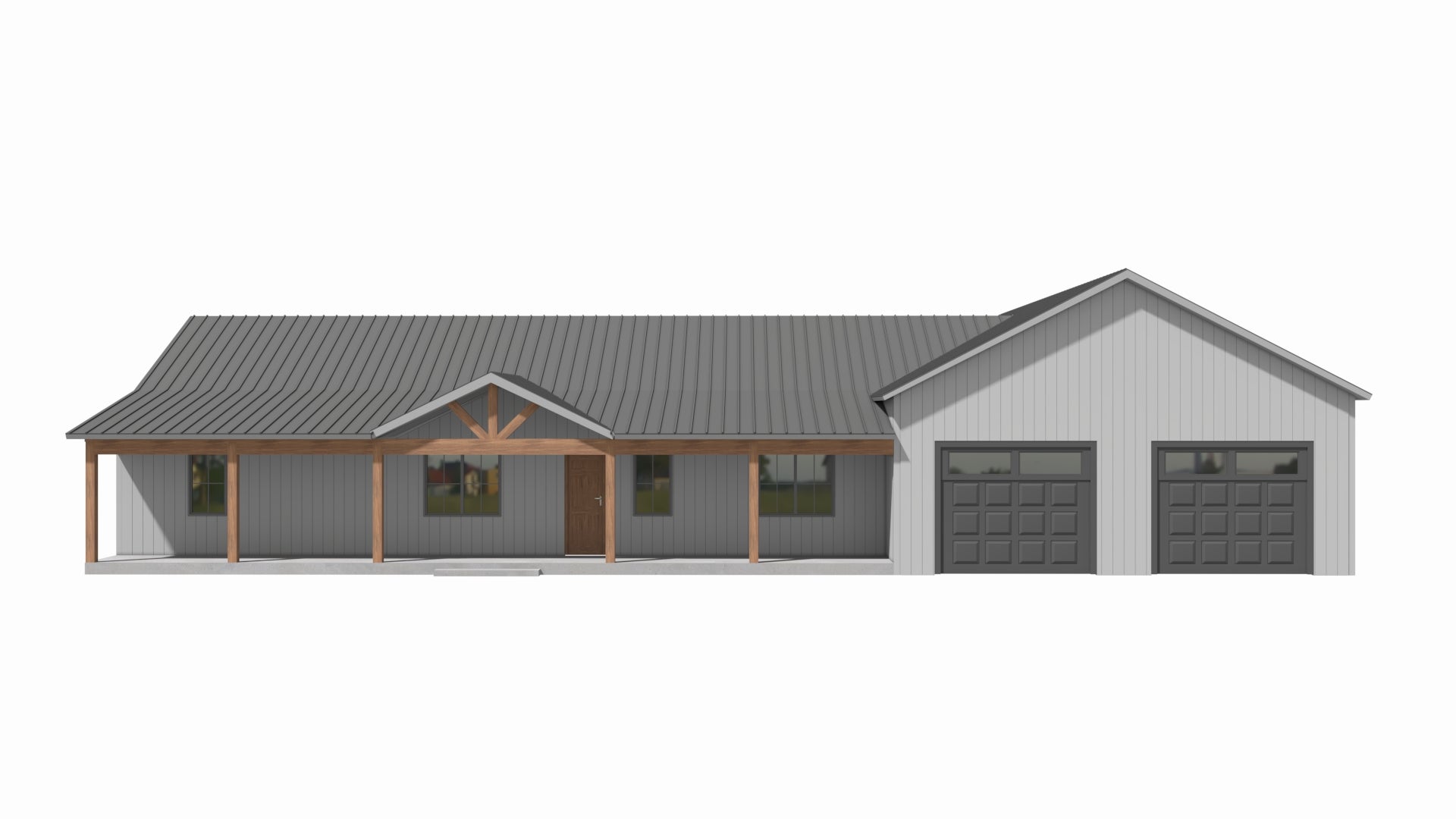

Front And Rear ElevationĀ
Right And Left ElevationĀ
Electrical PlanĀ
Plumbing PlanĀ
HVAC PlanĀ
Radiant Heat Plan
Roof Framing PlanĀ
Foundation PlanĀ
Slab Detail
Interior Bearing FootingĀ
C-Typical Column DetailĀ
Wall Section

Ā

For more barndominium floor plans, check out our complete collection ofĀ 3 bedroom barndominium floor plans.

Need to make changes? Submit a modification request using the button that says Modify This Plan. We will get you a free price quote within 72 hours.

What's Typically Included

THE SPECIFC DETAILS OF WHAT'S INCLUDED ON THESE PLANS IS CONTAINED IN THE PRODUCT DESCRIPTION. PLEASE SCROLL UP AND YOU WILL FIND IT UNDER "WHAT'S INCLUDED"

Our house plan sets typically have the following details:

4 Elevations ā€“ Front, Back, Both Sides

Detailed Floor Plan Drawing

Electrical Plans with placements for HVAC

Plumbing Plans with Placements

Flooring Plan

Roof Plan

Foundation Plan

For more information on what's included and examples of what your plans will look like, go here -> https://barndominiumplans.com/pages/whats-included

Please Note:Ā We work with many different draftspeople who work in many different ways.Ā  ItĀ should be noted that their plans may contain different details.Ā THE SPECIFC DETAILS OF WHAT'S INCLUDED ON THESE PLANS IS CONTAINED IN THE PRODUCT DESCRIPTION. PLEASE SCROLL UP AND YOU WILL FIND IT UNDER "WHAT'S INCLUDED"

What's Not Included

The following items areĀ NOTĀ included:

Architectural or Engineering Stamp. Our plans are engineering-ready! Can take to a local structural engineer, but we are not engineers ourselves. Once you've purchased plans, we can make a recommendation in all 50 states.

Septic Drawings - Handled locally

Metal Truss Plans - These are provided by the truss manufacturer

Wind and Snow Loads - Handled locally!

Delivery

This plan is available as a digital product or printed + shipped.

If you select digital, the plan will be delivered to you via email as a PDF file, no matter what time it is.

If you select printed + shipped, your order will ship in 24x36 format within 1 business day of your order.

We ship from the midwest in order to serve the entire country within 3-5 business days!

Return policy

All barndominium house plan purchases are FINAL. There are no exchanges or refunds due to the digital nature of the product. Please make sure that the plan you have selected is going to fit your needs.

Wondering about modifications, and making sure you like the changes? While all plan sales featuring modifications are also FINAL, here's a bit about how the modification process works:

After your order is placed, our team gets started on your modifications.

First, we send over an initial floor plan draft to make sure the modifications are correct. Any "clarifying changes" are included at no additional cost. Things like "Oh I meant for the door to swing this way, not that way" or "kitchen appliances should be arranged in XYZ way". Any major changes to the plan like adding a bedroom, a second story, or a different foundation are an additional fee. 99% of our customers do not incur an additional fee.

After the floor plan is confirmed, we send over the floor plans + elevations. We do the same process, and once you're good with the elevations, we finish up your final plans.
