Barndominium Plans

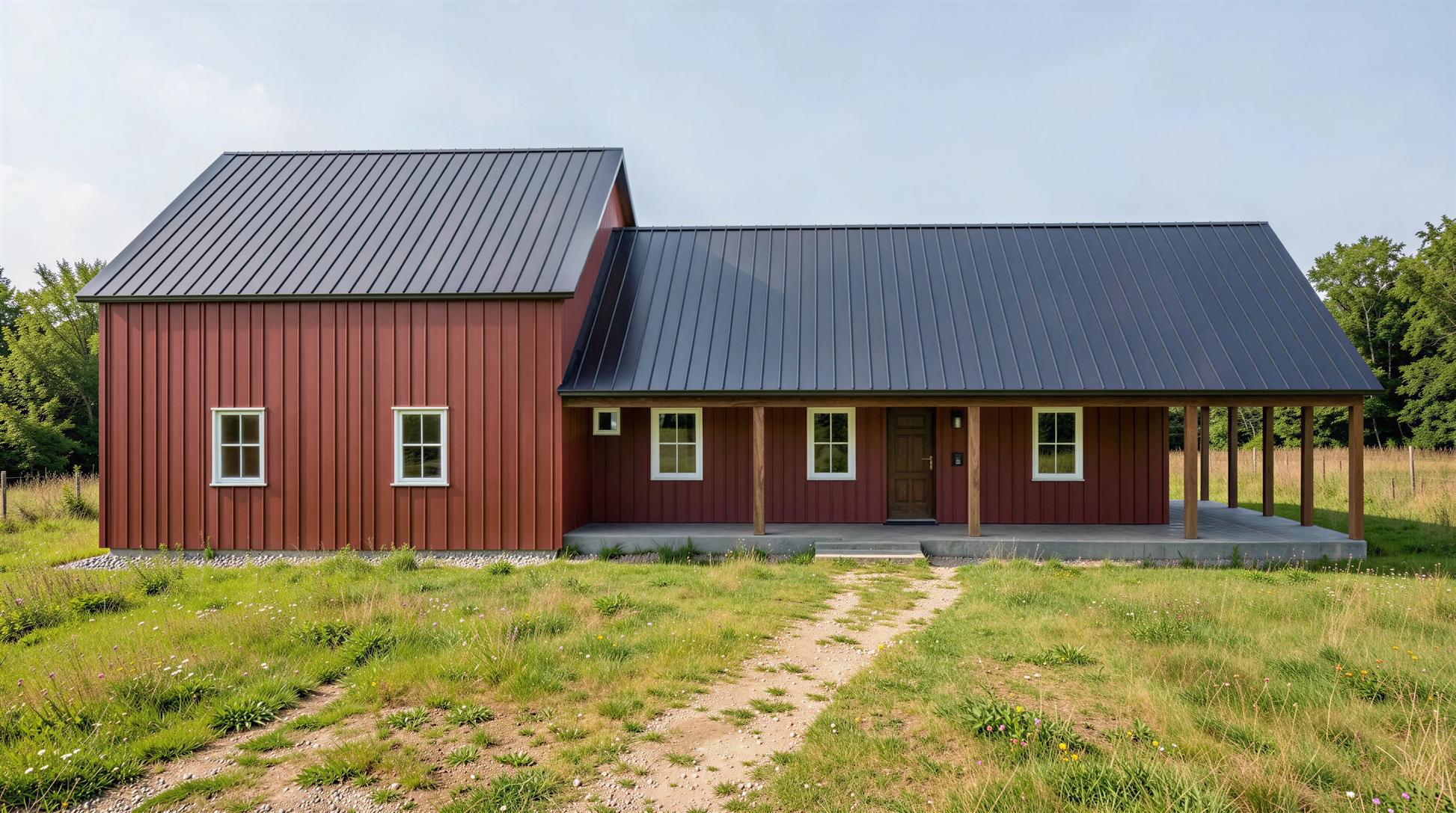

PL-2844 Arlene Barndominium House Plan

$849.99 USD
$849.99 USD
Sale Sold out
Add To Wishlist
1 9
Bedrooms 1 Bedrooms
Floors 1 Floors
Full Baths 2 Full Baths
Total Heated Area 1,305 Total Heated Area

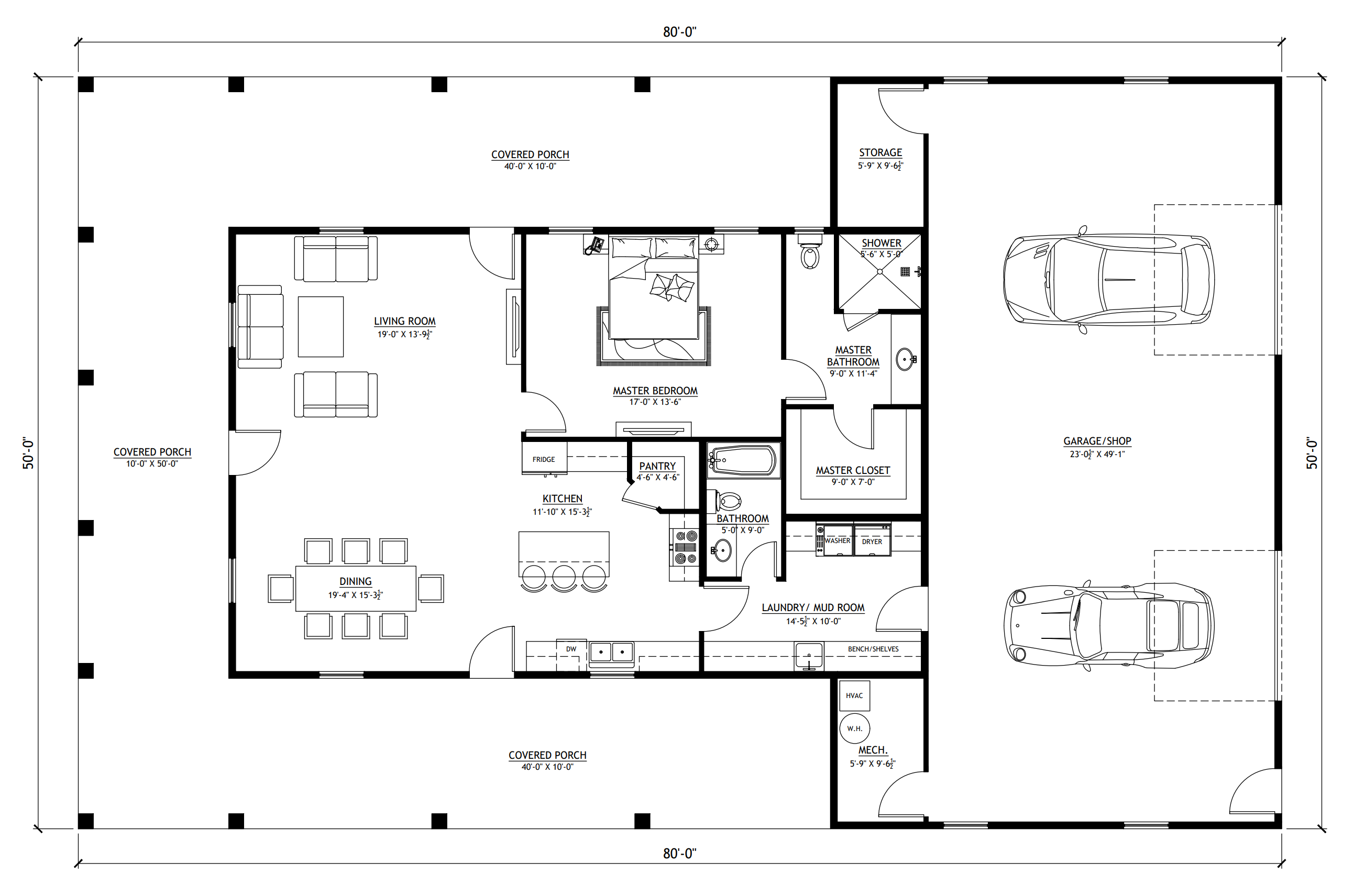

Floor Plan

DETAILS

HEATED SQ FT

First Floor:

1,305 SF

Second Floor:

None

Total Heated Sq Ft:

1,305 SF

UNHEATED SQ FT

Total Unheated Area:

Garage 1,395 SF, Porch 1,300 SF = TOTAL 2,695 SF

Carport:

None

Bedrooms:

1

Full Baths:

2

Floors:

1

Garage Size:

1,395 SF

Width:

80'

Depth:

50'

Height:

29'-3"

Foundation:

Concrete Slab

Main Roof Pitch:

6:12

Construction Type:

Stick Frame

CEILING HEIGHTS

First Floor:

9'

PL-2844 Arlene Barndominium House Plan

Ā

About this barndominium house plan:

  • 1305 Heated Square Feet
  • 1 Bedroom
  • 2 Bathrooms
  • Single Story
  • Open concept
  • Walk-in Pantry
  • Laundry/Mud Room
  • Mechanical Room
  • Storage Room
  • Wraparound Porch
  • 1395 Sq Ft Garage/Shop

Ā

  • The workshop provides a grand-scale clearance for multiple vehicles, storage, or a heavy-duty shop station.
  • Offers a beautifully optimized, low-maintenance single-story layout designed with fluid traffic patterns and zero wasted space.
  • A spectacular porch system frames the residential wing, delivering breathtaking country curb appeal and massive outdoor living capacity.
  • Features a spacious master bedroom sanctuary complete with its own private layout entry and immediate access to luxury amenities.
  • The primary suite is highly upgraded with a deep walk-in closet and an upscale master bathroom.
  • Includes the elite master ensuite alongside a well-positioned full guest bathroom, strategically placed near the main living core and the kitchen.
  • The plan features two separate rooms flanking the garage wall: a dedicated tool storage locker at the rear and a specialized lower mechanical room.

Ā

Ā

What's included in PL-2844:

Cover PageĀ
Floor PlanĀ
Roof PlanĀ
Front And Rear ElevationĀ
Right And Left ElevationĀ
Electrical PlanĀ
Plumbing PlanĀ
HVAC PlanĀ
Roof Framing PlanĀ
Foundation Plan
Foundation Detail Ā
Interior Bearing FootingĀ
C-Typical Column DetailĀ
Wall Section

Ā

Ā

For more barndominium floor plans, check out our complete collection ofĀ 1 bedroom barndominium floor plans.

Ā

Need to make changes? Submit a modification request using the button that saysĀ Modify This Plan. We will get you a free price quote within 72 hours.

What's Typically Included

THE SPECIFC DETAILS OF WHAT'S INCLUDED ON THESE PLANS IS CONTAINED IN THE PRODUCT DESCRIPTION. PLEASE SCROLL UP AND YOU WILL FIND IT UNDER "WHAT'S INCLUDED"

Our house plan sets typically have the following details:

4 Elevations ā€“ Front, Back, Both Sides

Detailed Floor Plan Drawing

Electrical Plans with placements for HVAC

Plumbing Plans with Placements

Flooring Plan

Roof Plan

Foundation Plan

For more information on what's included and examples of what your plans will look like, go here -> https://barndominiumplans.com/pages/whats-included

Please Note:Ā We work with many different draftspeople who work in many different ways.Ā  ItĀ should be noted that their plans may contain different details.Ā THE SPECIFC DETAILS OF WHAT'S INCLUDED ON THESE PLANS IS CONTAINED IN THE PRODUCT DESCRIPTION. PLEASE SCROLL UP AND YOU WILL FIND IT UNDER "WHAT'S INCLUDED"

What's Not Included

The following items areĀ NOTĀ included:

Architectural or Engineering Stamp. Our plans are engineering-ready! Can take to a local structural engineer, but we are not engineers ourselves.

Metal Truss Plans - These are provided by the truss manufacturer

Wind and Snow Loads - Handled locally!

Delivery

This plan is available as a digital product or printed + shipped.

If you select digital, the plan will be delivered to you via email as a PDF file, no matter what time it is.

If you select printed + shipped, your order will ship in 24x36 format within 1 business day of your order.

We ship from the midwest in order to serve the entire country within 3-5 business days!

Return policy

All barndominium house plan purchases are FINAL. There are no exchanges or refunds due to the digital nature of the product. Please make sure that the plan you have selected is going to fit your needs.

Wondering about modifications, and making sure you like the changes? While all plan sales featuring modifications are also FINAL, here's a bit about how the modification process works:

After your order is placed, our team gets started on your modifications.

First, we send over an initial floor plan draft to make sure the modifications are correct. Any "clarifying changes" are included at no additional cost. Things like "Oh I meant for the door to swing this way, not that way" or "kitchen appliances should be arranged in XYZ way". Any major changes to the plan like adding a bedroom, a second story, or a different foundation are an additional fee. 99% of our customers do not incur an additional fee.

After the floor plan is confirmed, we send over the floor plans + elevations. We do the same process, and once you're good with the elevations, we finish up your final plans.
