PL-2834 Wally Barndominium House Plan

$849.99 USD
$849.99 USD
Sale Sold out
Add To Wishlist
1 9
Bedrooms 2 Bedrooms
Floors 1 Floors
Full Baths 3 Full Baths
Total Heated Area 1,800 Total Heated Area

DETAILS

HEATED SQ FT

First Floor:

1,800 SF

Second Floor:

None

Total Heated Sq Ft:

1,800 SF

UNHEATED SQ FT

Total Unheated Area:

Garage 600 SF, Porch 480 SF = TOTAL 1,080 SF

Carport:

None

Bedrooms:

2

Full Baths:

3

Floors:

1

Garage Size:

600 SF

Width:

80'

Depth:

38'

Height:

19'-3"

Foundation:

Concrete Slab

Main Roof Pitch:

6:12

Construction Type:

Stick Frame

CEILING HEIGHTS

First Floor:

10'

PL-2834 Wally Barndominium House Plan

Ā

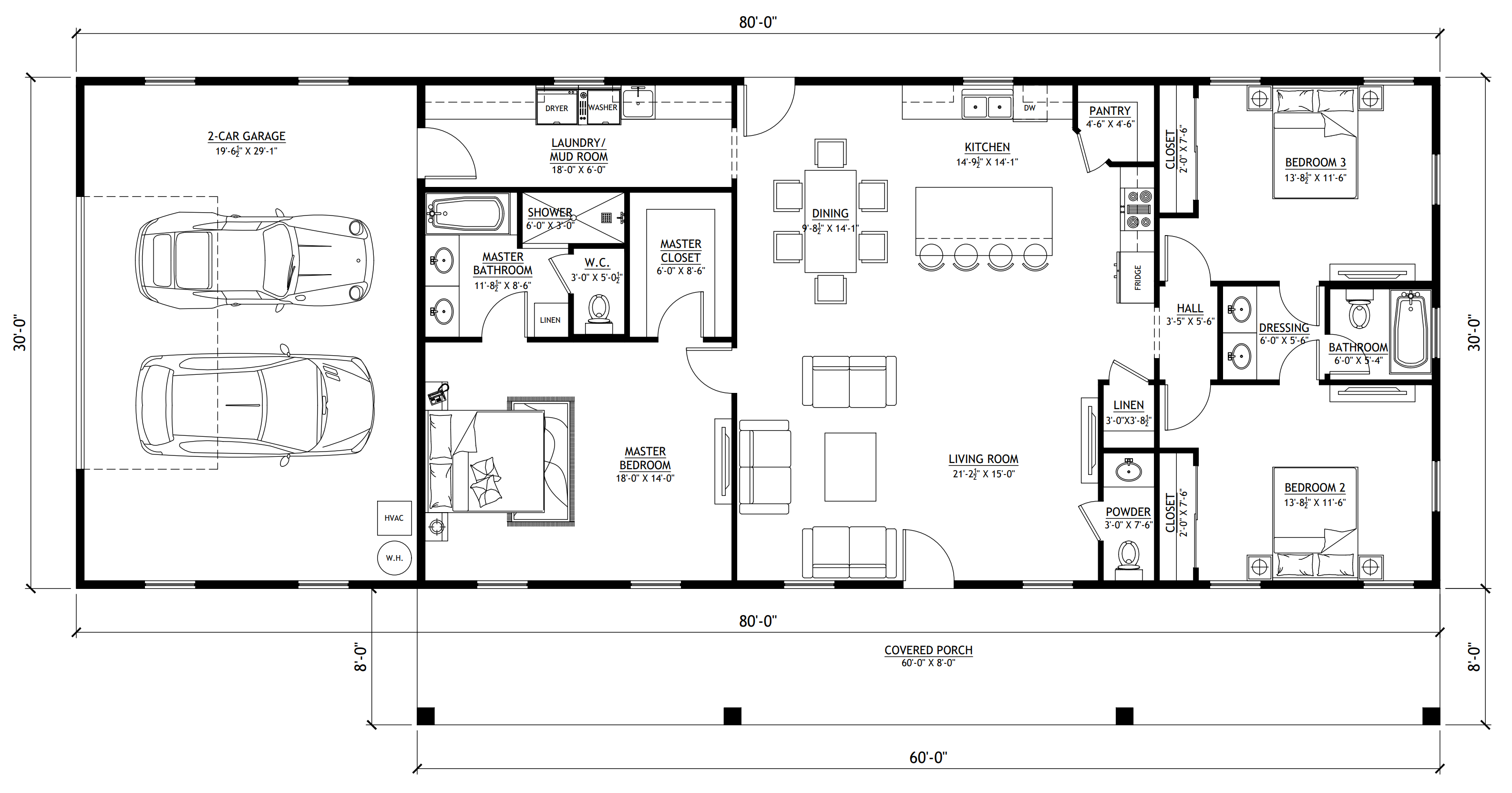

About this barndominium house plan:

  • 1800 Heated Square Feet
  • 60x30 Living Space Dimension
  • 3 Bedrooms
  • 2.1 Bathrooms
  • Single Story
  • Open concept
  • Laundry room/Mudroom
  • Front Porch
  • 600 Sq Ft Garage

Ā

  • The sleek rectangular layout offers a cost-effective build while providing a grand, 1800 SF, single-level interior that feels completely open and uncompromised.

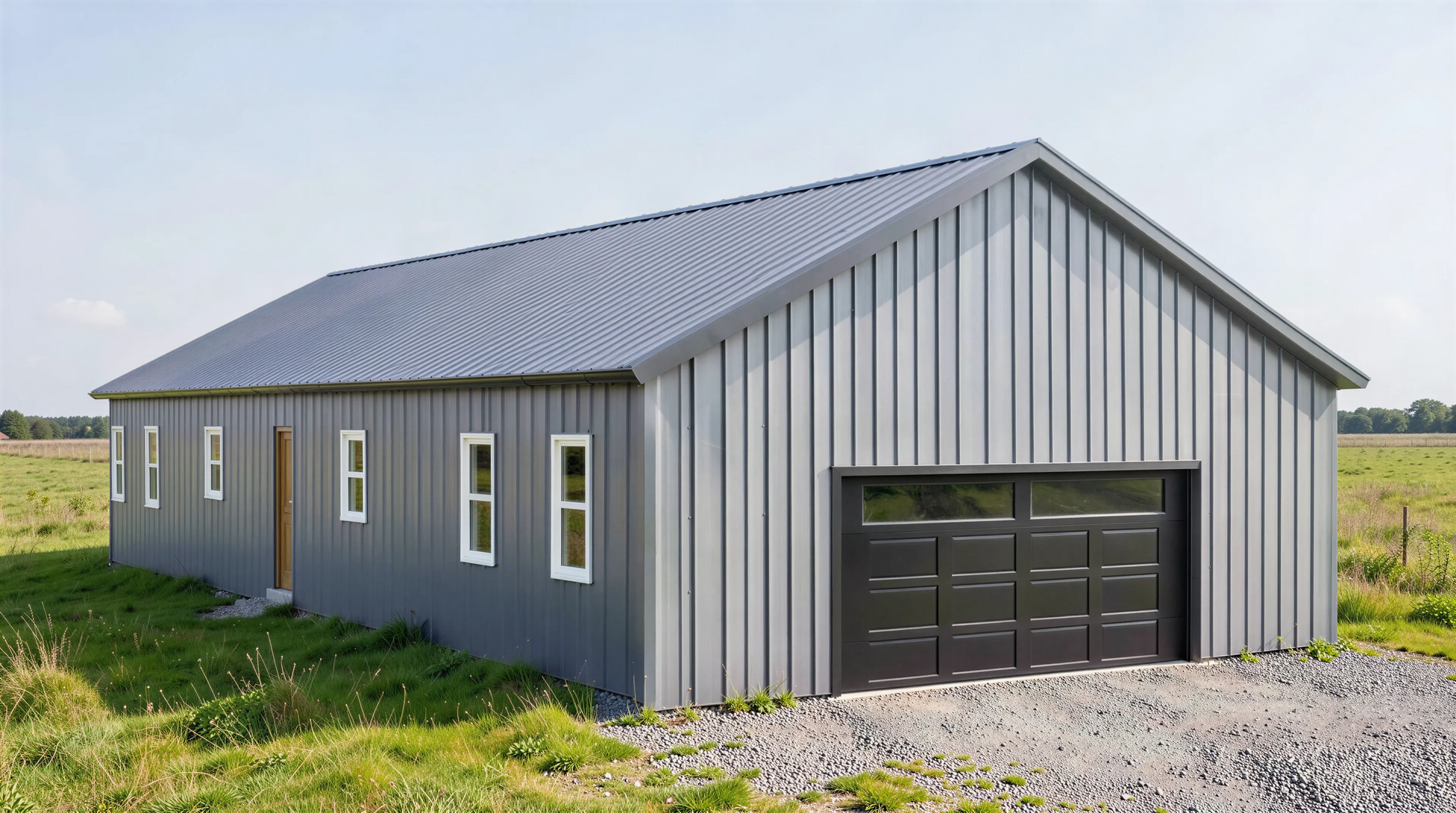

  • Conveniently attached to the residential wing, the garage offers excellent depth for two full-sized vehicles, workshop space, and centralized home utility housing.
  • Designed with a split-bedroom layout- an expansive master sanctuary on one side of the home and two mirror-image secondary bedrooms on the opposite end.
  • Includes a luxury master ensuite, a shared full guest bath with an adjacent dressing area, and a discrete guest powder room off the living area.
  • High-performance laundry/mudroom zone off the garage and rear exit, handles heavy-duty chores with a long utility counter, and washer/dryer hookups.

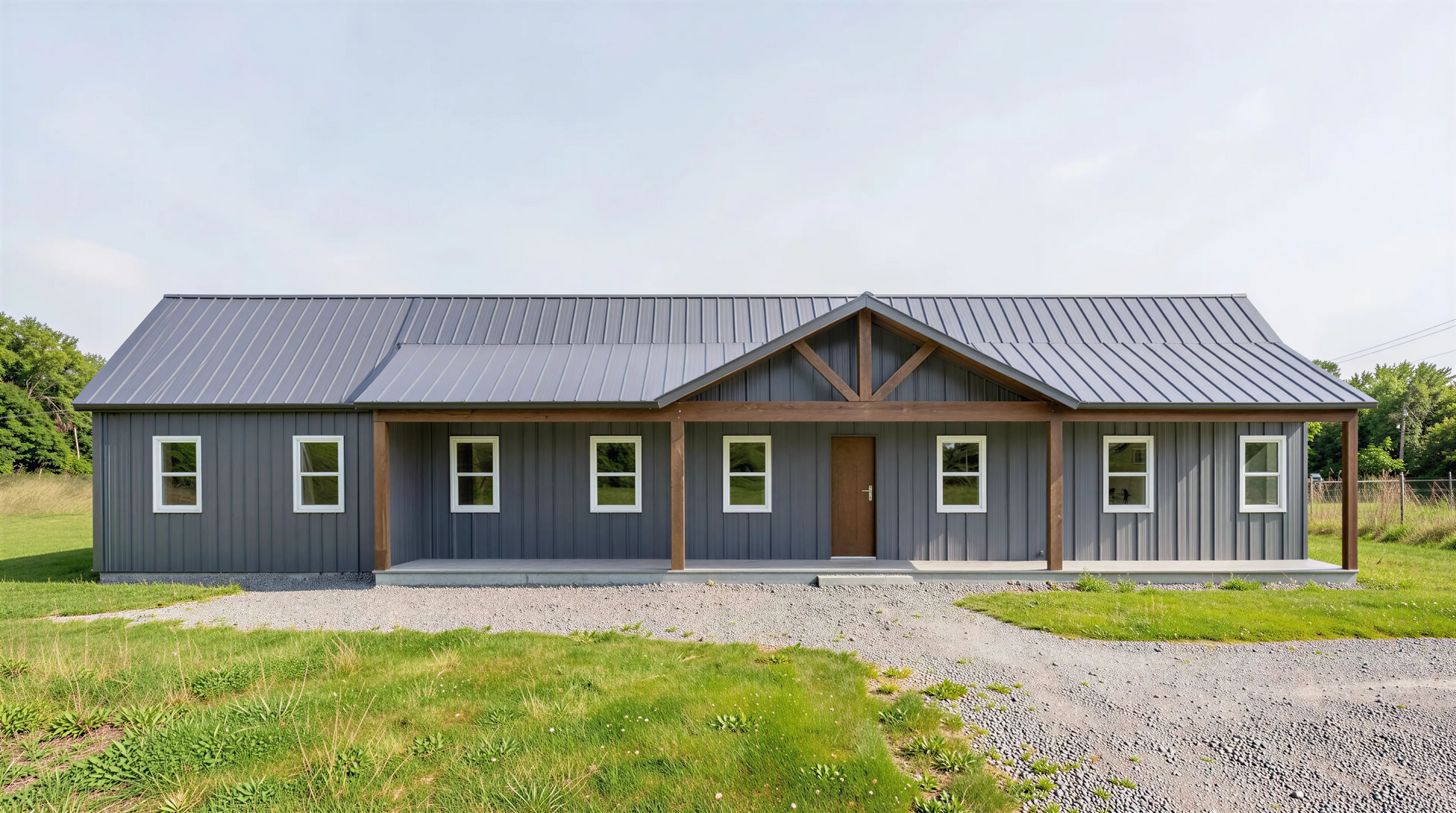

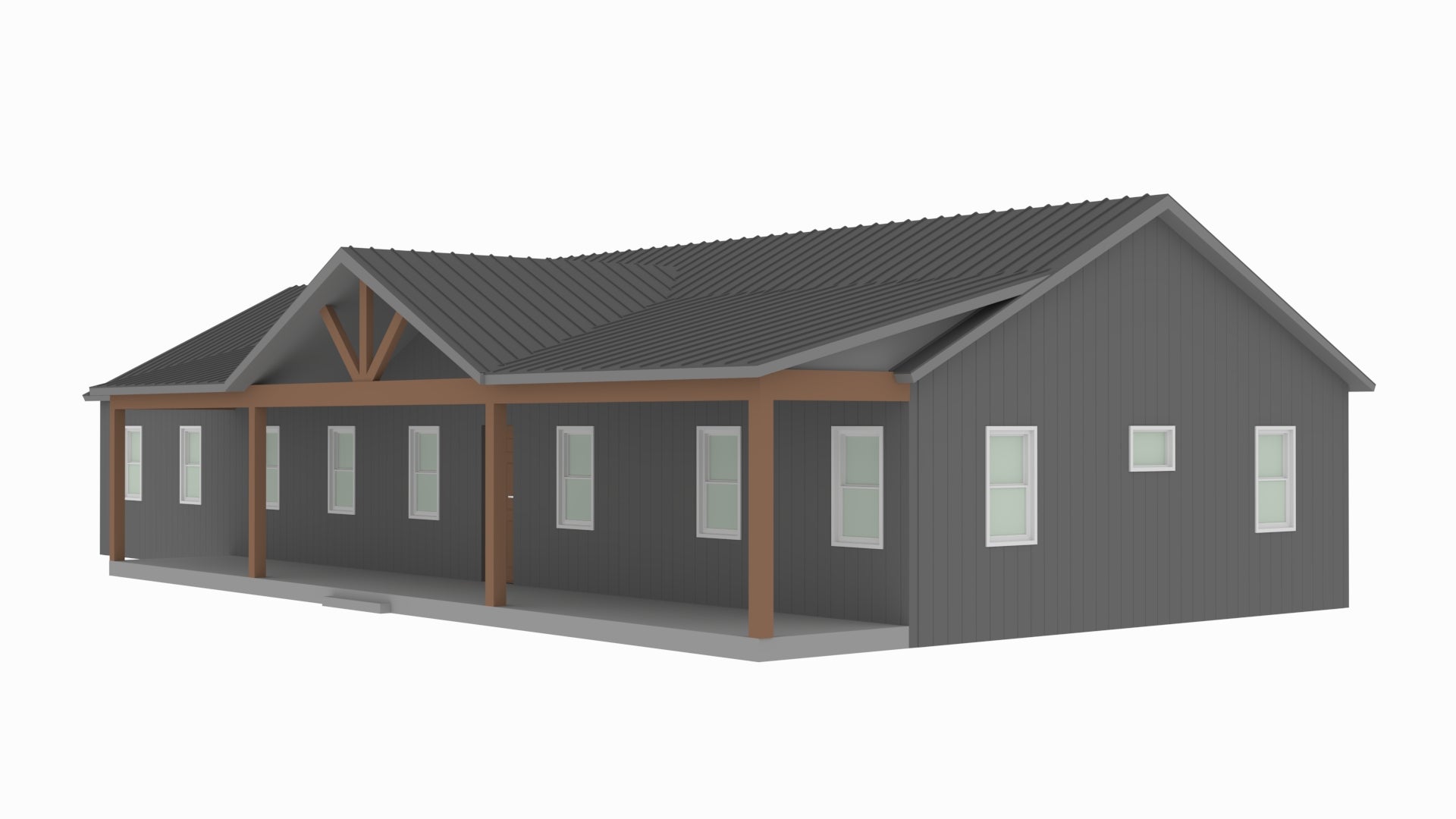

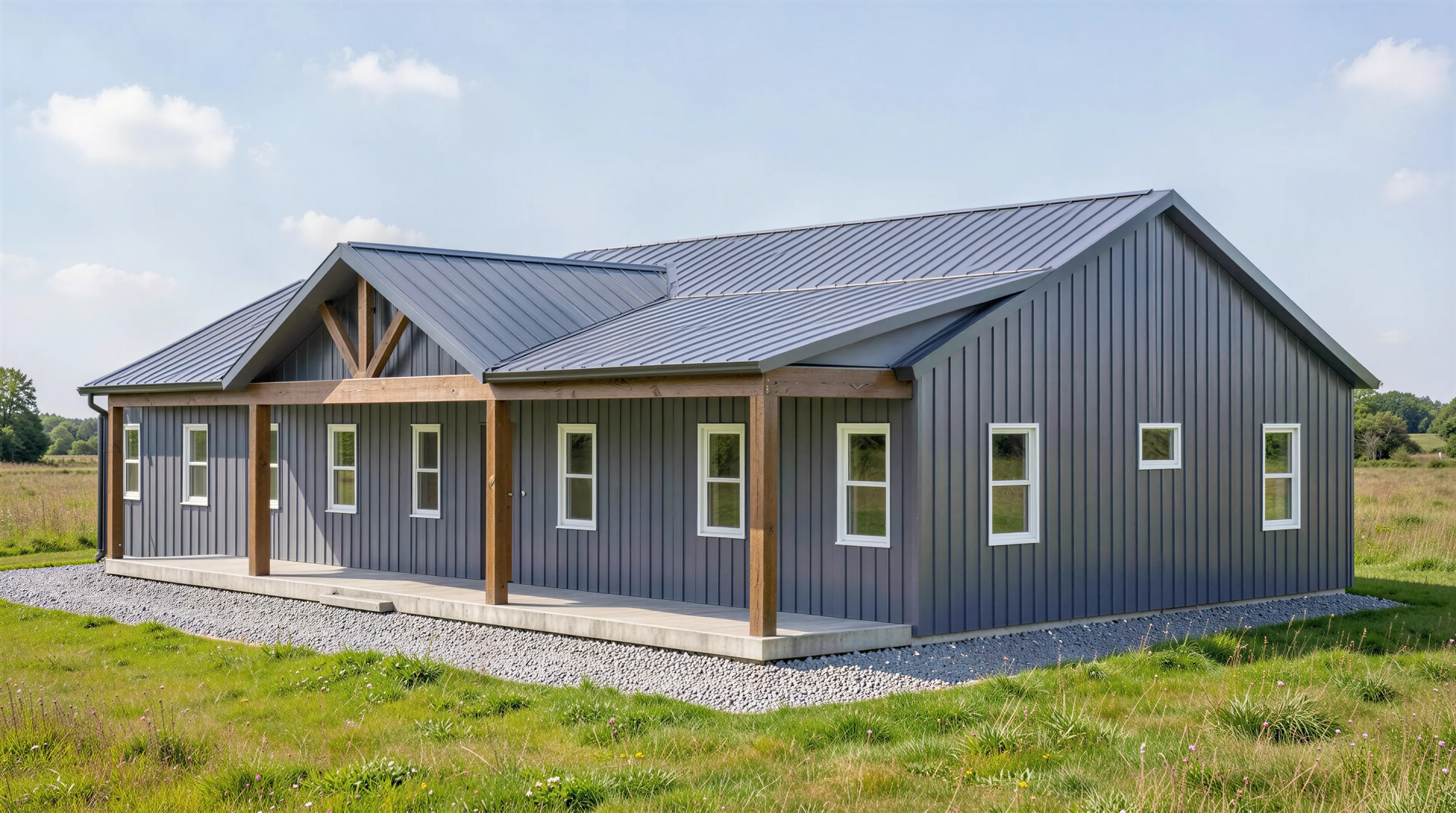

  • A full-length covered front porch establishes an iconic barndominium street profile while delivering 480 SF of sheltered outdoor relaxation space.

Ā

What's included in PL-2834:

Cover PageĀ
Floor PlanĀ
Roof PlanĀ

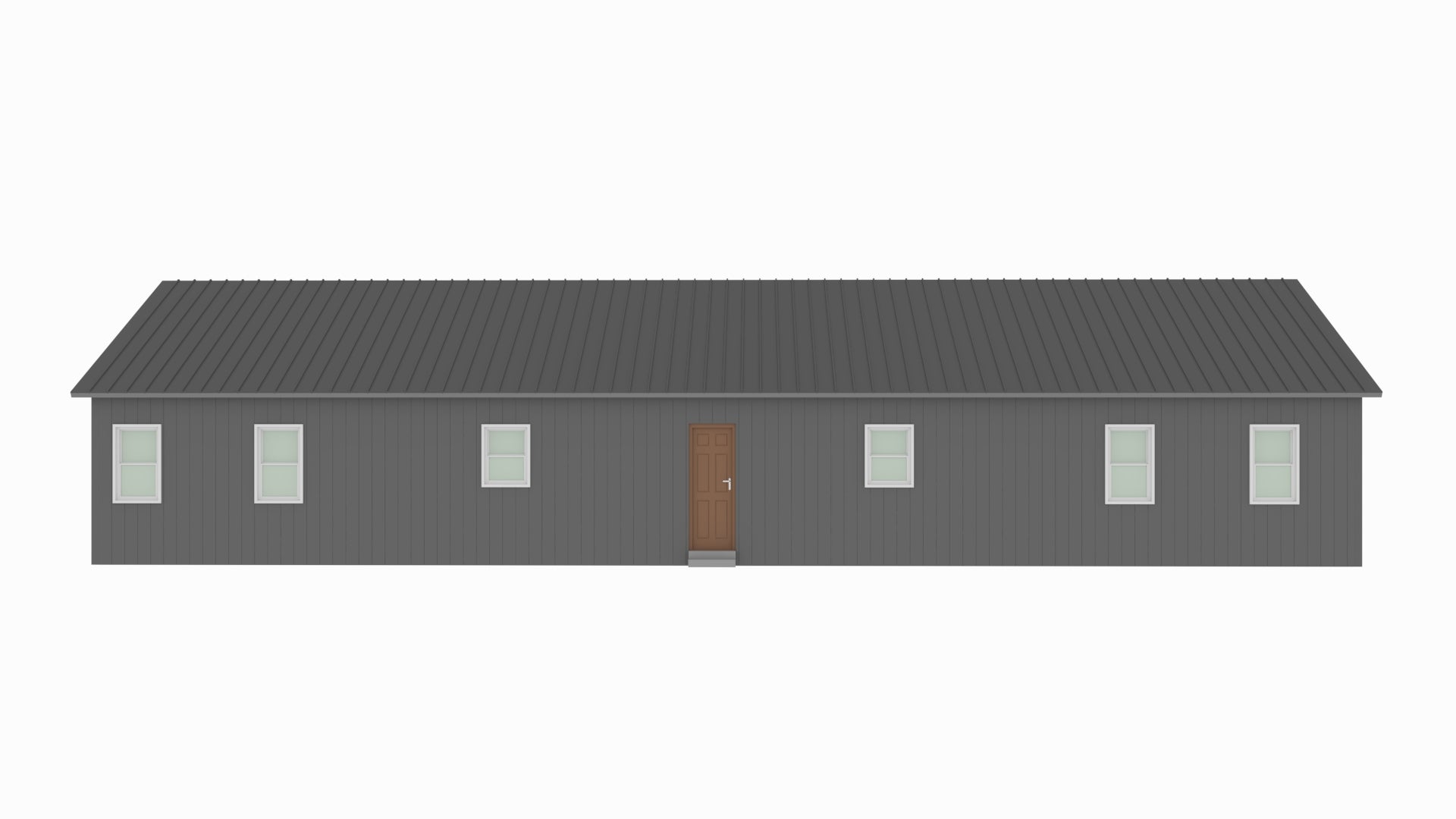

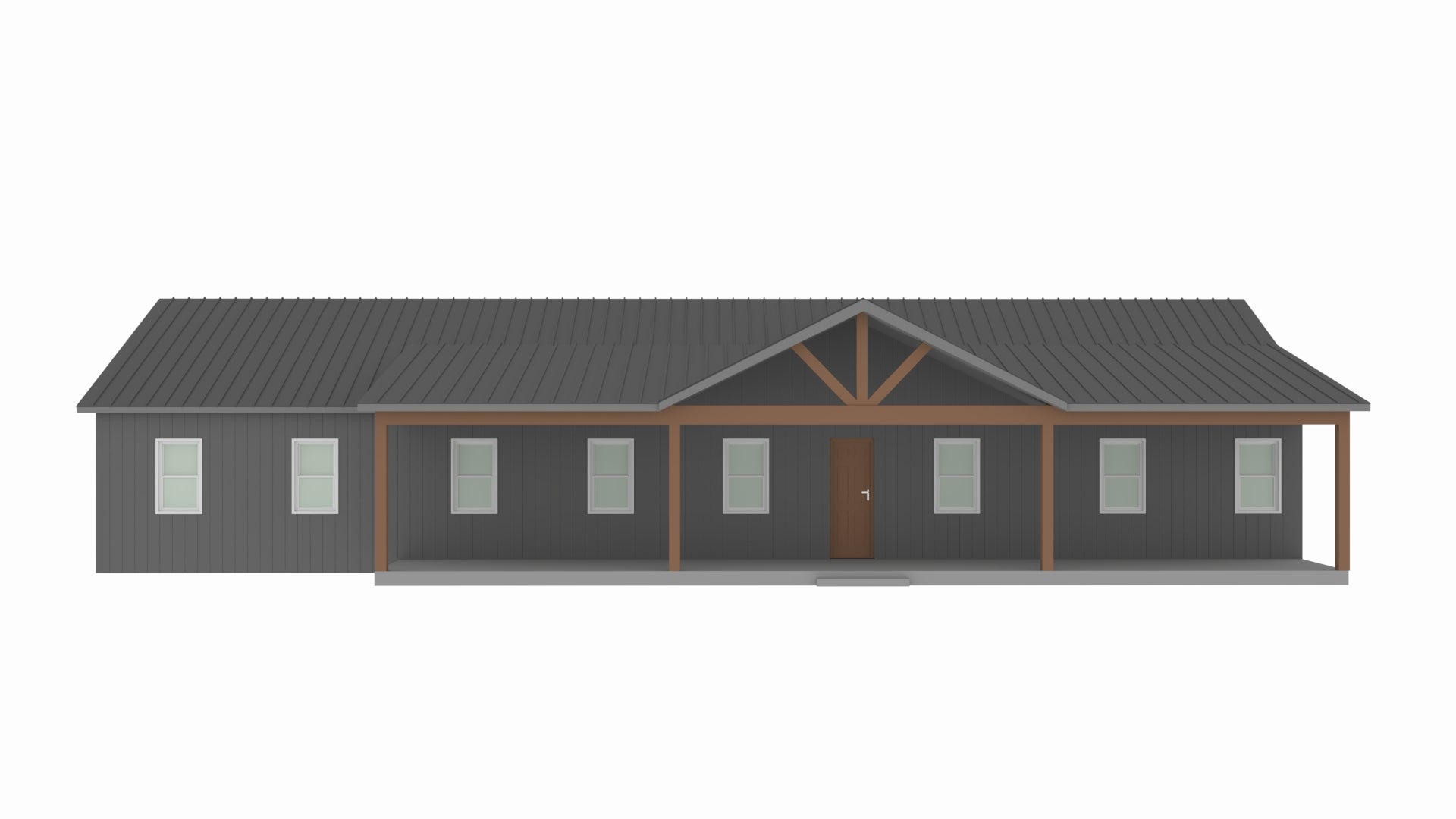

Front And Rear ElevationĀ
Right And Left ElevationĀ
Electrical PlanĀ
Plumbing PlanĀ
HVAC PlanĀ
Roof Framing PlanĀ
Foundation PlanĀ
Foundation Detail
Interior Bearing FootingĀ
C-Typical Column DetailĀ
Wall Section

Ā

For more barndominium floor plans, check out our complete collection ofĀ 3-bedroom barndominium floor plans.

Ā

Need to make changes? Submit a modification request using the button that saysĀ Modify This Plan. We will get you a free price quote within 72 hours.

What's Typically Included

THE SPECIFC DETAILS OF WHAT'S INCLUDED ON THESE PLANS IS CONTAINED IN THE PRODUCT DESCRIPTION. PLEASE SCROLL UP AND YOU WILL FIND IT UNDER "WHAT'S INCLUDED"

Our house plan sets typically have the following details:

4 Elevations ā€“ Front, Back, Both Sides

Detailed Floor Plan Drawing

Electrical Plans with placements for HVAC

Plumbing Plans with Placements

Flooring Plan

Roof Plan

Foundation Plan

For more information on what's included and examples of what your plans will look like, go here -> https://barndominiumplans.com/pages/whats-included

Please Note:Ā We work with many different draftspeople who work in many different ways.Ā  ItĀ should be noted that their plans may contain different details.Ā THE SPECIFC DETAILS OF WHAT'S INCLUDED ON THESE PLANS IS CONTAINED IN THE PRODUCT DESCRIPTION. PLEASE SCROLL UP AND YOU WILL FIND IT UNDER "WHAT'S INCLUDED"

What's Not Included

The following items areĀ NOTĀ included:

Architectural or Engineering Stamp. Our plans are engineering-ready! Can take to a local structural engineer, but we are not engineers ourselves.

Metal Truss Plans - These are provided by the truss manufacturer

Wind and Snow Loads - Handled locally!

Delivery

This plan is available as a digital product or printed + shipped.

If you select digital, the plan will be delivered to you via email as a PDF file, no matter what time it is.

If you select printed + shipped, your order will ship in 24x36 format within 1 business day of your order.

We ship from the midwest in order to serve the entire country within 3-5 business days!

Return policy

All barndominium house plan purchases are FINAL. There are no exchanges or refunds due to the digital nature of the product. Please make sure that the plan you have selected is going to fit your needs.

Wondering about modifications, and making sure you like the changes? While all plan sales featuring modifications are also FINAL, here's a bit about how the modification process works:

After your order is placed, our team gets started on your modifications.

First, we send over an initial floor plan draft to make sure the modifications are correct. Any "clarifying changes" are included at no additional cost. Things like "Oh I meant for the door to swing this way, not that way" or "kitchen appliances should be arranged in XYZ way". Any major changes to the plan like adding a bedroom, a second story, or a different foundation are an additional fee. 99% of our customers do not incur an additional fee.

After the floor plan is confirmed, we send over the floor plans + elevations. We do the same process, and once you're good with the elevations, we finish up your final plans.
