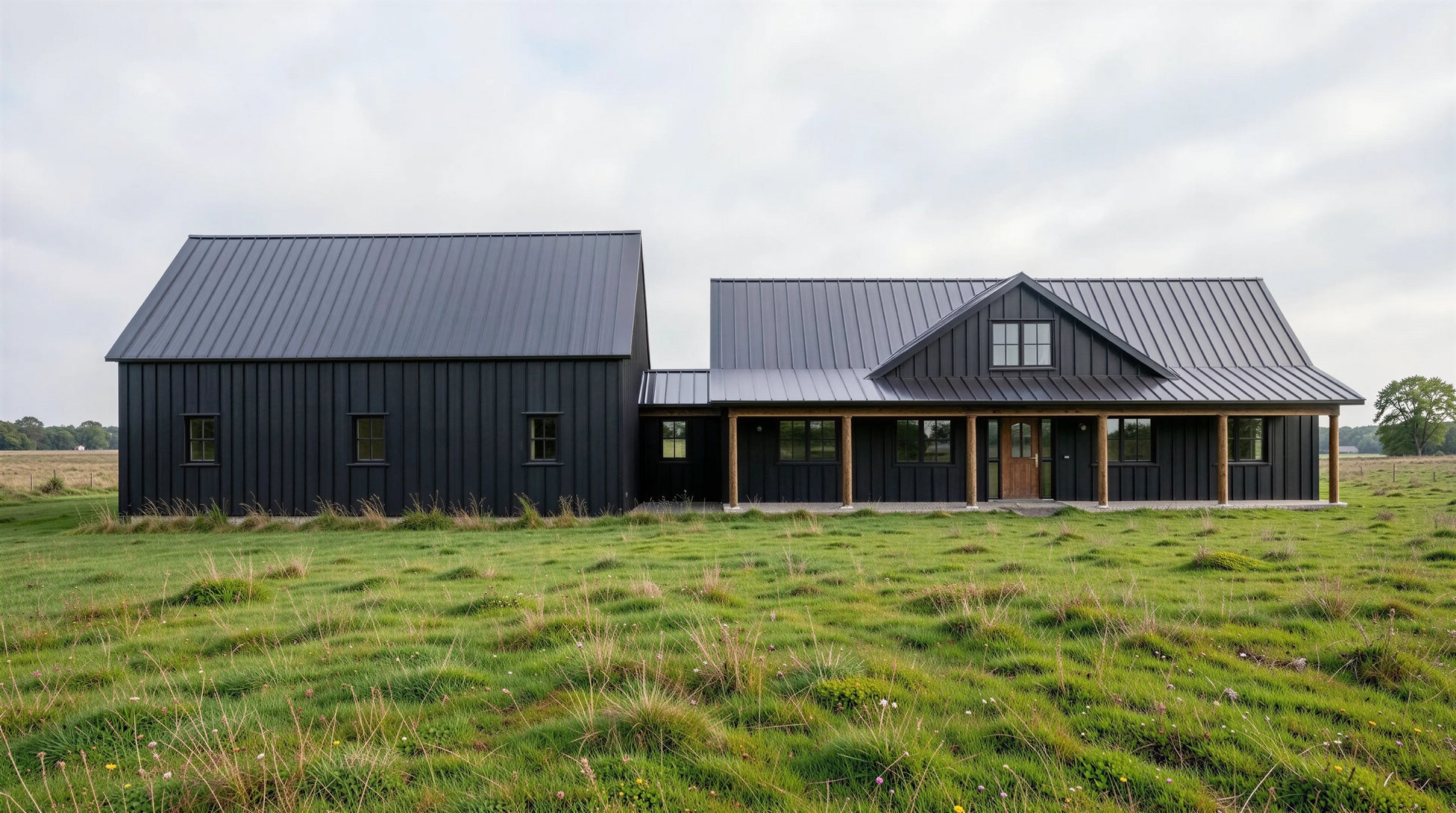

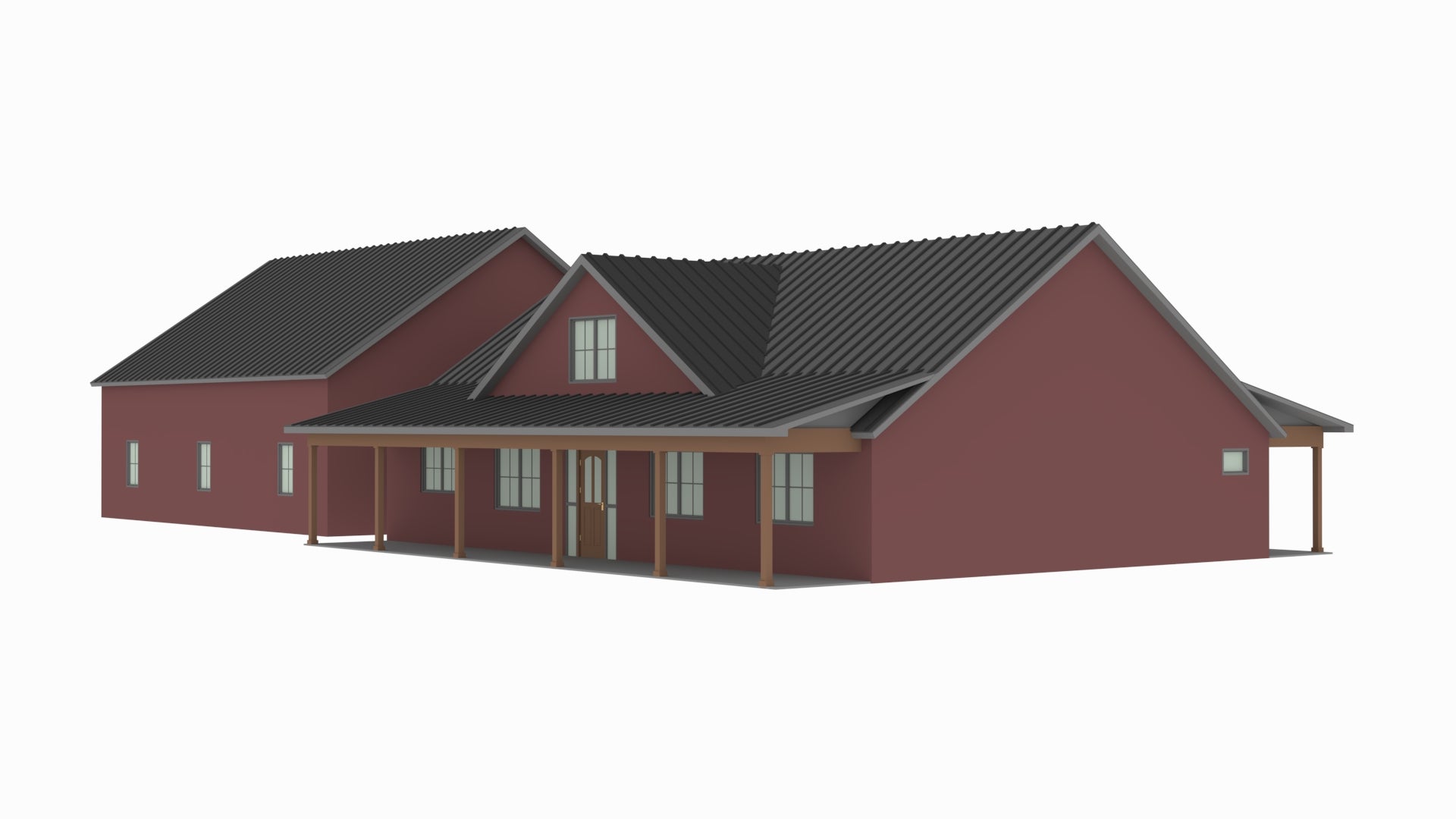

PL-2826 Harley Barndominium House Plan

$849.99 USD
$849.99 USD
Sale Sold out
Add To Wishlist
1 9
Bedrooms 3 Bedrooms
Floors 1 Floors
Full Baths 3 Full Baths
Total Heated Area 2,492 Total Heated Area

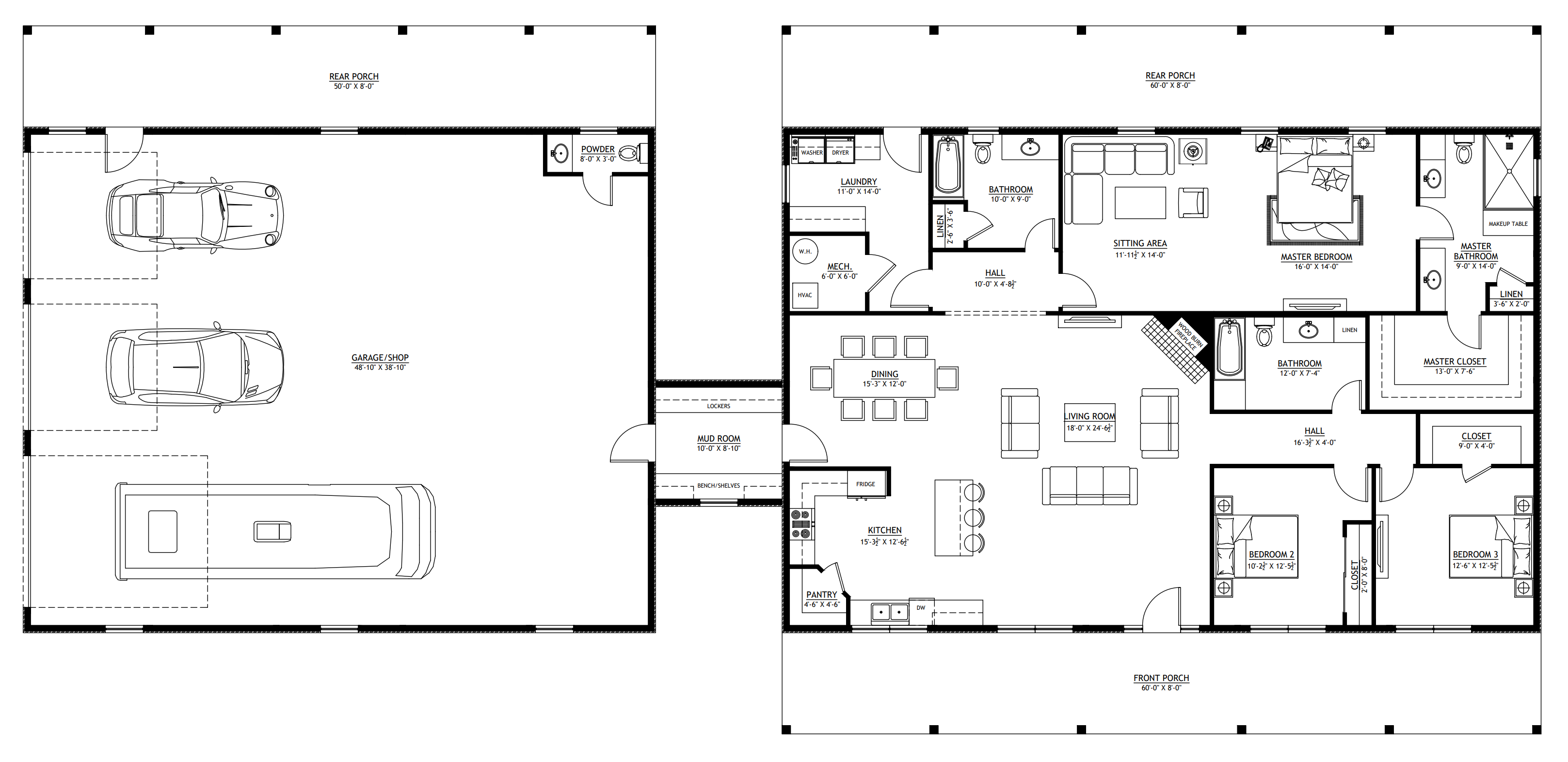

Floor Plan

DETAILS

HEATED SQ FT

First Floor:

2,492 SF

Second Floor:

None

Total Heated Sq Ft:

2,492 SF

UNHEATED SQ FT

Total Unheated Area:

Garage 2,000 SF, Porches 1,360 SF = TOTAL 3,360 SF

Carport:

None

Bedrooms:

3

Full Baths:

3

Floors:

1

Garage Size:

2,000 SF

Width:

120'

Depth:

48'

Height:

28'-5 1/2"

Foundation:

Concrete Slab

Main Roof Pitch:

8:12

Construction Type:

Post-Frame

CEILING HEIGHTS

First Floor:

9'

PL-2826 Harley Barndominium HouseĀ

Ā

About this barndominium house plan:

  • 2492 Heated Square Feet
  • 3 Bedrooms
  • 3.1 Bathrooms
  • Single Story
  • Open concept
  • Mechanical room
  • Laundry room
  • Mudroom
  • Front and Rear Porch
  • 2000 Sq Ft Garage

Ā

  • A sweeping 2,492 SF heated layout delivers the ultimate convenience of one-level living, maximizing day-to-day accessibility and architectural flow.
  • The ultimate workshop setup, this massive attached garage features incredible depth to easily accommodate heavy machinery, a vehicle lift, or large RV storage.
  • Includes a secluded master bedroom and a dedicated secondary bedroom wing, providing a quiet and highly practical layout.
  • Features a luxury master ensuite, two full bathrooms serving the secondary spaces, and a convenient powder room tucked right inside the garage wing.
  • A specialized mudroom serves as a structural bridge connecting the shop directly to the home, equipped with built-in benches and lockers.
  • The master bedroom serves as an elite sanctuary, complete with a private sitting area, a massive walk-in closet, and a makeup vanity station.
  • A highly functional laundry room is placed right off the mudroom entrance, while a separate mechanical closet keeps central home systems organized and quiet.
  • A deep 60-foot front porch creates an iconic entrance, while a matching full-length rear porch spans the back of the home.

Ā

What's included in PL-2826:

Cover PageĀ
Floor Plan
Roof PlanĀ
ElevationsĀ
Electrical PlanĀ
Plumbing PlanĀ
HVAC PlanĀ
Roof Framing PlanĀ
Foundation PlanĀ
Slab DetailĀ
Porch Post DetailĀ
Wall SectionĀ

Ā

Ā

For more barndominium floor plans, check out our complete collection ofĀ 3-bedroom barndominium floor plans.

Ā

Need to make changes? Submit a modification request using the button that saysĀ Modify This Plan. We will get you a free price quote within 72 hours.

What's Typically Included

THE SPECIFC DETAILS OF WHAT'S INCLUDED ON THESE PLANS IS CONTAINED IN THE PRODUCT DESCRIPTION. PLEASE SCROLL UP AND YOU WILL FIND IT UNDER "WHAT'S INCLUDED"

Our house plan sets typically have the following details:

4 Elevations ā€“ Front, Back, Both Sides

Detailed Floor Plan Drawing

Electrical Plans with placements for HVAC

Plumbing Plans with Placements

Flooring Plan

Roof Plan

Foundation Plan

For more information on what's included and examples of what your plans will look like, go here -> https://barndominiumplans.com/pages/whats-included

Please Note:Ā We work with many different draftspeople who work in many different ways.Ā  ItĀ should be noted that their plans may contain different details.Ā THE SPECIFC DETAILS OF WHAT'S INCLUDED ON THESE PLANS IS CONTAINED IN THE PRODUCT DESCRIPTION. PLEASE SCROLL UP AND YOU WILL FIND IT UNDER "WHAT'S INCLUDED"

What's Not Included

The following items areĀ NOTĀ included:

Architectural or Engineering Stamp. Our plans are engineering-ready! Can take to a local structural engineer, but we are not engineers ourselves.

Metal Truss Plans - These are provided by the truss manufacturer

Wind and Snow Loads - Handled locally!

Delivery

This plan is available as a digital product or printed + shipped.

If you select digital, the plan will be delivered to you via email as a PDF file, no matter what time it is.

If you select printed + shipped, your order will ship in 24x36 format within 1 business day of your order.

We ship from the midwest in order to serve the entire country within 3-5 business days!

Return policy

All barndominium house plan purchases are FINAL. There are no exchanges or refunds due to the digital nature of the product. Please make sure that the plan you have selected is going to fit your needs.

Wondering about modifications, and making sure you like the changes? While all plan sales featuring modifications are also FINAL, here's a bit about how the modification process works:

After your order is placed, our team gets started on your modifications.

First, we send over an initial floor plan draft to make sure the modifications are correct. Any "clarifying changes" are included at no additional cost. Things like "Oh I meant for the door to swing this way, not that way" or "kitchen appliances should be arranged in XYZ way". Any major changes to the plan like adding a bedroom, a second story, or a different foundation are an additional fee. 99% of our customers do not incur an additional fee.

After the floor plan is confirmed, we send over the floor plans + elevations. We do the same process, and once you're good with the elevations, we finish up your final plans.

šŸ”„ [COUNT] shoppers are looking at this plan right now
Build
PDF (Single Build) $849.99
PDF (Single Build)

Modifications

Additional Options
Want the Cost To Build in Your Area? Get an estimate of the cost to build this house in your area.
Modify this Plan? Want to make adjustments? Weā€™ll provide you with a free price estimate within 1 to 3 business days.

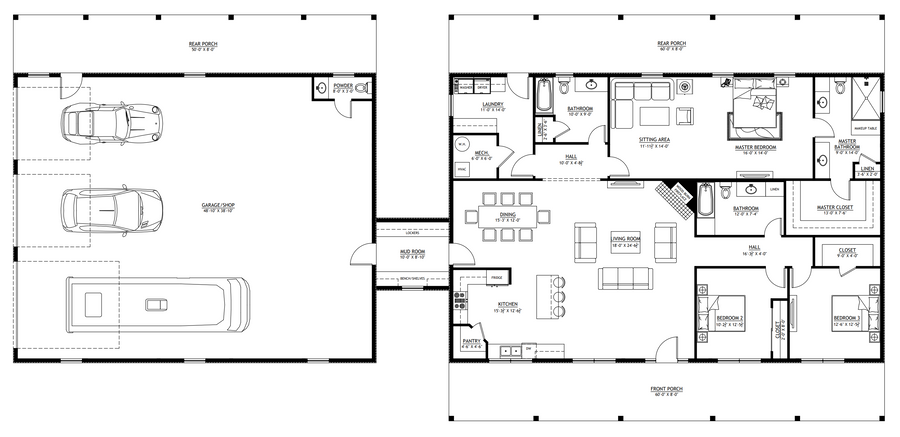

Floor Plan
