PL-2822 Gary Barndominium House Plan

$1,349.99 USD
$1,349.99 USD
Sale Sold out
Add To Wishlist
1 13
Bedrooms 4 Bedrooms
Floors 2 Floors
Full Baths 6 Full Baths
Total Heated Area 3,994 Total Heated Area

Floor Plan

DETAILS

HEATED SQ FT

First Floor:

2,424 SF

Second Floor:

1,570 SF

Total Heated Sq Ft:

3,994 SF

UNHEATED SQ FT

Total Unheated Area:

Garage 1,500 SF, Shop 2,700 SF, Patio 756 SF, Porches 416 SF, Shop Loft 900 SF, Deck 360 SF, Unfinished basement 2,447 SF = TOTAL 9,079 SF

Carport:

None

Bedrooms:

4

Full Baths:

6

Floors:

2

Garage Size:

1,500 SF

Width:

120'

Depth:

70'

Height:

43'-0 3/4"

Foundation:

Walkout Basement

Main Roof Pitch:

3:12

Construction Type:

Metal Shell

CEILING HEIGHTS

First Floor:

10'

PL-2822 Gary Barndominium House Plan



About this barndominium house plan:

  • 3994 Heated Square Feet
  • 4 Bedrooms
  • 6.1 Bathrooms
  • Two Story
  • Loft
  • Open concept
  • Foyer
  • Office
  • Bar
  • 2 Living rooms
  • Walk-in pantry
  • Deck
  • Unfinished Walkout Basement
  • Front and rear porch
  • Mudroom/Dog wash
  • Patio
  • Mechanical room
  • Garage Loft
  • 1500 SF Garage
  • 2700 SF Shop



  • 3994 square feet of heated living space in two-story barndominium layout with 4 beds and 5.5 baths.
  • Large bar integrated into main living space with nearby wine cellar for beverage storage.
  • Multiple loft spaces including a large 35'6" x 24'1" loft and an additional loft overlooking the living areas below.
  • Private office located near foyer, providing dedicated workspace within main level layout.
  • Multiple garage bays attached to the home for vehicle storage and convenient entry.
  • Massive shop area connected to the home, offering substantial space for equipment, hobbies, or storage.
  • Large unfinished basement area with additional bathroom and mechanical room.
  • Multiple outdoor living spaces including rear porch, covered patios, covered deck, and front porch expanding the home’s entertaining areas.





What's included in PL-2822:

Cover Page

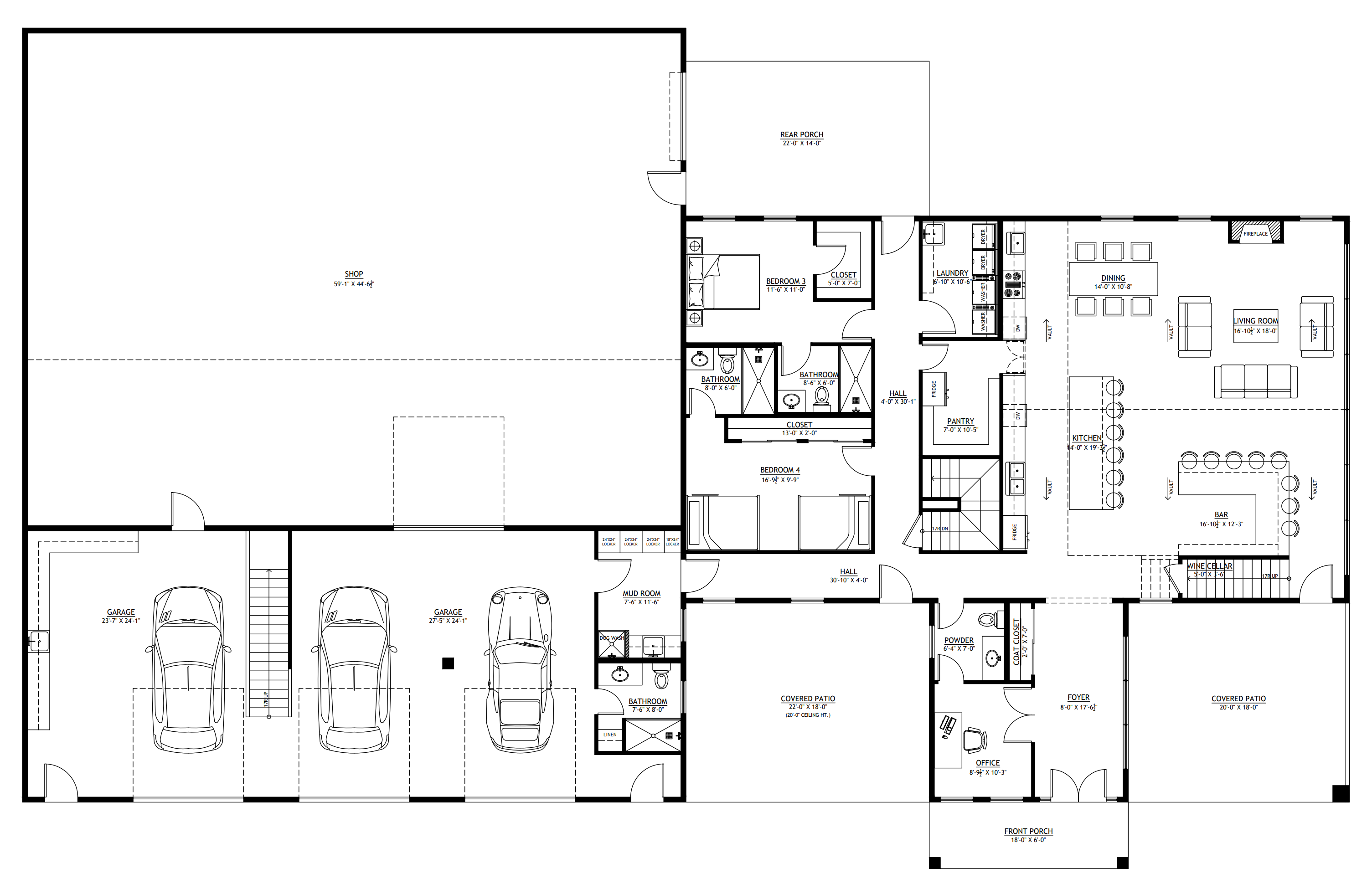

First Floor Plan

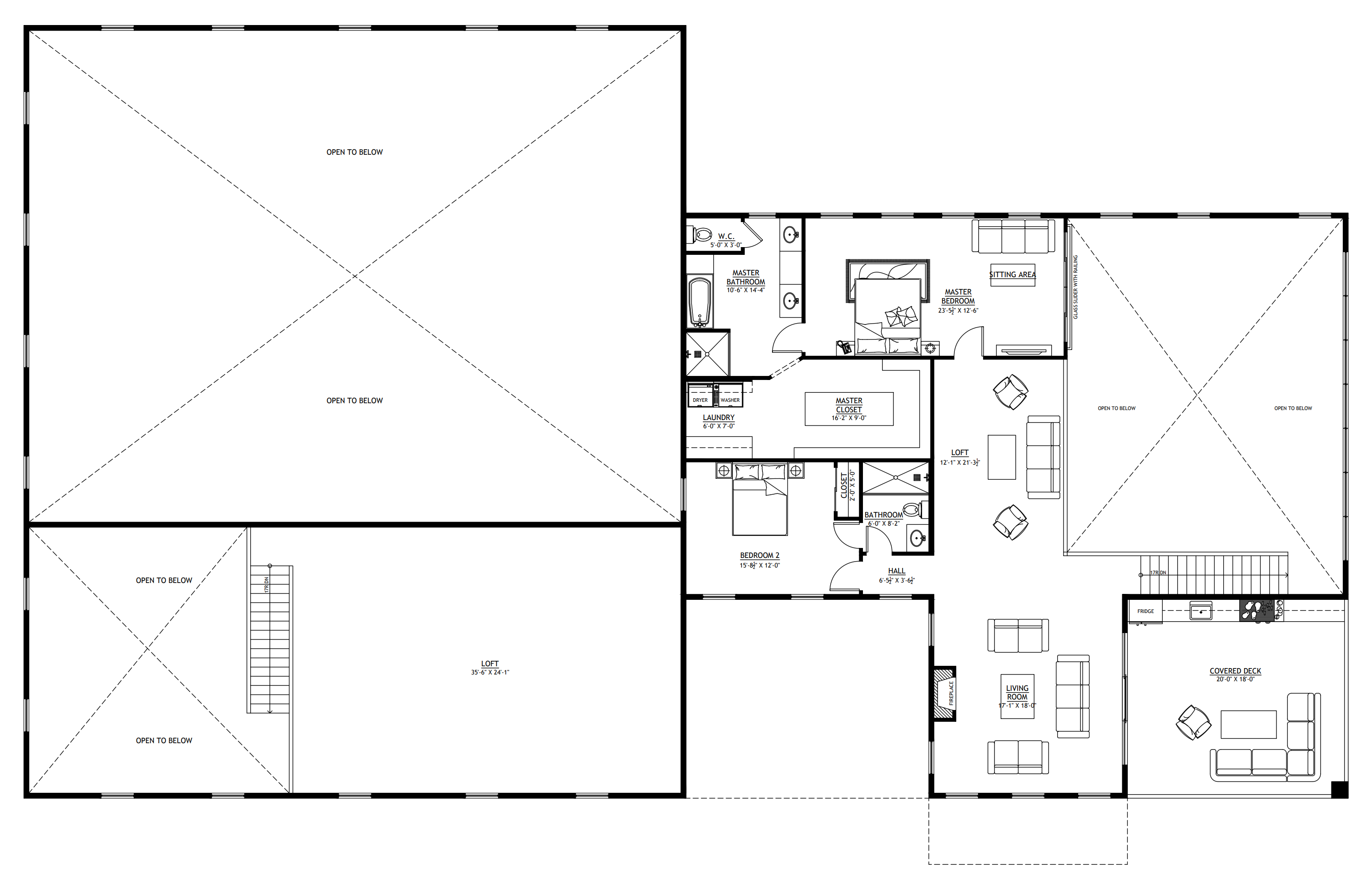

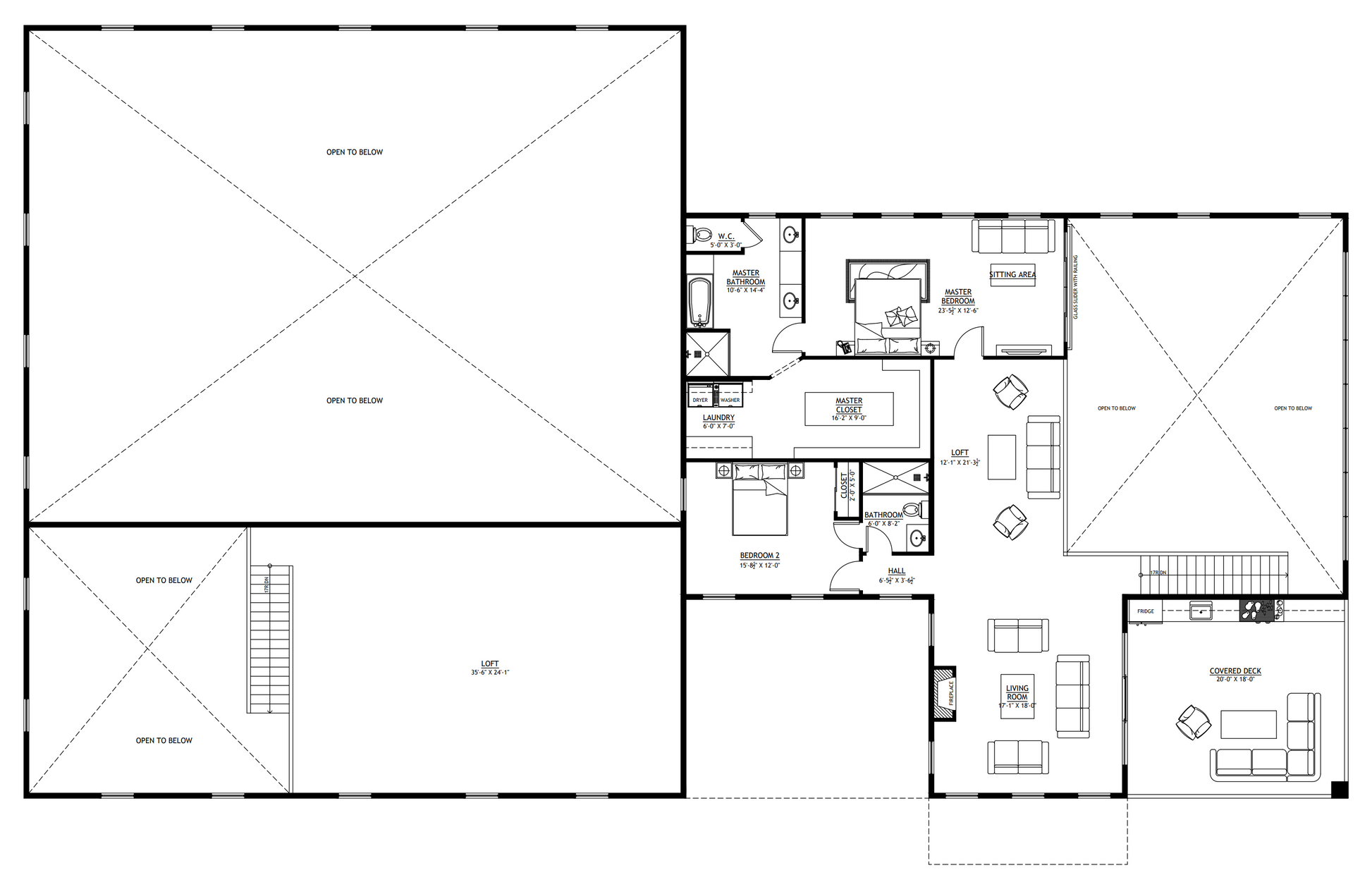

Second Floor Plan

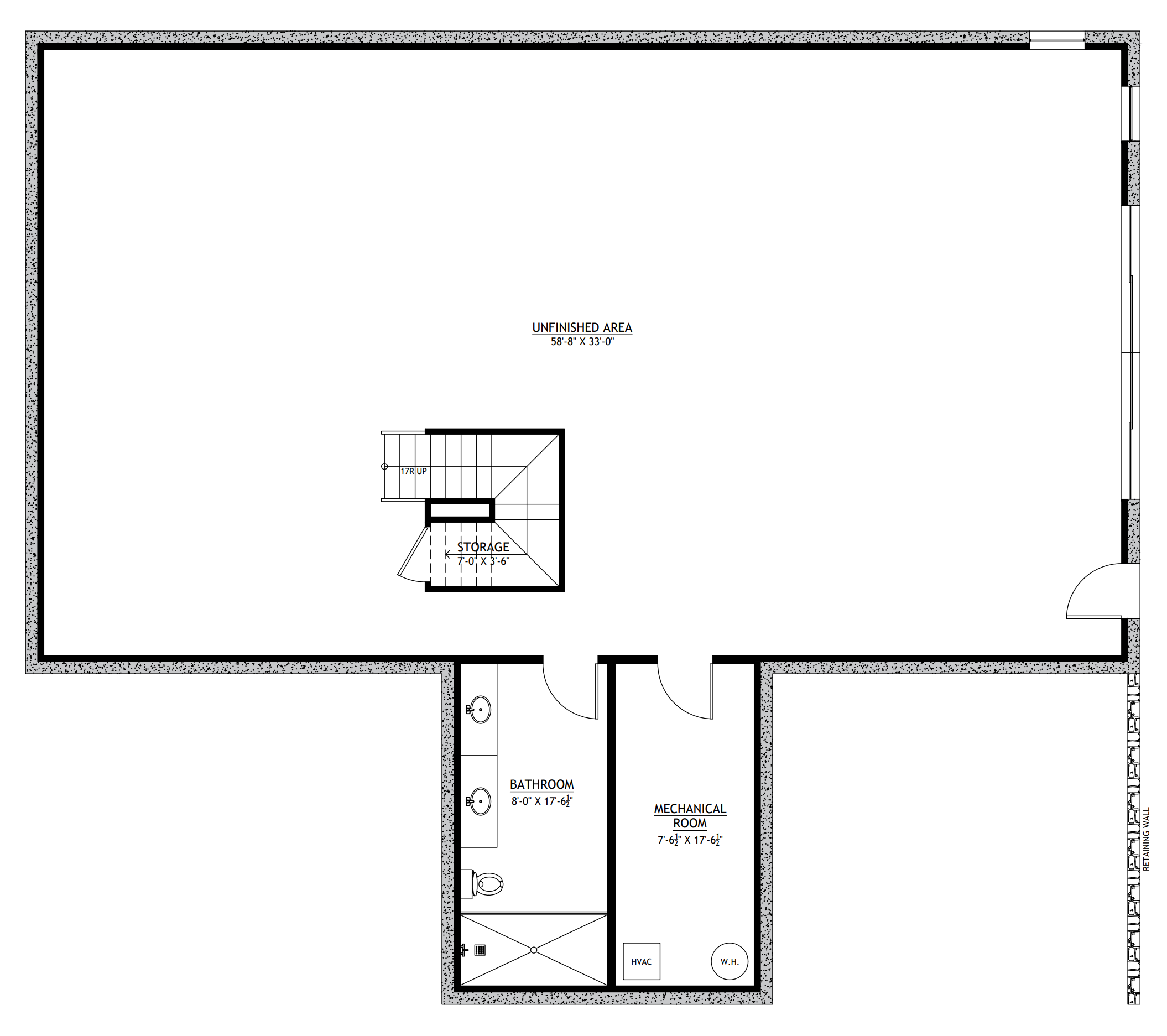

Basement Floor Plan
Roof Plan
Elevations
Electrical Plans
Plumbing Plans
HVAC Plans
Radiant Plans
Roof Framing Plan
Foundation Plan
Wall Section
Lally Column Detail

For more barndominium floor plans, check out our complete collection of 4 bedroom barndominium floor plans.



Need to make changes? Submit a modification request using the button that says Modify This Plan. We will get you a free price quote within 72 hours.

What's Typically Included

THE SPECIFC DETAILS OF WHAT'S INCLUDED ON THESE PLANS IS CONTAINED IN THE PRODUCT DESCRIPTION. PLEASE SCROLL UP AND YOU WILL FIND IT UNDER "WHAT'S INCLUDED"

Our house plan sets typically have the following details:

4 Elevations – Front, Back, Both Sides

Detailed Floor Plan Drawing

Electrical Plans with placements for HVAC

Plumbing Plans with Placements

Flooring Plan

Roof Plan

Foundation Plan

For more information on what's included and examples of what your plans will look like, go here -> https://barndominiumplans.com/pages/whats-included

Please Note: We work with many different draftspeople who work in many different ways.  It should be noted that their plans may contain different details. THE SPECIFC DETAILS OF WHAT'S INCLUDED ON THESE PLANS IS CONTAINED IN THE PRODUCT DESCRIPTION. PLEASE SCROLL UP AND YOU WILL FIND IT UNDER "WHAT'S INCLUDED"

What's Not Included

The following items are NOT included:

Architectural or Engineering Stamp. Our plans are engineering-ready! Can take to a local structural engineer, but we are not engineers ourselves. Once you've purchased plans, we can make a recommendation in all 50 states.

Septic Drawings - Handled locally

Metal Truss Plans - These are provided by the truss manufacturer

Wind and Snow Loads - Handled locally!

Delivery

This plan is available as a digital product or printed + shipped.

If you select digital, the plan will be delivered to you via email as a PDF file, no matter what time it is.

If you select printed + shipped, your order will ship in 24x36 format within 1 business day of your order.

We ship from the midwest in order to serve the entire country within 3-5 business days!

Return policy

All barndominium house plan purchases are FINAL. There are no exchanges or refunds due to the digital nature of the product. Please make sure that the plan you have selected is going to fit your needs.

Wondering about modifications, and making sure you like the changes? While all plan sales featuring modifications are also FINAL, here's a bit about how the modification process works:

After your order is placed, our team gets started on your modifications.

First, we send over an initial floor plan draft to make sure the modifications are correct. Any "clarifying changes" are included at no additional cost. Things like "Oh I meant for the door to swing this way, not that way" or "kitchen appliances should be arranged in XYZ way". Any major changes to the plan like adding a bedroom, a second story, or a different foundation are an additional fee. 99% of our customers do not incur an additional fee.
