Barndominium Plans

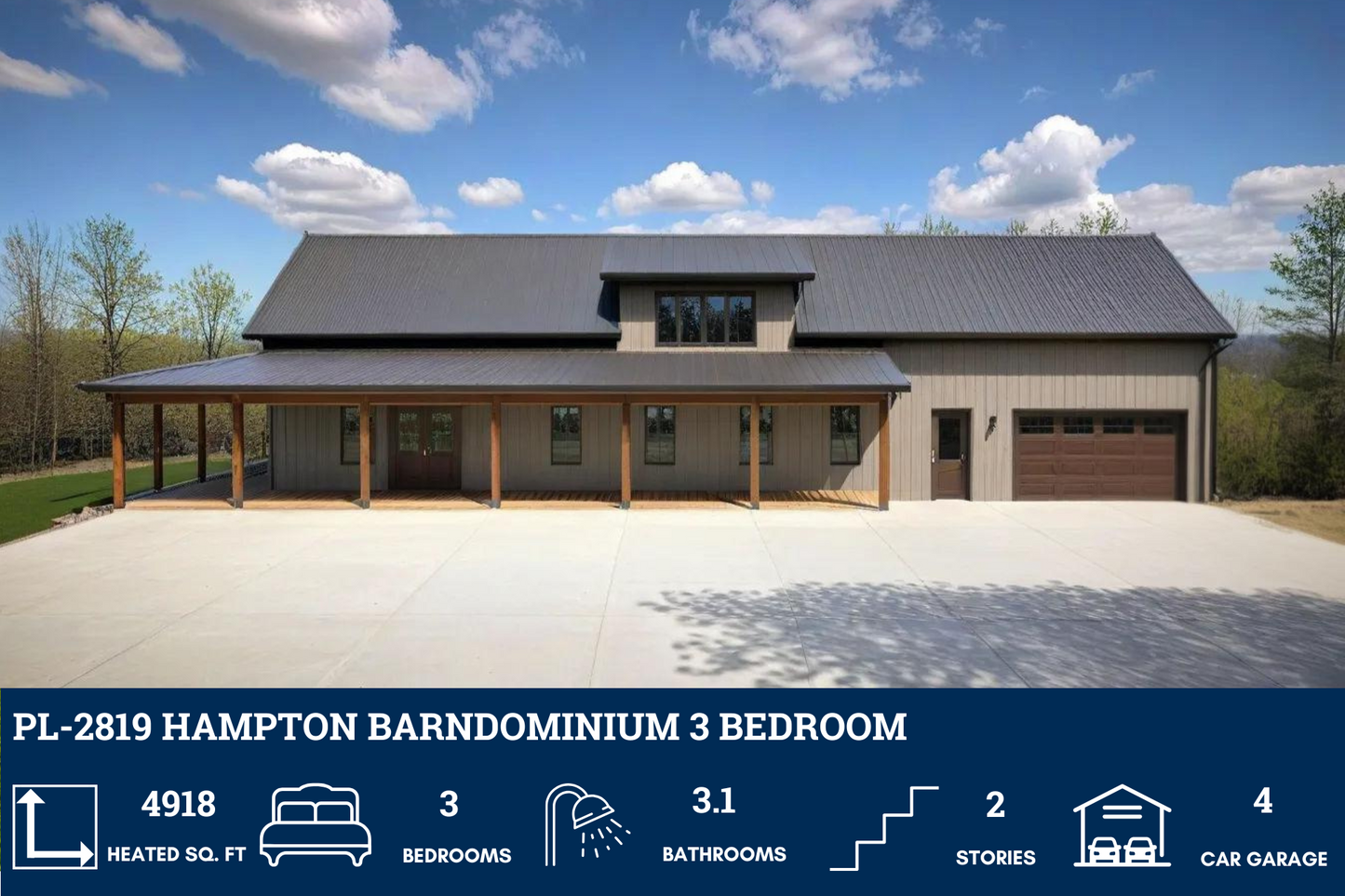

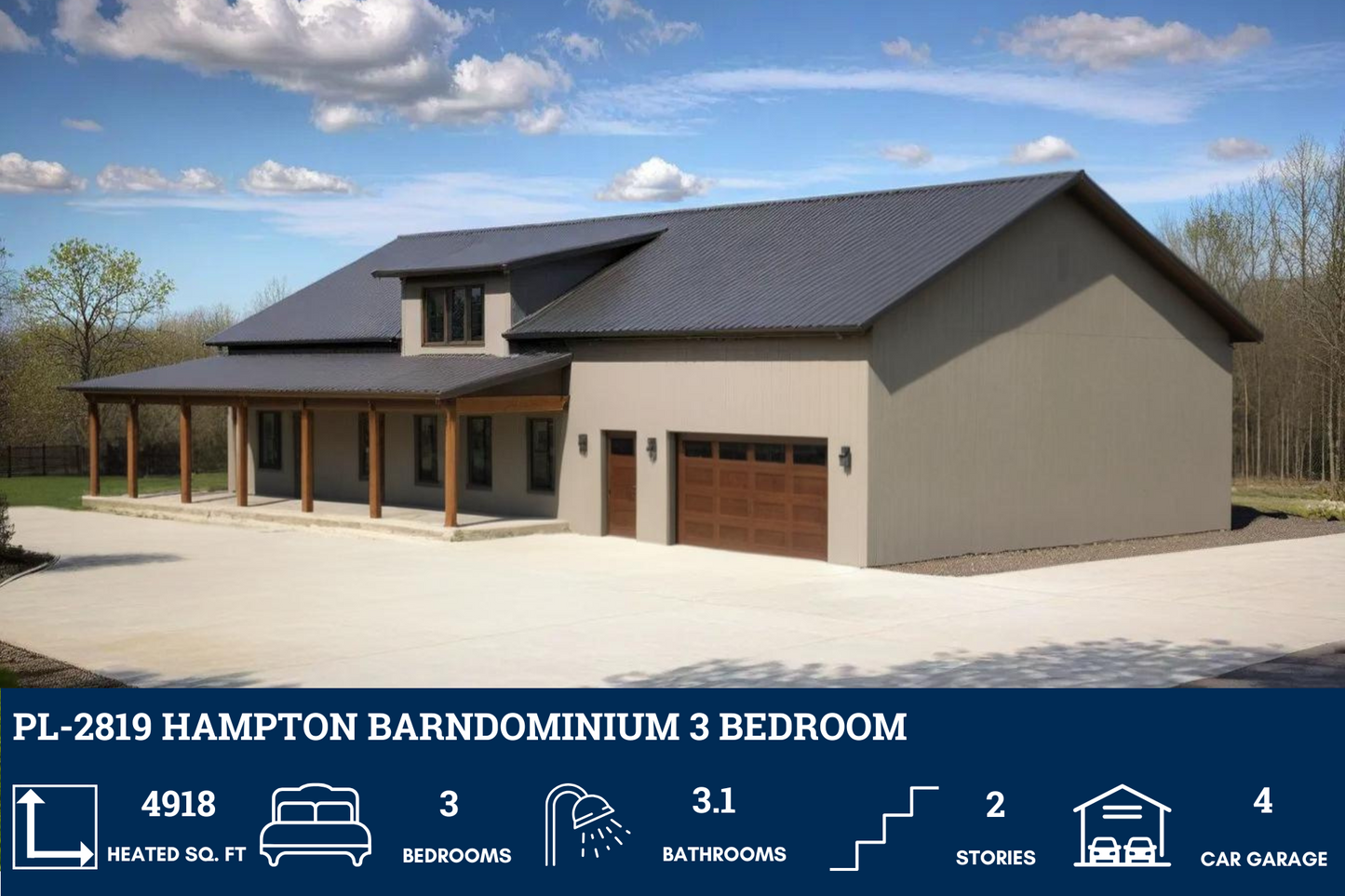

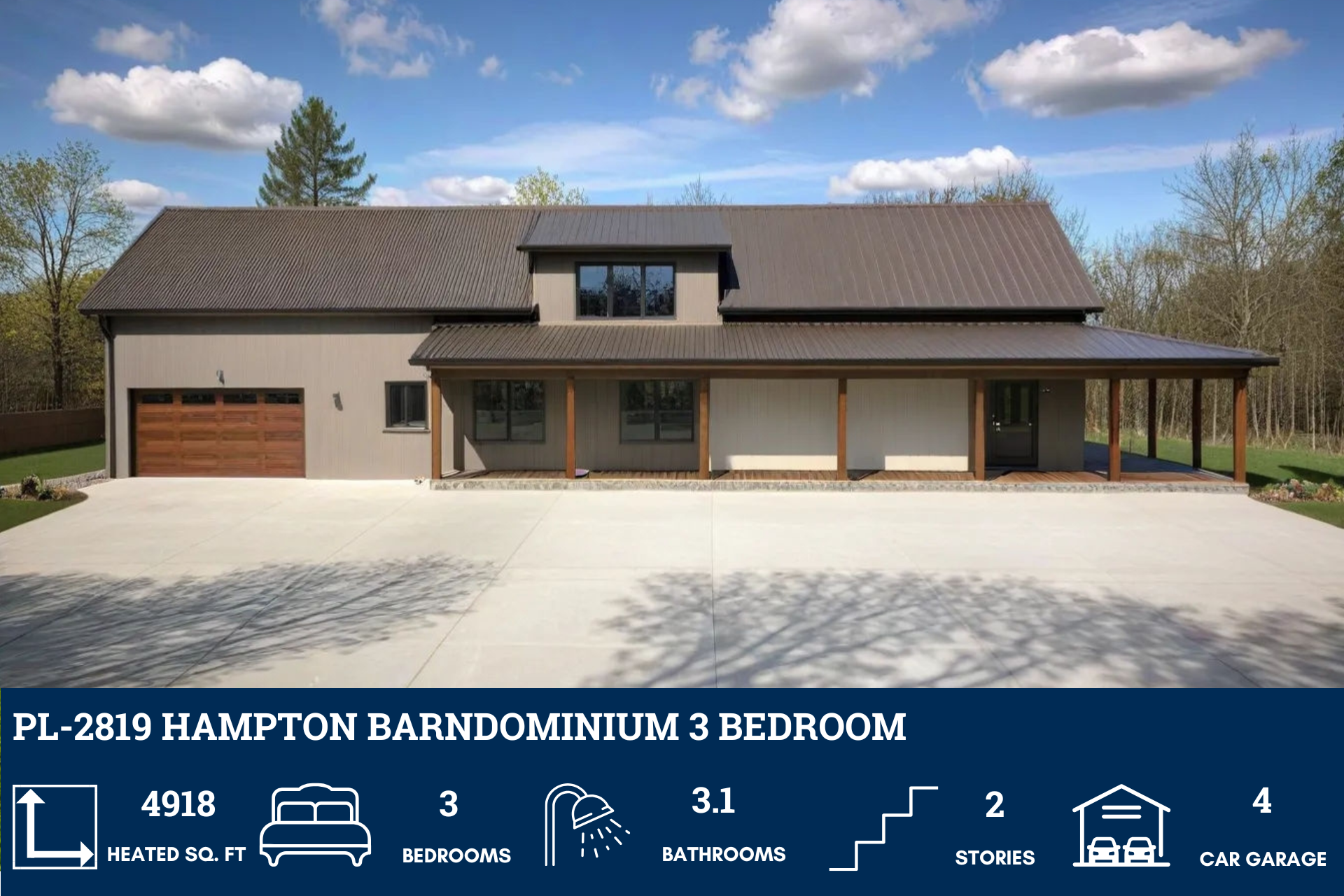

PL-2819 Hampton Barndominium House Plan
Regular price
$1,499.99 USD
Regular price
Sale price
$1,499.99 USD
Unit price
per

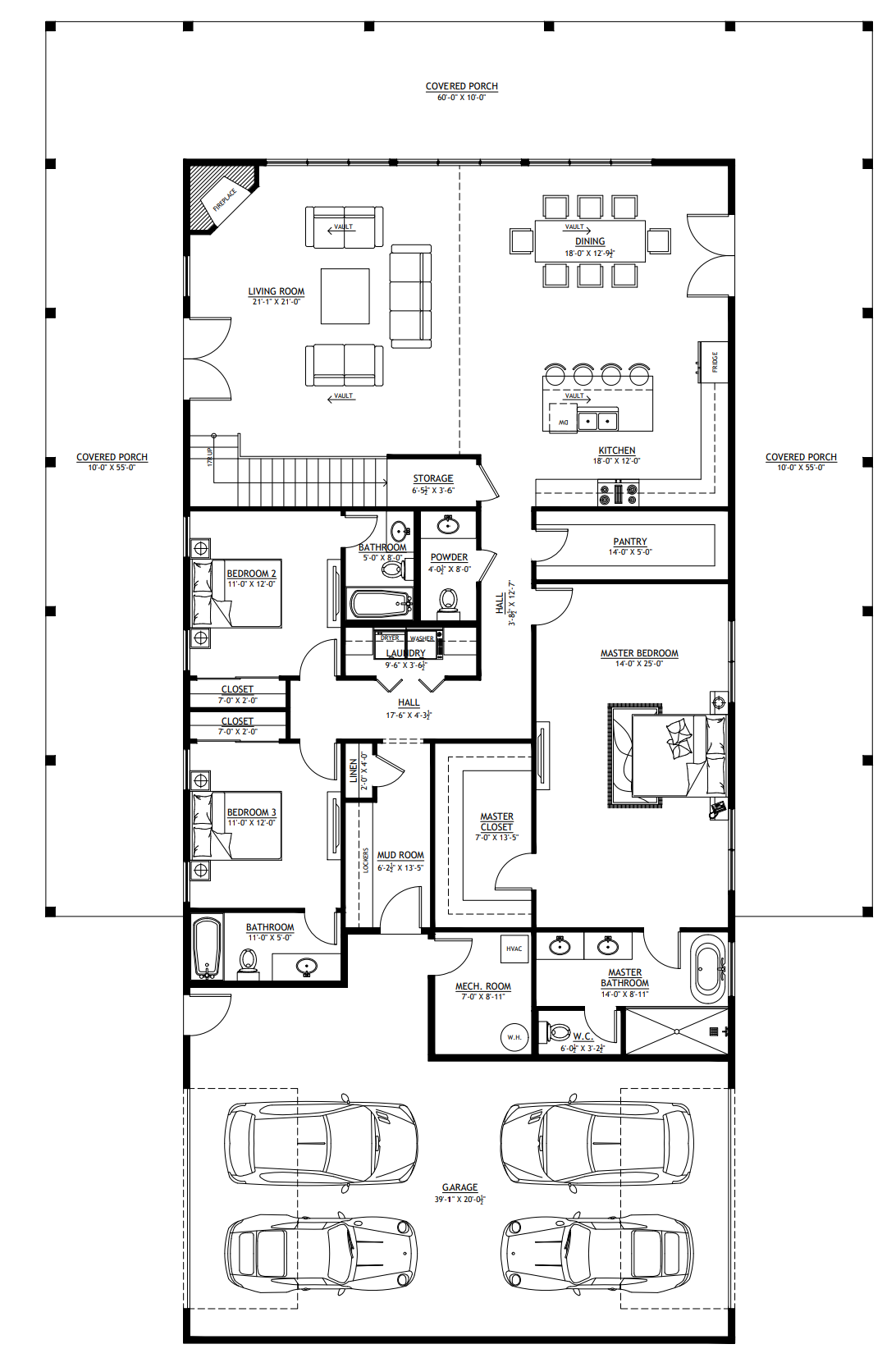

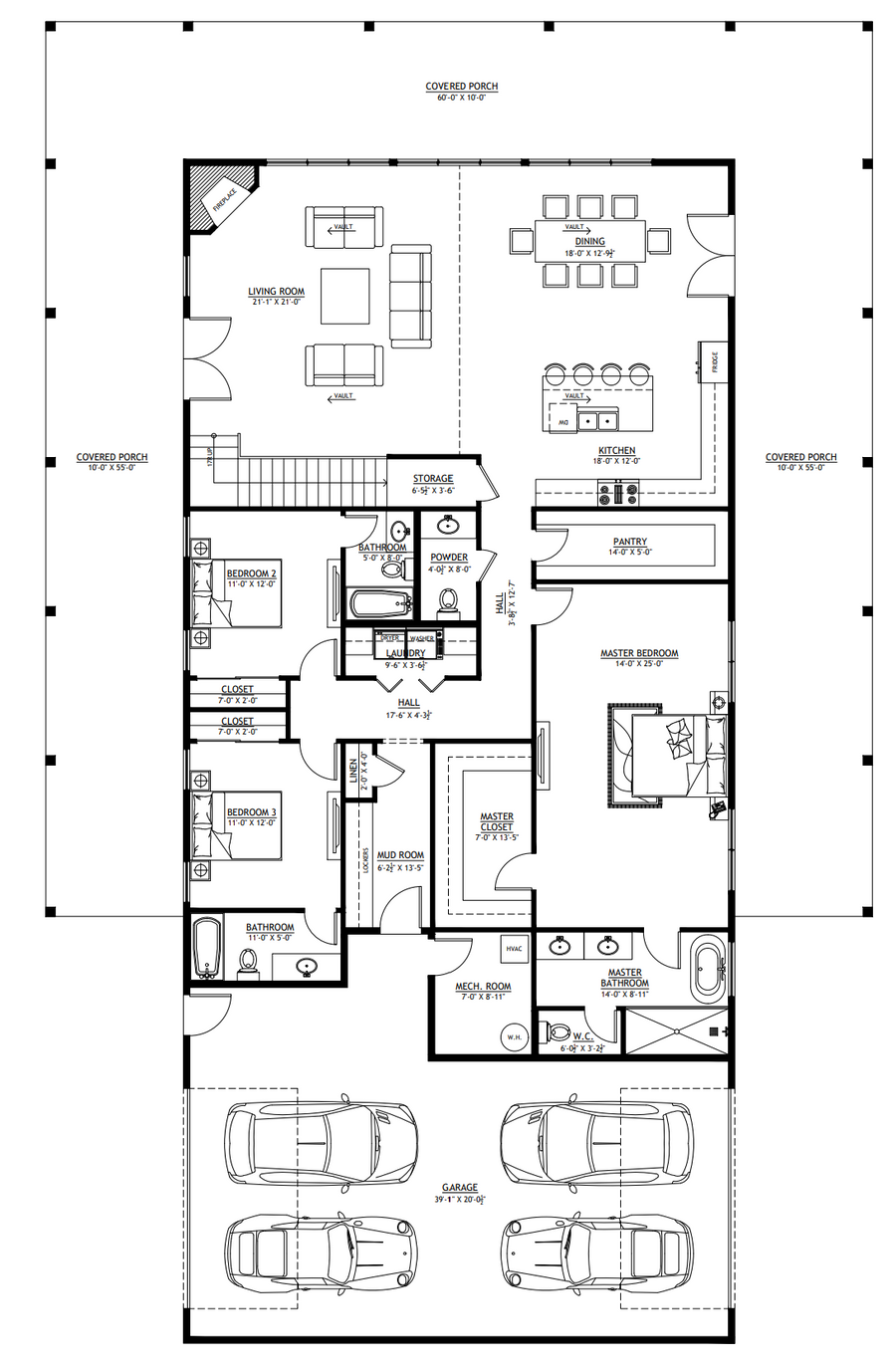

Floor Plan
DETAILS
HEATED SQ FT
First Floor:
2,501 SF
Second Floor:2,417 SF
Total Heated Sq Ft:4,918 SF
UNHEATED SQ FT
Total Unheated Area:
GARAGE 939 SF, COVERED PORCH 1700 SF = TOTAL 2,639 SF
Carport:None
Bedrooms:
3
Full Baths:
3.1
Floors:
2
Garage Size:
939 SF
Width:
60'
Depth:
96'
Height:
25'-9"
Foundation:
Concrete Slab
Main Roof Pitch:
06:12
Exterior Framing:
Stick-Frame
CEILING HEIGHTS
First Floor:
10'
PL-2819 Hampton Barndominium House Plan
About this barndominium house plan:
- 4918 Heated square feet
- 3 Bedrooms
- 3.1 Bathrooms
- 2-story

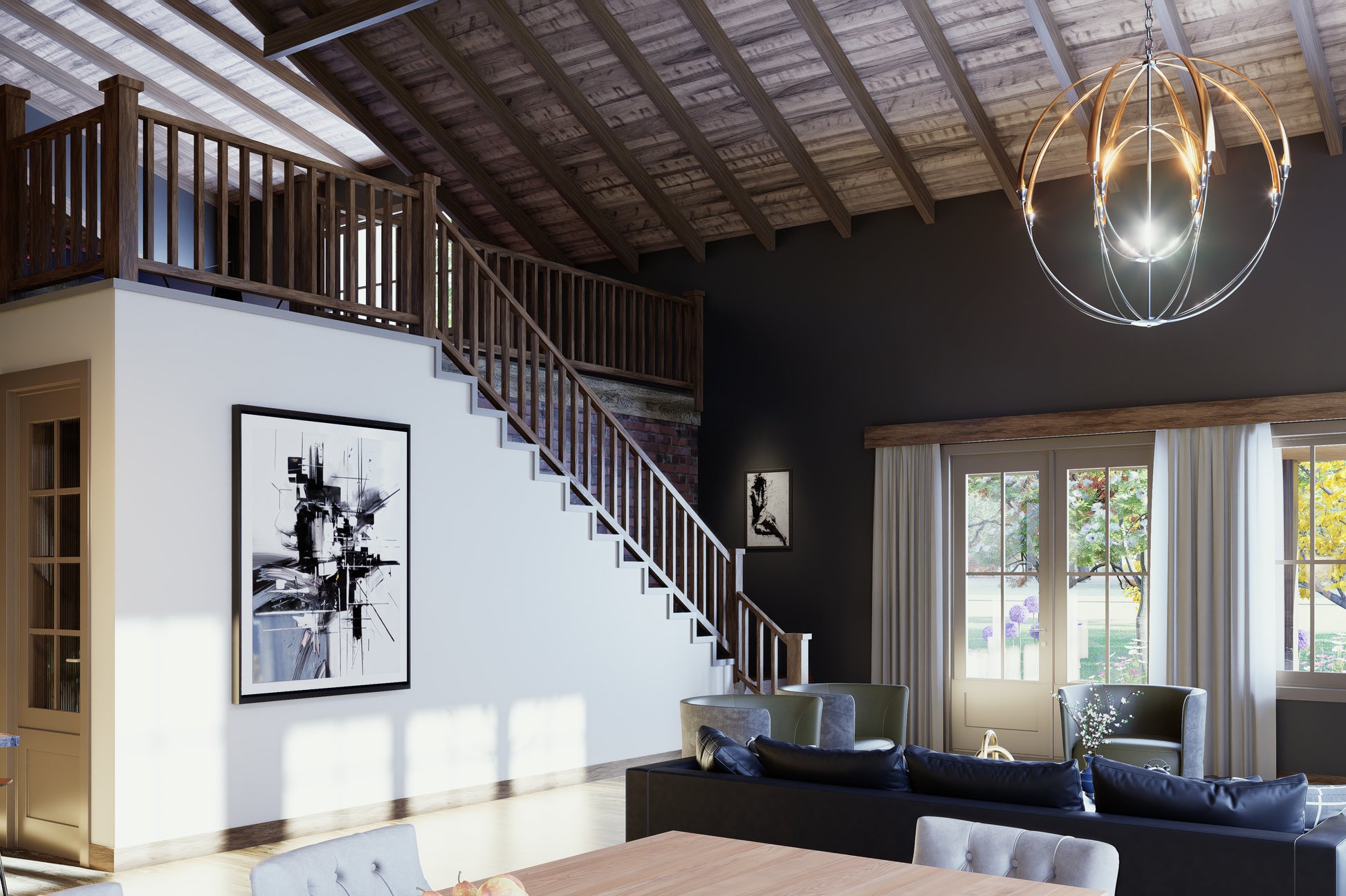

- Loft family/entertainment area
- Loft unfinished area
- Open concept

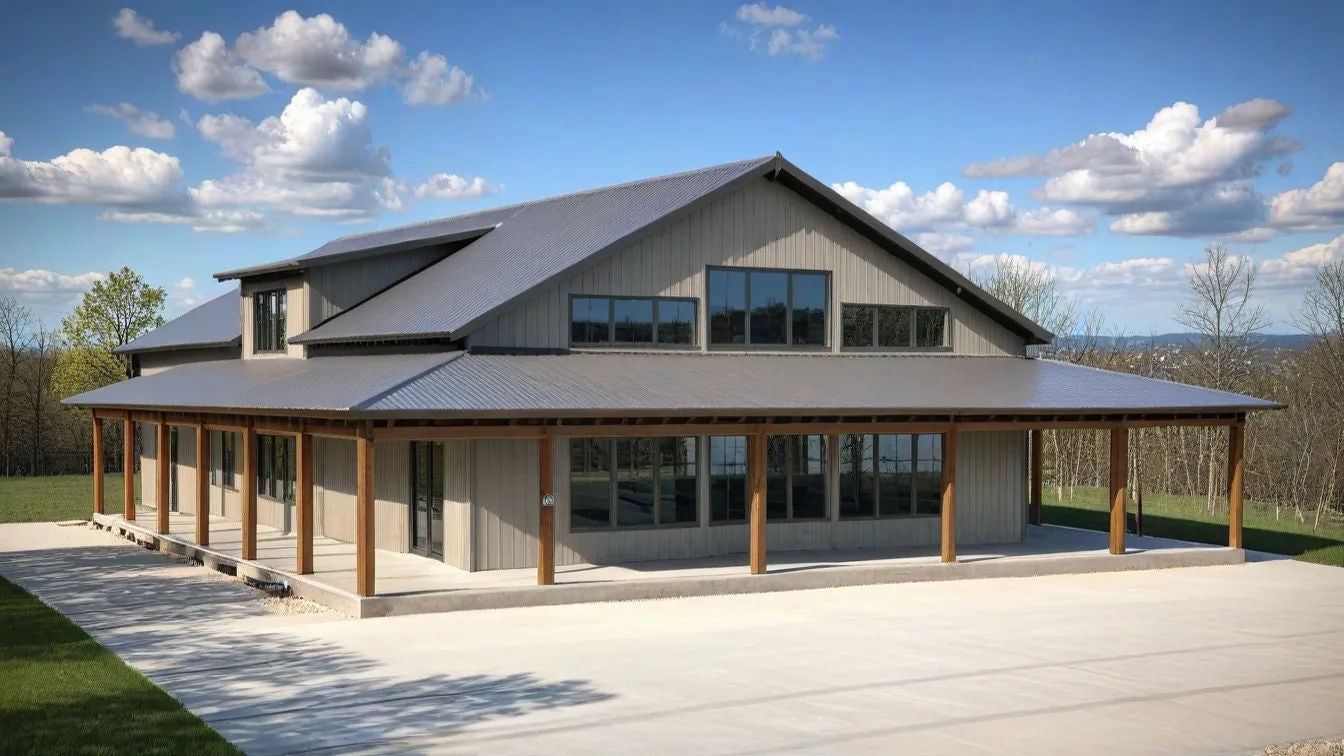

- Wraparound porch
- Mechanical room
- Mudroom
- 4-car attached Garage
- Nearly 5,000 square feet of finely crafted comfort—room to roam, entertain, and thrive without limits.
- Three spacious retreats, each its own private haven—designed for rest, romance, and a touch of indulgence.

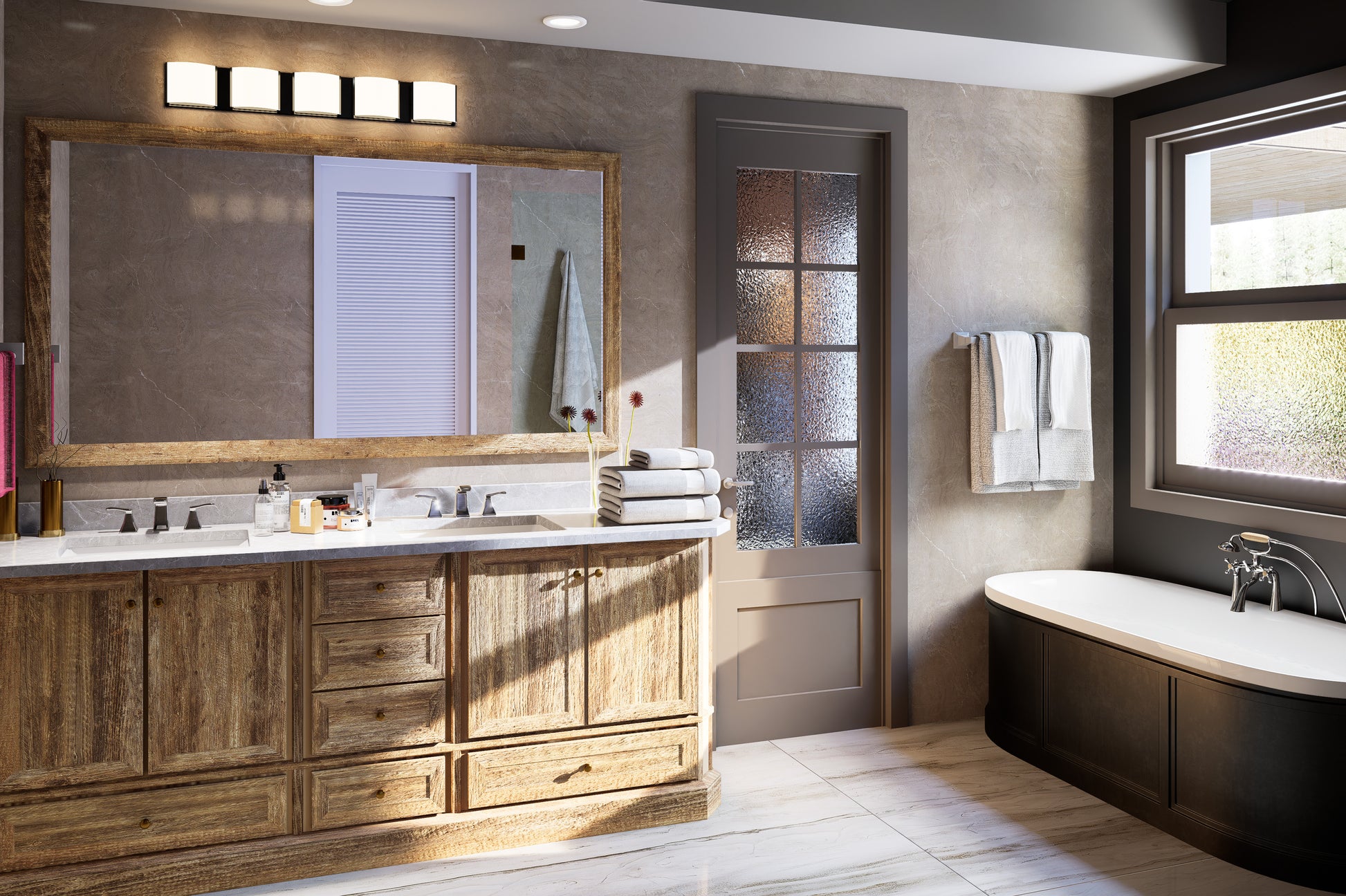

- Every bedroom gets its own en-suite luxury, plus a powder room for guests—pure convenience meets elegant living.
- Game nights, movie marathons, and memory-making galore—plus extra loft space waiting for your creative touch.

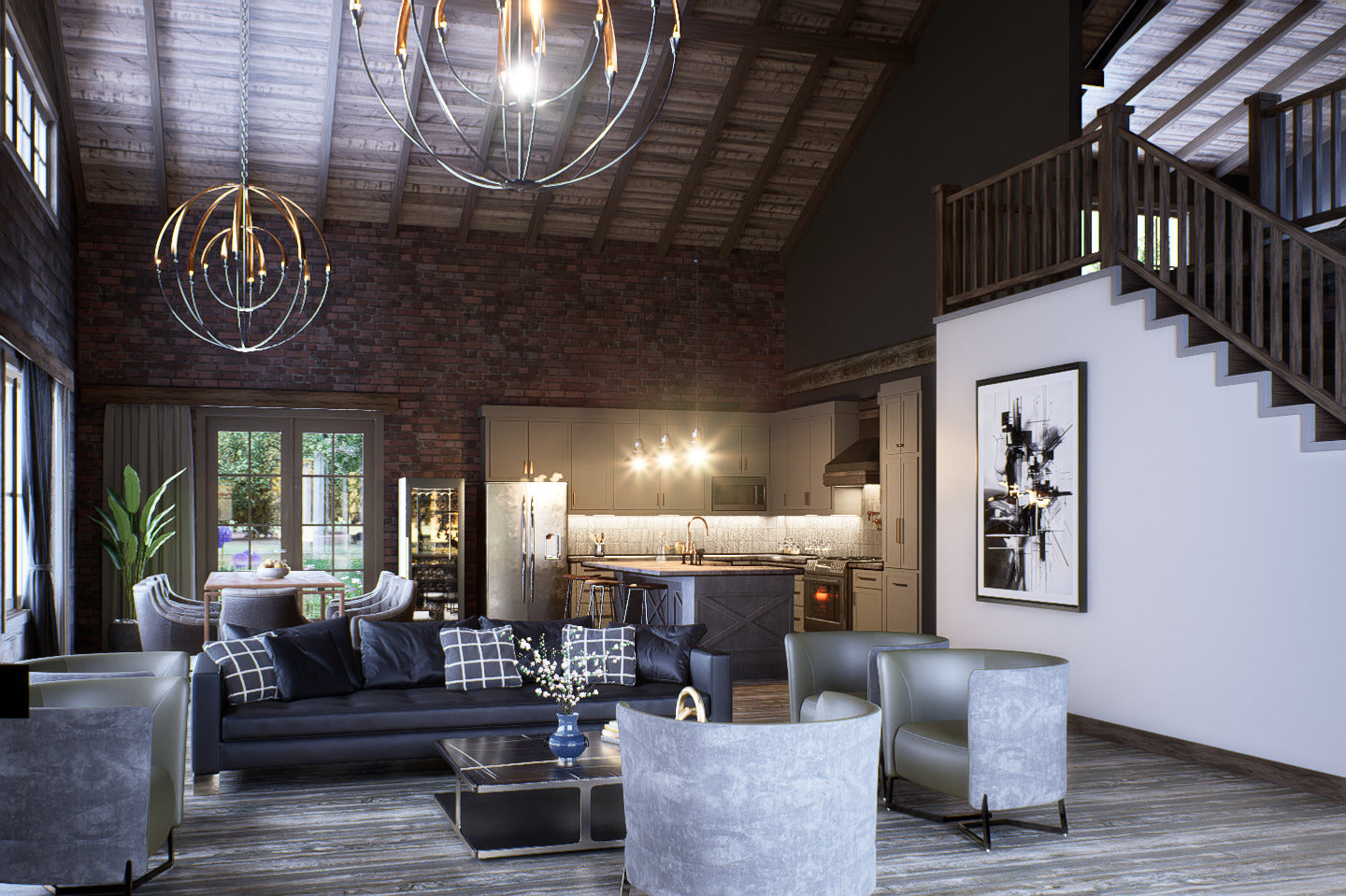

- Wide, bright, and beautifully connected—this open-plan layout invites light, laughter, and seamless everyday living.

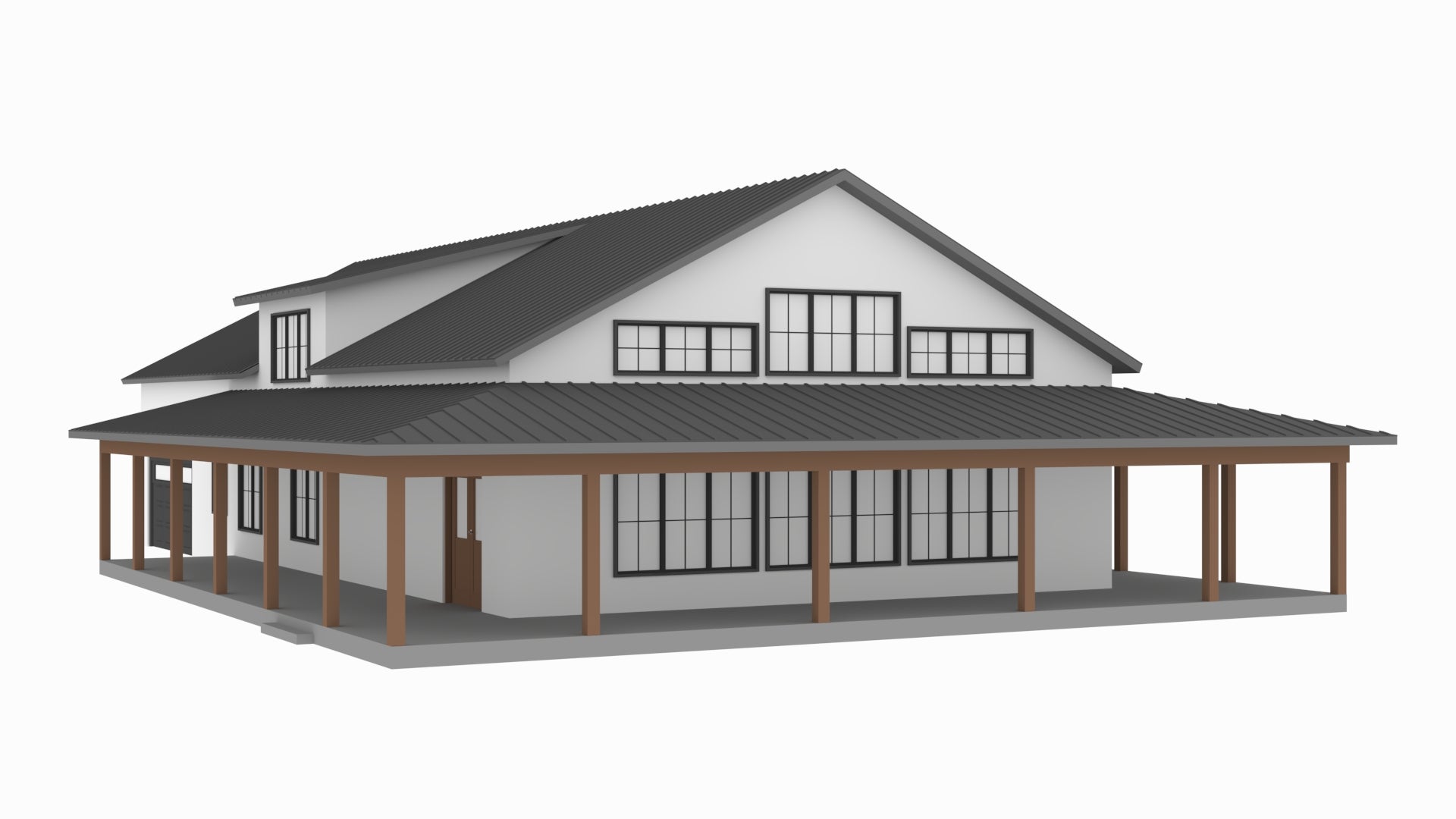

- Porch envy, activated—this wraparound stunner wraps your home in charm, sunshine, and endless outdoor moments.
- A quietly efficient hub—your home's systems get the space they need without sacrificing aesthetics.
- Function meets finesse—this stylish drop zone keeps clutter at bay and your interiors pristine.

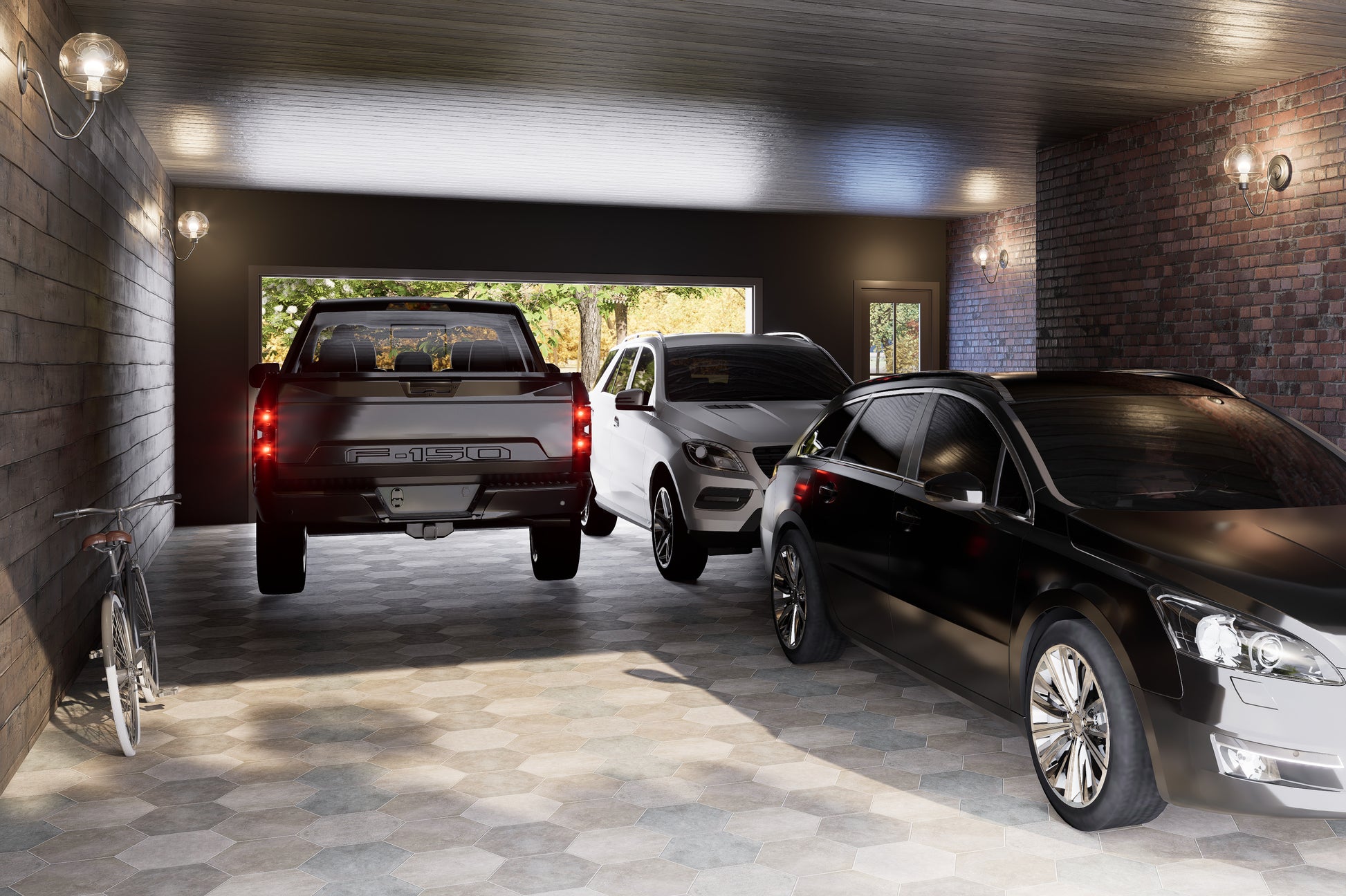

- Room for every ride, hobby, and weekend adventure—this oversized garage is a dream for car lovers and gearheads alike.
What's included in PL-2819:
Cover Page

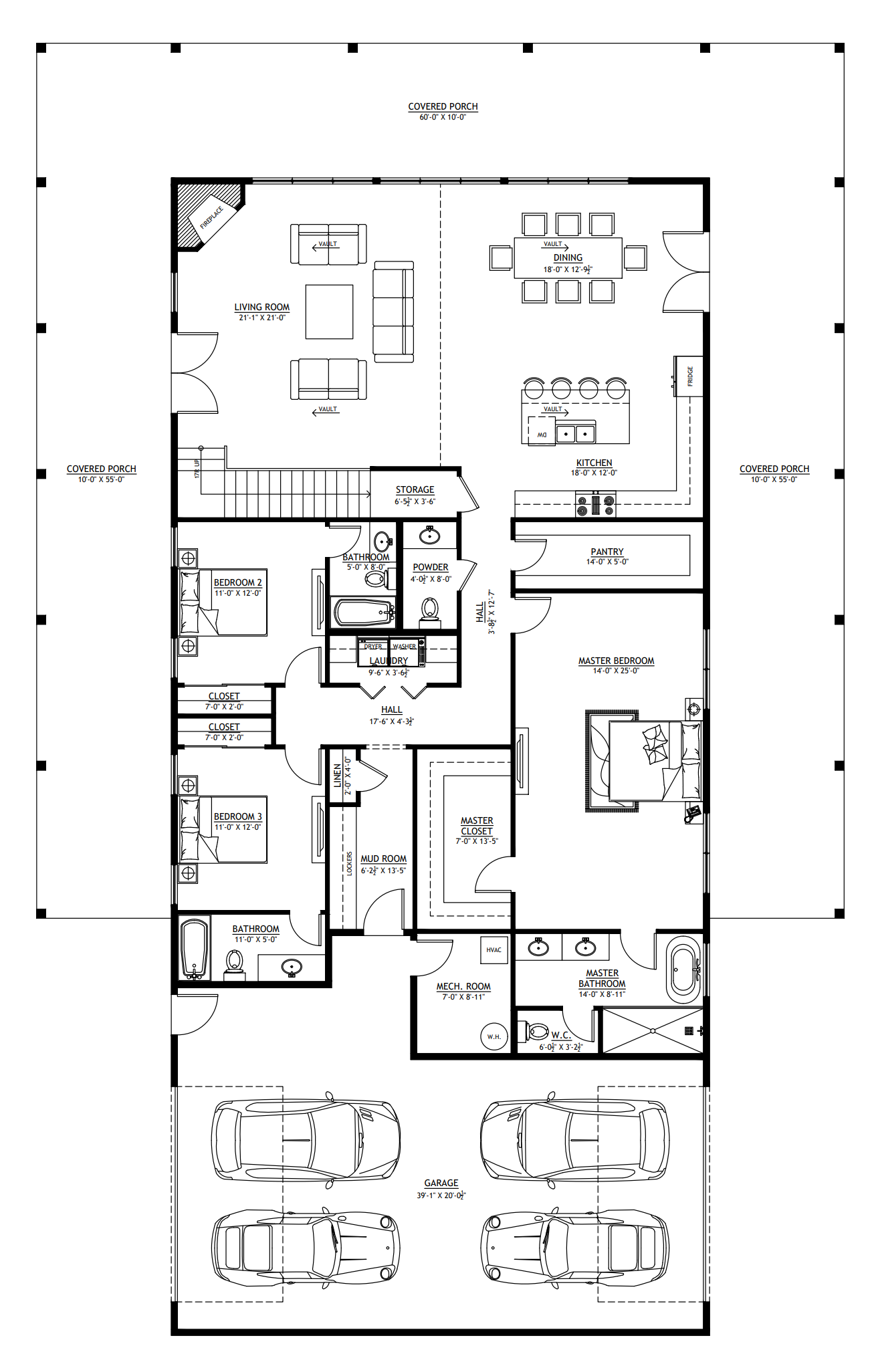

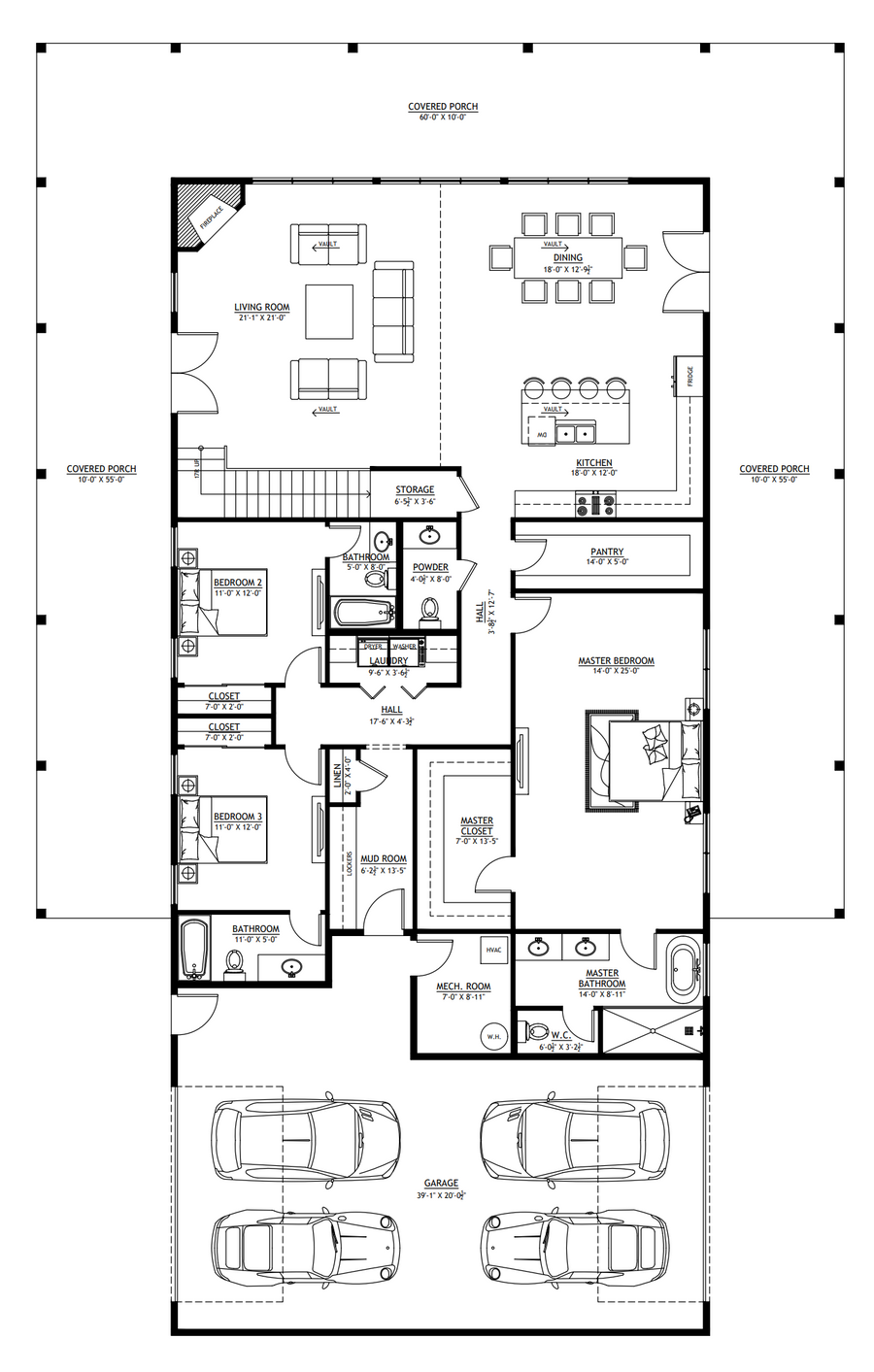

Main Floor Plan

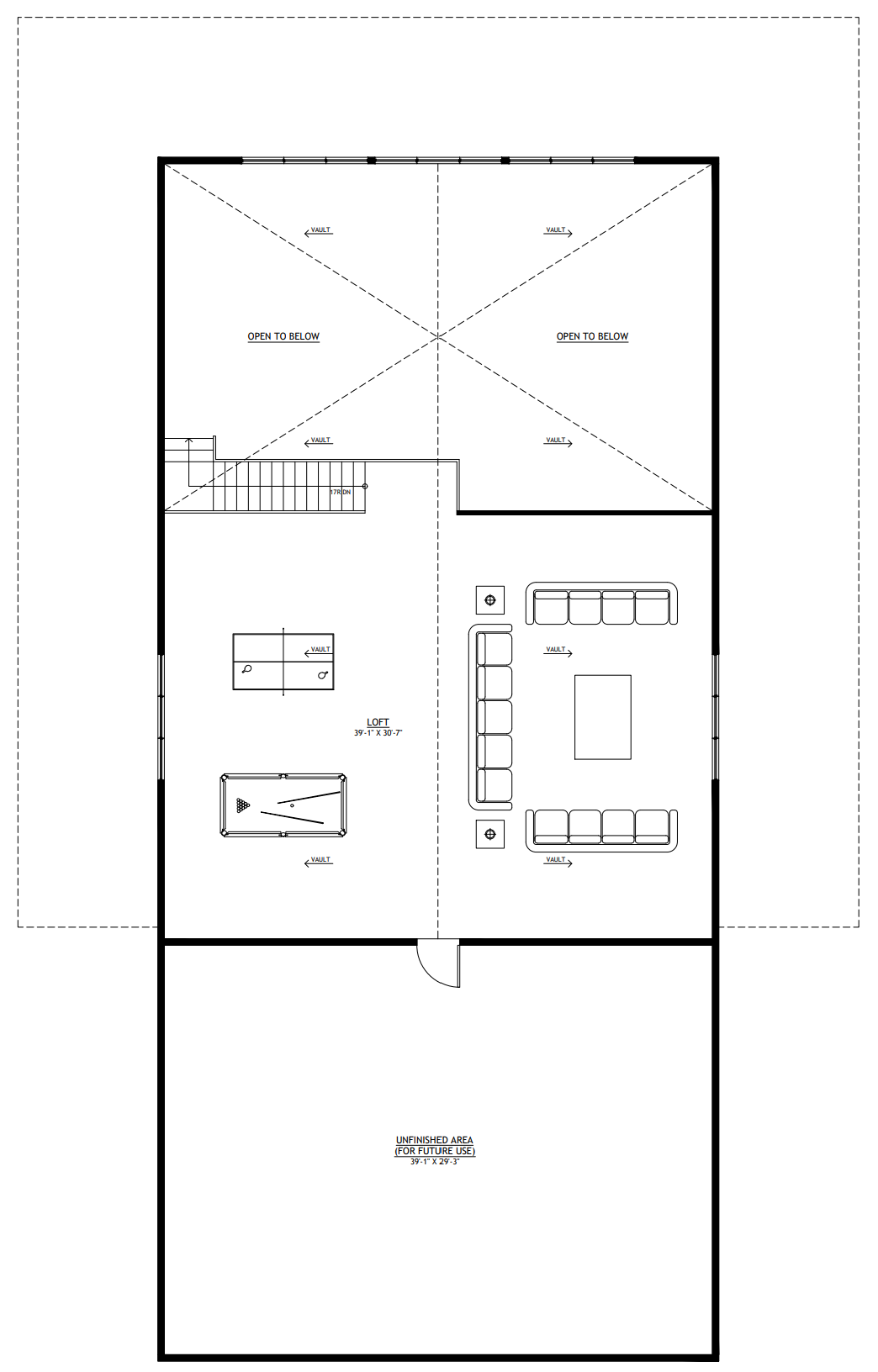

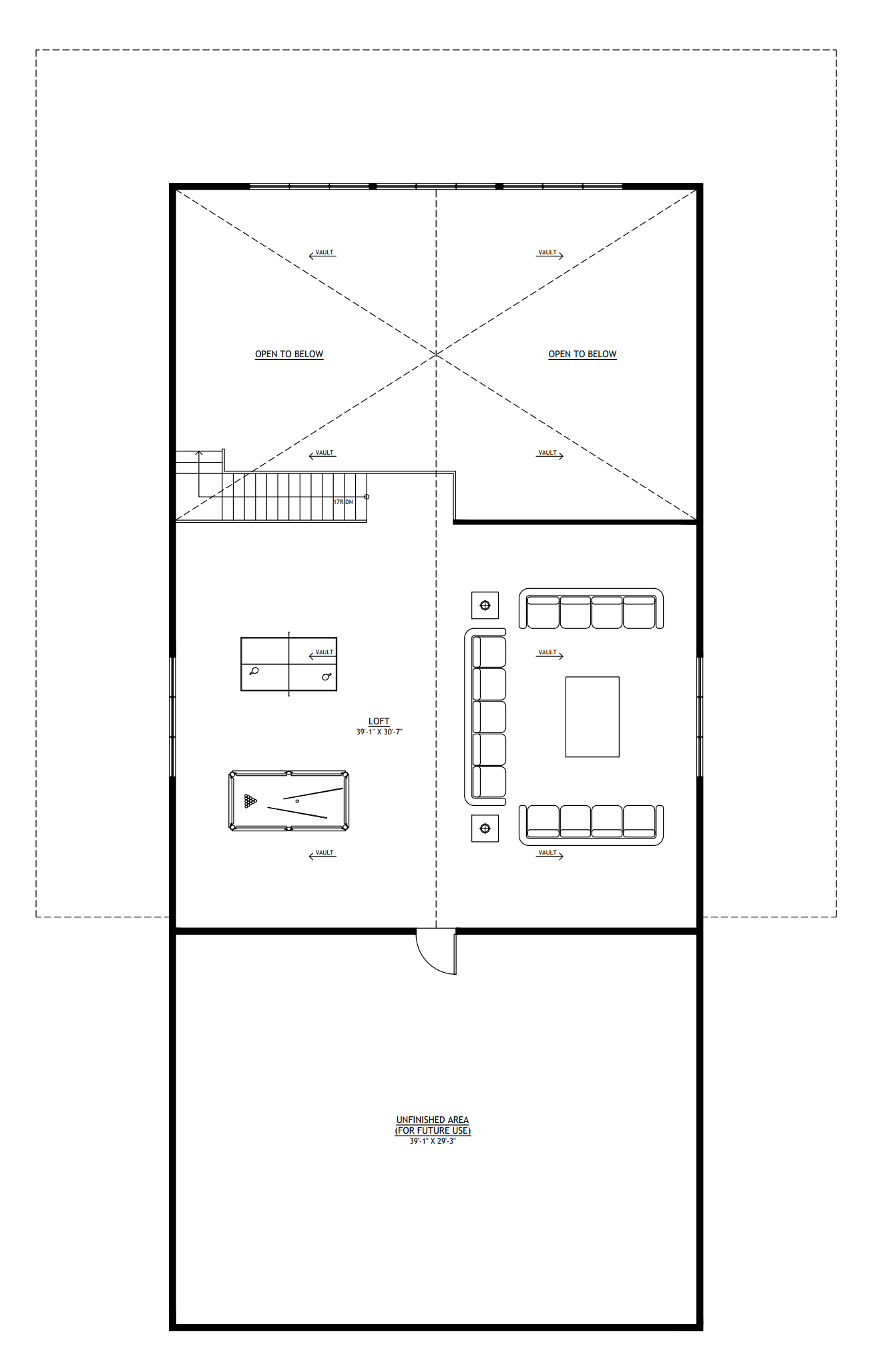

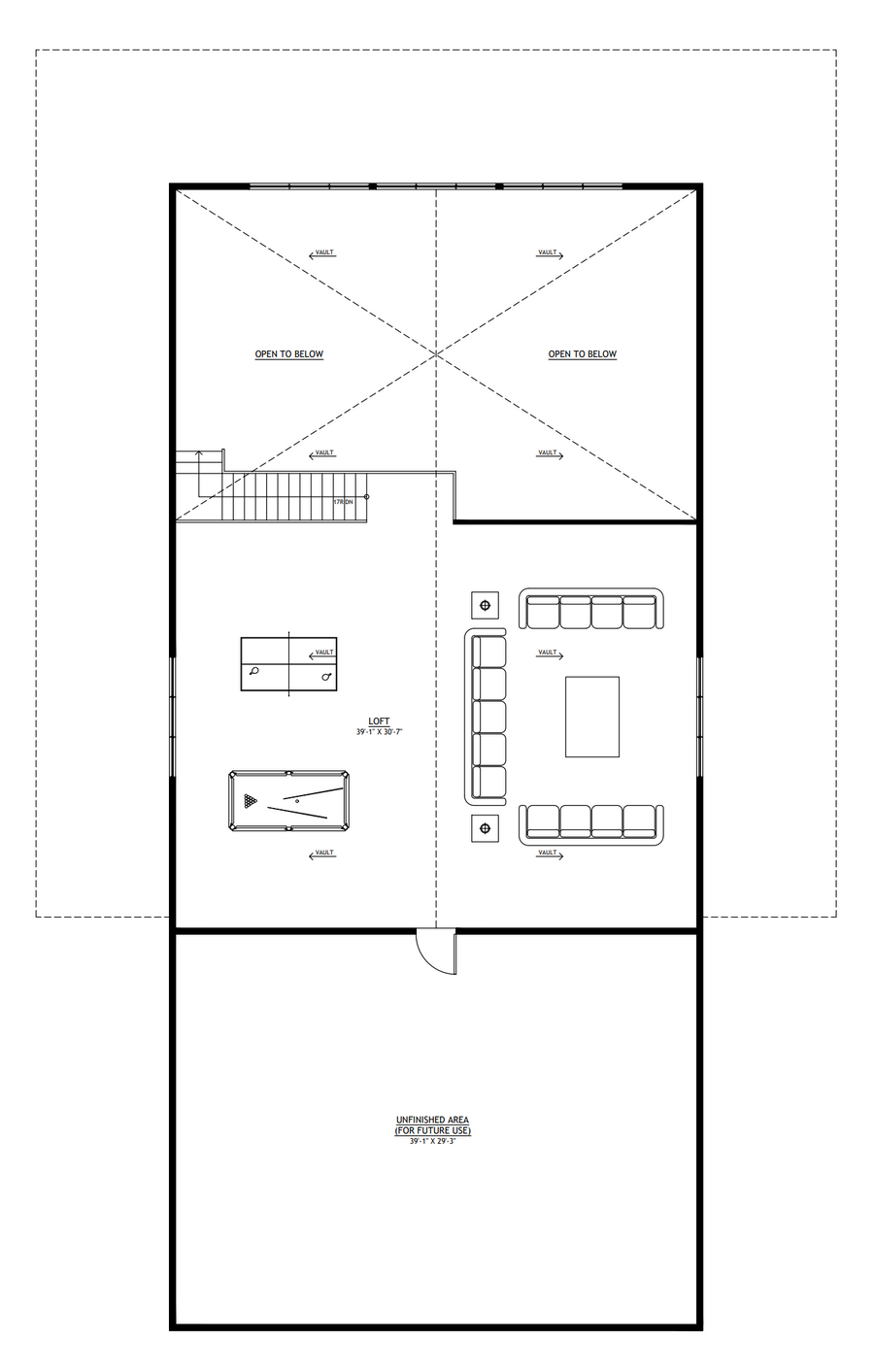

Loft Floor Plan
Roof Plan

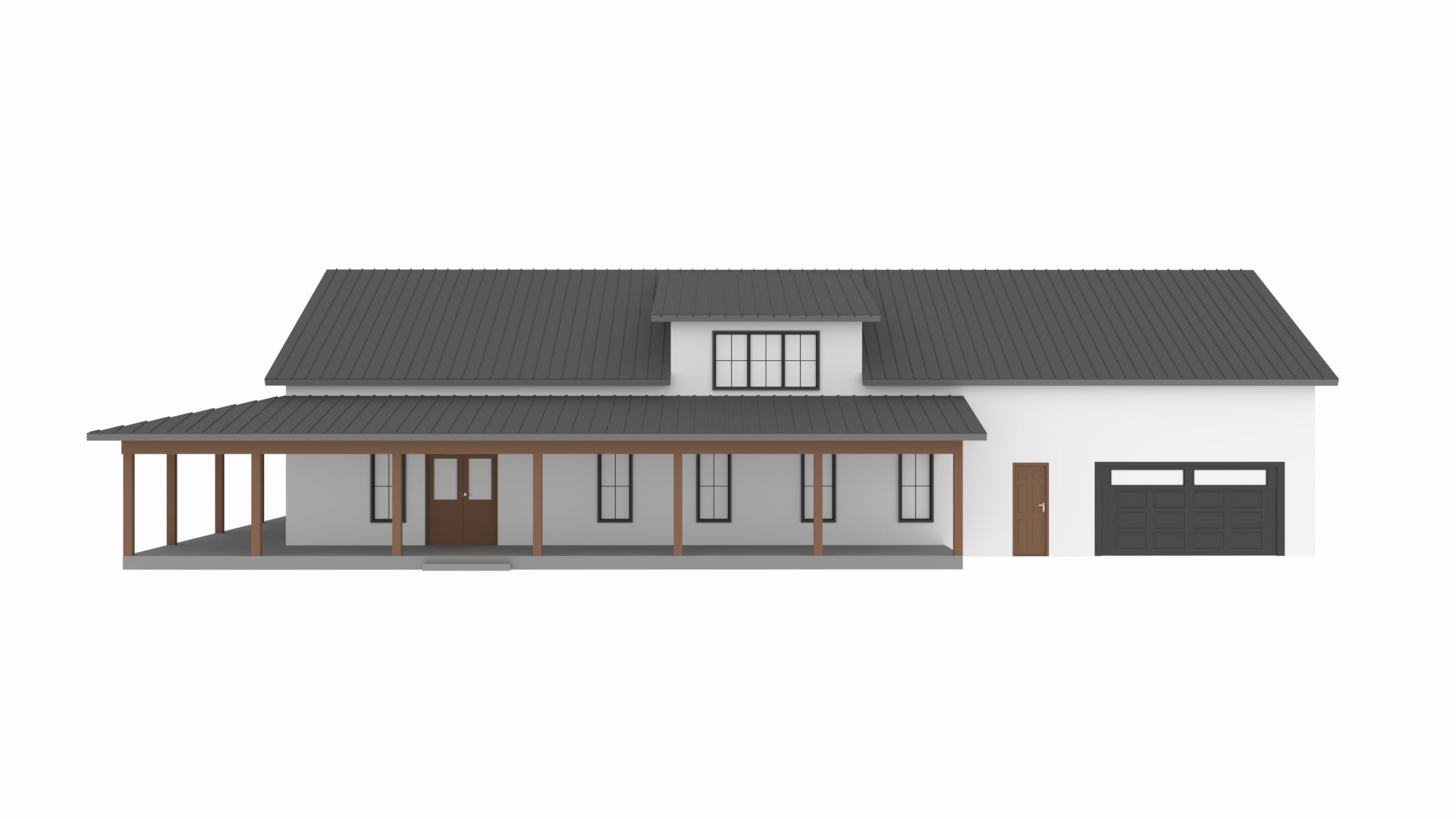

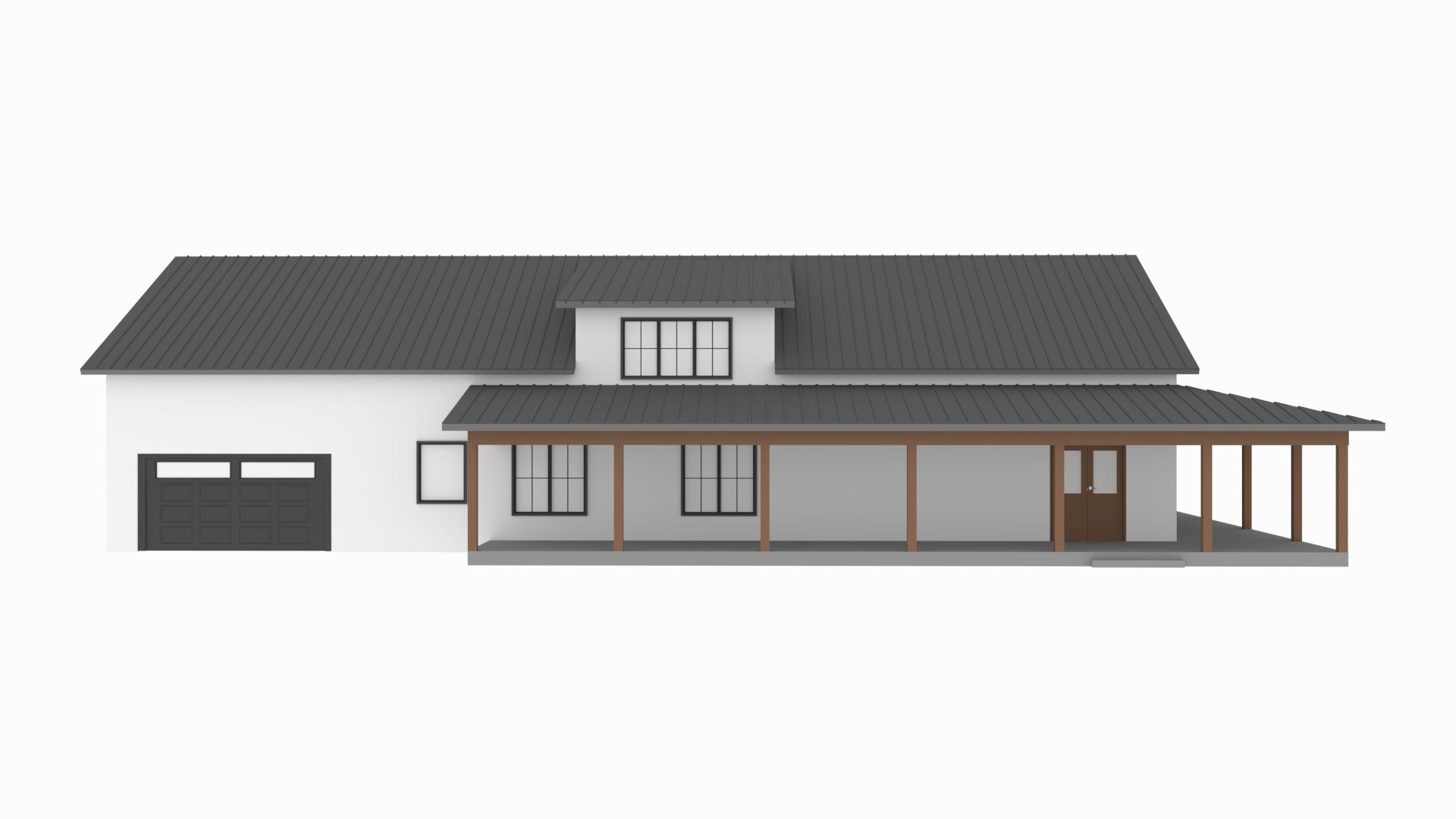

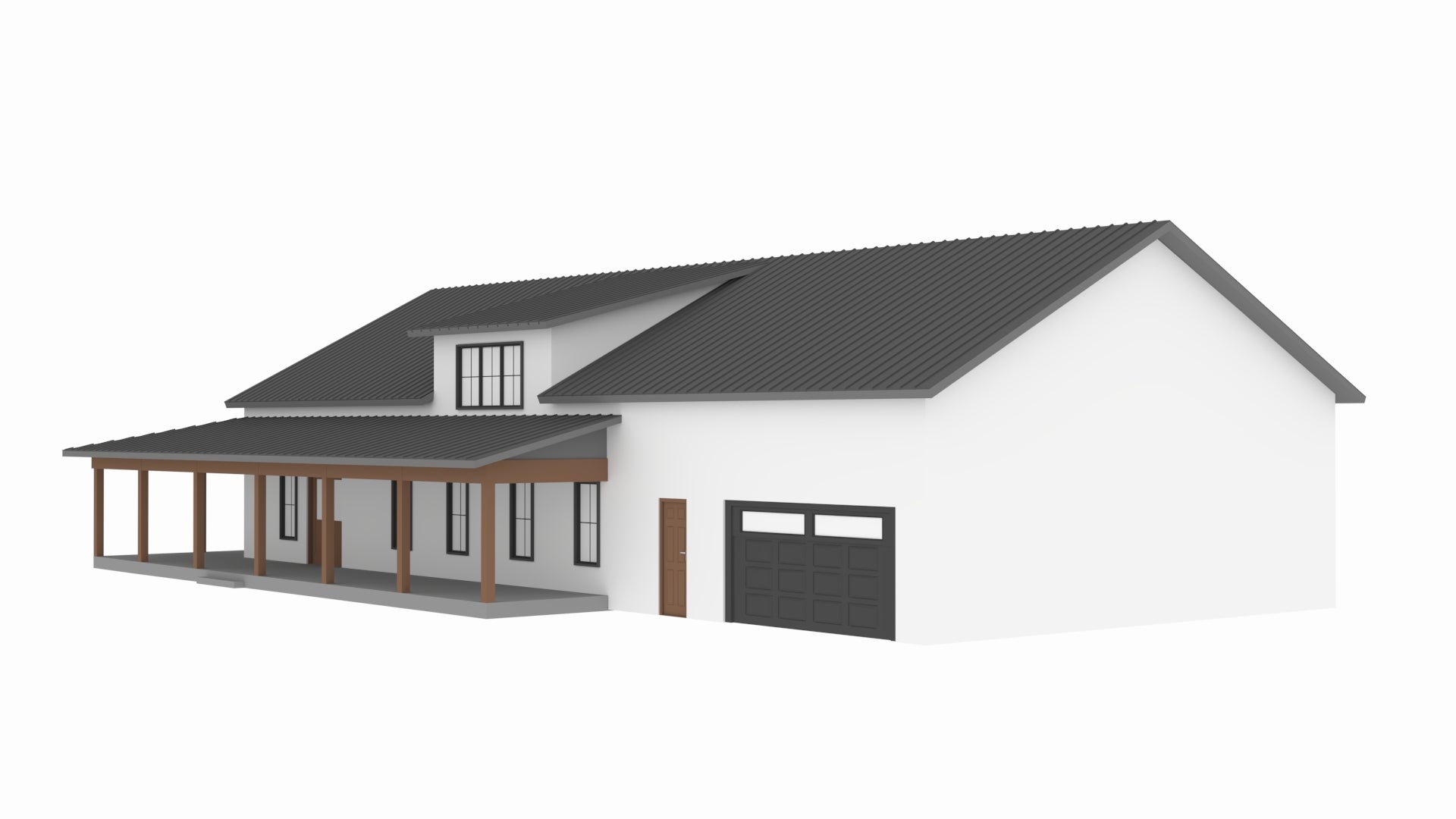

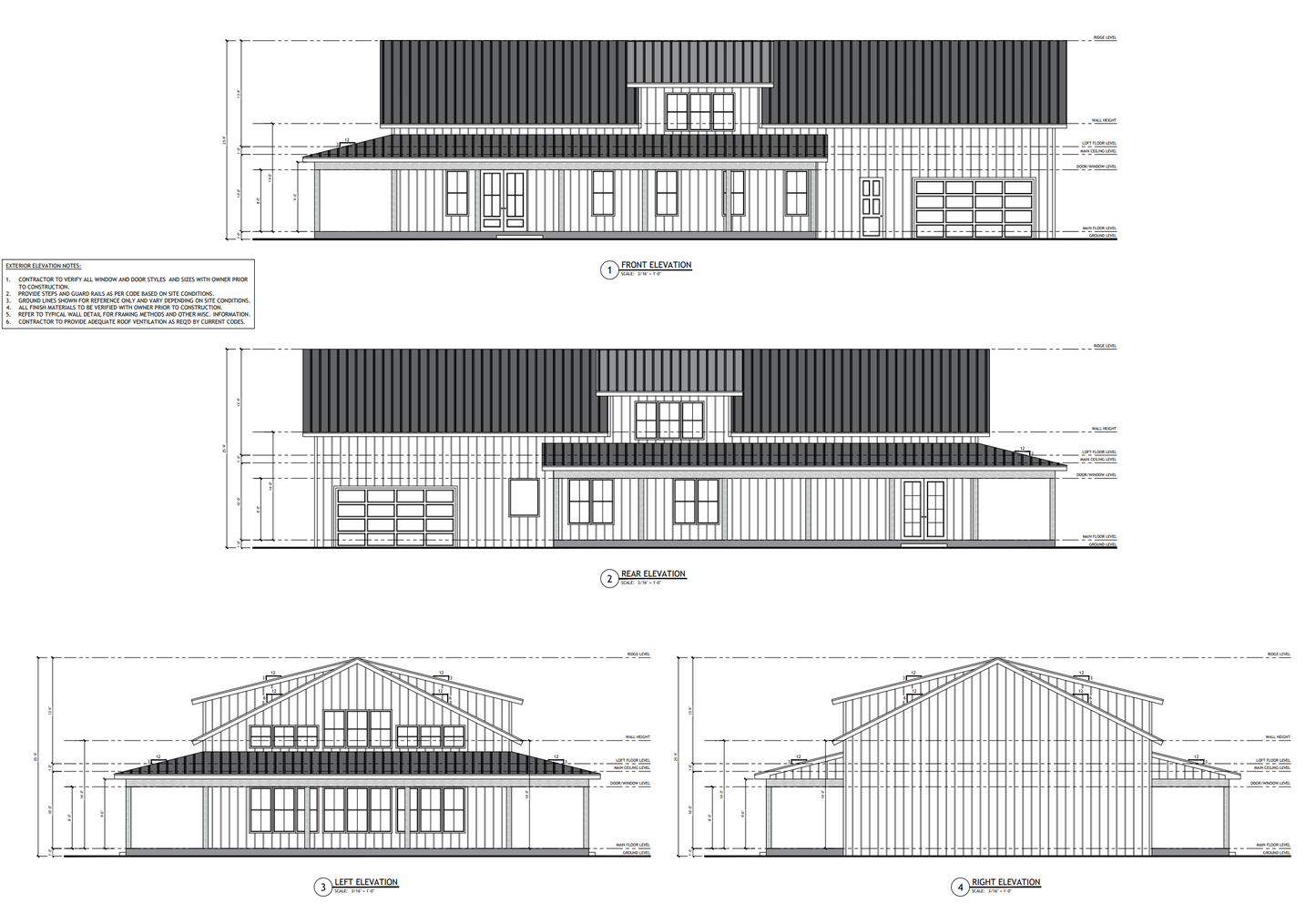

Elevations
Main Floor Electrical Plan
Loft Floor Electrical Plan
Main Floor Plumbing Plan
Main Floor HVAC Plan
Loft HVAC Plan
Roof Framing Plan
Foundation Plan
Interior Bearing Footing
C-Typical Column Detail
Wall Section
For more barndominium floor plans, check out our complete collection of 3-bedroom barndominium floor plans.
Need to make changes? Submit a modification request using the button that says Modify This Plan . We will get you a free price quote within 72 hours
What's Typically Included
What's Typically Included
THE SPECIFC DETAILS OF WHAT'S INCLUDED ON THESE PLANS IS CONTAINED IN THE PRODUCT DESCRIPTION. PLEASE SCROLL UP AND YOU WILL FIND IT UNDER "WHAT'S INCLUDED"
Our house plan sets typically have the following details:
4 Elevations – Front, Back, Both Sides
Detailed Floor Plan Drawing
Electrical Plans with placements for HVAC
Plumbing Plans with Placements
Flooring Plan
Roof Plan
Foundation Plan
For more information on what's included and examples of what your plans will look like, go here -> https://barndominiumplans.com/pages/whats-included
Please Note: We work with many different draftspeople who work in many different ways. It should be noted that their plans may contain different details. THE SPECIFC DETAILS OF WHAT'S INCLUDED ON THESE PLANS IS CONTAINED IN THE PRODUCT DESCRIPTION. PLEASE SCROLL UP AND YOU WILL FIND IT UNDER "WHAT'S INCLUDED"
What's Not Included
What's Not Included
The following items are NOT included:
Architectural or Engineering Stamp. Our plans are engineering-ready! Can take them to a local engineer in your state.
Site Plan - We can provide this if needed for $300 additional.
Materials List - handled locally when required
Energy calculations - handled locally when required
Snow load calculations - handled locally when required
Delivery
Delivery
This plan is available as a digital product or printed + shipped.
If you select digital, the plan will be delivered to you via email as a PDF file, no matter what time it is.
If you select printed + shipped, your order will ship in 24x36 format within 1 business day of your order.
We ship from the midwest in order to serve the entire country within 3-5 business days!
Return policy
Return policy
All barndominium house plan purchases are FINAL. There are no exchanges or refunds due to the digital nature of the product. Please make sure that the plan you have selected is going to fit your needs.
💥
