PL-2813 Lakeview Barndominium House Plan

$1,349.99 USD
$1,349.99 USD
Sale Sold out
1 10

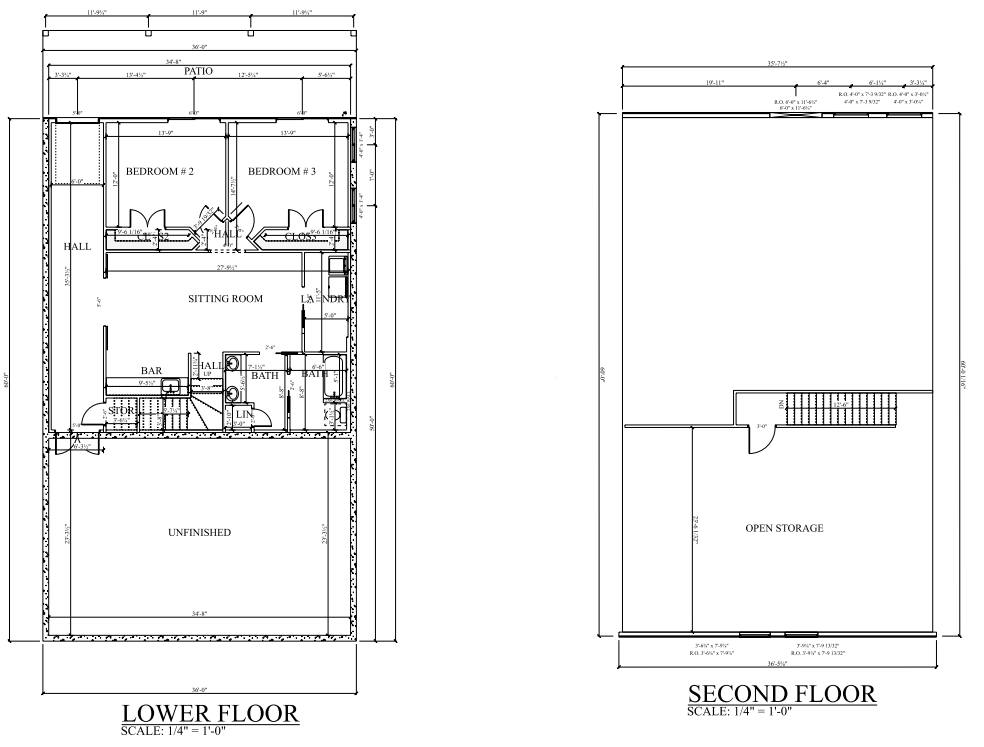

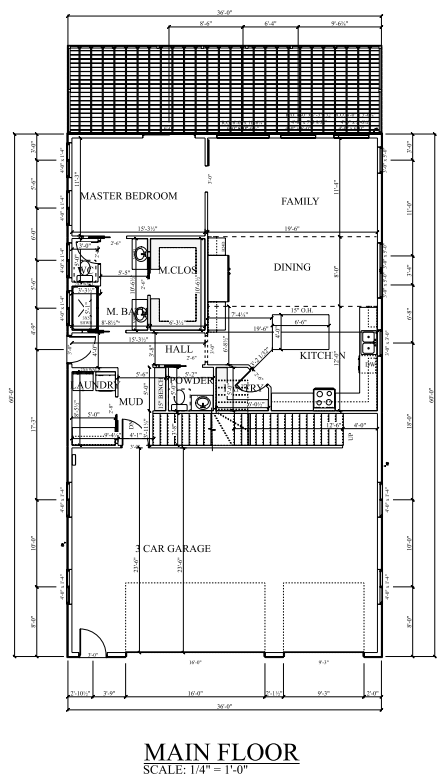

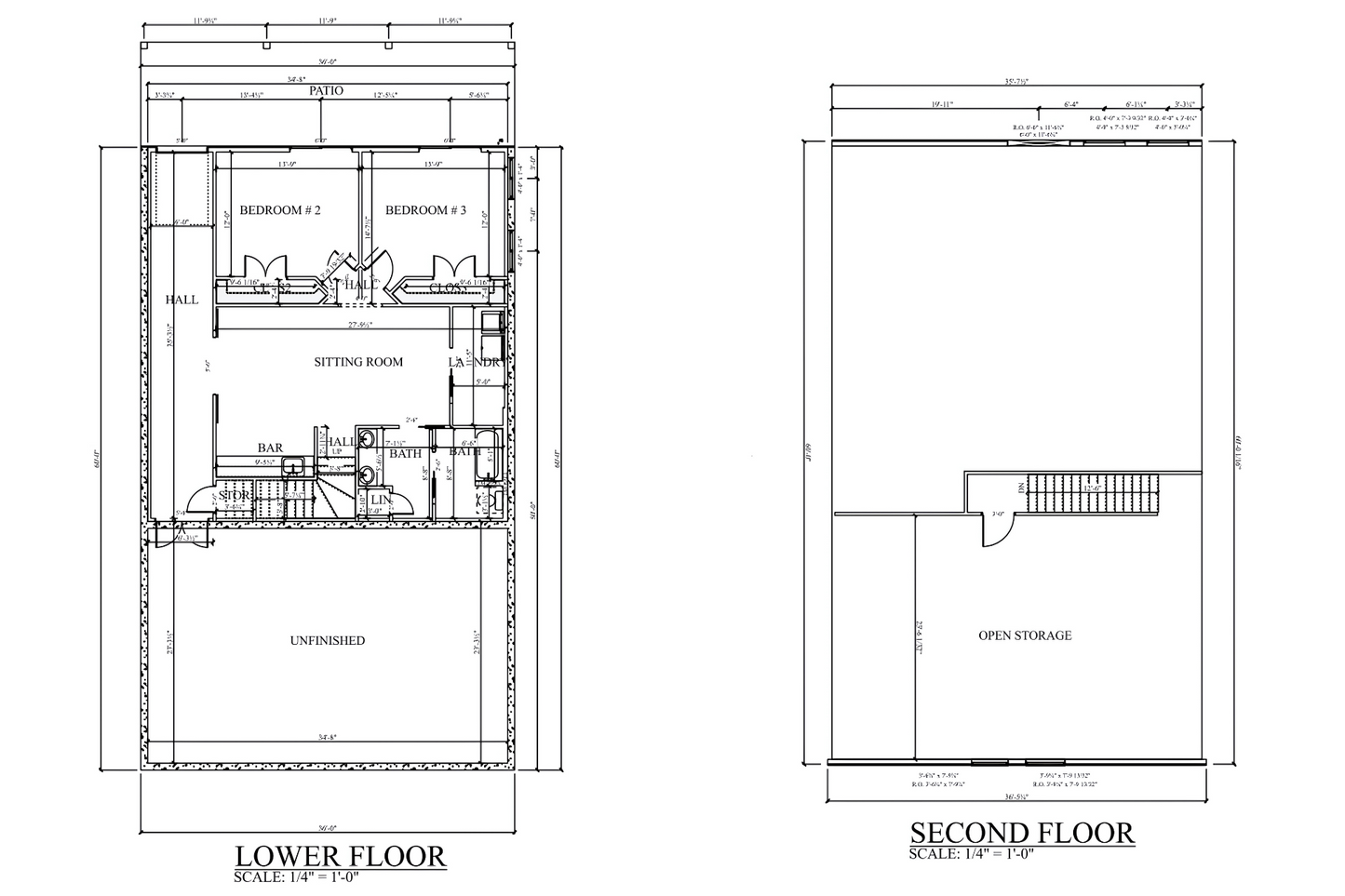

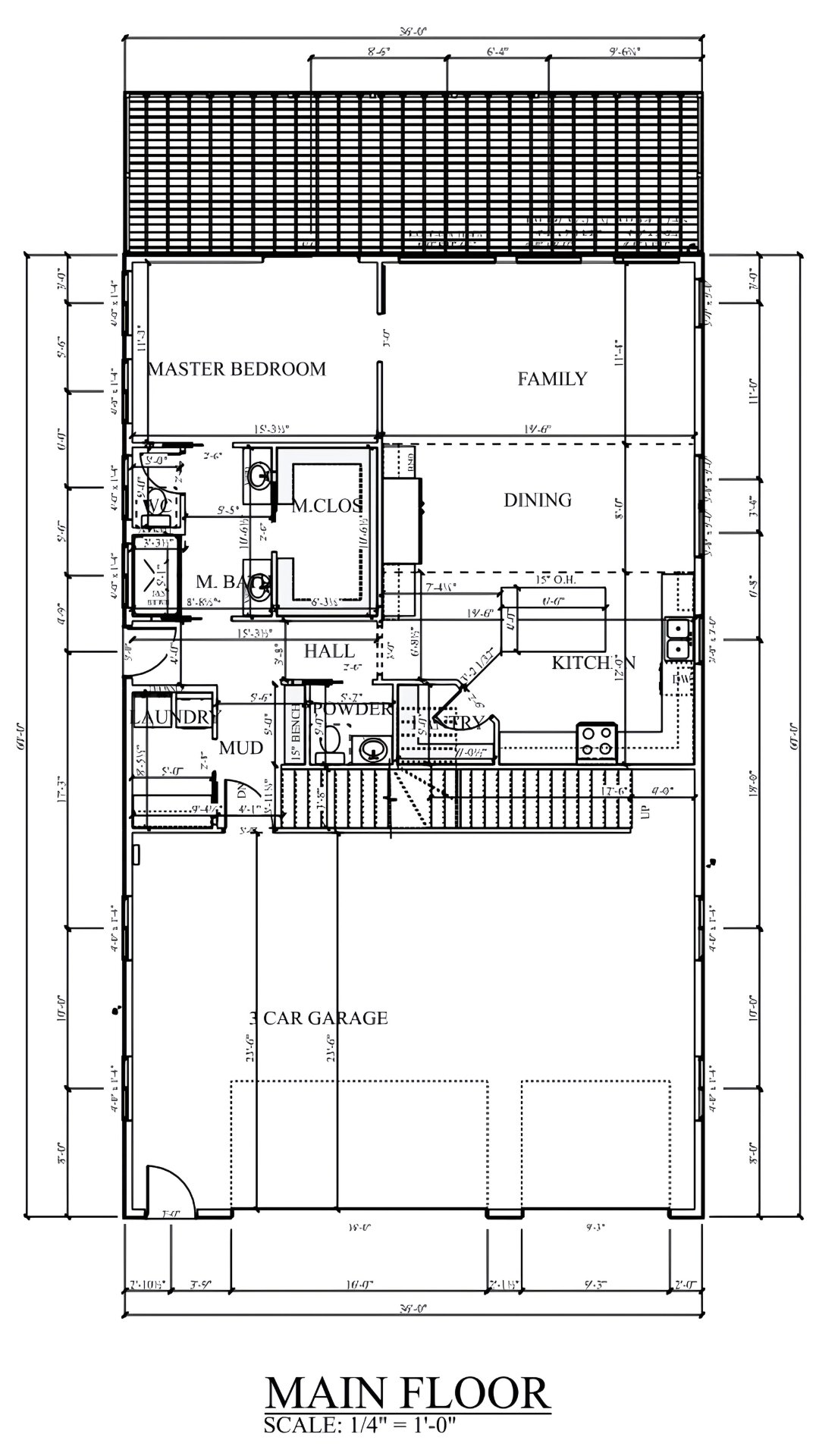

Floor Plan

DETAILS

HEATED SQ FT

First Floor:

1,240 SF

Second Floor:

5,735 SF

Total Heated Sq Ft:

3,405 SF

UNHEATED SQ FT

Total Unheated Area:

Porch 725 SF, Garage 920 SF = TOTAL 1,645 SF

Carport:

None

Bedrooms:

3

Full Baths:

2

Floors:

2

Garage Size:

920 SF

Width:

36'

Depth:

34'

Height:

33'-3 9/32"

Foundation:

Walkout basement

Main Roof Pitch:

9:12

Exterior Framing:

2x6 studs

CEILING HEIGHTS

First Floor:

9'

PL-2813 Lakeview Barndominium House Plan



  • 3405 Heated square feet
  • 34x36
  • 3 bedrooms
  • 2.1 bathrooms
  • 2 Story
  • Open Concept
  • Walkout Basement
  • Bar
  • Patio
  • Loft storage
  • 3-Car Garage



  • Spacious 3,405 heated Sq Ft, climate-controlled haven designed for comfort in every season, offering ample room for living, working, and entertaining.
  • Three cozy retreats designed for restful nights and relaxed mornings, each offering privacy and comfort with a touch of charm.
  • 2.1 bathrooms with thoughtful mix of style and function, blending sleek design with everyday convenience, including a handy guest powder room.
  • A 2-story layout that combines openness with intimate spaces, giving room for both grand entertaining and quiet escapes.
  • Fully heated living space featuring two cozy bedrooms, a laundry area, a welcoming sitting room, and a stylish bar—perfect for comfort and entertainment.
  • An outdoor oasis where fresh air and relaxation meet, offering a perfect space for al fresco dining, gatherings, or peaceful solitude.
  • A clever solution for keeping essentials organized while maintaining a clean and clutter-free home.



What's Included In PL-2813:

Cover Sheet
Detailed Floor Plan Dimensional

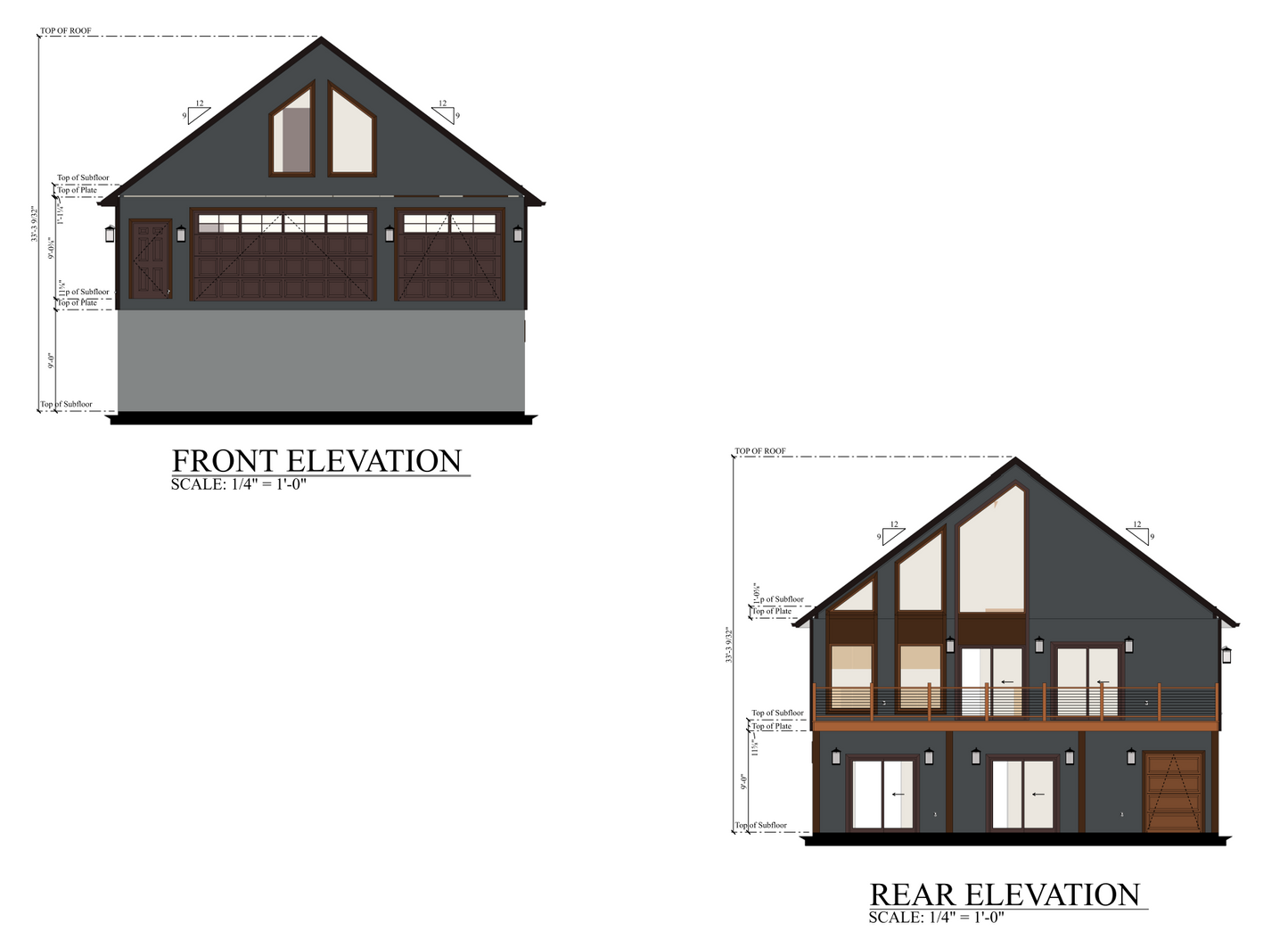

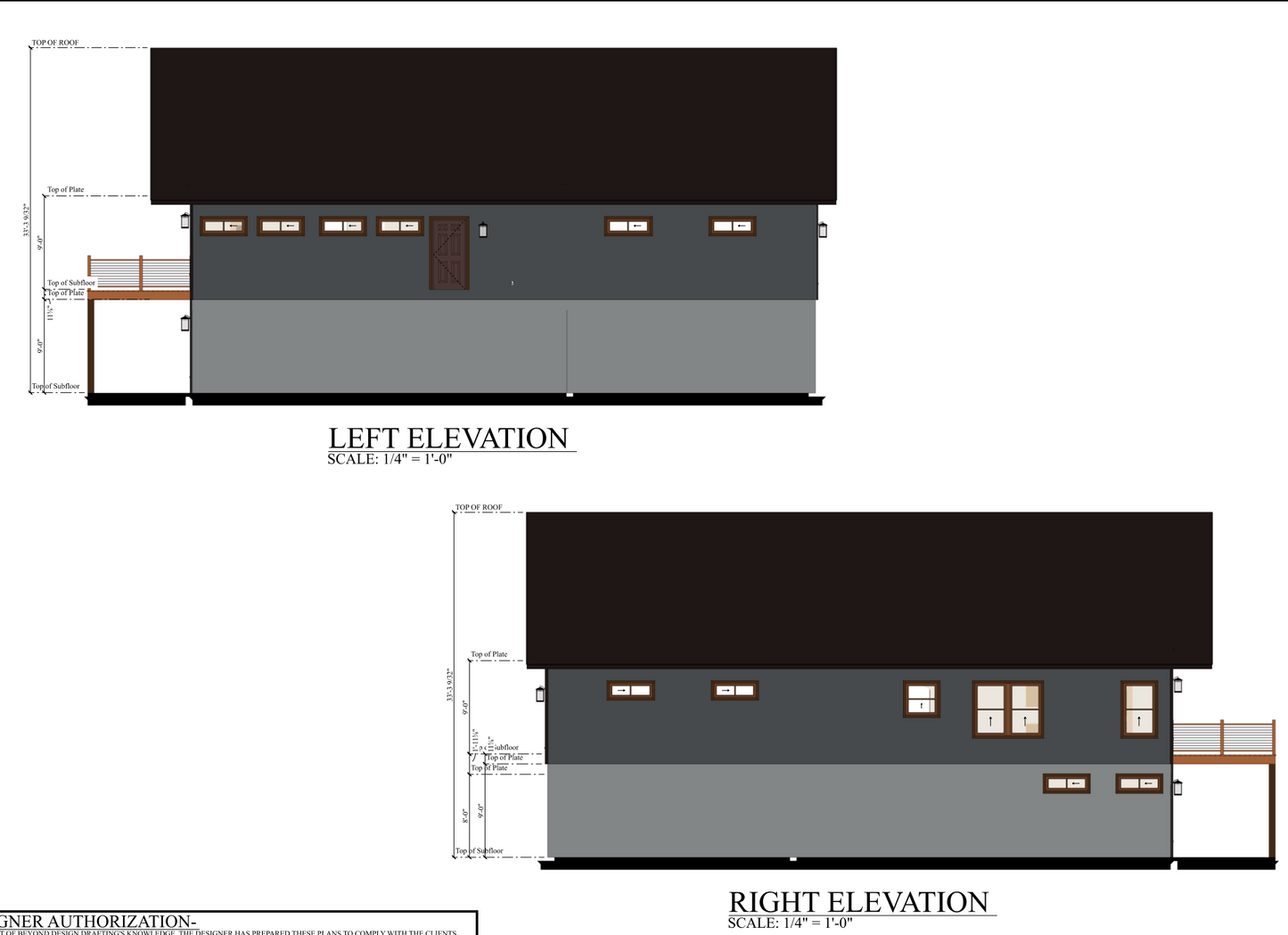

Front, Back, Left Side, Right Side Elevations
Electrical Plan
Plumbing Plan
HVAC Plan
Roof Framing Plan
Foundation Plan
Wall Section





For more barndominium floor plans, check out our complete collection of 3-bedroom barndominium floor plans.



Need to make changes? Email our modification department. We will get you a free price quote within 72 hours.

Please note all square footage are estimates.

What's Included

Our house plan sets typically have the following details:

4 Elevations – Front, Back, Both Sides

Detailed Floor Plan Drawing

Electrical Plans with placements for HVAC

Plumbing Plans with Placements

Flooring Plan

Roof Plan

Foundation Plan

For more information on what's included and examples of what your plans will look like, go here -> https://barndominiumplans.com/pages/whats-included

Please Note: We work with many different draftspeople who work in many different ways.  It should be noted that their plans may contain different details.

What's Not Included

The following items are NOT included:

Architectural or Engineering Stamp. We work with a third party to provide an engineering stamp in most states.

Site Plan - We can provide this if needed for $300 additional.

Materials List - handled locally when required

Energy calculations - handled locally when required

Snow load calculations - handled locally when required

Delivery

This plan is available as a digital product or printed + shipped.

If you select digital, the plan will be delivered to you via email as a PDF file, no matter what time it is.

If you select printed + shipped, your order will ship in 24x36 format within 1 business day of your order.

We ship from the midwest in order to serve the entire country within 3-5 business days!

Return policy

All barndominium house plan purchases are FINAL. There are no exchanges or refunds due to the digital nature of the product. Please make sure that the plan you have selected is going to fit your needs.
