Barndominium Plans

LP-71008 Orchard Barndominium House Plan

Regular price $849.99 USD
Regular price Sale price $849.99 USD
Sale Sold out
Skip to product information
1 of 7

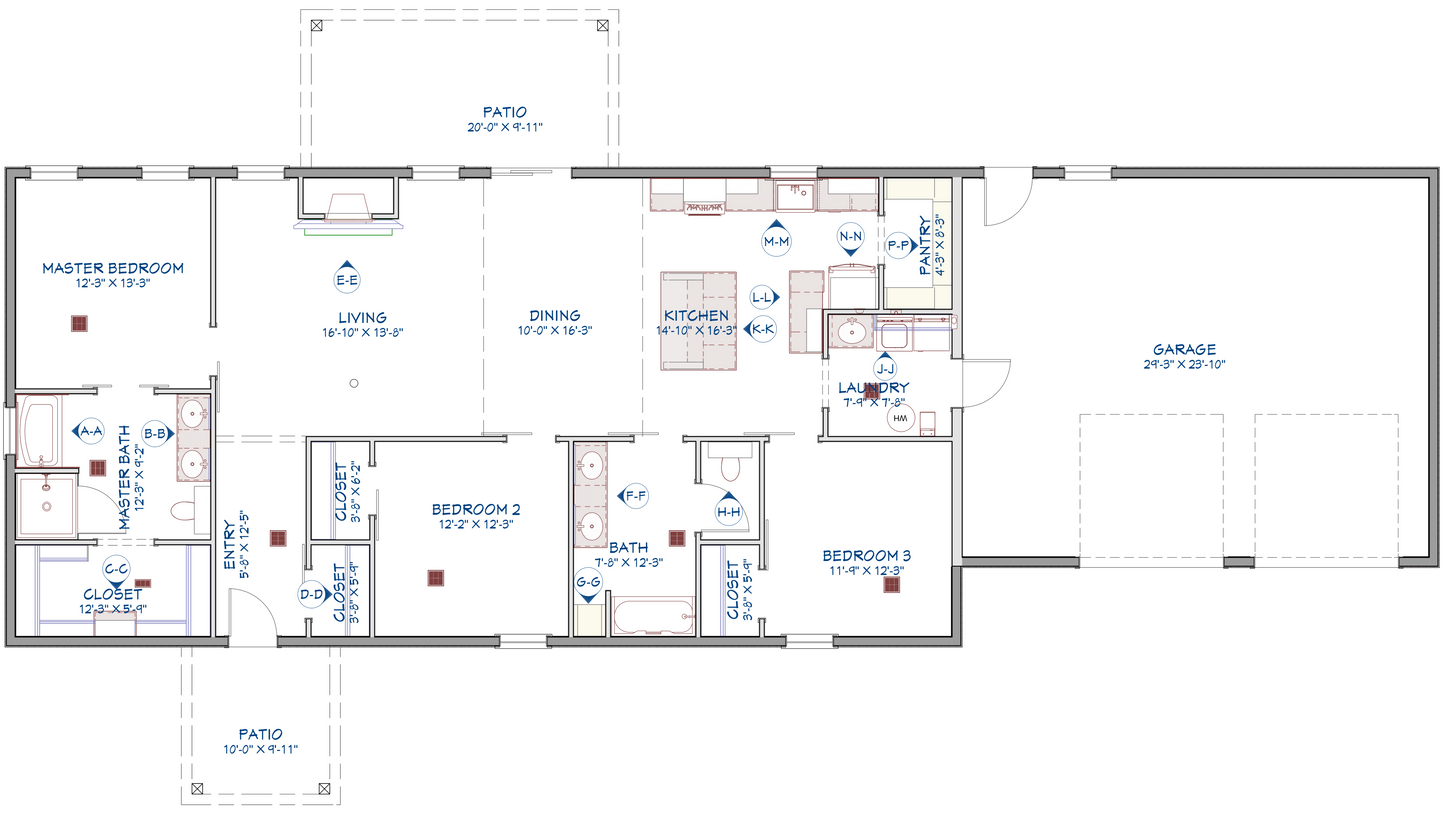

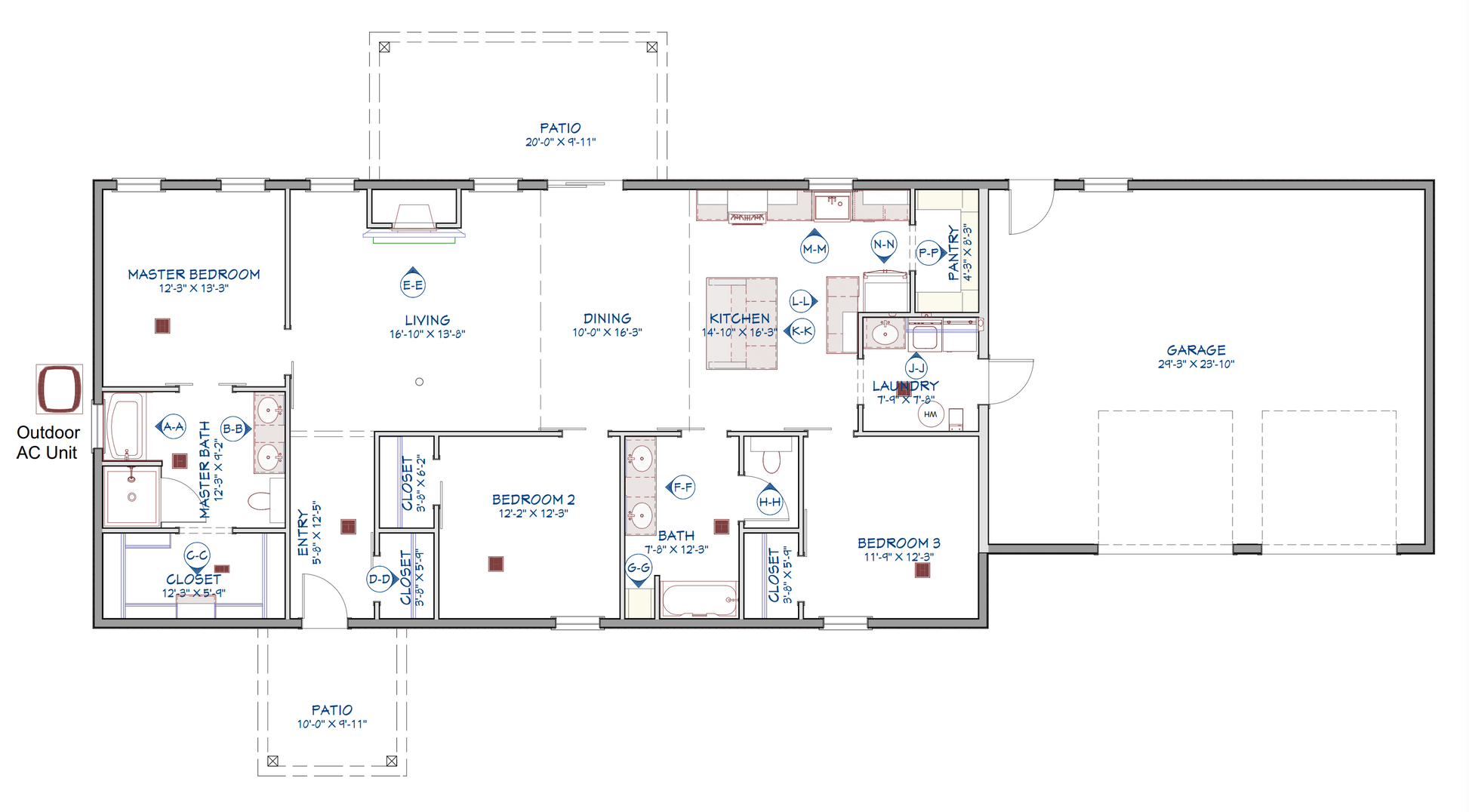

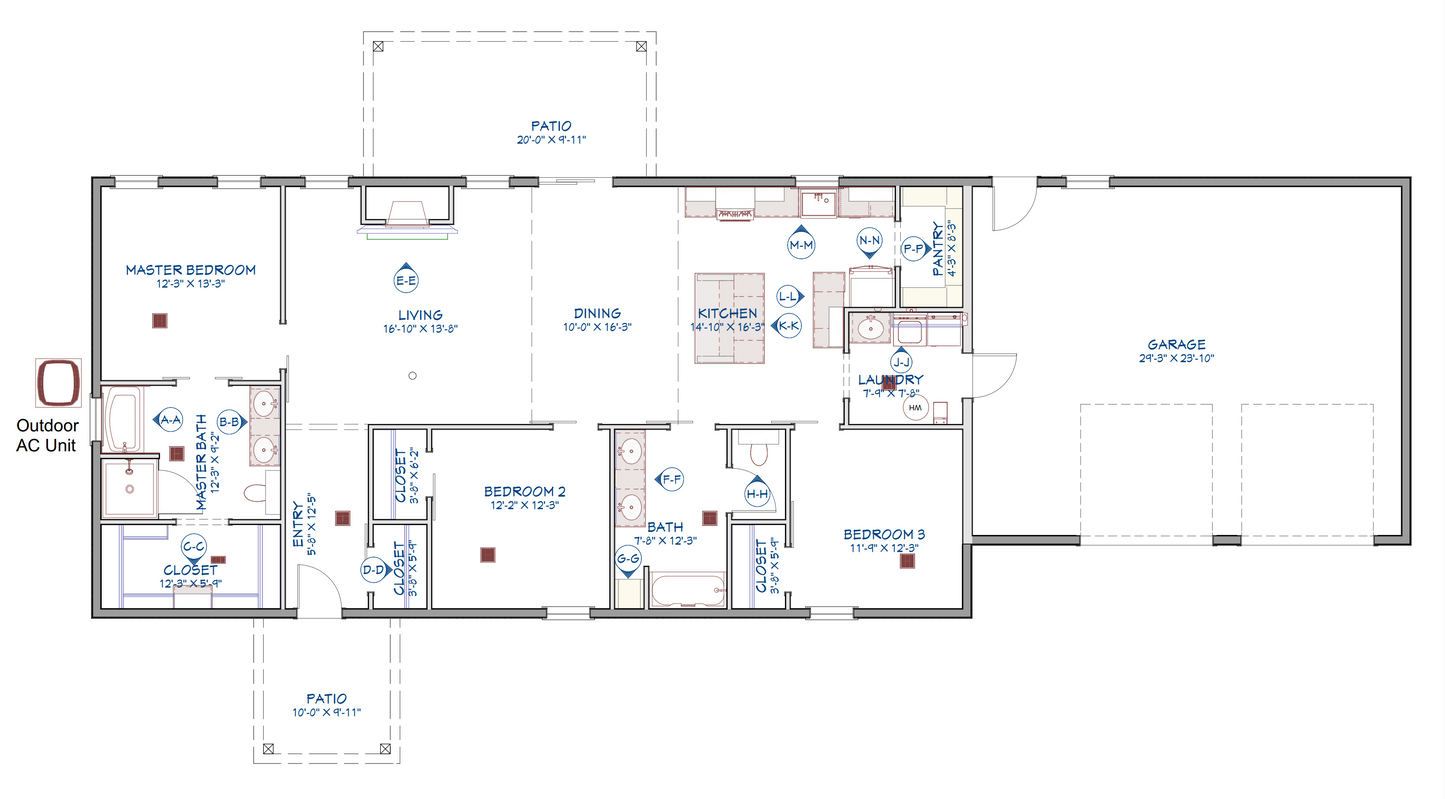

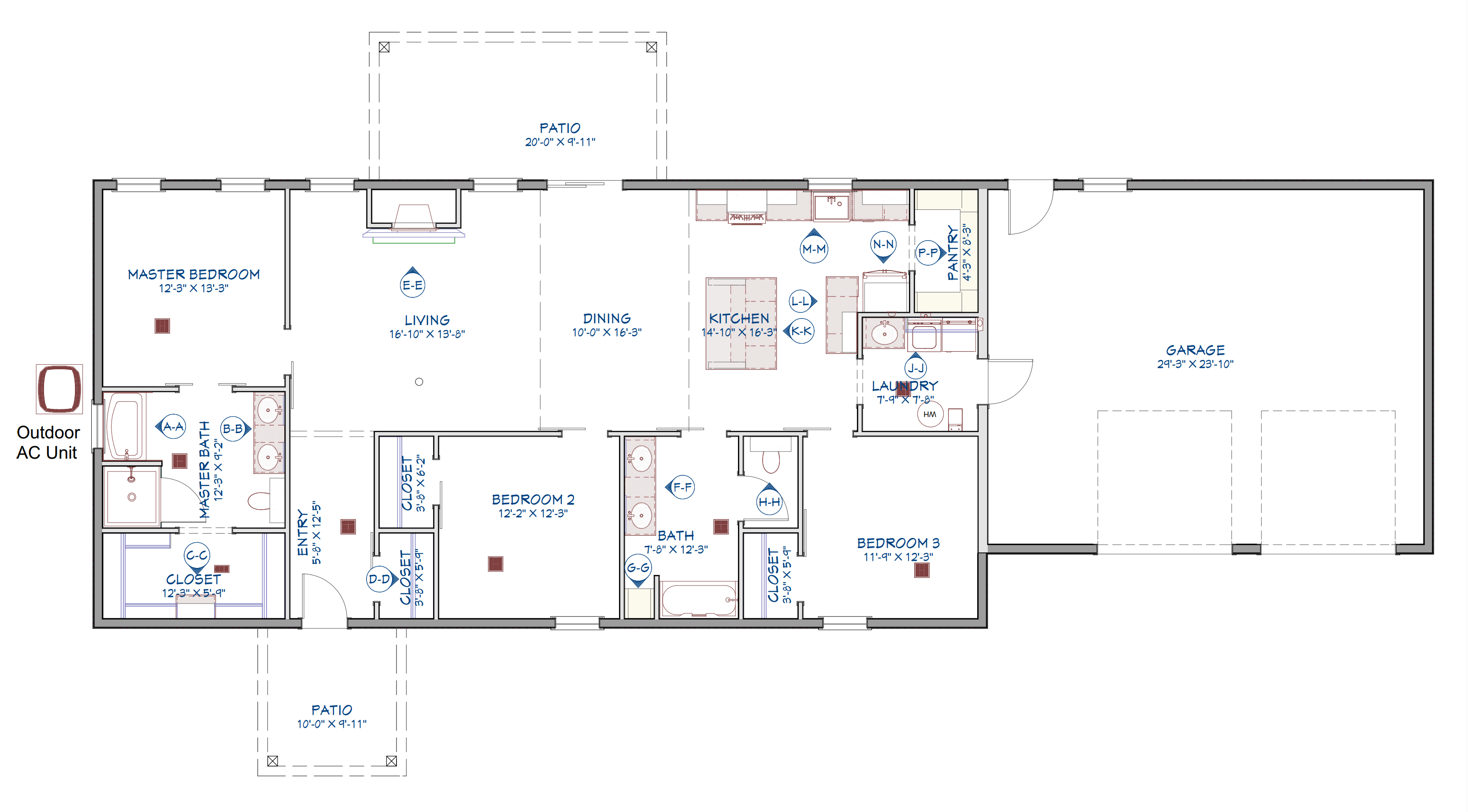

Floor Plan

DETAILS

HEATED SQ FT

First Floor:

1,800 SF

Total Heated Sq Ft:

1,800 SF

UNHEATED SQ FT

Total Unheated Area:

750 SF

Carport:

None (garage only)

Bedrooms:

3

Full Baths:

2

Floors:

1

Garage Size:

750 SF

Width:

30'

Depth:

60'

Height:

18'-6"

Foundation:

Concrete Slab

Main Roof Pitch:

6:12

Exterior Framing:

Stick-Frame

CEILING HEIGHTS

First Floor:

8'

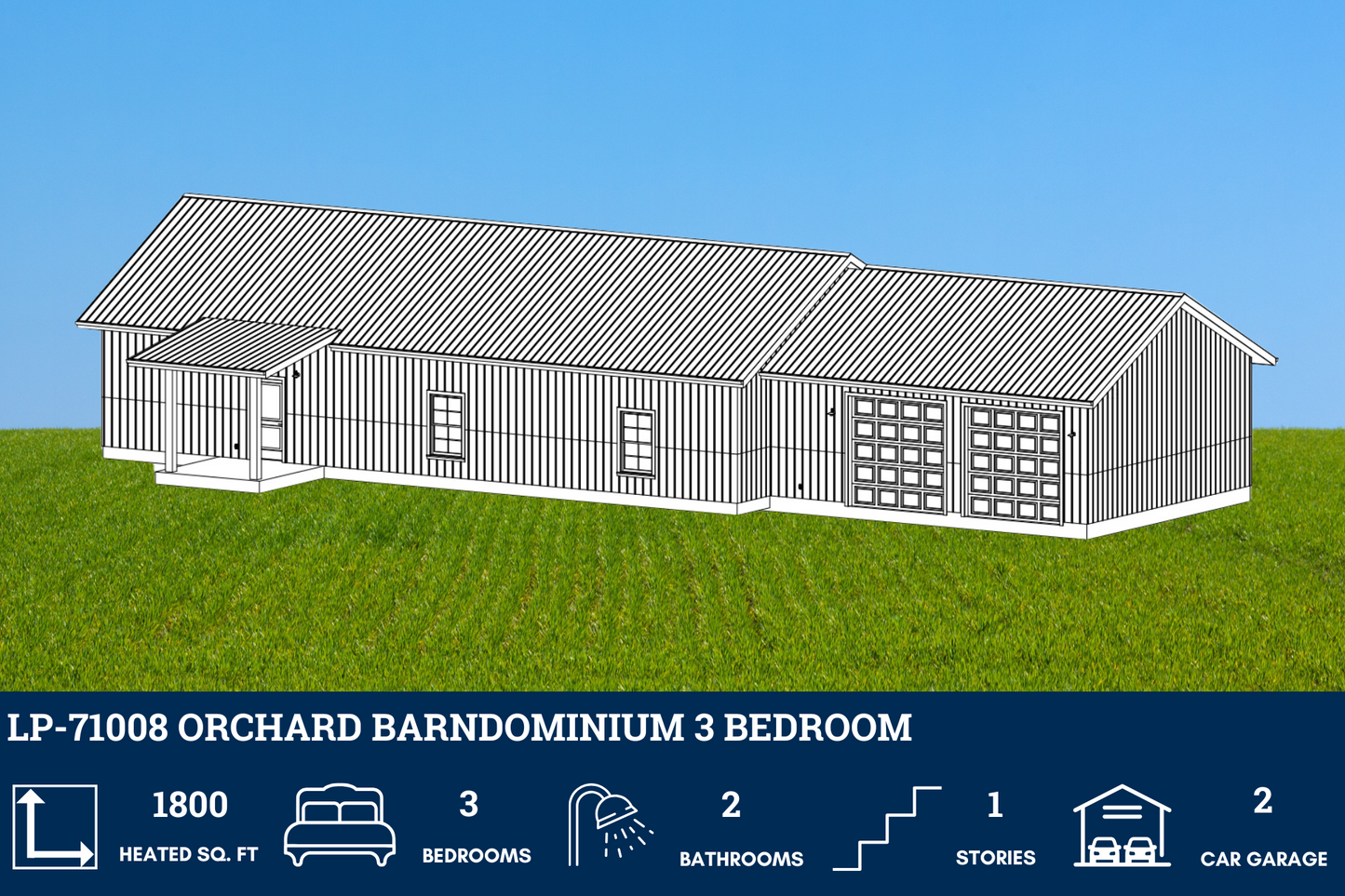

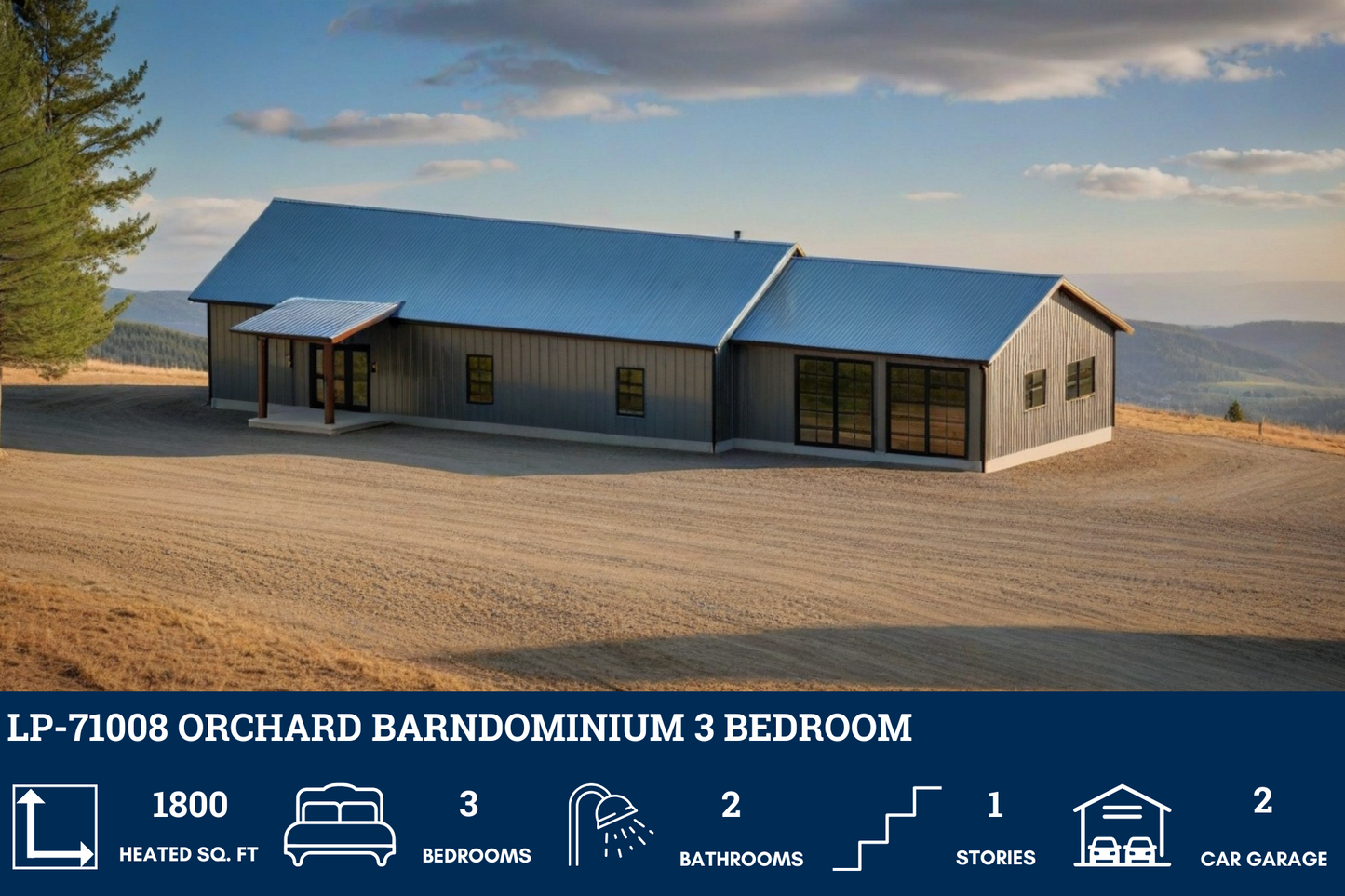

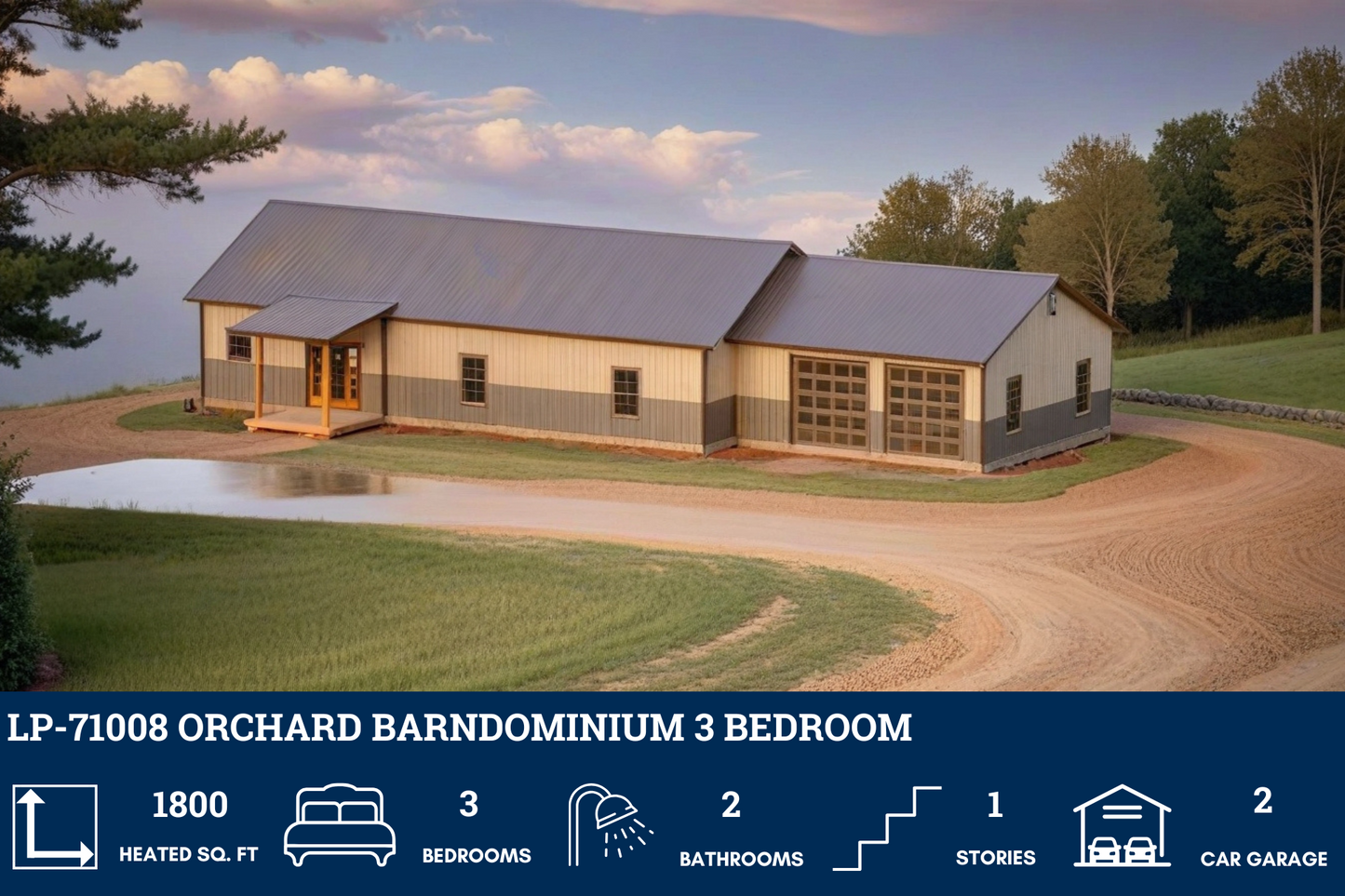

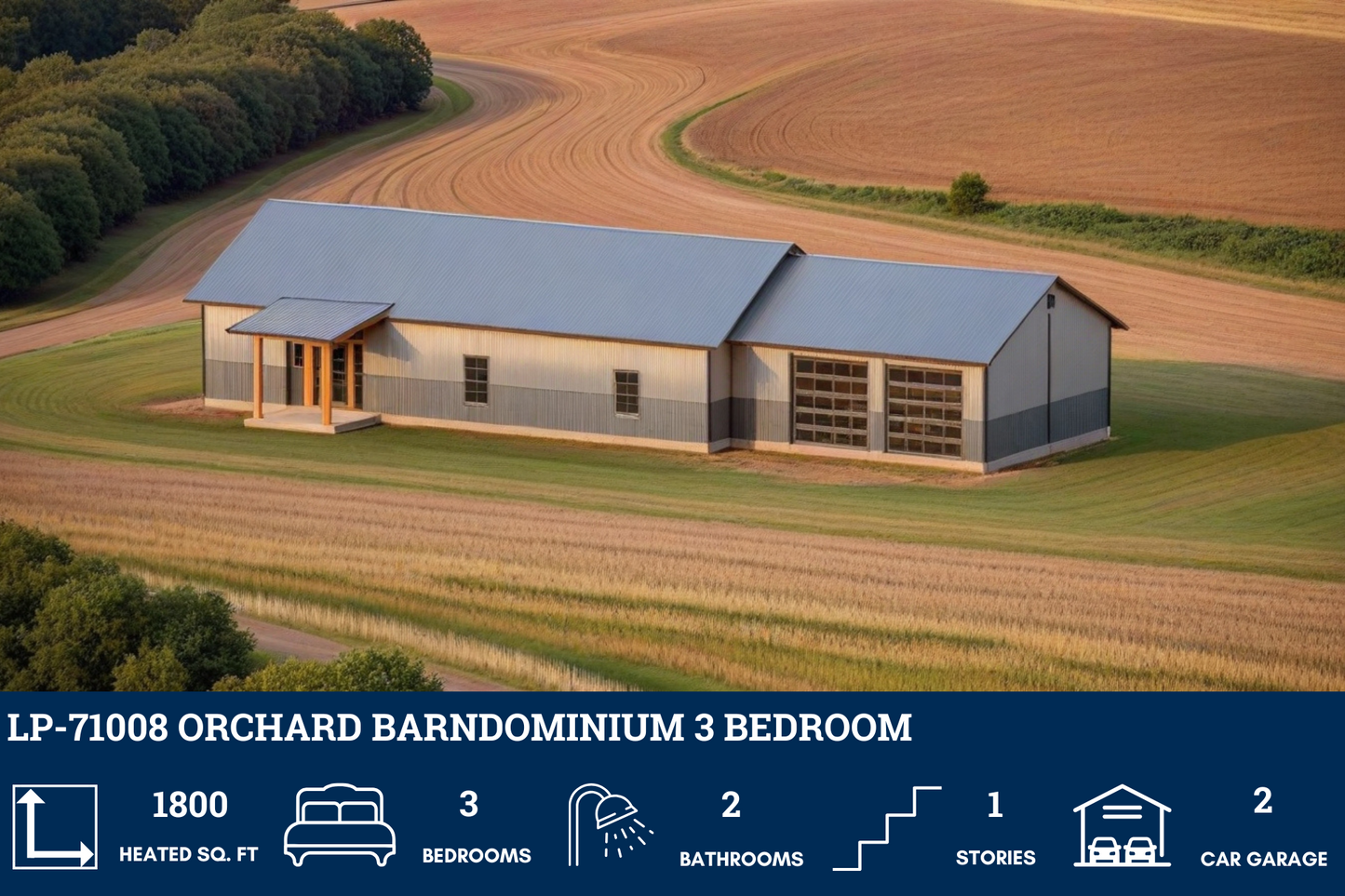

LP-71008 Orchard Barndominium House Plan

  • 1800 Heated Square Feet
  • 30x60 living space dimension
  • 3 Bedrooms
  • 2 Bathrooms
  • Single story
  • Open-concept
  • Attached 2-car garage
  • 750 Square feet Garage
  • Front and Back Patio
  • Foyer
  • Fireplace

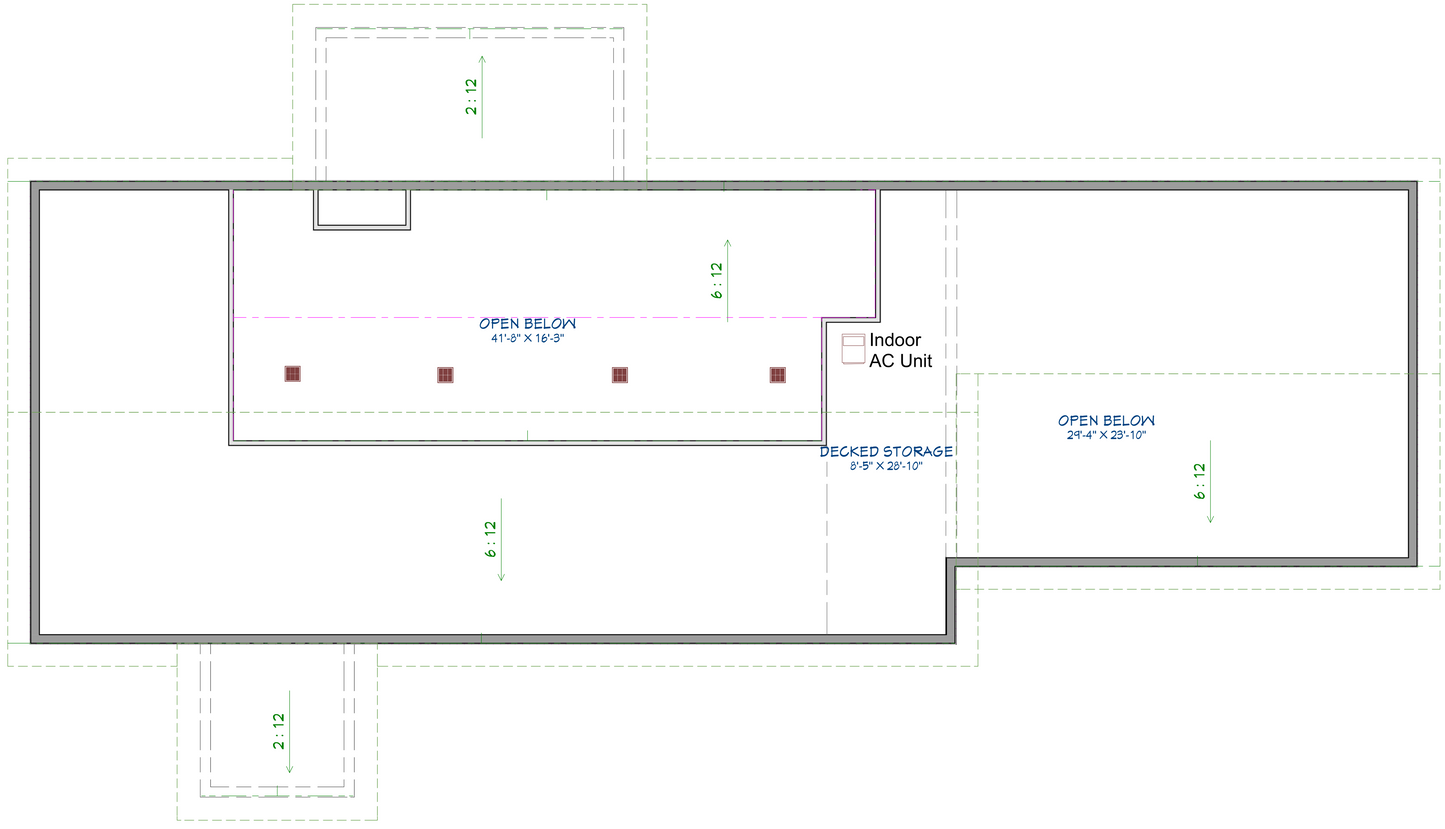

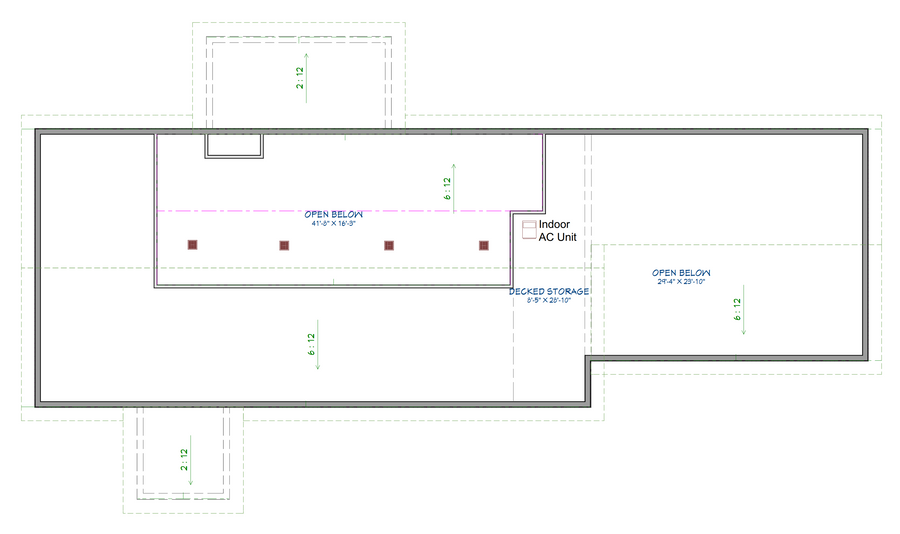

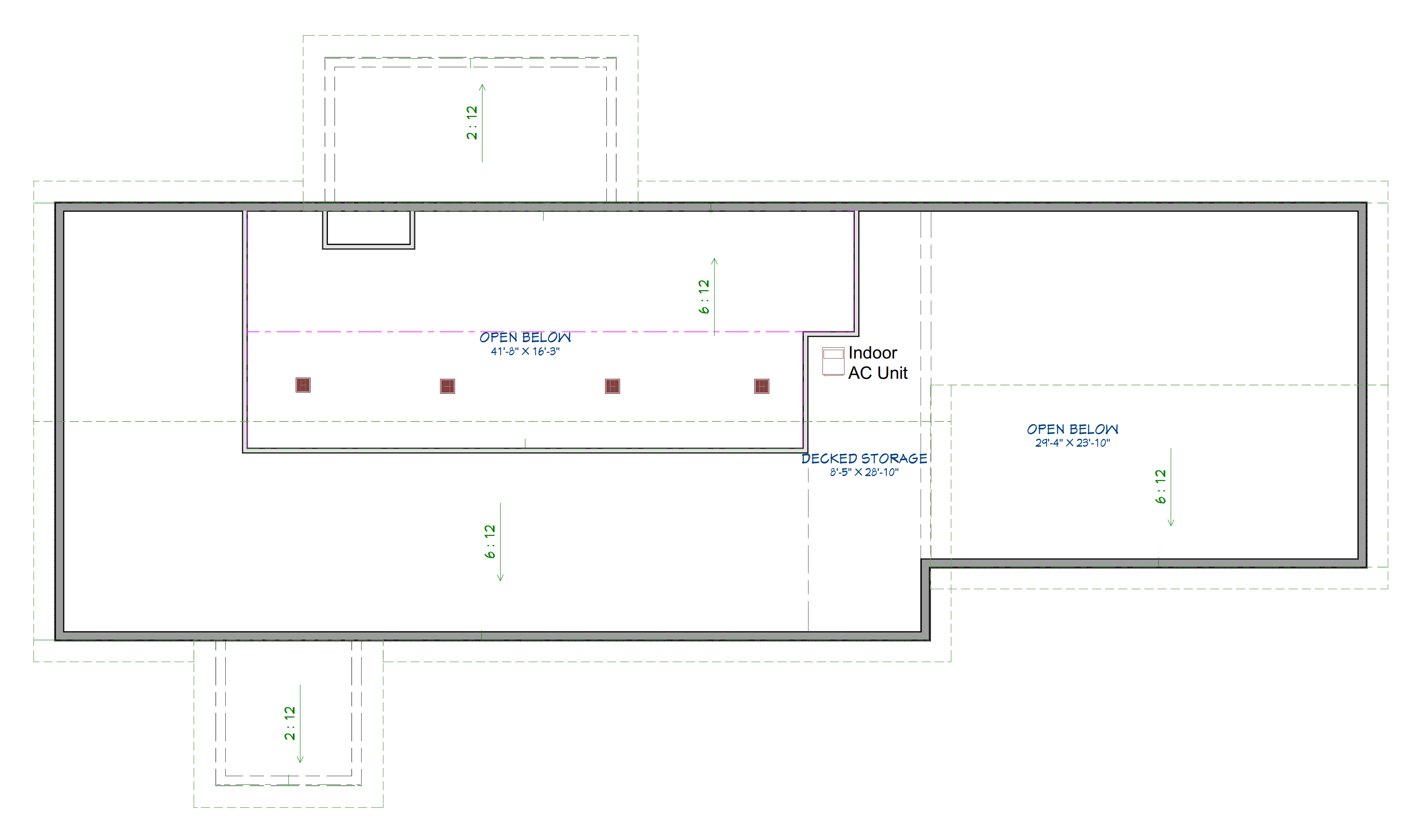

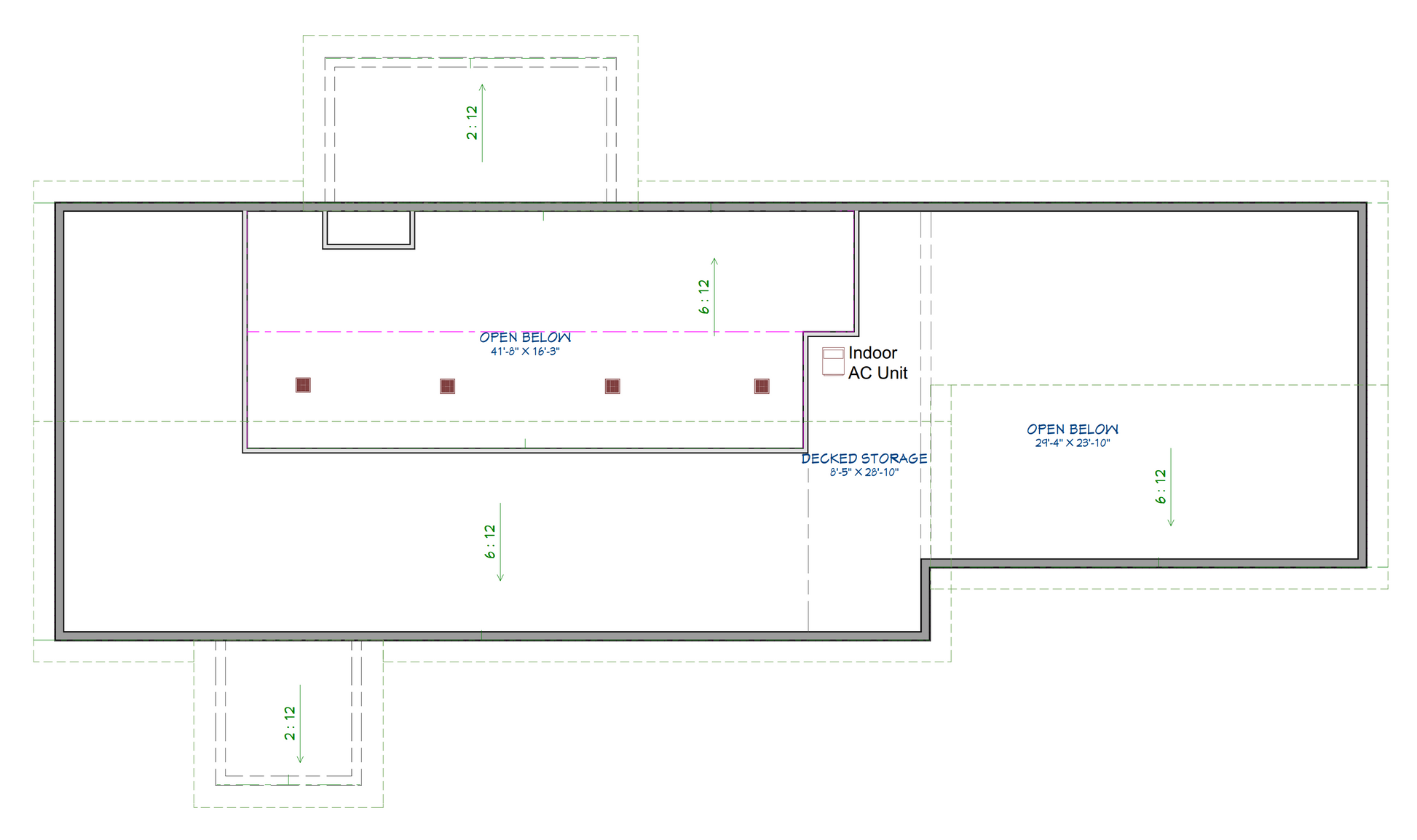

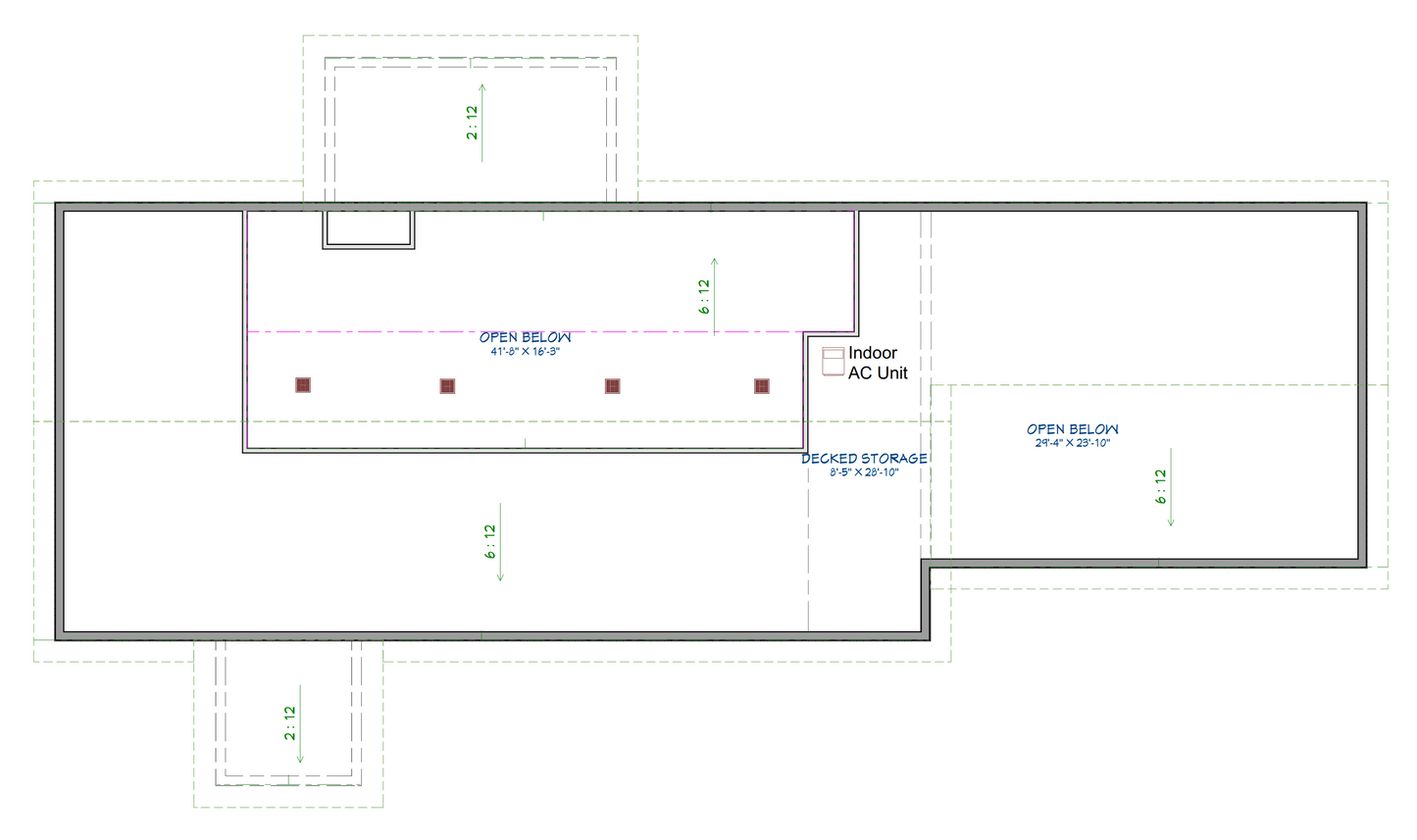

  • Attic/Storage

  • Spanning 1800 heated square feet, this open-concept home features three inviting bedrooms and two well-appointed bathrooms.
  • A bright and airy foyer welcomes you, leading into a spacious living area with a charming fireplace, perfect for gathering with loved ones.
  • The home includes both a front and back patio, offering versatile outdoor living spaces to enjoy the fresh air.
  • The attached 2-car garage spans 750 square feet and provides ample storage options.
  • Additionally, an accessible attic/storage space ensures you have room for all your belongings, completing this thoughtfully designed floor plan meant to create a warm and functional living environment.

What's included in LP-71008:

Cover Page
Foundation
Overall Layout
Dimensional layout
Electrical layout

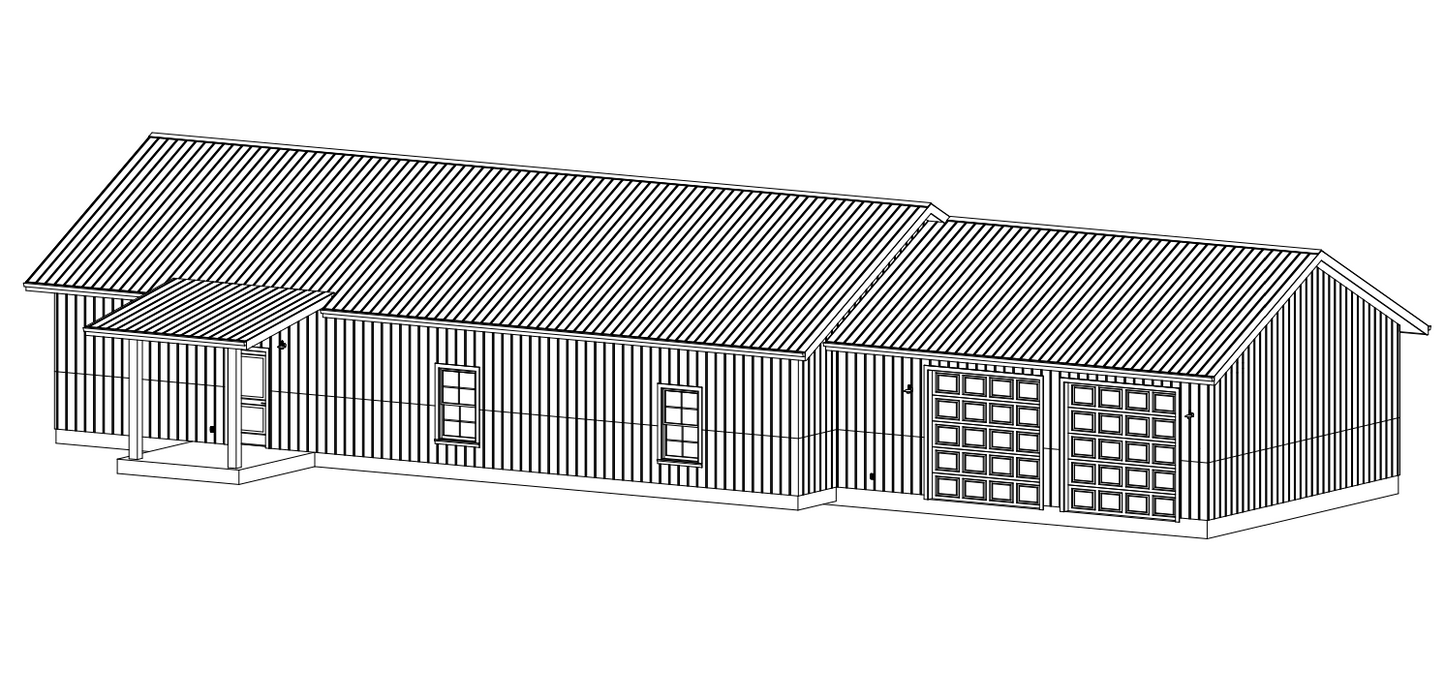

Elevation Front & Rear
Elevation Right & Left
Detail Views

For more barndominium floor plans, check out our complete collection of 3-bedroom barndominium floor plans.

Need to make changes? Submit a modification request using the button that says Modify This Plan (below the Add To Cart Button). We will get you a free price quote within 72 hours

Please note all square footage are estimates.

What's Included

Our house plan sets typically have the following details:

4 Elevations – Front, Back, Both Sides

Detailed Floor Plan Drawing

Electrical Plans with placements for HVAC

Plumbing Plans with Placements

Flooring Plan

Roof Plan

Foundation Plan

For more information on what's included and examples of what your plans will look like, go here -> https://barndominiumplans.com/pages/whats-included

Please Note: We work with many different draftspeople who work in many different ways.  It should be noted that their plans may contain different details.

What's Not Included

The following items are NOT included:

Architectural or Engineering Stamp. Our plans are engineering-ready! Can take them to a local engineer in your state.

Site Plan - We can provide this if needed for $300 additional.

Materials List - handled locally when required

Energy calculations - handled locally when required

Snow load calculations - handled locally when required

Delivery

This plan is available as a digital product or printed + shipped.

If you select digital, the plan will be delivered to you via email as a PDF file, no matter what time it is.

If you select printed + shipped, your order will ship in 24x36 format within 1 business day of your order.

We ship from the midwest in order to serve the entire country within 3-5 business days!

Return policy

All barndominium house plan purchases are FINAL. There are no exchanges or refunds due to the digital nature of the product. Please make sure that the plan you have selected is going to fit your needs.
