Barndominium Plans

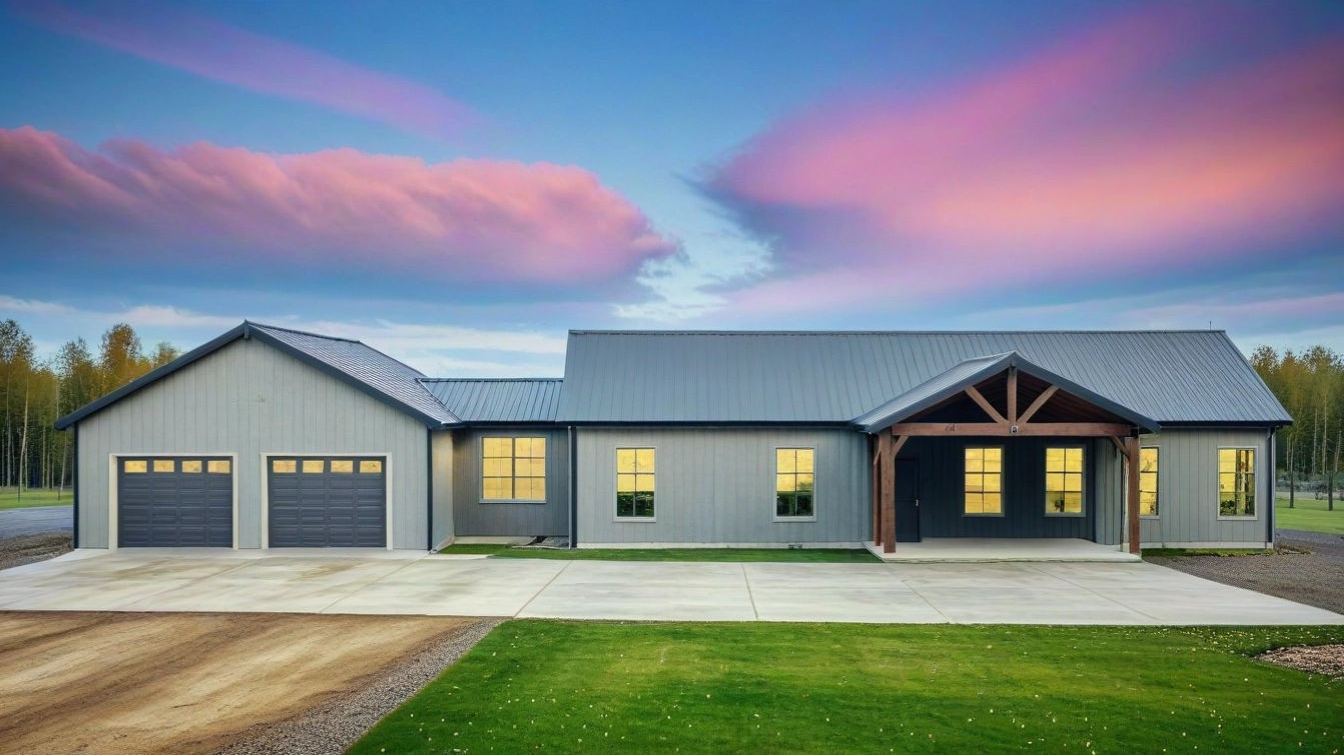

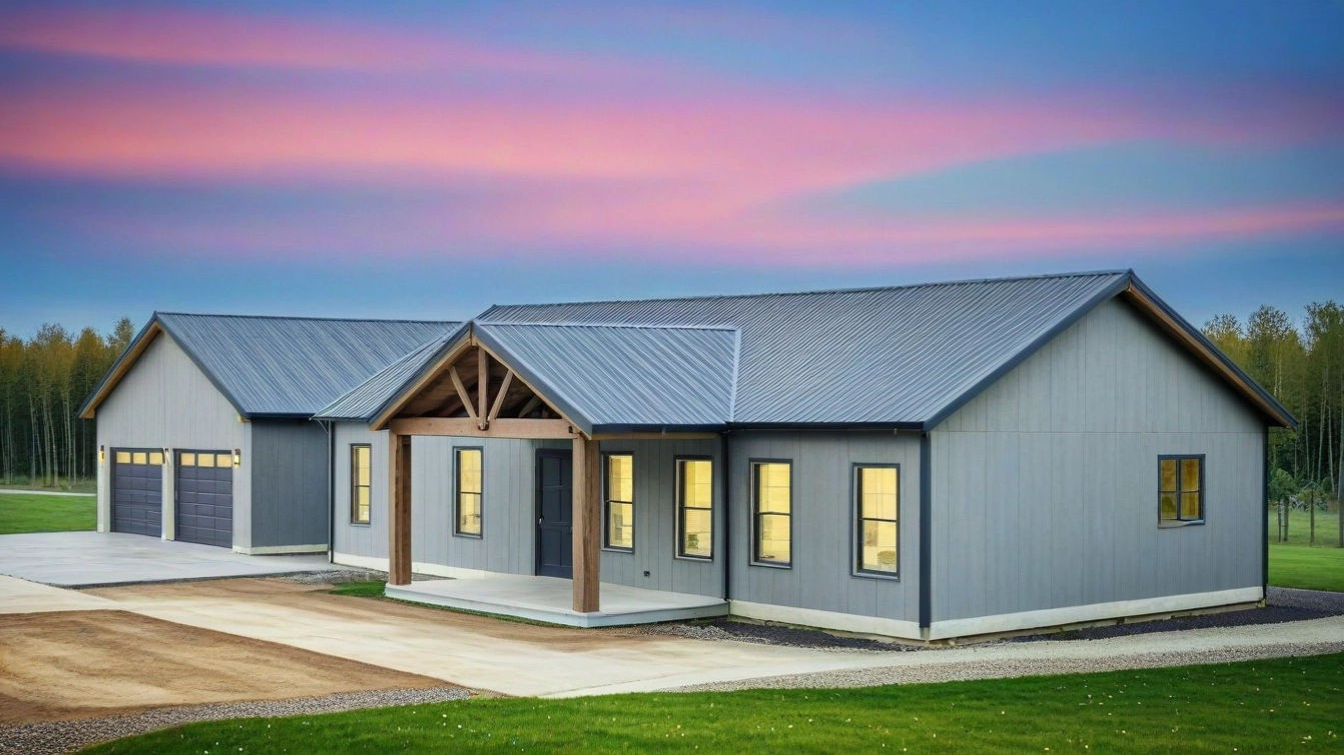

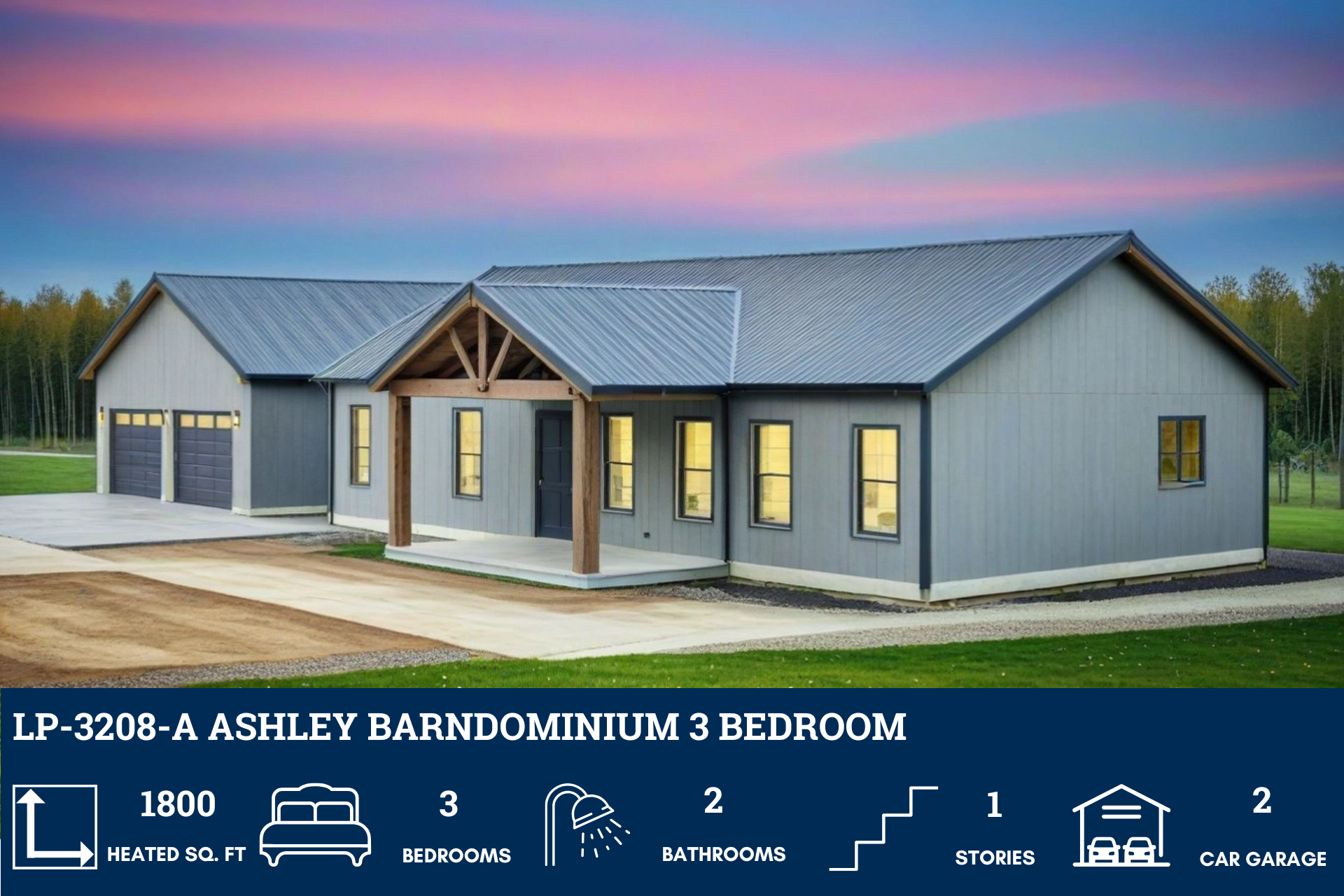

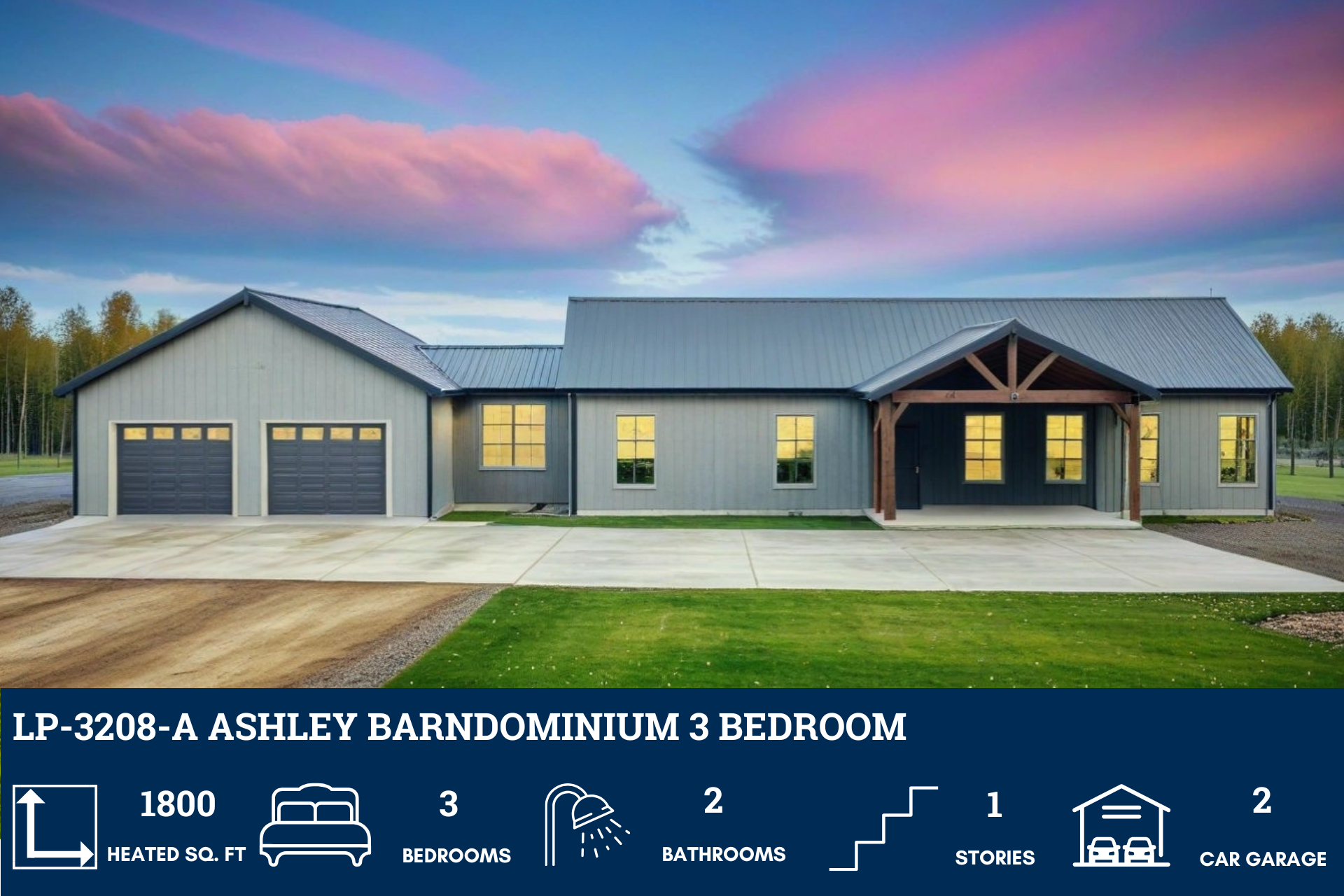

LP-3208-A Ashley Barndominium House Plan
Regular price
$849.99 USD
Regular price
Sale price
$849.99 USD
Unit price
per

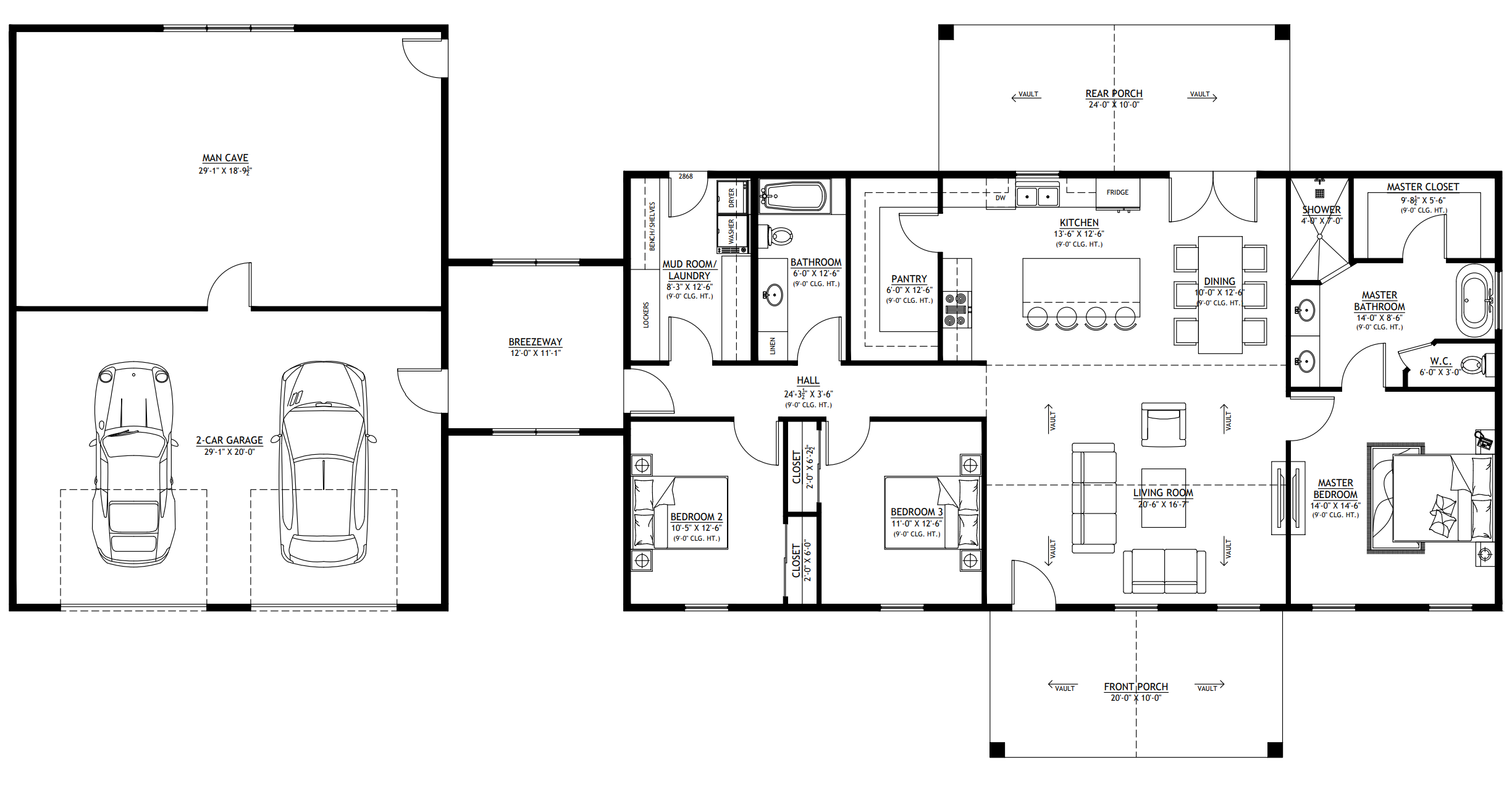

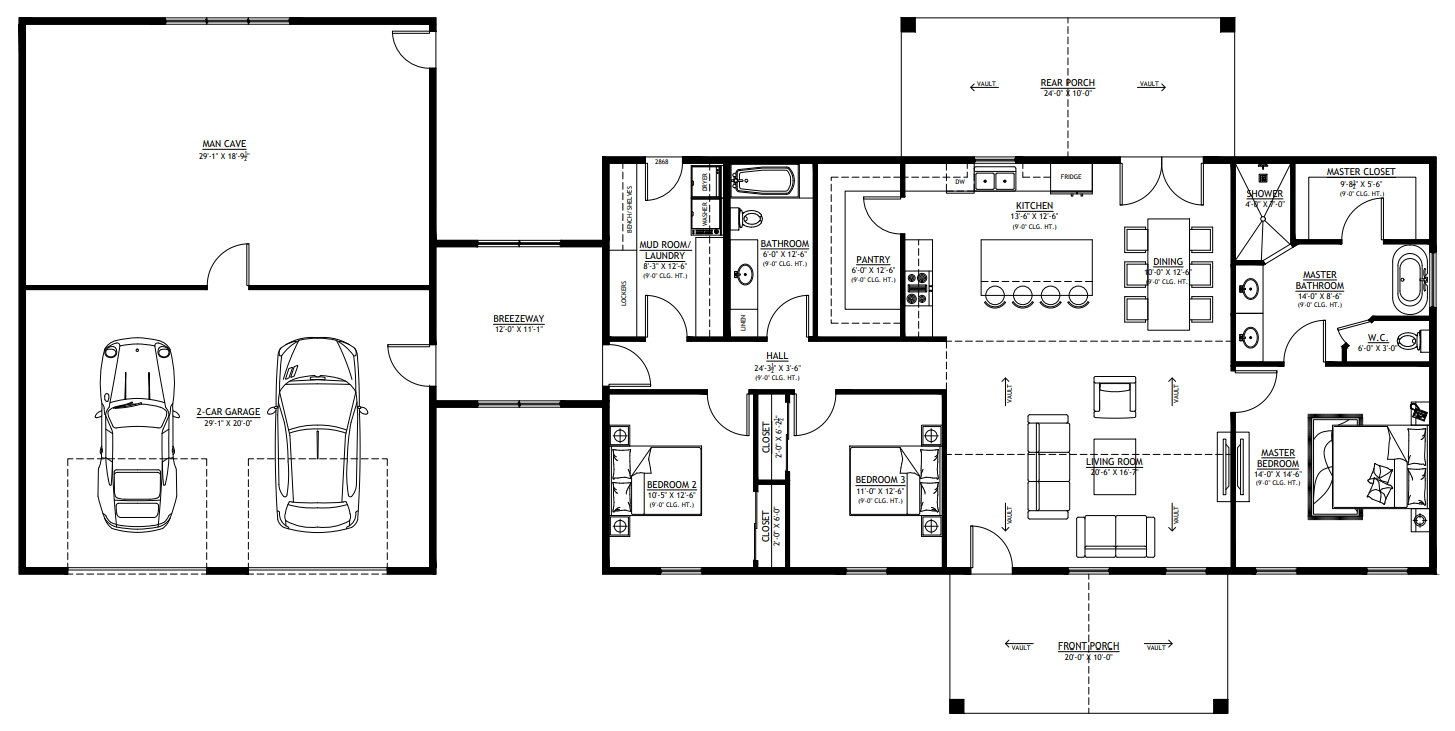

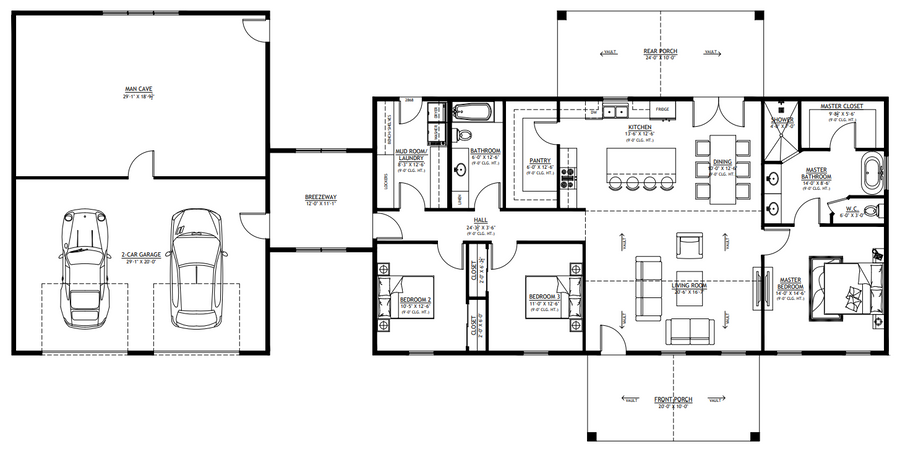

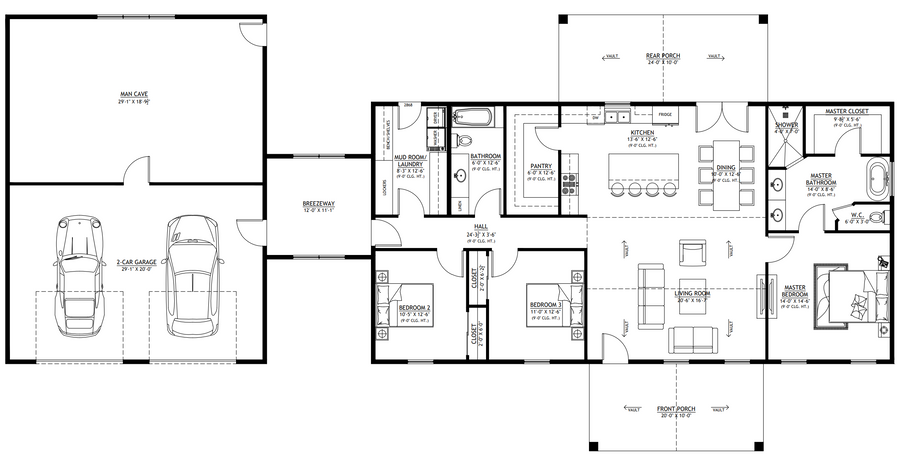

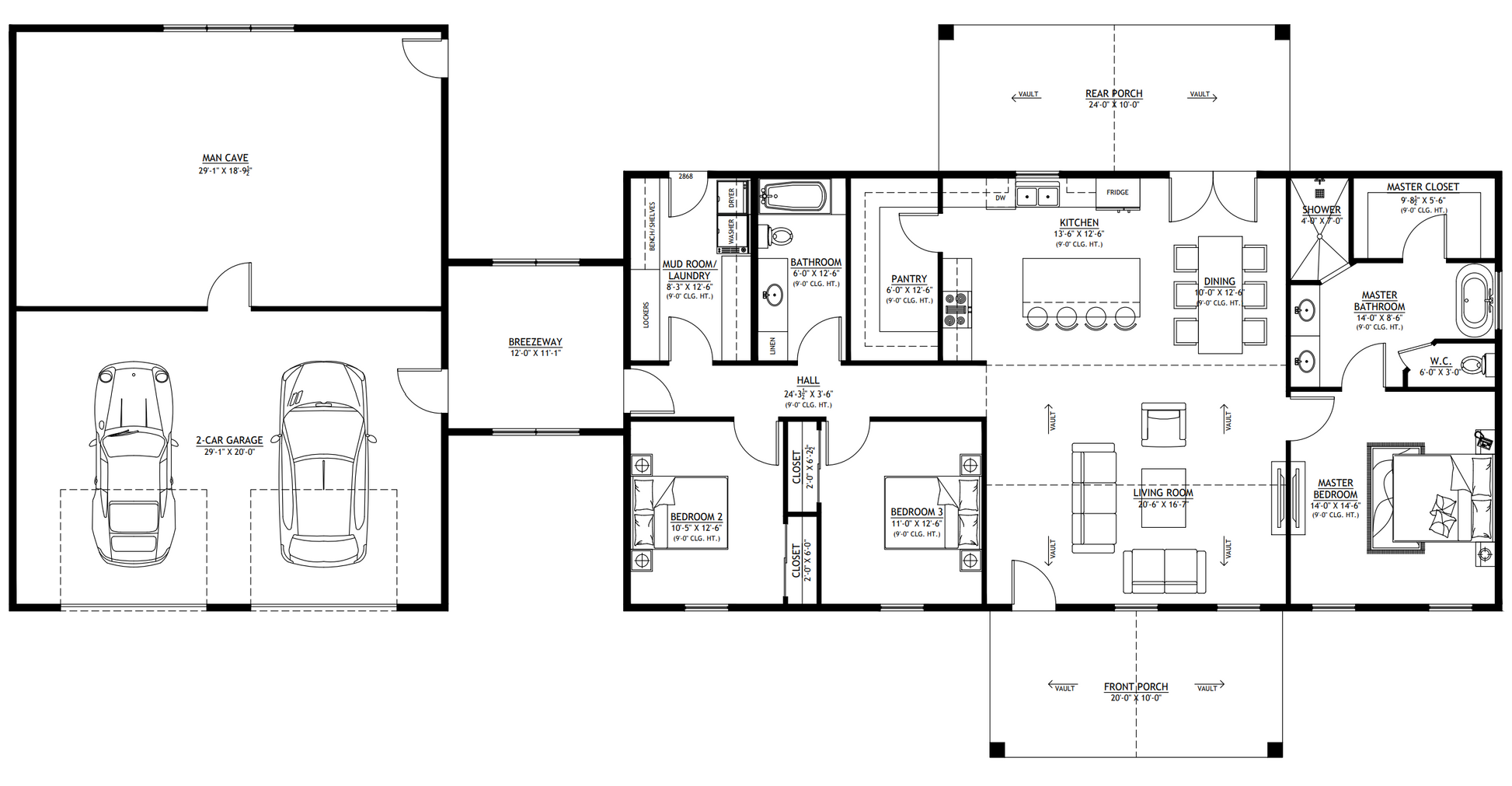

Floor Plan
DETAILS
HEATED SQ FT
First Floor:
1,800 SF
Second Floor:None
Total Heated Sq Ft:1,800 SF
UNHEATED SQ FT
Total Unheated Area:
Garage 614 SF, Man Cave 586 SF, Breezeway 144 SF, Porch 440 SF = TOTAL 1,784 SF
Carport:None
Bedrooms:
3
Full Baths:
2
Floors:
1
Garage Size:
614 SF
Width:
102"
Depth:
40'
Height:
19'-3"
Foundation:
Concrete Slab
Main Roof Pitch:
6:12
Exterior Framing:
Stick Frame
CEILING HEIGHTS
First Floor:
9'
LP-3208-A Ashley Barndominium House Plan
About this barndominium house plan:
- 1,800 Heated Sq Ft
- 60x30 living space dimension
- 3 bedrooms
- 2 bathrooms
- Single Story
- Open Concept
- Breezeway
- Mancave
- Mudroom/laundry
- Front & rear porch
- 614 Sq Ft Garage
- A well-balanced single-level design with 3 bedrooms and 2 bathrooms offering spacious proportions and efficient flow across 1,800 square feet.
- Covered breezeway links the garage and main living space—adding charm, airflow, and practical movement between zones.
- Dedicated retreat tucked behind the garage—ideal for hobbies, entertainment, or a private escape.
- Functional entry space with integrated laundry—streamlining household tasks and keeping the main living areas tidy.
- Covered porches extend the living experience outdoors—welcoming from the front, relaxing at the back.
- Spacious garage with room for two vehicles plus storage—designed for convenience and everyday utility.
What's included in LP-3208-A:
Cover Page
Floor Plan
Roof Plan

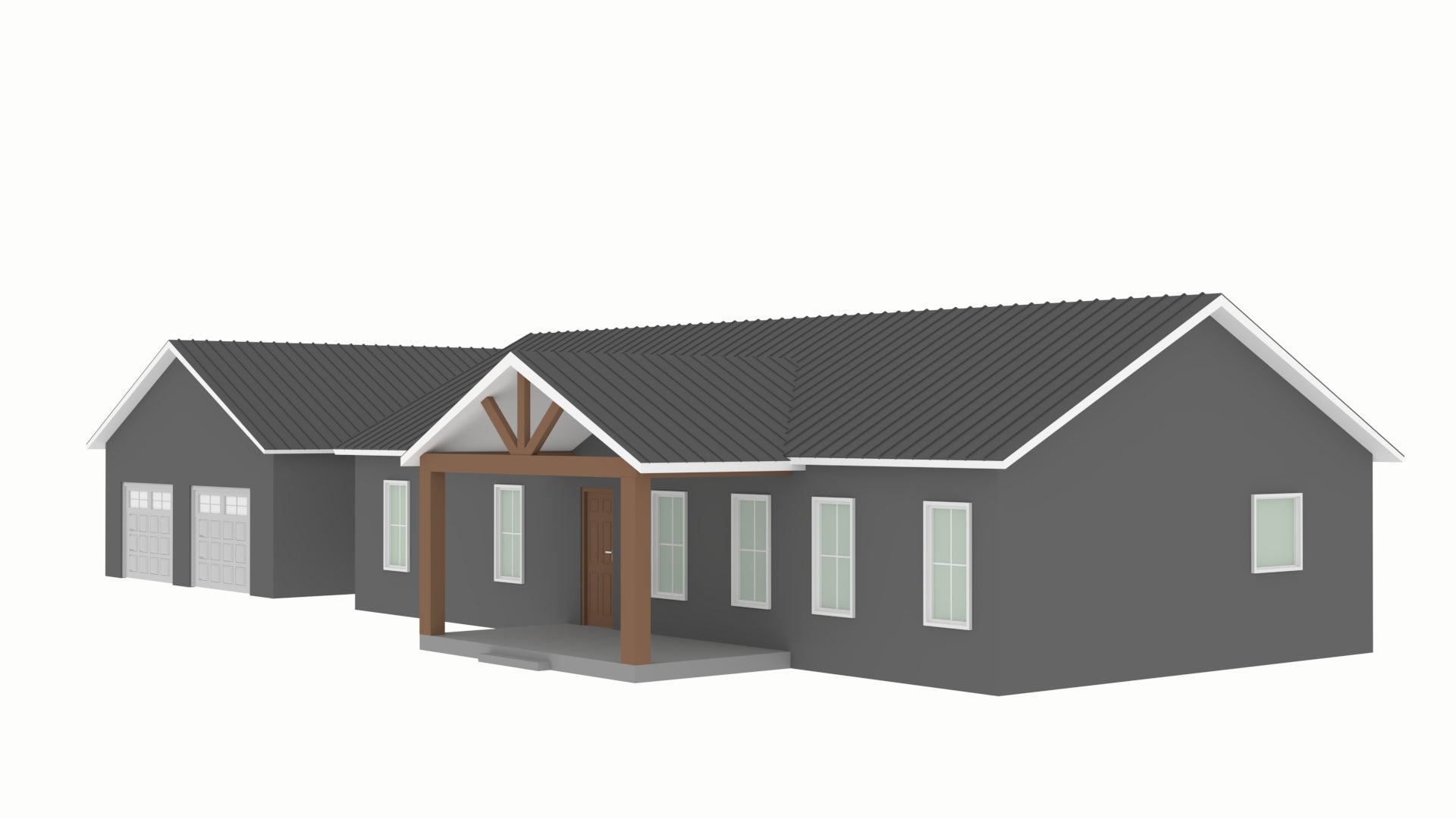

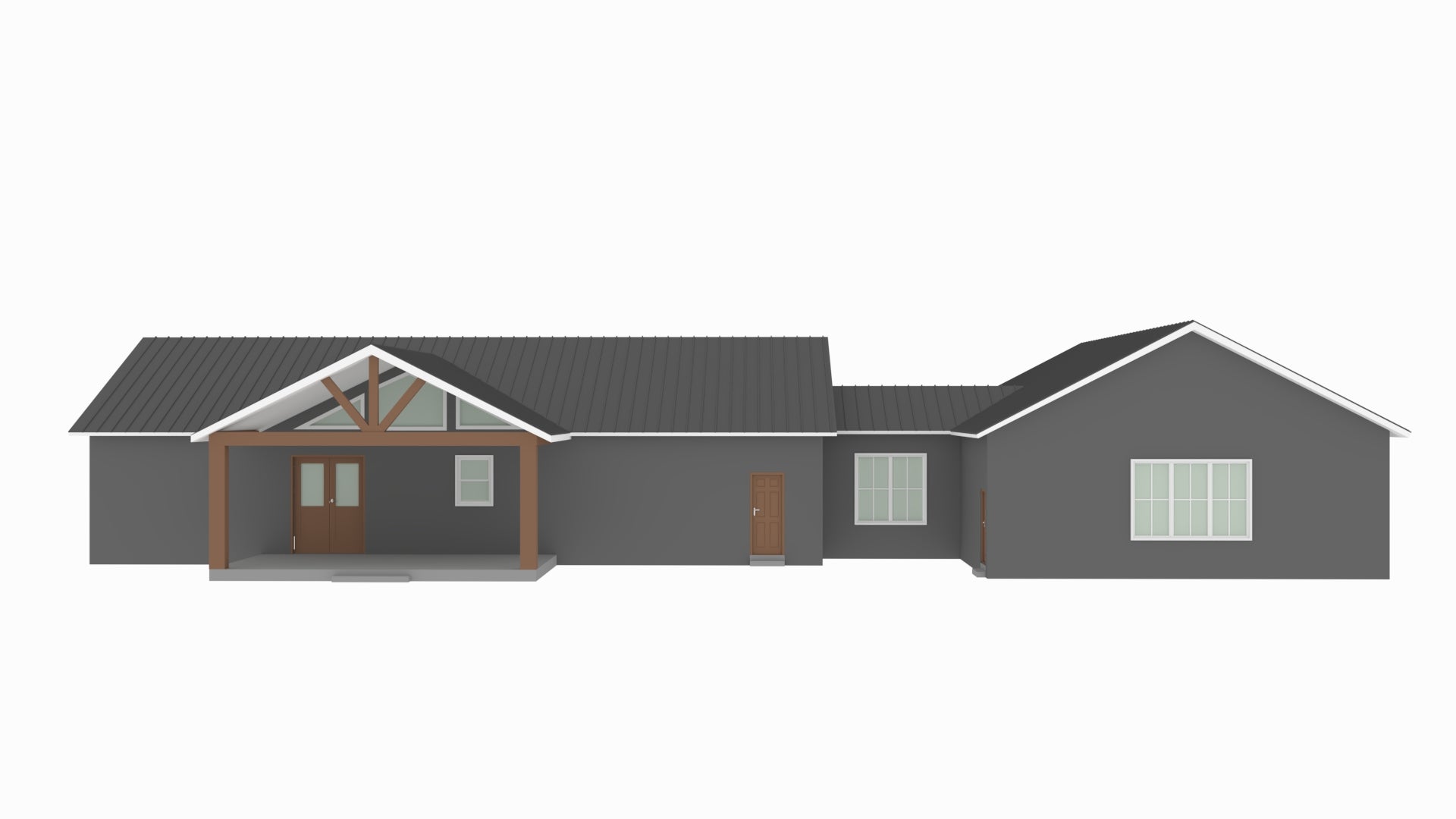

Elevations
Electrical Plan
Plumbing Plan
HVAC Plan
Roof Framing Plan
Foundation Plan
Foundation Detail
Interior Bearing Footing
C-Typical Column Detail
Wall Section
For more barndominium floor plans, check out our complete collection of 3-bedroom barndominium floor plans.
Need to make changes? Submit a modification request using the button that says Modify This Plan. We will get you a free price quote within 72 hours
What's Typically Included
What's Typically Included
THE SPECIFC DETAILS OF WHAT'S INCLUDED ON THESE PLANS IS CONTAINED IN THE PRODUCT DESCRIPTION. PLEASE SCROLL UP AND YOU WILL FIND IT UNDER "WHAT'S INCLUDED"
Our house plan sets typically have the following details:
4 Elevations – Front, Back, Both Sides
Detailed Floor Plan Drawing
Electrical Plans with placements for HVAC
Plumbing Plans with Placements
Flooring Plan
Roof Plan
Foundation Plan
For more information on what's included and examples of what your plans will look like, go here -> https://barndominiumplans.com/pages/whats-included
Please Note: We work with many different draftspeople who work in many different ways. It should be noted that their plans may contain different details. THE SPECIFC DETAILS OF WHAT'S INCLUDED ON THESE PLANS IS CONTAINED IN THE PRODUCT DESCRIPTION. PLEASE SCROLL UP AND YOU WILL FIND IT UNDER "WHAT'S INCLUDED"
What's Not Included
What's Not Included
The following items are NOT included:
Architectural or Engineering Stamp. Our plans are engineering-ready! Can take them to a local engineer in your state.
Site Plan - We can provide this if needed for $300 additional.
Materials List - handled locally when required
Energy calculations - handled locally when required
Snow load calculations - handled locally when required
Delivery
Delivery
This plan is available as a digital product or printed + shipped.
If you select digital, the plan will be delivered to you via email as a PDF file, no matter what time it is.
If you select printed + shipped, your order will ship in 24x36 format within 1 business day of your order.
We ship from the midwest in order to serve the entire country within 3-5 business days!
Return policy
Return policy
All barndominium house plan purchases are FINAL. There are no exchanges or refunds due to the digital nature of the product. Please make sure that the plan you have selected is going to fit your needs.
💥
