HC-24003 Magnolia Barndominium House Plan

Regular price $849.99 USD
Regular price Sale price $849.99 USD
Sale Sold out
Skip to product information
1 of 6

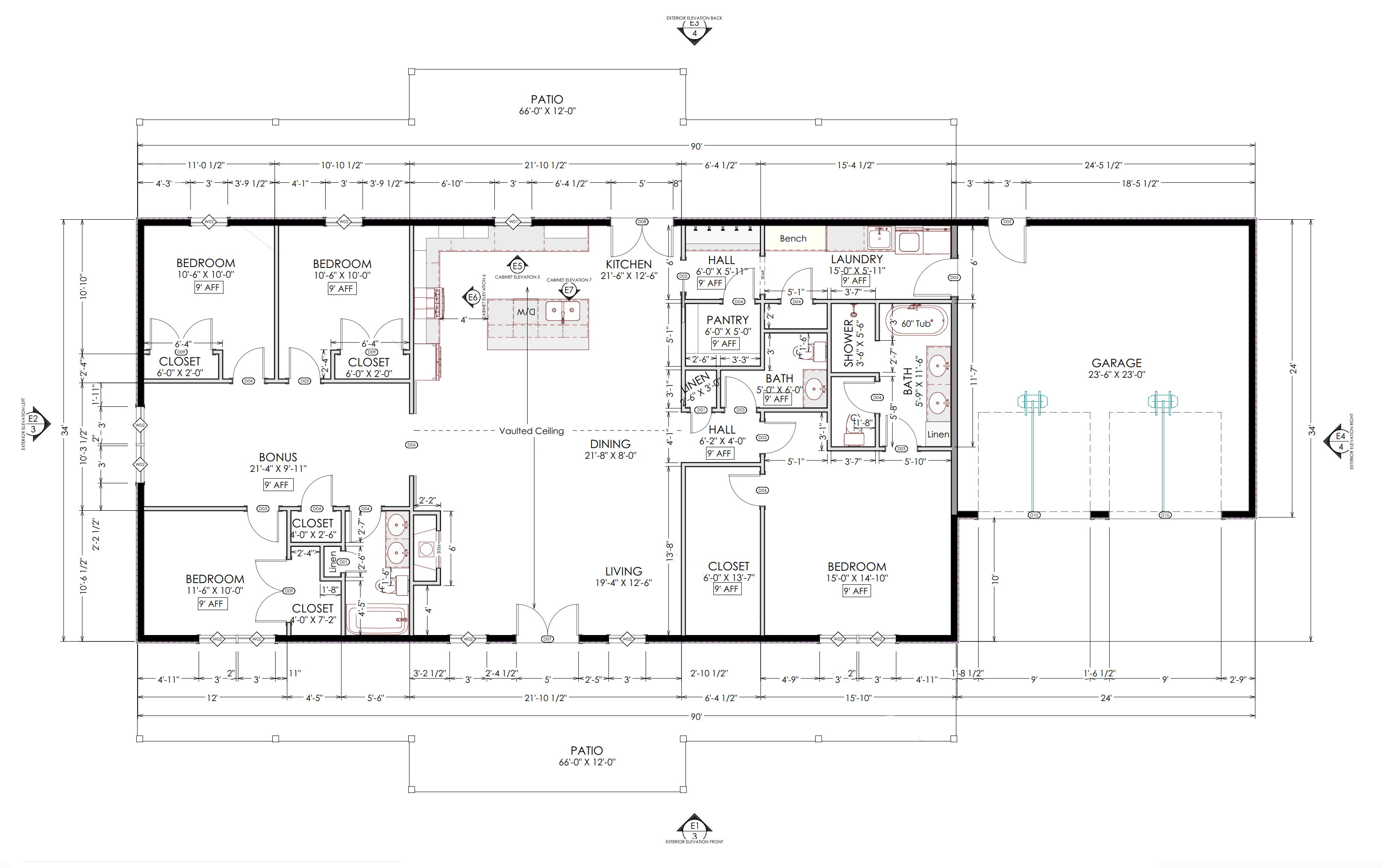

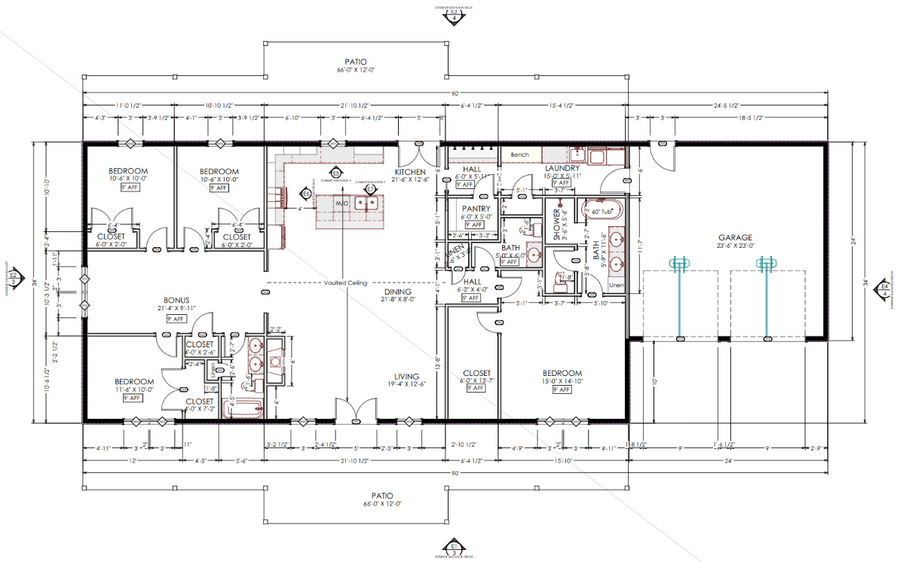

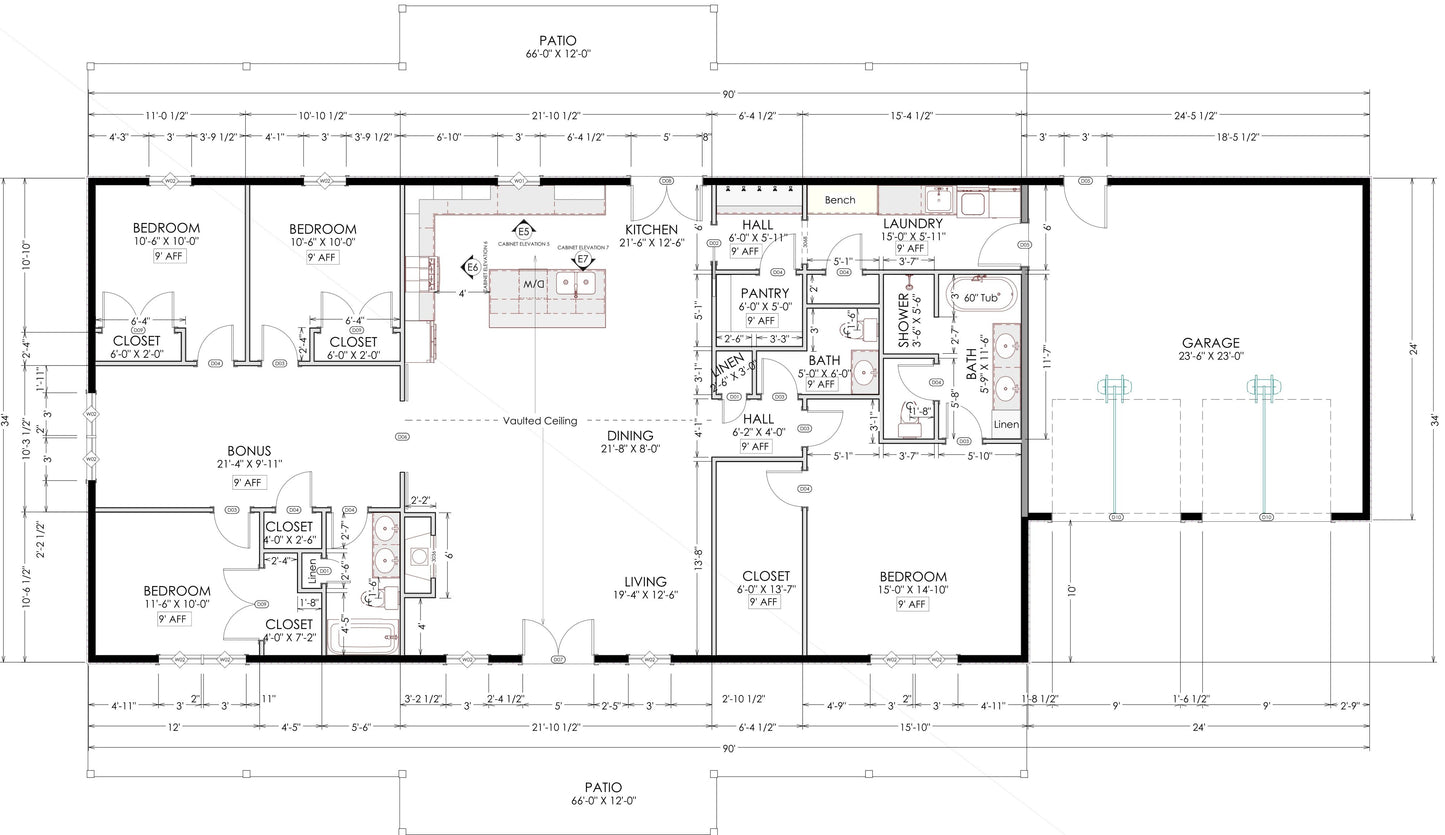

Floor Plan

DETAILS

HEATED SQ FT

First Floor:

2244 SF

UNHEATED SQ FT

Total Unheated Area:

1770 SF

Carport:

None shown

Total Porch/Patio Area:

1230 SF

Bedrooms:

4

Full Baths:

2

Floors:

1

Garage Size:

540 SF

Width:

66'

Depth:

90'

Height:

16'-0" (main structure)

13'-9" at garage ridge

Foundation:

Non-engineered slab

Main Roof Pitch:

4:12

Exterior Framing:

Post-frame with metal sheeting

CEILING HEIGHTS

First Floor:

9 feet AFF — Above Finished Floor

HC-24003 Magnolia Barndominium House Plan

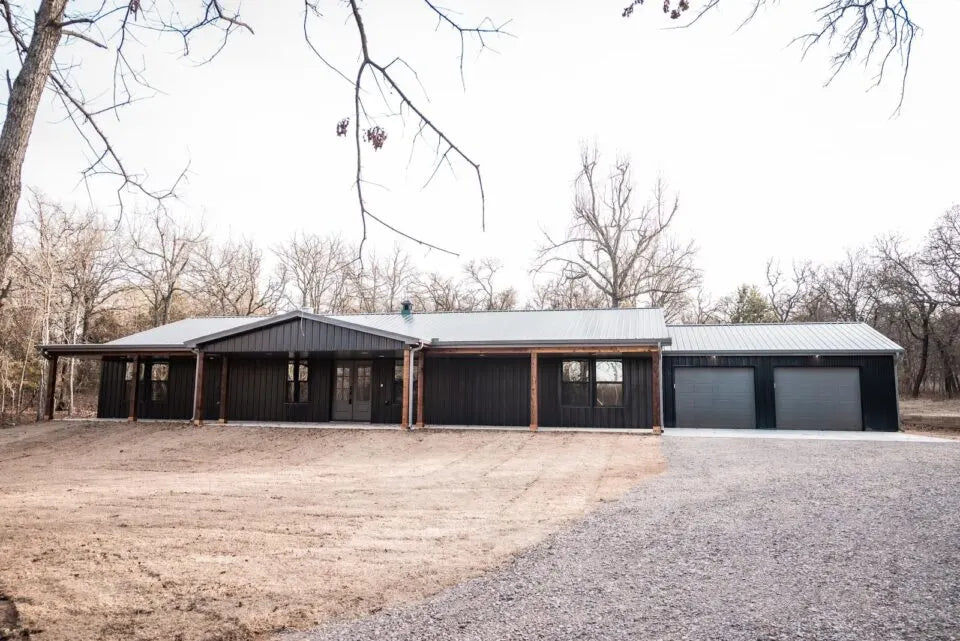

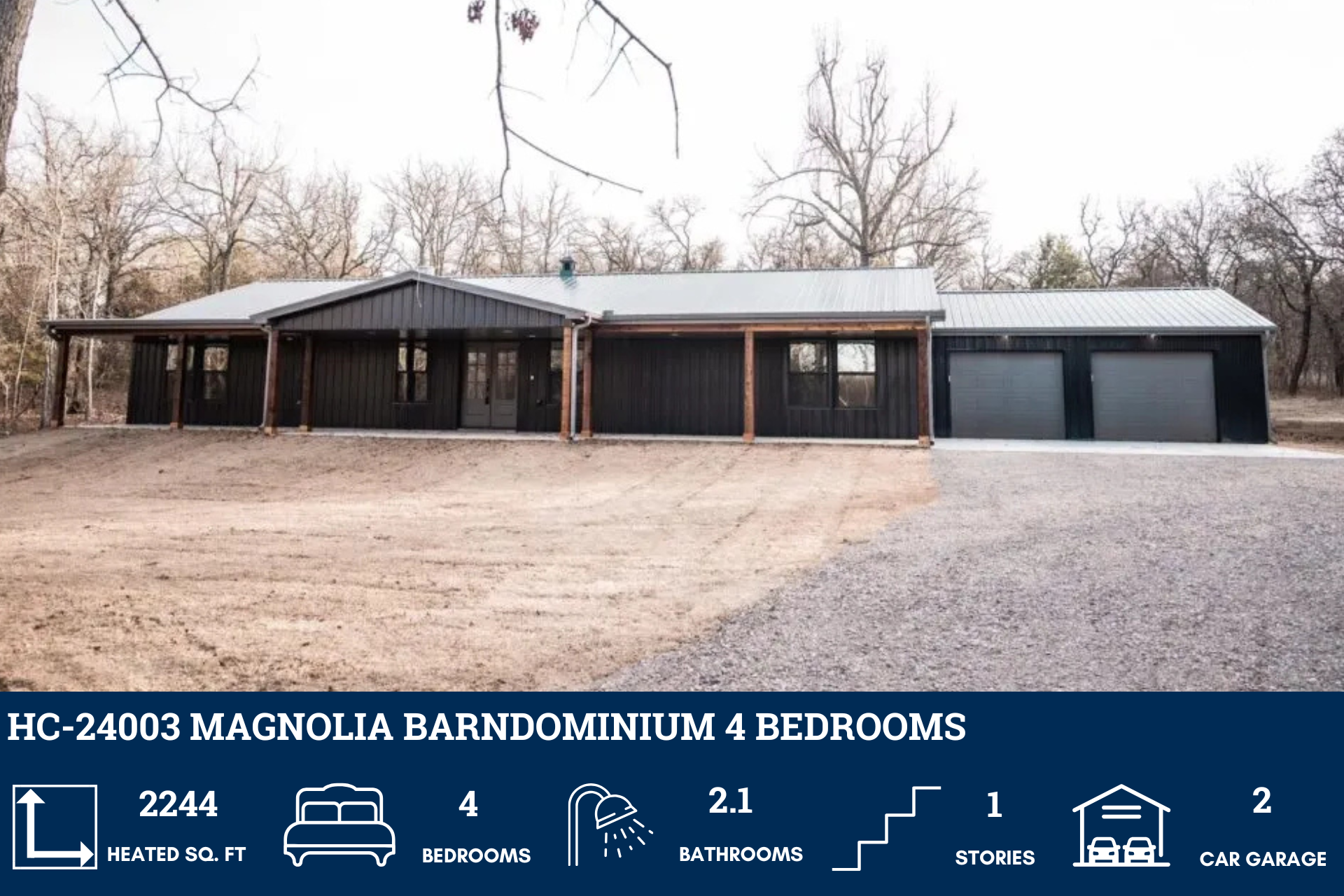

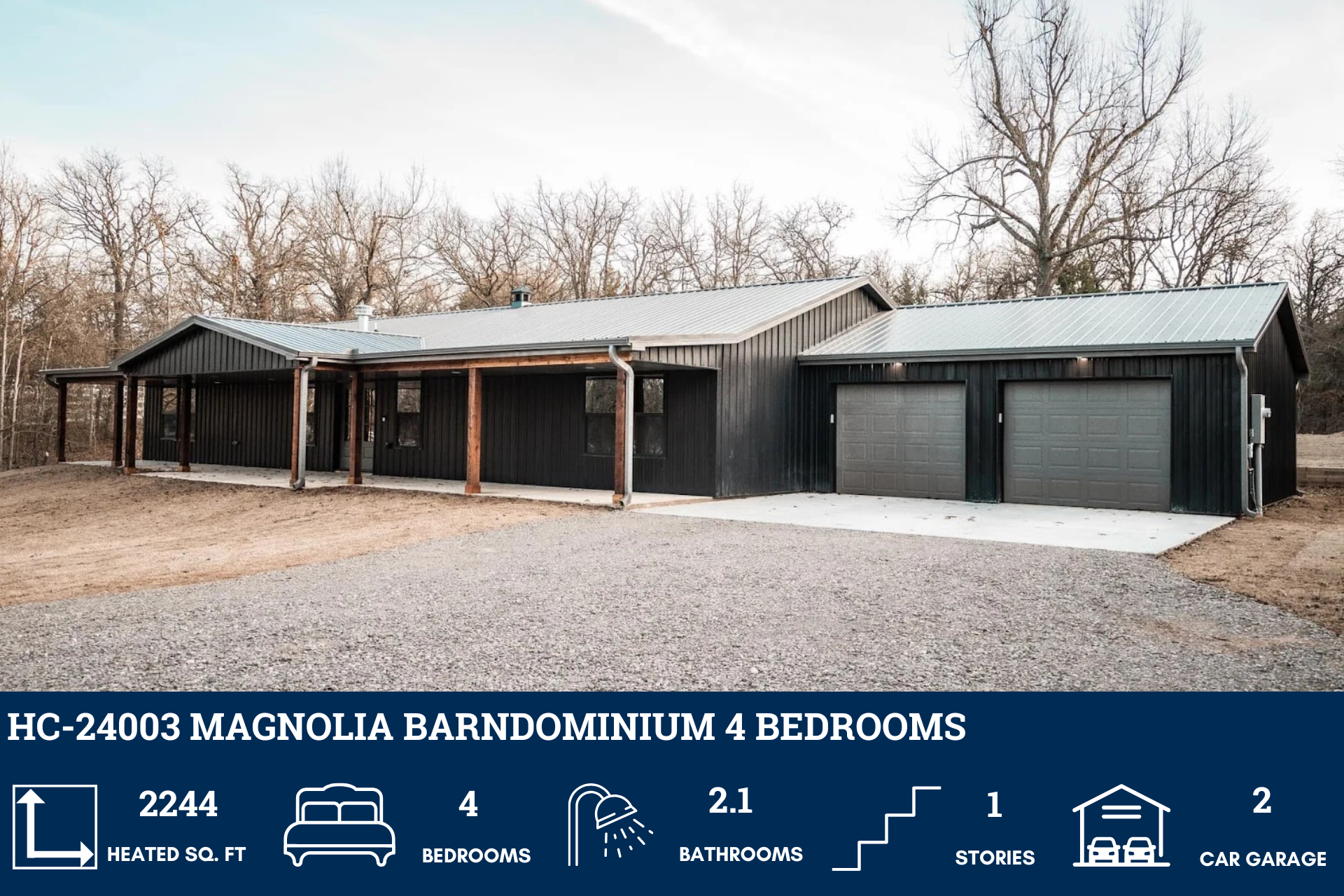

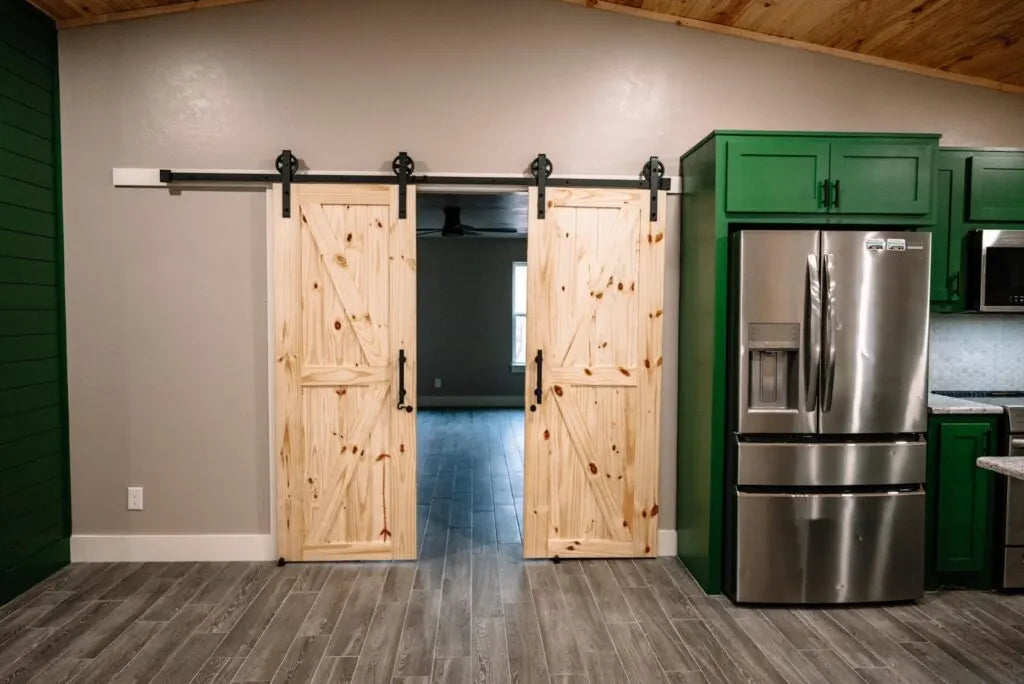

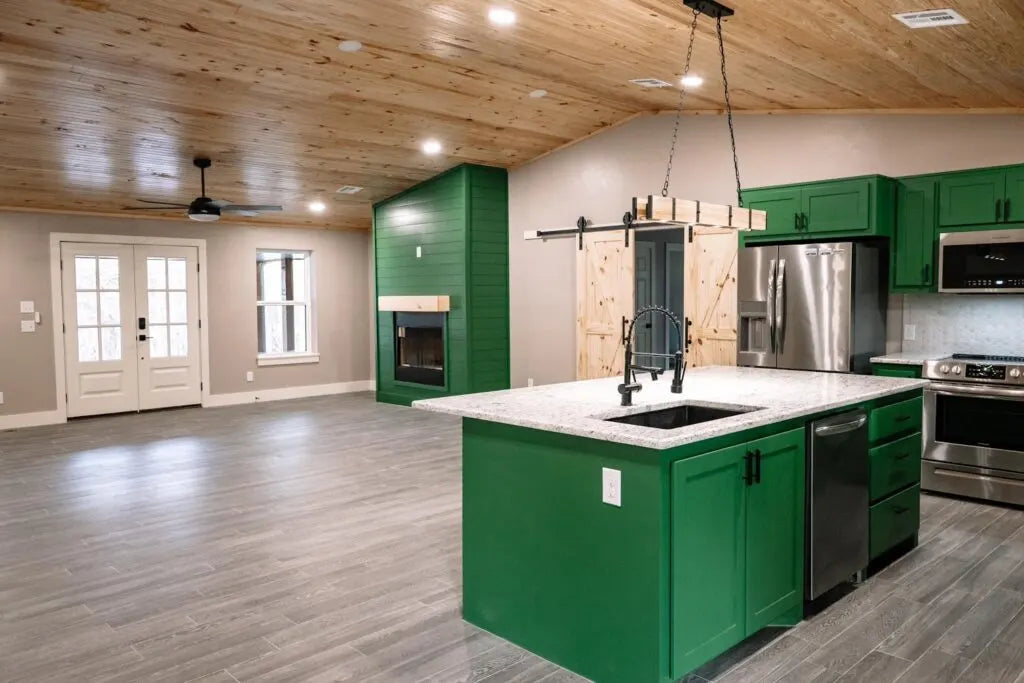

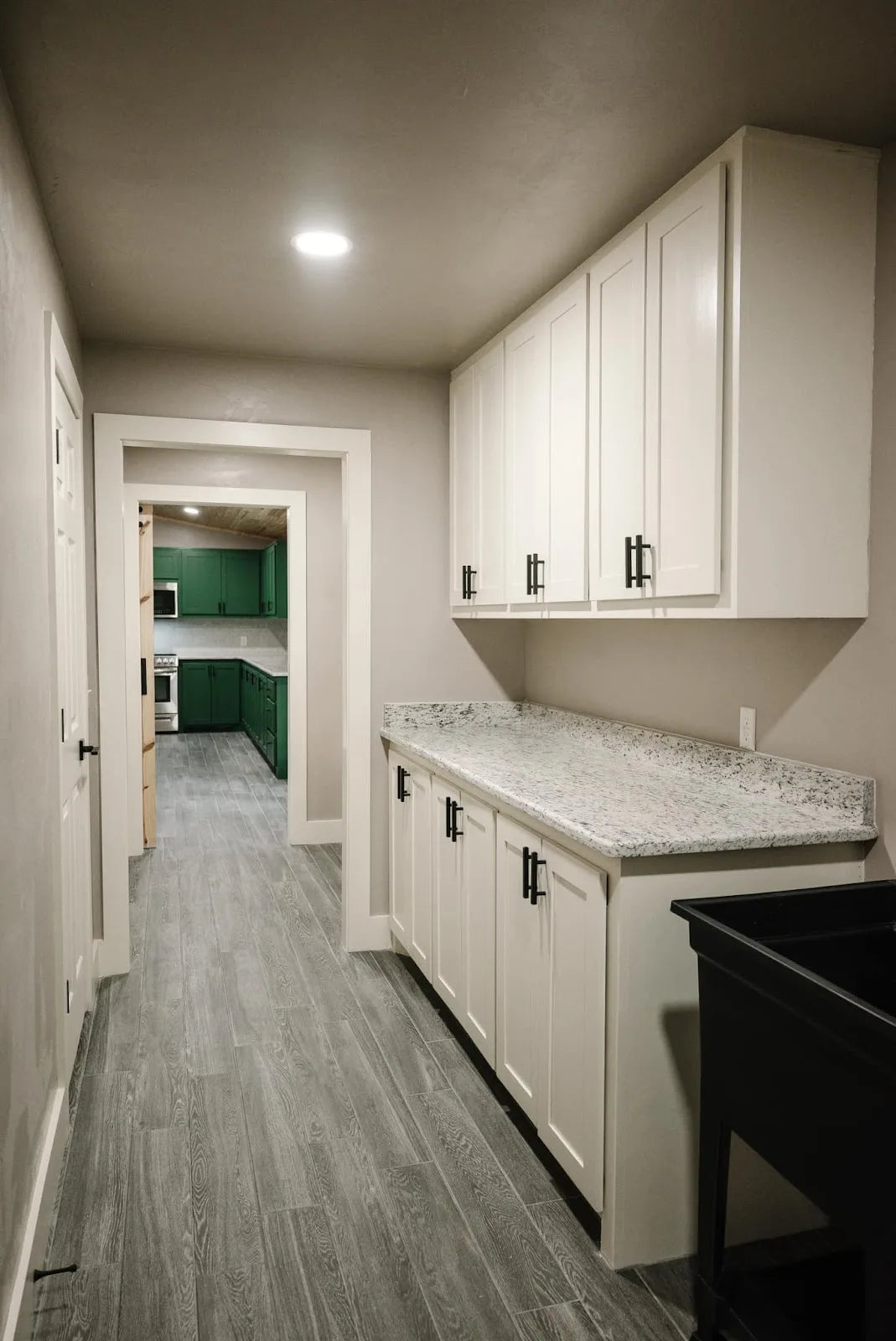

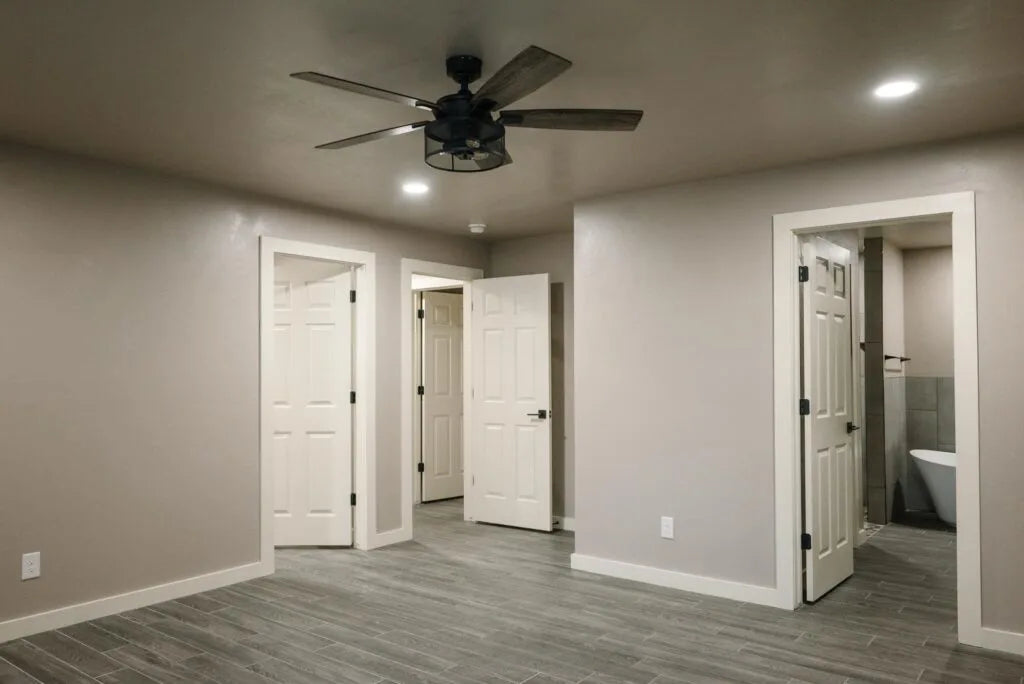

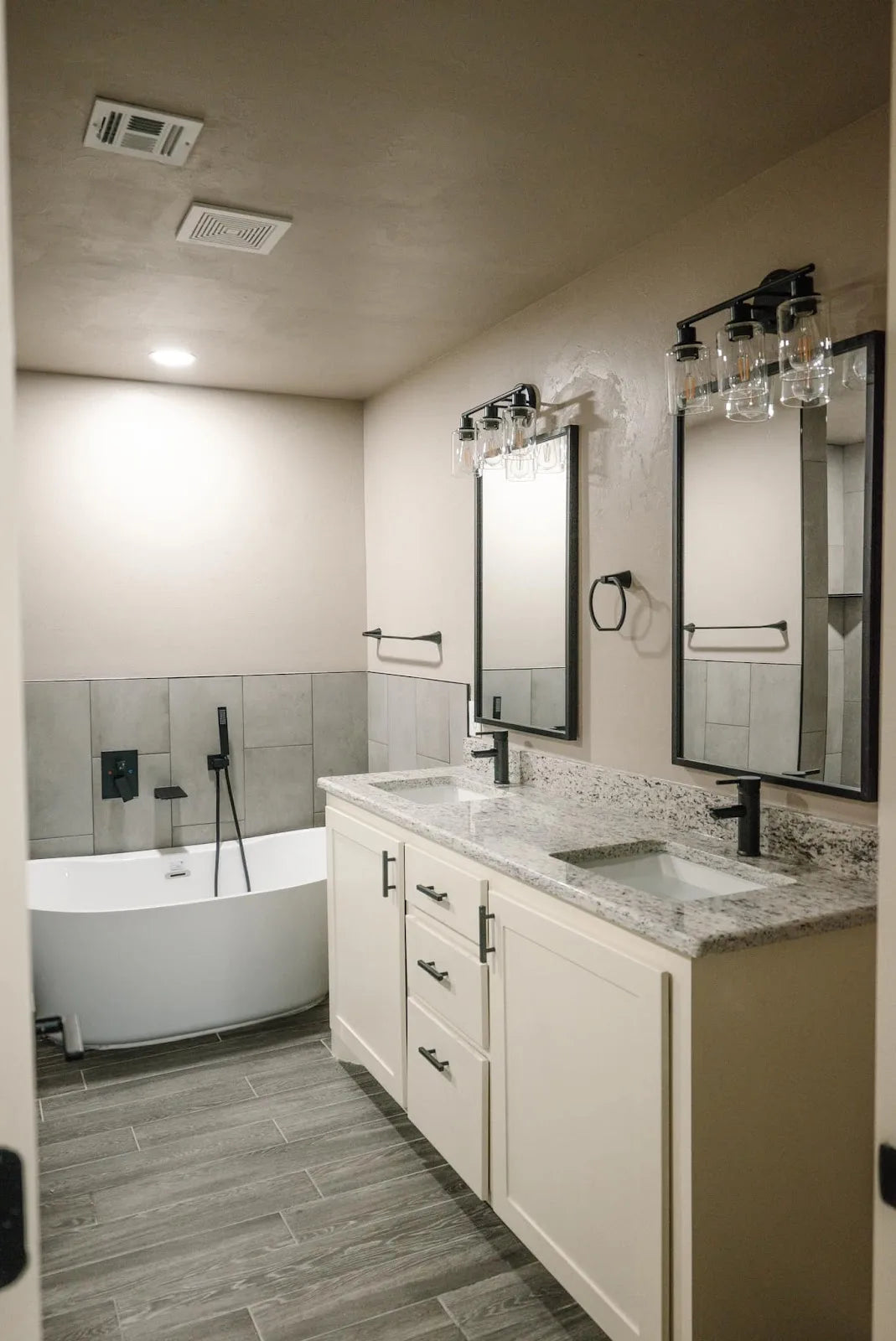

You can see all the pictures of this plan as a completed home here!

  • 2244 Heated square feet
  • 4 Bedrooms
  • 2.1 Bathrooms
  • Open concept
  • 540 Sq Ft Attached Garage
  • Bonus Room

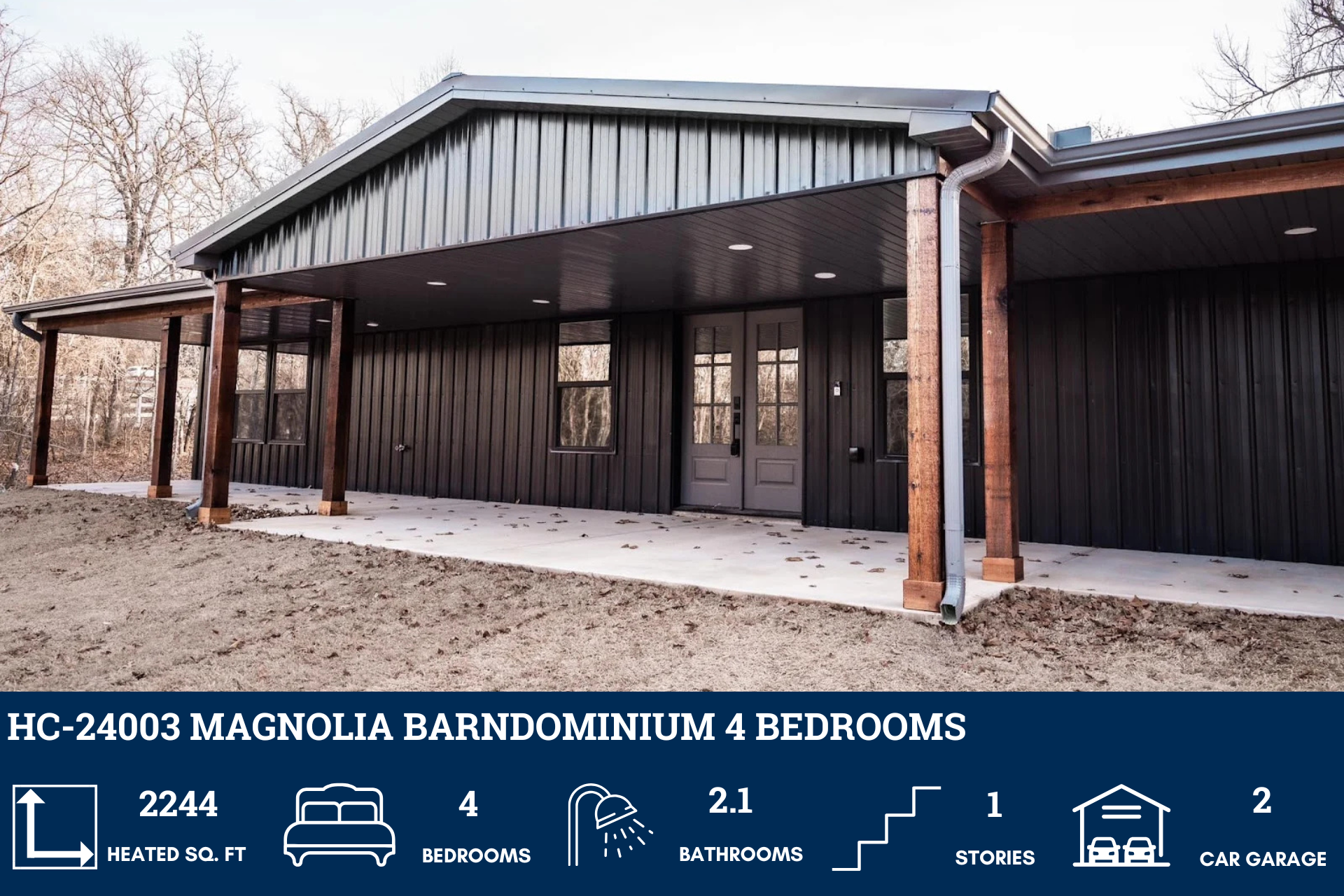

  • Front and Rear Porch



  • A thoughtfully designed floor plan that offers 2244 heated square feet of living space. This layout features 4 bedrooms and 2.1 bathrooms, ensuring ample room for a comfortable lifestyle.
  • The 540 sq ft attached garage provides generous space for your vehicles and additional storage. A unique feature of this plan is the bonus room, which can be customized to suit your needs, whether it’s a home office, gym, or a playroom.
  • Adding to the charm of this home are the front and rear porches, providing delightful outdoor spaces for relaxation or entertaining.



For more barndominium floor plans, check out our complete collection of 4-bedroom barndominium floor plans.

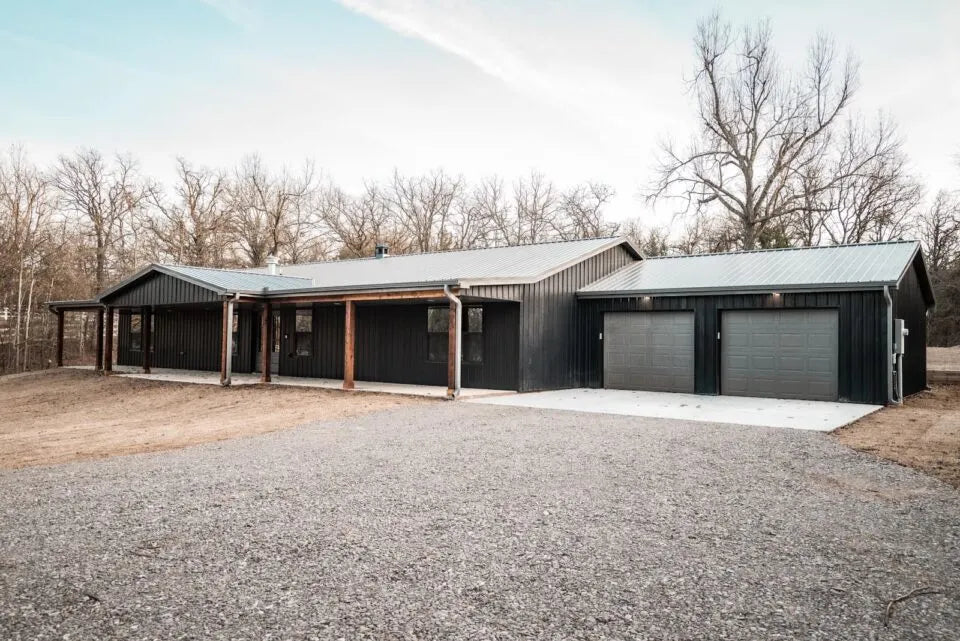

You can see this plan as a completed home here!

Need to make changes? Email our modification department. We will get you a free price quote within 72 hours.

Please note all square footage are estimates.

What's Included

Our house plan sets typically have the following details:

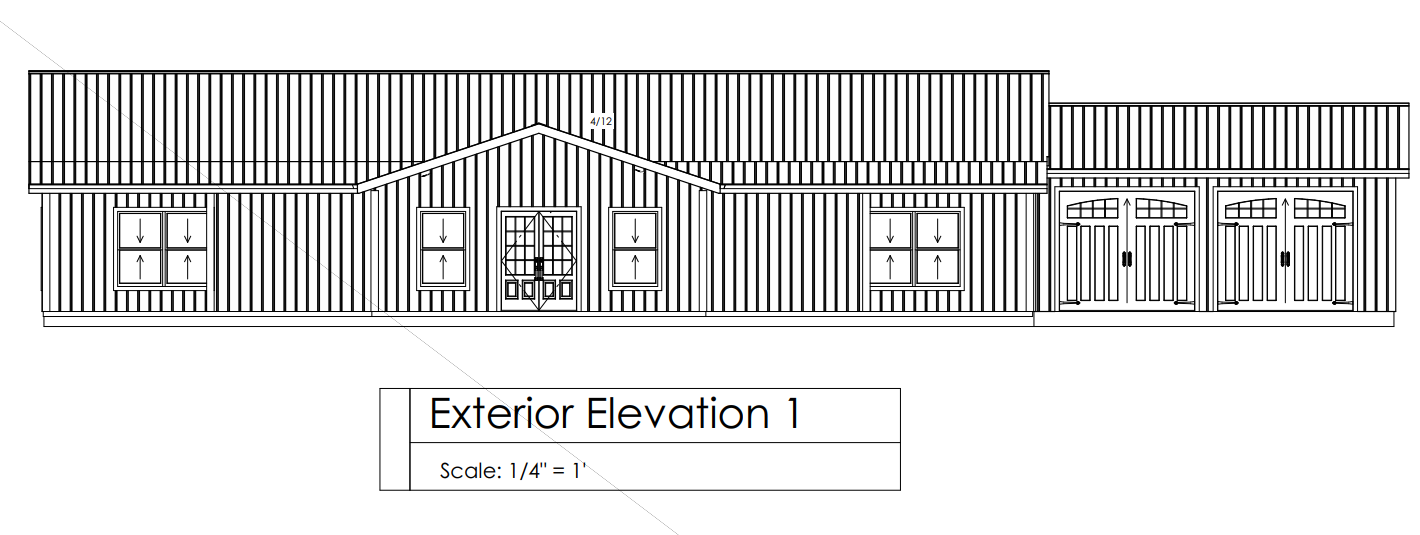

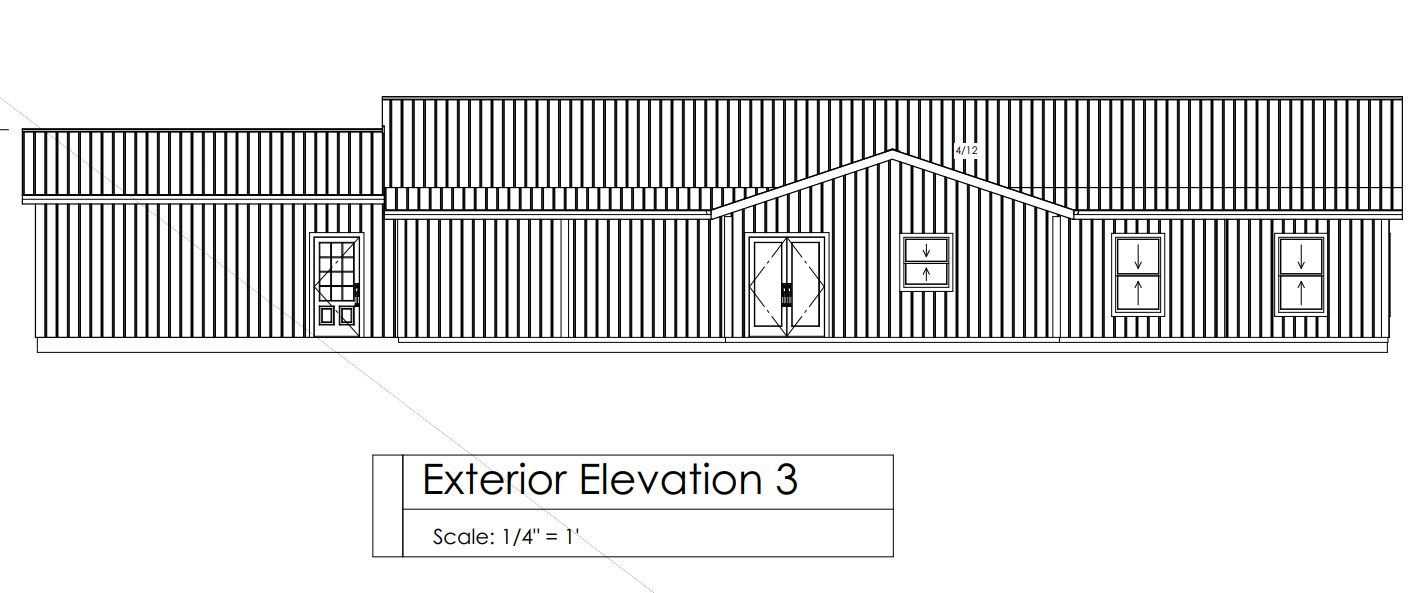

4 Elevations – Front, Back, Both Sides

Detailed Floor Plan Drawing

Electrical Plans with placements for HVAC

Plumbing Plans with Placements

Flooring Plan

Roof Plan

Foundation Plan

For more information on what's included and examples of what your plans will look like, go here -> https://barndominiumplans.com/pages/whats-included

Please Note: We work with many different draftspeople who work in many different ways.  It should be noted that their plans may contain different details.

What's Not Included

The following items are NOT included:

Architectural or Engineering Stamp - handled locally if required. We can help you find a structural engineer locally

Site Plan - handled locally when required

Energy calculations - handled locally when required

Snow load calculations - handled locally when required

Delivery

This plan is available as a digital product or printed + shipped.

If you select digital, the plan will be delivered to you via email as a PDF file, no matter what time it is.

If you select printed + shipped, your order will ship in 24x36 format within 1 business day of your order.

We ship from the midwest in order to serve the entire country within 3-5 business days!

Return policy

All barndominiun house plan purchases are FINAL. There are no exchanges or refunds due to the digital nature of the product. Please make sure that the plan you have selected is going to fit your needs.
