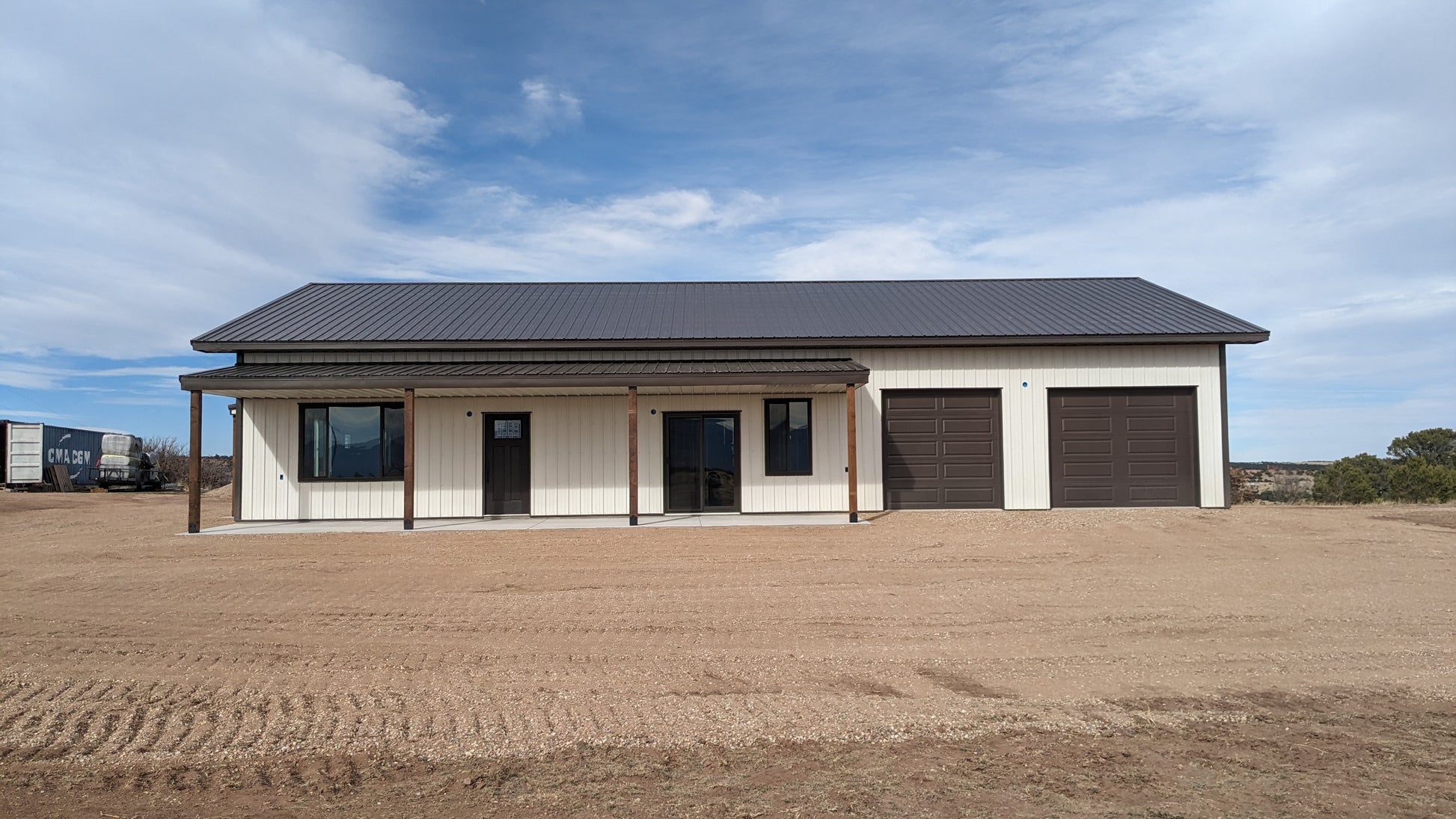

GJ-4405 Dover Barndominium House Plan

$849.99 USD
$849.99 USD
Sale Sold out
Add To Wishlist
1 9

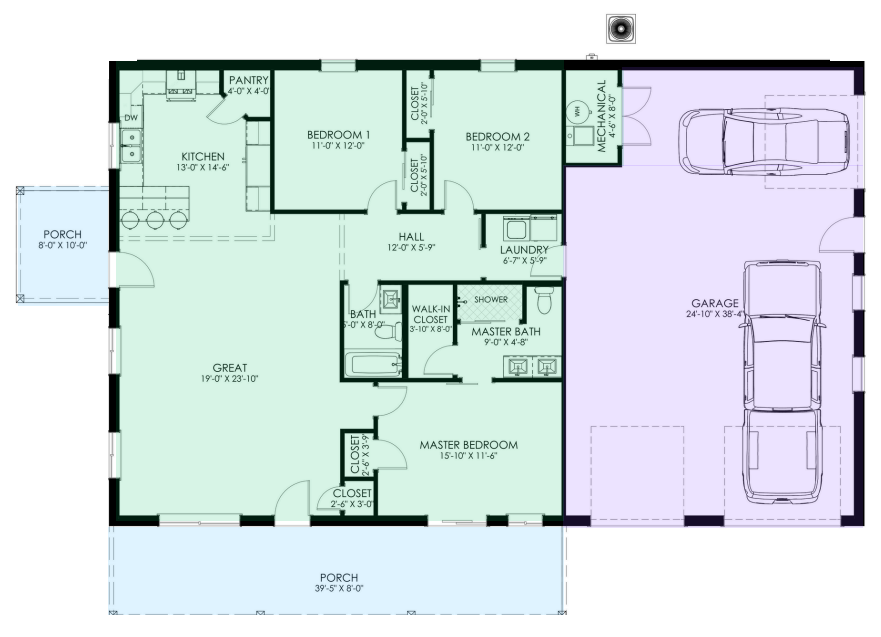

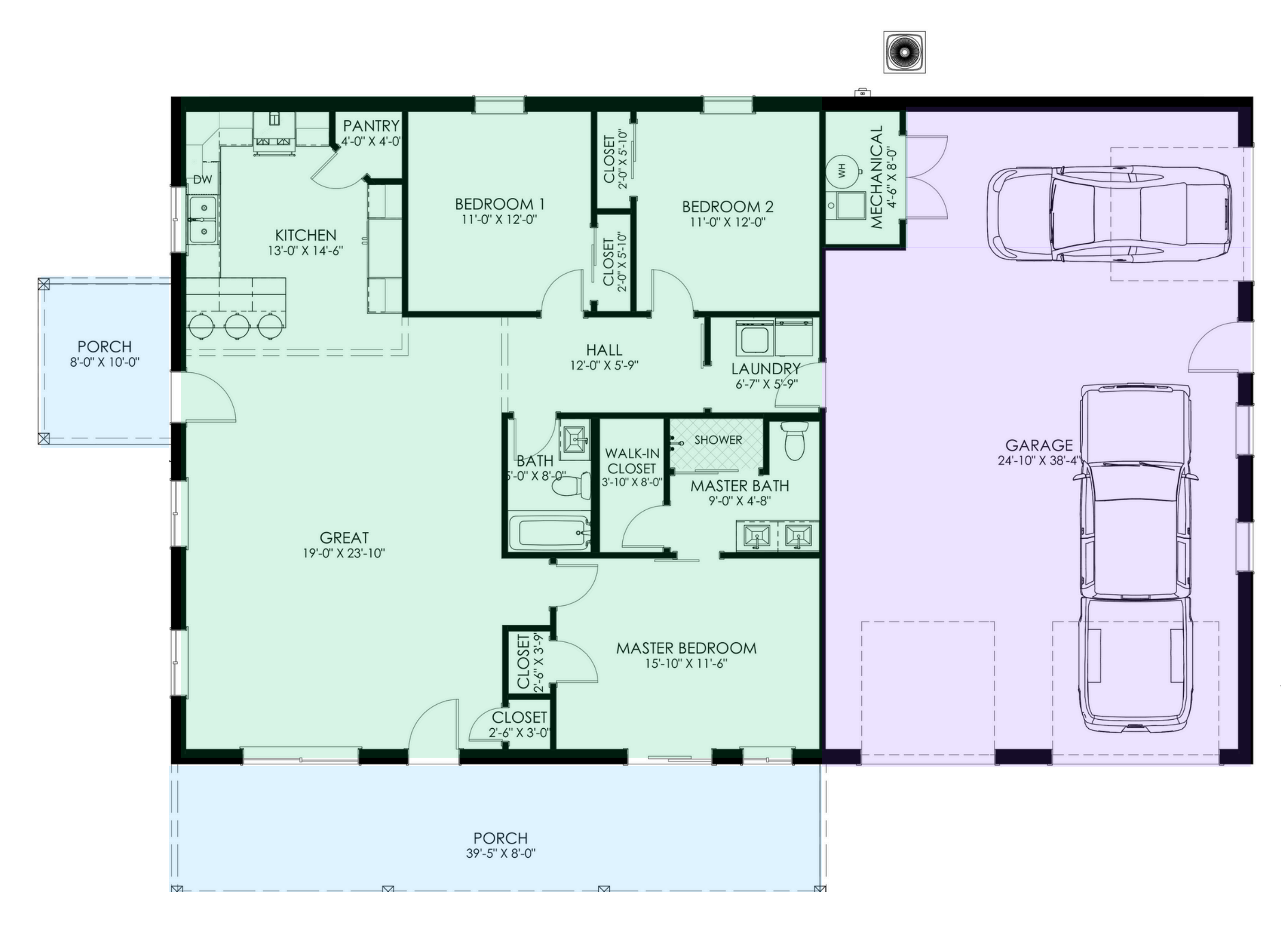

Floor Plan

DETAILS

HEATED SQ FT

First Floor:

1,572 SF

Second Floor:

None

Total Heated Sq Ft:

1,572 SF

UNHEATED SQ FT

Total Unheated Area:

Garage 982 SF, Porch 395 SF = TOTAL 1,377 SF

Carport:

None

Bedrooms:

3

Full Baths:

2

Floors:

1

Garage Size:

982 SF

Width:

65'

Depth:

40'

Height:

18'-7 1/8"

Foundation:

Concrete Slab

Main Roof Pitch:

4:12

Exterior Framing:

Metal Frame

CEILING HEIGHTS

First Floor:

8'

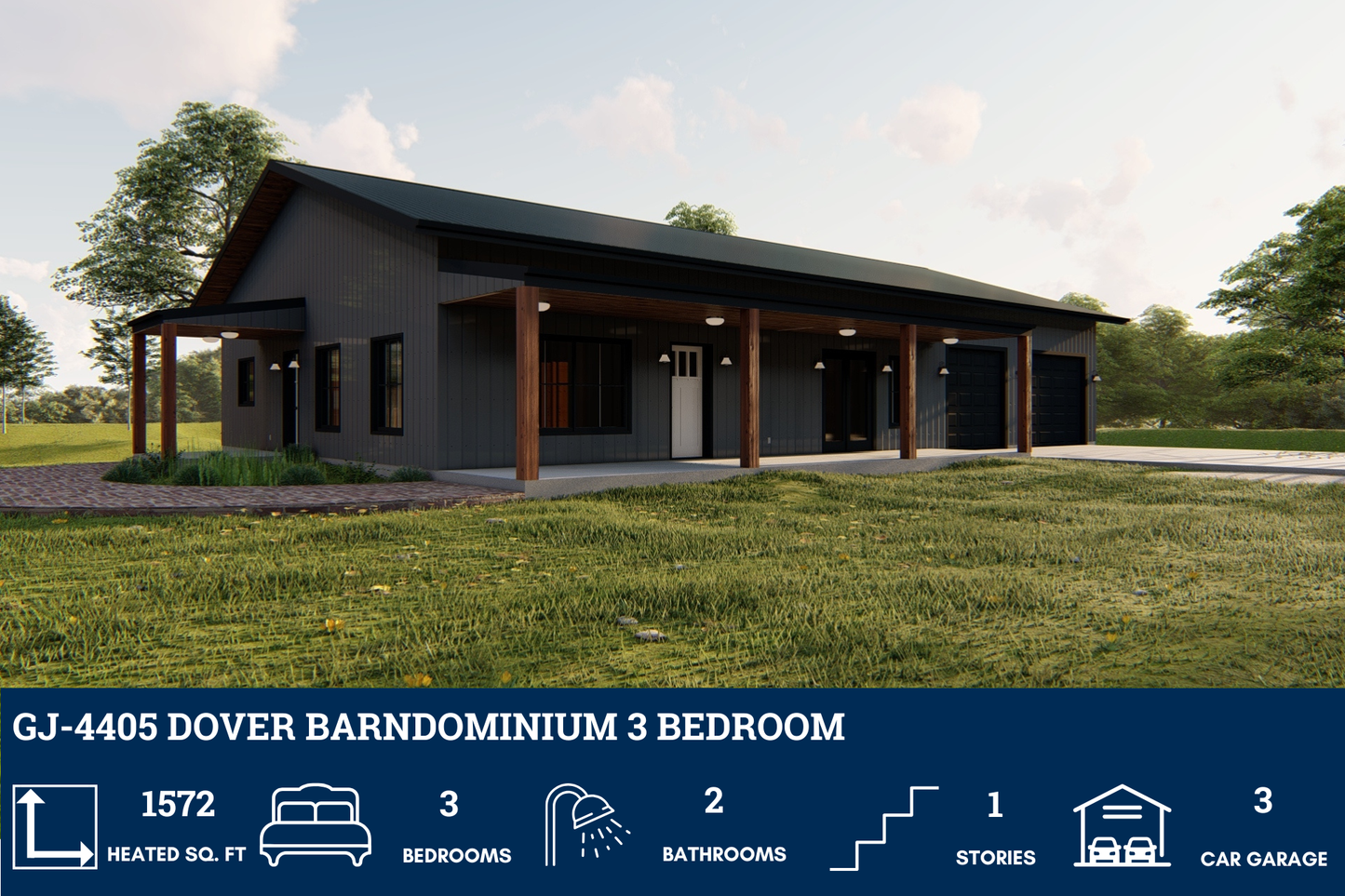

GJ-4405 Dover Barndominium House Plan



About this barndominium house plan:

  • 1,572 Heated Sq Ft

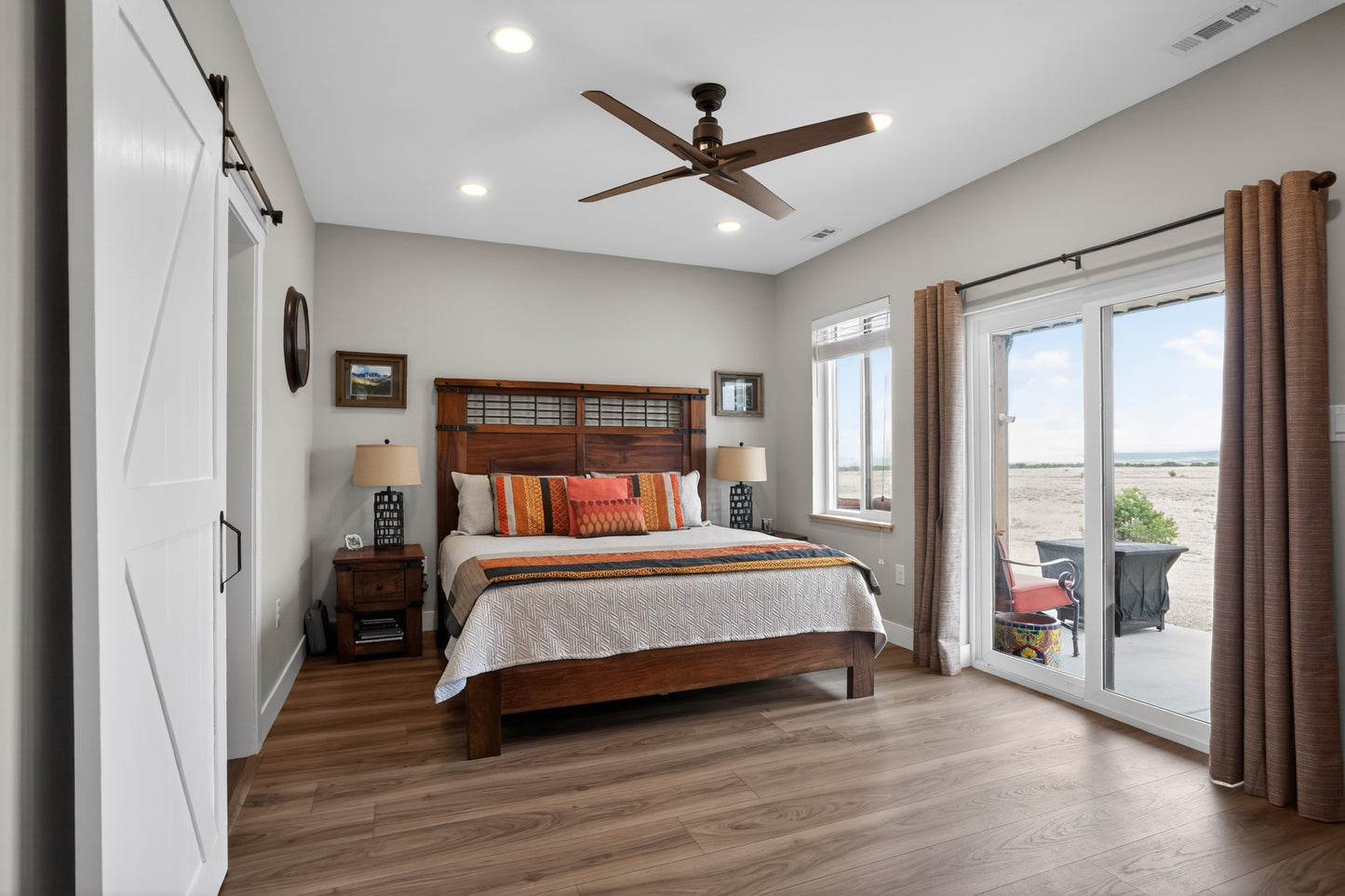

  • 3 bedrooms
  • 2 bathrooms
  • Single Story

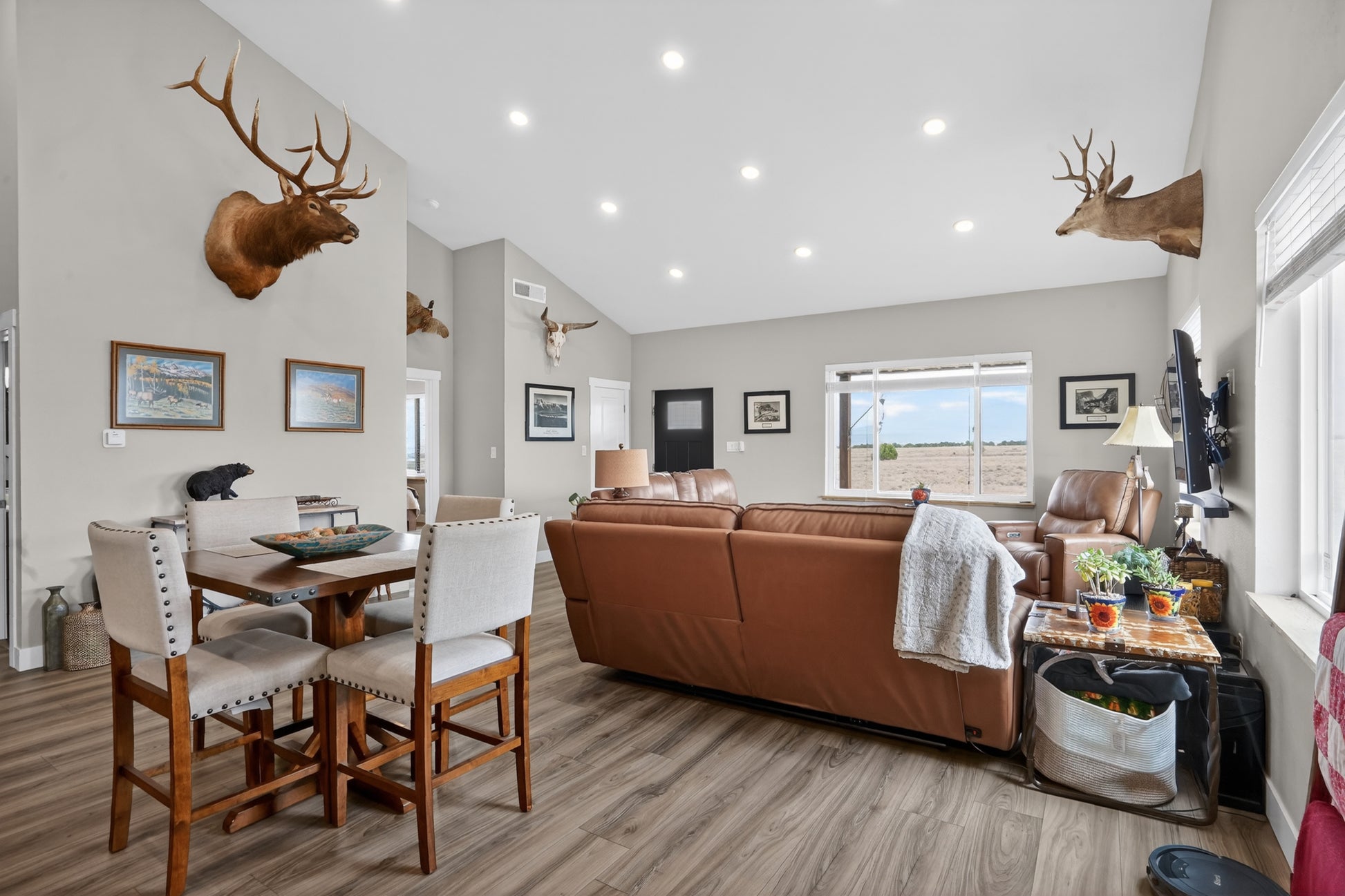

  • Open Concept
  • Mechanical closet
  • Covered porches
  • 982 Sq Ft Garage



  • A well-proportioned layout offering over 1,500 square feet of conditioned space with 3 bedrooms and 2 bathrooms.

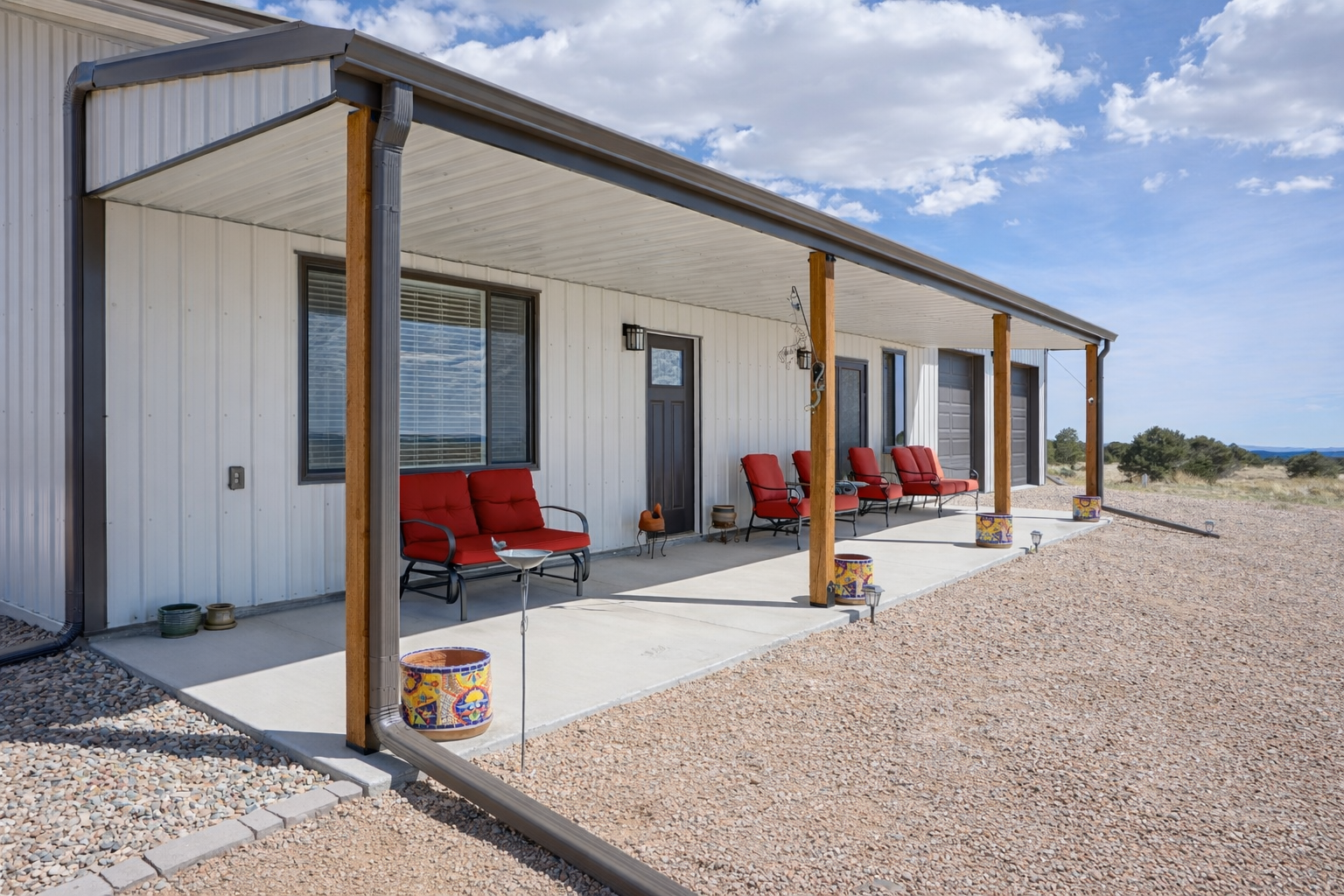

  • Two shaded outdoor zones extend the living space—perfect for breezy mornings, relaxed evenings, or casual entertaining.
  • The garage accommodates three vehicles and includes a dedicated mechanical closet—streamlining access to home systems and storage.



What's included in GJ-4405:

Cover Sheet
First Floor Plan
Window Schedule
Exterior Elevations
Cabinet Details
Wall Details

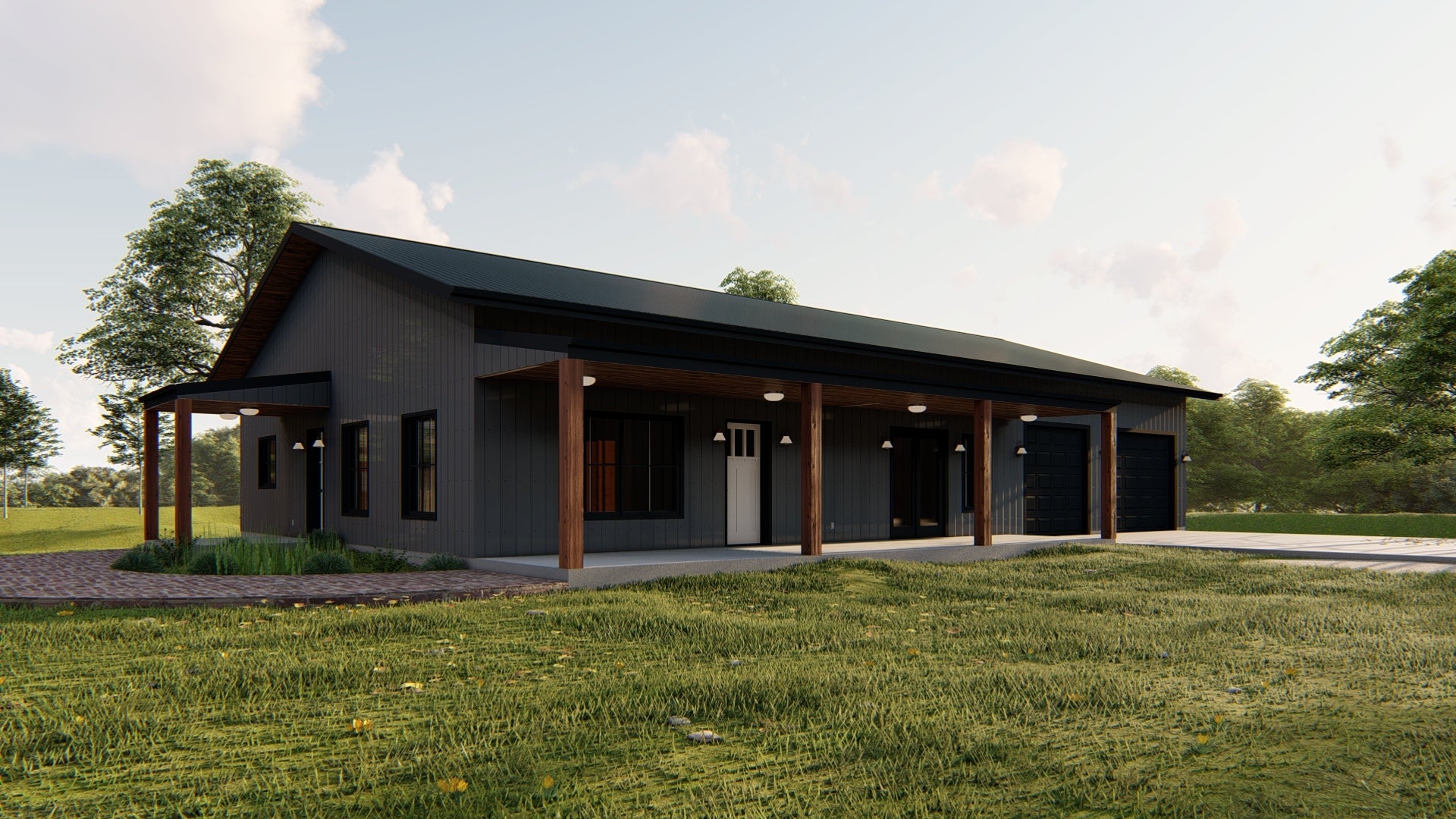

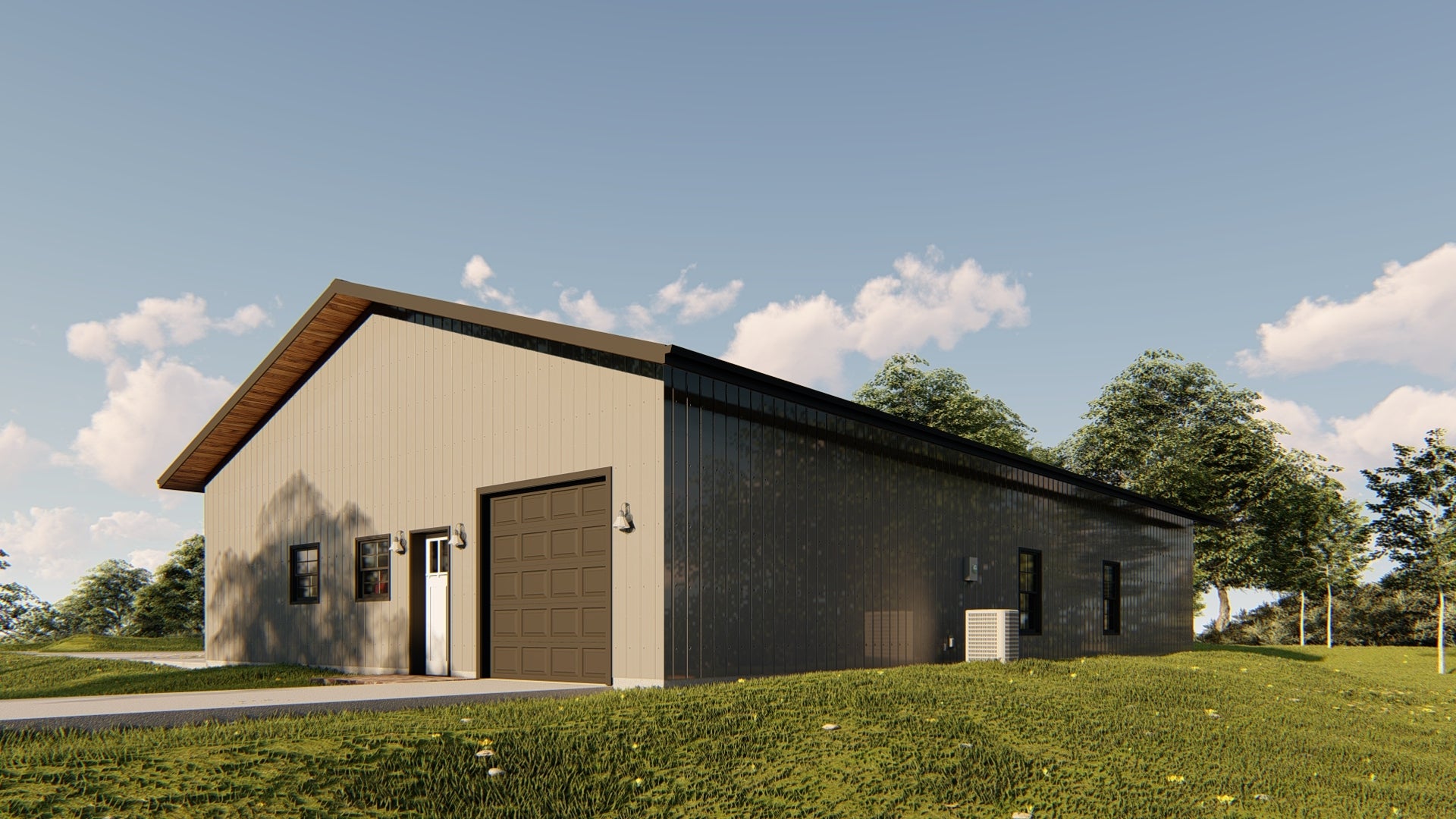

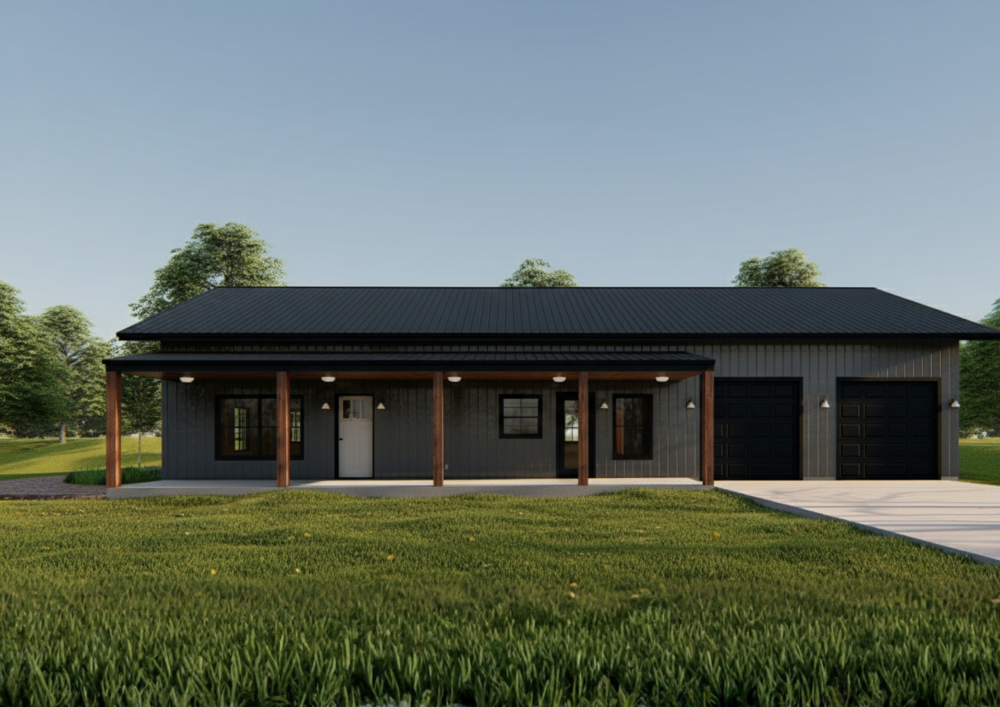

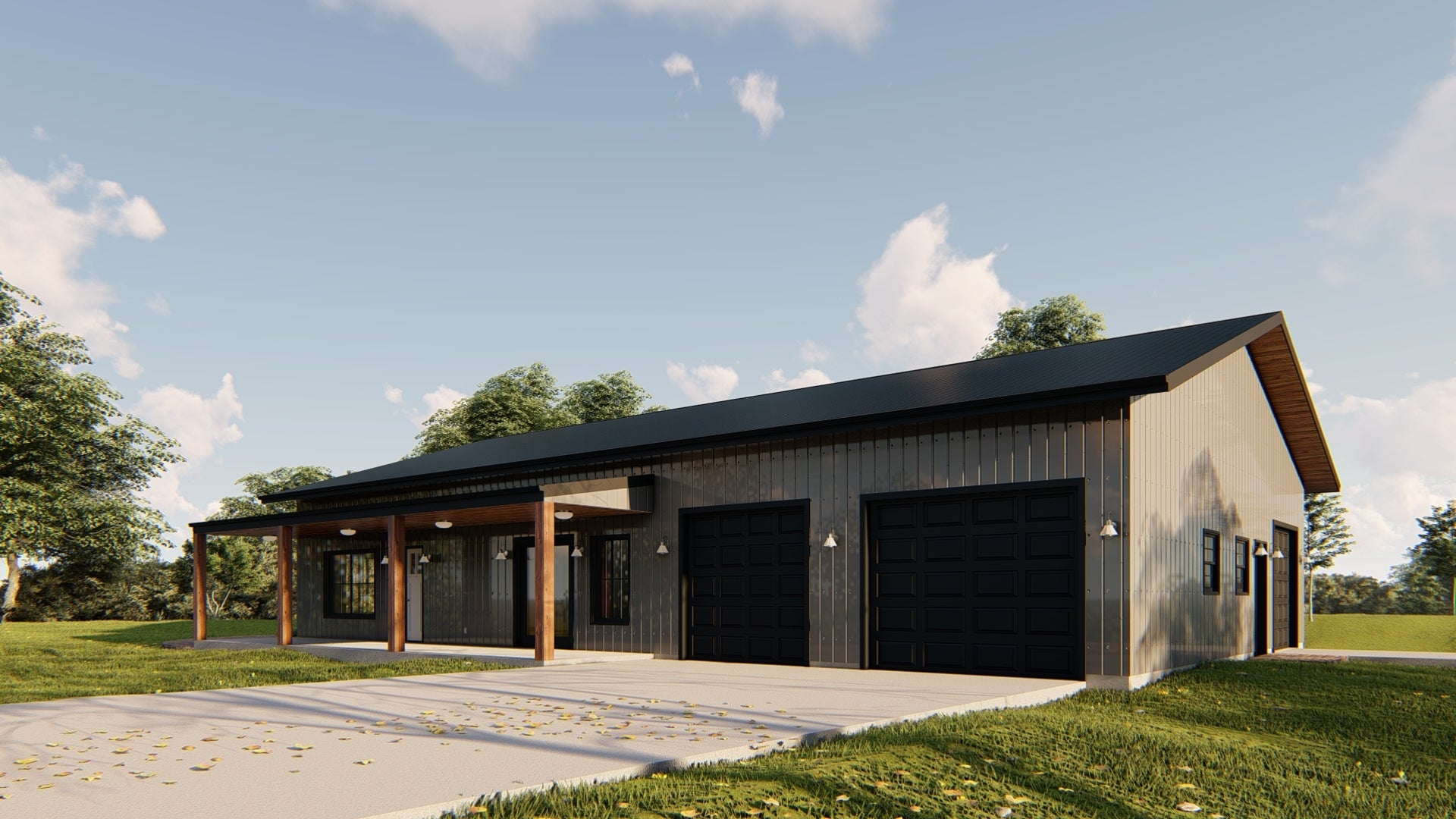

Renders
Structure Layout
Building Structures
Roof Plan
First Floor Electrical Plan
Electrical Schedule
Non-engineered Foundation Plan



For more barndominium floor plans, check out our complete collection of 3-bedroom barndominium floor plans.



Need to make changes? Submit a modification request using the button that says Modify This Plan. We will get you a free price quote within 72 hours.

What's Typically Included

THE SPECIFC DETAILS OF WHAT'S INCLUDED ON THESE PLANS IS CONTAINED IN THE PRODUCT DESCRIPTION. PLEASE SCROLL UP AND YOU WILL FIND IT UNDER "WHAT'S INCLUDED"

Our house plan sets typically have the following details:

4 Elevations – Front, Back, Both Sides

Detailed Floor Plan Drawing

Electrical Plans with placements for HVAC

Plumbing Plans with Placements

Flooring Plan

Roof Plan

Foundation Plan

For more information on what's included and examples of what your plans will look like, go here -> https://barndominiumplans.com/pages/whats-included

Please Note: We work with many different draftspeople who work in many different ways.  It should be noted that their plans may contain different details. THE SPECIFC DETAILS OF WHAT'S INCLUDED ON THESE PLANS IS CONTAINED IN THE PRODUCT DESCRIPTION. PLEASE SCROLL UP AND YOU WILL FIND IT UNDER "WHAT'S INCLUDED"

What's Not Included

The following items are NOT included:

Architectural or Engineering Stamp. Our plans are engineering-ready! Can take them to a local engineer in your state.

Site Plan - We can provide this if needed for $300 additional.

Materials List - handled locally when required

Energy calculations - handled locally when required

Snow load calculations - handled locally when required

Delivery

This plan is available as a digital product or printed + shipped.

If you select digital, the plan will be delivered to you via email as a PDF file, no matter what time it is.

If you select printed + shipped, your order will ship in 24x36 format within 1 business day of your order.

We ship from the midwest in order to serve the entire country within 3-5 business days!

Return policy

All barndominium house plan purchases are FINAL. There are no exchanges or refunds due to the digital nature of the product. Please make sure that the plan you have selected is going to fit your needs.
