DR-122 Rachel Barndominium House Plan

$1,149.00 USD
$1,149.00 USD
Sale Sold out
Add To Wishlist
1 14
Bedrooms 3 Bedrooms
Floors 2 Floors
Full Baths 2 Full Baths
Total Heated Area 2,124 Total Heated Area

Floor Plan

DETAILS

HEATED SQ FT

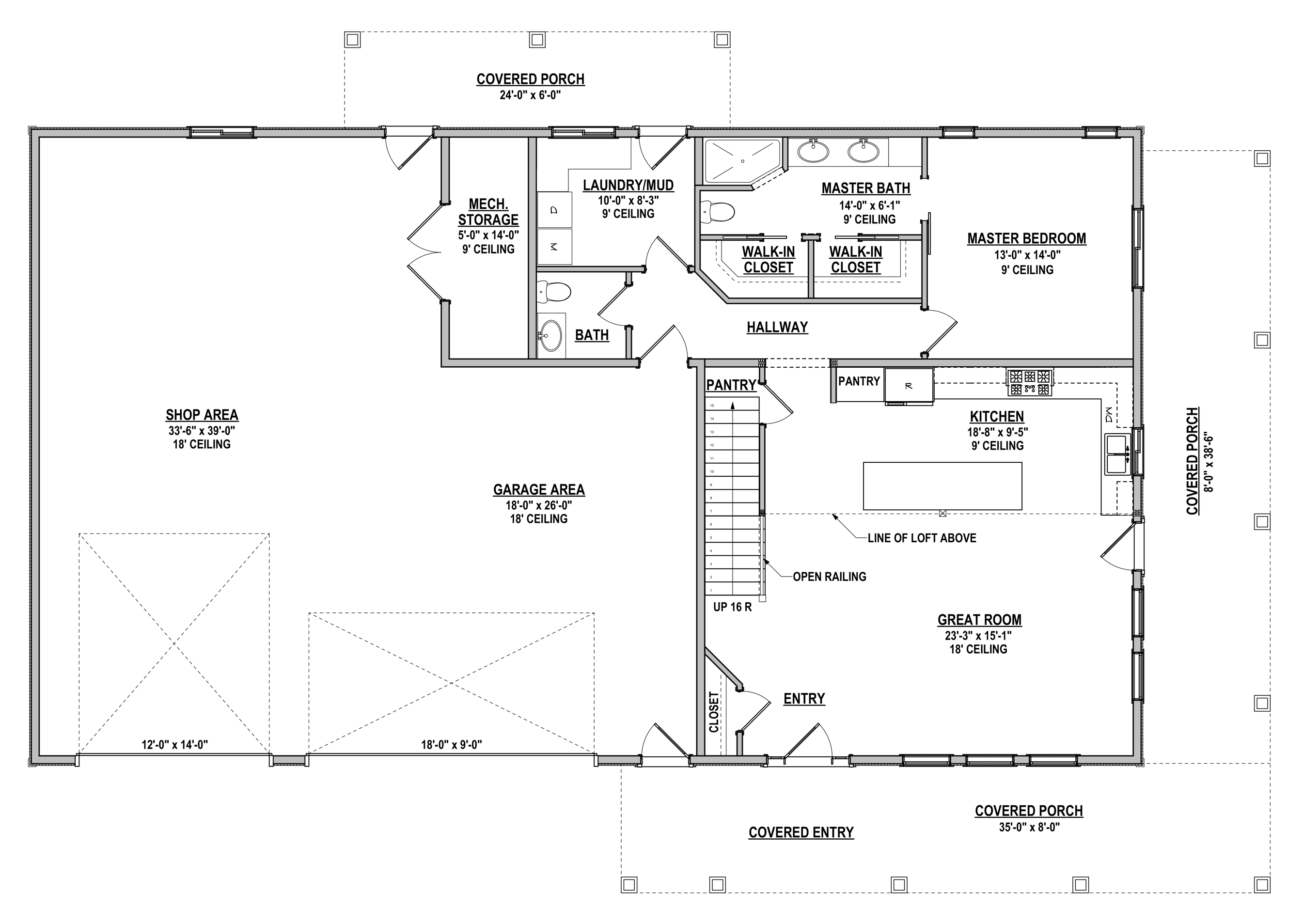

First Floor:

1,279 SF

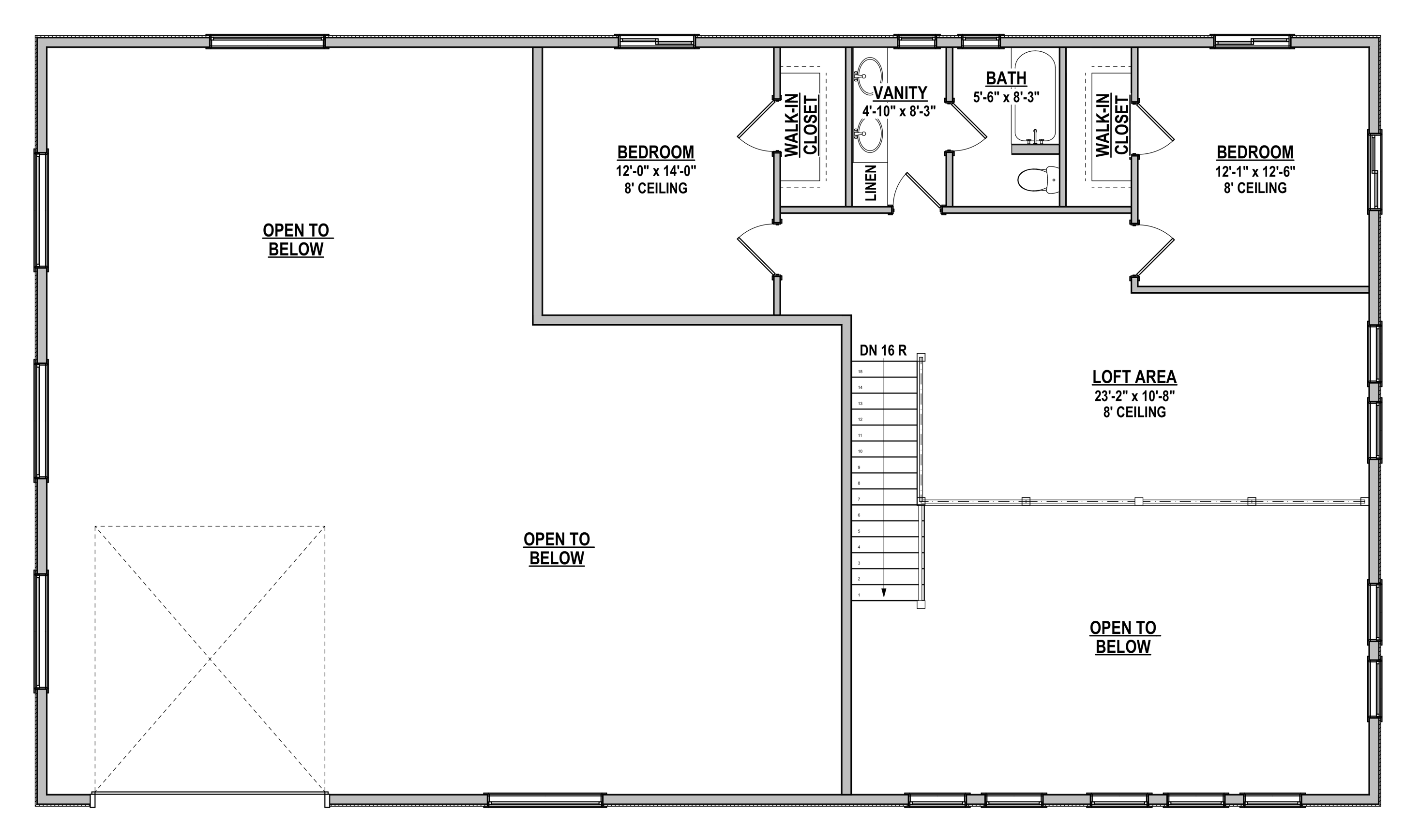

Second Floor:

845 SF

Total Heated Sq Ft:

2,124 SF

UNHEATED SQ FT

Total Unheated Area:

Garage 1,521 SF, Porch 730 SF = TOTAL 2,251 SF

Carport:

None

Bedrooms:

3

Full Baths:

2

Floors:

2

Garage Size:

1,521 SF

Width:

70'

Depth:

40'

Height:

24'

Foundation:

Concrete Slab

Main Roof Pitch:

4:12

Construction Type:

Stick Frame

CEILING HEIGHTS

First Floor:

9'

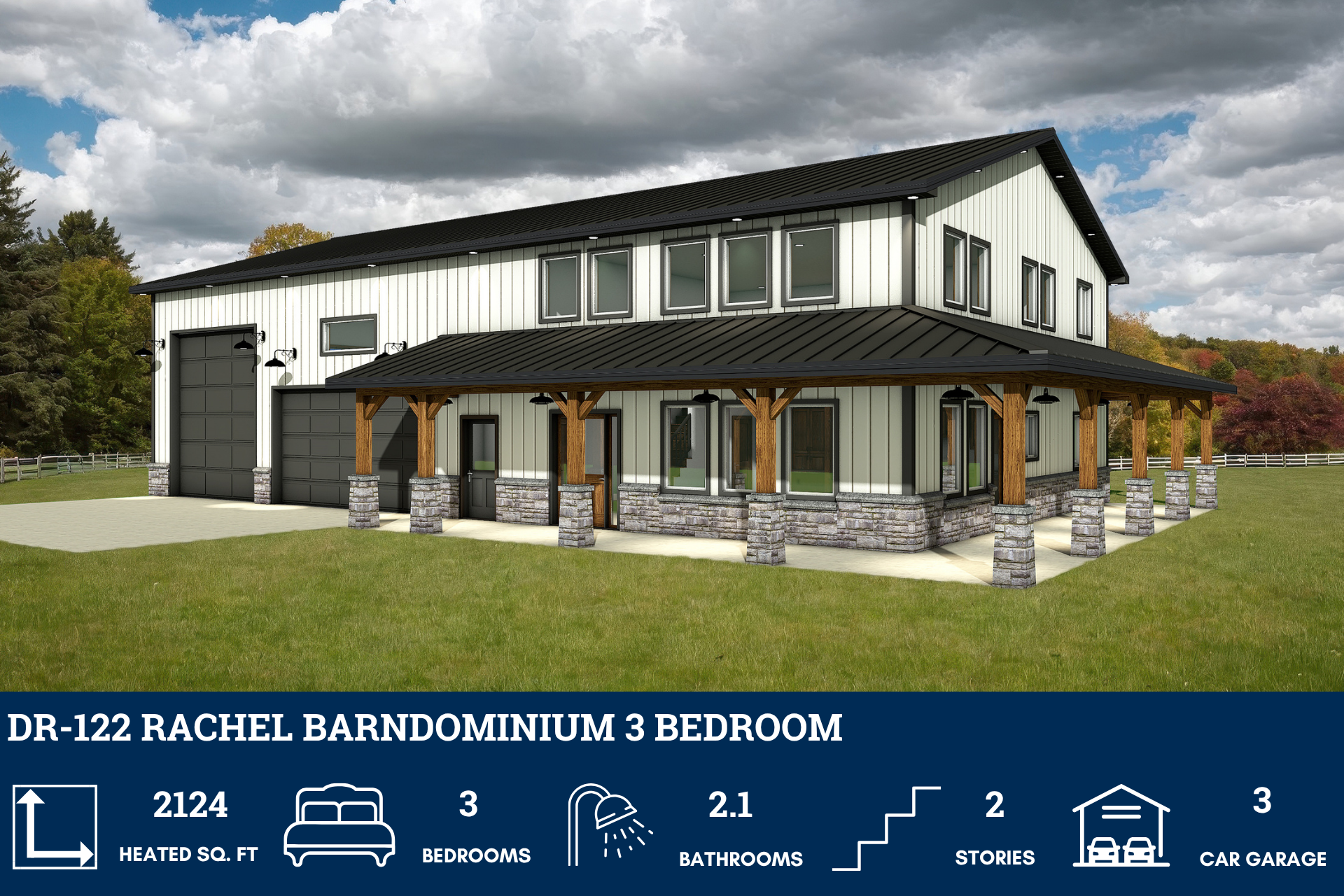

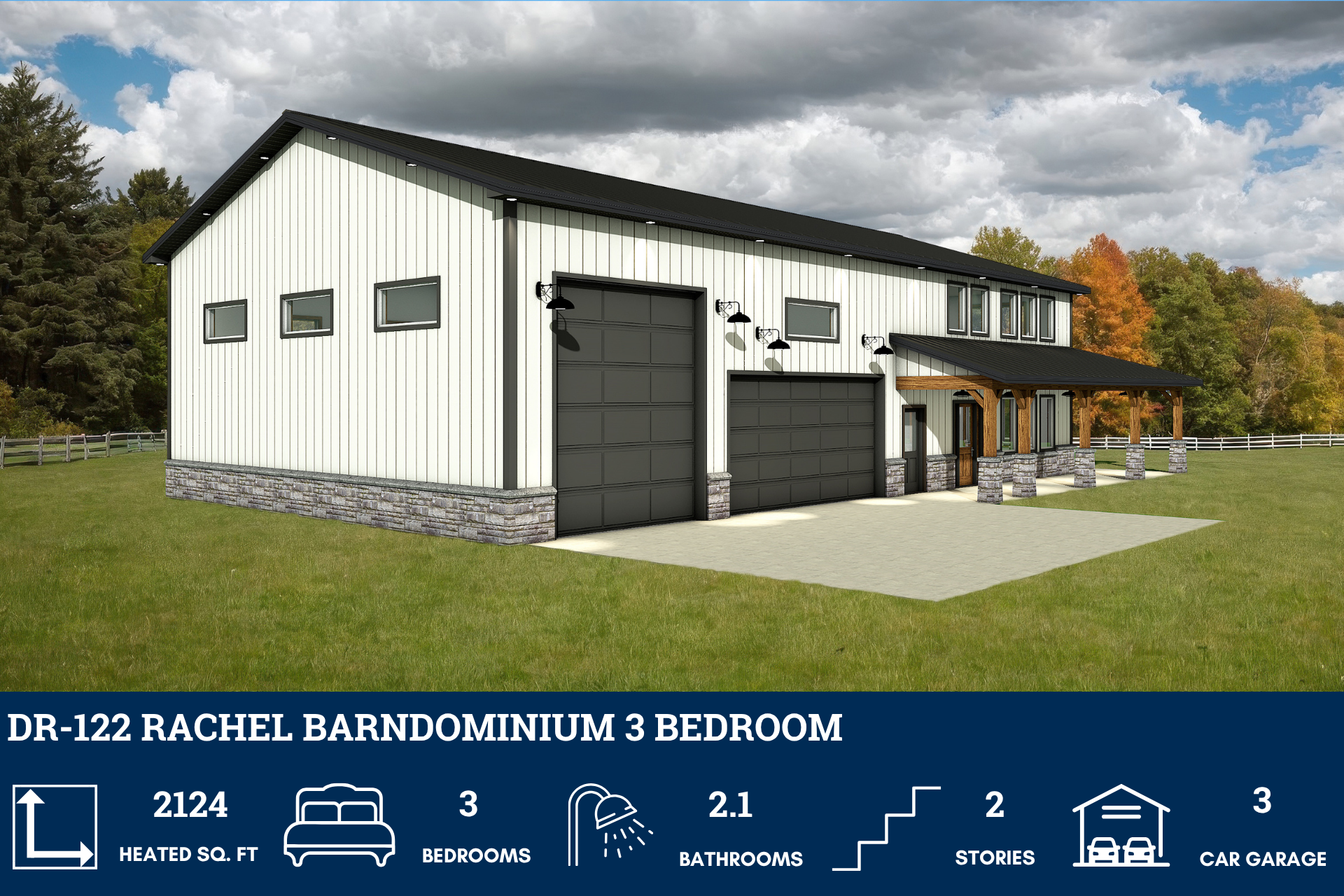

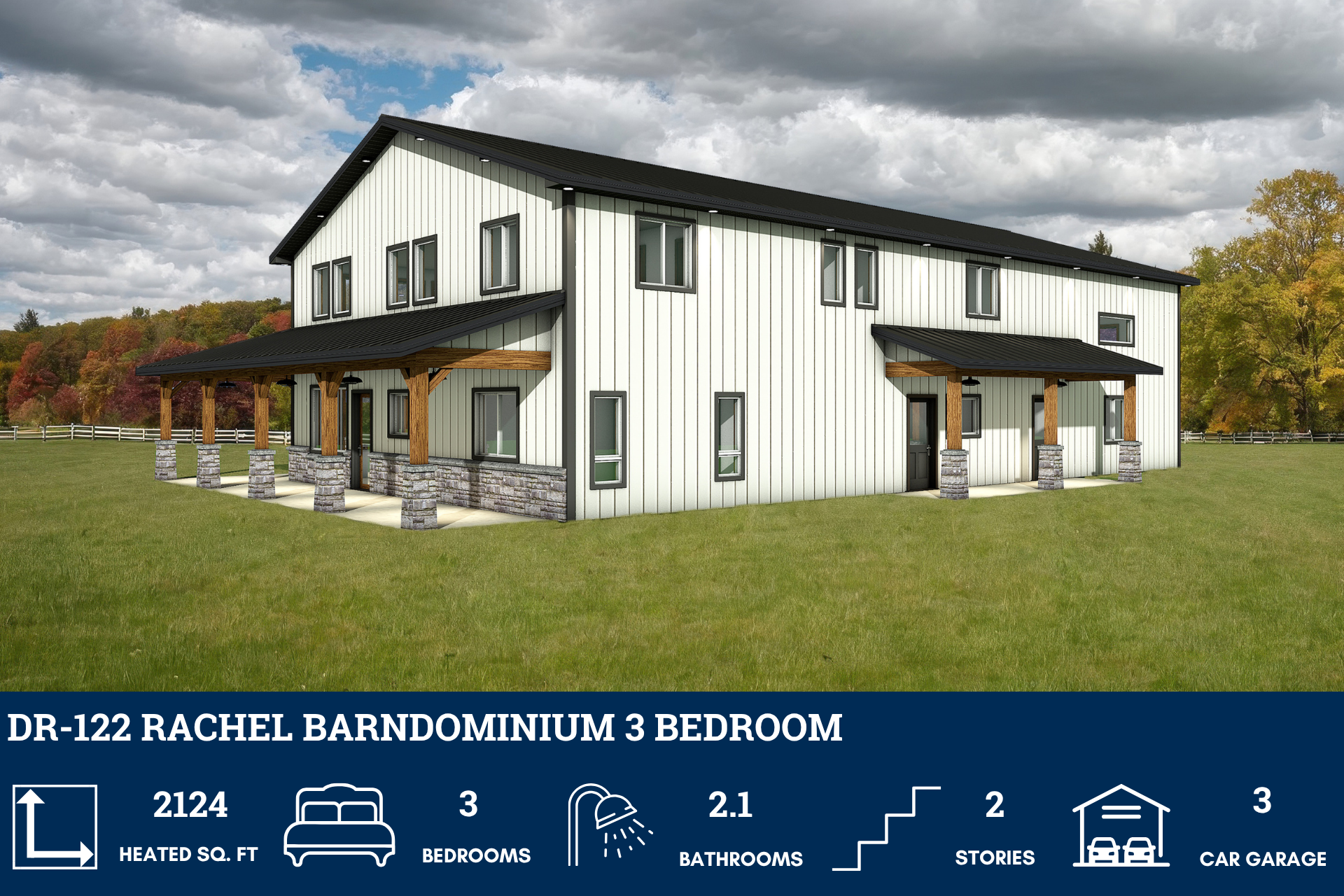

DR-122 Rachel Barndominium House Plan



About this barndominium house plan:

  • 2124 Heated Square Feet
  • 3 Bedrooms
  • 2.1 Bathrooms
  • Two Story
  • Loft
  • Open concept
  • His/her Walk-in closets
  • Laundry/Mudroom
  • Mech/Storage room
  • Wraparound porch
  • 1521 Sq Ft Garage/Shop



  • This 2,124 SF floor plan features a grand open-concept social hub on the main floor and a quiet, private second-story retreat overlooking the living area.

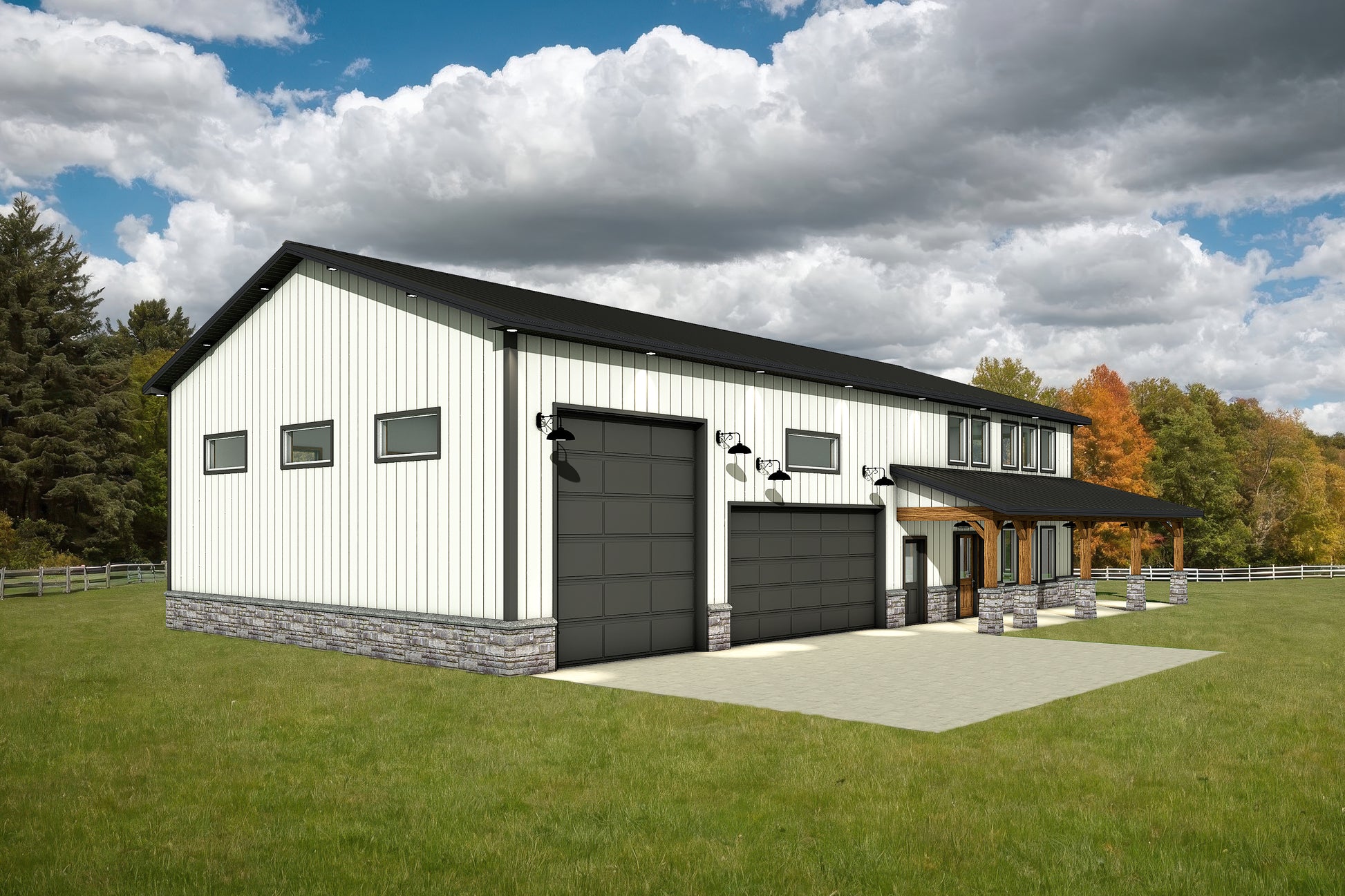

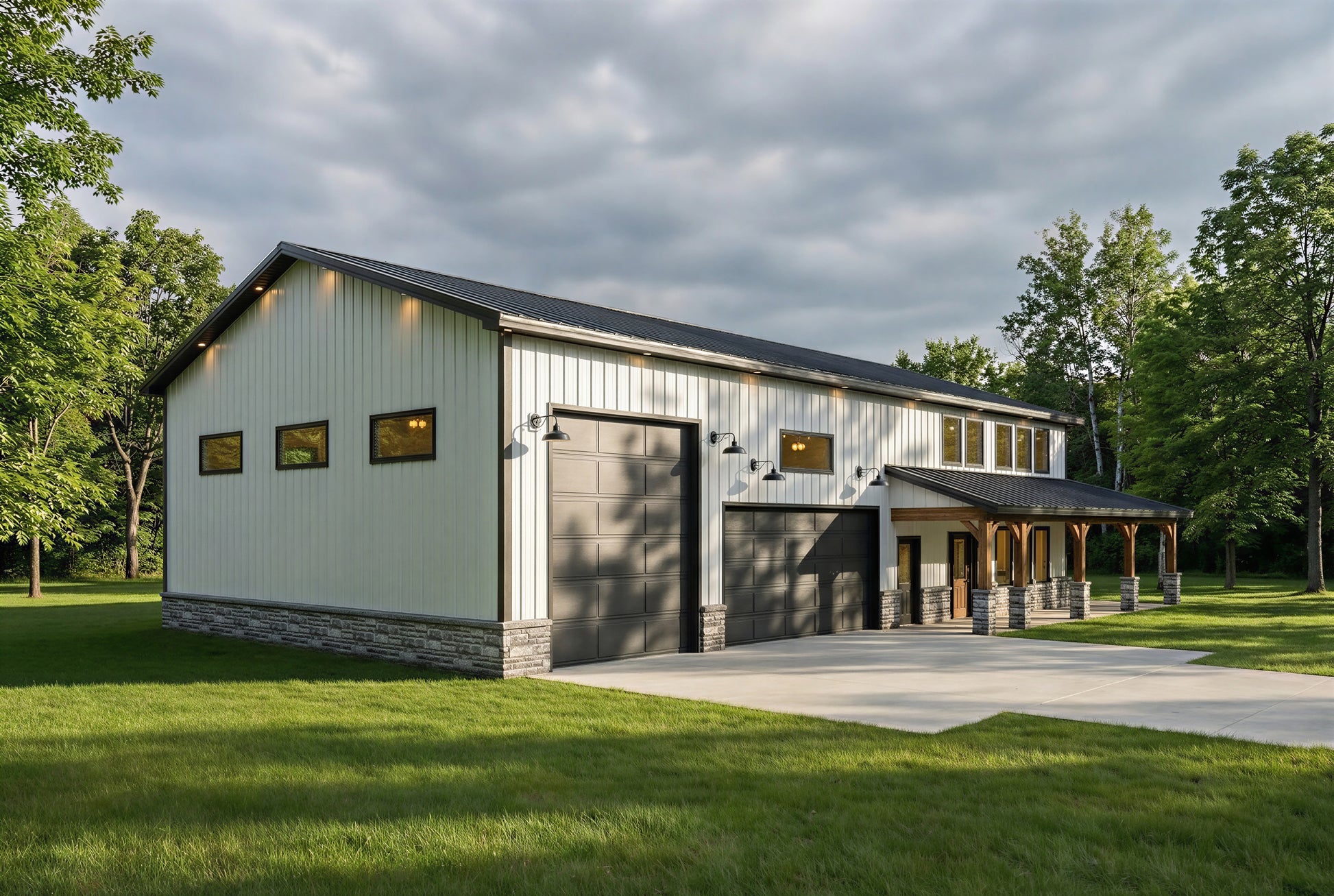

  • Enormous attached workspace offers unparalleled space for a vehicle fleet, heavy machinery, or a professional-grade shop.
  • Secluded primary suite is located on the ground floor for ultimate convenience with the rare luxury of separate walk-in closets.
  • The second floor offers two additional well-sized bedrooms, each equipped with its own walk-in closet for ample storage.
  • The home features 2.1 bathrooms, including the master ensuite, a full shared bathroom on the second floor, and a central powder room.

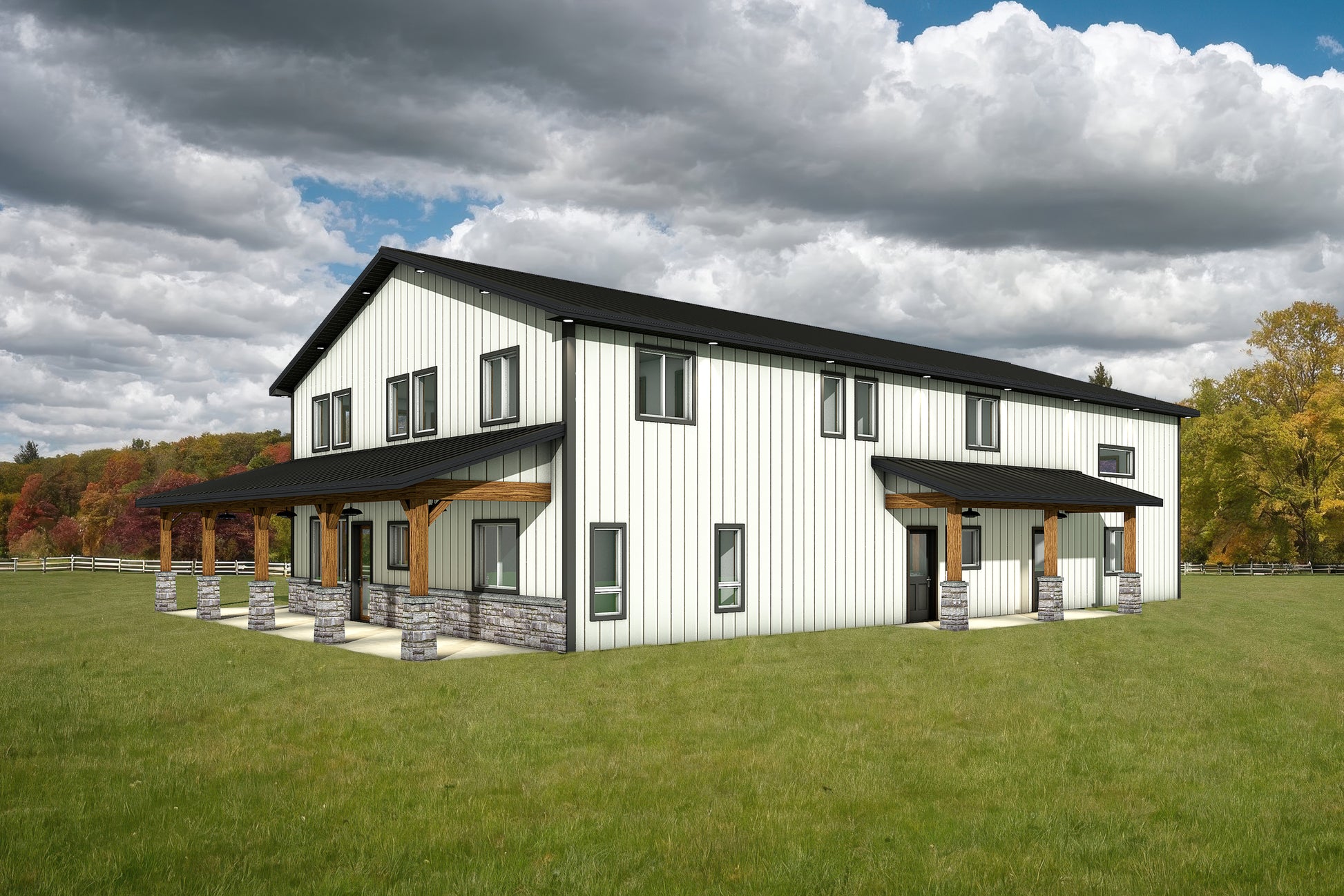

  • Iconic wraparound porch envelopes the home's exterior, offering outdoor living space and stunning curb appeal.
  • The second-story landing provides a flexible open space overlooking the great room.
  • Dedicated ground-floor laundry and mudroom area is positioned off the garage, keeping daily chores and work gear contained and organized.
  • Large discrete interior room ensures home systems are protected while providing extra space for household overflow.





What's included in DR-122:

Cover Page
4 Elevations
Floorplans
Foundation plan (with no specifications of structural elements)
Roof plan (with no specifications of structural elements)
Typical wall sections
Electrical plan (Basic)



For more barndominium floor plans, check out our complete collection of 3-bedroom barndominium floor plans.



Need to make changes? Submit a modification request using the button that says Modify This Plan. We will get you a free price quote within 72 hours.

What's Typically Included

THE SPECIFC DETAILS OF WHAT'S INCLUDED ON THESE PLANS IS CONTAINED IN THE PRODUCT DESCRIPTION. PLEASE SCROLL UP AND YOU WILL FIND IT UNDER "WHAT'S INCLUDED"

Our house plan sets typically have the following details:

4 Elevations – Front, Back, Both Sides

Detailed Floor Plan Drawing

Electrical Plans with placements for HVAC

Plumbing Plans with Placements

Flooring Plan

Roof Plan

Foundation Plan

For more information on what's included and examples of what your plans will look like, go here -> https://barndominiumplans.com/pages/whats-included

Please Note: We work with many different draftspeople who work in many different ways.  It should be noted that their plans may contain different details. THE SPECIFC DETAILS OF WHAT'S INCLUDED ON THESE PLANS IS CONTAINED IN THE PRODUCT DESCRIPTION. PLEASE SCROLL UP AND YOU WILL FIND IT UNDER "WHAT'S INCLUDED"

What's Not Included

The following items are NOT included:

Architectural or Engineering Stamp. Our plans are engineering-ready! Can take to a local structural engineer, but we are not engineers ourselves.

Metal Truss Plans - These are provided by the truss manufacturer

Wind and Snow Loads - Handled locally!

Delivery

This plan is available as a digital product or printed + shipped.

If you select digital, the plan will be delivered to you via email as a PDF file, no matter what time it is.

If you select printed + shipped, your order will ship in 24x36 format within 1 business day of your order.

We ship from the midwest in order to serve the entire country within 3-5 business days!

Return policy

All barndominium house plan purchases are FINAL. There are no exchanges or refunds due to the digital nature of the product. Please make sure that the plan you have selected is going to fit your needs.

Wondering about modifications, and making sure you like the changes? While all plan sales featuring modifications are also FINAL, here's a bit about how the modification process works:

After your order is placed, our team gets started on your modifications.

First, we send over an initial floor plan draft to make sure the modifications are correct. Any "clarifying changes" are included at no additional cost. Things like "Oh I meant for the door to swing this way, not that way" or "kitchen appliances should be arranged in XYZ way". Any major changes to the plan like adding a bedroom, a second story, or a different foundation are an additional fee. 99% of our customers do not incur an additional fee.

After the floor plan is confirmed, we send over the floor plans + elevations. We do the same process, and once you're good with the elevations, we finish up your final plans.
