Barndominium Plans

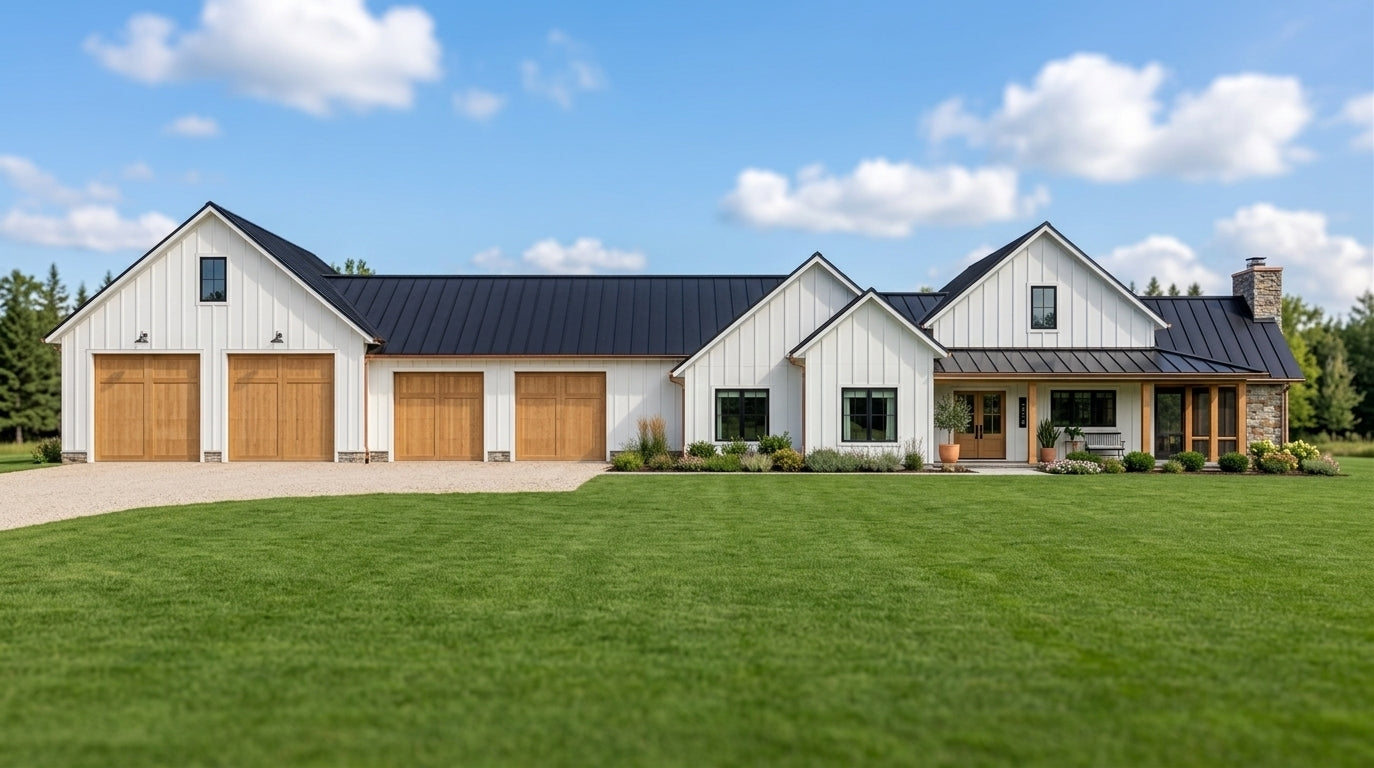

BG-20105 Lewis Barndominium House Plan
Regular price
$1,450.00 USD
Regular price
Sale price
$1,450.00 USD
Unit price
per
Bedrooms
3
Floors
1
Full Baths
2
Total Heated Area
3,169

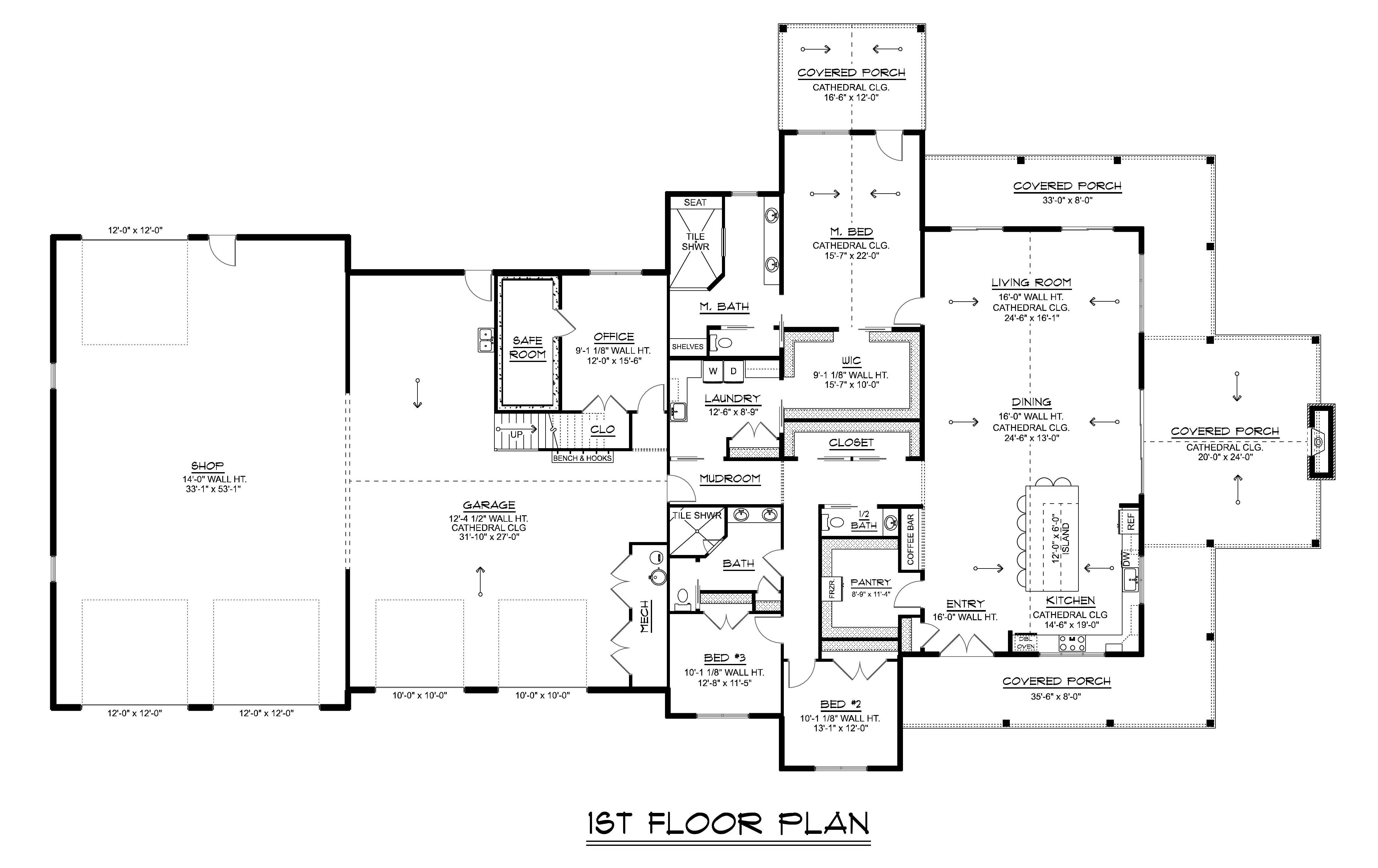

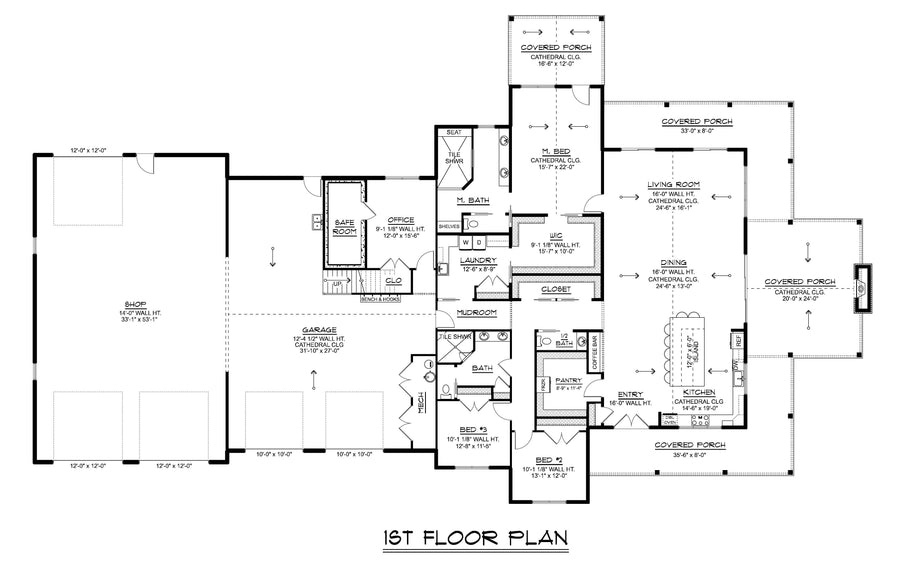

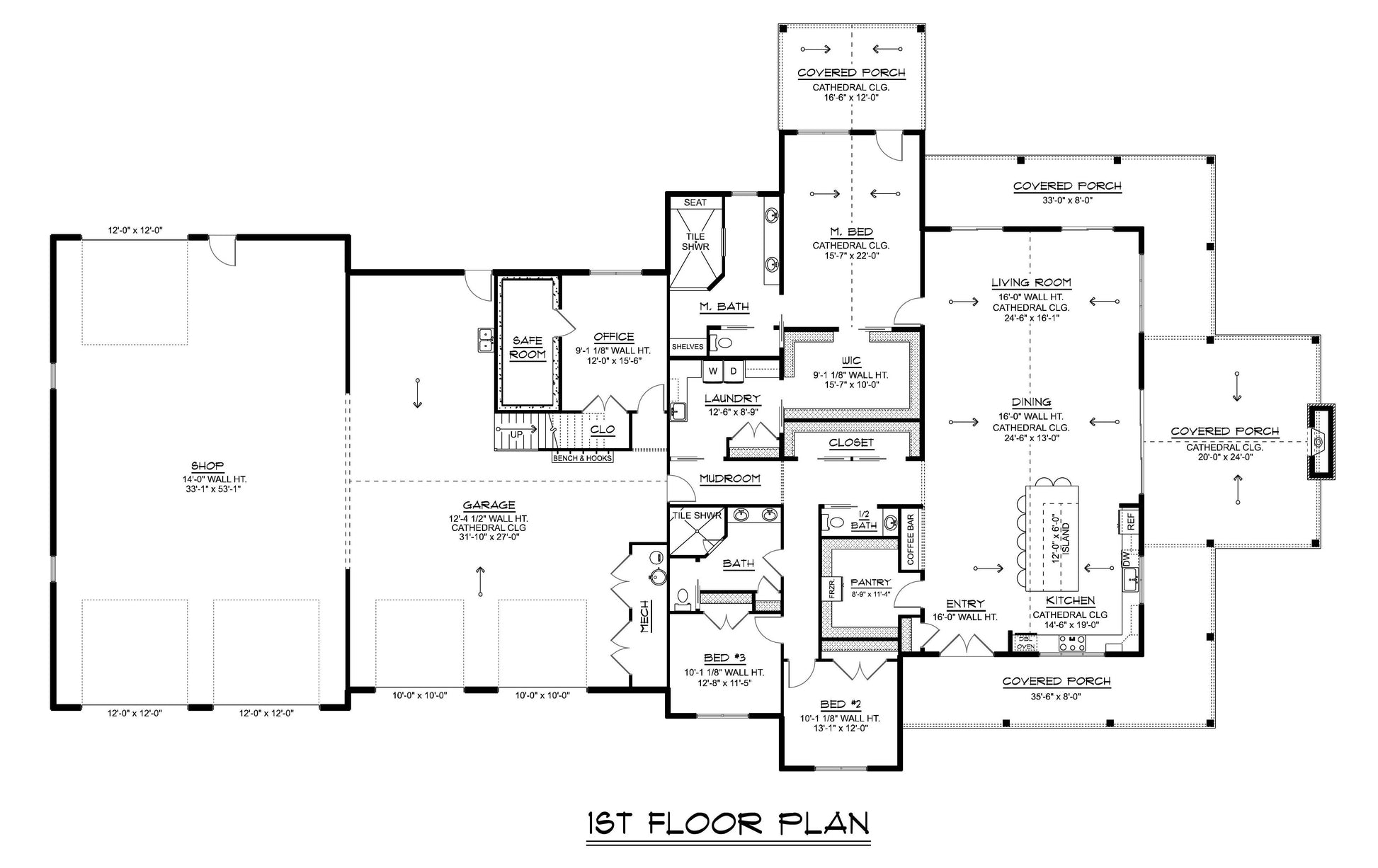

Floor Plan
DETAILS
HEATED SQ FT
First Floor:
3,169 SF
Second Floor:None
Total Heated Sq Ft:3,169 SF
UNHEATED SQ FT
Total Unheated Area:
Garage+Shop 3,252 SF, Loft 986 SF, Office/Safe room 320 SF, Porch 1,426 = TOTAL 5,984 SF
Carport:None
Bedrooms:
3
Full Baths:
2
Floors:
1
Garage Size:
Garage + Shop 3,252 SF
Width:
144'-6"
Depth:
85'
Height:
28'-10"
Foundation:
Concrete Slab
Main Roof Pitch:
10:12
Construction Type:
Stick Frame
CEILING HEIGHTS
First Floor:
9'
BG-20105 Lewis Barndominium House Plan
Ā
Step inside this barndominium! View all 3D interior walkthrough images at https://www.barndominiumlife.com/barndominium-plans/bg-20105/
Ā
About this barndominium house plan:
- 3,169 Heated Sq Ft
- 3 bedrooms
- 2.1 bathrooms
- Open Concept
- Single Story

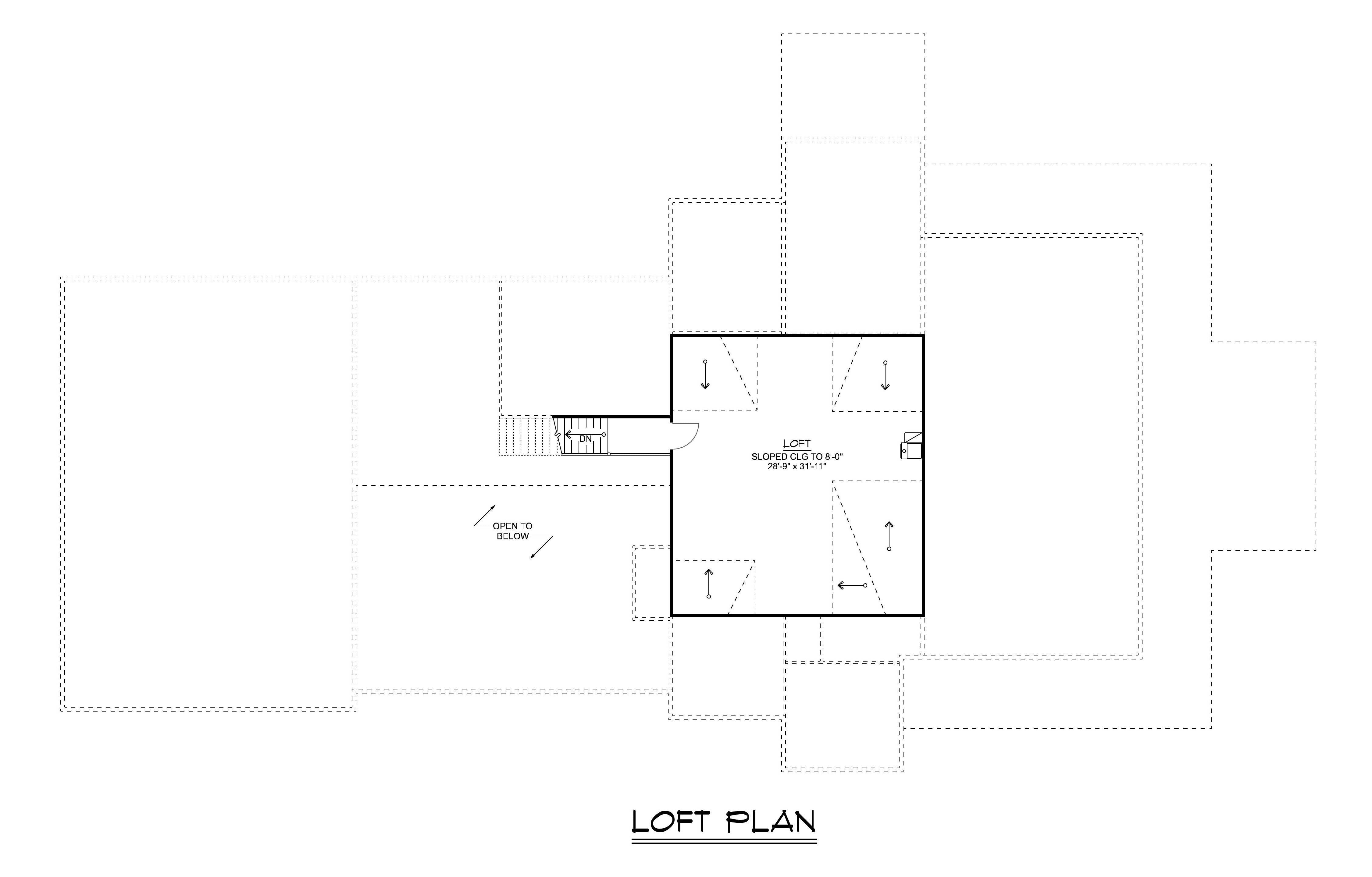

- Loft
- Safe room
- Office
- Wraparound porch
- 1,416 Sq Ft Garage
- 1,836 Sq Ft Shop
Ā
- A sprawling single-level layout offering over 3,100 square feet of conditioned spaceādesigned for comfort, flexibility, and long-term livability.
- Private workspace and a secure zone are built ināsupporting productivity and peace of mind under one roof.
- Full-perimeter porch offers shaded outdoor living, breezy transitions, and architectural charm from every angle.
- Spacious garage with room for multiple vehicles and gearāideal for active households or hobbyists.
- Purpose-built shop space for projects, storage, or business useādesigned to support hands-on work and creative freedom.
Ā
What's included in BG-20105:
Cover Sheet
Four Elevations (Front, Back, Left Side, Right Side)
Roof Plan
Dimensioned Floor Plan
Foundation Plan
Wall Sections
Electrical Plans
Ā
For more barndominium floor plans, check out our complete collection of 3-bedroom barndominium floor plans.
Ā
Need to make changes? Submit a modification request using the button that says Modify This Plan. We will get you a free price quote within 72 hours.
What's Typically Included
What's Typically Included
THE SPECIFC DETAILS OF WHAT'S INCLUDED ON THESE PLANS IS CONTAINED IN THE PRODUCT DESCRIPTION. PLEASE SCROLL UP AND YOU WILL FIND IT UNDER "WHAT'S INCLUDED"
Our house plan sets typically have the following details:
4 Elevations ā Front, Back, Both Sides
Detailed Floor Plan Drawing
Electrical Plans with placements for HVAC
Plumbing Plans with Placements
Flooring Plan
Roof Plan
Foundation Plan
For more information on what's included and examples of what your plans will look like, go here -> https://barndominiumplans.com/pages/whats-included
Please Note:Ā We work with many different draftspeople who work in many different ways.Ā ItĀ should be noted that their plans may contain different details.Ā THE SPECIFC DETAILS OF WHAT'S INCLUDED ON THESE PLANS IS CONTAINED IN THE PRODUCT DESCRIPTION. PLEASE SCROLL UP AND YOU WILL FIND IT UNDER "WHAT'S INCLUDED"
What's Not Included
What's Not Included
The following items areĀ NOTĀ included:
Architectural or Engineering Stamp. Our plans are engineering-ready! Can take to a local structural engineer, but we are not engineers ourselves.
Metal Truss Plans - These are provided by the truss manufacturer
Wind and Snow Loads - Handled locally!
Delivery
Delivery
This plan is available as a digital product or printed + shipped.
If you select digital, the plan will be delivered to you via email as a PDF file, no matter what time it is.
If you select printed + shipped, your order will ship in 24x36 format within 1 business day of your order.
We ship from the midwest in order to serve the entire country within 3-5 business days!
Return policy
Return policy
All barndominium house plan purchases are FINAL. There are no exchanges or refunds due to the digital nature of the product. Please make sure that the plan you have selected is going to fit your needs.
Wondering about modifications, and making sure you like the changes? While all plan sales featuring modifications are also FINAL, here's a bit about how the modification process works:
After your order is placed, our team gets started on your modifications.
First, we send over an initial floor plan draft to make sure the modifications are correct. Any "clarifying changes" are included at no additional cost. Things like "Oh I meant for the door to swing this way, not that way" or "kitchen appliances should be arranged in XYZ way". Any major changes to the plan like adding a bedroom, a second story, or a different foundation are an additional fee. 99% of our customers do not incur an additional fee.
After the floor plan is confirmed, we send over the floor plans + elevations. We do the same process, and once you're good with the elevations, we finish up your final plans.
