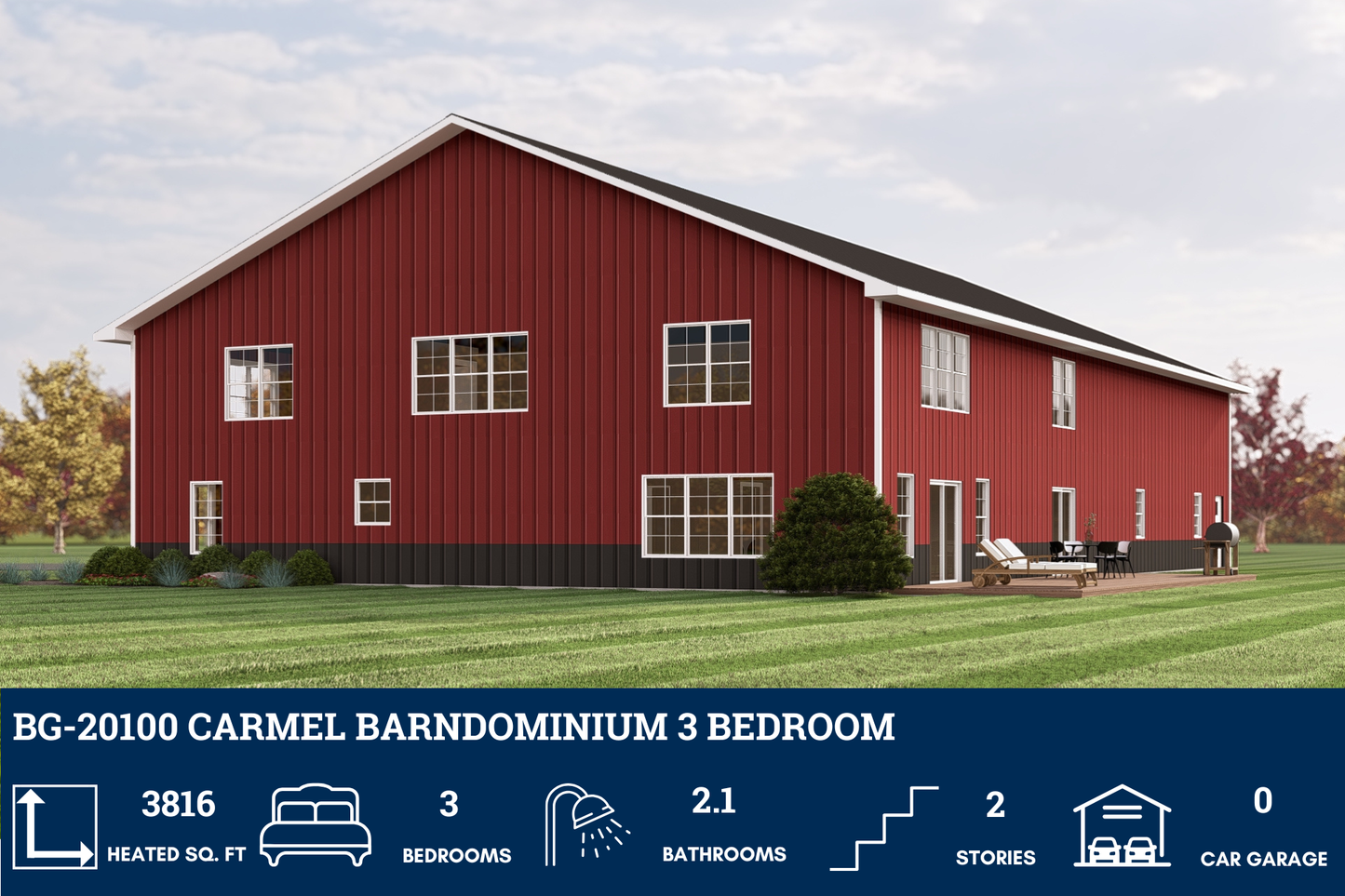

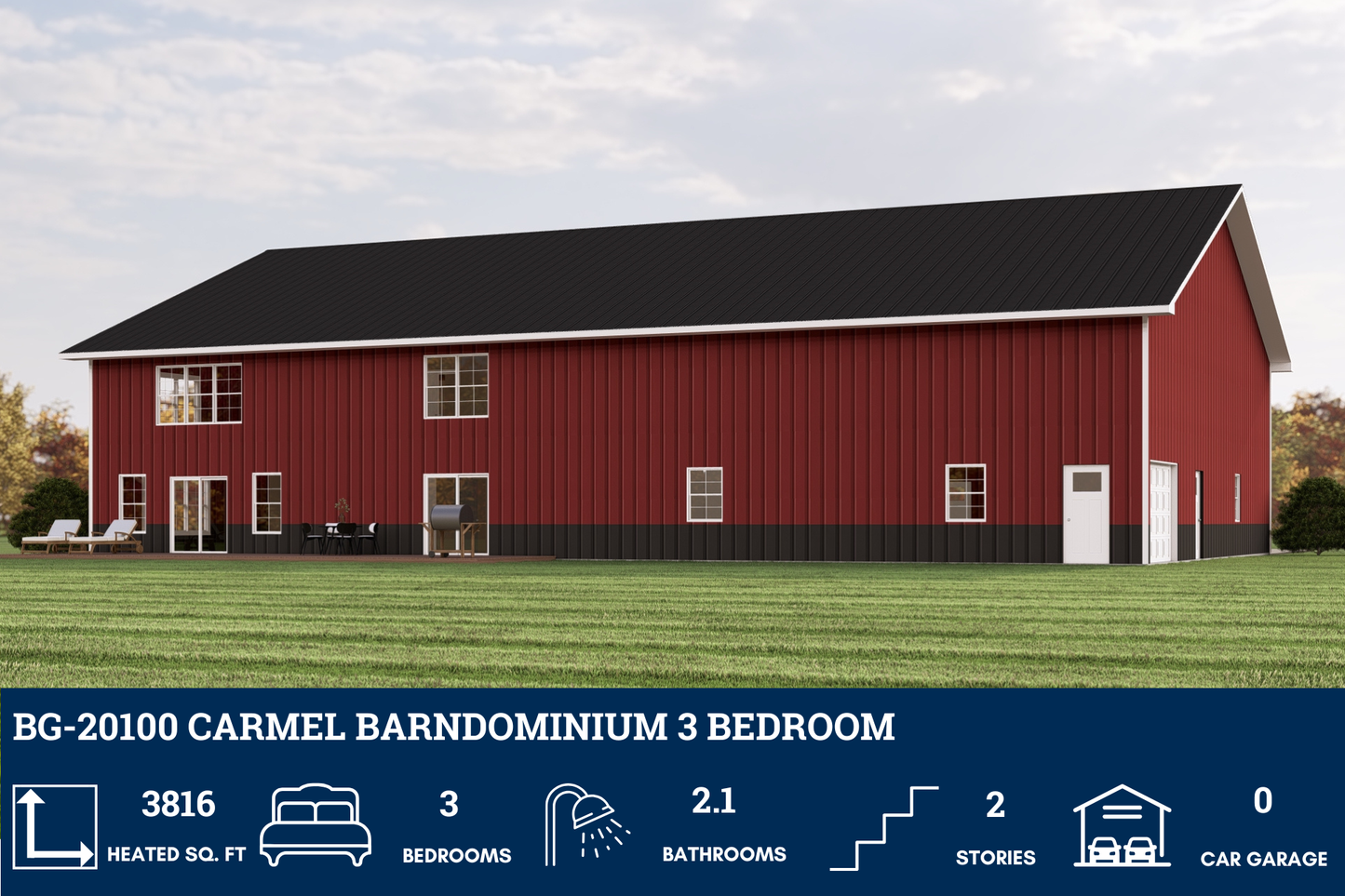

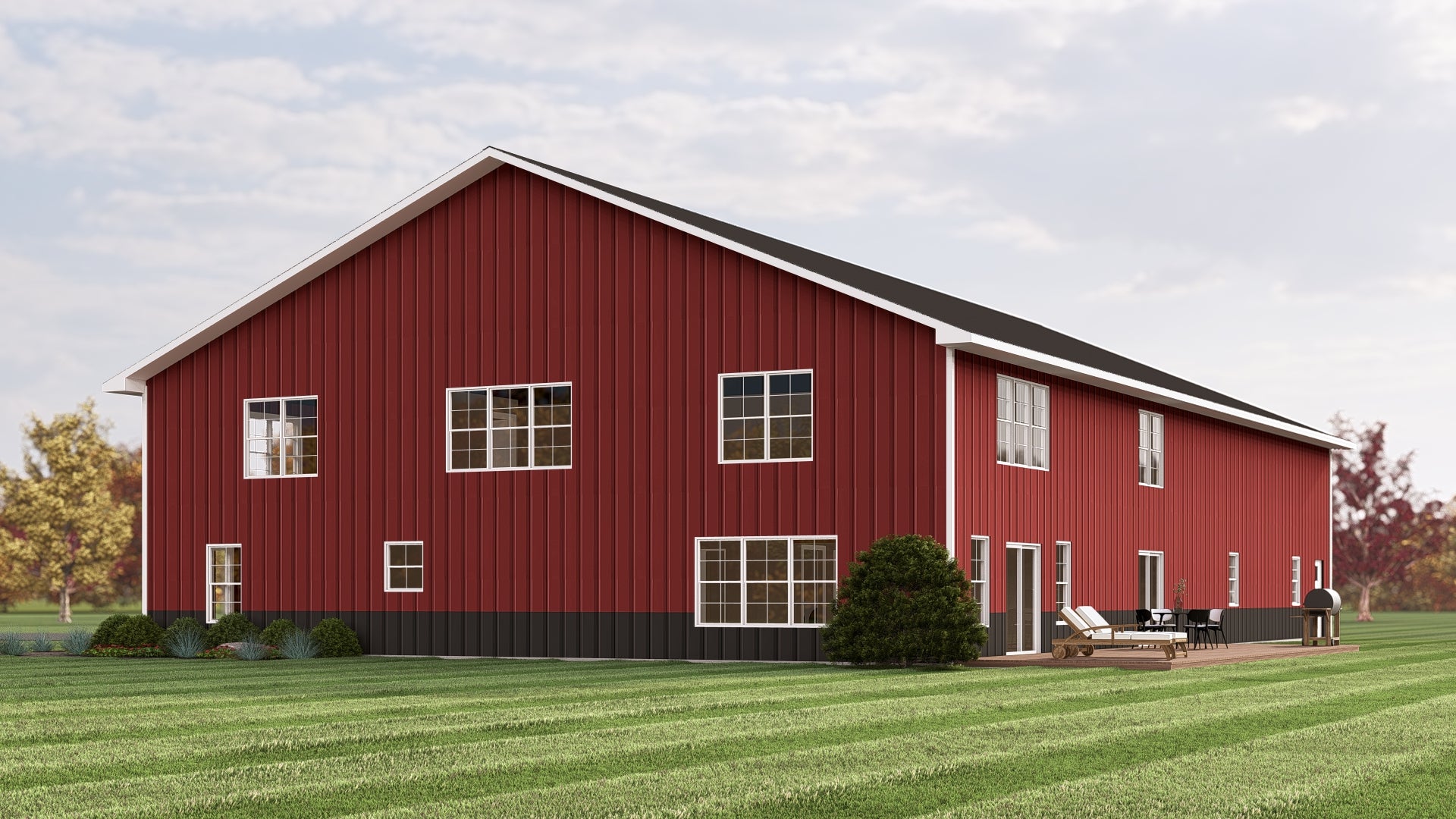

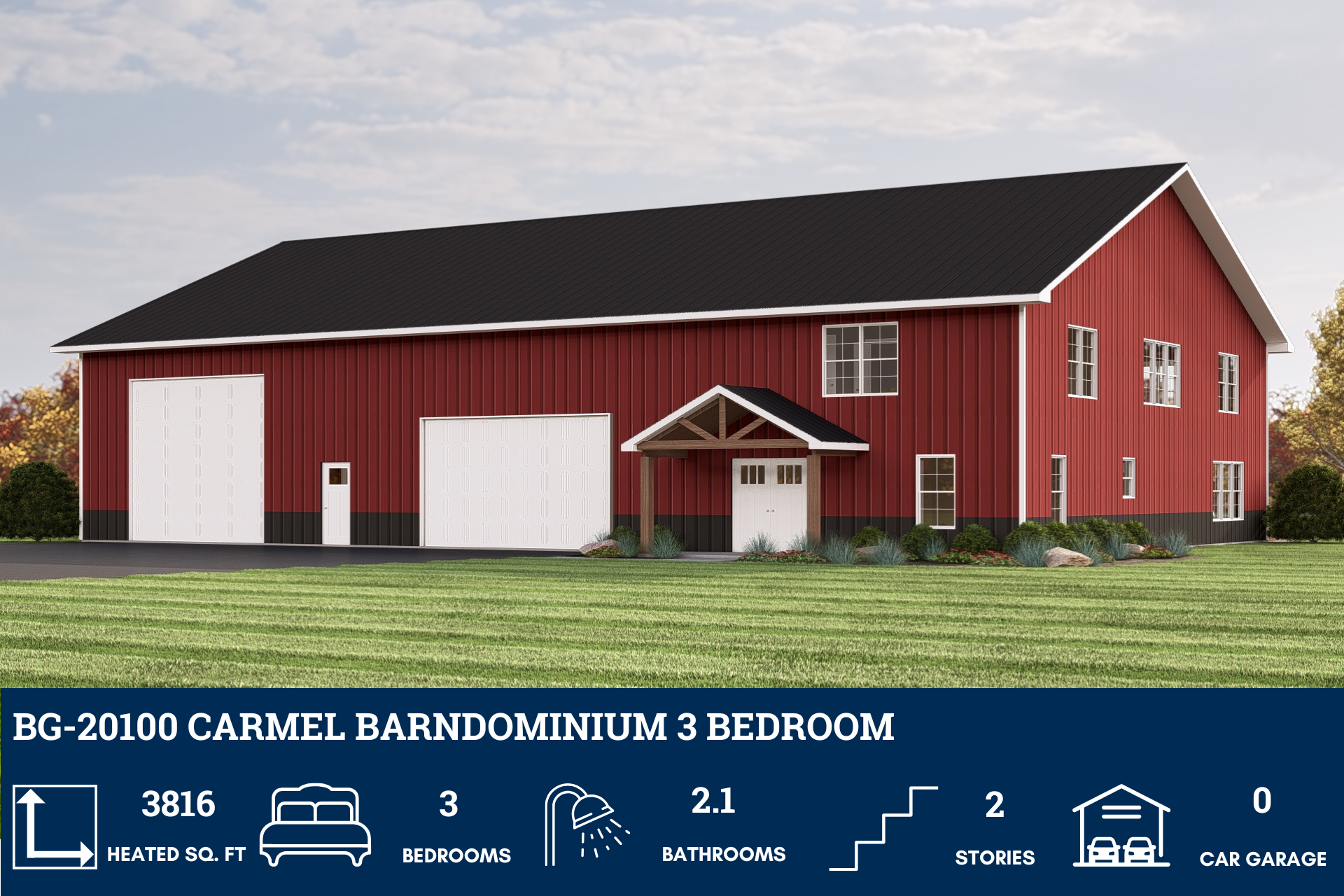

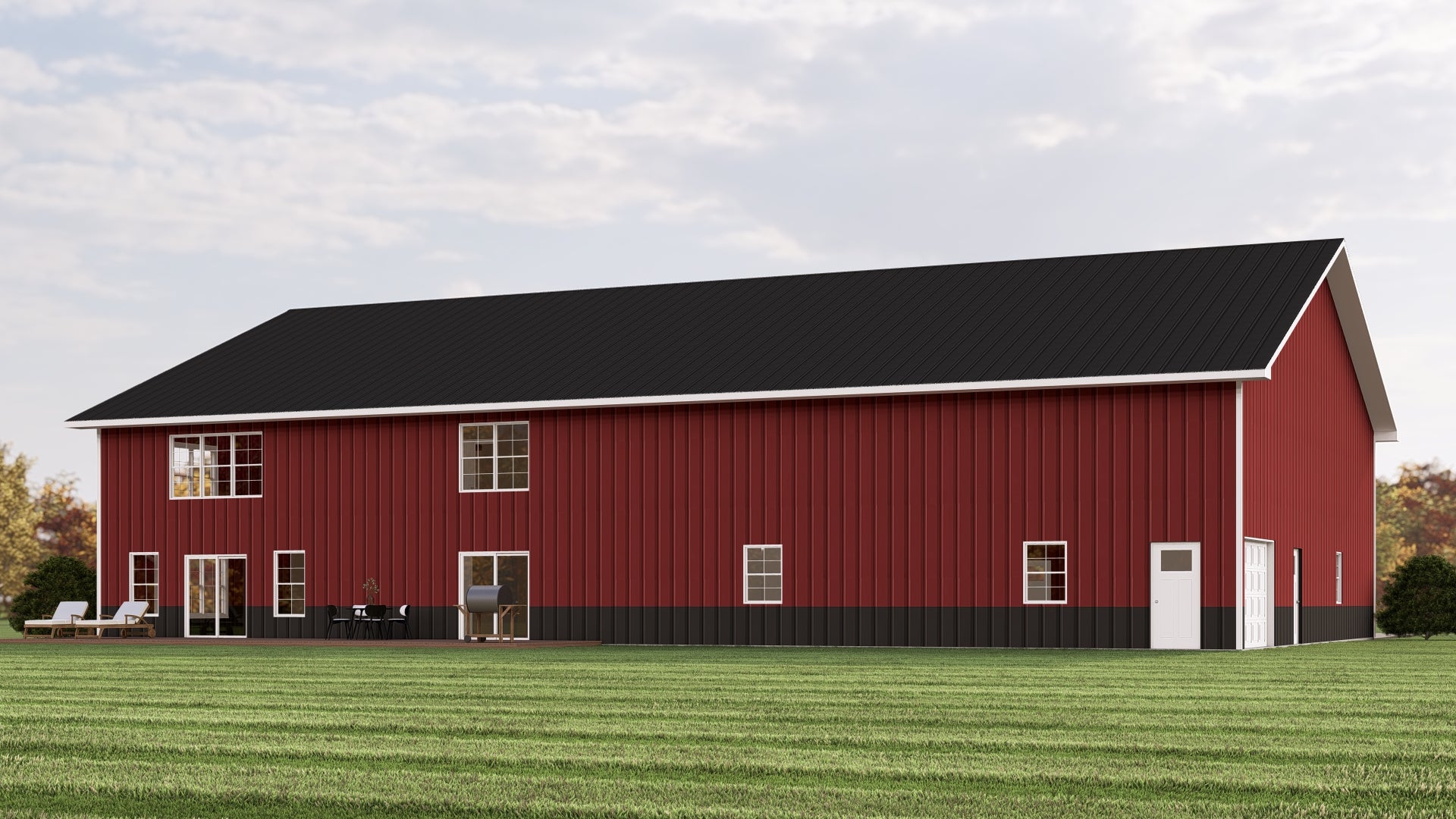

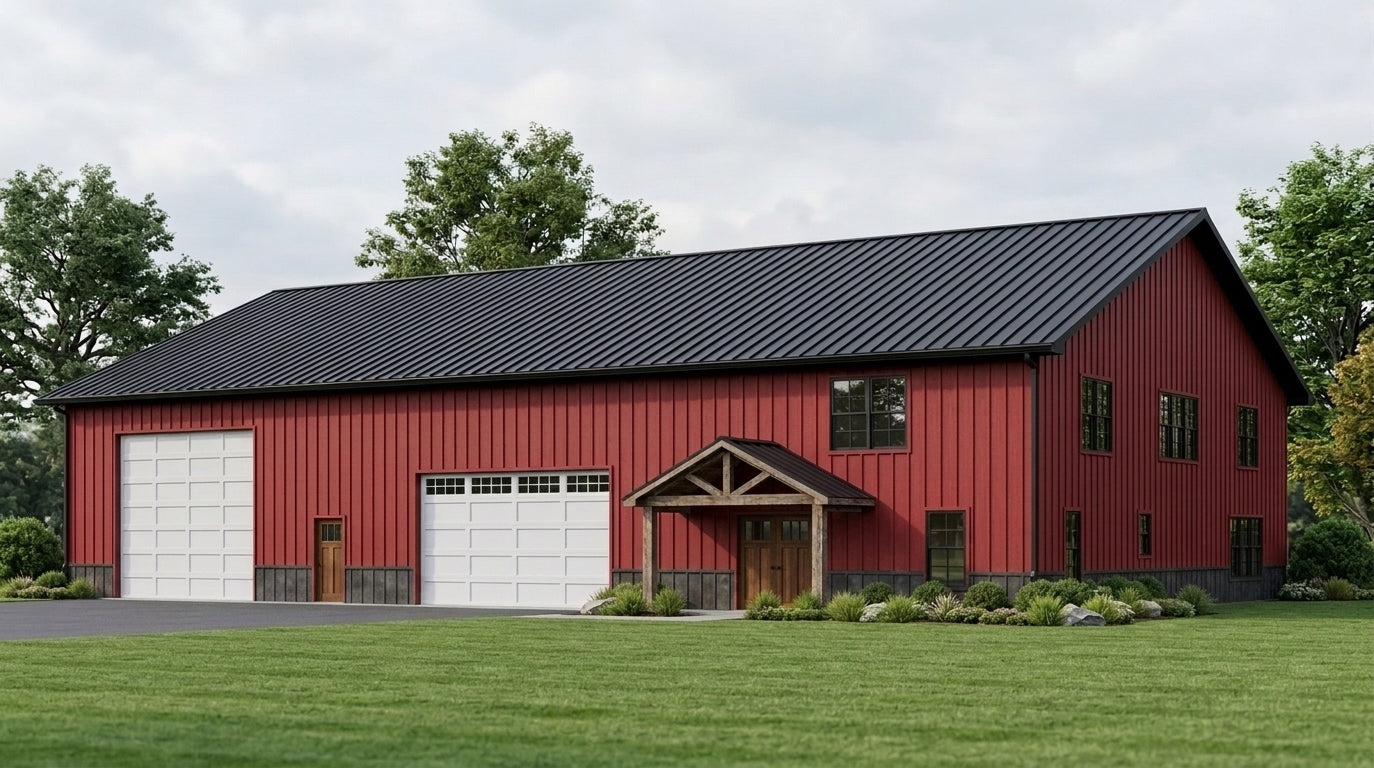

BG-20100 Carmel Barndominium House Plan

$1,450.00 USD
$1,450.00 USD
Sale Sold out
Add To Wishlist
1 10

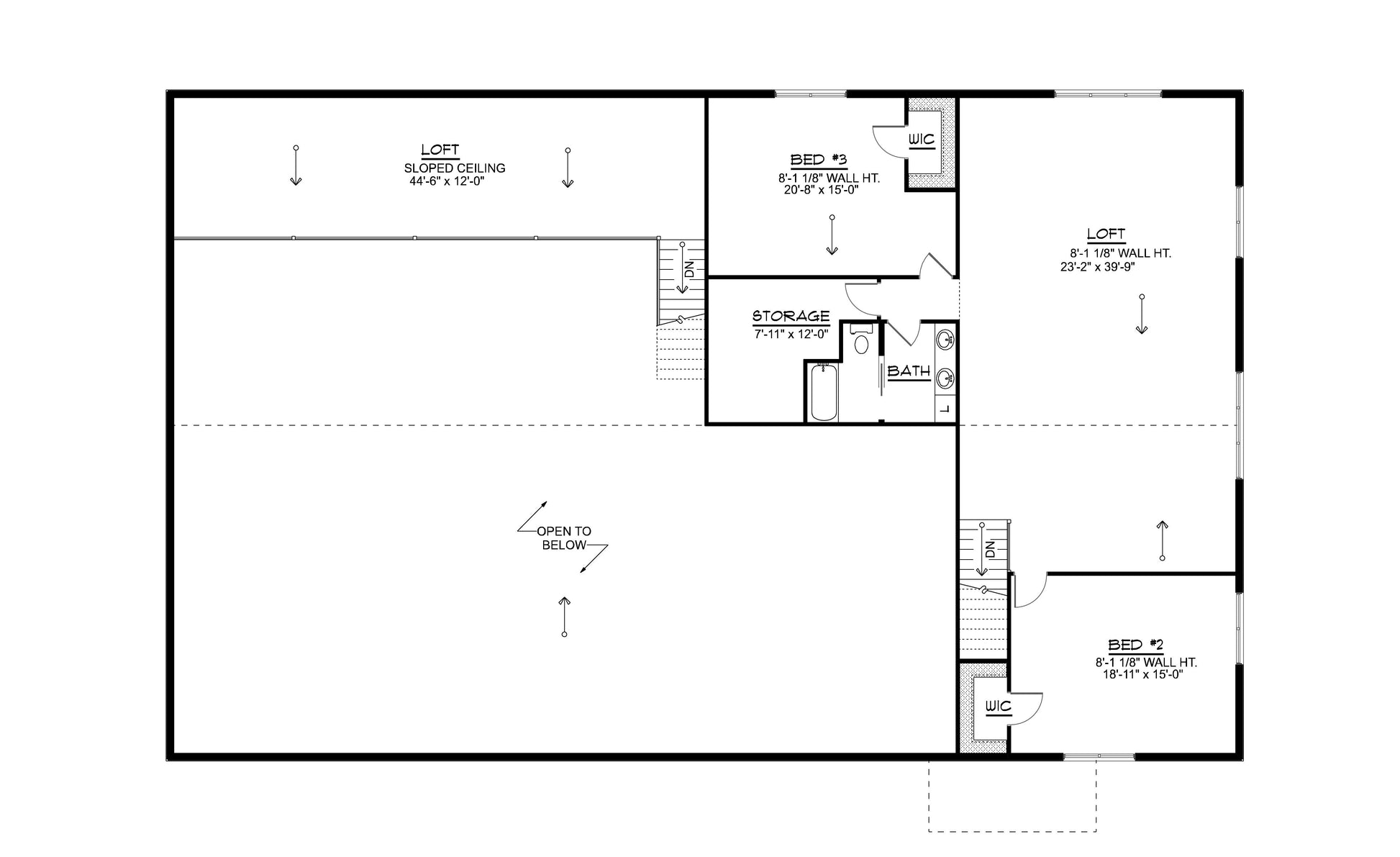

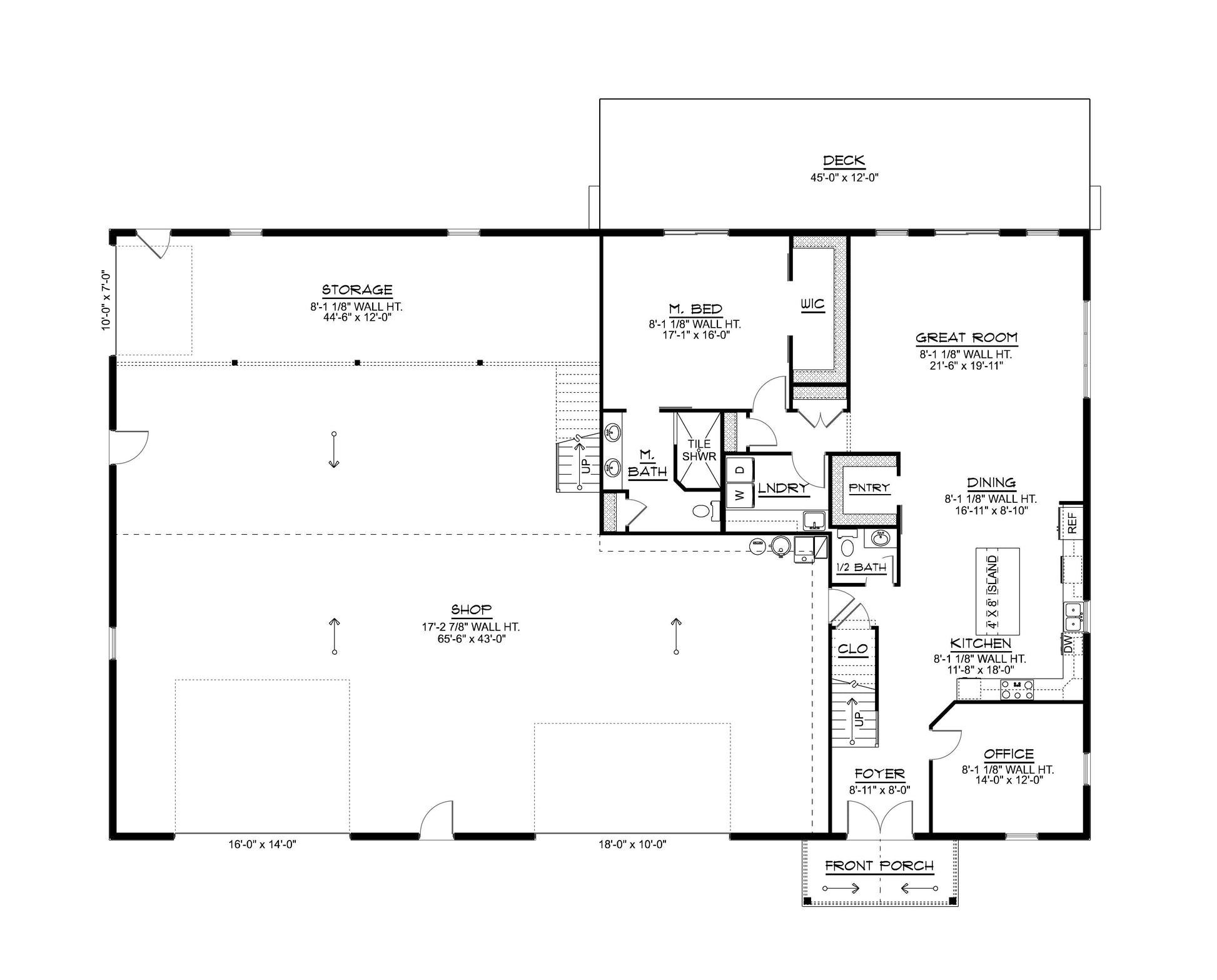

Floor Plan

DETAILS

HEATED SQ FT

First Floor:

1,933 SF

Second Floor:

1,883 SF

Total Heated Sq Ft:

3,816 SF

UNHEATED SQ FT

Total Unheated Area:

Garage 3,107 SF, Deck 540 SF, Porch 84 SF = TOTAL 4,292 SF

Carport:

None

Bedrooms:

3

Full Baths:

2

Floors:

2

Garage Size:

3,107 SF

Width:

90'

Depth:

74'

Height:

29'-10"

Foundation:

Concrete Slab

Main Roof Pitch:

5:12

Exterior Framing:

Stick Frame

CEILING HEIGHTS

First Floor:

8'

BG-20100 Carmel Barndominium House Plan



About this barndominium house plan:

  • 3,816 Heated Sq Ft
  • 3 bedrooms
  • 2.1 bathrooms
  • Two Story
  • Open Concept
  • Loft
  • Foyer
  • Office
  • Front porch
  • Rear deck
  • Storage room
  • 3,107 SF Shop



  • This two-level layout offers 3,816 square feet of conditioned space, with three bedrooms and 4.1 bathrooms arranged for privacy and flow.
  • Anchoring the upper level, the loft features soaring ceilings and open sightlines—ideal as a second living area, media zone, or creative retreat.
  • A welcoming entry sets the tone with built-in seating and direct access to the central living spaces.
  • Positioned near the front porch, the office offers a quiet workspace with natural light and easy access to the kitchen and dining area.
  • Outdoor living is framed by a classic front porch and a spacious rear deck—perfect for entertaining, relaxing, or enjoying cross-breezes.
  • A dedicated storage room near the loft provides practical space for seasonal items, gear, or household overflow.
  • This expansive shop spans over 3,000 square feet with high ceilings and direct access from the main home—perfect for hands-on projects, equipment storage, or hobby zones with room to spare.





What's included in BG-20100:

Cover Sheet
Four Elevations (Front, Back, Left Side, Right Side)
Roof Plan
Dimensioned Floor Plan
Foundation Plan
Wall Sections
Electrical Plans



For more barndominium floor plans, check out our complete collection of 3-bedroom barndominium floor plans.



Need to make changes? Submit a modification request using the button that says Modify This Plan. We will get you a free price quote within 72 hours.

What's Typically Included

THE SPECIFC DETAILS OF WHAT'S INCLUDED ON THESE PLANS IS CONTAINED IN THE PRODUCT DESCRIPTION. PLEASE SCROLL UP AND YOU WILL FIND IT UNDER "WHAT'S INCLUDED"

Our house plan sets typically have the following details:

4 Elevations – Front, Back, Both Sides

Detailed Floor Plan Drawing

Electrical Plans with placements for HVAC

Plumbing Plans with Placements

Flooring Plan

Roof Plan

Foundation Plan

For more information on what's included and examples of what your plans will look like, go here -> https://barndominiumplans.com/pages/whats-included

Please Note: We work with many different draftspeople who work in many different ways.  It should be noted that their plans may contain different details. THE SPECIFC DETAILS OF WHAT'S INCLUDED ON THESE PLANS IS CONTAINED IN THE PRODUCT DESCRIPTION. PLEASE SCROLL UP AND YOU WILL FIND IT UNDER "WHAT'S INCLUDED"

What's Not Included

The following items are NOT included:

Architectural or Engineering Stamp. Our plans are engineering-ready! Can take them to a local engineer in your state.

Site Plan - We can provide this if needed for $300 additional.

Materials List - handled locally when required

Energy calculations - handled locally when required

Snow load calculations - handled locally when required

Delivery

This plan is available as a digital product or printed + shipped.

If you select digital, the plan will be delivered to you via email as a PDF file, no matter what time it is.

If you select printed + shipped, your order will ship in 24x36 format within 1 business day of your order.

We ship from the midwest in order to serve the entire country within 3-5 business days!

Return policy

All barndominium house plan purchases are FINAL. There are no exchanges or refunds due to the digital nature of the product. Please make sure that the plan you have selected is going to fit your needs.
