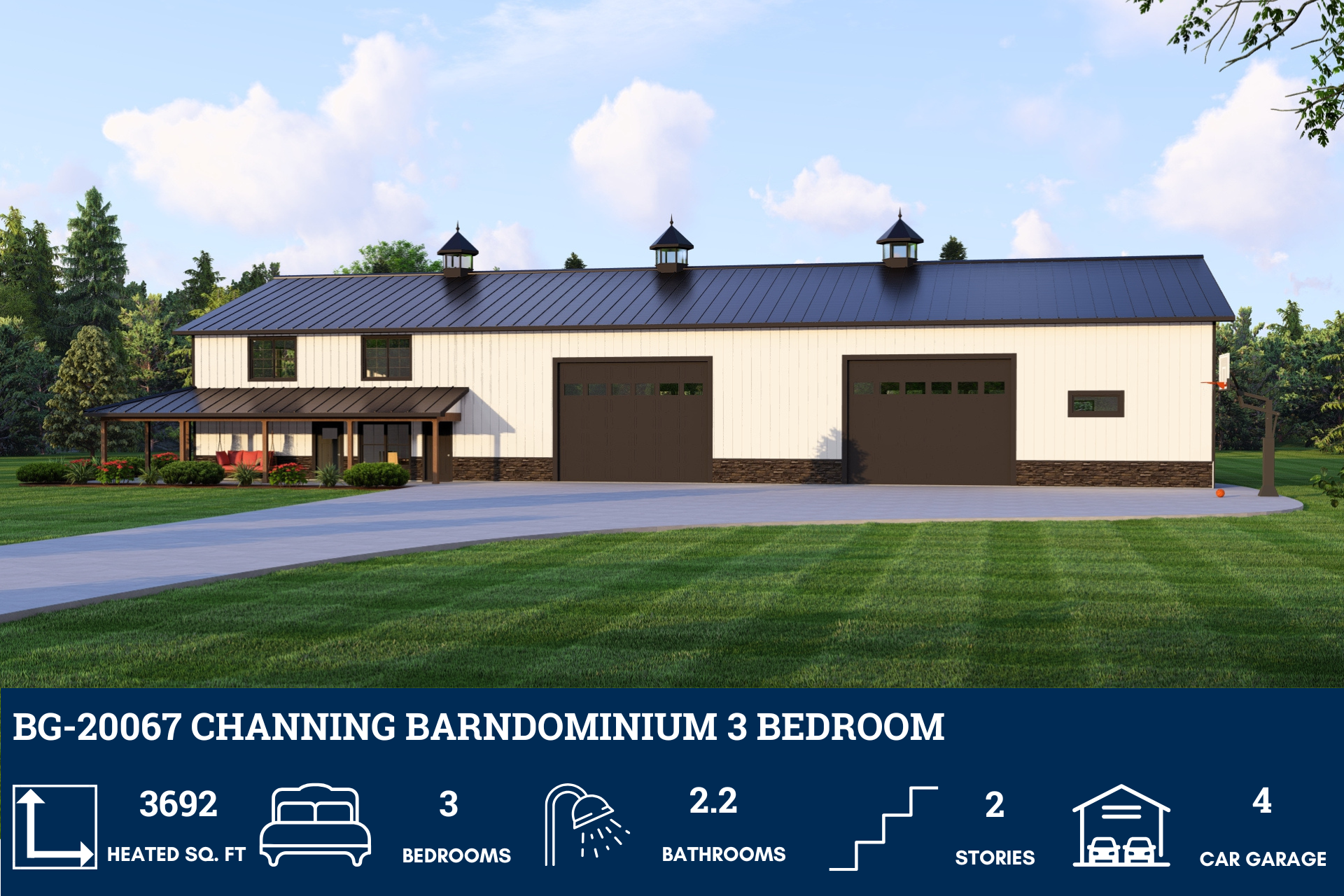

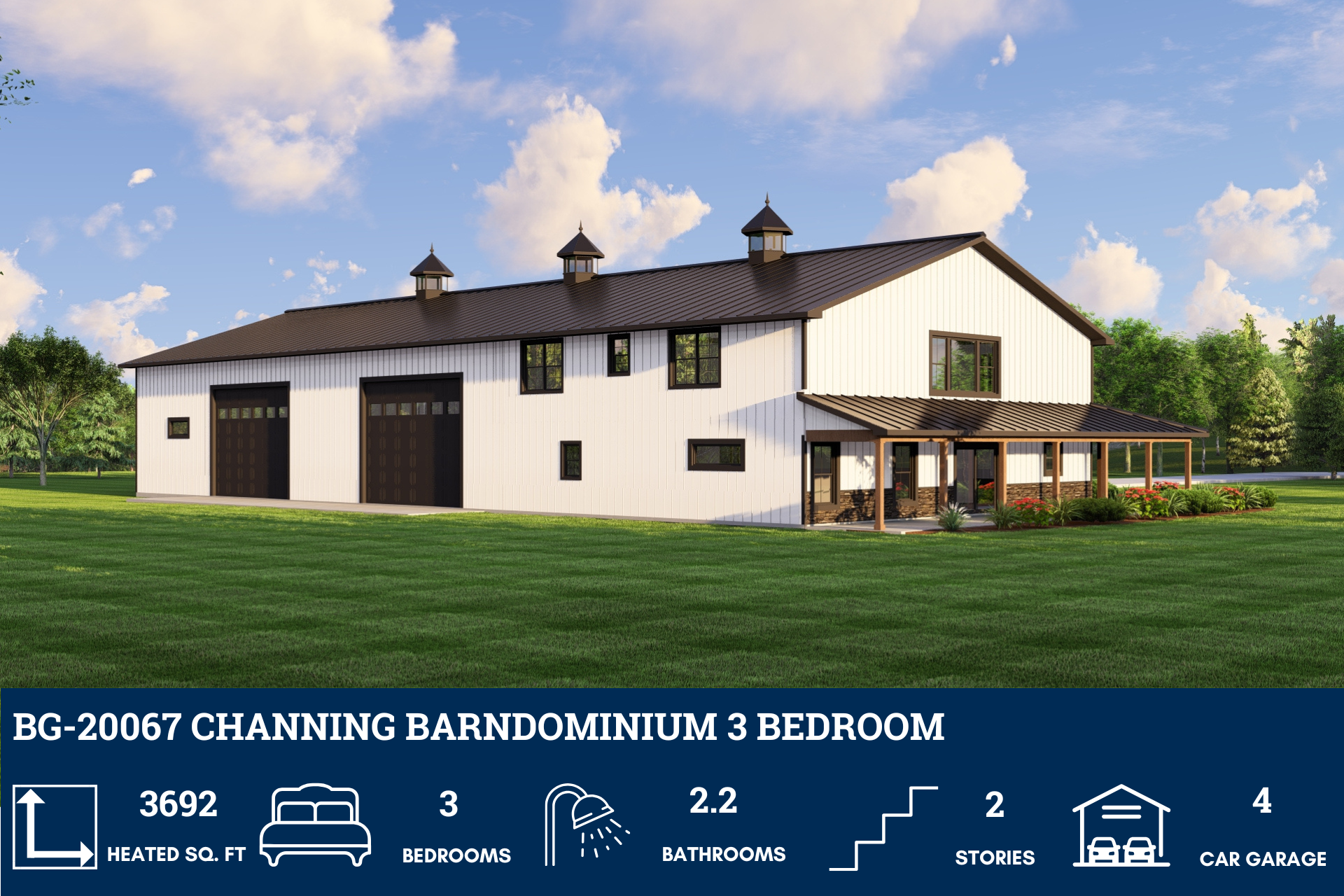

BG-20067 Channing Barndominium House Plan

$1,450.00 USD
$1,450.00 USD
Sale Sold out
Add To Wishlist
1 22

Floor Plan

DETAILS

HEATED SQ FT

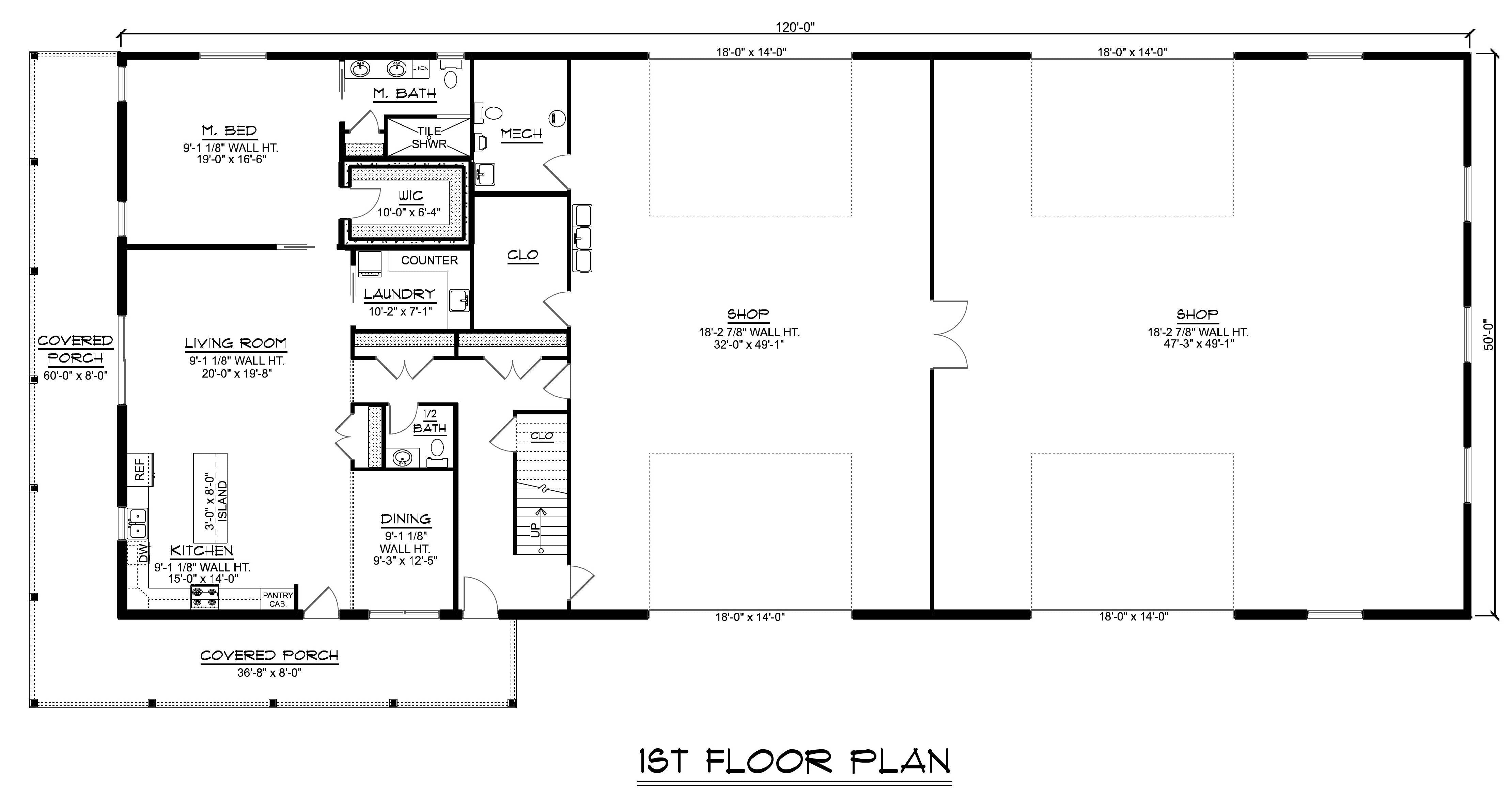

First Floor:

1,779 SF

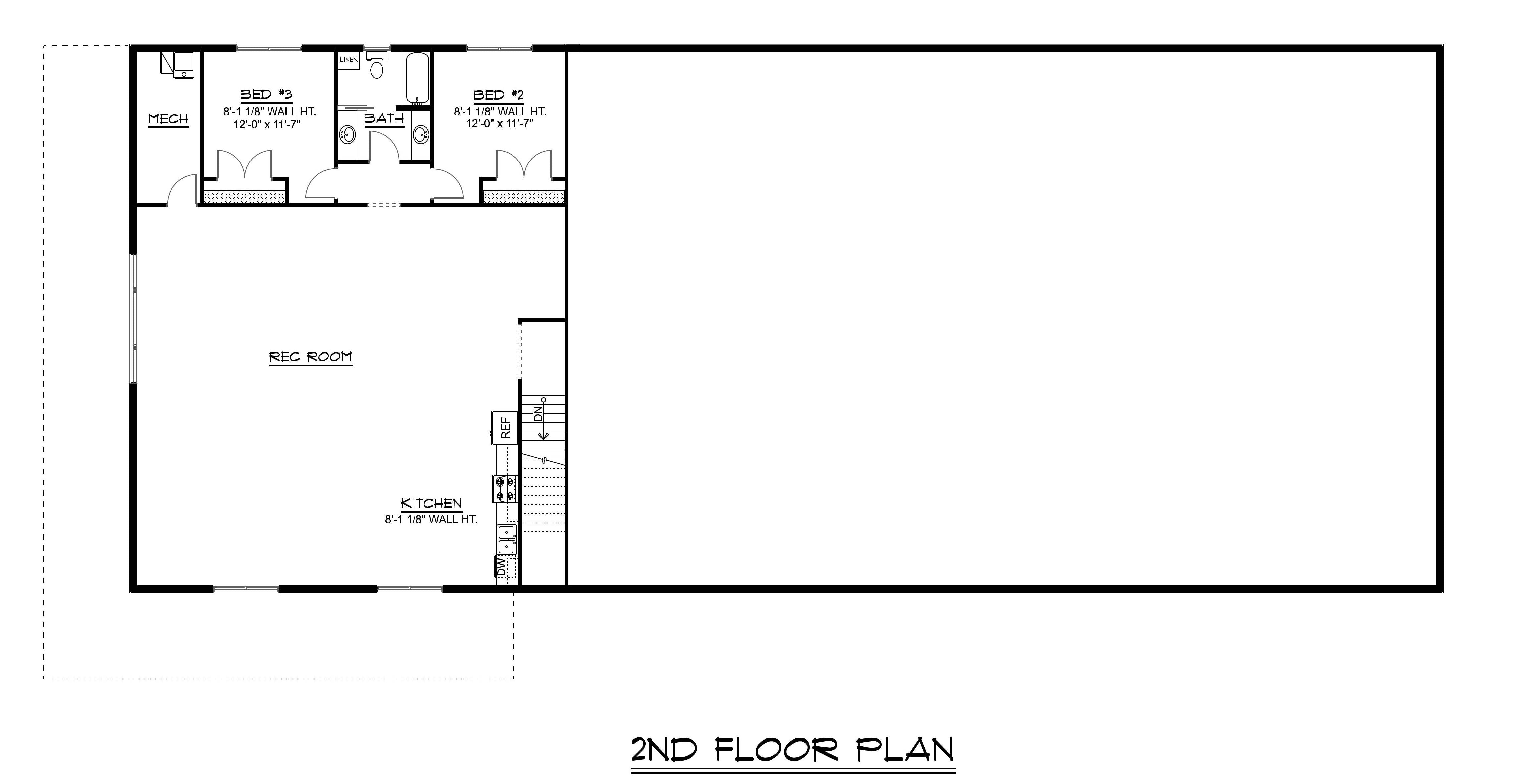

Second Floor:

1,913 SF

Total Heated Sq Ft:

3,692 SF

UNHEATED SQ FT

Total Unheated Area:

Shop 4,215 SF, Porch 744 SF = TOTAL 4,959 SF

Carport:

None

Bedrooms:

3

Full Baths:

2

Floors:

2

Garage Size:

4,215 SF

Width:

120'

Depth:

50'

Height:

25'-11"

Foundation:

Concrete Slab

Main Roof Pitch:

4:12

Exterior Framing:

Stick Frame

CEILING HEIGHTS

First Floor:

9'

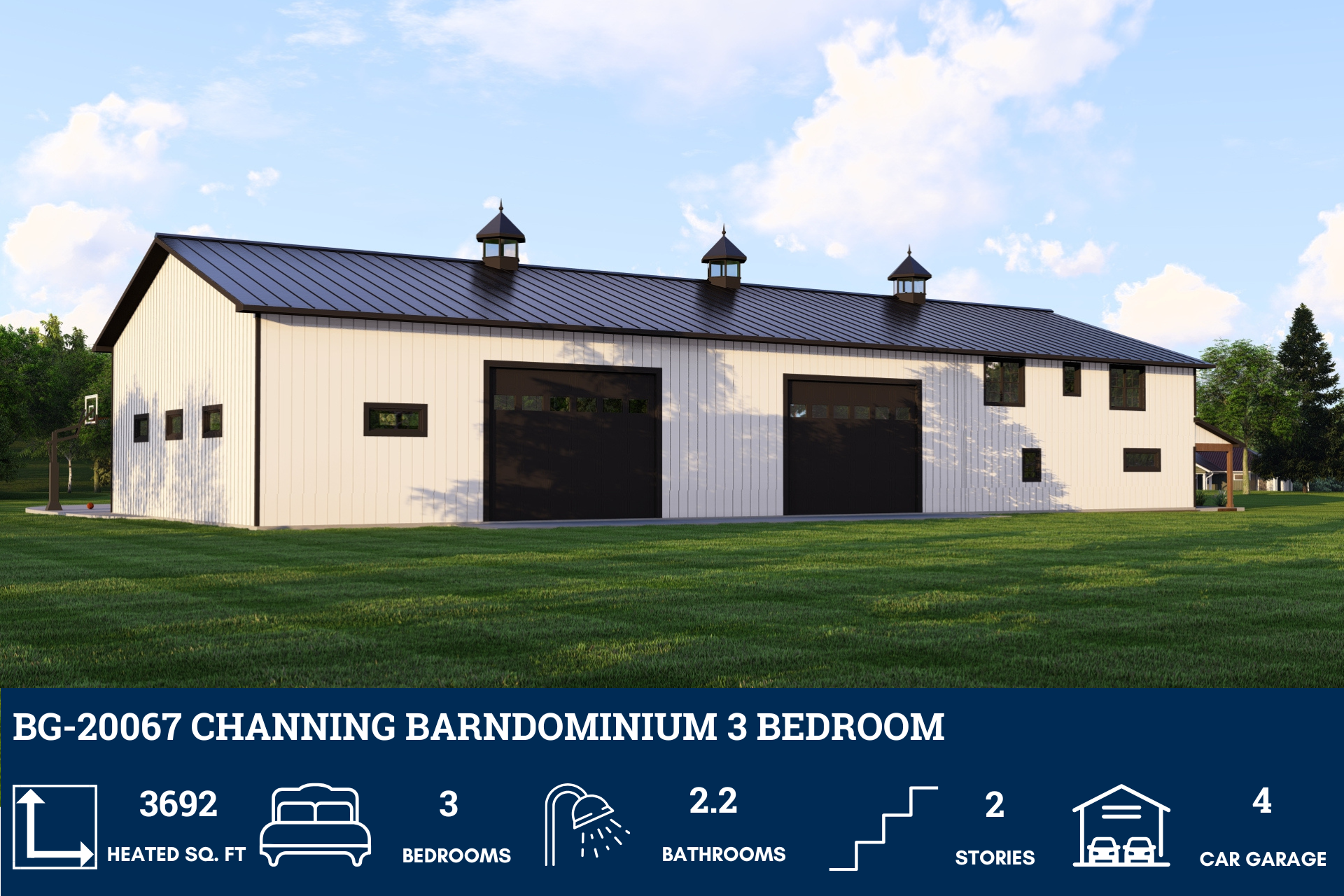

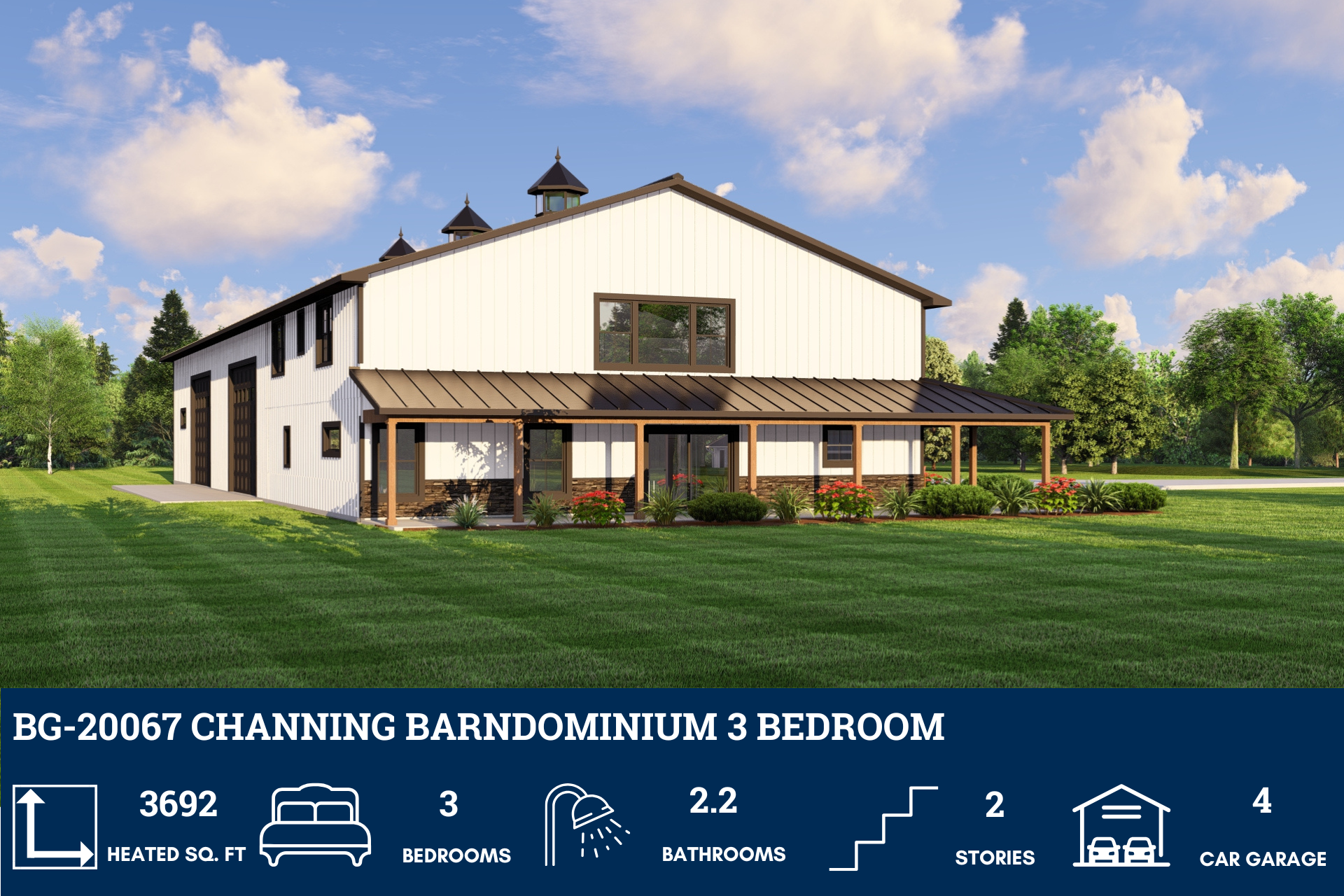

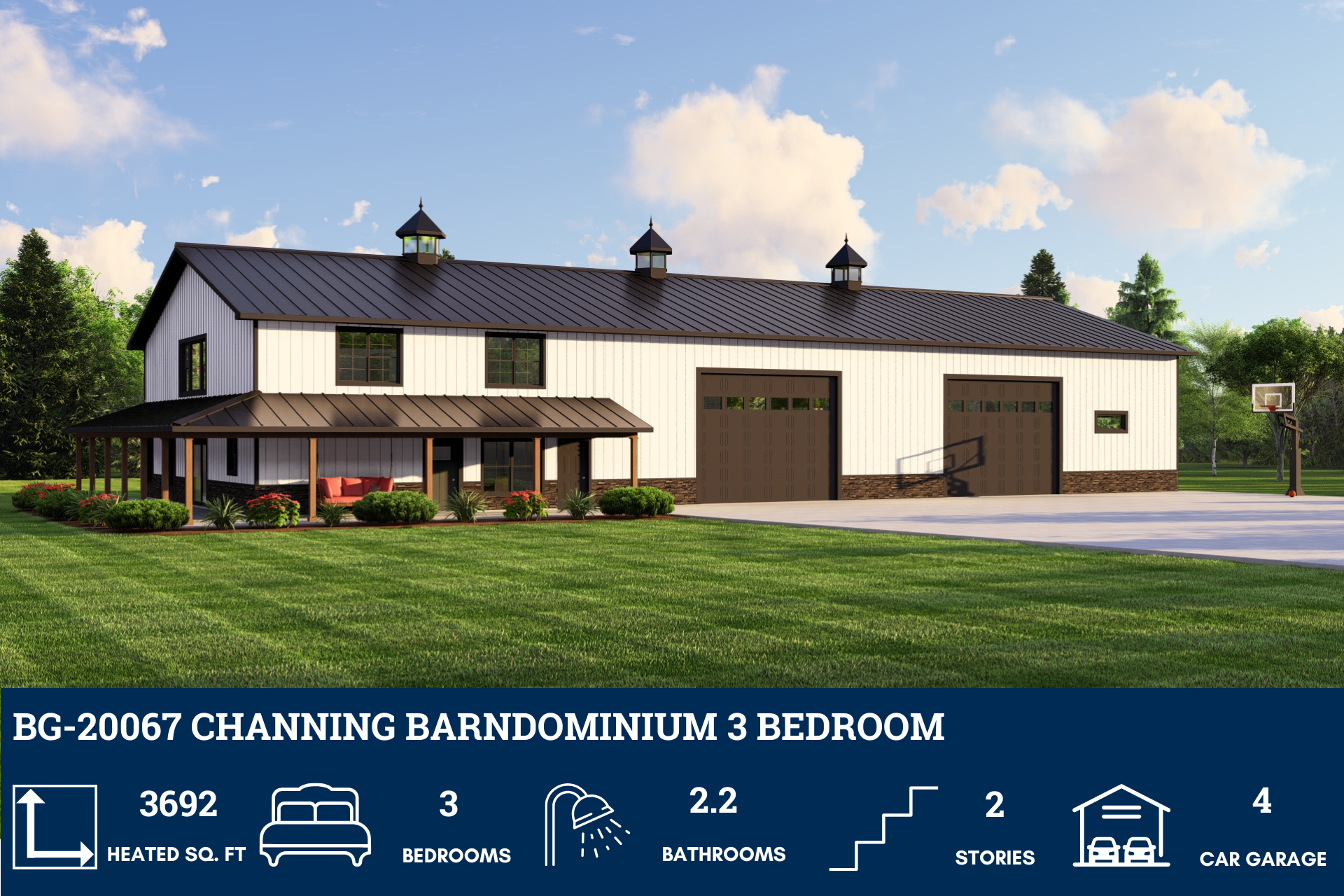

BG-20067 Channing Barndominium House Plan



About this barndominium house plan:

  • 3,692 Heated Sq Ft
  • 3 bedrooms
  • 2.2 bathrooms
  • Two Story
  • Open Concept
  • 2 Kitchens
  • Recreation room
  • Mechanical room
  • Covered porch
  • 4,215 Sq Ft Shop



  • This expansive layout offers 3,692 square feet of conditioned living, with three bedrooms and a mix of full and half baths—designed for comfort, privacy, and effortless hosting.
  • Upstairs, two additional bedrooms join a spacious recreation room complete with its own kitchen—ideal for entertaining, multi-generational living, or creative use. A mechanical room adds practical utility without sacrificing flow.
  • A massive 4,215-square-foot shop divided into two distinct areas—built to house four vehicles with room to spare for tools, storage, or hobby zones. It’s more than a garage; it’s a workspace with scale.



What's included in BG-20067:

Cover Sheet
Four Elevations (Front, Back, Left Side, Right Side)
Roof Plan
Dimensioned Floor Plan
Foundation Plan
Wall Sections
Electrical Plans



For more barndominium floor plans, check out our complete collection of 3-bedroom barndominium floor plans.



Need to make changes? Submit a modification request using the button that says Modify This Plan (below the Add To Cart Button). We will get you a free price quote within 72 hours.

Please note all square footage are estimates.

What's Included

Our house plan sets typically have the following details:

4 Elevations – Front, Back, Both Sides

Detailed Floor Plan Drawing

Electrical Plans with placements for HVAC

Plumbing Plans with Placements

Flooring Plan

Roof Plan

Foundation Plan

For more information on what's included and examples of what your plans will look like, go here -> https://barndominiumplans.com/pages/whats-included

Please Note: We work with many different draftspeople who work in many different ways.  It should be noted that their plans may contain different details.

What's Not Included

The following items are NOT included:

Architectural or Engineering Stamp. Our plans are engineering-ready! Can take them to a local engineer in your state.

Site Plan - We can provide this if needed for $300 additional.

Materials List - handled locally when required

Energy calculations - handled locally when required

Snow load calculations - handled locally when required

Delivery

This plan is available as a digital product or printed + shipped.

If you select digital, the plan will be delivered to you via email as a PDF file, no matter what time it is.

If you select printed + shipped, your order will ship in 24x36 format within 1 business day of your order.

We ship from the midwest in order to serve the entire country within 3-5 business days!

Return policy

All barndominium house plan purchases are FINAL. There are no exchanges or refunds due to the digital nature of the product. Please make sure that the plan you have selected is going to fit your needs.
