BG-20044 Aldridge Barndominium House Plan

$1,450.00 USD
$1,450.00 USD
Sale Sold out
Add To Wishlist
1 15

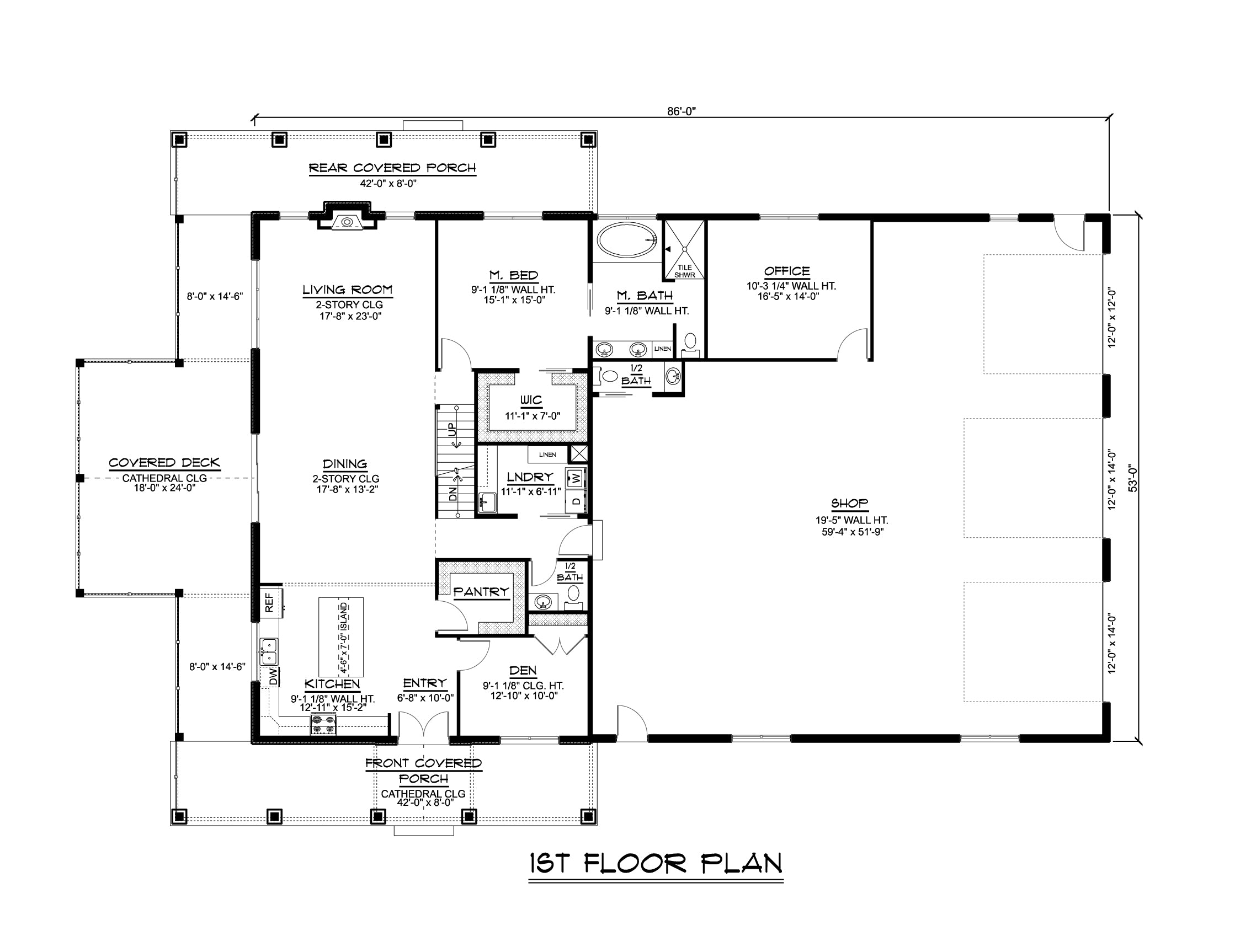

Floor Plan

DETAILS

HEATED SQ FT

First Floor:

1,973 SF

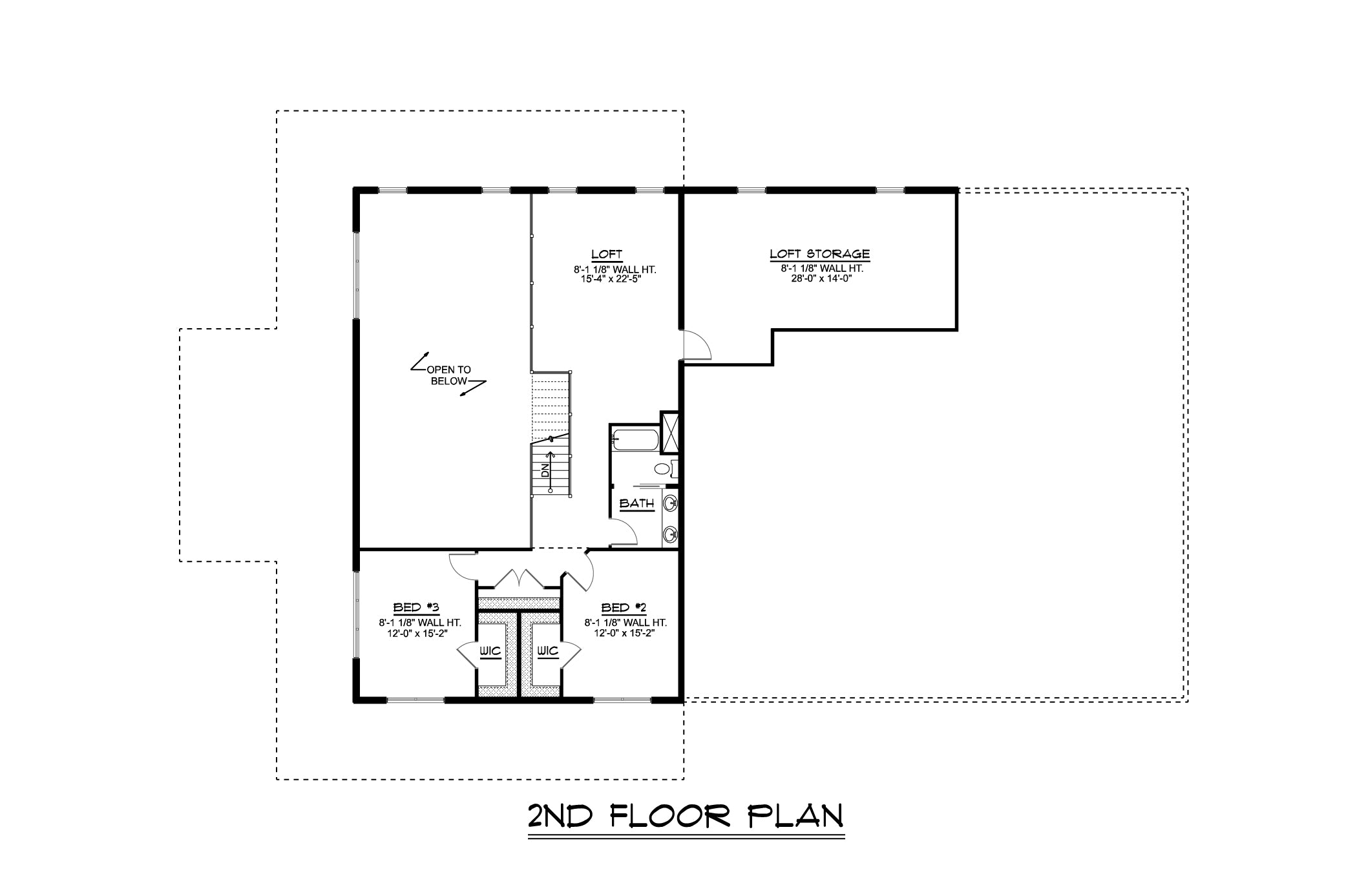

Second Floor:

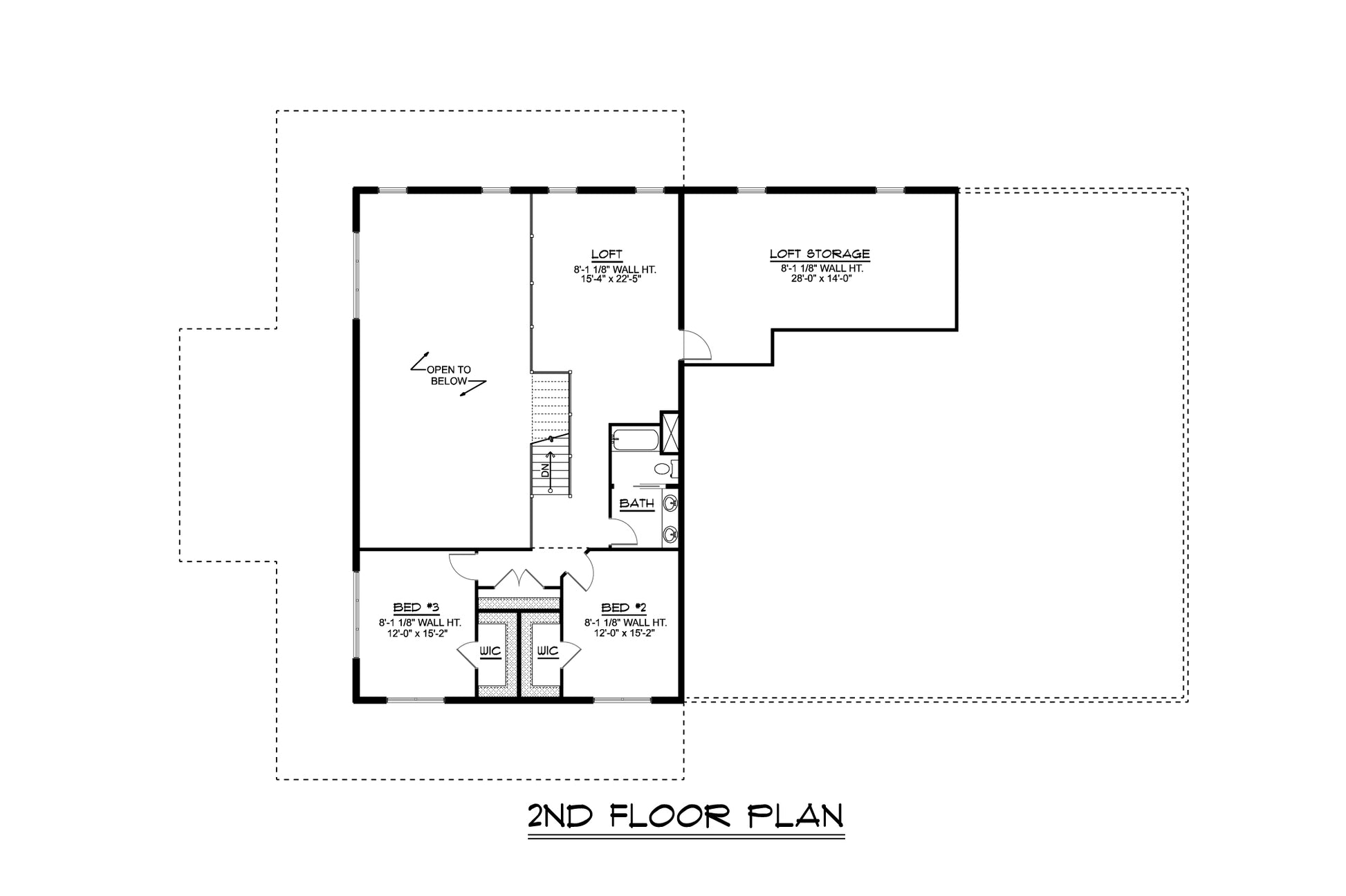

1,529 SF

Total Heated Sq Ft:

3,502 SF

UNHEATED SQ FT

Total Unheated Area:

Basement 1,973 SF, Garage 2,585 SF, Deck 650 SF, Porch 672 SF, Patio 691 SF = TOTAL 6,571 SF

Carport:

None

Bedrooms:

3

Full Baths:

2

Floors:

2

Garage Size:

2,585 SF

Width:

104'

Depth:

69'

Height:

28'-9"

Foundation:

Basement

Main Roof Pitch:

6:12

Exterior Framing:

Stick Frame

CEILING HEIGHTS

First Floor:

9'

BG-20044 Aldridge Barndominium House Plan



About this barndominium house plan:

  • 3,502 Heated Sq Ft
  • 3 Bedrooms
  • 2.2 Bathrooms
  • Two-Story
  • Open concept
  • Loft
  • Office
  • Den
  • Loft storage
  • Mech/Storage room

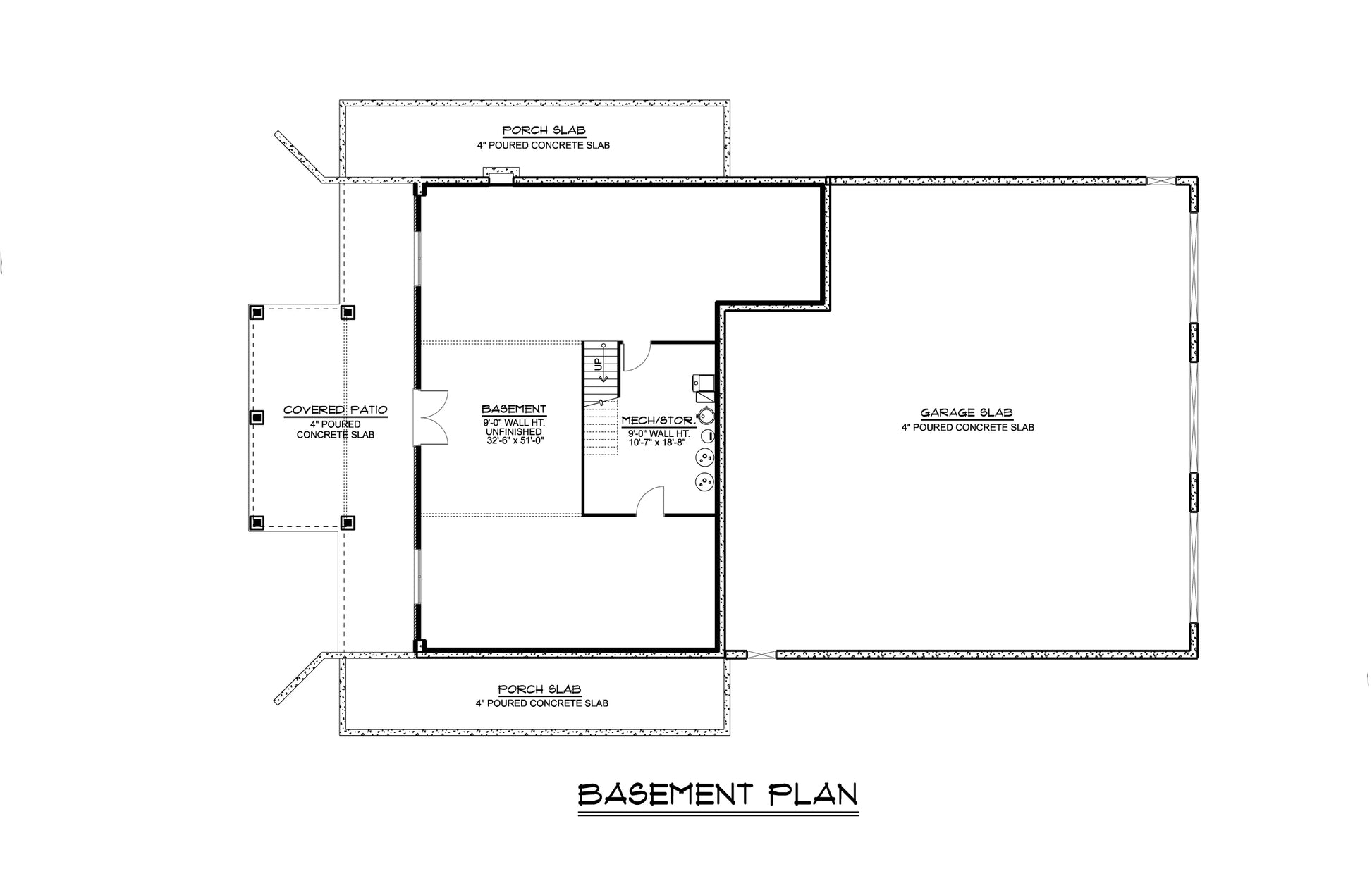

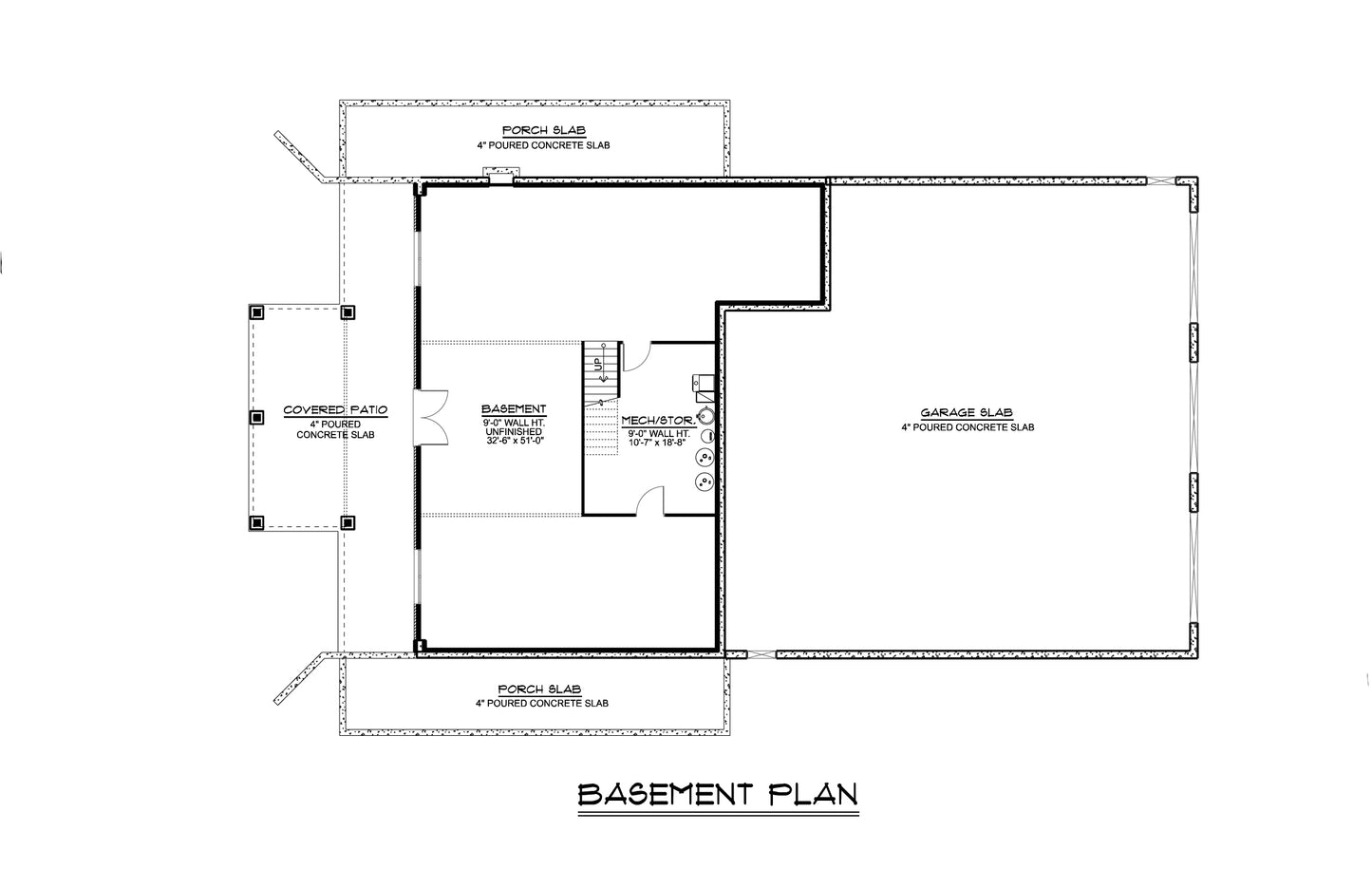

  • Unfinished basement
  • Covered front & rear porch
  • Deck
  • 2,585 Sq Ft Shop



  • A spacious interior offering 3,502 square feet of conditioned living—designed for comfort, movement, and multi-zone flexibility.
  • Three private bedrooms and a mix of two full baths plus two powder rooms provide balance for family life, guest stays, and everyday ease.
  • A tucked-away workspace within the garage—ideal for focused tasks, creative projects, or running a home-based business with separation from the main living areas.
  • Positioned just off the entry, the den offers a quiet retreat or welcoming lounge—perfect for reading, conversation, or relaxed hosting.
  • An elevated storage zone that keeps seasonal items, keepsakes, or overflow essentials neatly tucked away without sacrificing floor space.
  • Located in the basement, this utility zone keeps systems accessible and storage discreet—streamlining maintenance and freeing up indoor space.
  • An open-air extension, the deck is perfect for entertaining, lounging, or connecting with the landscape—ideal for sunny afternoons or starlit dinners.
  • A supersized shop offering 2,585 square feet of utility, workspace, and storage. Whether for vehicles, tools, or creative projects, it’s a multifunctional extension of the home.



What's included in BG-20044:

Cover Sheet
Four Elevations (Front, Back, Left Side, Right Side)
Roof Plan
Dimensioned Floor Plan
Foundation Plan
Wall Sections
Electrical Plans



For more barndominium floor plans, check out our complete collection of 3-bedroom barndominium floor plans.



Need to make changes? Submit a modification request using the button that says Modify This Plan (below the Add To Cart Button). We will get you a free price quote within 72 hours.

Please note all square footage are estimates.

What's Included

Our house plan sets typically have the following details:

4 Elevations – Front, Back, Both Sides

Detailed Floor Plan Drawing

Electrical Plans with placements for HVAC

Plumbing Plans with Placements

Flooring Plan

Roof Plan

Foundation Plan

For more information on what's included and examples of what your plans will look like, go here -> https://barndominiumplans.com/pages/whats-included

Please Note: We work with many different draftspeople who work in many different ways.  It should be noted that their plans may contain different details.

What's Not Included

The following items are NOT included:

Architectural or Engineering Stamp. Our plans are engineering-ready! Can take them to a local engineer in your state.

Site Plan - We can provide this if needed for $300 additional.

Materials List - handled locally when required

Energy calculations - handled locally when required

Snow load calculations - handled locally when required

Delivery

This plan is available as a digital product or printed + shipped.

If you select digital, the plan will be delivered to you via email as a PDF file, no matter what time it is.

If you select printed + shipped, your order will ship in 24x36 format within 1 business day of your order.

We ship from the midwest in order to serve the entire country within 3-5 business days!

Return policy

All barndominium house plan purchases are FINAL. There are no exchanges or refunds due to the digital nature of the product. Please make sure that the plan you have selected is going to fit your needs.
