Barndominium Plans

BG-20038 Monticello Barndominium House Plan

$1,350.00 USD
$1,350.00 USD
Sale Sold out
Add To Wishlist
1 19

Floor Plan

DETAILS

HEATED SQ FT

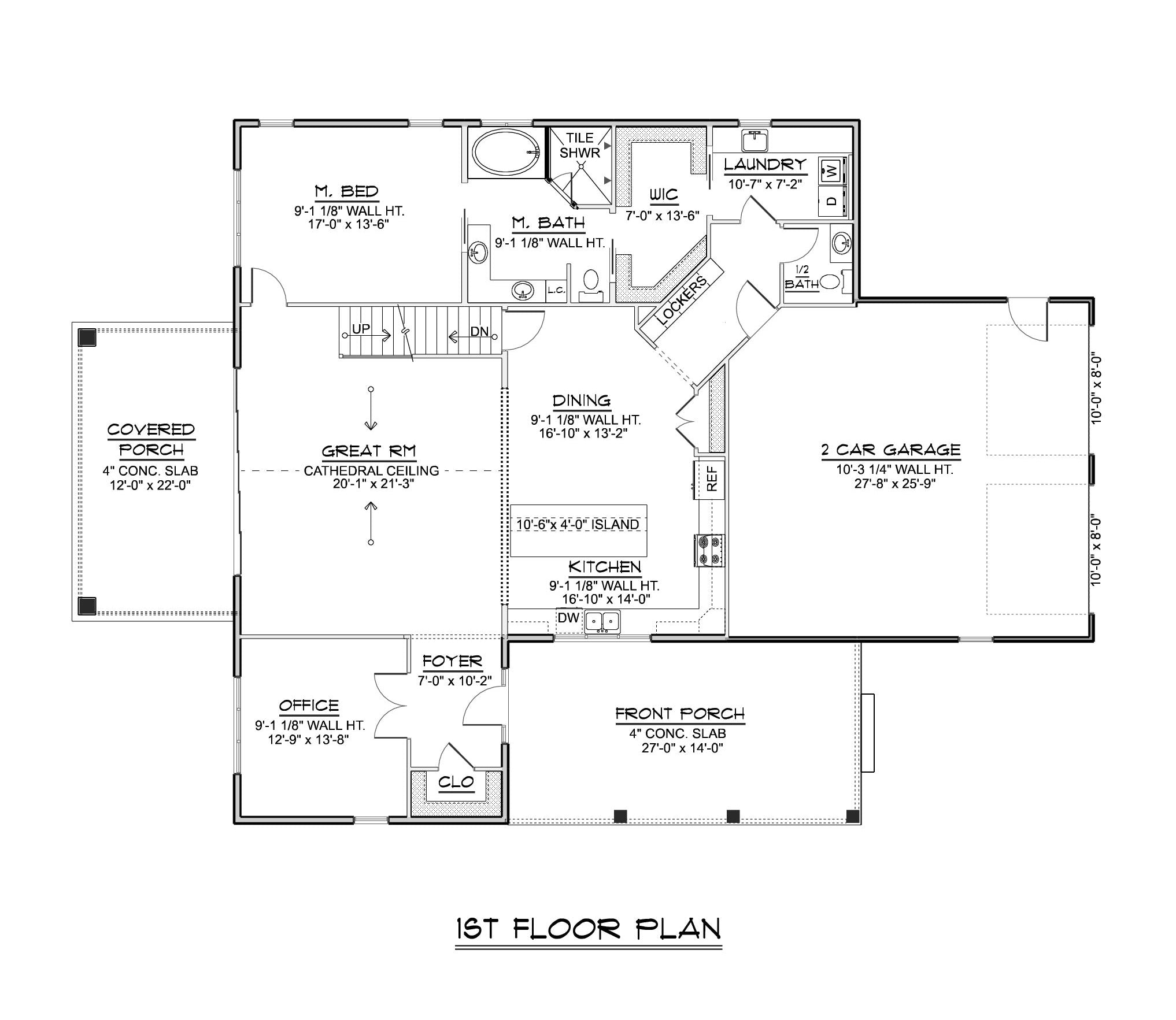

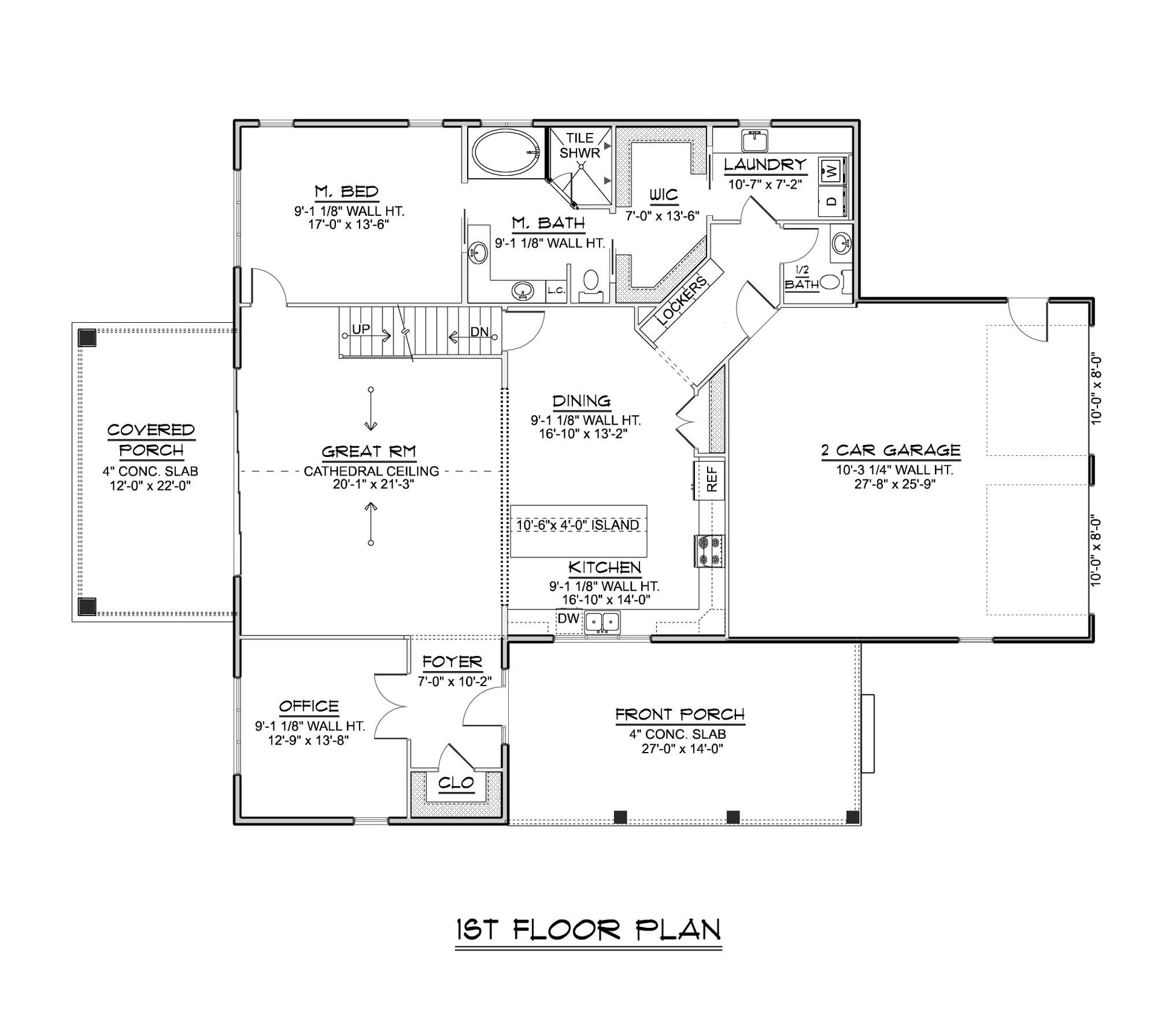

First Floor:

1,966 SF

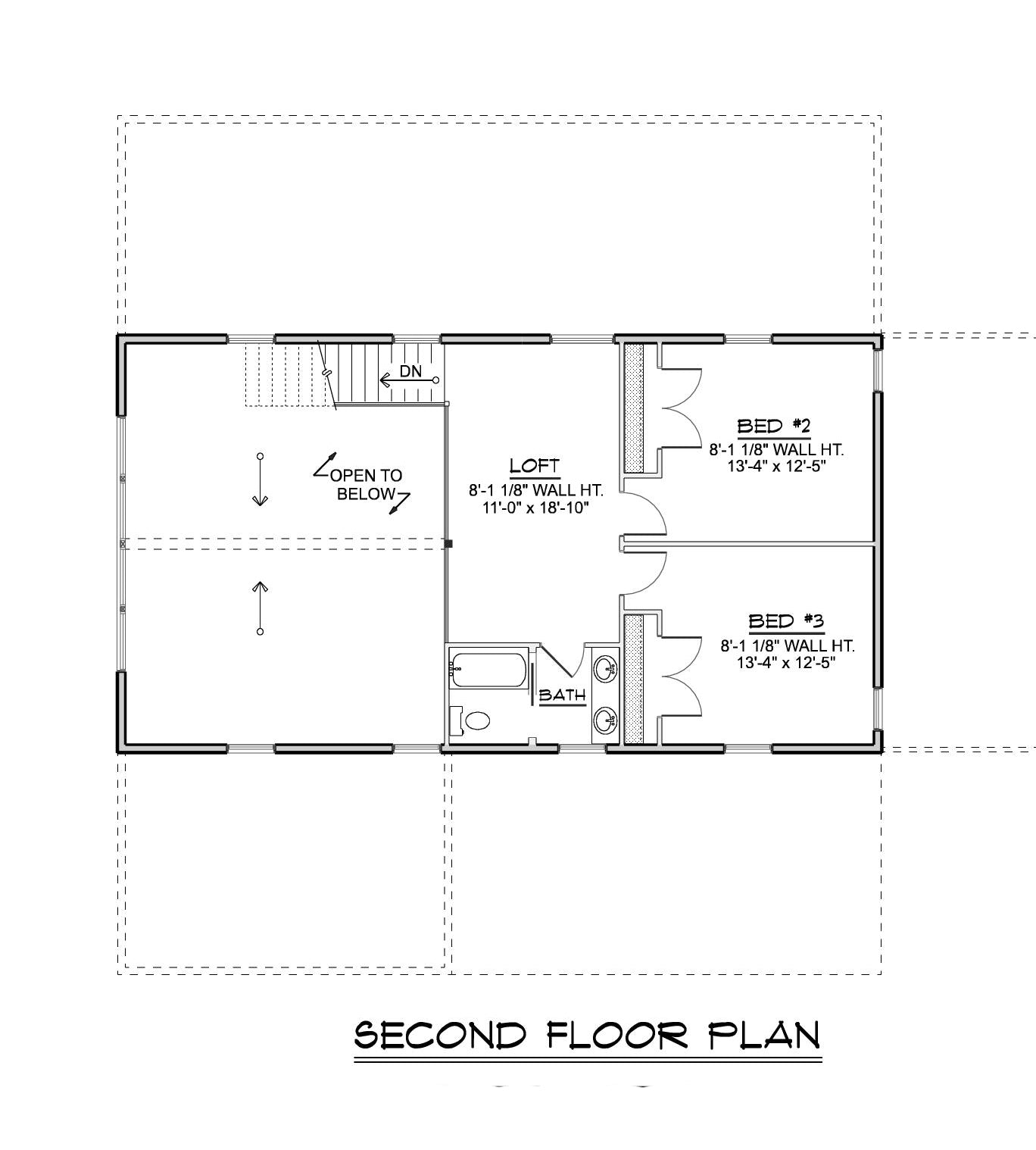

Second Floor:

718 SF

Total Heated Sq Ft:

2,684 SF

UNHEATED SQ FT

Total Unheated Area:

Basement 1,965 SF, Garage 722 SF, Porch/Patio 639 SF = TOTAL 3,326 SF

Carport:

None

Bedrooms:

4

Full Baths:

3

Floors:

2

Garage Size:

722 SF

Width:

66'

Depth:

54'

Height:

27'-6"

Foundation:

Basement

Main Roof Pitch:

8:12

Exterior Framing:

Stick Frame

CEILING HEIGHTS

First Floor:

9'

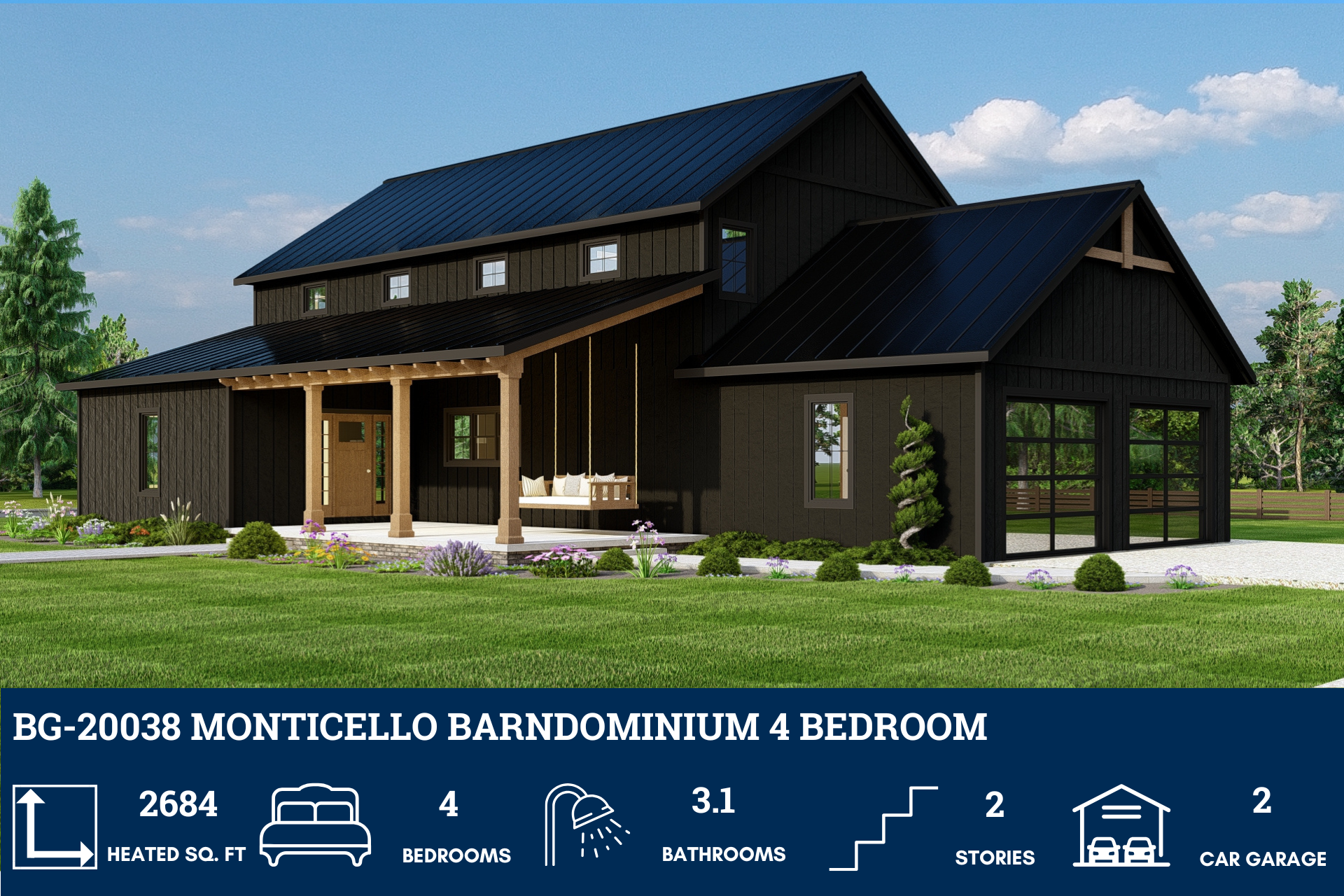

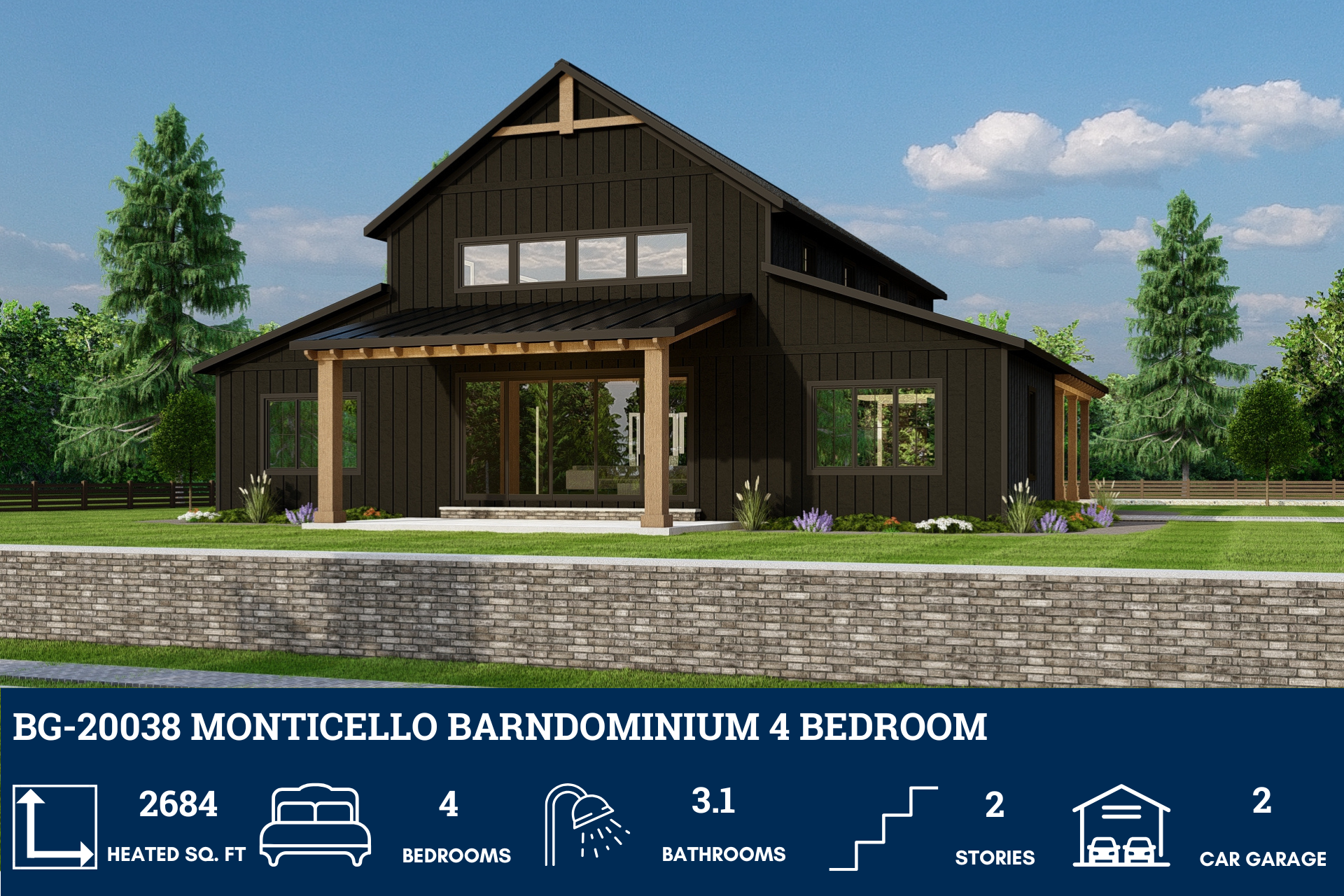

BG-20038 Monticello Barndominium House Plan



About this barndominium house plan:

  • 2,684 Heated Sq Ft
  • 4 Bedrooms
  • 3.1 Bathrooms
  • Two Story
  • Loft
  • Open concept
  • Office
  • Foyer
  • Locker room/Mudroom
  • Mech/Storage room
  • Covered porch

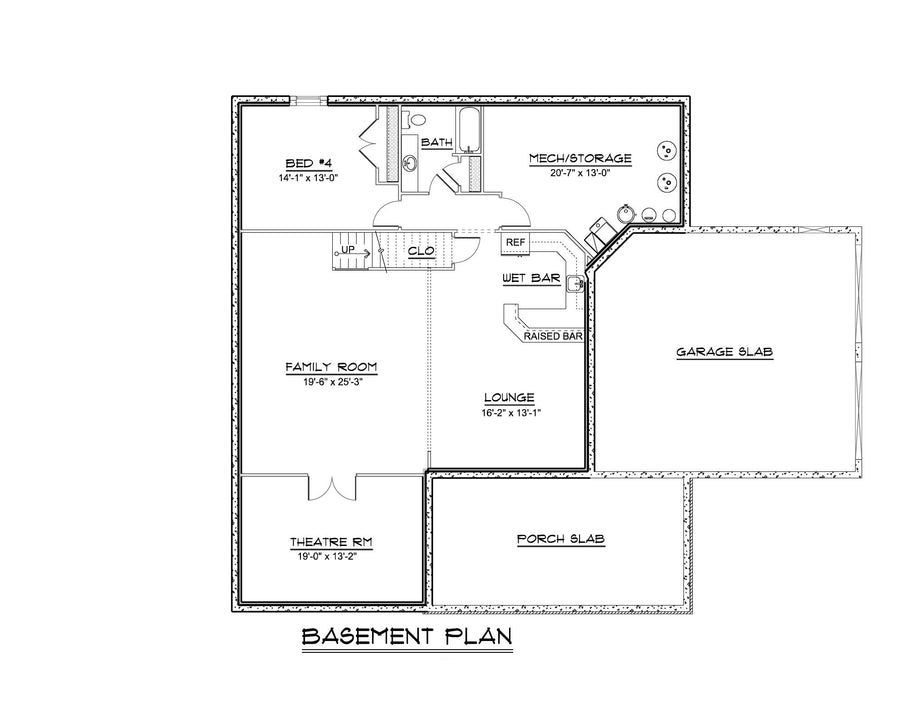

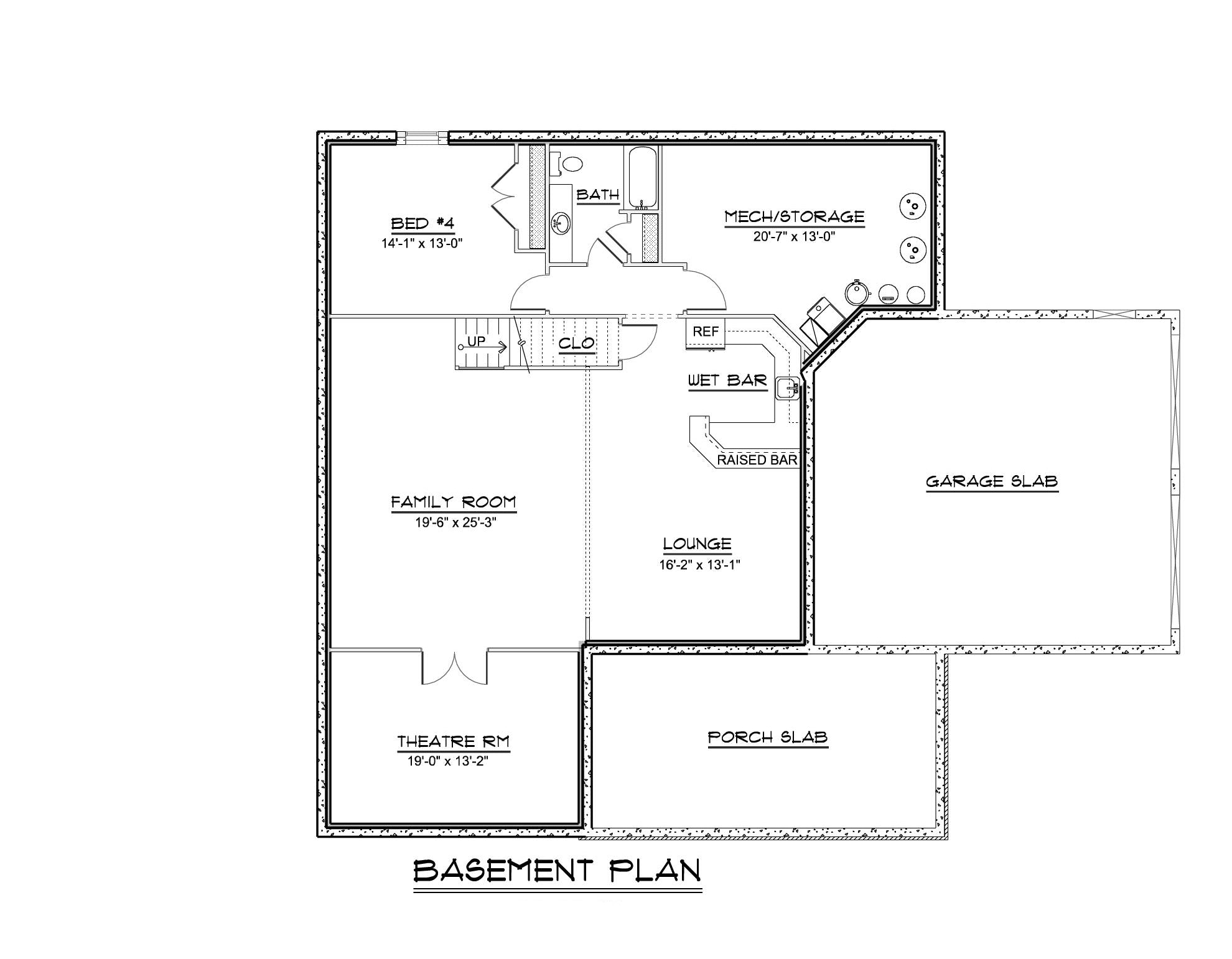

  • Basement
  • Lounge/Bar
  • Family room
  • Theater room
  • 722 Sq Ft Garage



  • A well-balanced 2,684 square feet of heated living space offers comfort, flexibility, and room to thrive across generations with four thoughtfully-placed bedrooms providing privacy and versatility for families, guests, or multi-generational arrangements.
  • Three full baths and a powder room ensure smooth routines and easy hosting, with enough space for every household member.
  • The two-story layout separates shared and private zones, ideal for blended families or those seeking both connection and retreat.
  • A bright loft adds flexible living space—perfect for a playroom, reading nook, or quiet escape for any age group.
  • A dedicated office supports remote work, study, or household management with quiet focus and natural light.
  • The welcoming foyer sets a refined tone, offering a graceful transition into the heart of the home.
  • A combined locker room and mudroom keeps the home organized and clutter-free—especially useful for active, multi-member households.
  • A discreet mechanical and storage room keeps systems accessible and essentials neatly tucked away.
  • The covered porch invites relaxed outdoor living, offering shade and charm for morning coffee or evening chats.
  • The entertainment-focused basement is built for connection—perfect for hosting, relaxing, or creating a family hub.
  • A stylish lounge and bar area adds a social spark, ideal for celebrations or casual evenings with loved ones.
  • The basement family room offers a cozy, secondary gathering space—great for movie nights or multi-generational downtime. A dedicated theater room brings cinematic experiences home, perfect for all ages to enjoy together.
  • The 722-square-foot garage provides secure parking and storage, with space for vehicles, gear, and household overflow.



What's included in BG-20038:

Cover Sheet
Four Elevations (Front, Back, Left Side, Right Side)
Roof Plan
Dimensioned Floor Plan
Foundation Plan
Wall Sections
Electrical Plans



For more barndominium floor plans, check out our complete collection of 4-bedroom barndominium floor plans.



Need to make changes? Submit a modification request using the button that says Modify This Plan (below the Add To Cart Button). We will get you a free price quote within 72 hours

Please note all square footage are estimates.

What's Included

Our house plan sets typically have the following details:

4 Elevations – Front, Back, Both Sides

Detailed Floor Plan Drawing

Electrical Plans with placements for HVAC

Plumbing Plans with Placements

Flooring Plan

Roof Plan

Foundation Plan

For more information on what's included and examples of what your plans will look like, go here -> https://barndominiumplans.com/pages/whats-included

Please Note: We work with many different draftspeople who work in many different ways.  It should be noted that their plans may contain different details.

What's Not Included

The following items are NOT included:

Architectural or Engineering Stamp. Our plans are engineering-ready! Can take them to a local engineer in your state.

Site Plan - We can provide this if needed for $300 additional.

Materials List - handled locally when required

Energy calculations - handled locally when required

Snow load calculations - handled locally when required

Delivery

This plan is available as a digital product or printed + shipped.

If you select digital, the plan will be delivered to you via email as a PDF file, no matter what time it is.

If you select printed + shipped, your order will ship in 24x36 format within 1 business day of your order.

We ship from the midwest in order to serve the entire country within 3-5 business days!

Return policy

All barndominium house plan purchases are FINAL. There are no exchanges or refunds due to the digital nature of the product. Please make sure that the plan you have selected is going to fit your needs.
