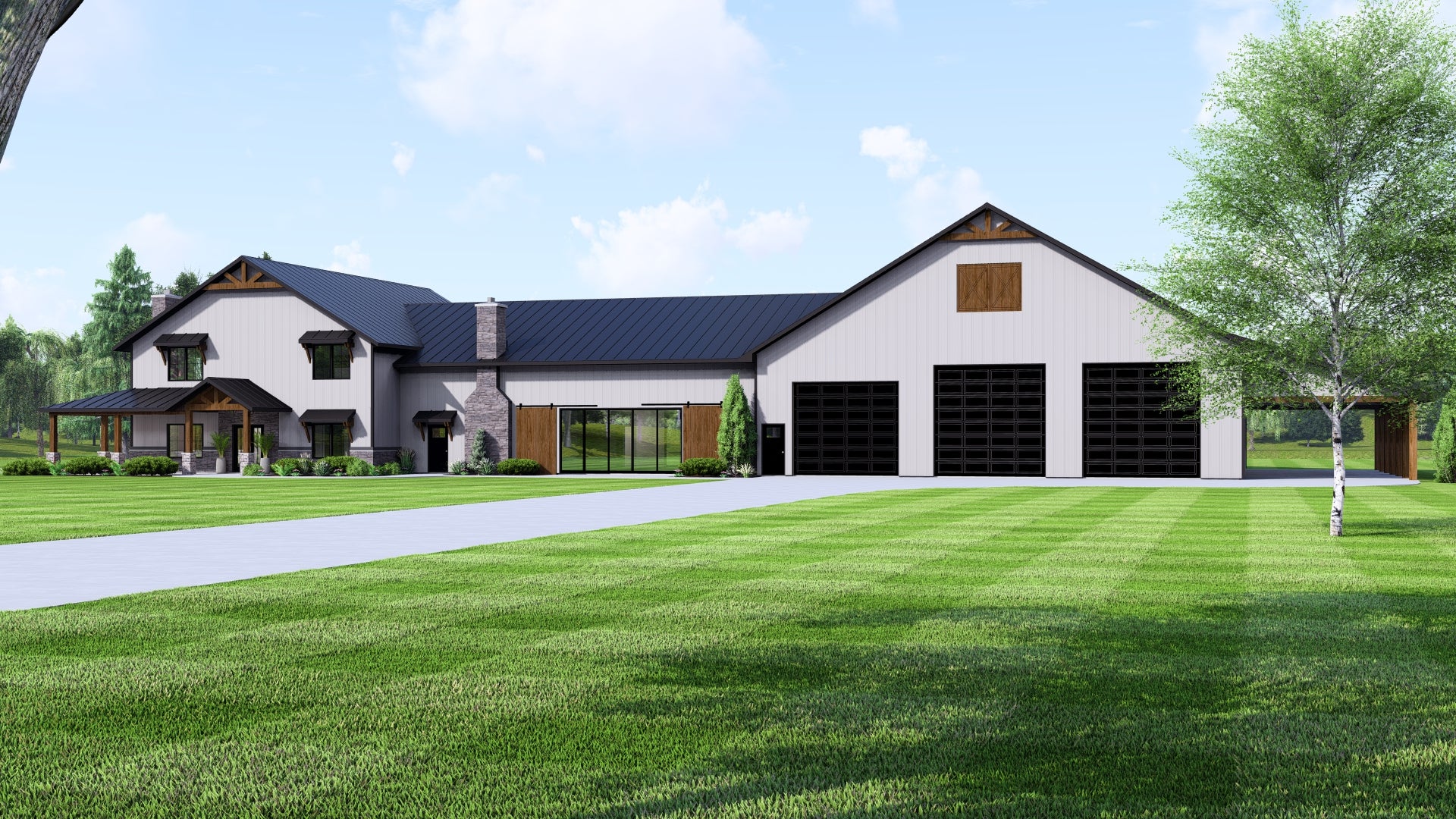

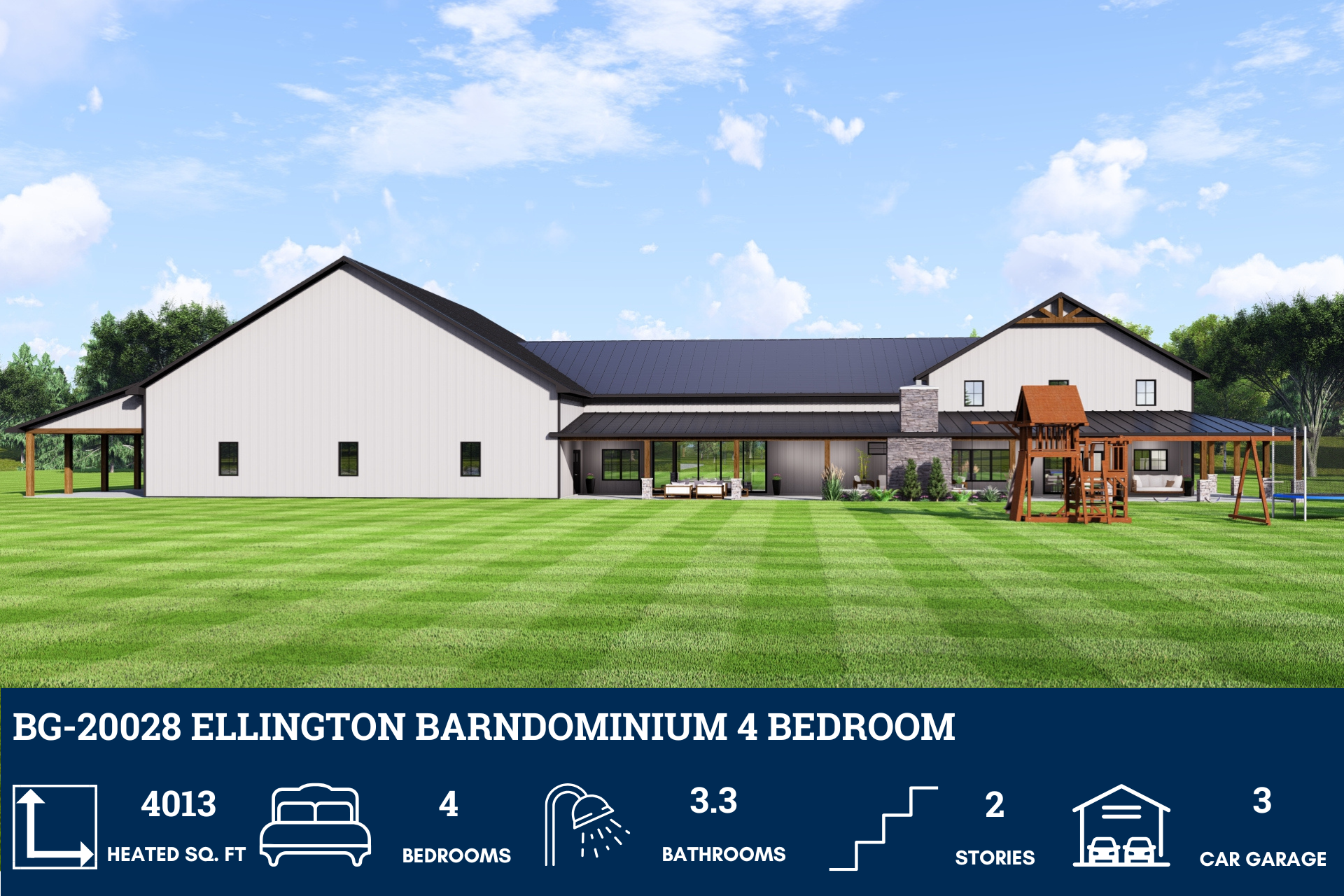

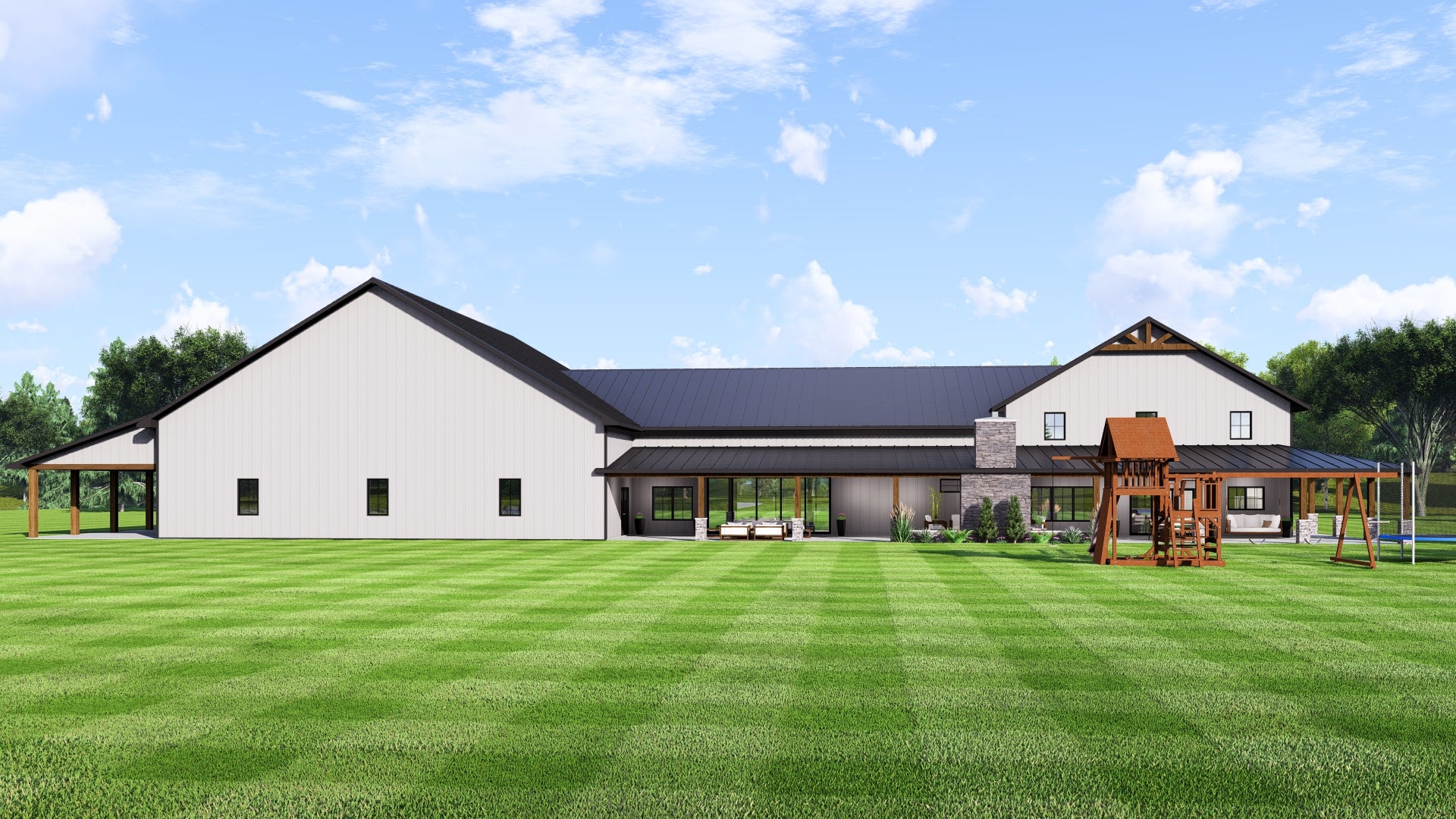

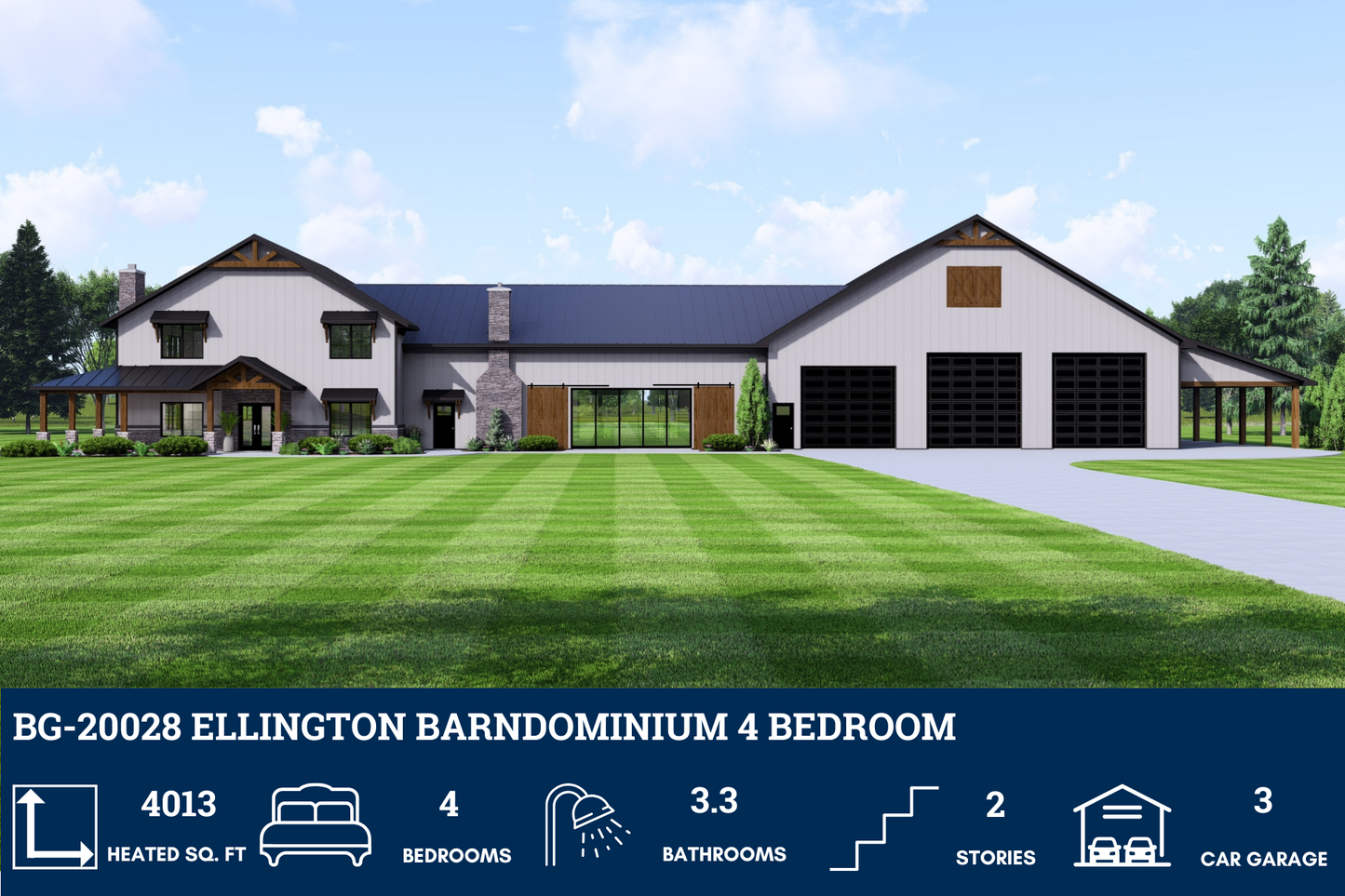

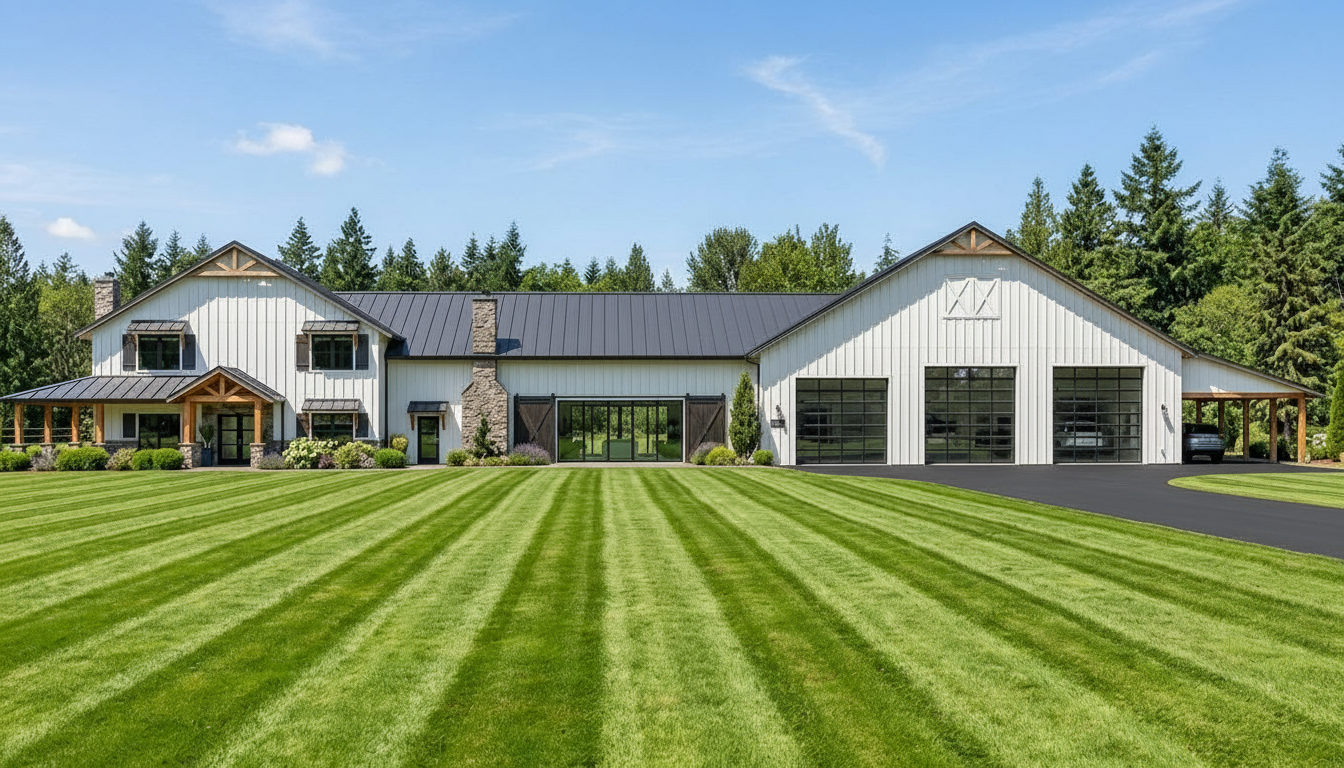

BG-20028 Ellington Barndominium House Plan

$1,250.00 USD
$1,250.00 USD
Sale Sold out
Add To Wishlist
1 29

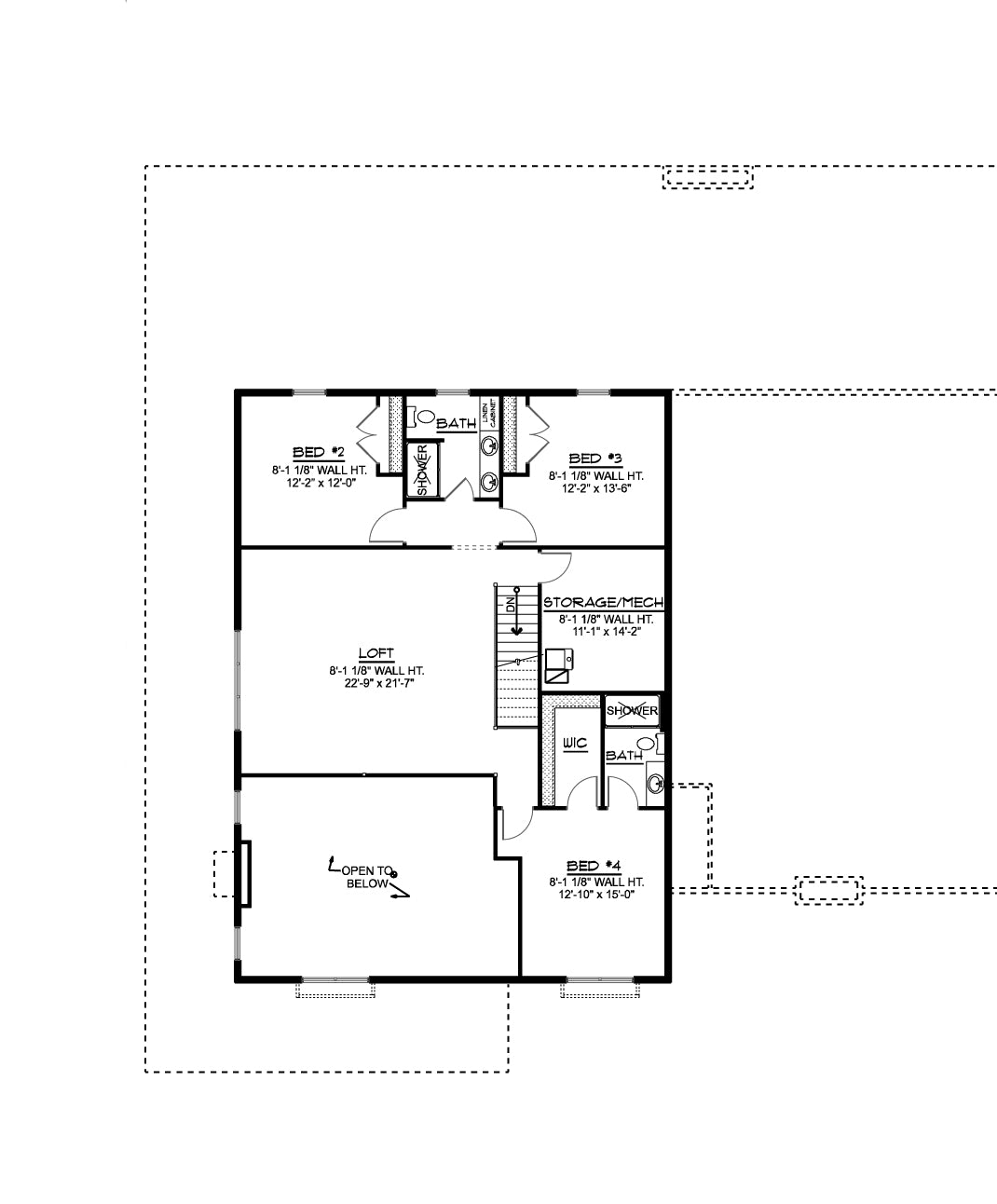

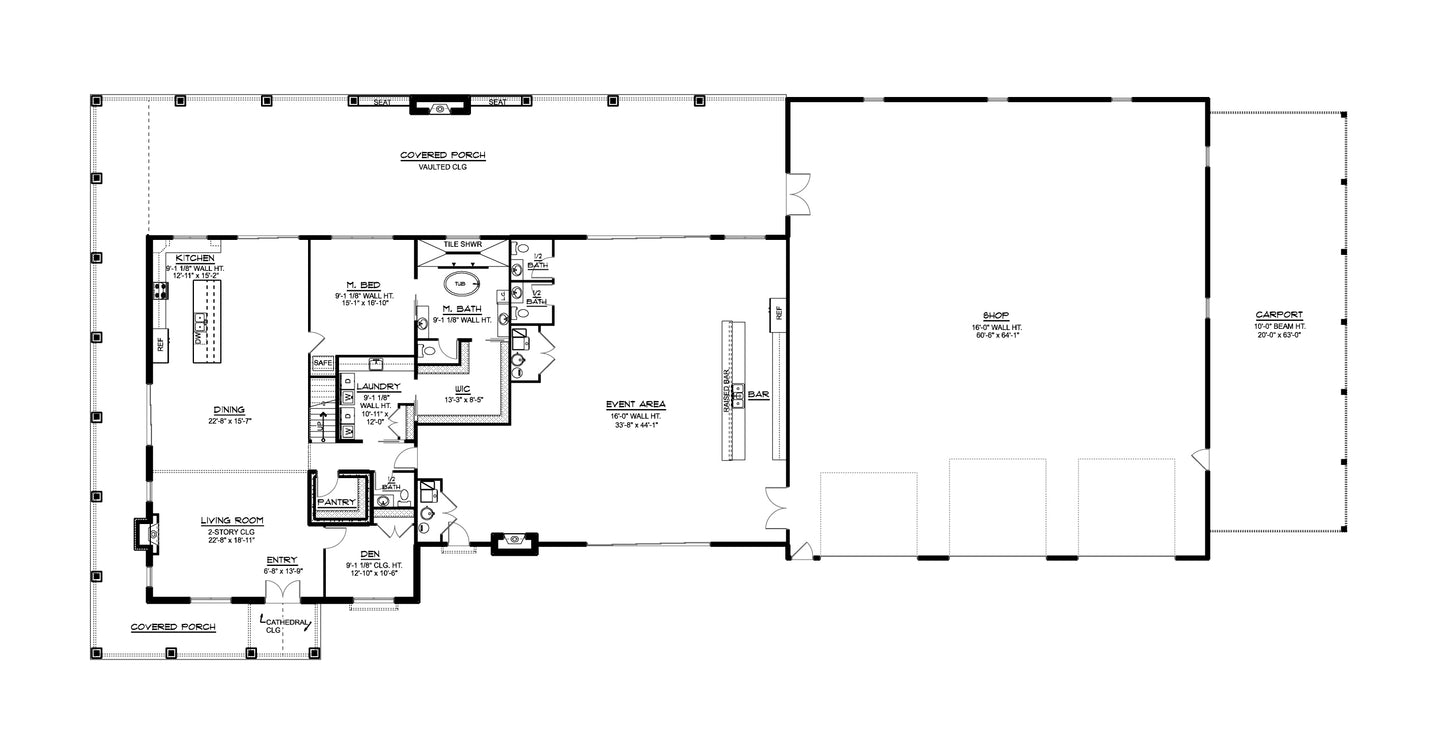

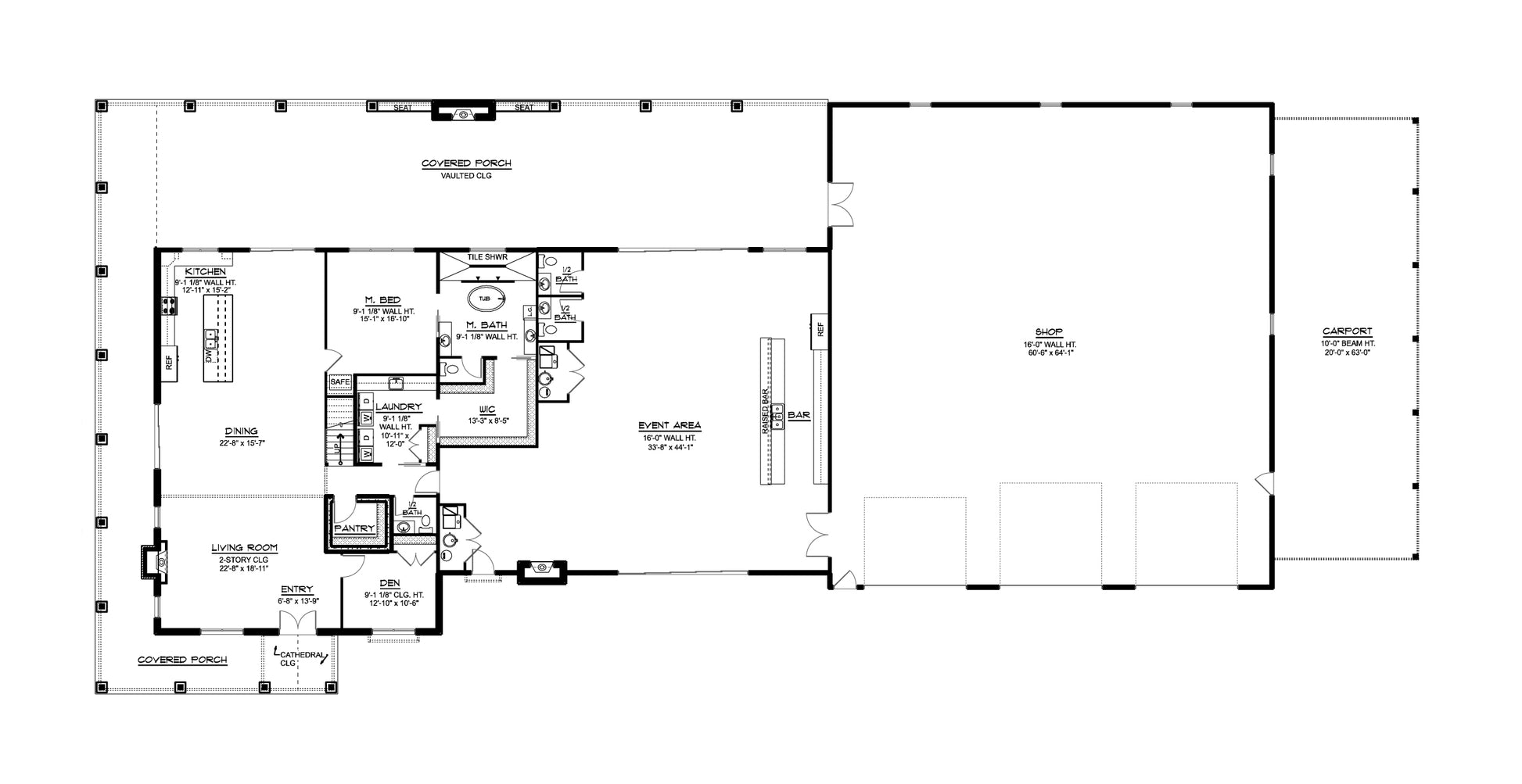

Floor Plan

DETAILS

HEATED SQ FT

First Floor:

2,441 SF

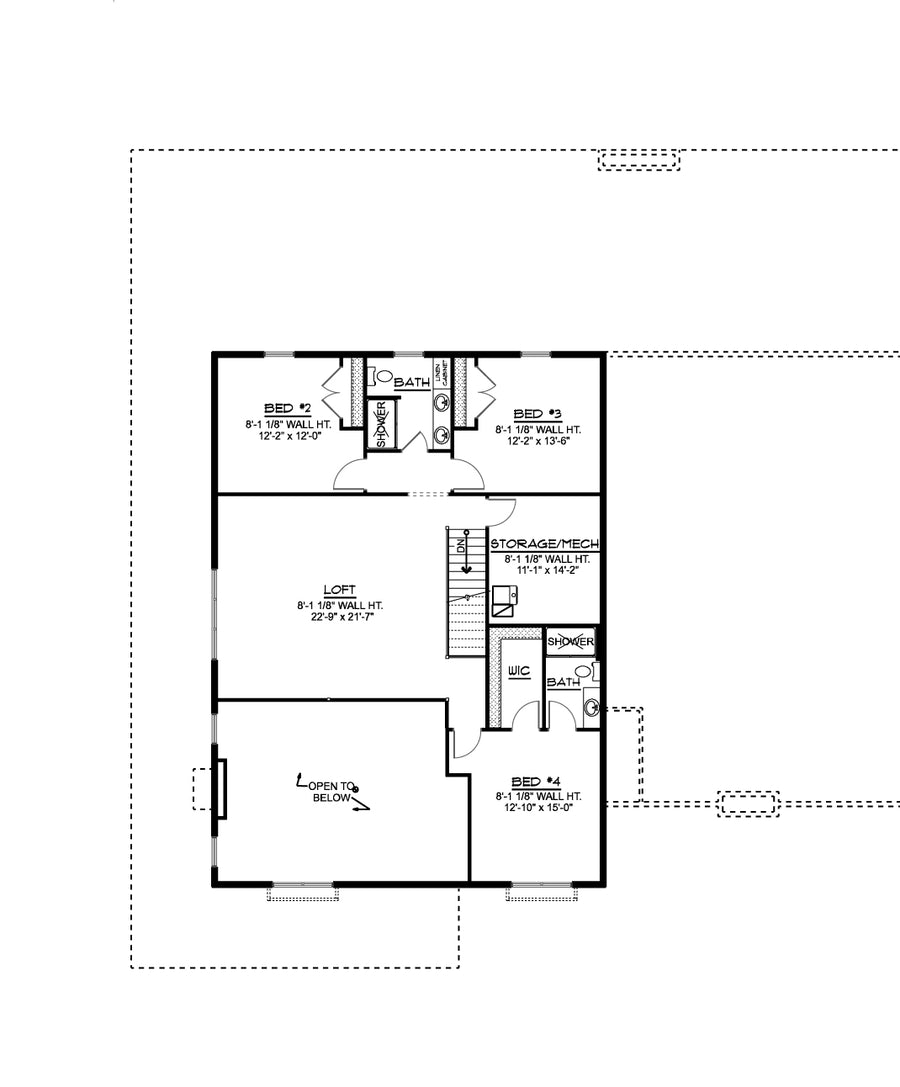

Second Floor:

1,572 SF

Total Heated Sq Ft:

4,013 SF

UNHEATED SQ FT

Total Unheated Area:

Garage/Storage 7,438 SF, Porch 2,790 SF = TOTAL 10,228 SF

Carport:

1,260 SF

Bedrooms:

4

Full Baths:

3

Floors:

2

Garage Size:

7,438 SF

Width:

182'

Depth:

81'

Height:

34'-5"

Foundation:

Concrete Slab, Basement Option Also Available

Main Roof Pitch:

7:12

Exterior Framing:

Stick Frame

CEILING HEIGHTS

First Floor:

9'

BG-20028 Ellington Barndominium House Plan



About this barndominium house plan:

  • 4013 Heated Sq Ft
  • 4 Bedrooms
  • 3.3 Bathrooms
  • Two story
  • Loft
  • Den
  • Open concept
  • Wraparound porch
  • Storage/Mechanical room
  • Event Area
  • Carport
  • 7438 Sq Ft Shop



  • An expansive 4,013 square feet of heated living space offers luxurious comfort and room to grow, entertain, and unwind.
  • Four spacious bedrooms provide privacy and flexibility for family, guests, or creative use.

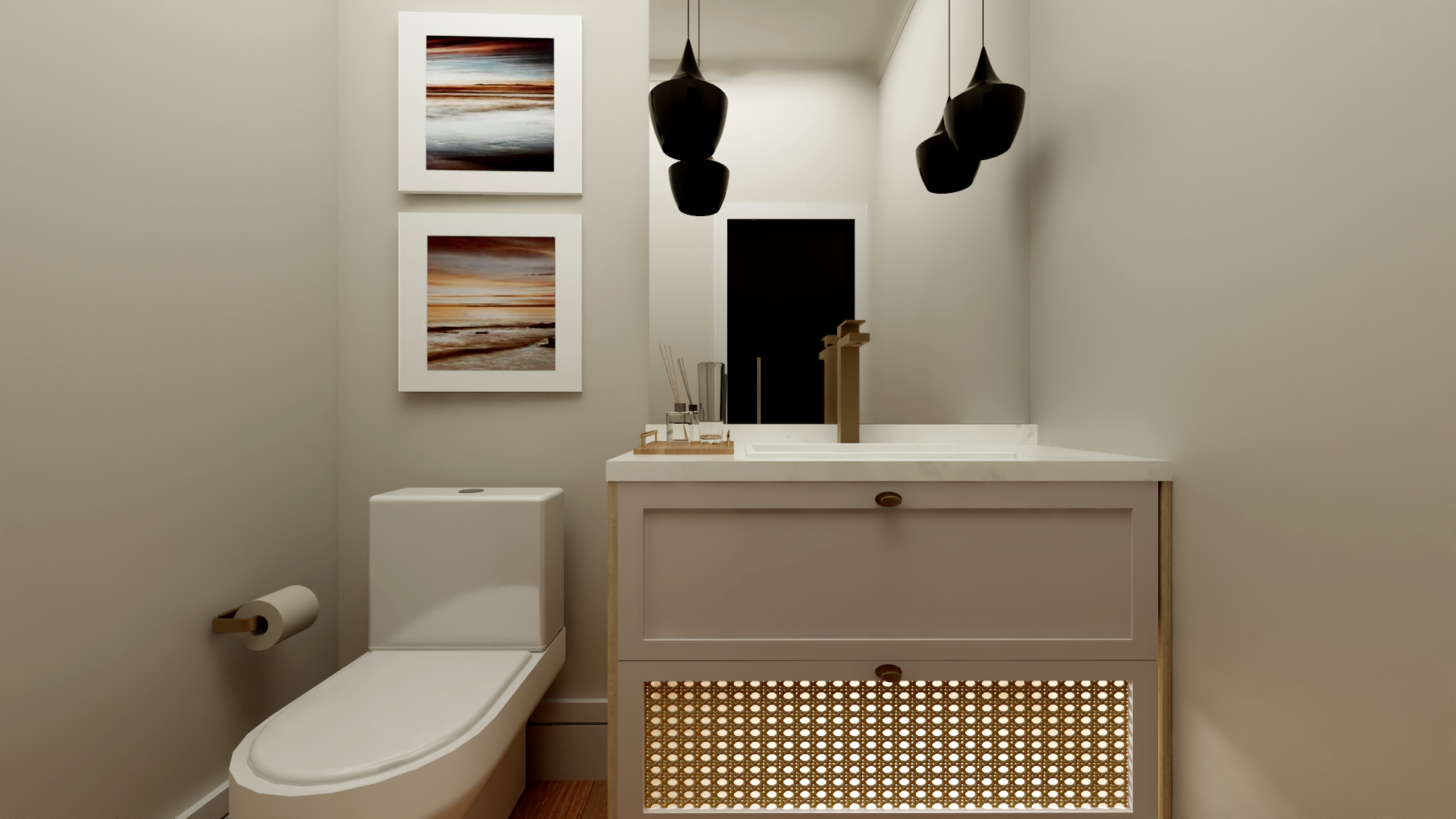

  • With three full baths and three powder rooms, this home ensures convenience and comfort for both everyday living and large gatherings.
  • The elegant two-story design creates a natural division of space, blending openness with private retreats.

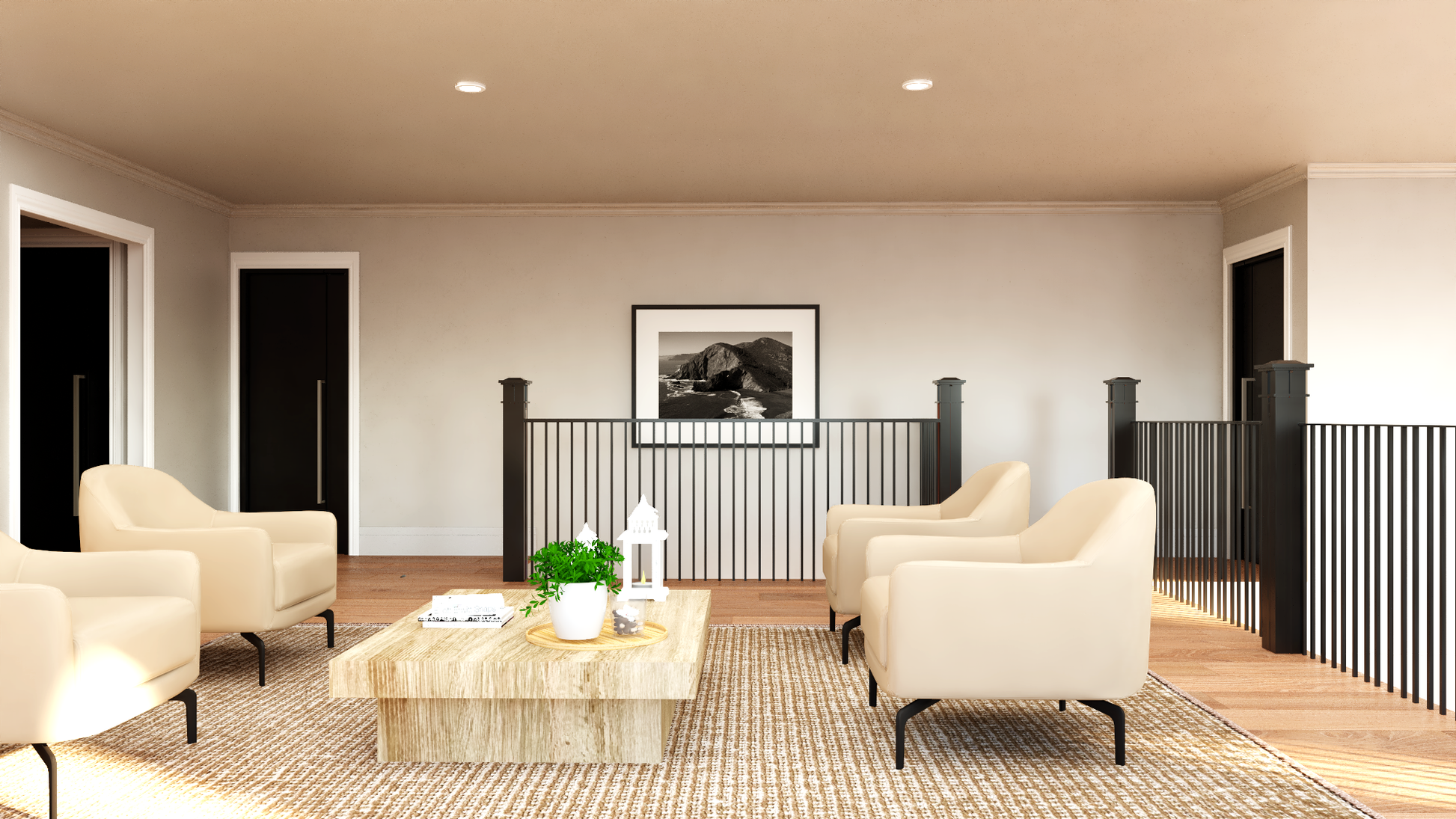

  • A versatile loft adds dimension—perfect for a media room, play area, or quiet escape.
  • The den offers a dedicated space for work, reading, or reflection, tucked away for peace and productivity.

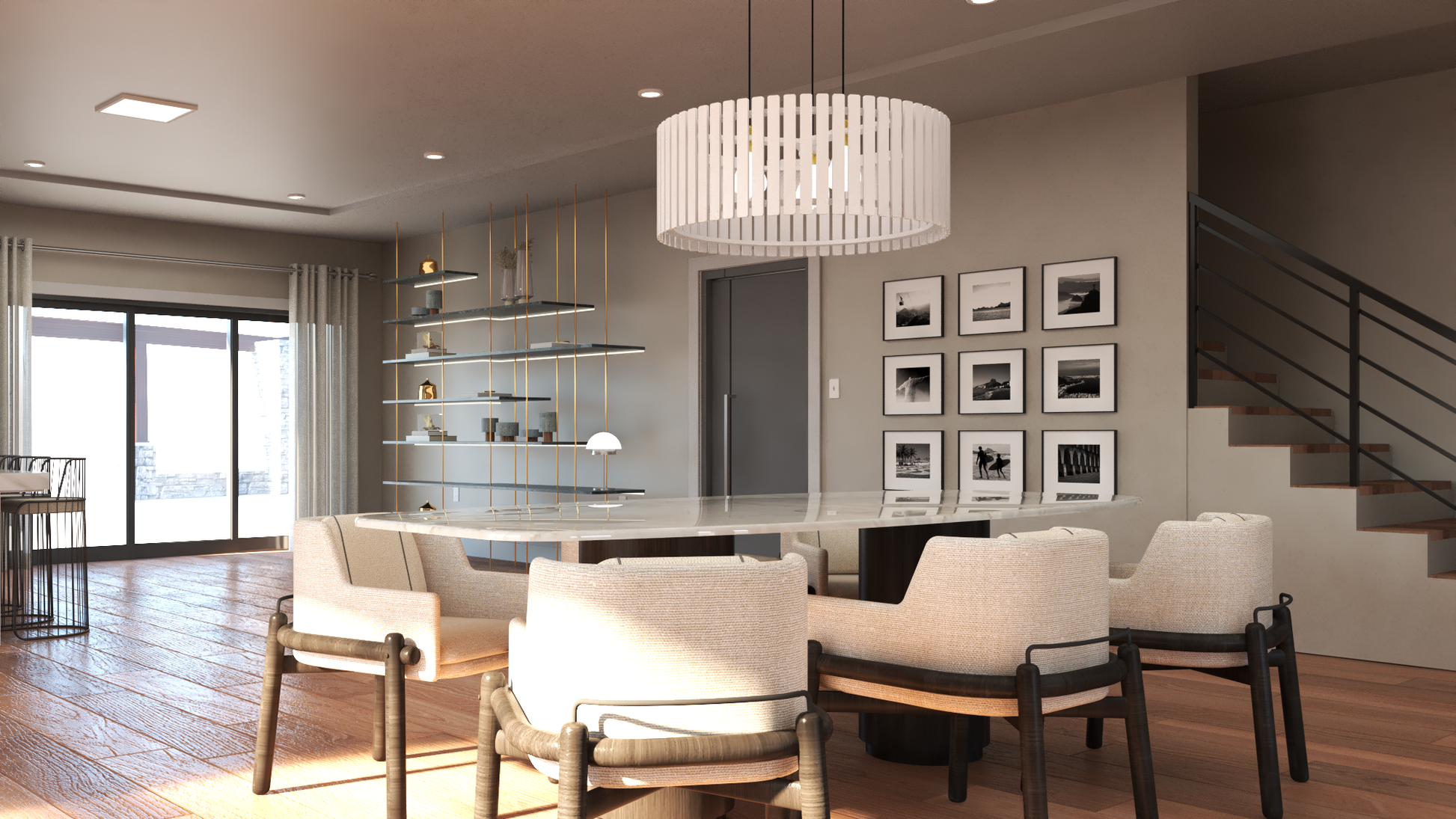

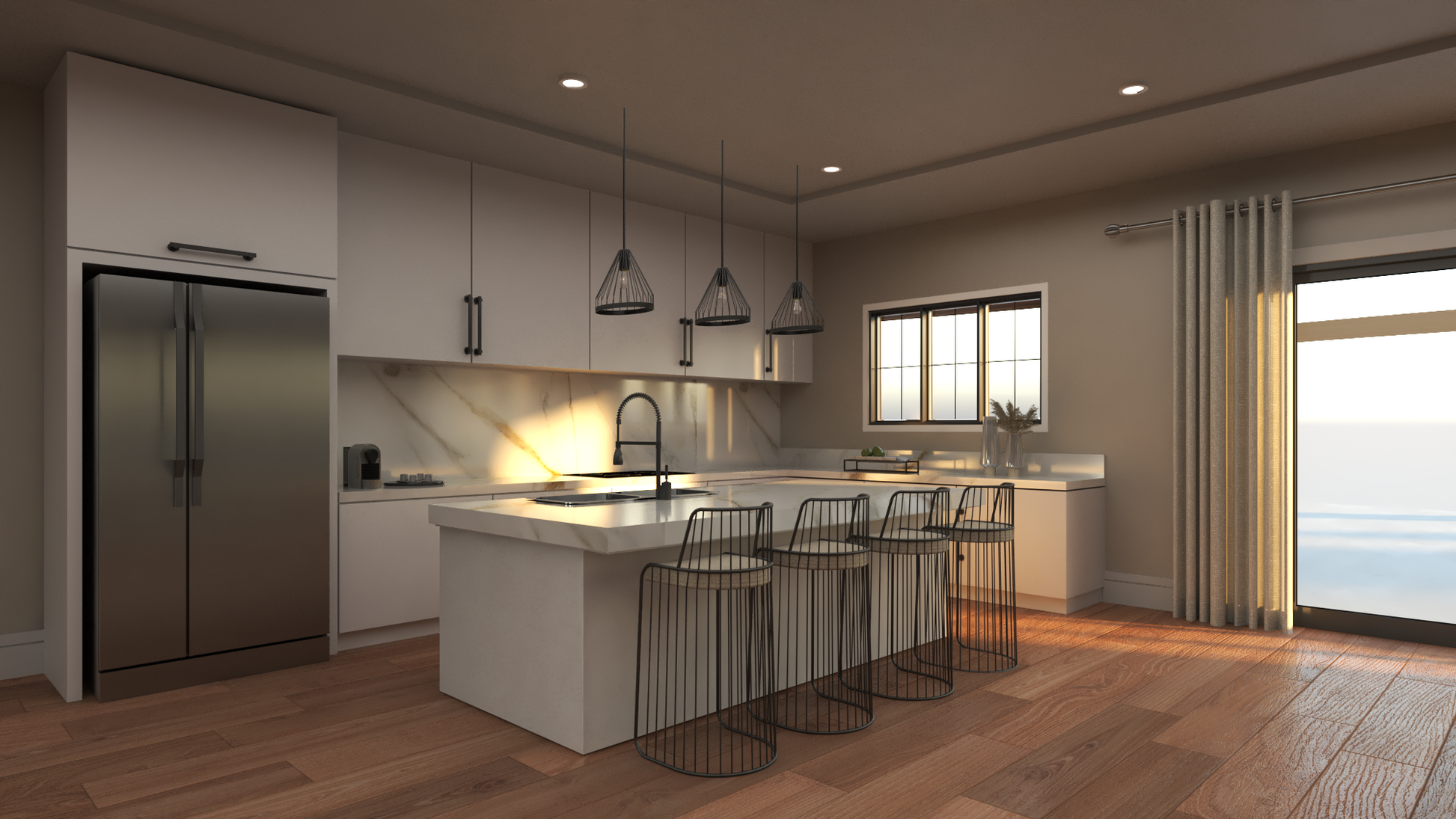

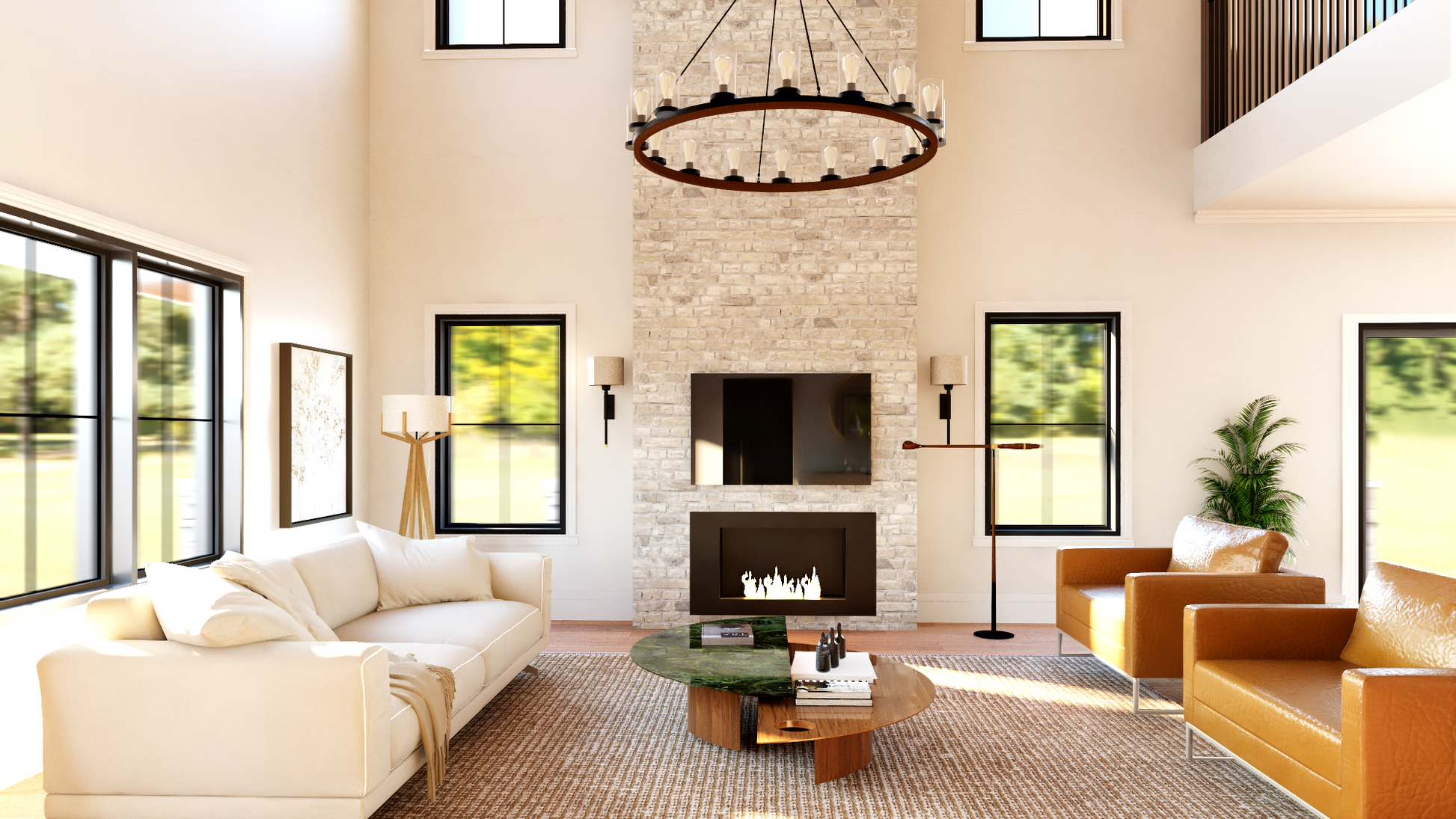

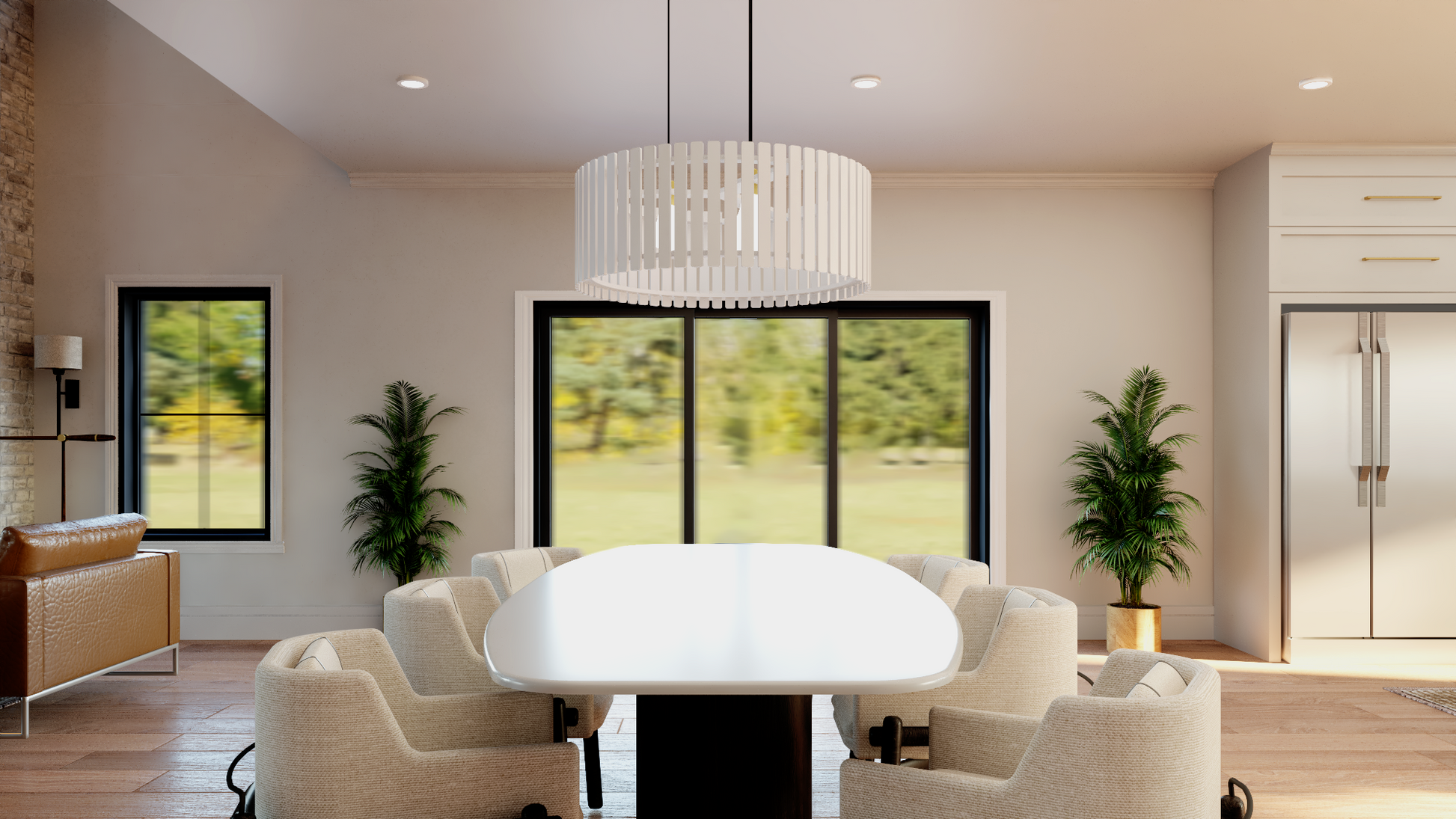

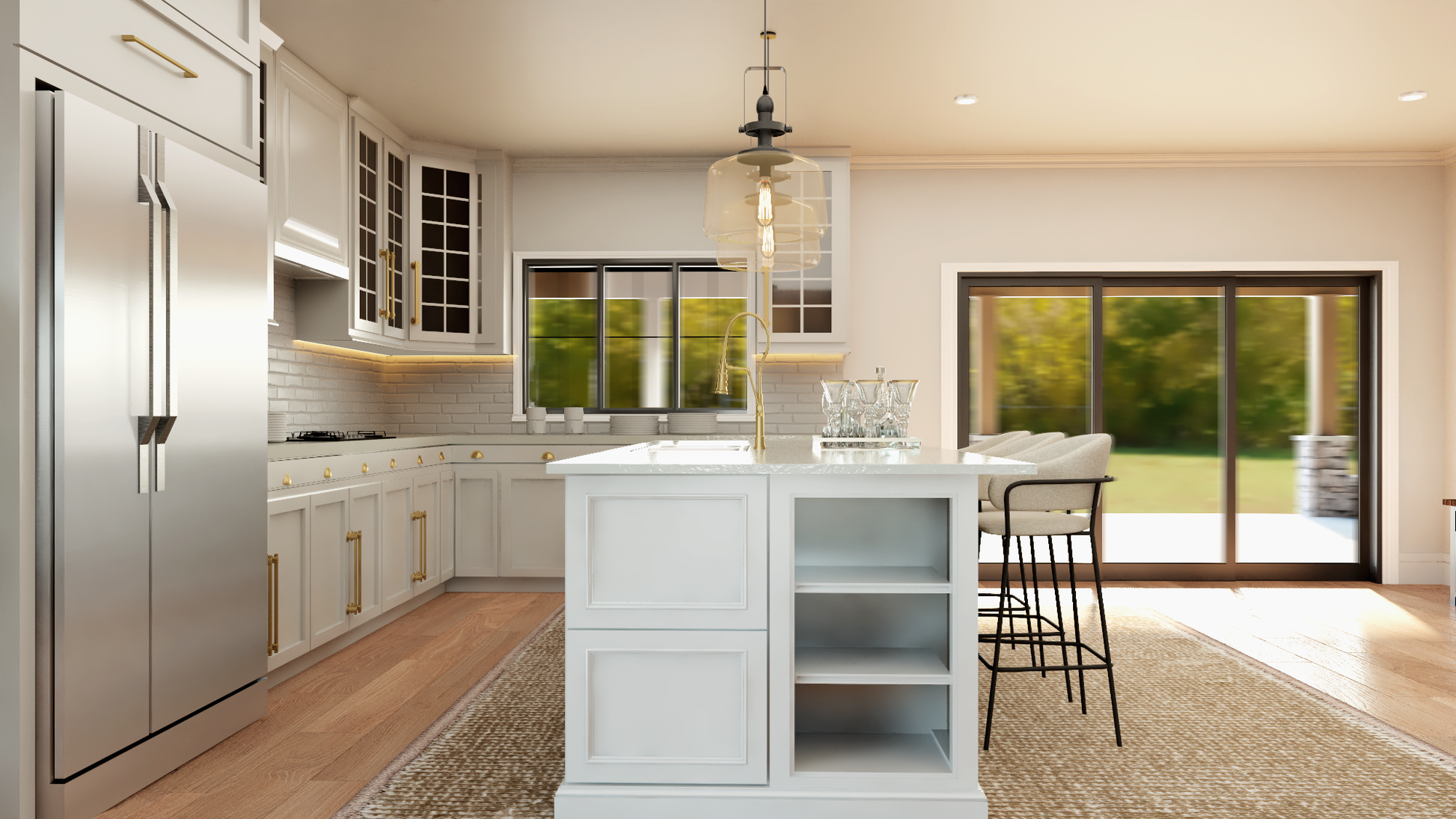

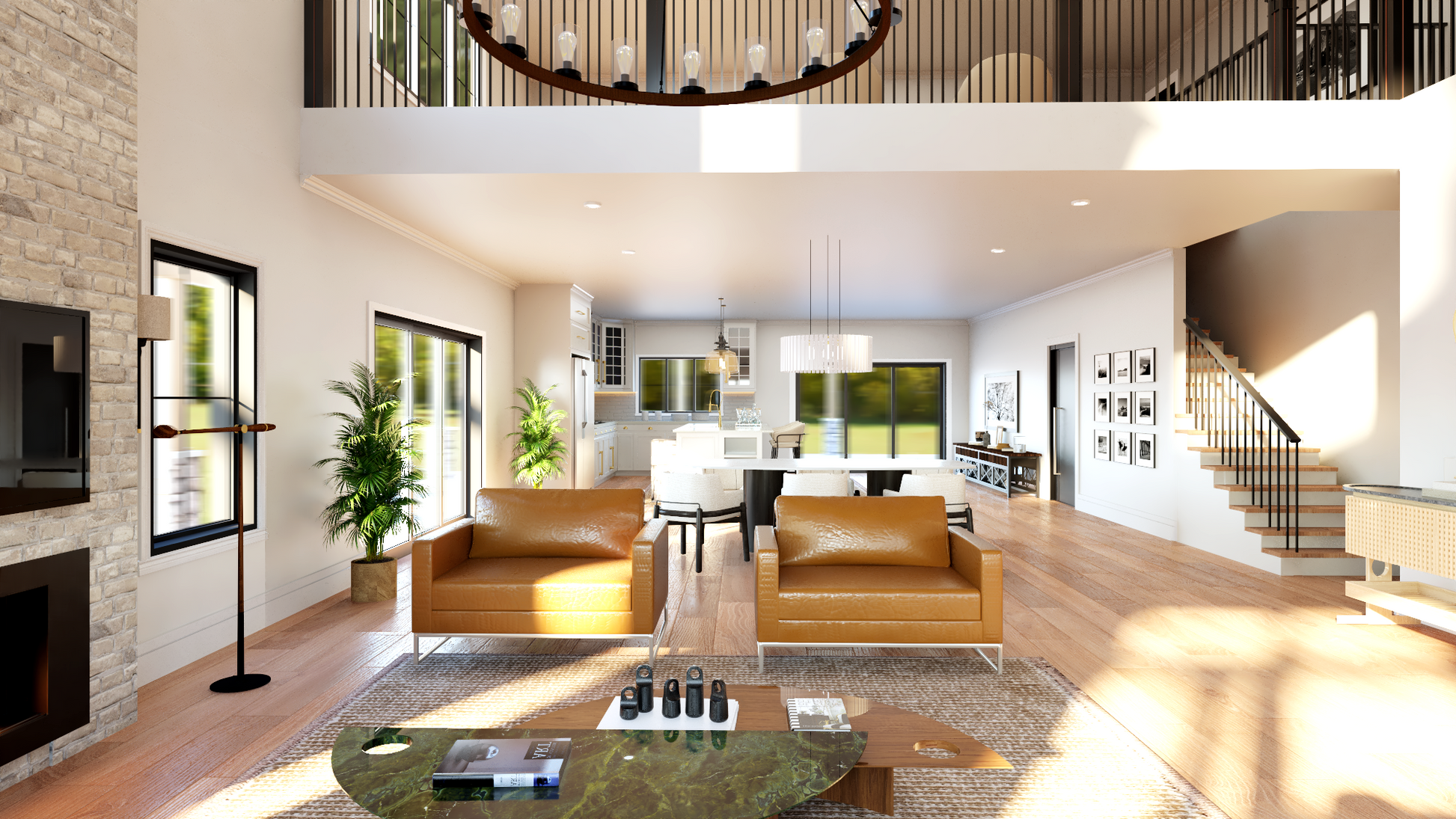

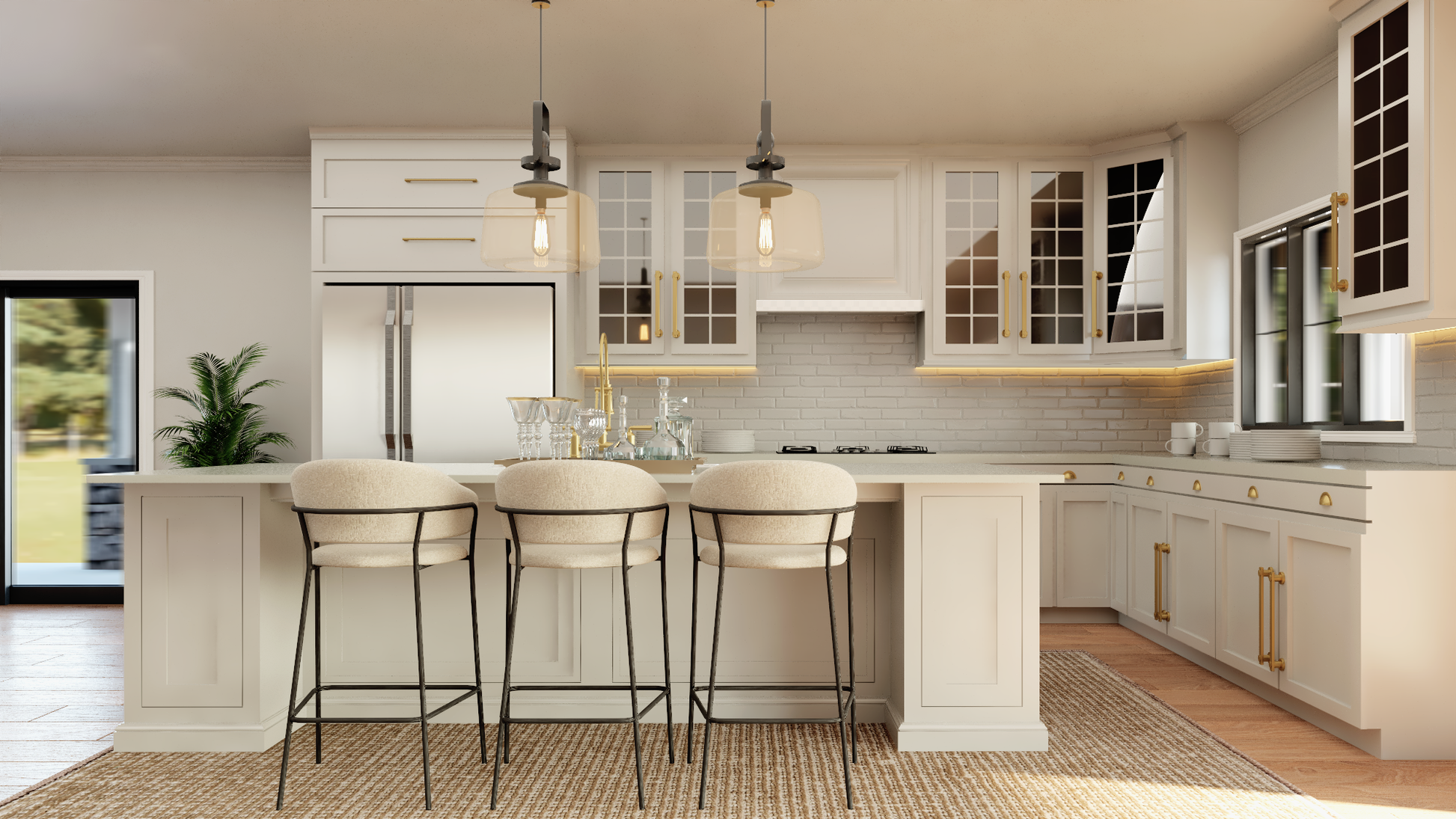

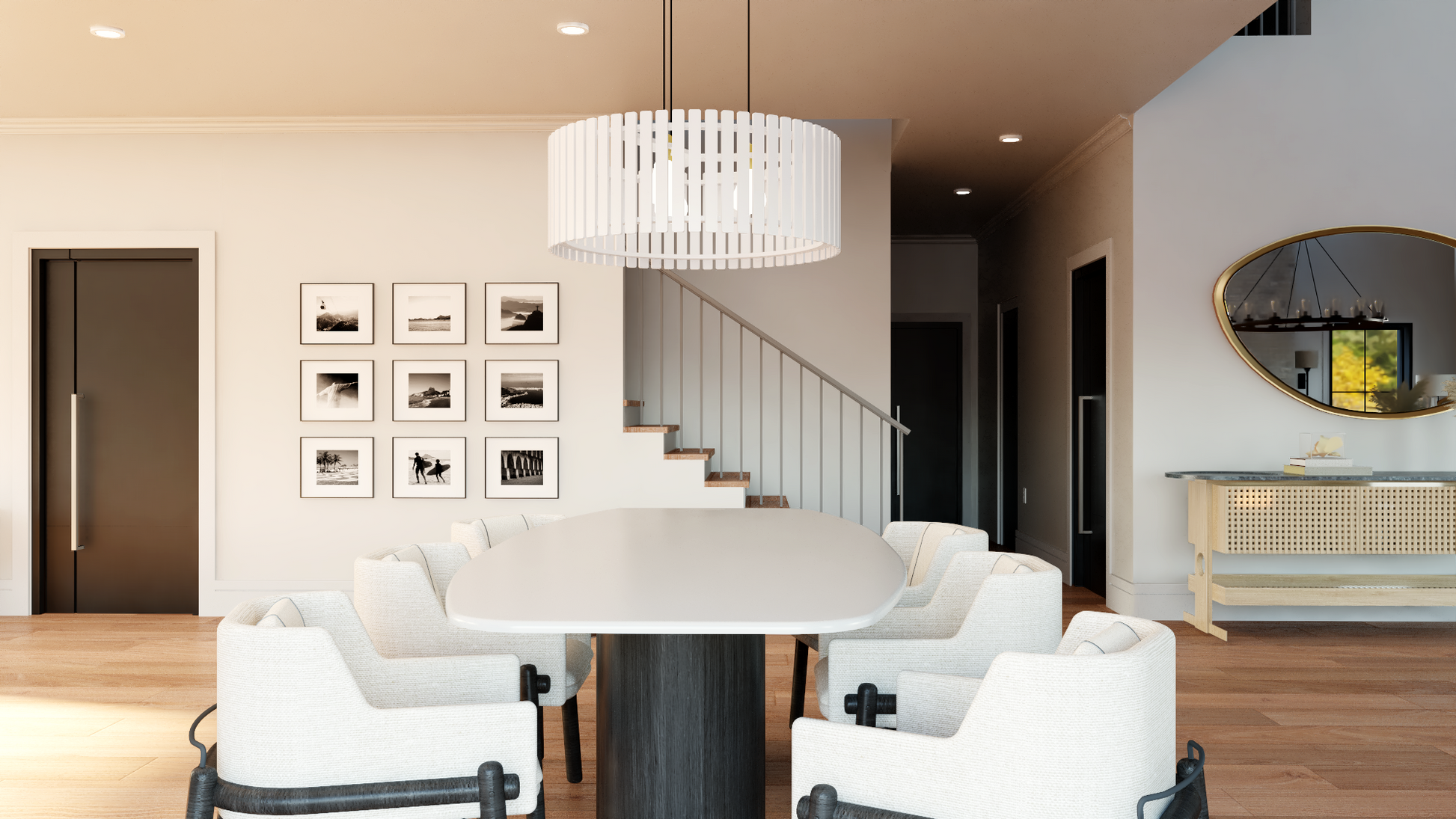

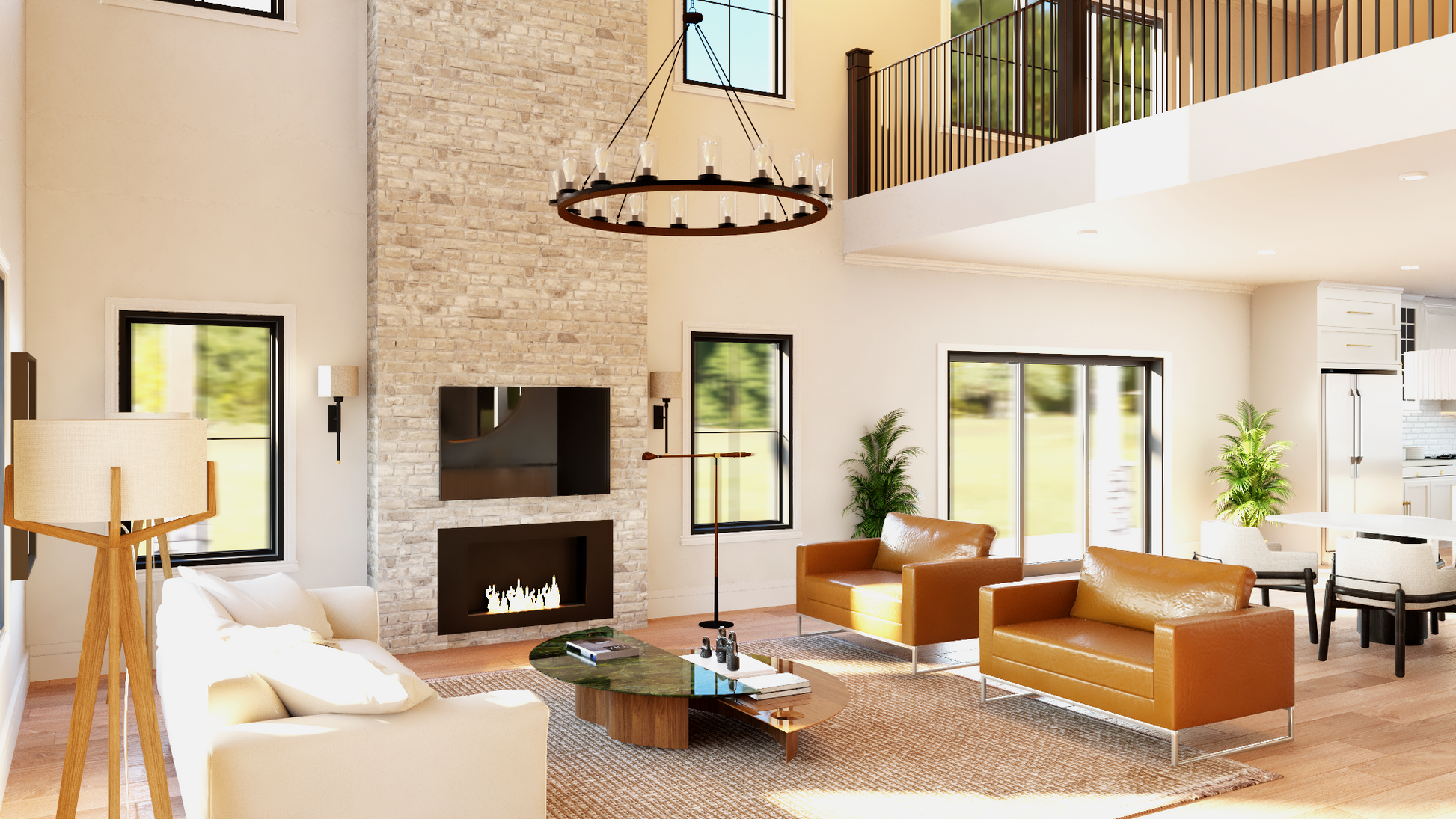

  • An open-concept layout connects kitchen, dining, and living areas in a seamless flow of light and energy.
  • The wraparound porch invites outdoor living from every angle, blending charm, shade, and panoramic views.
  • A dedicated storage and mechanical room keeps essentials organized and systems discreetly housed.

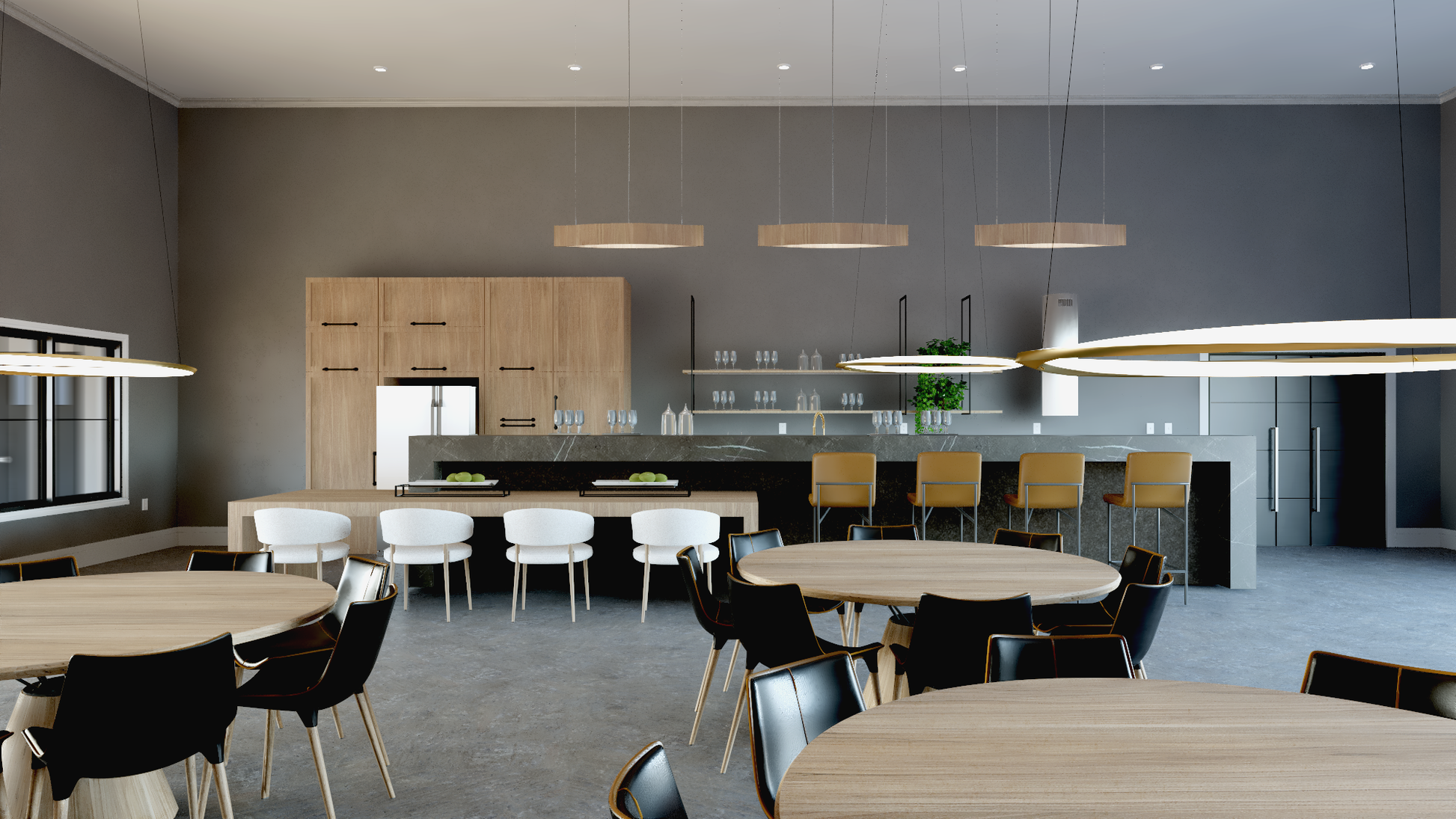

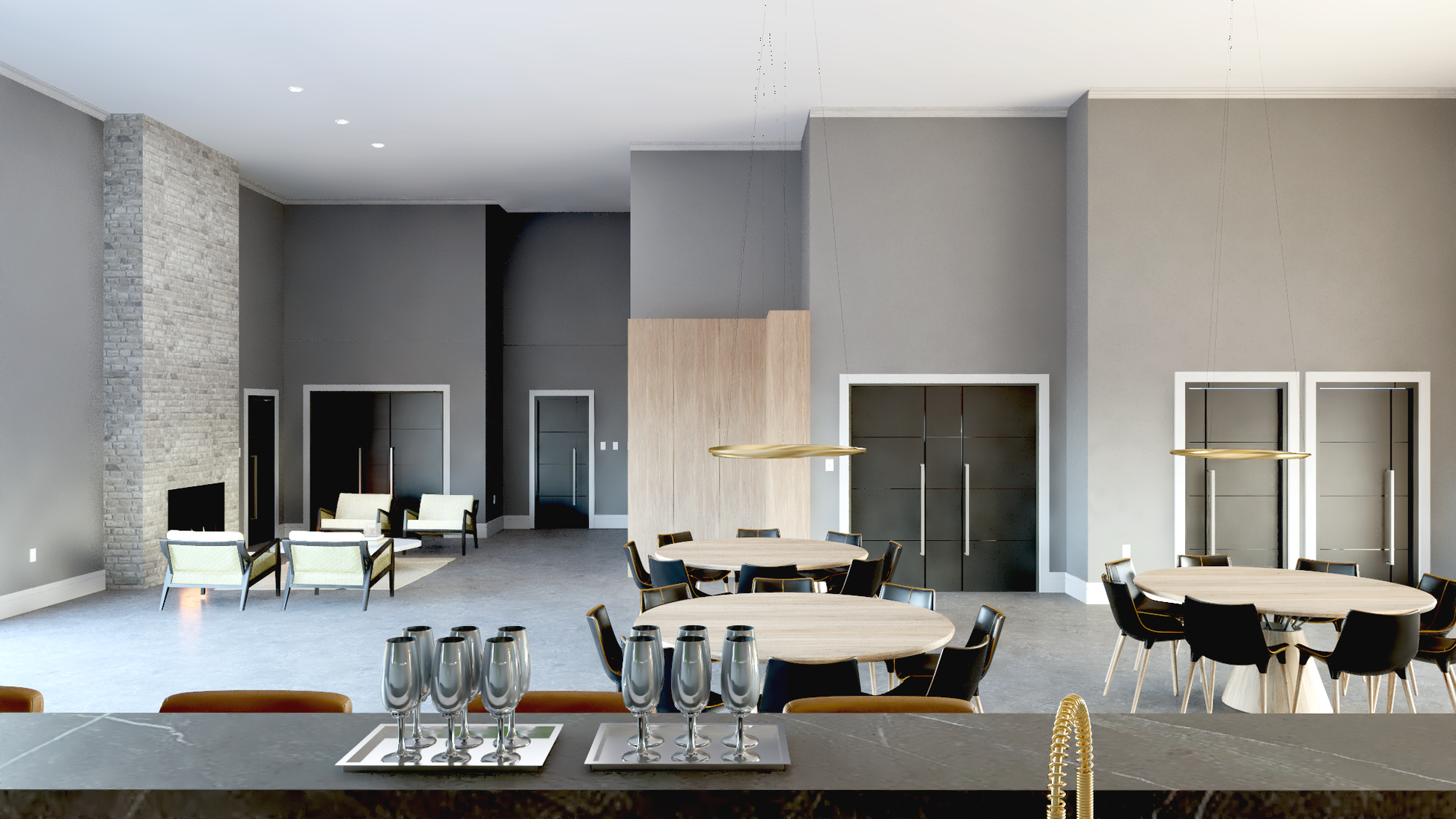

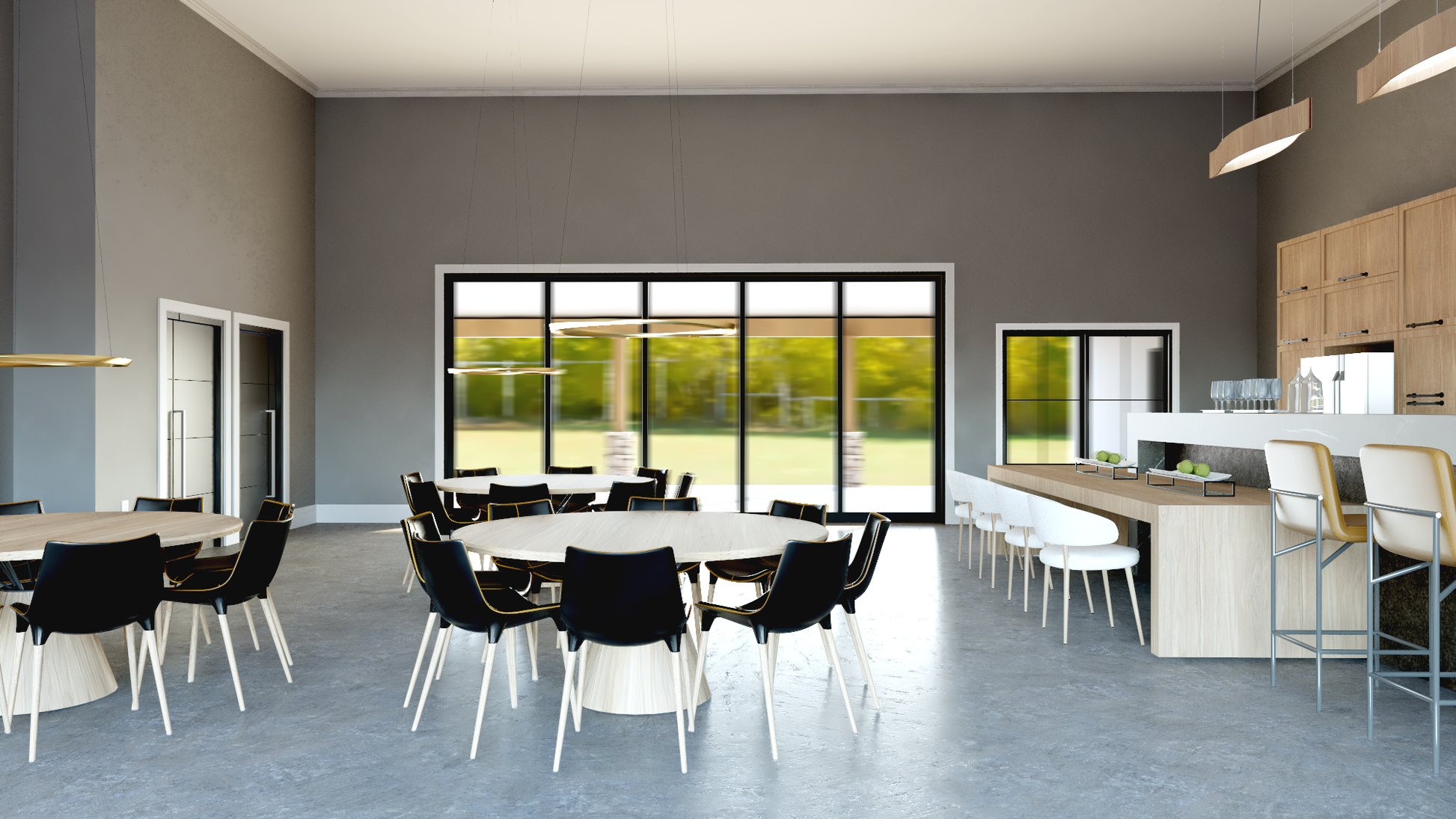

  • The event area with bar is built for celebration—ideal for hosting gatherings, workshops, or community moments with ease.
  • A covered carport offers convenient, weather-protected parking with easy access to the home.
  • The massive 7,438-square-foot shop is a dream space for makers, collectors, or entrepreneurs—ready to support big ideas and bold projects.





What's included in BG-20028:

Cover Sheet
Four Elevations (Front, Back, Left Side, Right Side)
Roof Plan
Dimensioned Floor Plan
Foundation Plan
Wall Sections
Electrical Plans



For more barndominium floor plans, check out our complete collection of 4-bedroom barndominium floor plans.



Need to make changes? Submit a modification request using the button that says Modify This Plan (below the Add To Cart Button). We will get you a free price quote within 72 hours

Please note all square footage are estimates.

What's Included

Our house plan sets typically have the following details:

4 Elevations – Front, Back, Both Sides

Detailed Floor Plan Drawing

Electrical Plans with placements for HVAC

Plumbing Plans with Placements

Flooring Plan

Roof Plan

Foundation Plan

For more information on what's included and examples of what your plans will look like, go here -> https://barndominiumplans.com/pages/whats-included

Please Note: We work with many different draftspeople who work in many different ways.  It should be noted that their plans may contain different details.

What's Not Included

The following items are NOT included:

Architectural or Engineering Stamp. Our plans are engineering-ready! Can take them to a local engineer in your state.

Site Plan - We can provide this if needed for $300 additional.

Materials List - handled locally when required

Energy calculations - handled locally when required

Snow load calculations - handled locally when required

Delivery

This plan is available as a digital product or printed + shipped.

If you select digital, the plan will be delivered to you via email as a PDF file, no matter what time it is.

If you select printed + shipped, your order will ship in 24x36 format within 1 business day of your order.

We ship from the midwest in order to serve the entire country within 3-5 business days!

Return policy

All barndominium house plan purchases are FINAL. There are no exchanges or refunds due to the digital nature of the product. Please make sure that the plan you have selected is going to fit your needs.
