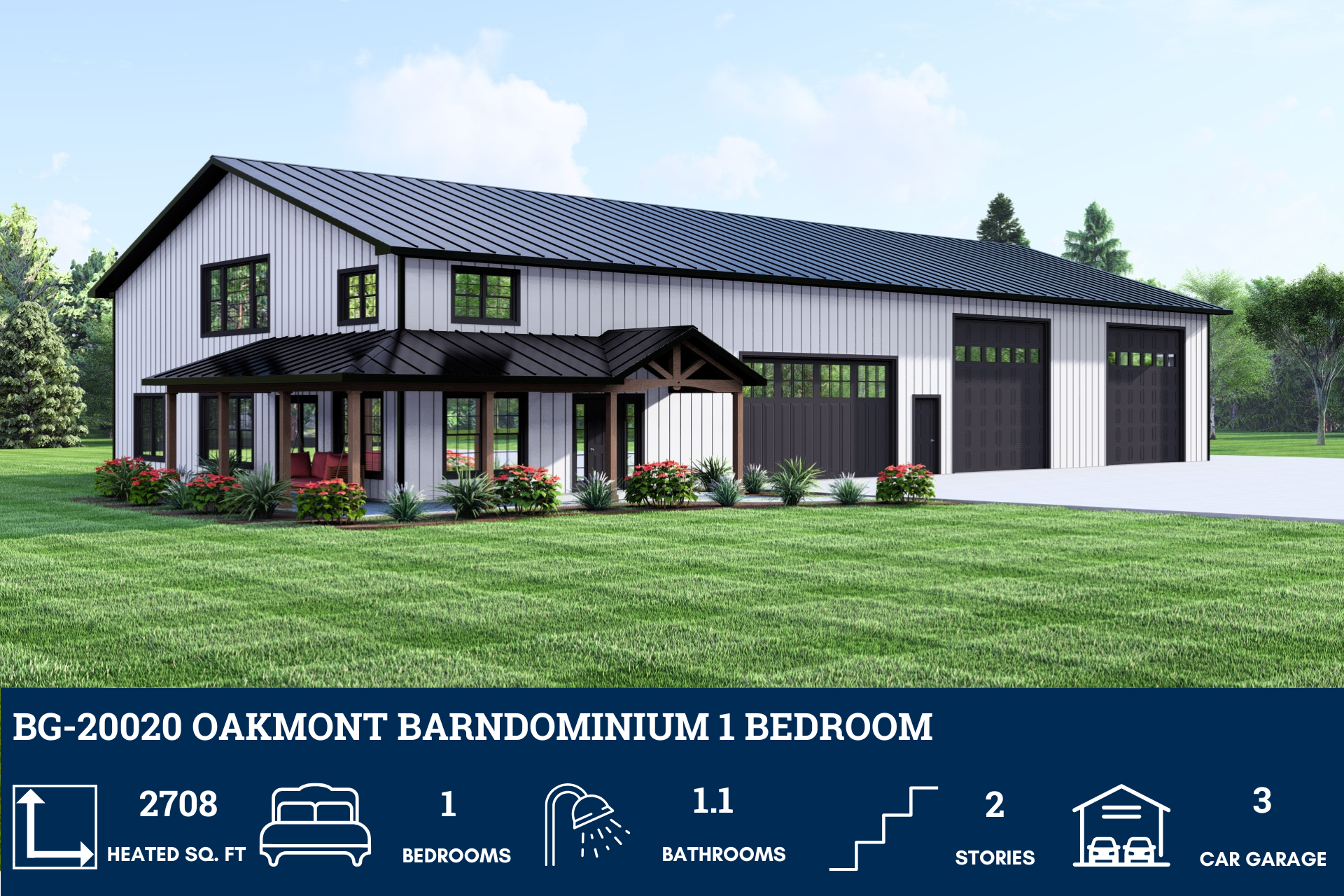

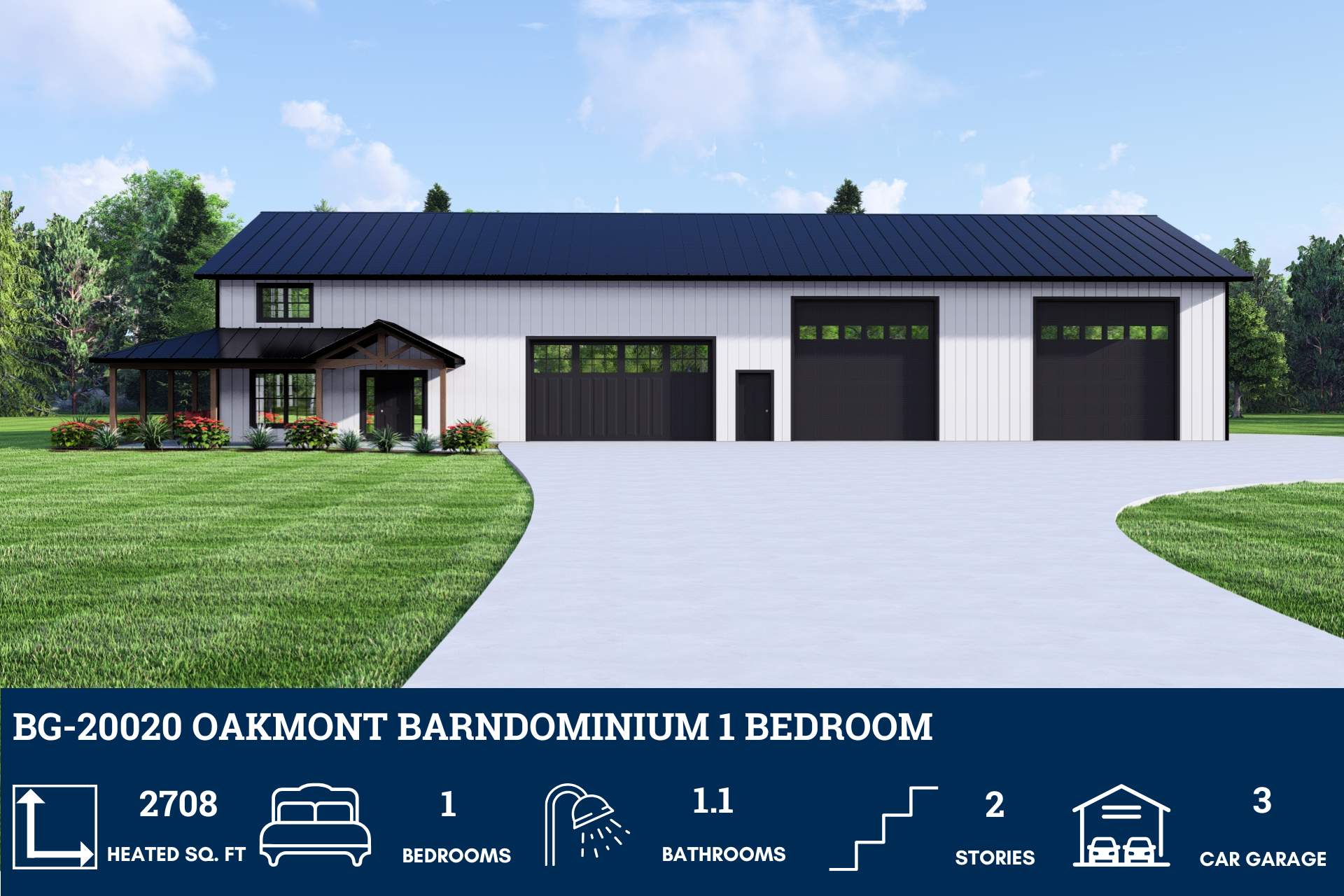

BG-20020 Oakmont Barndominium House Plan

$1,450.00 USD
$1,450.00 USD
Sale Sold out
Add To Wishlist
1 22
Bedrooms 1 Bedrooms
Floors 2 Floors
Full Baths 1 Full Baths
Total Heated Area 2,708 Total Heated Area

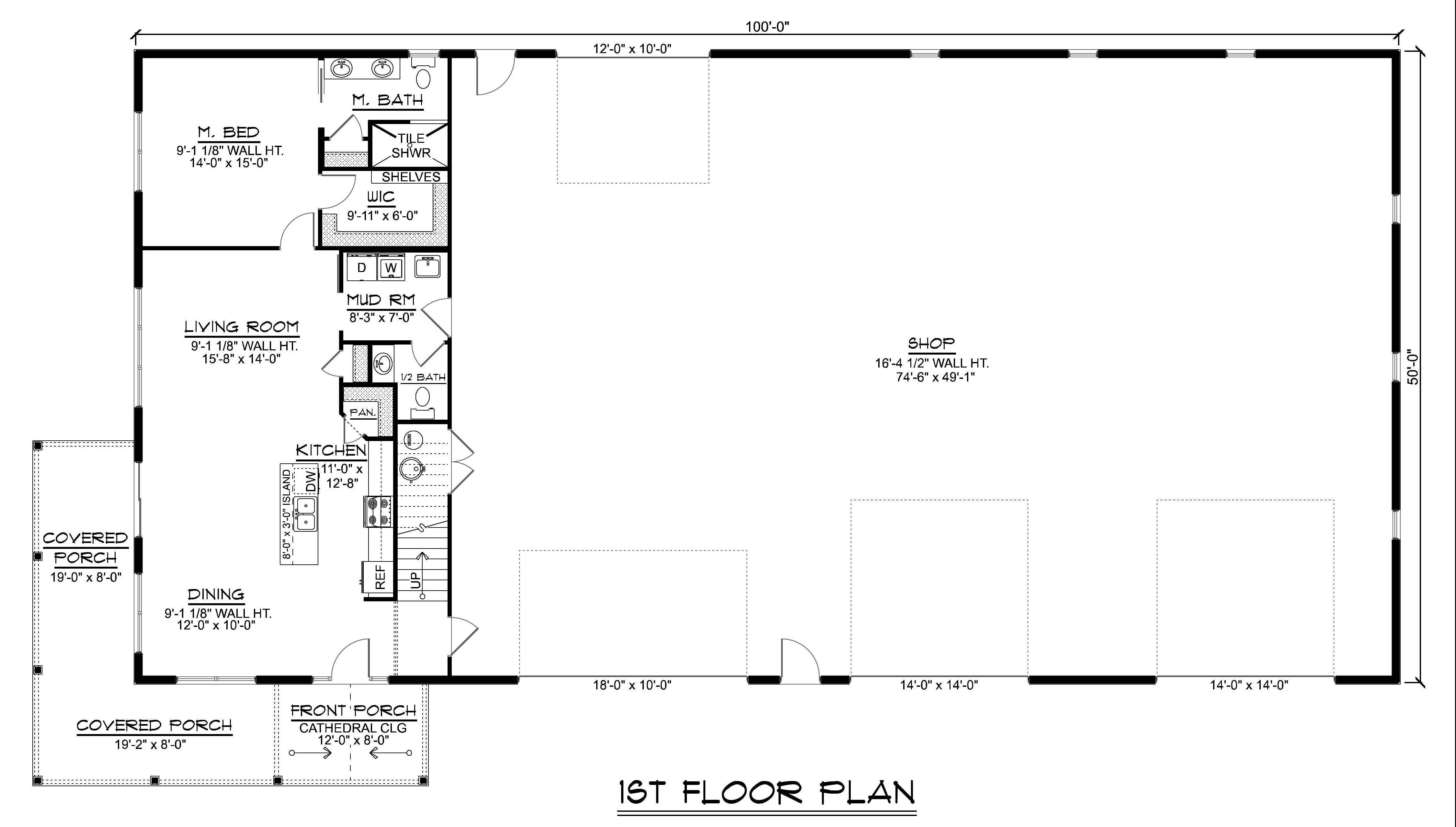

Floor Plan

DETAILS

HEATED SQ FT

First Floor:

1,500 SF

Second Floor:

1,208 SF

Total Heated Sq Ft:

2,708 SF

UNHEATED SQ FT

Total Unheated Area:

Garage 3,750 SF, Porch 395 SF = TOTAL 4,145 F

Carport:

None

Bedrooms:

1

Full Baths:

1

Floors:

2

Garage Size:

3,750 SF

Width:

100'

Depth:

50'

Height:

25'-2"

Foundation:

Concrete Slab

Main Roof Pitch:

4:12

Construction Type:

Stick Frame

CEILING HEIGHTS

First Floor:

9'

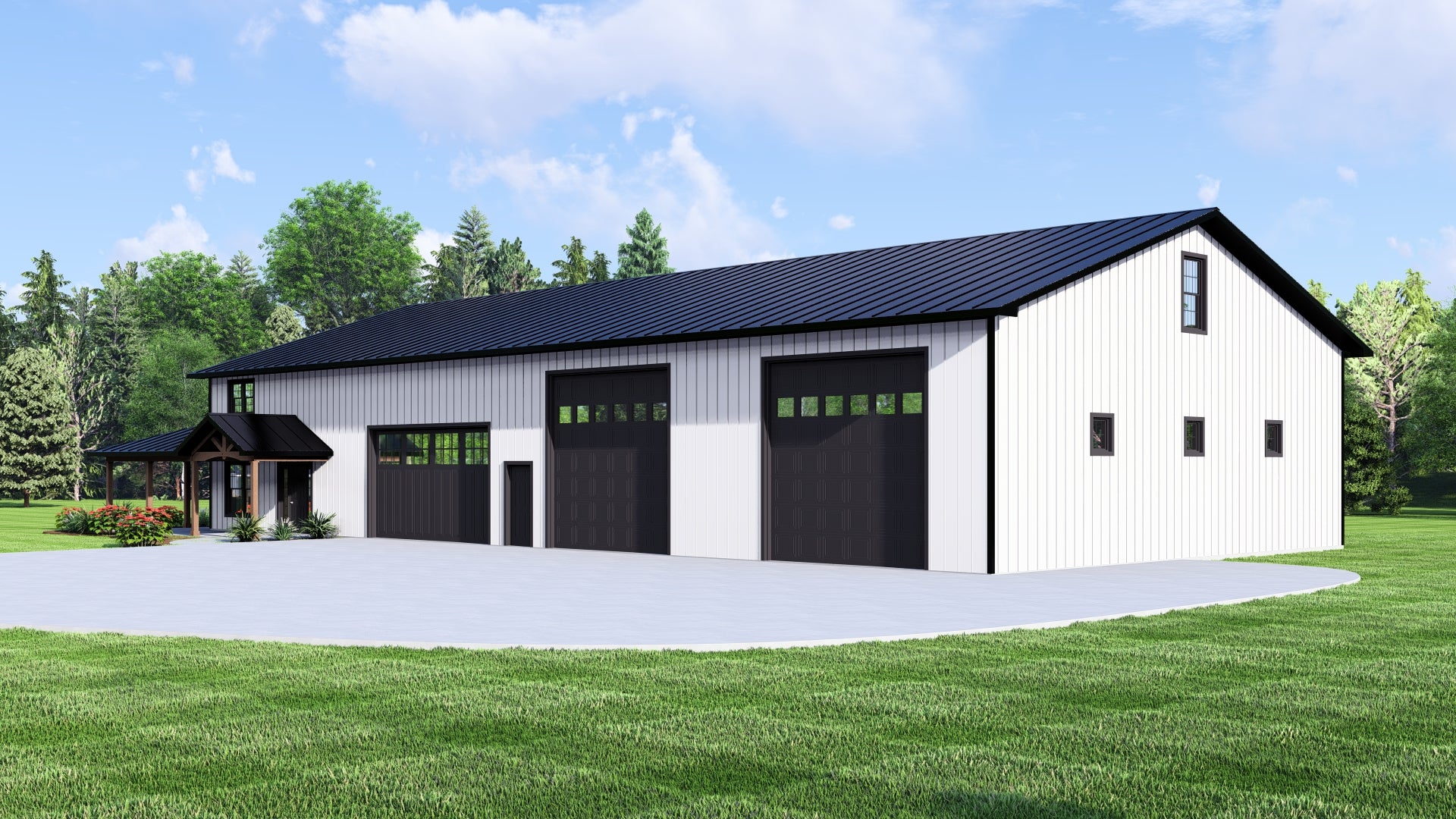

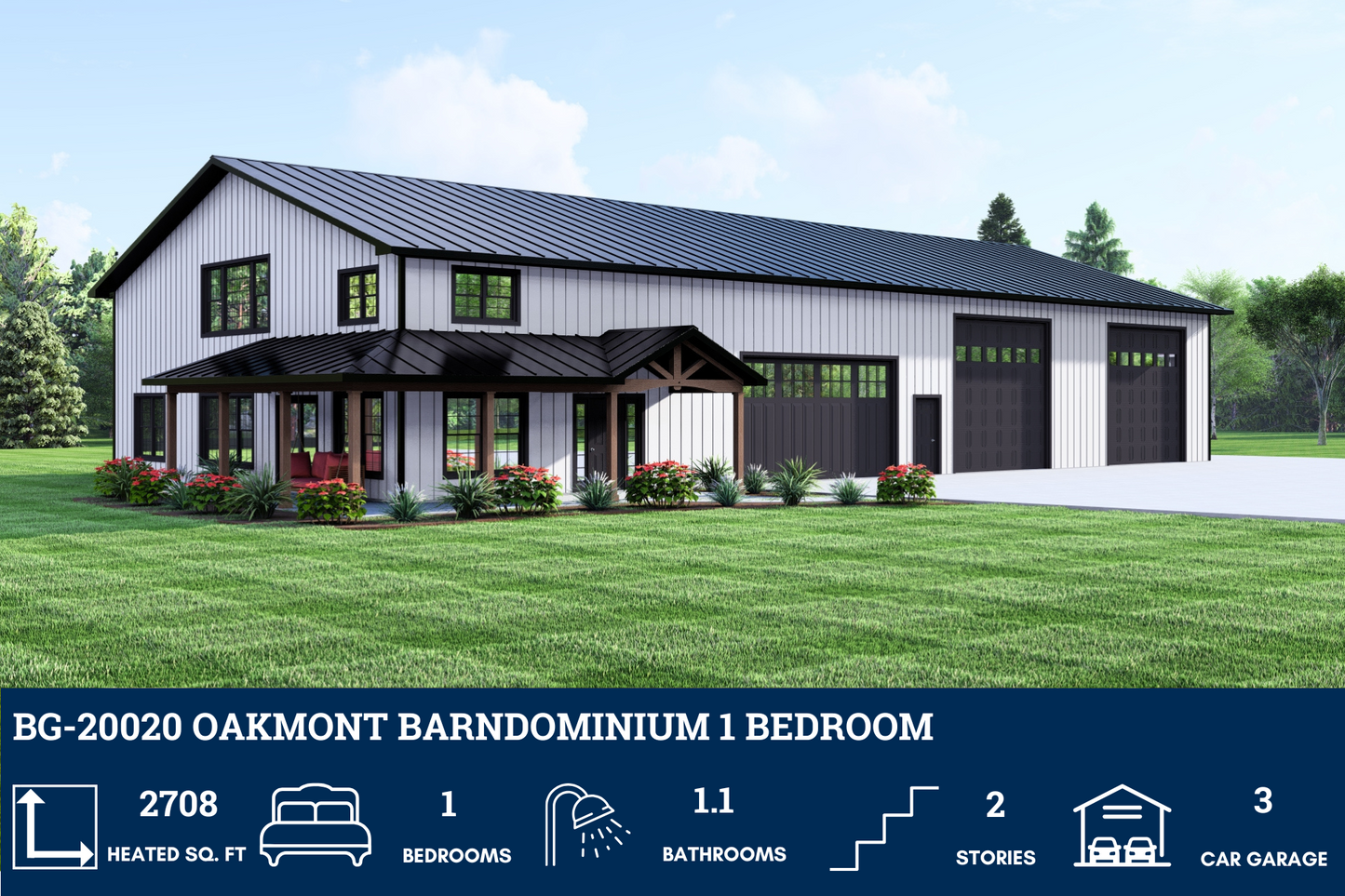

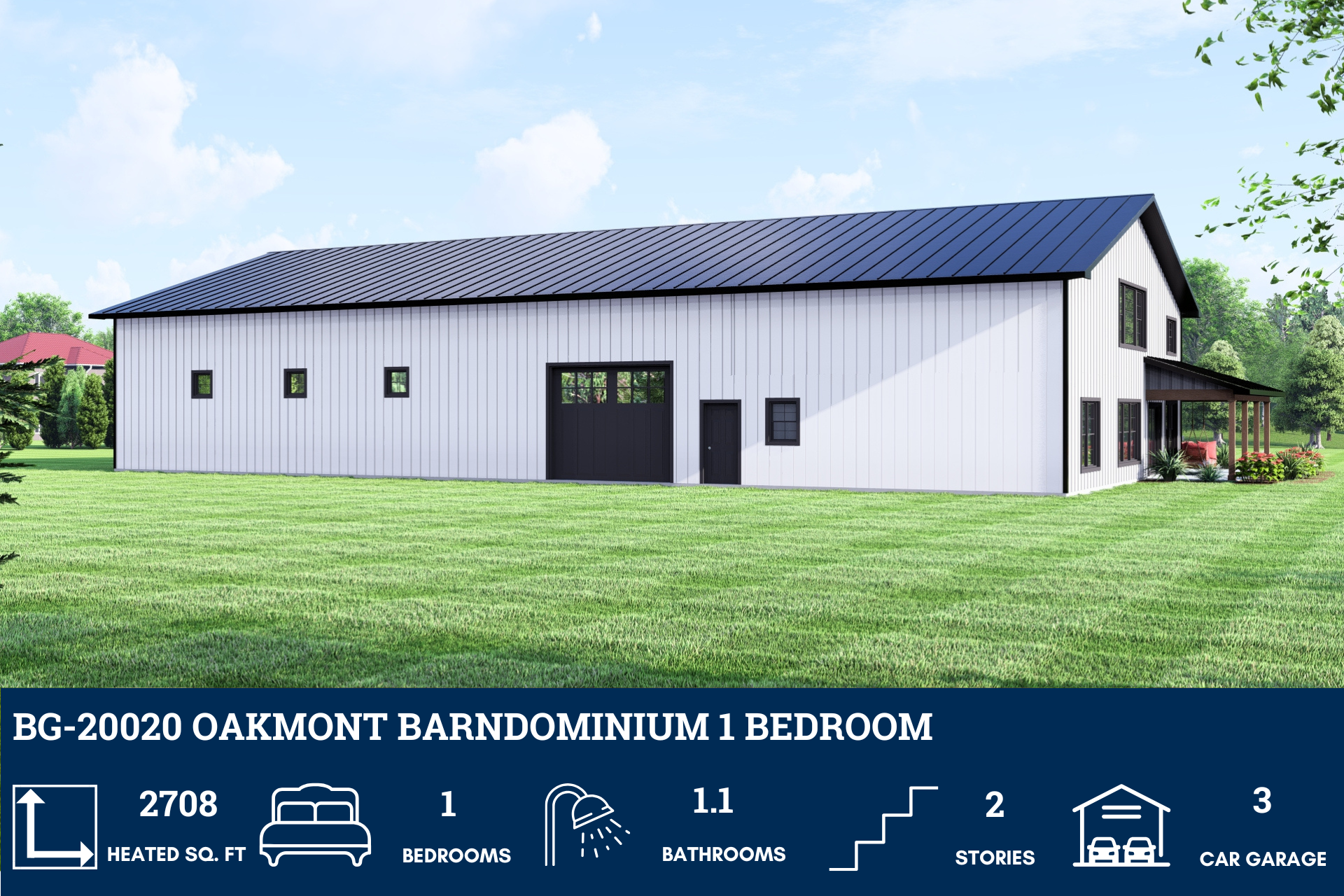

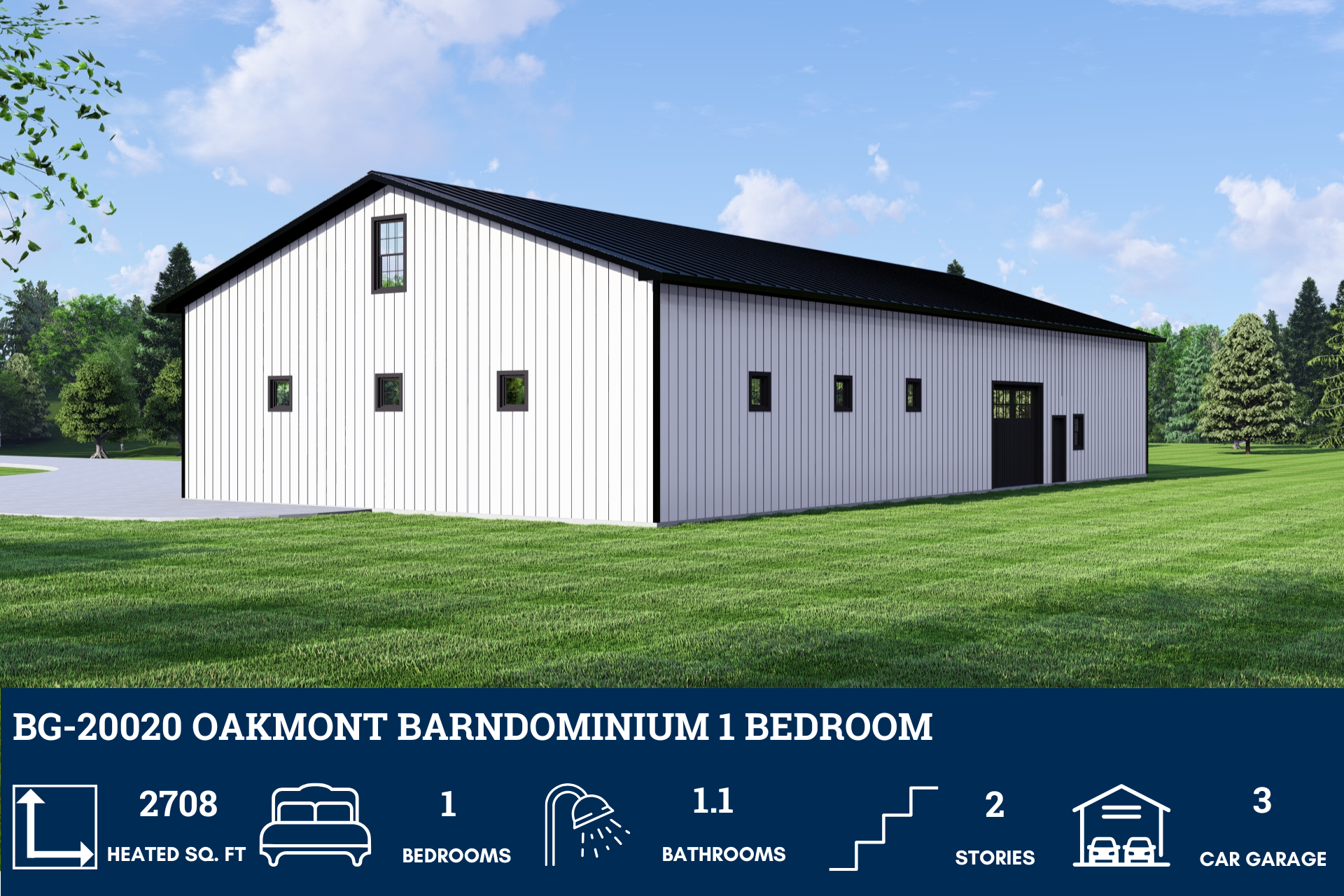

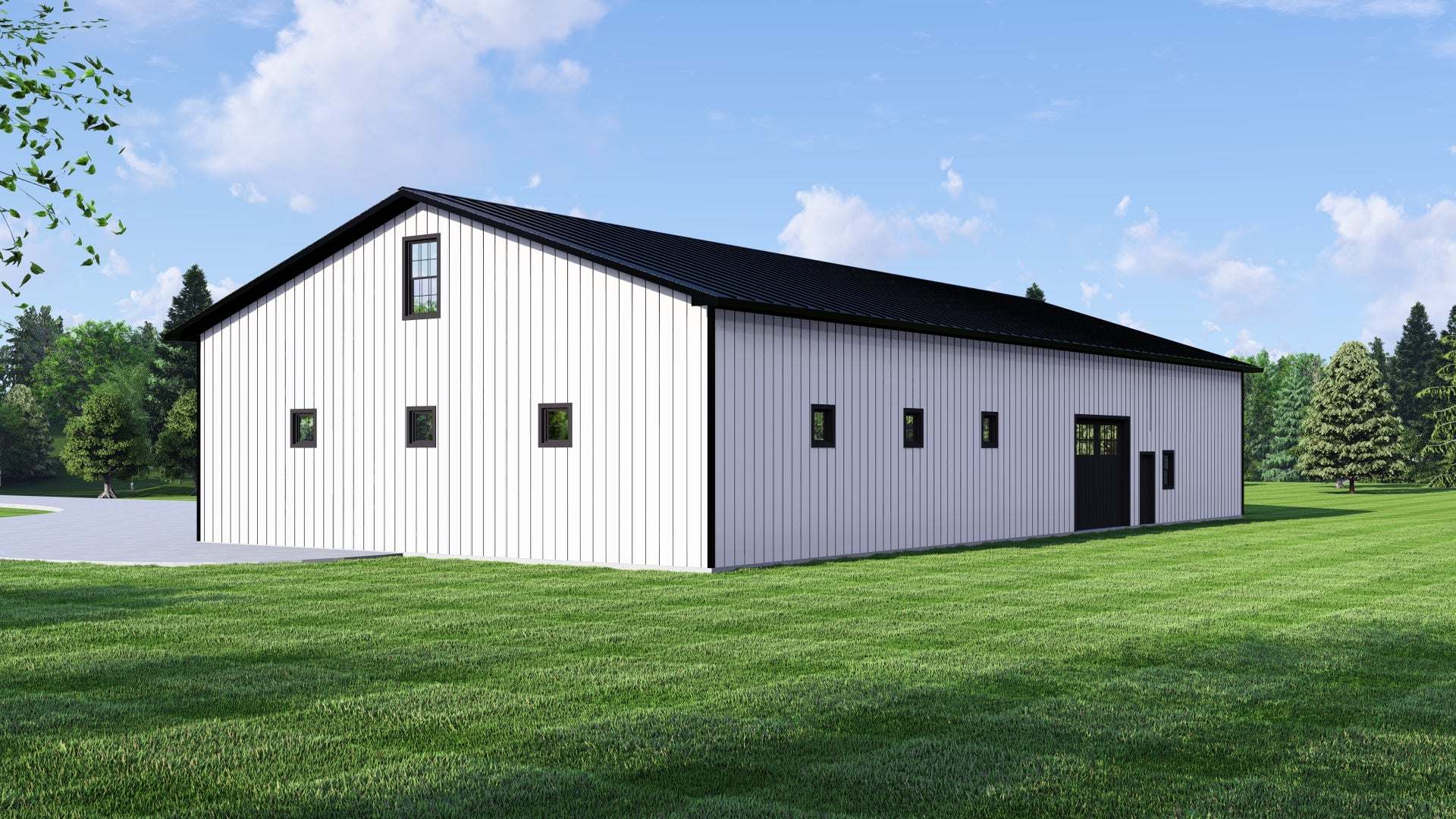

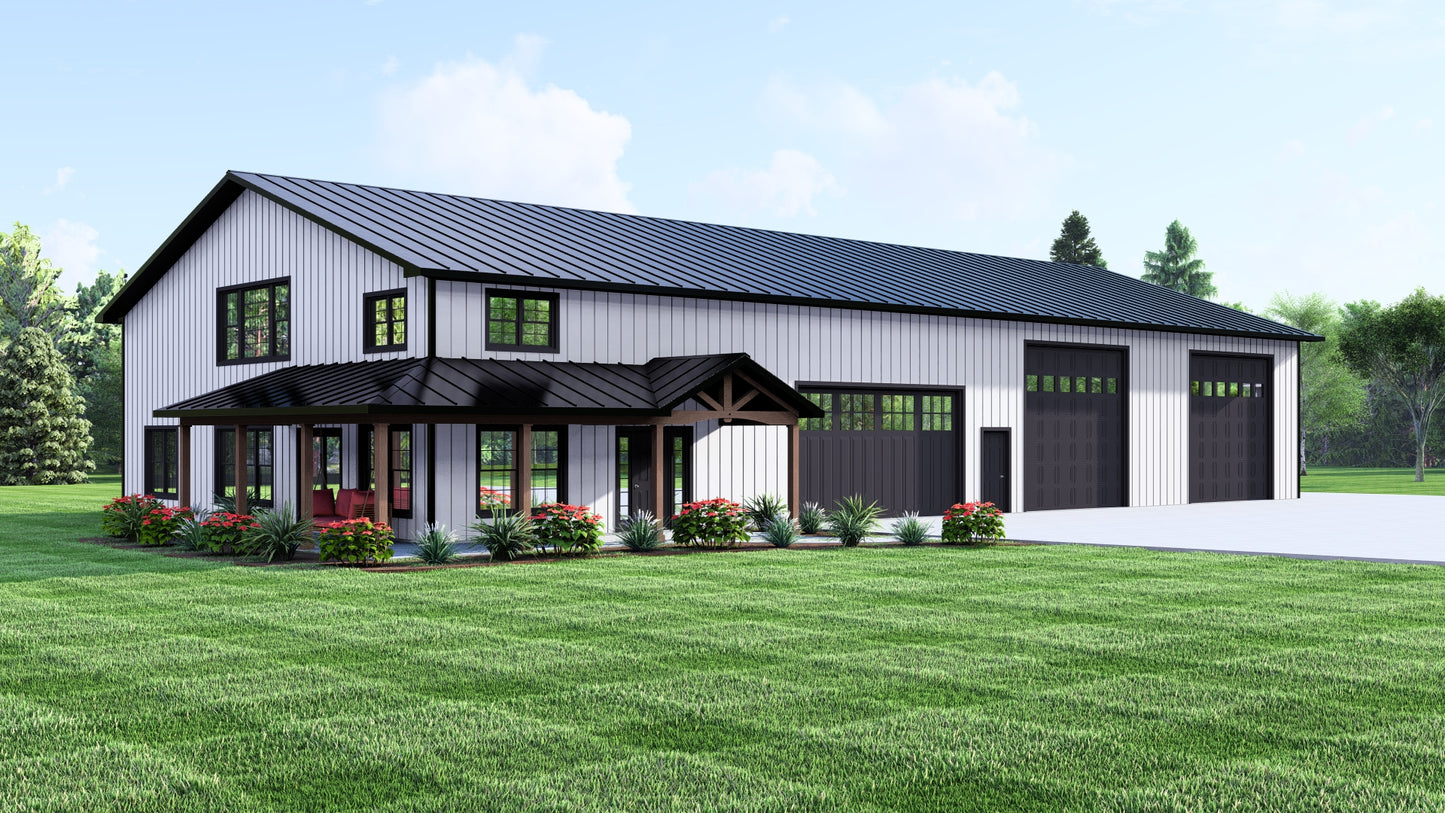

BG-20020 Oakmont Barndominium House Plan

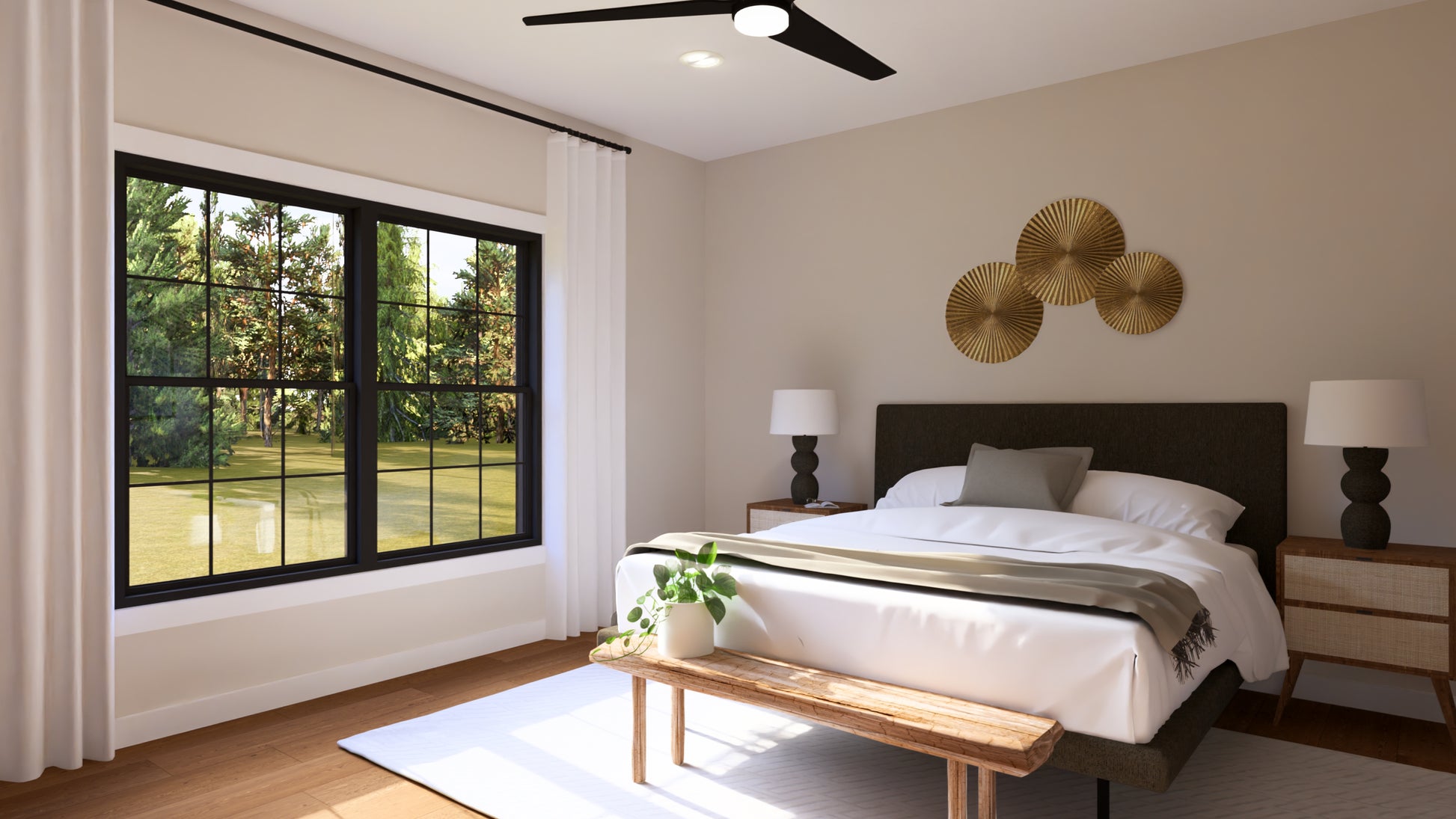

Step inside this barndominium! View all 3D interior walkthrough images at https://www.barndominiumlife.com/barndominium-plans/bg-20020/



About this barndominium house plan:

  • 2708 Heated sq ft
  • 3750 sq ft 3 Car garage
  • 1 bedroom
  • 1.2 bathrooms
  • Two Story

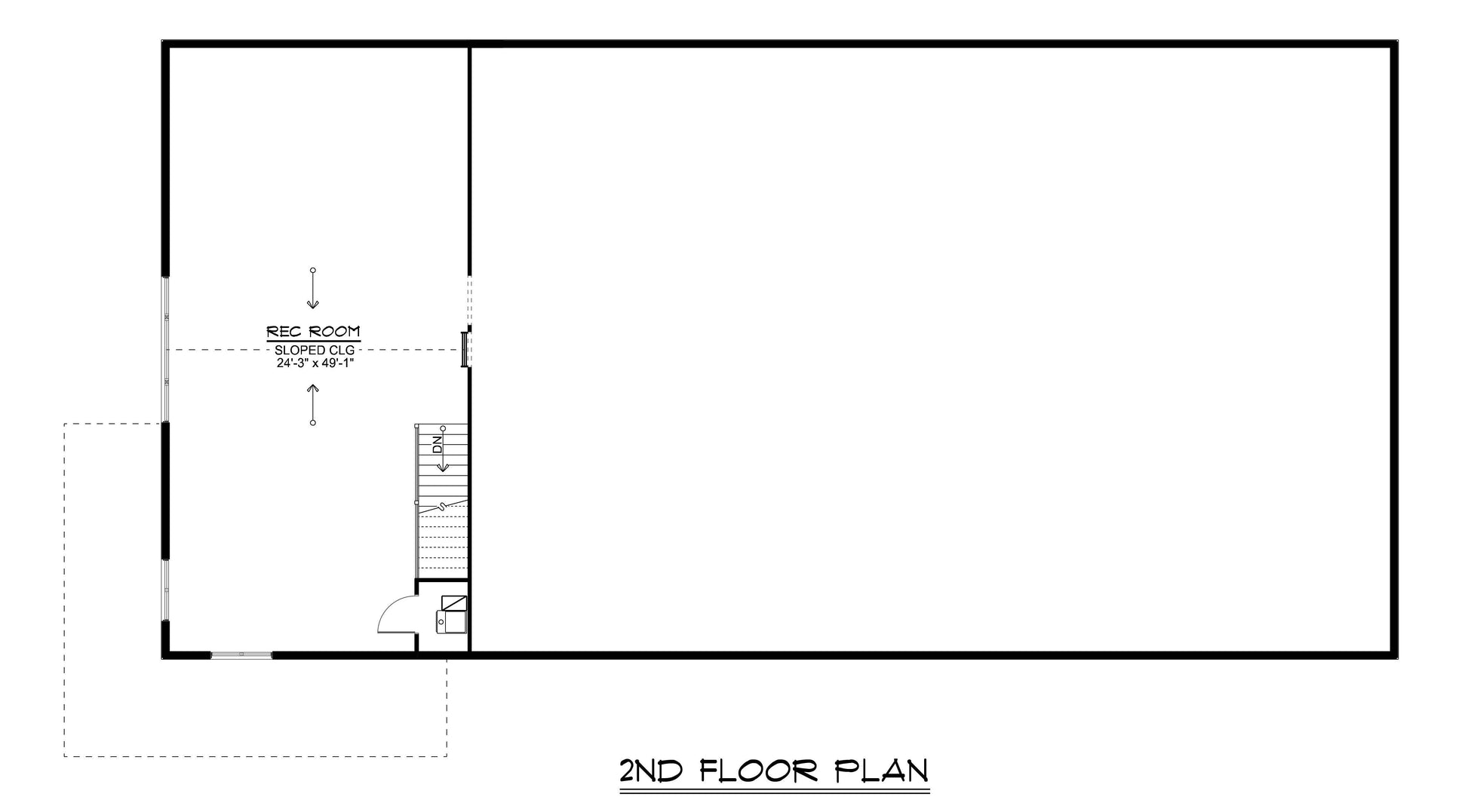

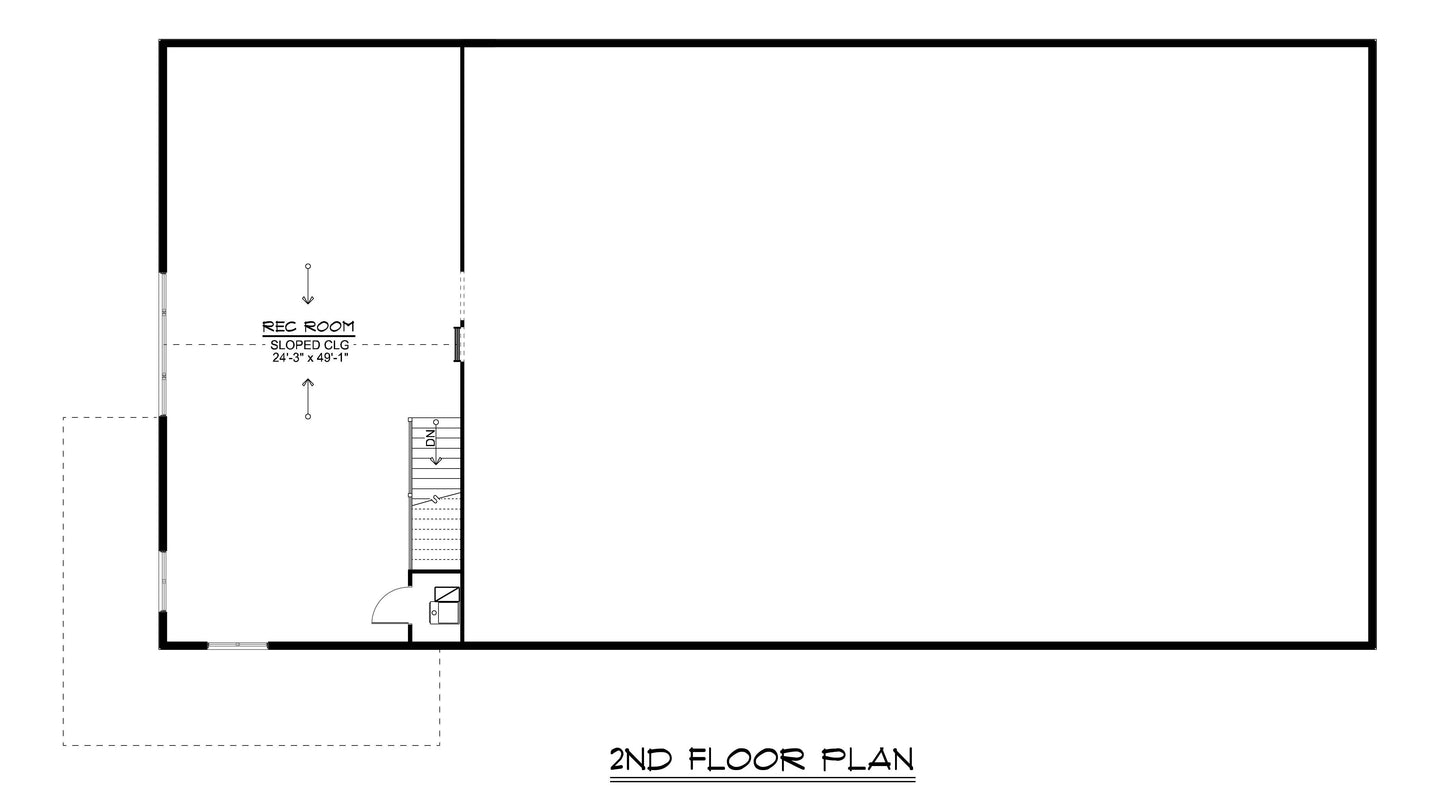

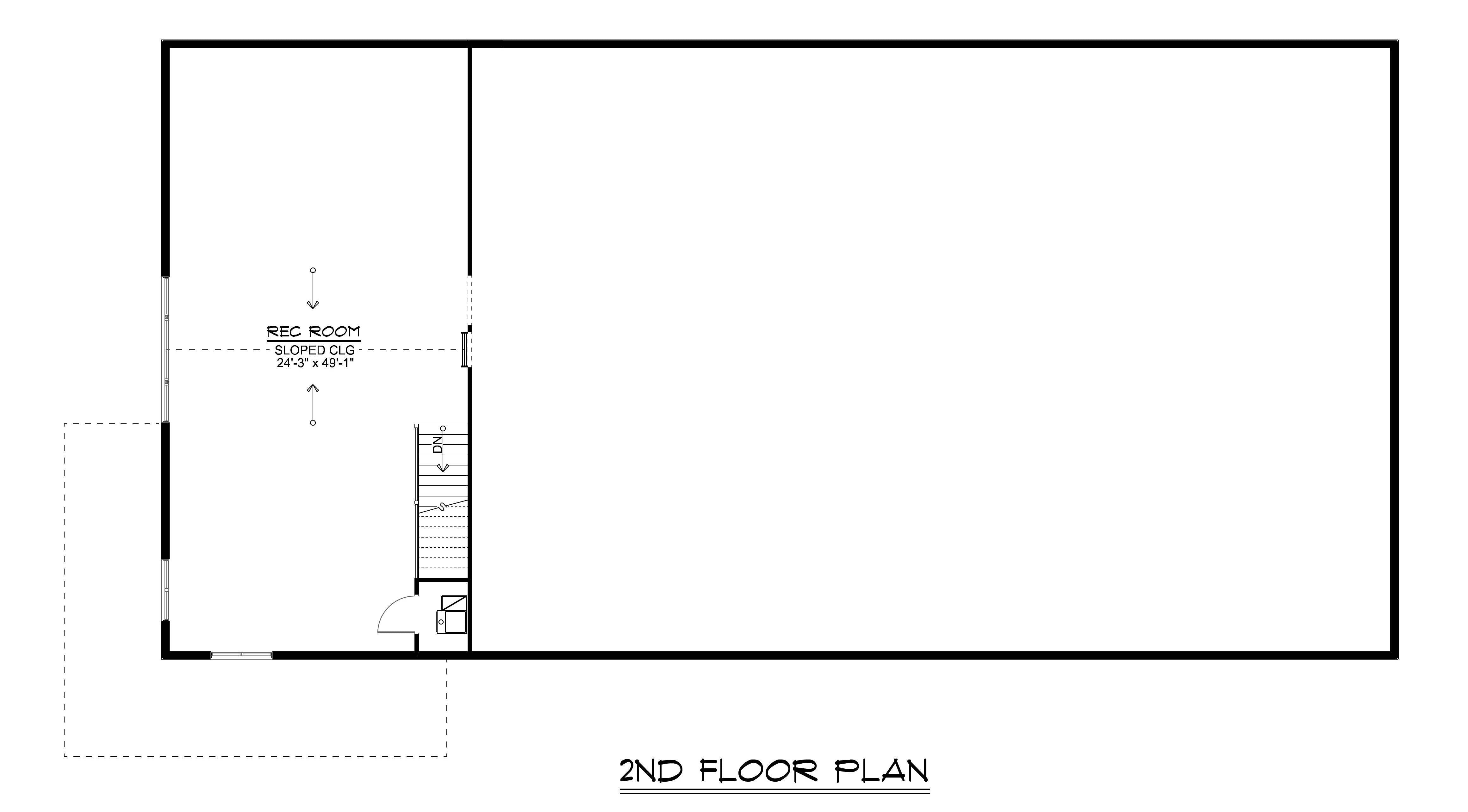

  • Second Floor Rec area
  • Open Concept
  • Mudroom

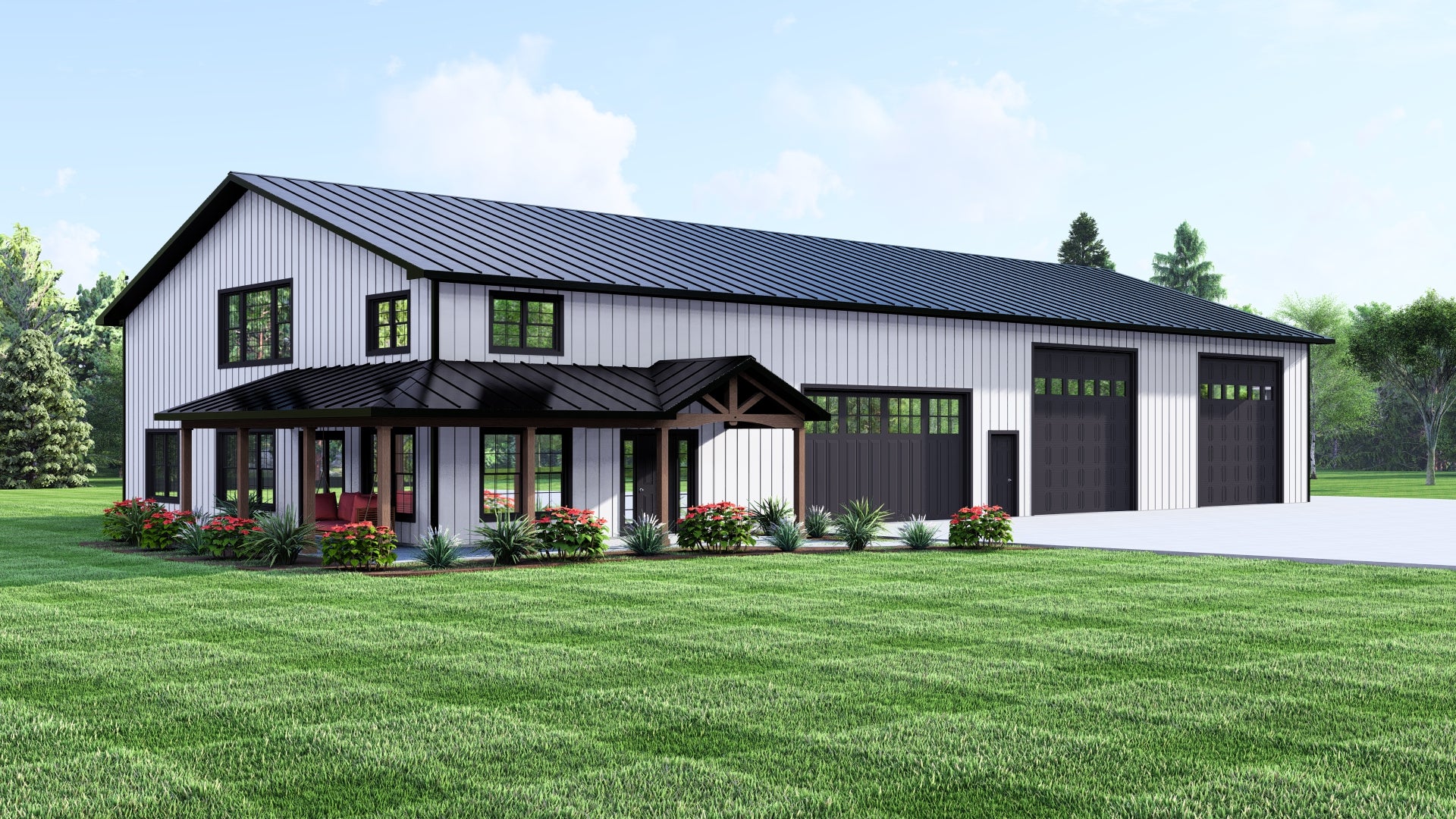

  • Covered porch





  • Ample space for living and entertaining 2708 Heated sq ft without the wasted square footage with room to grow, create, and relax in a home that feels just right.
  • This isn't just a garage; it's a workshop, a showroom, and a storage solution all in one. Imagine a hobbyist's haven, or the ultimate storage for all your gear—this is the garage that makes it possible.
  • A minimalist's dream with one bedroom offering an intimate and highly functional space designed for ultimate comfort. Enjoy the luxury of a simplified, yet incredibly intentional living experience.
  • The perfect blend of a full bath for your private use and a powder room for guests. Accommodate visitors with ease and style without compromising your personal space.
  • Experience the unique charm and functional separation of a home with two distinct levels. Spread out and define different zones for rest and play, offering a sense of privacy and purpose.

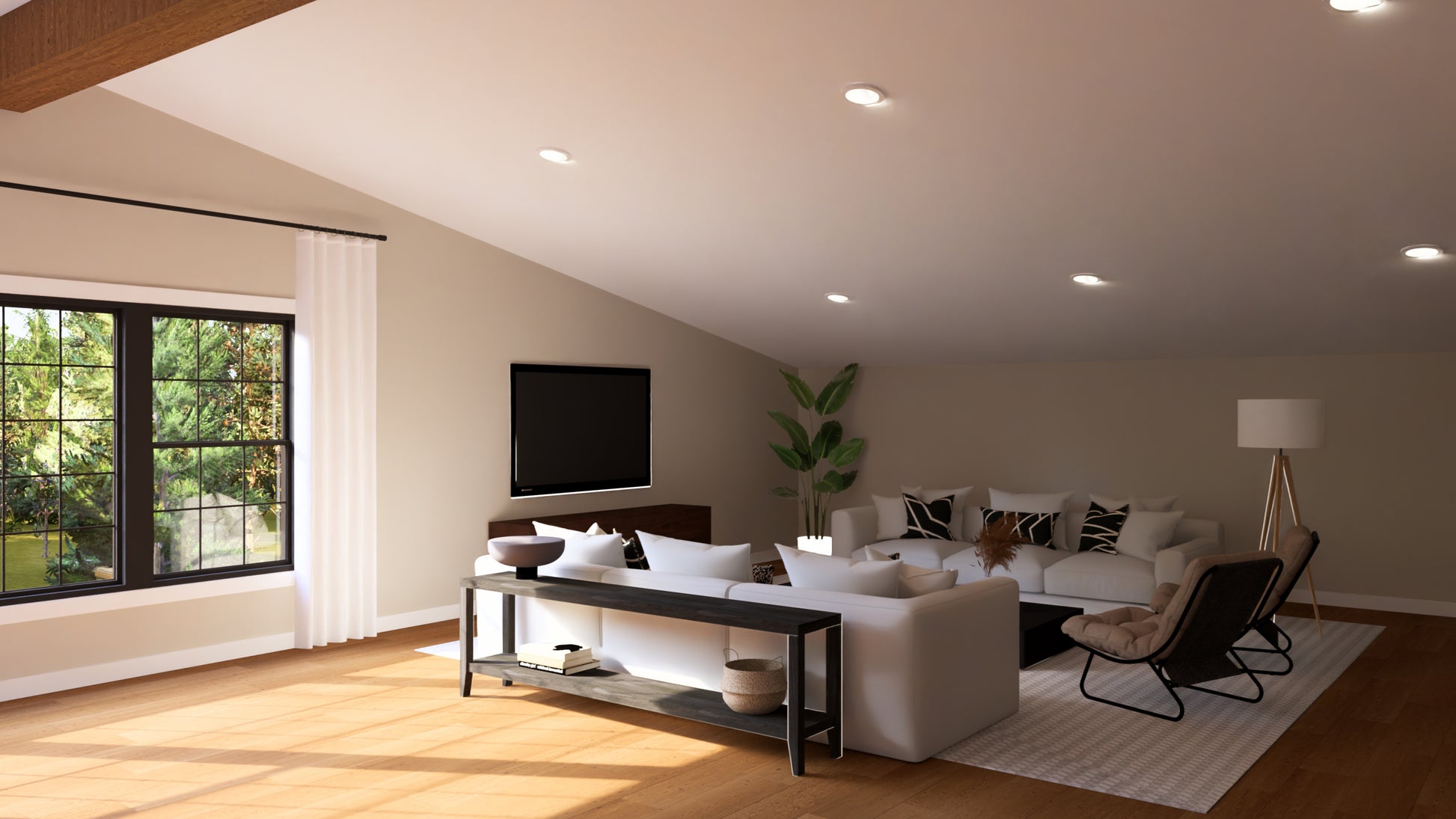

  • A dedicated upstairs haven for movies, games, and all your recreational pursuits.

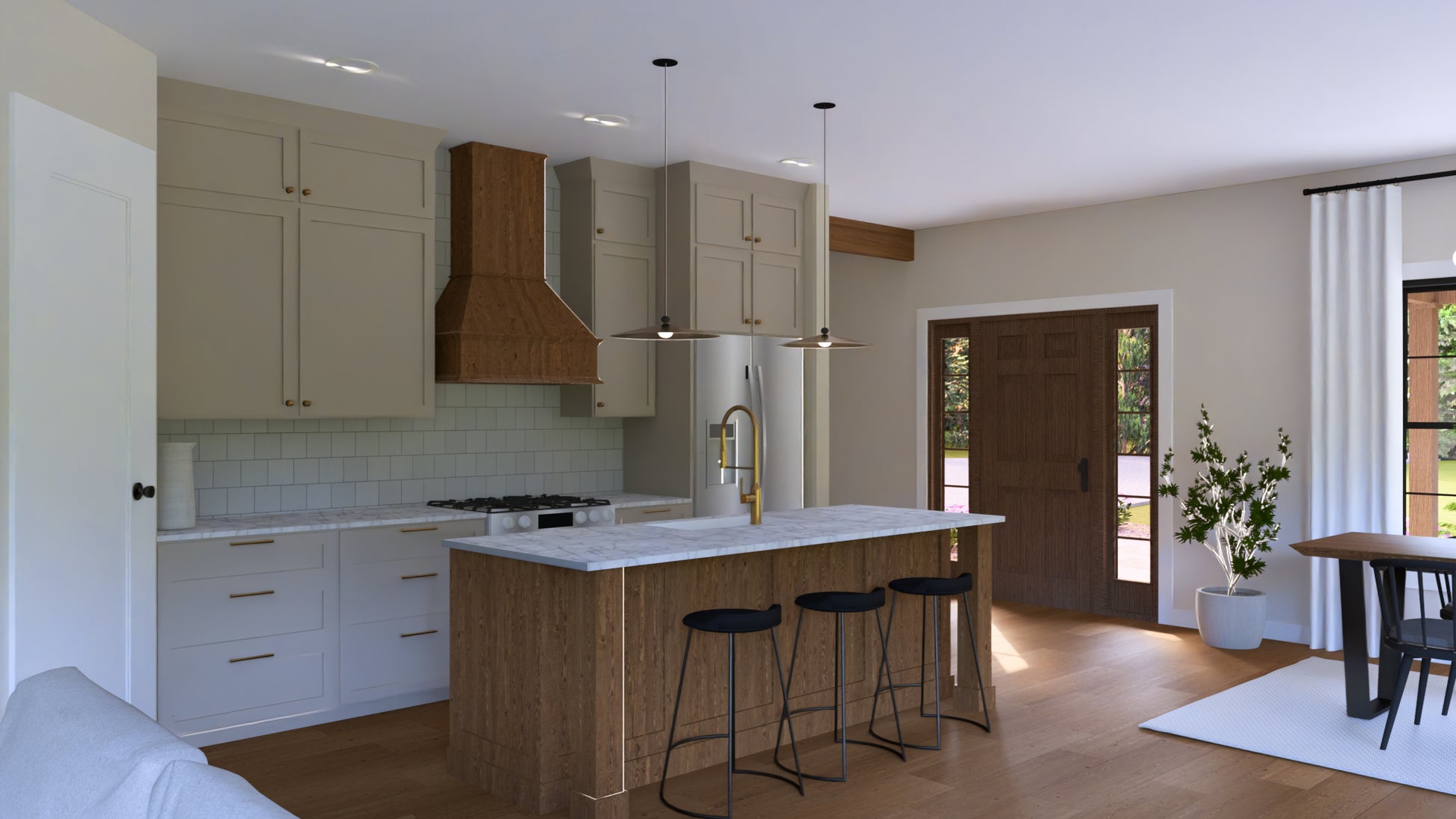

  • Seamless transitions between living, dining, and kitchen areas create an airy and inviting atmosphere.
  • The mudroom is the perfect transition zone for keeping dirt and clutter out of the main living areas. A smart and stylish space designed to organize life's comings and goings, from boots to backpacks.
  • A sheltered space for enjoying your morning coffee or unwinding in the evening, rain or shine. Extend your living space and connect with nature from the comfort of your covered retreat.





What's included in BG-20019:

Cover Sheet
Four Elevations (Front, Back, Left Side, Right Side)
Roof Plan
Dimensioned Floor Plan
Foundation Plan
Wall Sections
Electrical Plans



For more barndominium floor plans, check out our complete collection of 1 bedroom barndominum floor plans.



Need to make changes? Submit a modification request using the button that says Modify This Plan . We will get you a free price quote within 72 hours.

What's Typically Included

THE SPECIFC DETAILS OF WHAT'S INCLUDED ON THESE PLANS IS CONTAINED IN THE PRODUCT DESCRIPTION. PLEASE SCROLL UP AND YOU WILL FIND IT UNDER "WHAT'S INCLUDED"

Our house plan sets typically have the following details:

4 Elevations – Front, Back, Both Sides

Detailed Floor Plan Drawing

Electrical Plans with placements for HVAC

Plumbing Plans with Placements

Flooring Plan

Roof Plan

Foundation Plan

For more information on what's included and examples of what your plans will look like, go here -> https://barndominiumplans.com/pages/whats-included

Please Note: We work with many different draftspeople who work in many different ways.  It should be noted that their plans may contain different details. THE SPECIFC DETAILS OF WHAT'S INCLUDED ON THESE PLANS IS CONTAINED IN THE PRODUCT DESCRIPTION. PLEASE SCROLL UP AND YOU WILL FIND IT UNDER "WHAT'S INCLUDED"

What's Not Included

The following items are NOT included:

Architectural or Engineering Stamp. Our plans are engineering-ready! Can take to a local structural engineer, but we are not engineers ourselves.

Metal Truss Plans - These are provided by the truss manufacturer

Wind and Snow Loads - Handled locally!

Delivery

This plan is available as a digital product or printed + shipped.

If you select digital, the plan will be delivered to you via email as a PDF file, no matter what time it is.

If you select printed + shipped, your order will ship in 24x36 format within 1 business day of your order.

We ship from the midwest in order to serve the entire country within 3-5 business days!

Return policy

All barndominium house plan purchases are FINAL. There are no exchanges or refunds due to the digital nature of the product. Please make sure that the plan you have selected is going to fit your needs.

Wondering about modifications, and making sure you like the changes? While all plan sales featuring modifications are also FINAL, here's a bit about how the modification process works:

After your order is placed, our team gets started on your modifications.

First, we send over an initial floor plan draft to make sure the modifications are correct. Any "clarifying changes" are included at no additional cost. Things like "Oh I meant for the door to swing this way, not that way" or "kitchen appliances should be arranged in XYZ way". Any major changes to the plan like adding a bedroom, a second story, or a different foundation are an additional fee. 99% of our customers do not incur an additional fee.

After the floor plan is confirmed, we send over the floor plans + elevations. We do the same process, and once you're good with the elevations, we finish up your final plans.
