Barndominium Plans

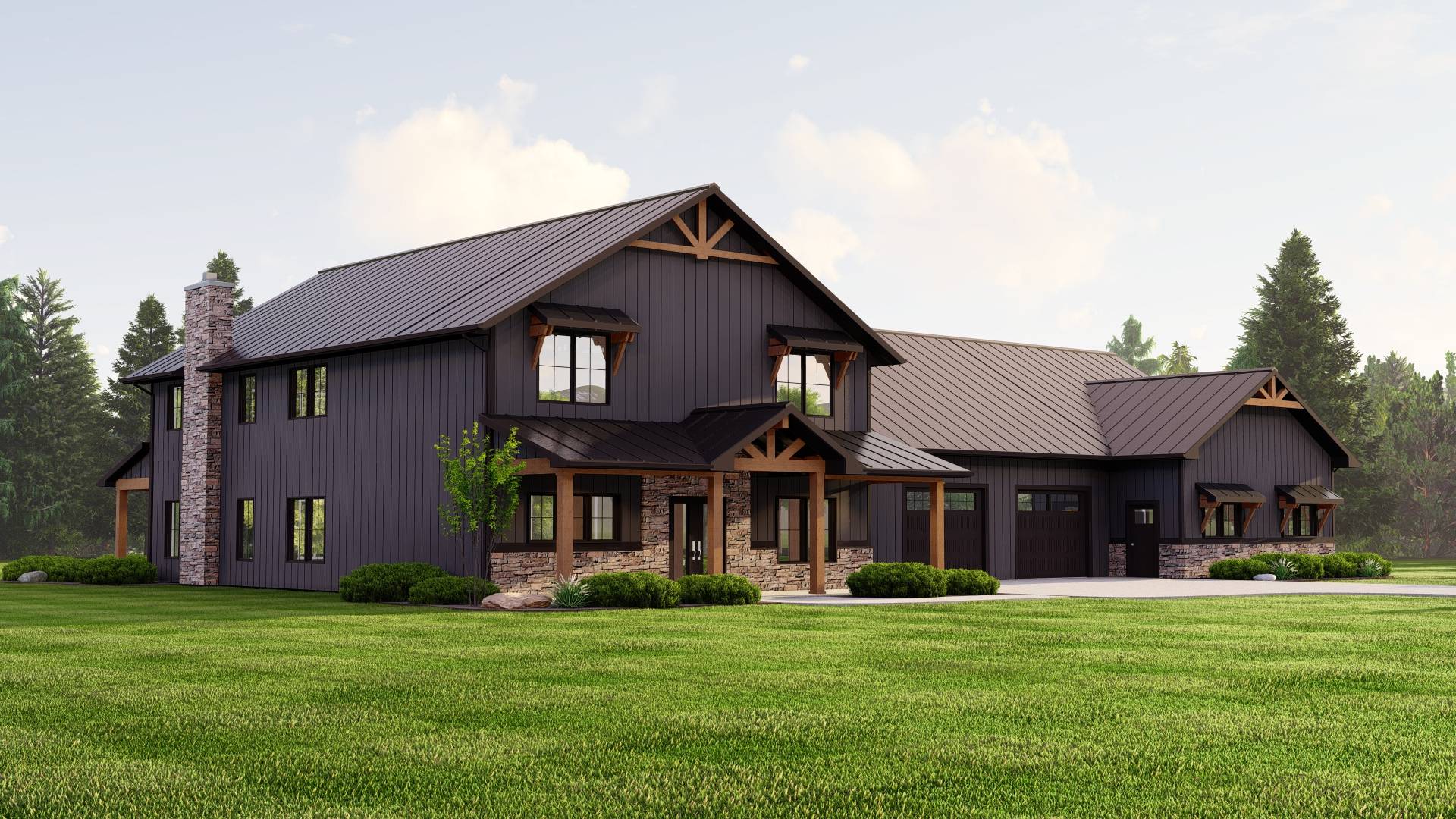

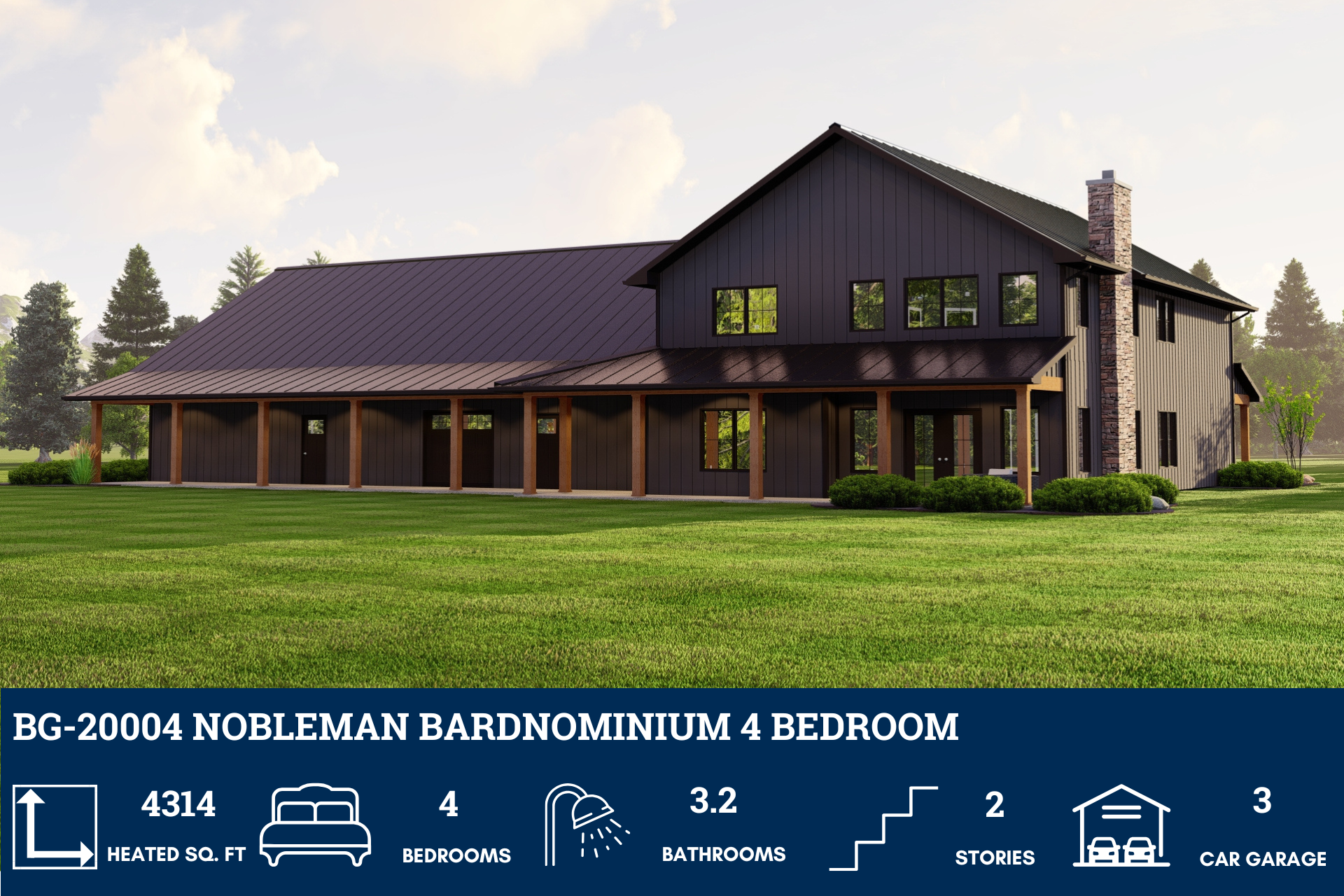

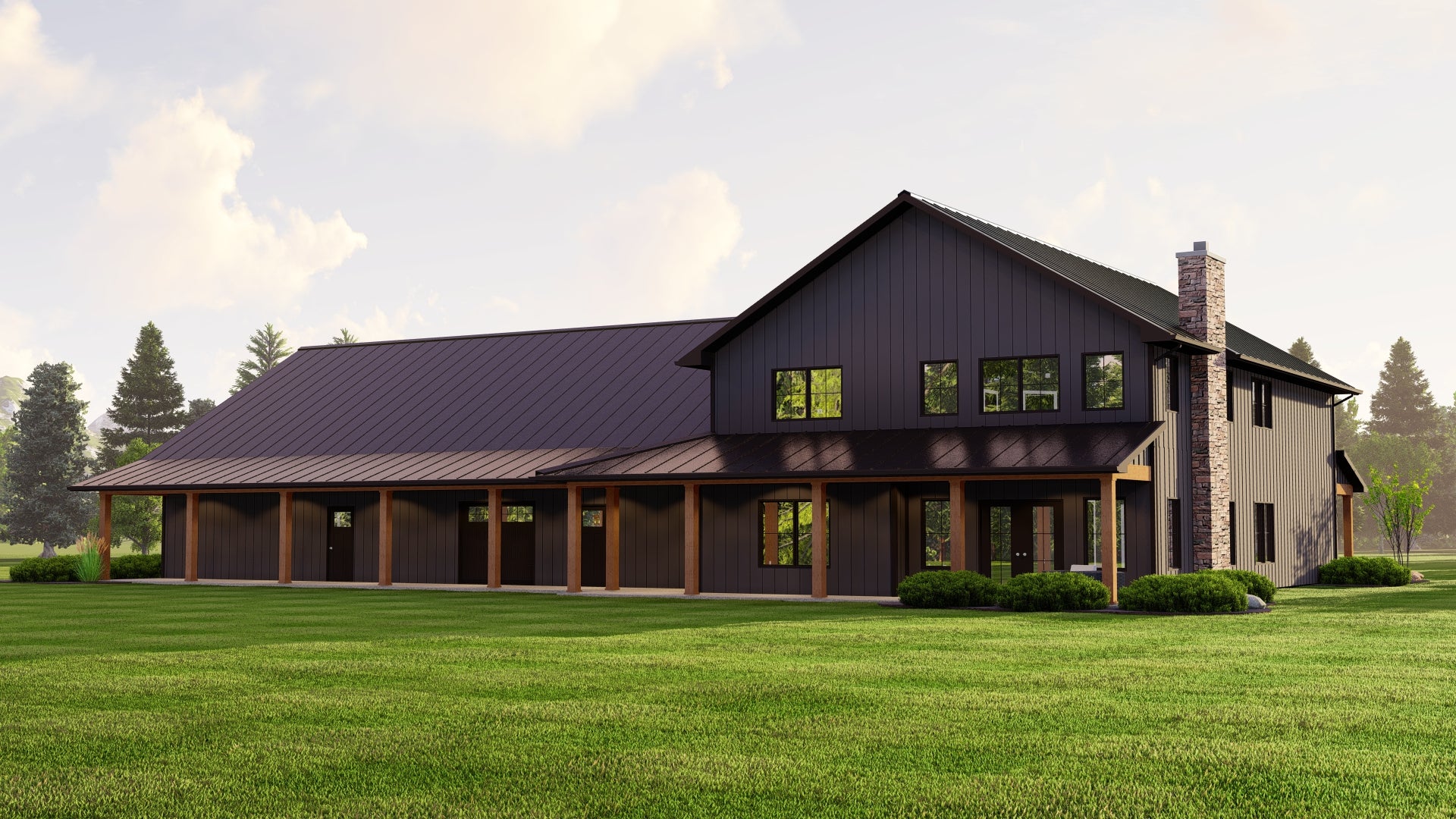

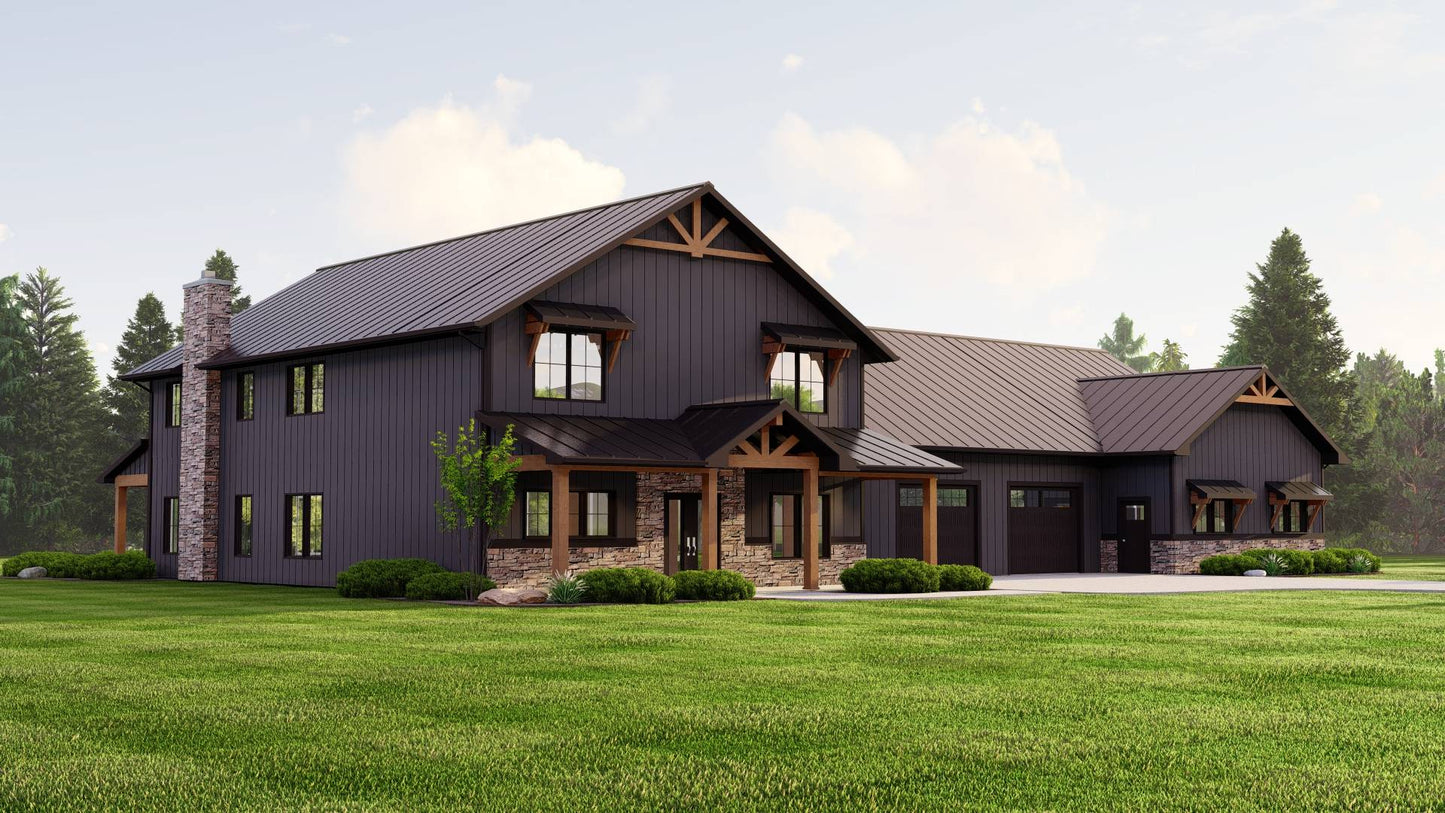

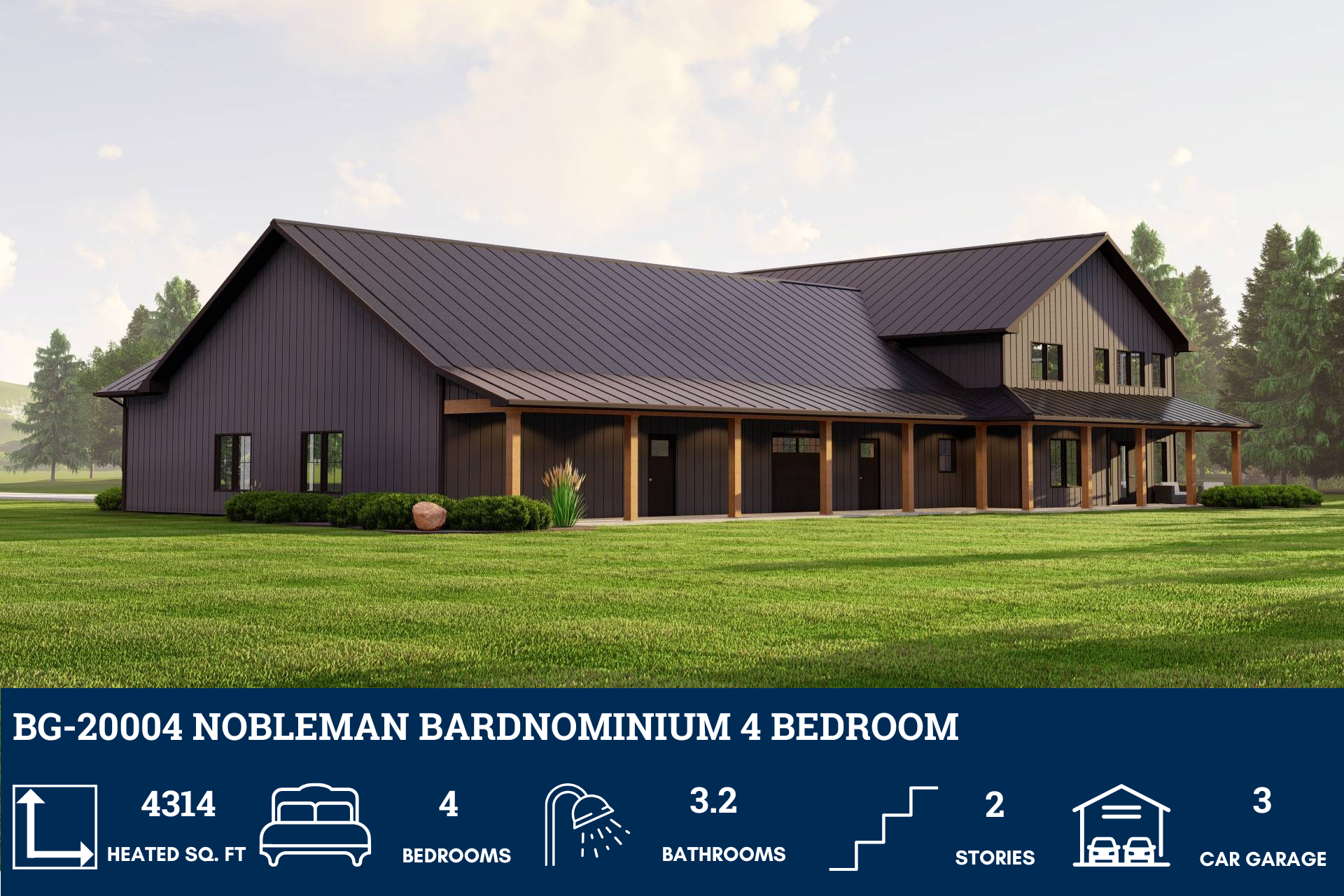

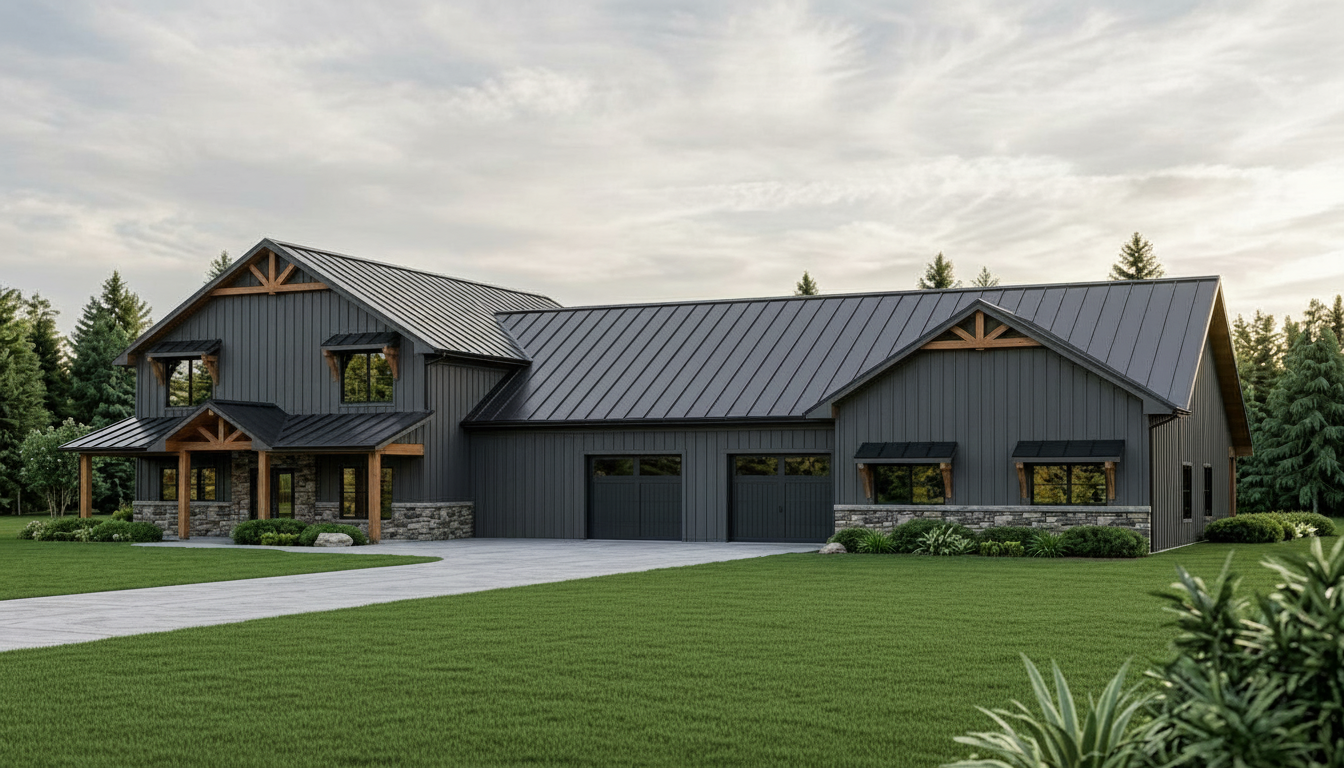

BG-20004 Nobleman Barndominium House Plan

$1,350.00 USD
$1,350.00 USD
Sale Sold out
1 10

Floor Plan

DETAILS

HEATED SQ FT

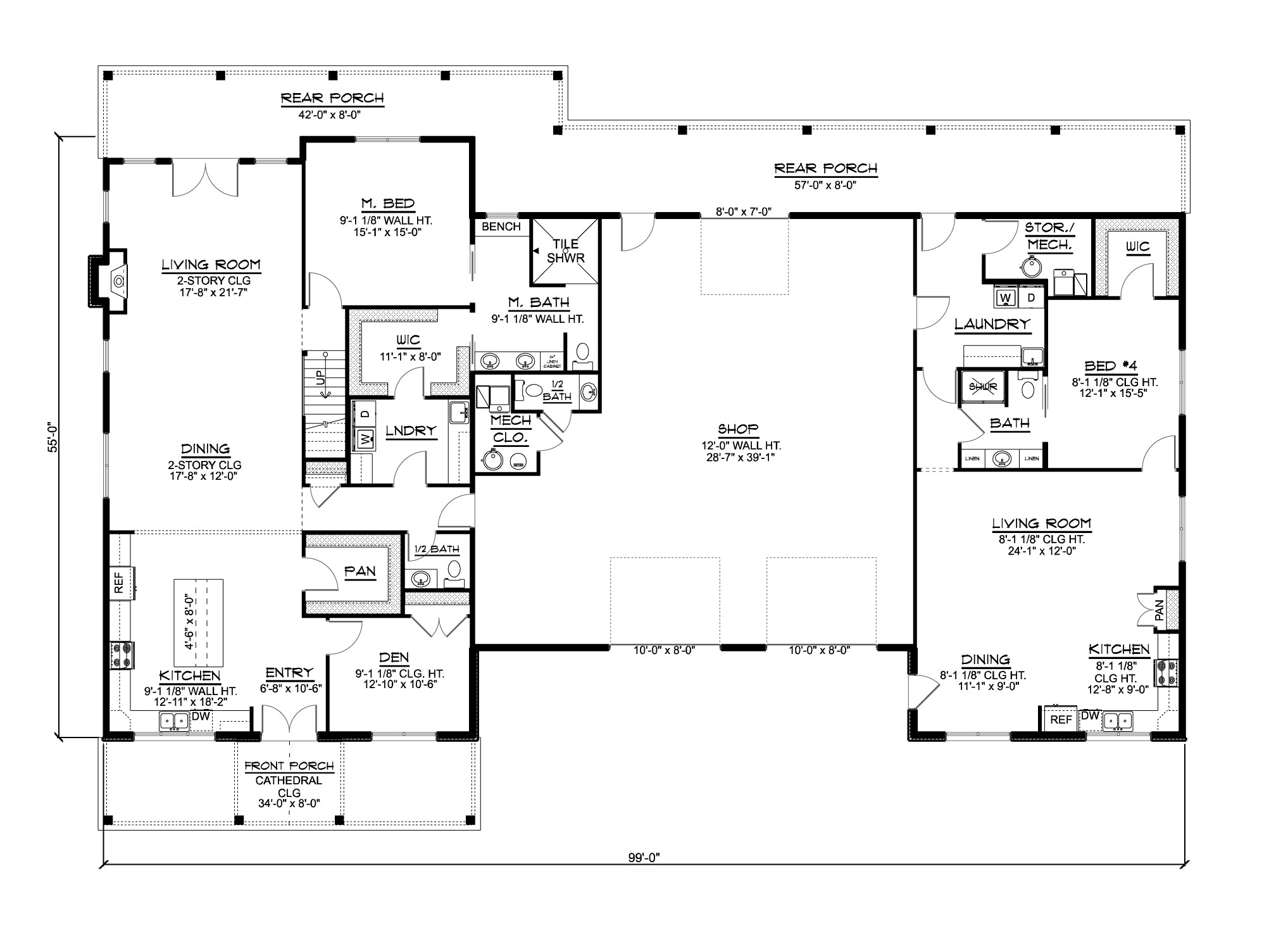

First Floor:

3,179 SF

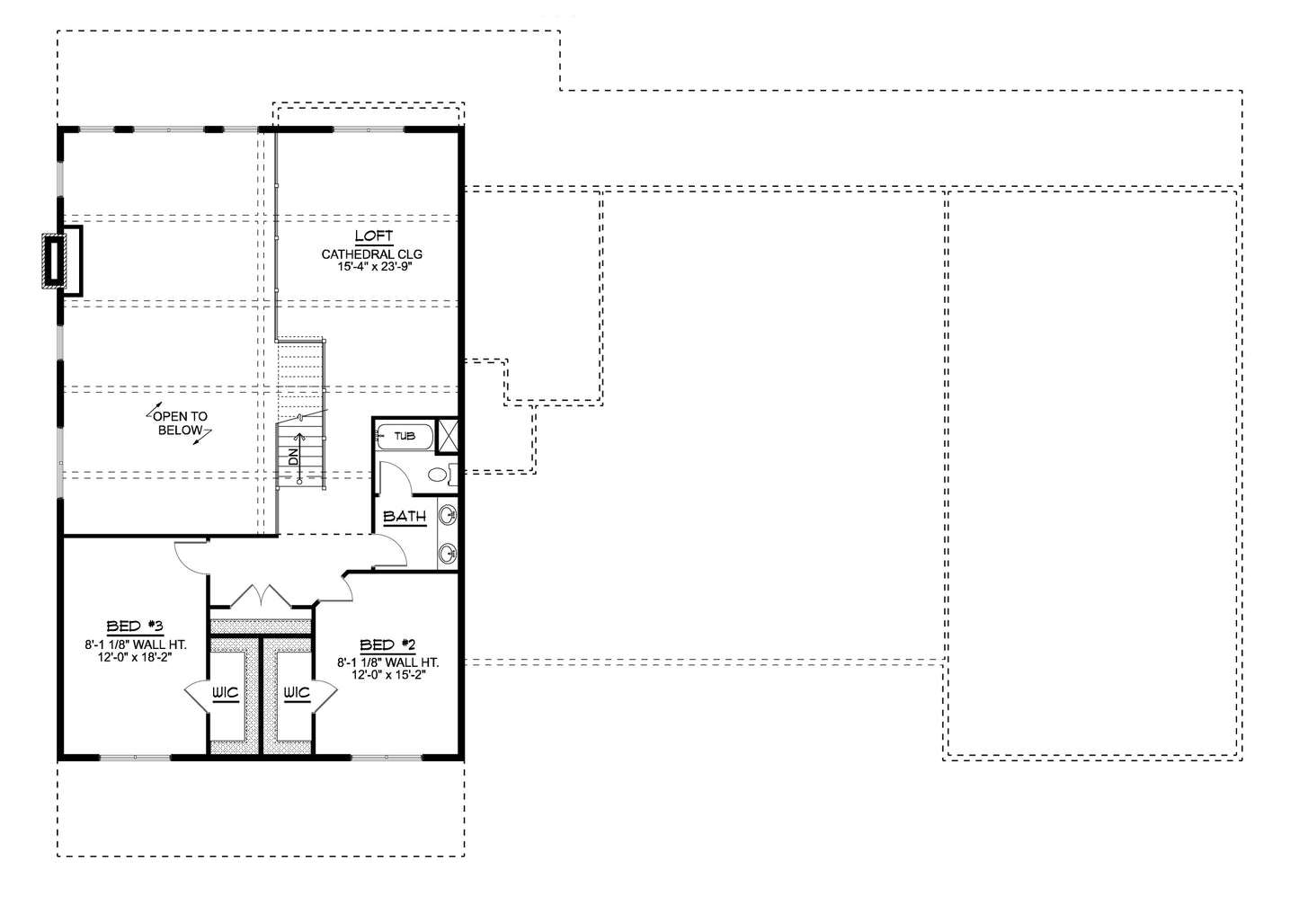

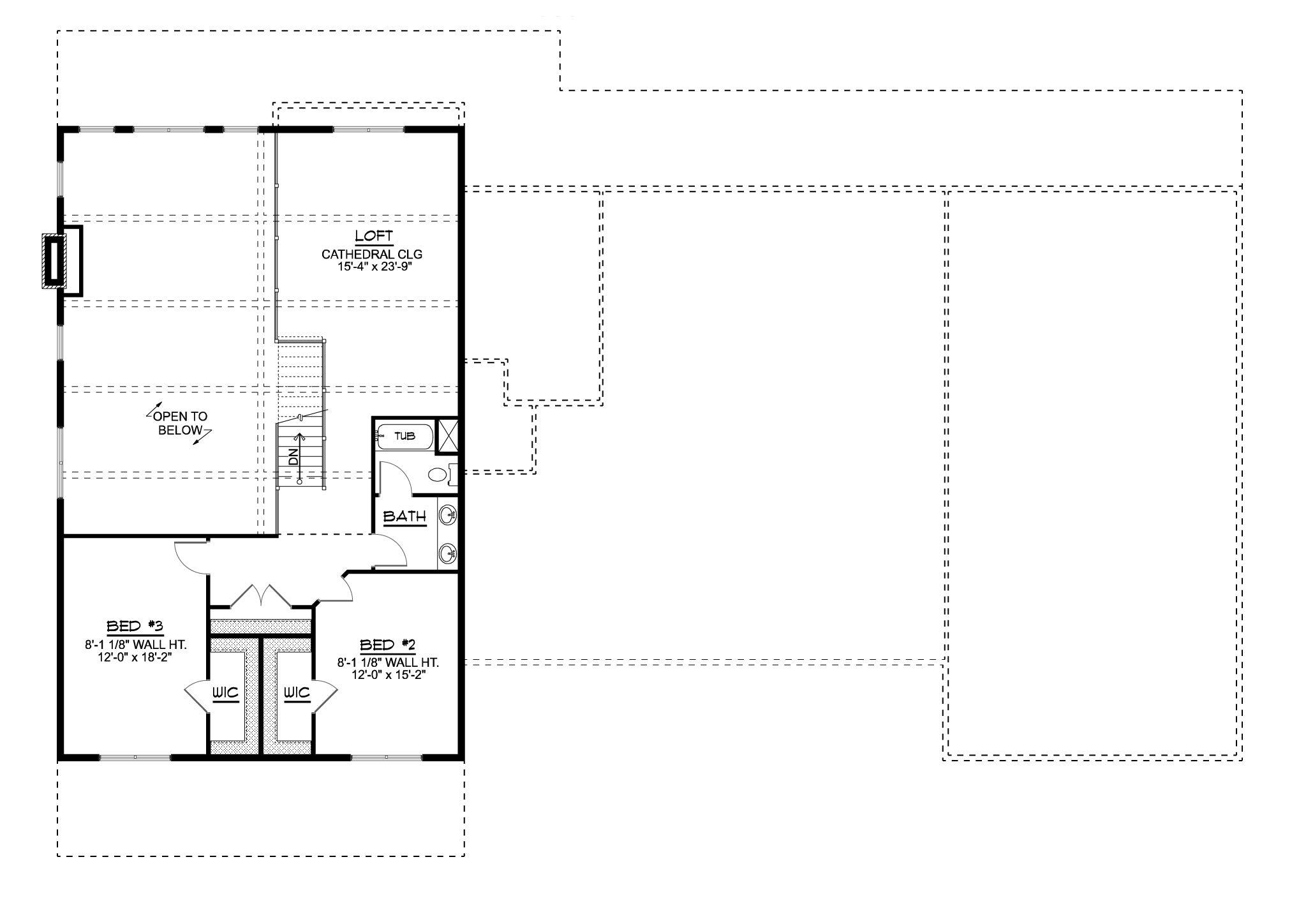

Second Floor:

1,135 SF

Total Heated Sq Ft:

4,314 SF

UNHEATED SQ FT

Total Unheated Area:

Garage 1,455 SF, Porch 1,072 SF = TOTAL 2,527 SF

Carport:

None

Bedrooms:

4

Full Baths:

3

Floors:

2

Garage Size:

1,455 SF

Width:

99'

Depth:

69'

Height:

28'-8"

Foundation:

Concrete Slab, Basement also available

Main Roof Pitch:

7:12

Exterior Framing:

2x6 Stick-frame

CEILING HEIGHTS

First Floor:

9'

BG-20004 Nobleman Barndominium House Plan



About this barndominium house plan:

  • 4314 Heated square feet
  • 4 Bedrooms
  • 3.2 Bathrooms
  • Open concept
  • 1455 Sq Ft Shop
  • Den
  • Mechanical closet
  • Loft
  • 2 living rooms
  • 2 kitchens
  • 2 laundry rooms
  • Guest/in-law suite
  • Front & rear porch



  • A sprawling 4,314 square feet of climate-controlled living space offers room to thrive, entertain, and evolve—designed for comfort, creativity, and connection.
  • Four spacious bedrooms provide restful retreats for every member of the household, with flexibility for guest accommodations, home offices, or personalized sanctuaries.
  • Three full bathrooms and two powder rooms ensure seamless convenience for daily routines and entertaining—no waiting, no compromise.
  • The open-concept layout invites natural light and effortless flow, connecting living, dining, and kitchen spaces into one harmonious environment.
  • A massive 1,455-square-foot shop offers unmatched versatility—ideal for entrepreneurs, hobbyists, or creatives needing space to build, store, or innovate.
  • A cozy den provides a quiet escape for reading, relaxing, or working—perfectly tucked away yet easily accessible.
  • A dedicated mechanical closet keeps systems organized and out of sight, supporting the home’s functionality without disrupting its aesthetic.
  • The loft adds a flexible bonus space—ideal for a media lounge, playroom, studio, or secondary workspace with elevated charm.
  • Two distinct living areas offer options for entertaining, relaxing, or creating separate zones for multi-generational living or varied lifestyles.
  • Dual kitchens provide culinary flexibility—perfect for hosting, accommodating guests, or supporting independent living within the same home.
  • Two laundry rooms make household management effortless, whether you're supporting a large family, guests, or simply streamlining daily tasks.
  • A private guest or in-law suite offers comfort and autonomy, complete with its own amenities—ideal for extended stays or multi-generational living.
  • Dual porches extend your living space outdoors—welcoming guests at the front and offering a peaceful retreat in the rear for dining, lounging, or enjoying the view.



What's included in BG-20004:

Cover Sheet
Four Elevations (Front, Back, Left Side, Right Side)
Roof Plan
Dimensioned Floor Plan
Foundation Plan
Wall Sections
Electrical Plans



For more barndominium floor plans, check out our complete collection of 4-bedroom barndominium floor plans.

You can see this plan as a completed home here!

Need to make changes? Submit a modification request using the button that says Modify This Plan (below the Add To Cart Button). We will get you a free price quote within 72 hours

Please note all square footage are estimates.

What's Included

Our house plan sets typically have the following details:

4 Elevations – Front, Back, Both Sides

Detailed Floor Plan Drawing

Electrical Plans with placements for HVAC

Plumbing Plans with Placements

Flooring Plan

Roof Plan

Foundation Plan

For more information on what's included and examples of what your plans will look like, go here -> https://barndominiumplans.com/pages/whats-included

Please Note: We work with many different draftspeople who work in many different ways.  It should be noted that their plans may contain different details.

What's Not Included

The following items are NOT included:

Architectural or Engineering Stamp. We work with a third party to provide an engineering stamp in most states.

Site Plan - We can provide this if needed for $300 additional.

Materials List - handled locally when required

Energy calculations - handled locally when required

Snow load calculations - handled locally when required

Delivery

This plan is available as a digital product or printed + shipped.

If you select digital, the plan will be delivered to you via email as a PDF file, no matter what time it is.

If you select printed + shipped, your order will ship in 24x36 format within 1 business day of your order.

We ship from the midwest in order to serve the entire country within 3-5 business days!

Return policy

All barndominium house plan purchases are FINAL. There are no exchanges or refunds due to the digital nature of the product. Please make sure that the plan you have selected is going to fit your needs.
