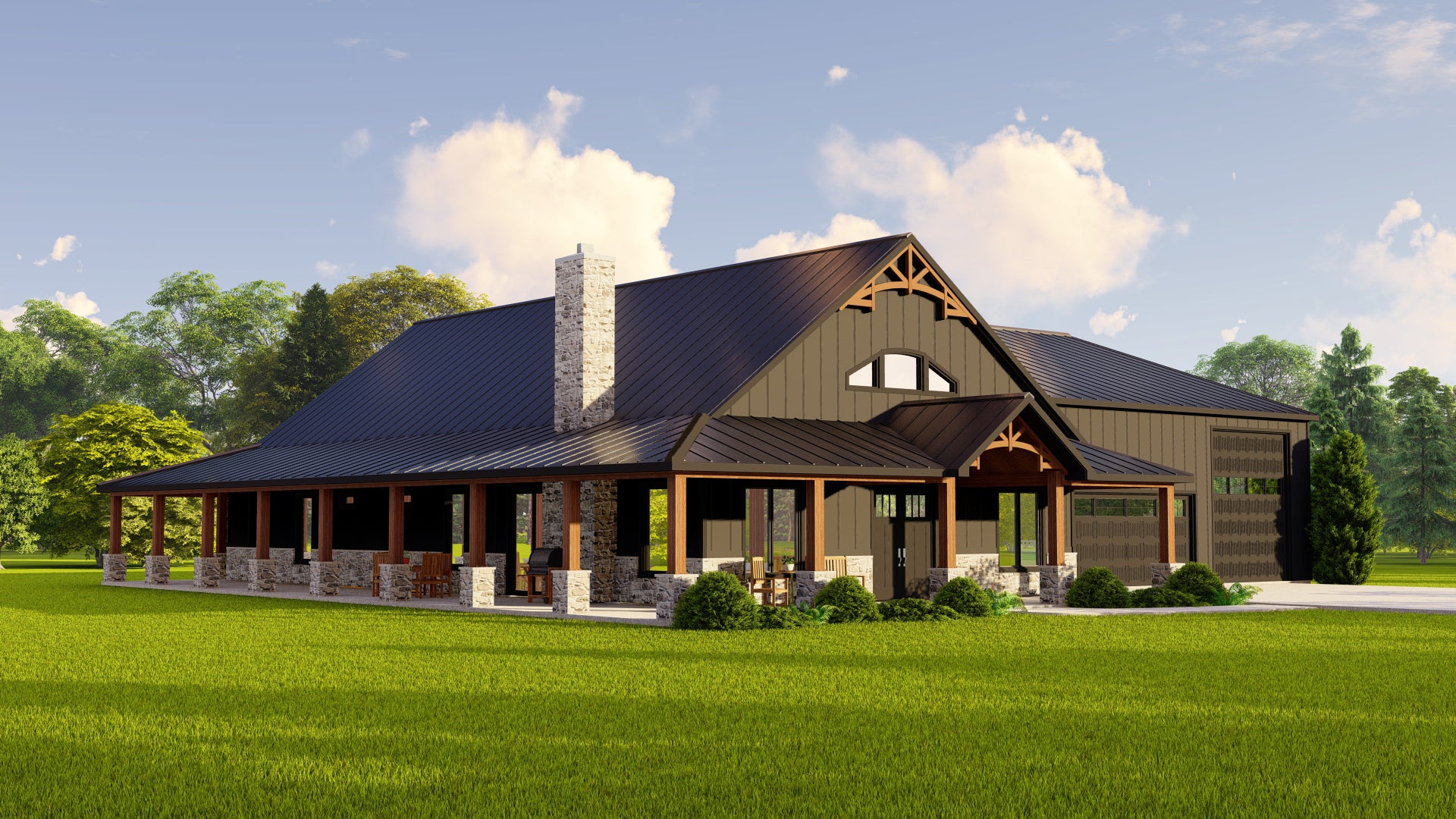

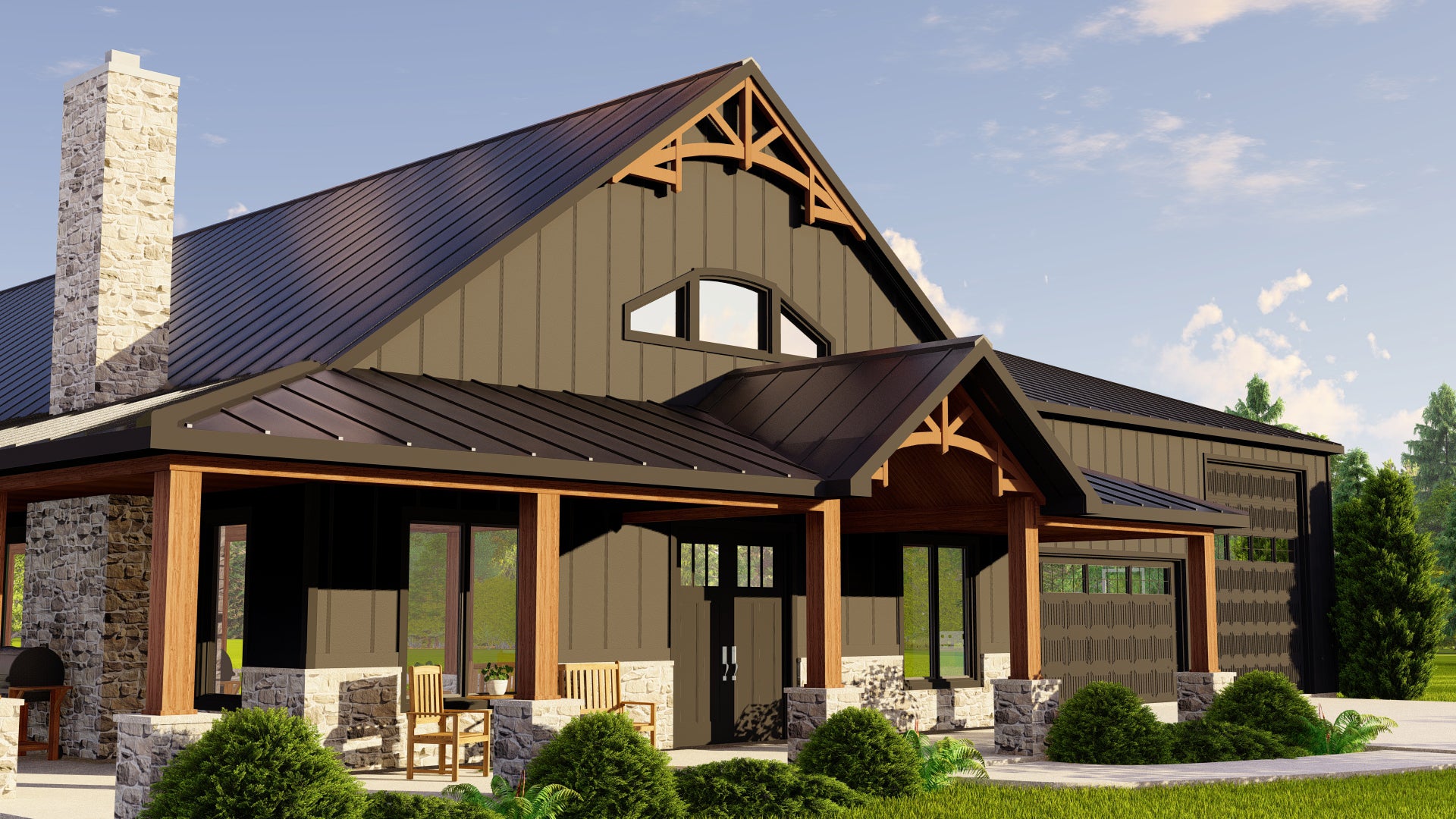

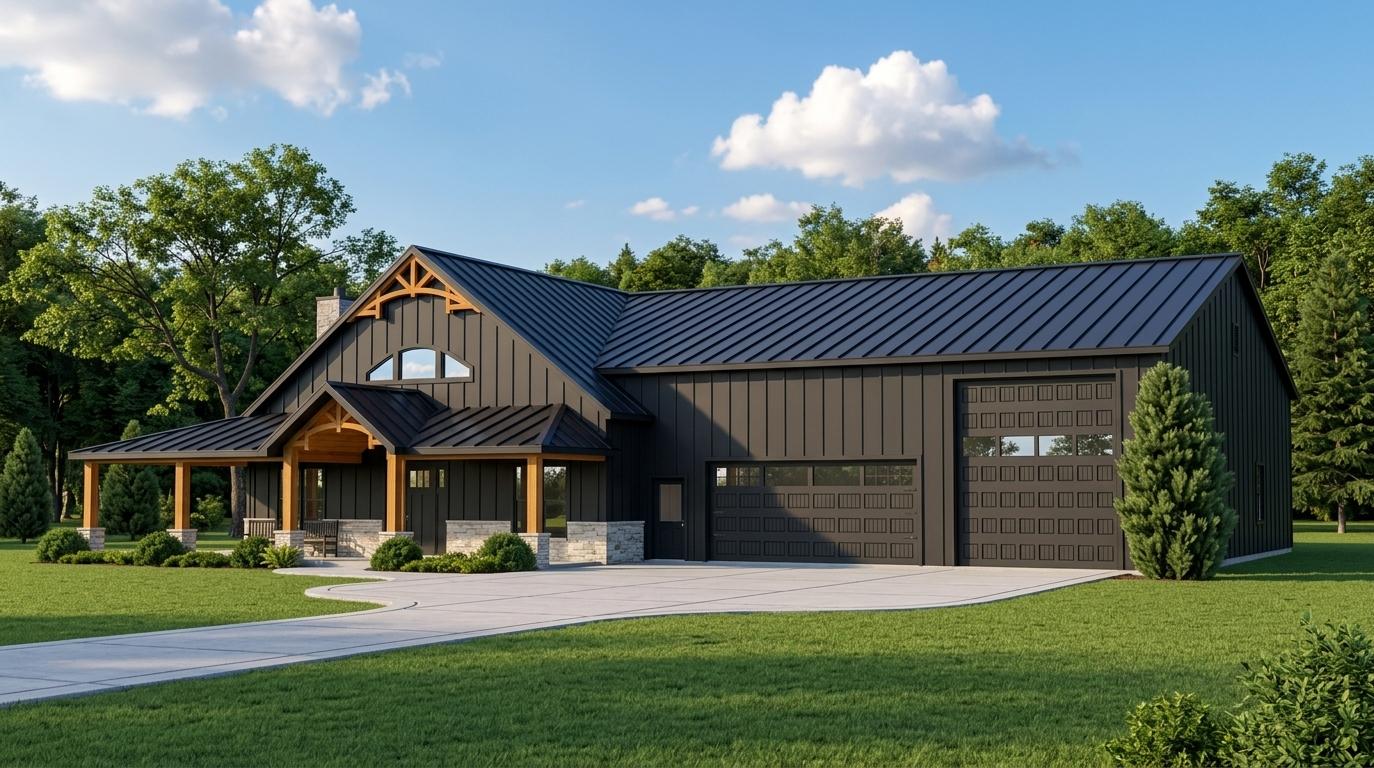

BG-20003-B Fairhaven Barndominium House Plan

Regular price $1,350.00 USD
Regular price Sale price $1,350.00 USD
Sale Sold out
Skip to product information
1 of 14

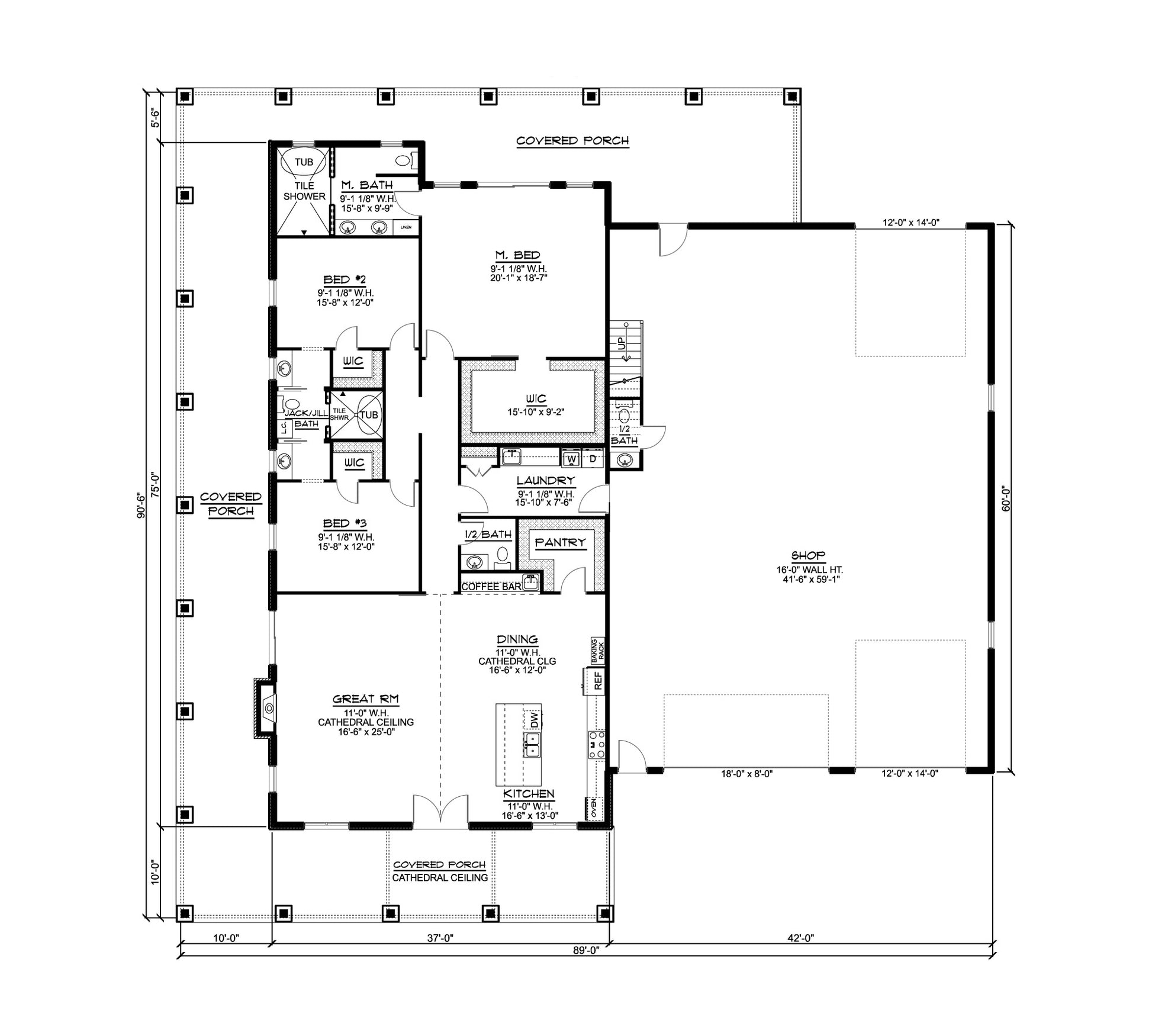

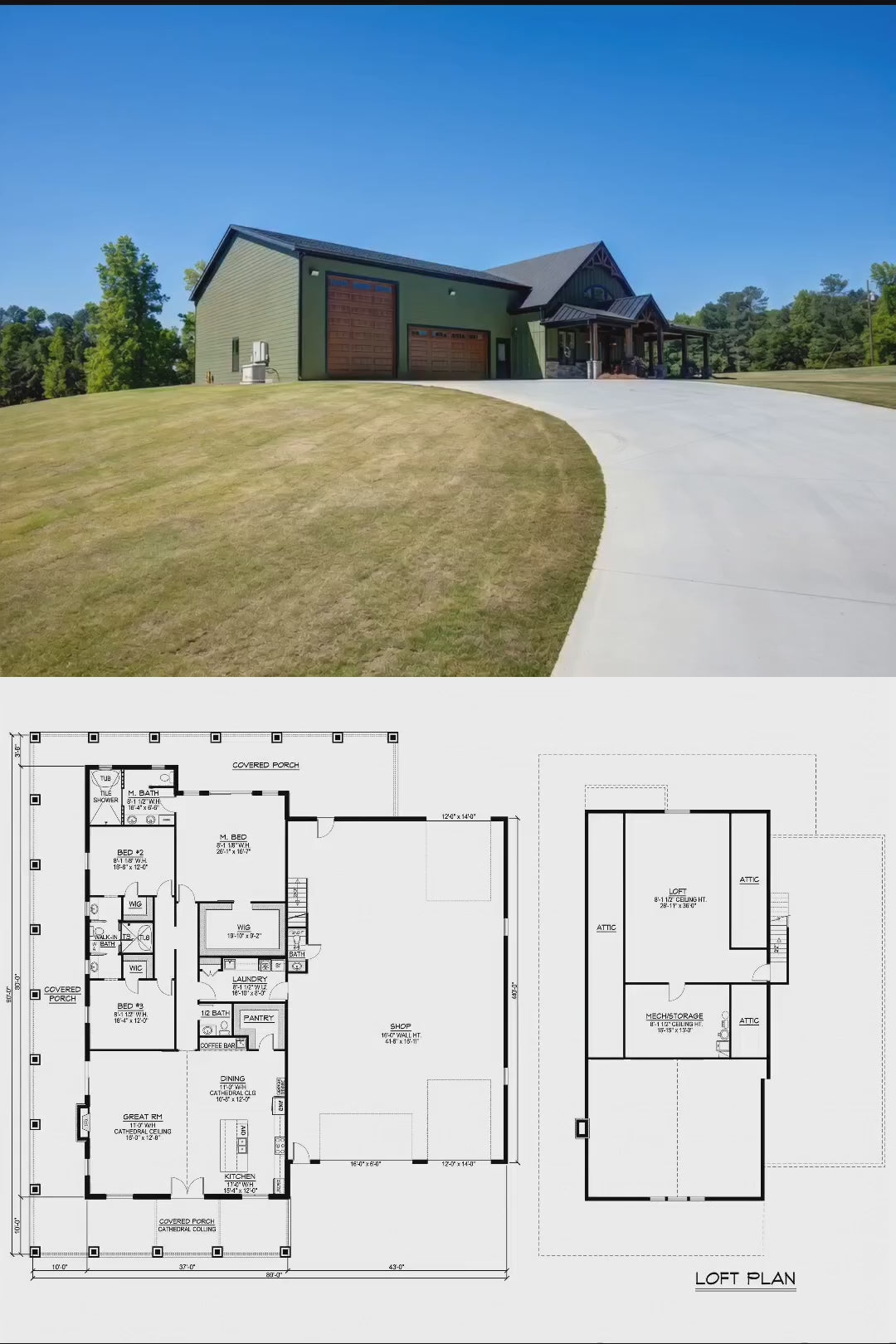

Floor Plan

DETAILS

HEATED SQ FT

First Floor:

2,693 SF

Second Floor:

1,019 SF

Total Heated Sq Ft:

2,693 SF

UNHEATED SQ FT

Total Unheated Area:

Second Floor 1,019 SF, Garage 2,548 SF, Porch 1,858 SF = TOTAL 5,425 SF

Carport:

None

Bedrooms:

3

Full Baths:

2

Floors:

2

Garage Size:

2,548 SF

Width:

89'

Depth:

90'

Height:

26'-9"

Foundation:

Concrete Slab, Basement Option Also Available

Main Roof Pitch:

4:12

Exterior Framing:

Stick Frame

CEILING HEIGHTS

First Floor:

9'

BG-20003-B Fairhaven Barndominium House Plan



Looking for this plan, but a bit smaller? Discover a similar floor plan here that's 2039 sq ft.



About this barndominium house plan:

  • 2693 Heated square feet
  • 3 bedrooms
  • 2.2 bathrooms
  • J&J bathroom
  • Two Story

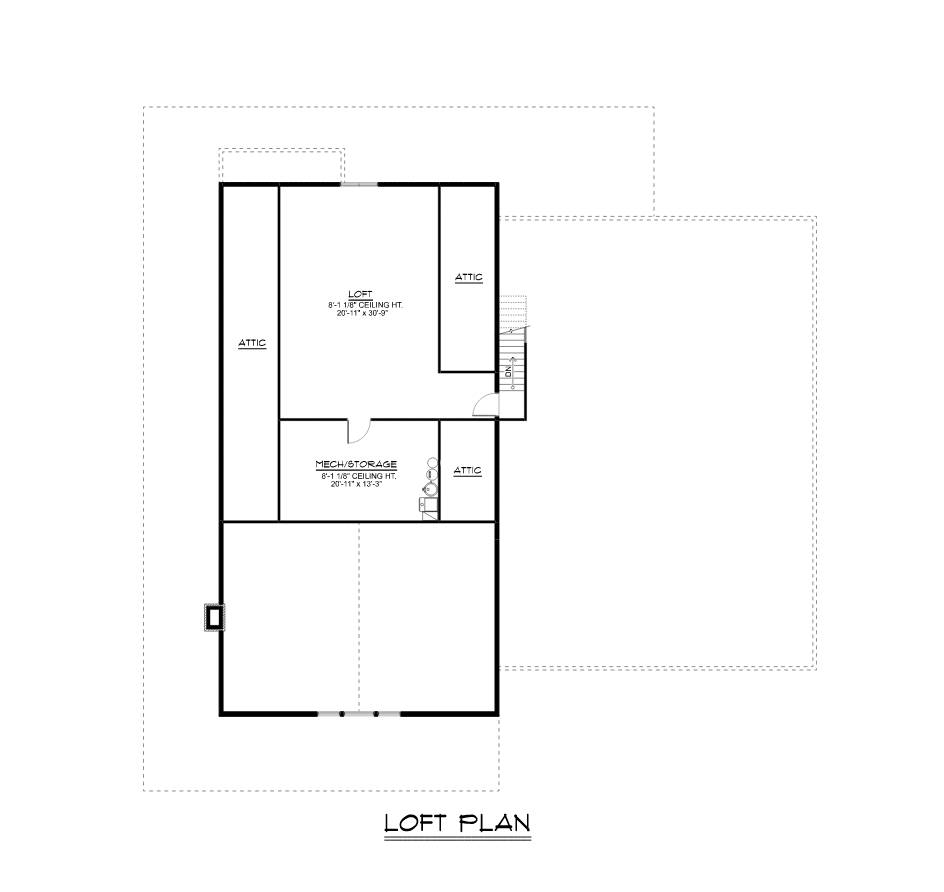

  • Loft
  • Attic
  • Open Concept
  • 2548 sq ft Shop

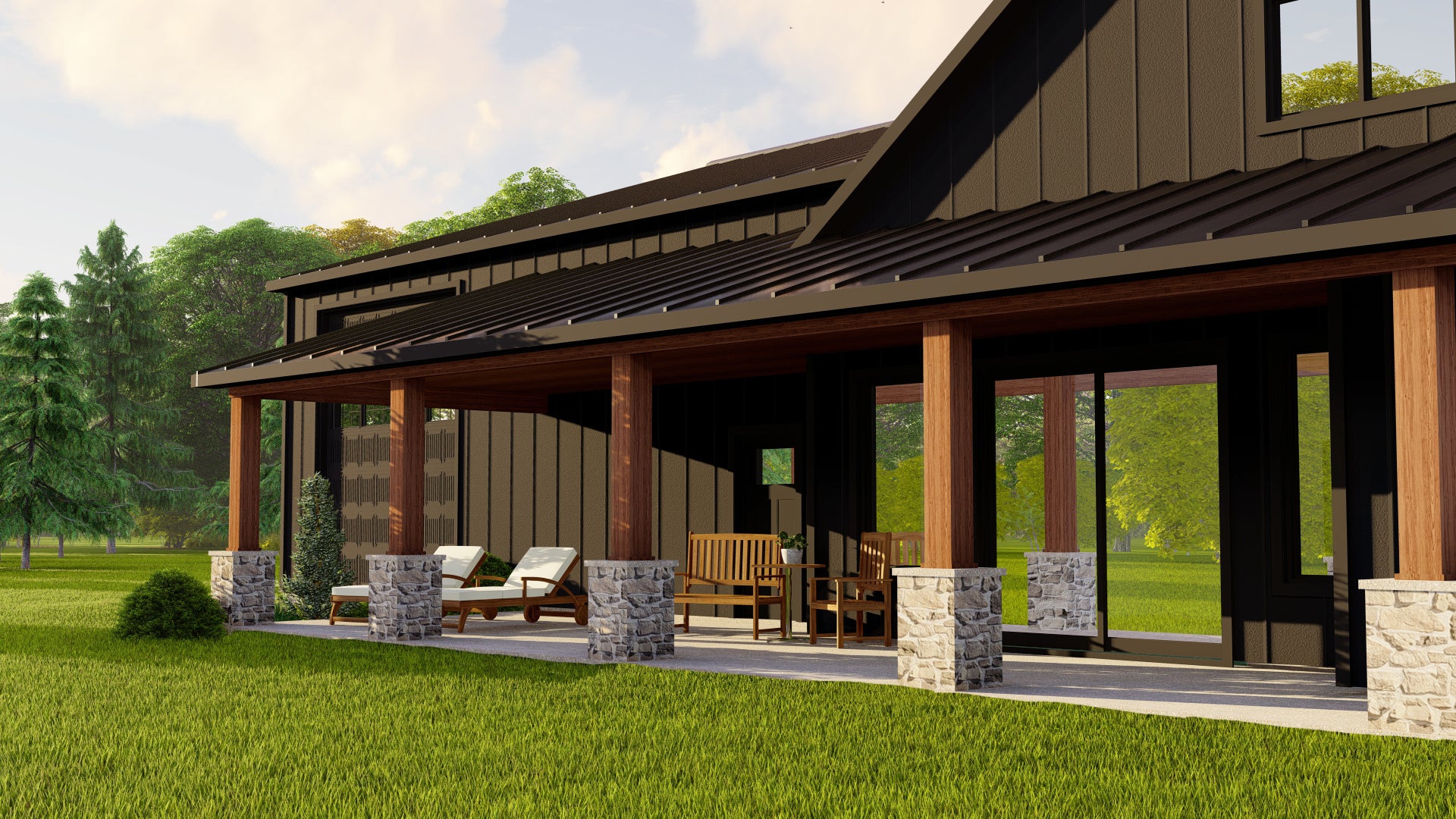

  • Wraparound porch
  • Mechanical room/storage





  • Spacious yet intimate, this thoughtfully designed layout offers nearly 2,700 square feet of climate-controlled comfort—perfect for year-round living, entertaining, and unwinding in style.

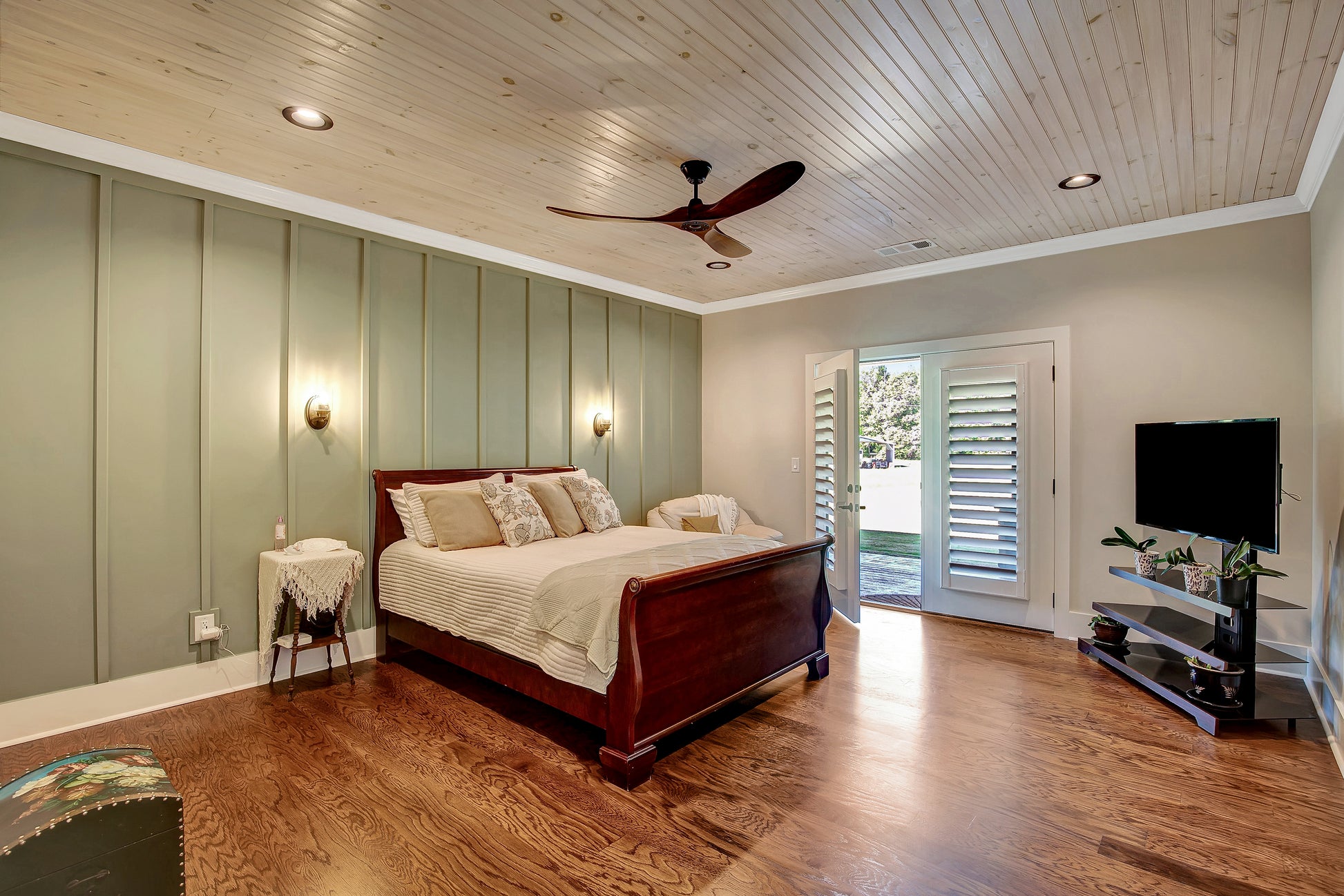

  • Three generously sized bedrooms provide restful retreats, each with ample natural light and privacy—ideal for families, guests, or a dedicated home office.
  • With two full baths and two convenient half baths, this home ensures seamless mornings and stress-free hosting, blending luxury with everyday practicality.
  • A clever shared bath connects two bedrooms, offering both privacy and efficiency—perfect for siblings, guests, or multi-generational living.
  • Elevate your lifestyle with soaring ceilings and a dynamic two-level layout that separates social spaces from serene sleeping quarters.
  • A versatile loft space awaits—ideal for a media room, creative studio, reading nook, or play area. The possibilities are as open as your imagination.
  • Tucked away above, the attic offers bonus storage or potential for future expansion—an often-overlooked gem with endless utility.

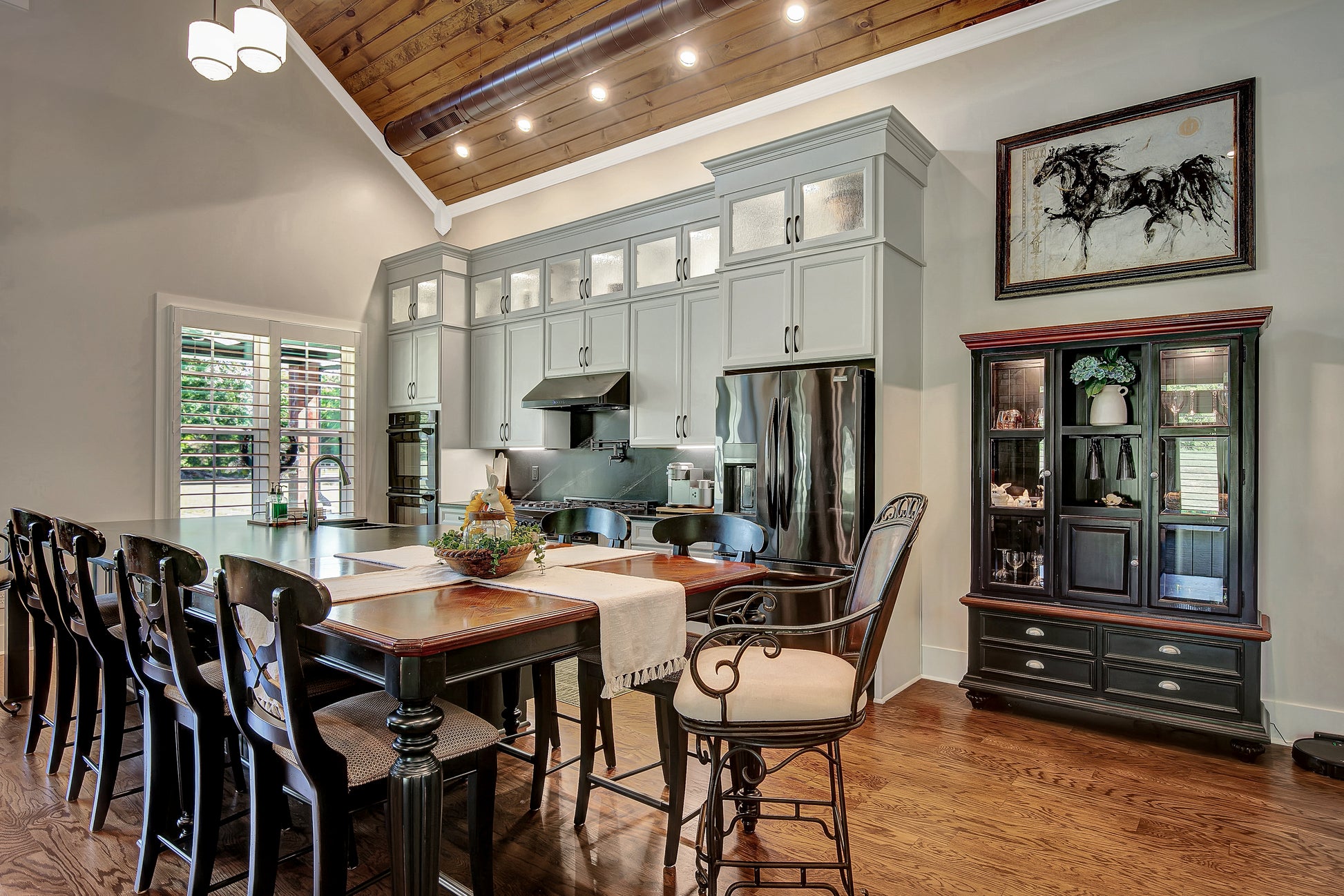

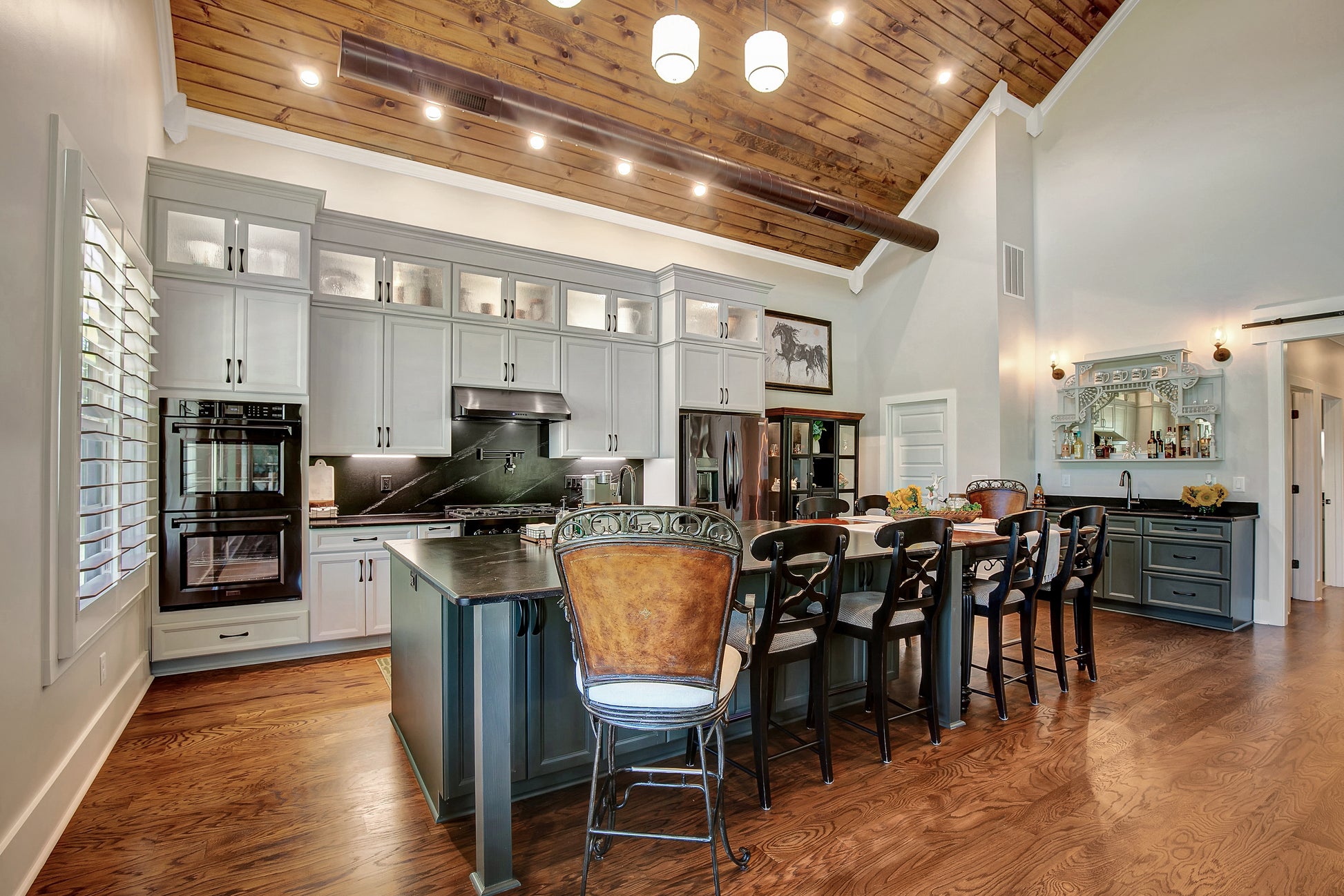

  • Flow freely from kitchen to living to dining in this open-concept design that invites connection, light, and effortless entertaining.
  • A dream workspace for hobbyists, entrepreneurs, or collectors—this expansive shop offers over 2,500 square feet of opportunity, complete with room for tools, toys, and transformation.

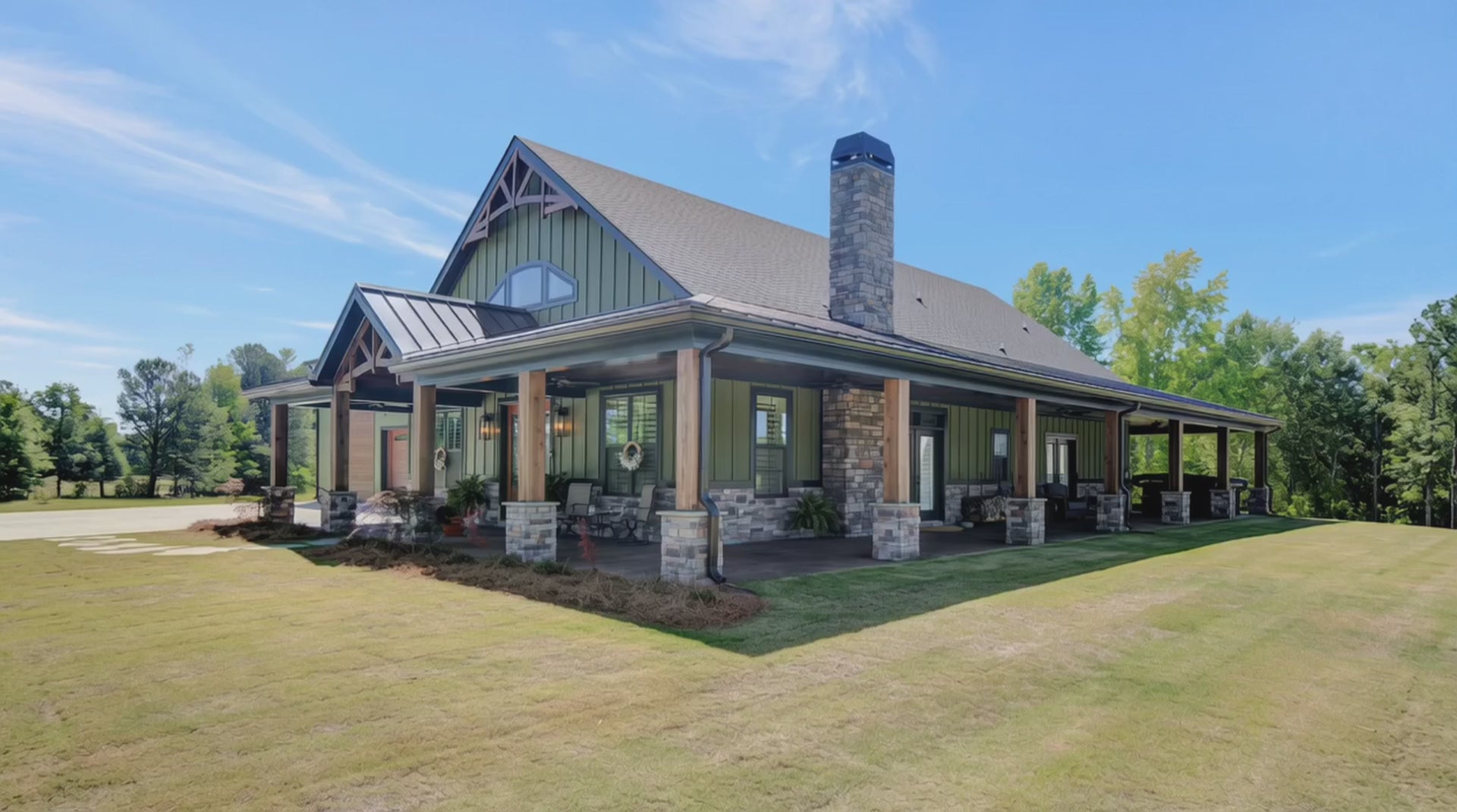

  • Sip your morning coffee or unwind at sunset on the charming wraparound porch—an inviting outdoor extension that wraps the home in warmth and welcome.
  • Smartly tucked away, the mechanical room doubles as a storage haven—keeping essentials organized and systems accessible without compromising aesthetics.



What's included in BG-20003-B:

Cover Sheet
Four Elevations (Front, Back, Left Side, Right Side)
Roof Plan
Dimensioned Floor Plan
Foundation Plan
Wall Sections
Electrical Plans



For more barndominium floor plans, check out our complete collection of 3-bedroom barndominium floor plans.



Need to make changes? Submit a modification request using the button that says Modify This Plan (below the Add To Cart Button). We will get you a free price quote within 72 hours

Please note all square footage are estimates.

What's Included

Our house plan sets typically have the following details:

4 Elevations – Front, Back, Both Sides

Detailed Floor Plan Drawing

Electrical Plans with placements for HVAC

Plumbing Plans with Placements

Flooring Plan

Roof Plan

Foundation Plan

For more information on what's included and examples of what your plans will look like, go here -> https://barndominiumplans.com/pages/whats-included

Please Note: We work with many different draftspeople who work in many different ways.  It should be noted that their plans may contain different details.

What's Not Included

The following items are NOT included:

Architectural or Engineering Stamp. Our plans are engineering-ready! Can take them to a local engineer in your state.

Site Plan - We can provide this if needed for $300 additional.

Materials List - handled locally when required

Energy calculations - handled locally when required

Snow load calculations - handled locally when required

Delivery

This plan is available as a digital product or printed + shipped.

If you select digital, the plan will be delivered to you via email as a PDF file, no matter what time it is.

If you select printed + shipped, your order will ship in 24x36 format within 1 business day of your order.

We ship from the midwest in order to serve the entire country within 3-5 business days!

Return policy

All barndominium house plan purchases are FINAL. There are no exchanges or refunds due to the digital nature of the product. Please make sure that the plan you have selected is going to fit your needs.
