BCO-40206-A Alicia Barndominium House Plan

$1,749.99 USD
$1,749.99 USD
Sale Sold out
Add To Wishlist
1 10
Bedrooms 5 Bedrooms
Floors 2 Floors
Full Baths 3 Full Baths
Total Heated Area 1,921 Total Heated Area

Floor Plan

DETAILS

HEATED SQ FT

First Floor:

1,921 SF

Second Floor:

1,245 SF

Total Heated Sq Ft:

First Floor 1,921 SF, Loft 1,245 SF, Basement 2,000 SF = 5,166 SF

UNHEATED SQ FT

Total Unheated Area:

2,016 SF

Carport:

None

Bedrooms:

5

Full Baths:

3

Floors:

2

Garage Size:

None

Width:

56'

Depth:

58'

Height:

Upper Eave Height 18'-2"

Foundation:

Basement

Main Roof Pitch:

6:12

Construction Type:

Stick Frame

CEILING HEIGHTS

First Floor:

9'

BCO-40206-A Alicia Barndominium House Plan



About this barndominium house plan:

  • 5166 Heated Square Feet
  • 5 Bedrooms
  • 3 Bathrooms
  • Two Story
  • Loft
  • Open concept
  • Walk-in Pantry
  • Laundry Room
  • Walkout Basement
  • Wraparound Porch

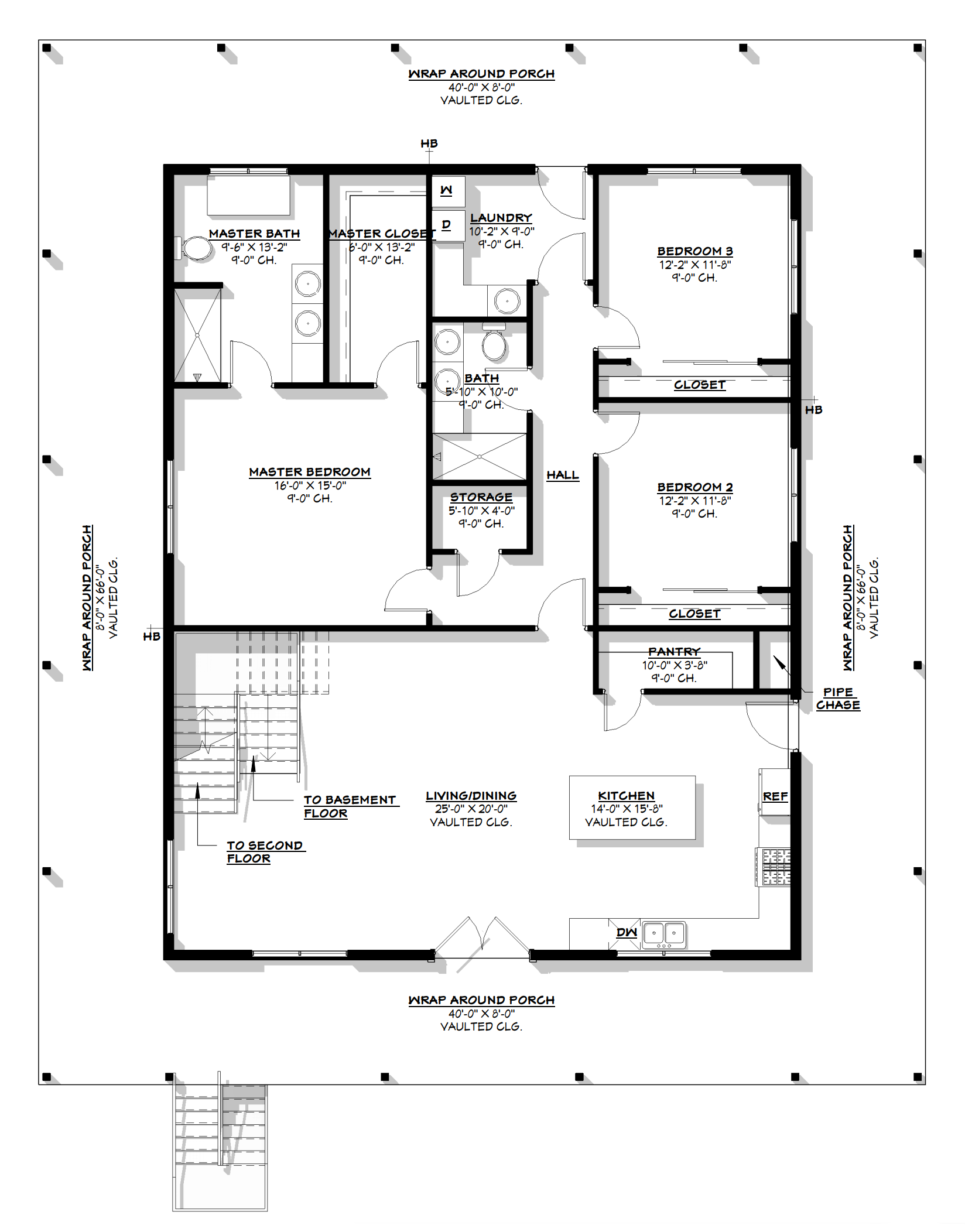

  • Front entrance opens directly into a grand, open-concept pavilion combining the living, dining, and kitchen spaces under a dramatic vaulted ceiling.
  • Anchoring the open pavilion is a gourmet culinary station featuring a large freestanding preparation island, and a deep walk-in storage pantry.

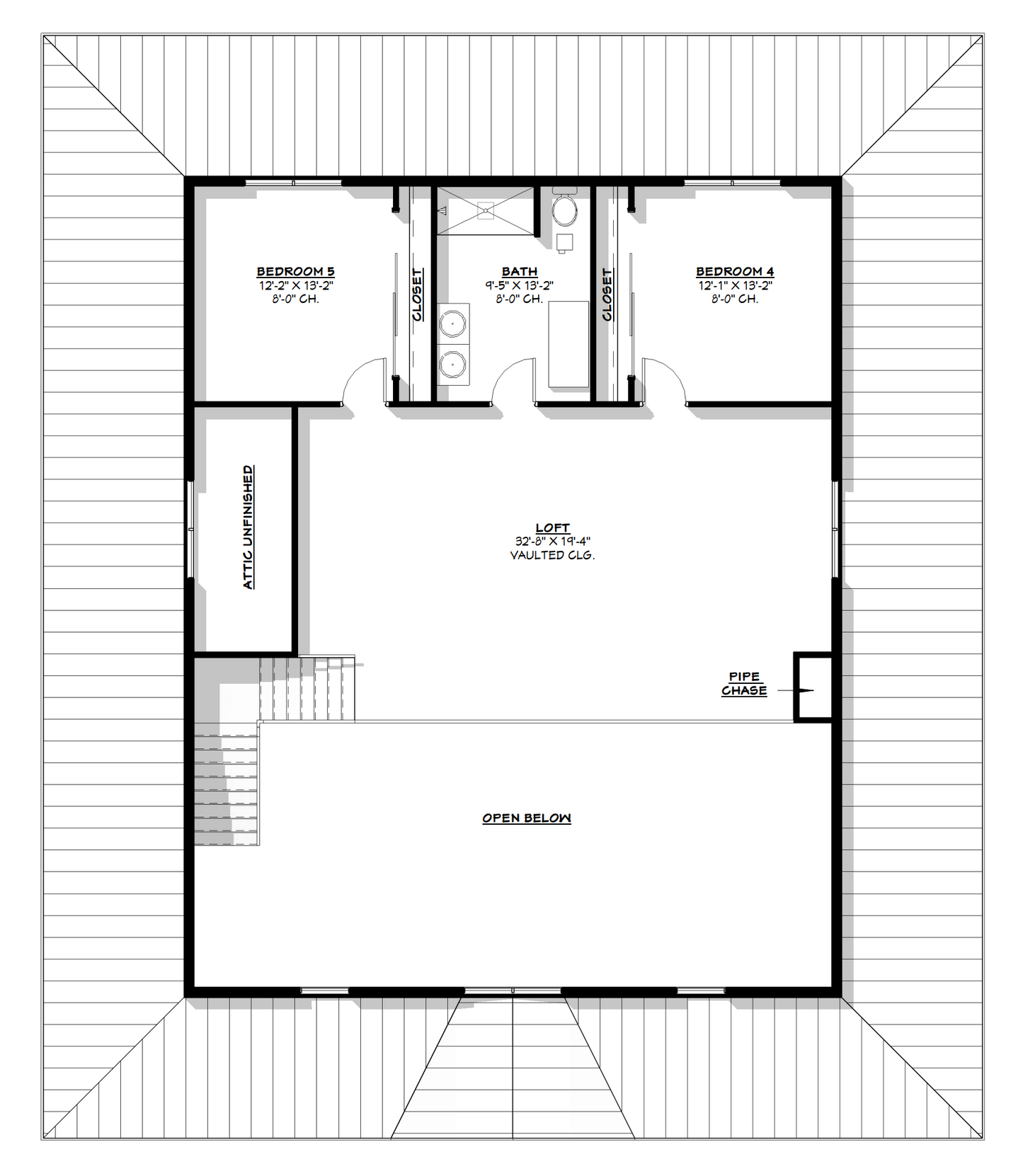

  • Second floor opens into a massive loft overlooking the great room below, two spacious bedrooms, a shared full bathroom, and a large unfinished attic.
  • Luxurious master suite features a spacious bedroom that flows into an upscale master bathroom, and is highly upgraded with a deep walk-in dressing closet.
  • Two additional symmetrical bedrooms sit on the opposite side of the main level, sharing a well-appointed central full bathroom.
  • Nearby, a dedicated laundry room with direct exterior access and an independent storage closet handles daily household chores with ease.

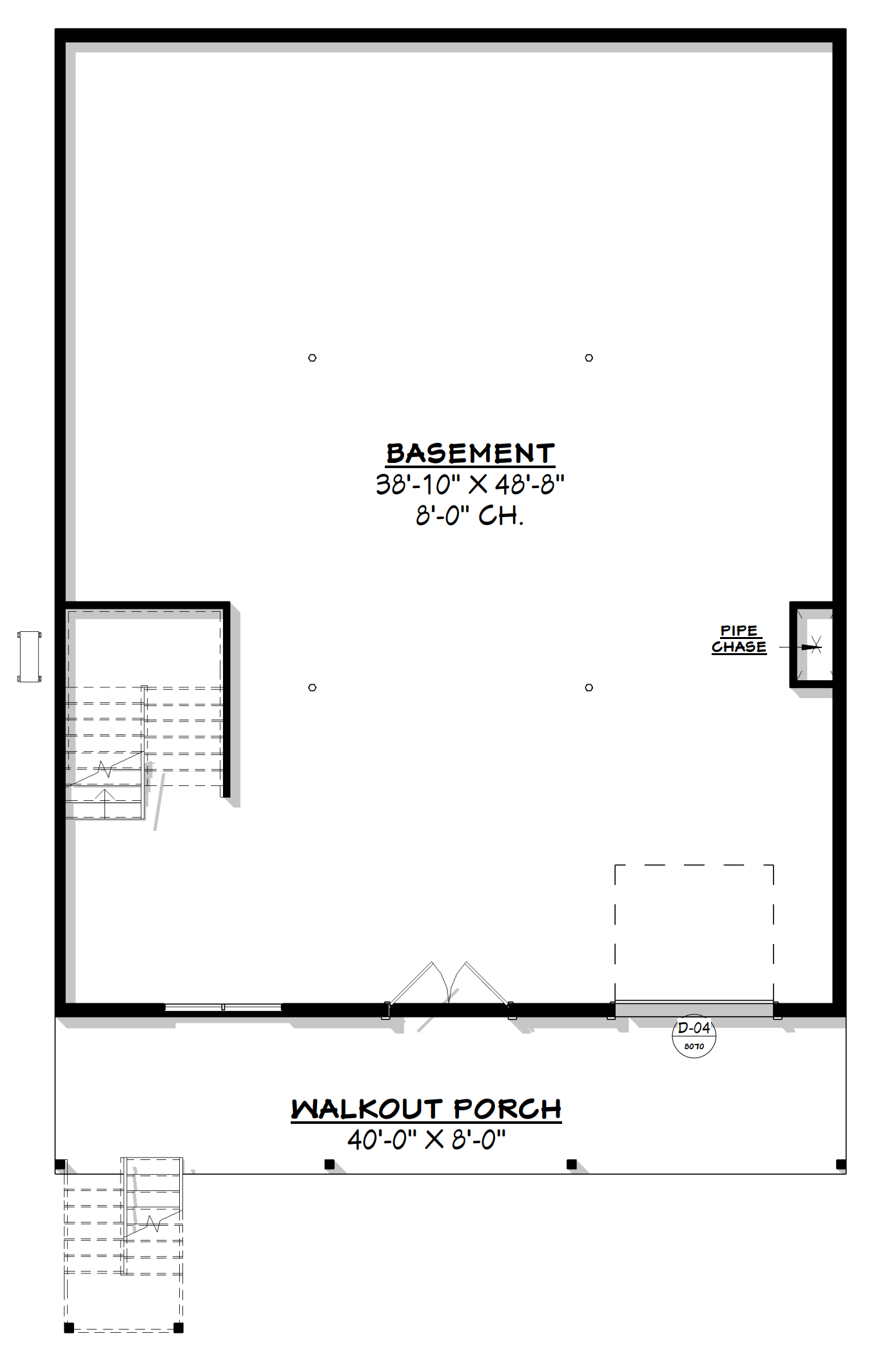

  • The staircase also leads down to an open-concept basement foundation with support columns, a dedicated utility chase, and double doors that open straight onto a sheltered walkout porch.

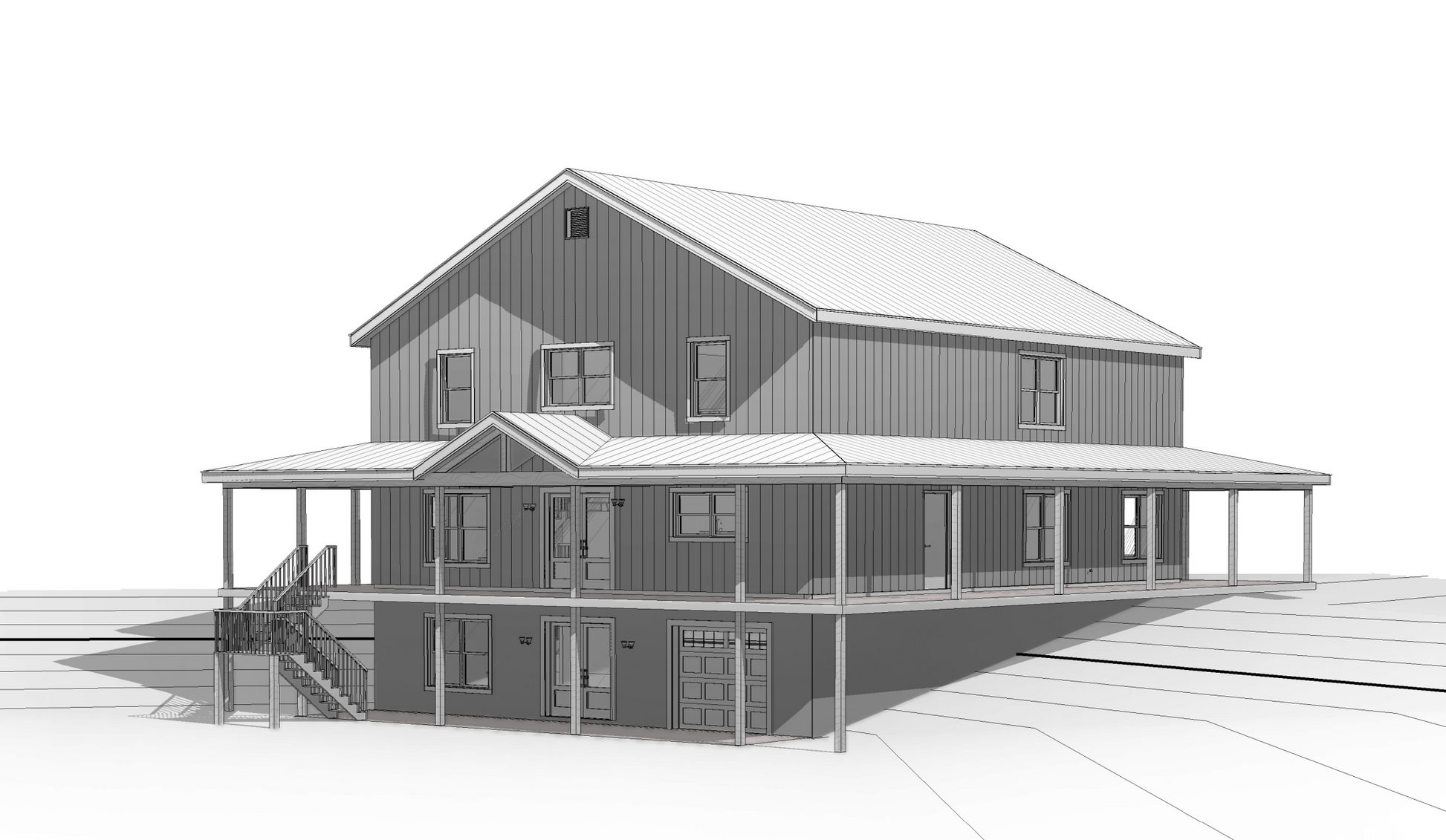

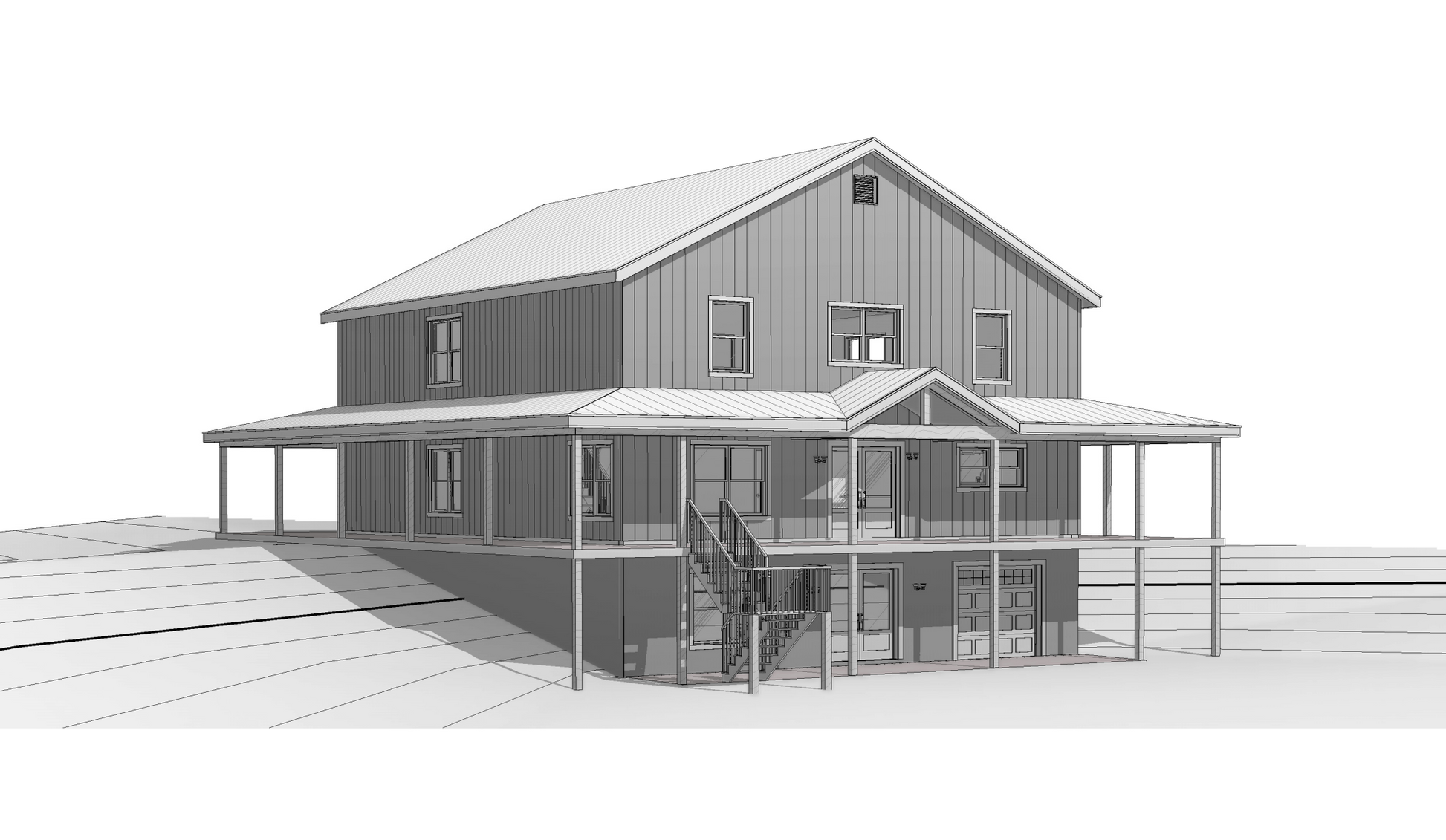

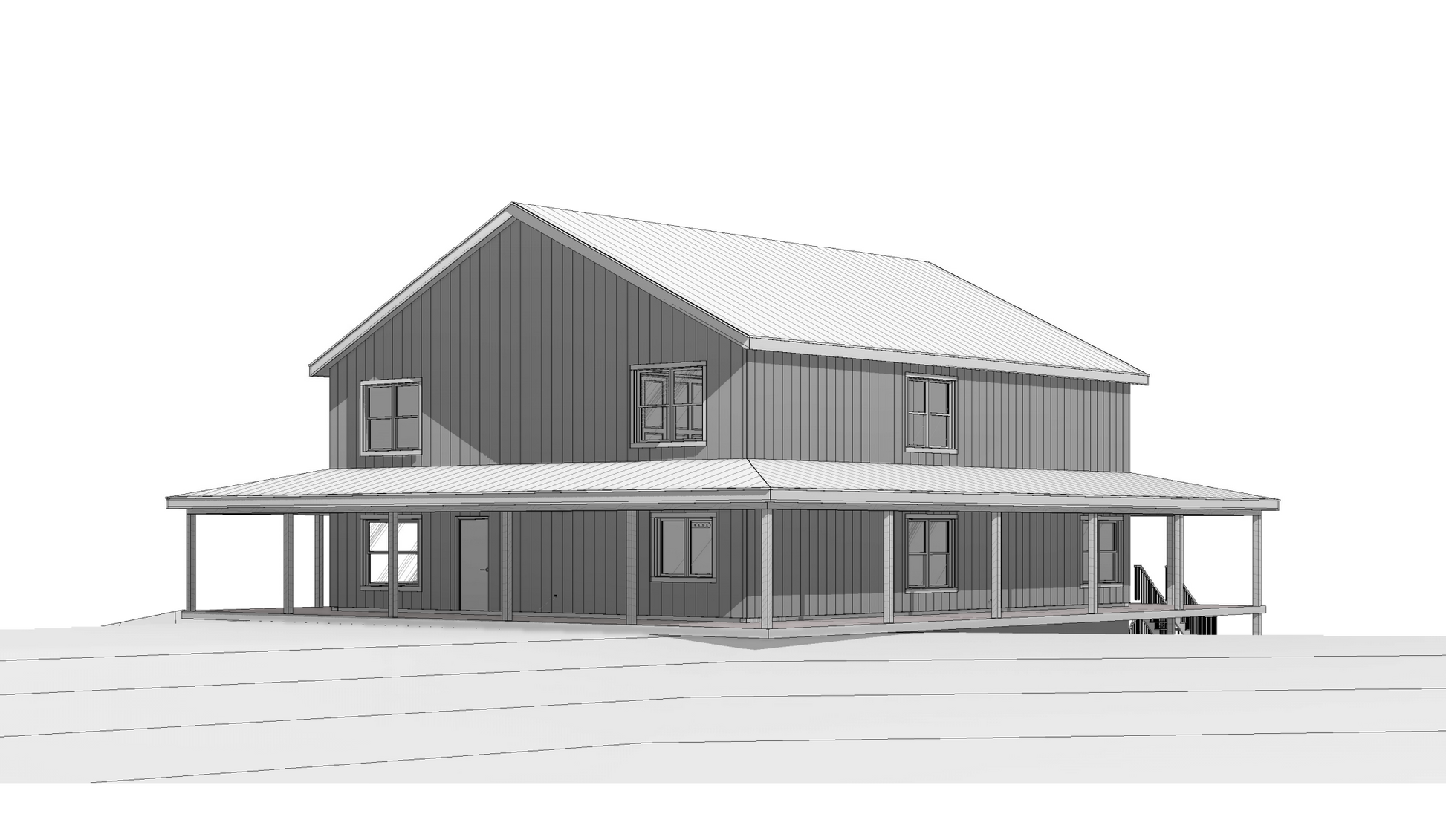

  • Outdoor entertainment is unmatched, featuring a monumental, vaulted wrap-around porch that completely encircles the main living core, paired with a wide lower-level walkout porch.





Whats oncluded in BCO-40206-A:

Cover Sheet

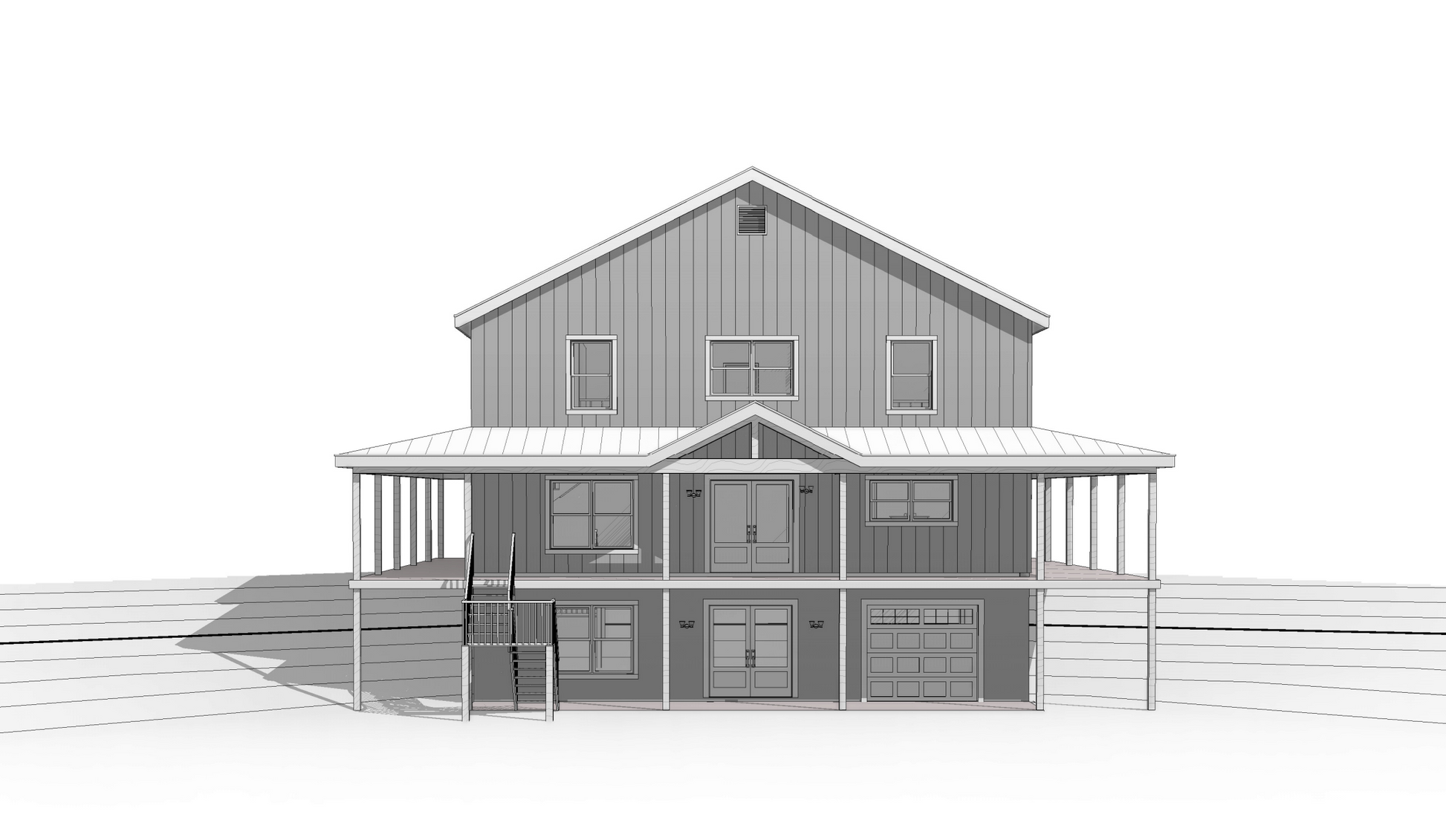

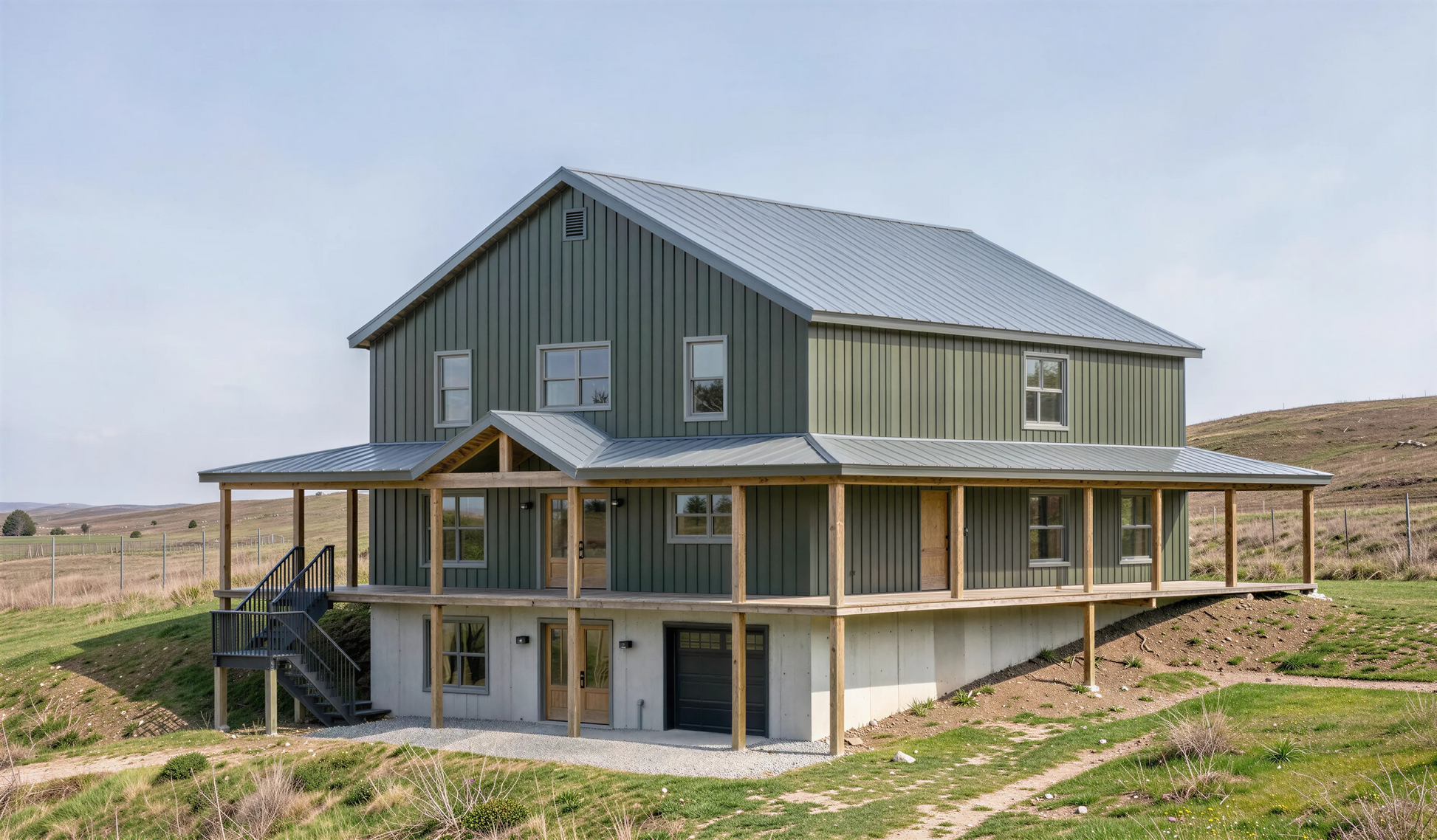

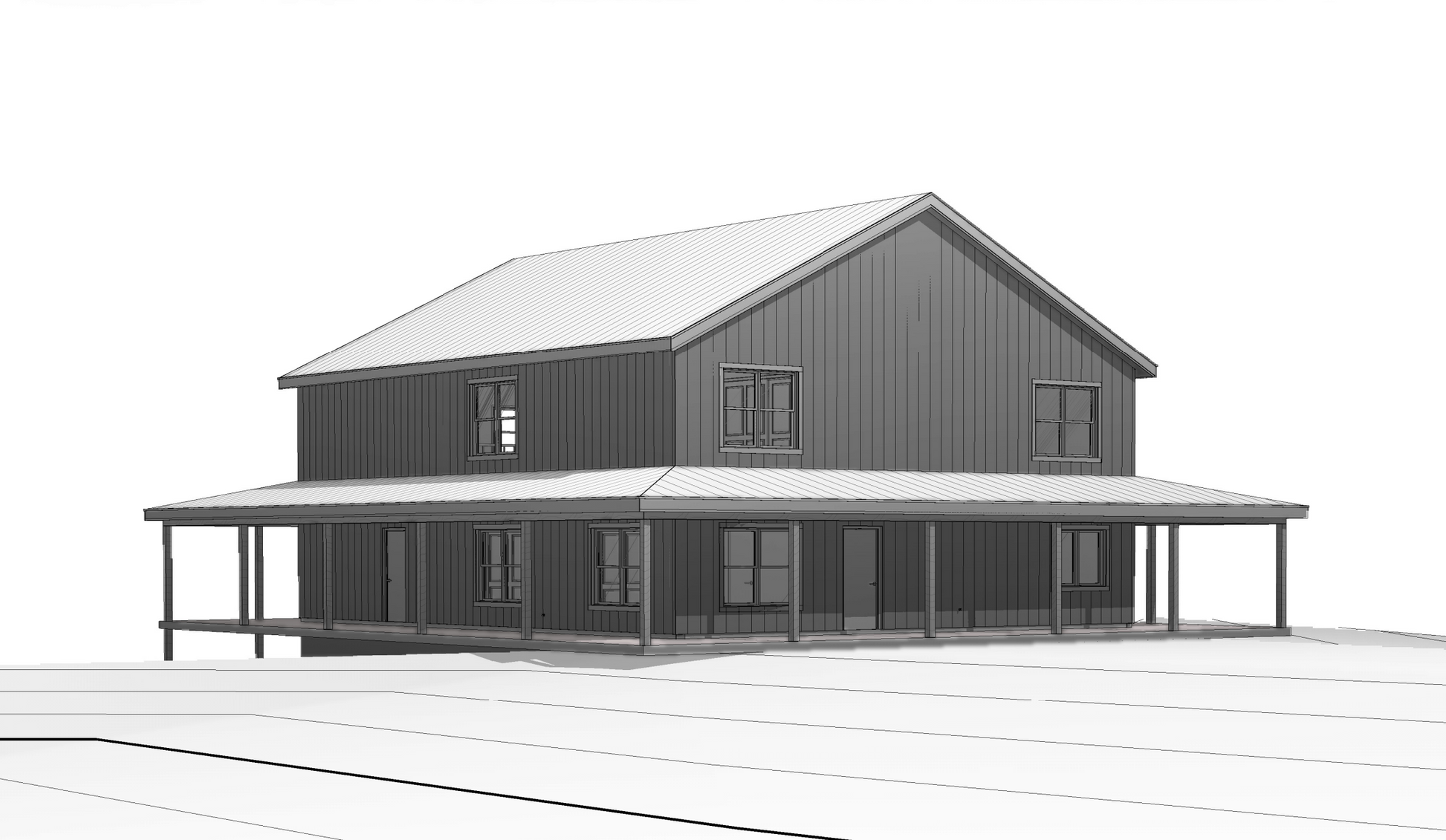

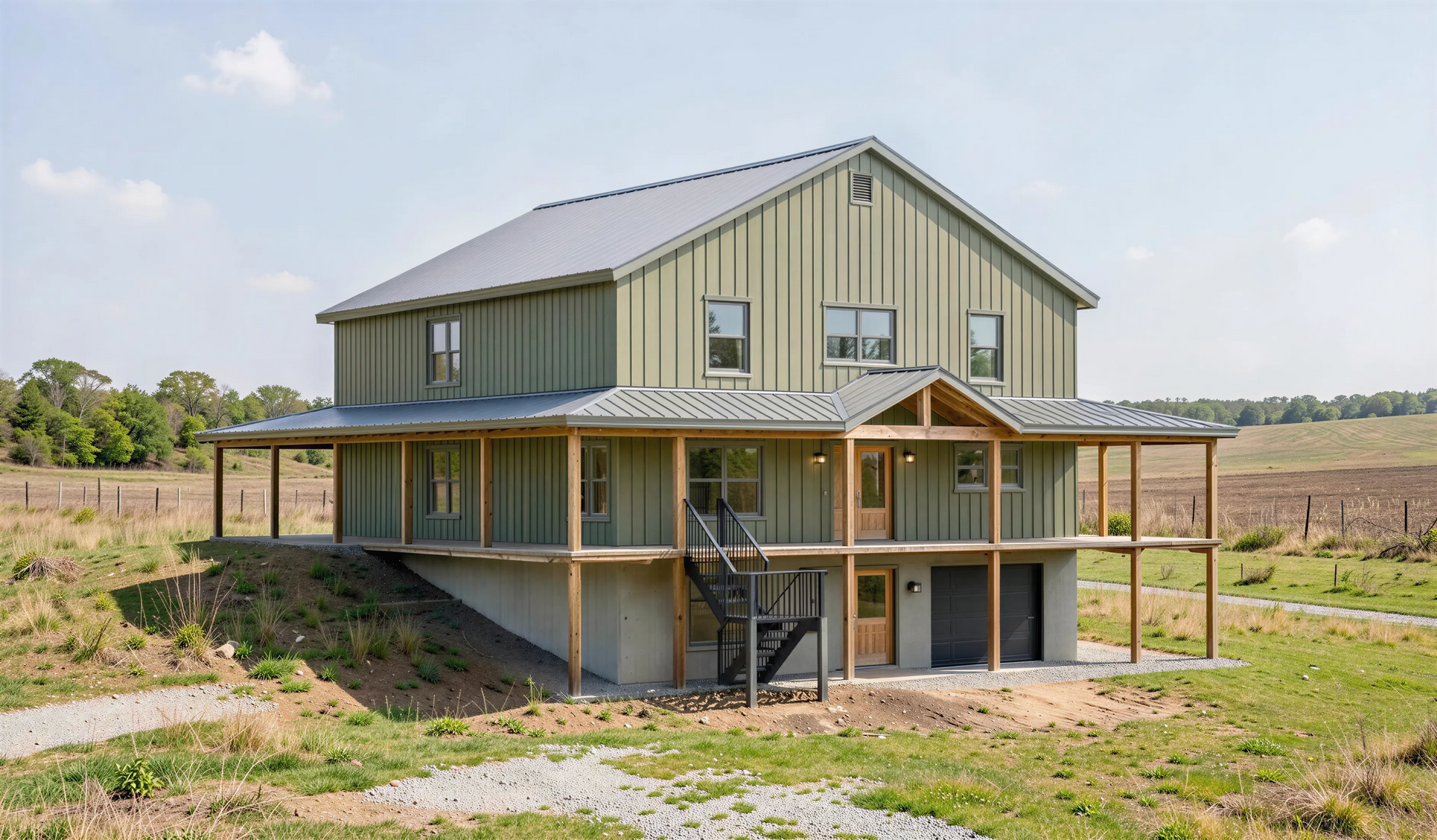

Exterior 3D Images
Floor Plan (Basement Floor)
Floor Plan (Main Floor)
Floor Plan (2nd Floor)
Exterior Elevations
Building Sections
Wall Sections and Attic Details
HVAC Plan Basement
HVAC Plan Ground Floor
HVAC Plan Second Floor
Foundation Plan
Foundation Details
Basic Plumbing Plan and Details
Electrical Plan
Electrical Plan
Roof Framing Plan
Roof Plan



For more barndominium floor plans, check out our complete collection of 5-bedroom barndominium floor plans.



Need to make changes? Submit a modification request using the button that says Modify This Plan. We will get you a free price quote within 72 hours.

What's Typically Included

THE SPECIFC DETAILS OF WHAT'S INCLUDED ON THESE PLANS IS CONTAINED IN THE PRODUCT DESCRIPTION. PLEASE SCROLL UP AND YOU WILL FIND IT UNDER "WHAT'S INCLUDED"

Our house plan sets typically have the following details:

4 Elevations – Front, Back, Both Sides

Detailed Floor Plan Drawing

Electrical Plans with placements for HVAC

Plumbing Plans with Placements

Flooring Plan

Roof Plan

Foundation Plan

For more information on what's included and examples of what your plans will look like, go here -> https://barndominiumplans.com/pages/whats-included

Please Note: We work with many different draftspeople who work in many different ways.  It should be noted that their plans may contain different details. THE SPECIFC DETAILS OF WHAT'S INCLUDED ON THESE PLANS IS CONTAINED IN THE PRODUCT DESCRIPTION. PLEASE SCROLL UP AND YOU WILL FIND IT UNDER "WHAT'S INCLUDED"

What's Not Included

The following items are NOT included:

Architectural or Engineering Stamp. Our plans are engineering-ready! Can take to a local structural engineer, but we are not engineers ourselves. Once you've purchased plans, we can make a recommendation in all 50 states.

Septic Drawings - Handled locally

Metal Truss Plans - These are provided by the truss manufacturer

Wind and Snow Loads - Handled locally!

Delivery

This plan is available as a digital product or printed + shipped.

If you select digital, the plan will be delivered to you via email as a PDF file, no matter what time it is.

If you select printed + shipped, your order will ship in 24x36 format within 1 business day of your order.

We ship from the midwest in order to serve the entire country within 3-5 business days!

Return policy

All barndominium house plan purchases are FINAL. There are no exchanges or refunds due to the digital nature of the product. Please make sure that the plan you have selected is going to fit your needs.

Wondering about modifications, and making sure you like the changes? While all plan sales featuring modifications are also FINAL, here's a bit about how the modification process works:

After your order is placed, our team gets started on your modifications.

First, we send over an initial floor plan draft to make sure the modifications are correct. Any "clarifying changes" are included at no additional cost. Things like "Oh I meant for the door to swing this way, not that way" or "kitchen appliances should be arranged in XYZ way". Any major changes to the plan like adding a bedroom, a second story, or a different foundation are an additional fee. 99% of our customers do not incur an additional fee.

After the floor plan is confirmed, we send over the floor plans + elevations. We do the same process, and once you're good with the elevations, we finish up your final plans.
