BCO-40067-W West Barndominium House Plan

$849.99 USD
$849.99 USD
Sale Sold out
Add To Wishlist
1 9
Bedrooms 3 Bedrooms
Floors 1 Floors
Full Baths 2 Full Baths
Total Heated Area 1,566 Total Heated Area

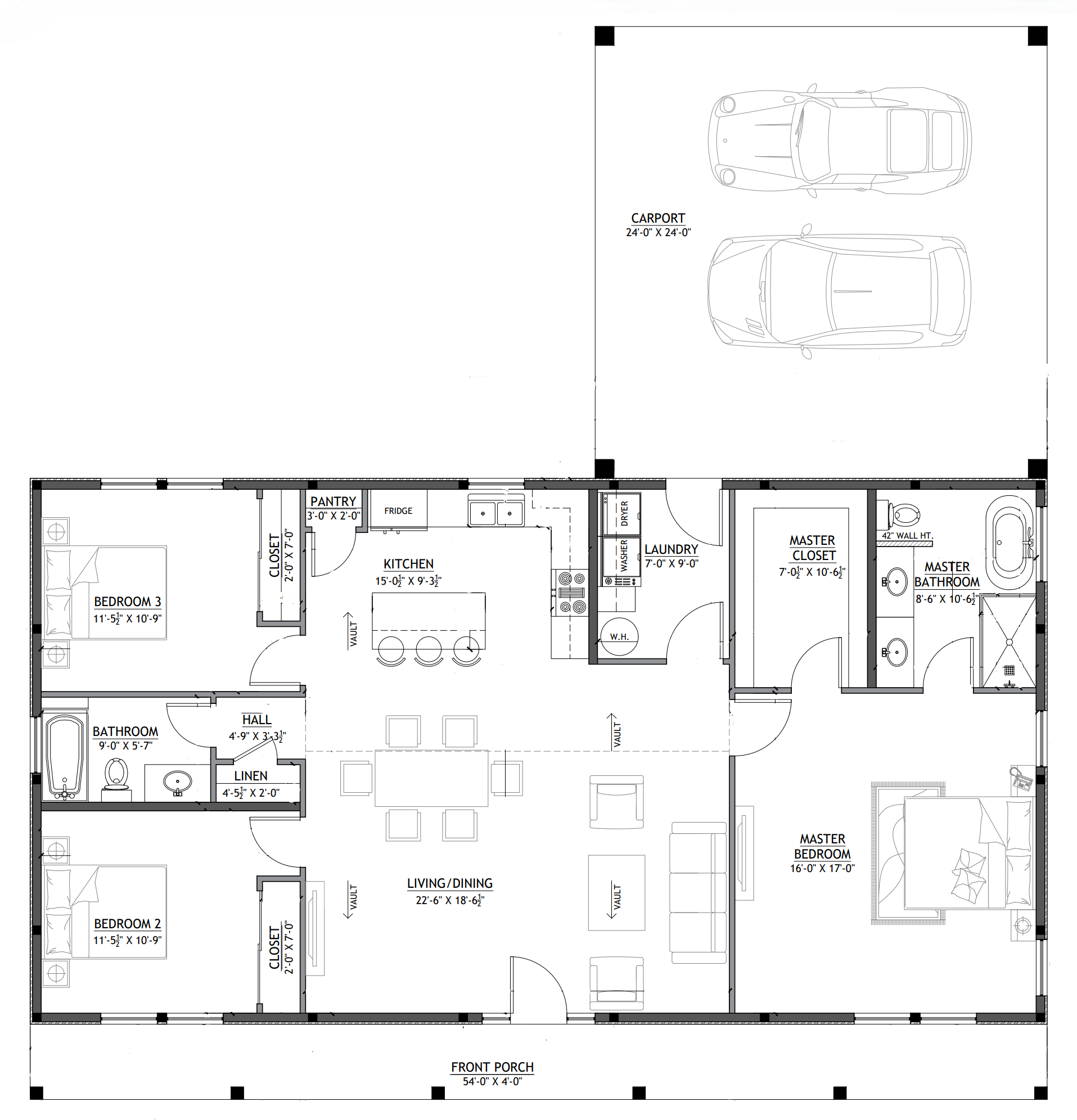

Floor Plan

DETAILS

HEATED SQ FT

First Floor:

1,566 SF

Second Floor:

None

Total Heated Sq Ft:

1,566 SF

UNHEATED SQ FT

Total Unheated Area:

Carport 576 SF, Porch 216 SF = TOTAL 792

Carport:

576 SF

Bedrooms:

3

Full Baths:

2

Floors:

1

Garage Size:

None

Width:

54'

Depth:

57'

Height:

17'-4"

Foundation:

Concrete Slab

Main Roof Pitch:

6:12

Construction Type:

Post Frame

CEILING HEIGHTS

First Floor:

9'

BCO-40067-W West Barndominium House Plan



About this barndominium house plan:

  • 1566 Heated Square Feet
  • 3 Bedrooms
  • 2 Bathrooms
  • Single Story
  • Open concept
  • Utility room
  • Front Porch
  • Carport



  • A well-proportioned 1,566 SF heated floor plan delivers the ultimate convenience of one-level living with an open, accessible traffic pattern throughout.
  • The attached carport provides sheltered parking for two vehicles and includes direct, weather-protected access straight into the home's utility core.
  • Features a split-bedroom layout that isolates a massive master sanctuary on the right side of the plan, completely separated from the two secondary bedrooms.
  • Includes an upscale master bathroom alongside a large shared family bathroom.
  • The modern culinary workspace features a layout anchored by a central island with bar seating for three, a double sink, and a dedicated walk-in pantry.
  • The dedicated utility space features laundry appliance hookups, a water heater station, and serves as a highly practical transition zone from the carport entrance.
  • A full-length covered front porch delivers instant rural charm and strong street-side curb appeal.



What's included in BCO-40067-W:

Cover Page
Floor Plan
Roof Plan
Front And Rear Elevation
Right And Left Elevation
Electrical Plan
Plumbing Plan
HVAC Plan
Roof Framing Plan
Foundation Plan
Slab Detail
Porch Post Detail
Wall Section



For more barndominium floor plans, check out our complete collection of 3-bedroom barndominium floor plans.



Need to make changes? Submit a modification request using the button that says Modify This Plan . We will get you a free price quote within 72 hours

What's Typically Included

THE SPECIFC DETAILS OF WHAT'S INCLUDED ON THESE PLANS IS CONTAINED IN THE PRODUCT DESCRIPTION. PLEASE SCROLL UP AND YOU WILL FIND IT UNDER "WHAT'S INCLUDED"

Our house plan sets typically have the following details:

4 Elevations – Front, Back, Both Sides

Detailed Floor Plan Drawing

Electrical Plans with placements for HVAC

Plumbing Plans with Placements

Flooring Plan

Roof Plan

Foundation Plan

For more information on what's included and examples of what your plans will look like, go here -> https://barndominiumplans.com/pages/whats-included
