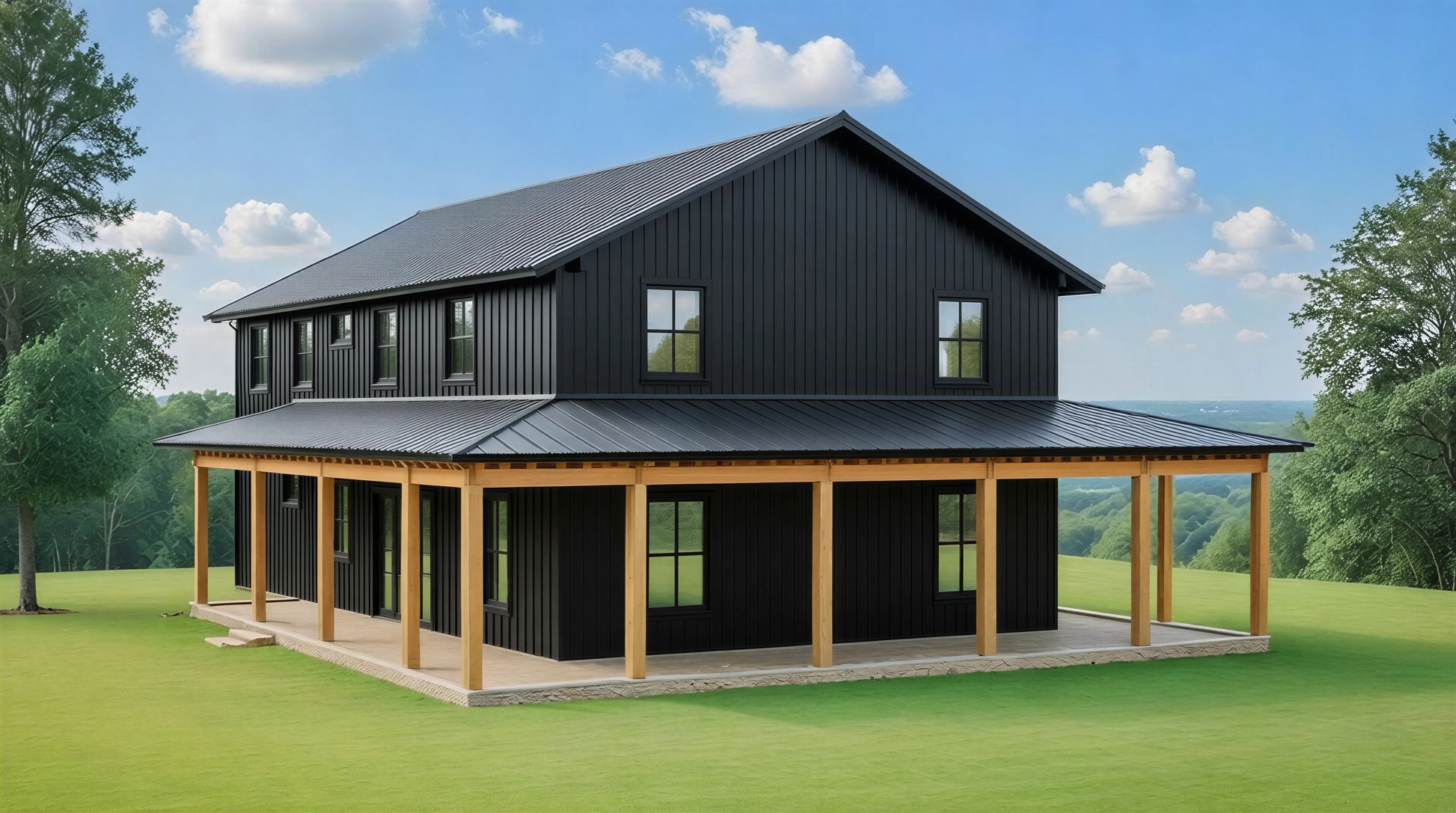

BCO-40052-P Peter Barndominium House Plan

$1,349.99 USD
$1,349.99 USD
Sale Sold out
Add To Wishlist
1 14
Bedrooms 4 Bedrooms
Floors 2 Floors
Full Baths 3 Full Baths
Total Heated Area 3,449 Total Heated Area

Floor Plan

DETAILS

HEATED SQ FT

First Floor:

1,862 SF

Second Floor:

1,587 SF

Total Heated Sq Ft:

3,449 SF

UNHEATED SQ FT

Total Unheated Area:

Garage 524 SF, Porch 1,152 SF = TOTAL 1,676 SF

Carport:

None

Bedrooms:

4

Full Baths:

3

Floors:

2

Garage Size:

524 SF

Width:

91'

Depth:

50'

Height:

29'-3"

Foundation:

Concrete Slab

Main Roof Pitch:

6:12

Construction Type:

Metal Shell

CEILING HEIGHTS

First Floor:

10'

BCO-40052-P Peter Barndominium House Plan



About this barndominium house plan:

  • 3449 Heated Square Feet
  • 4 Bedrooms
  • 3 Bathrooms
  • Two Story
  • Open concept
  • Foyer
  • Office
  • Bonus area
  • Wraparound porch
  • 298 Sq Ft Garage



  • 3449 square feet of heated living space in two-story barndominium layout with 4 beds and 3 baths
  • Expansive living room positioned at the center of main level with wide open layout connecting seamlessly to kitchen and dining areas.
  • Foyer with double-door entry positioned beneath open loft above, creating dramatic entry into the home.
  • Office located on the second level beside bedroom wing, providing dedicated workspace within upper floor layout.
  • Large bonus room on second level overlooking foyer with open-to-below design, creating flexible living or recreation space.
  • Laundry room located near staircase and garage entry for convenient daily access.
  • 298 SF attached two-car garage connected to home through laundry and stair access.

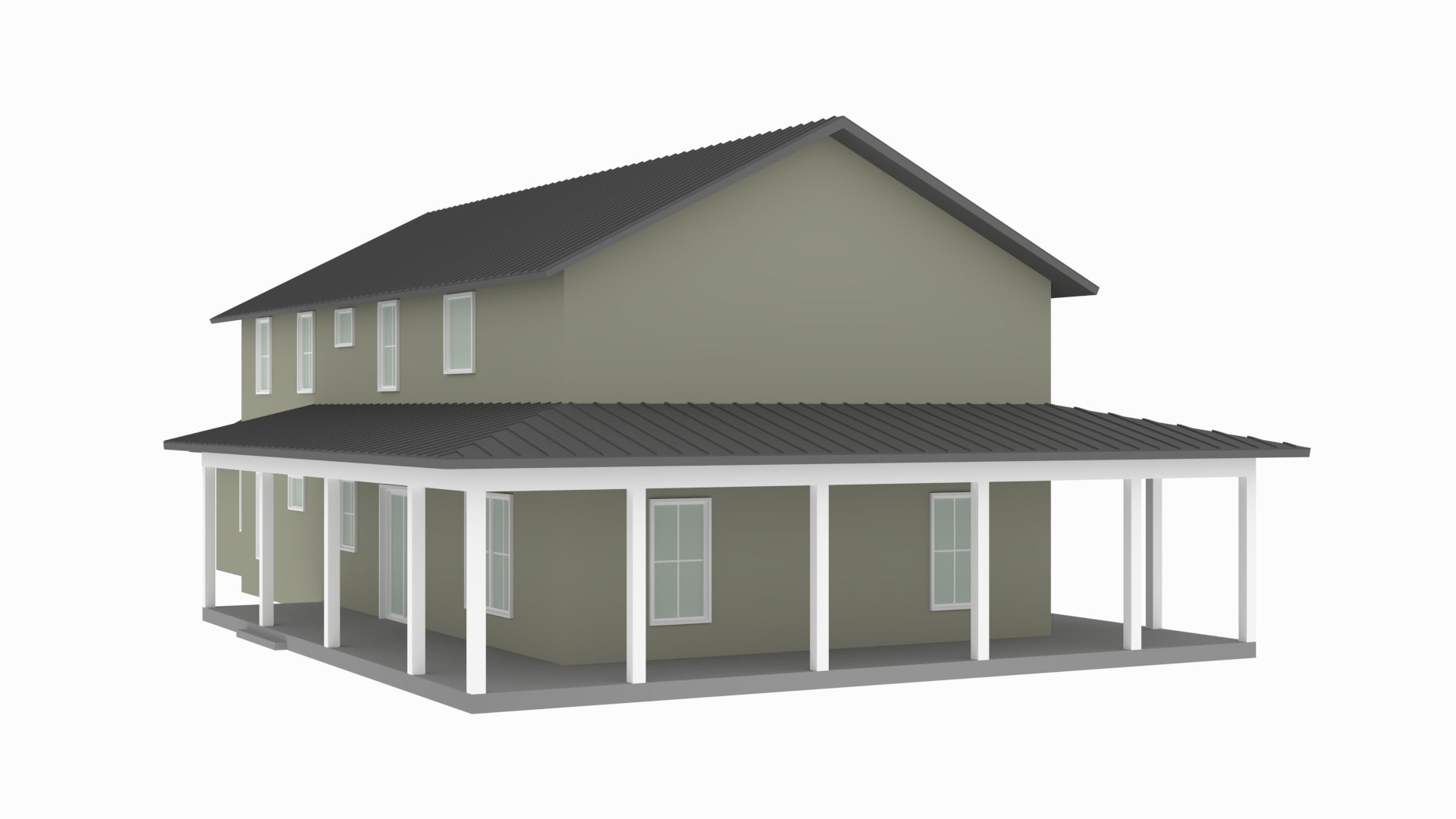

  • Covered wraparound porch extending outdoor living space.



What's included in BCO-40052-P:

Cover Page

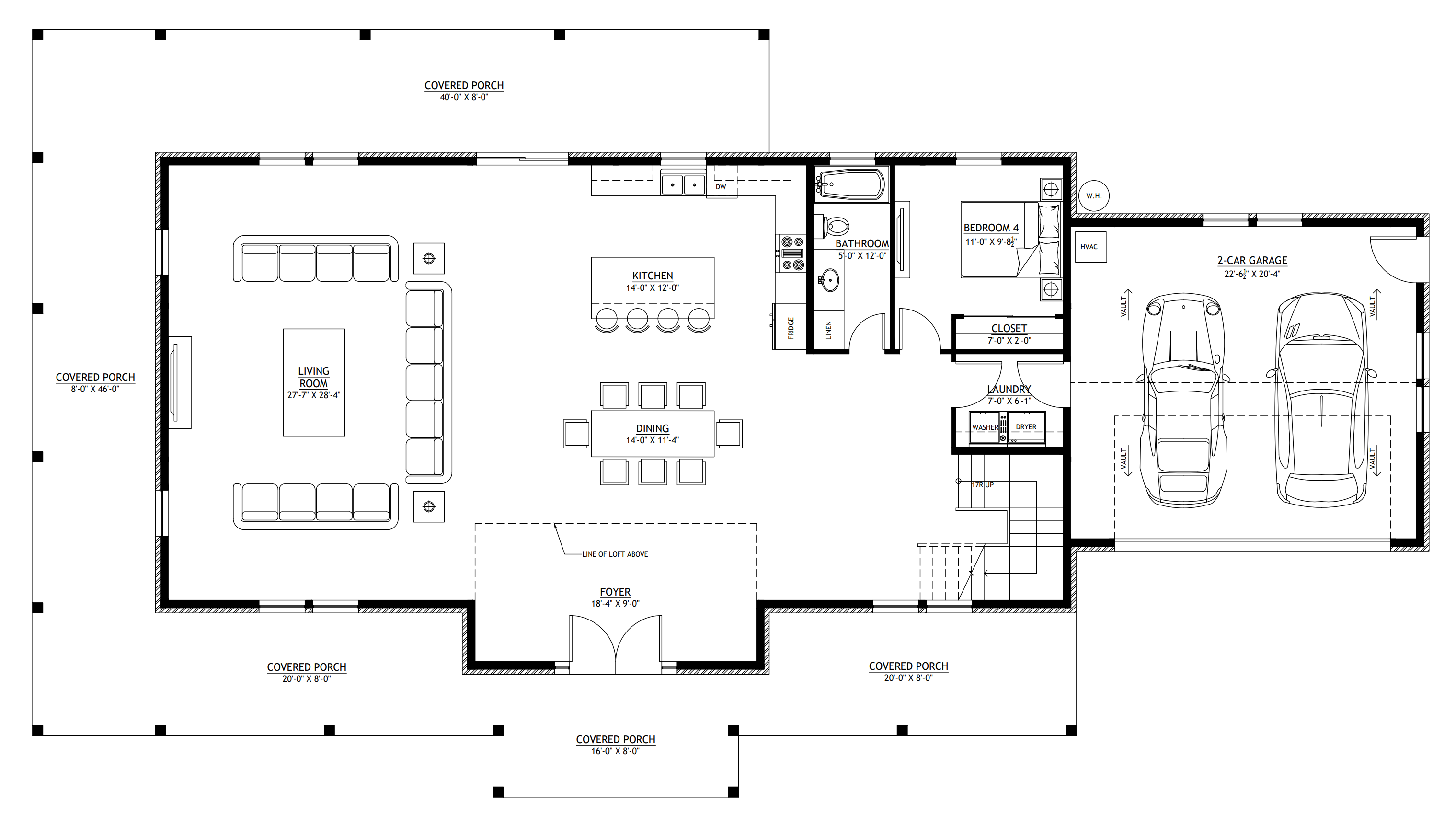

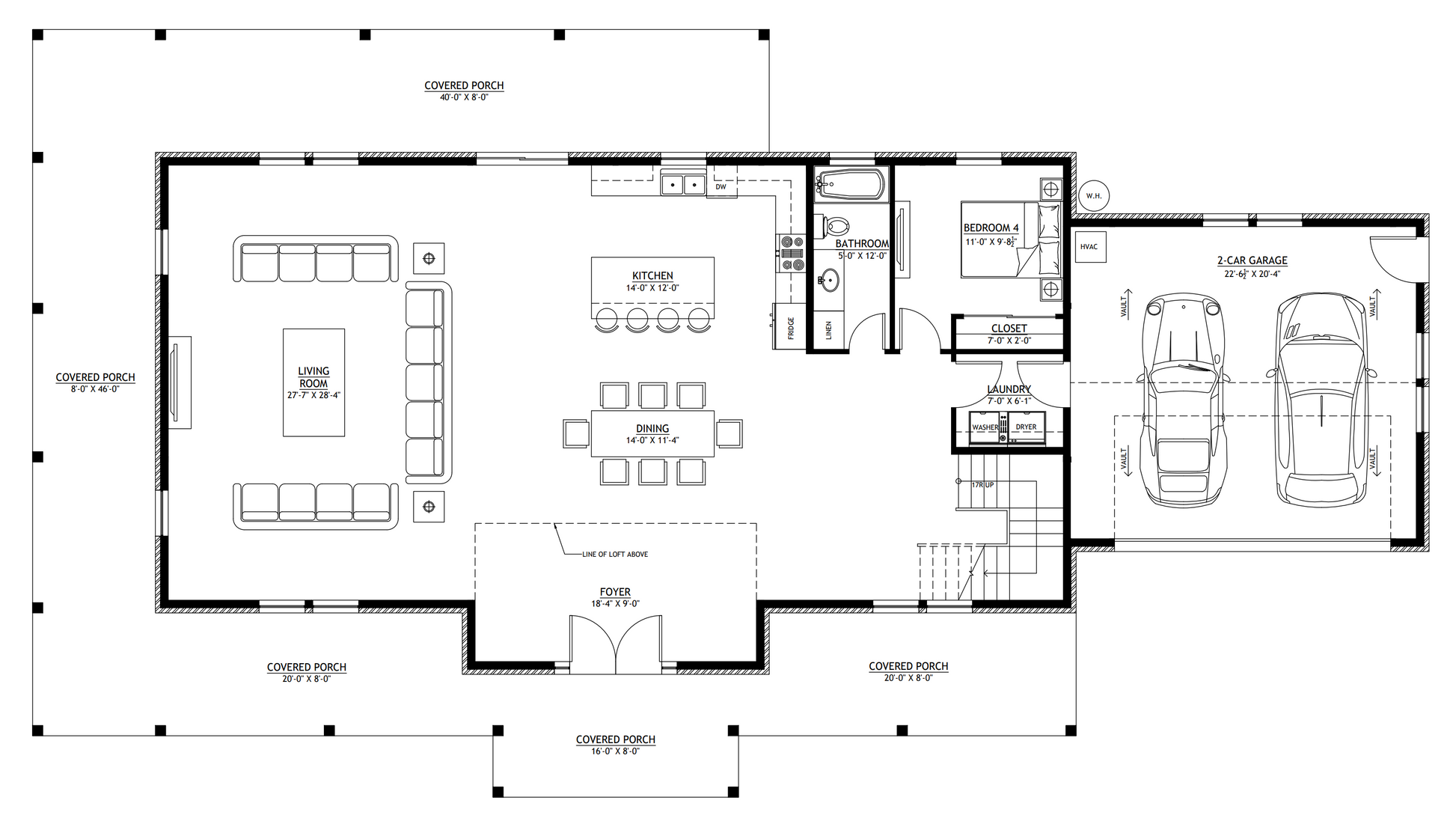

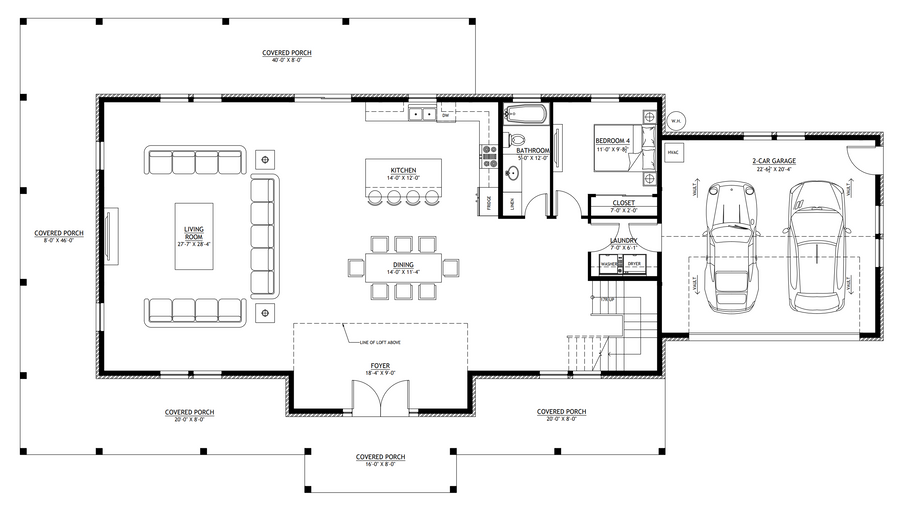

First Floor Plan

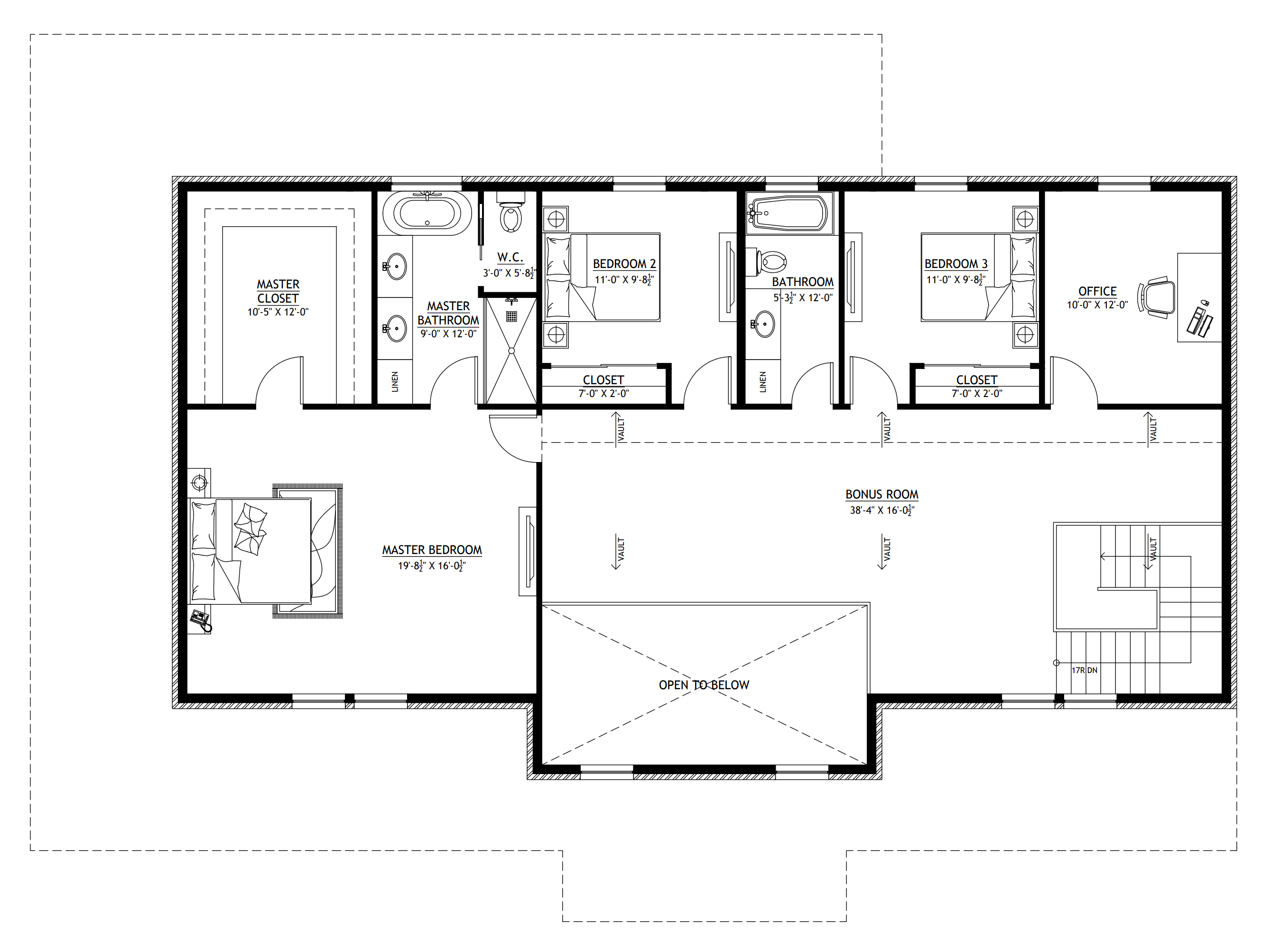

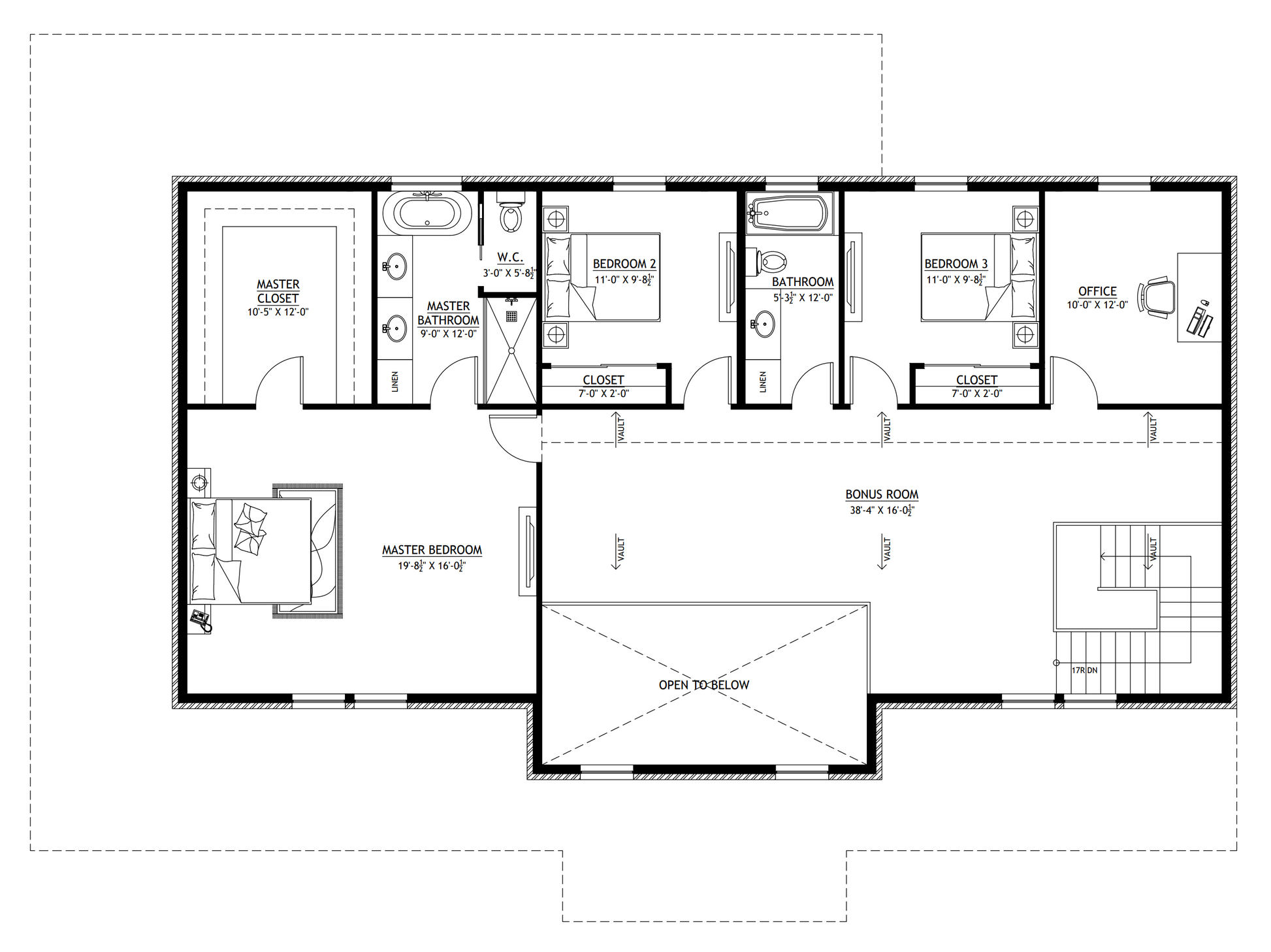

Second Floor Plan
Roof Plan

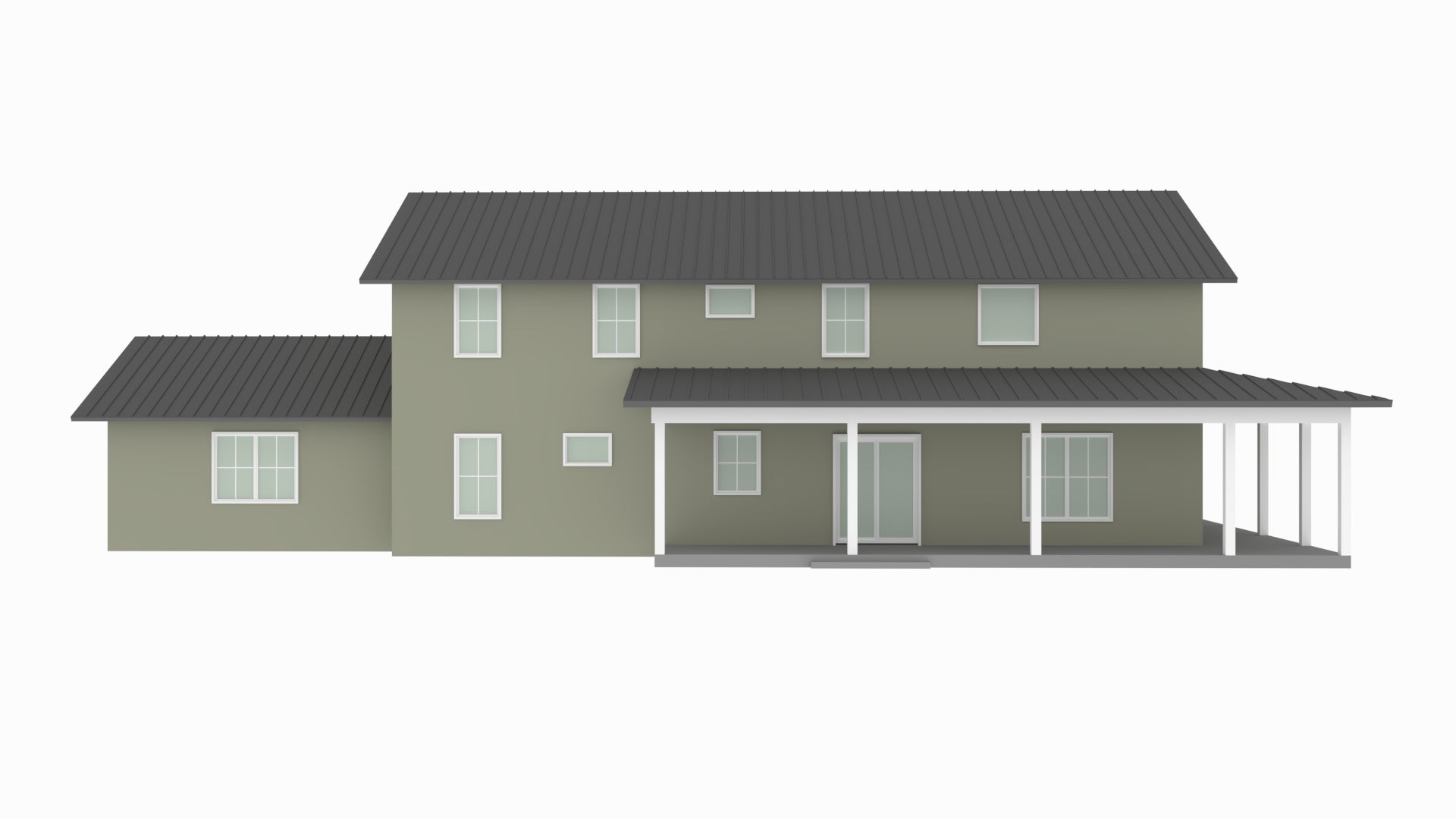

Front and Rear Elevation
Right and Left Elevation
First Floor Electrical Plan
Second Floor Electrical Plan
First Floor Plumbing Plan
Second Floor Plumbing Plan
First Floor HVAC Plan
Second Floor HVAC Plan
Roof Framing Plan
Foundation Plan
Foundation Detail
Interior Bearing Footing
C-Typical Column Detail
Wall Section



For more barndominium floor plans, check out our complete collection of 4-bedroom barndominium floor plans.


Need to make changes? Submit a modification request using the button that says Modify This Plan. We will get you a free price quote within 72 hours.

What's Typically Included

THE SPECIFC DETAILS OF WHAT'S INCLUDED ON THESE PLANS IS CONTAINED IN THE PRODUCT DESCRIPTION. PLEASE SCROLL UP AND YOU WILL FIND IT UNDER "WHAT'S INCLUDED"

Our house plan sets typically have the following details:

4 Elevations – Front, Back, Both Sides

Detailed Floor Plan Drawing

Electrical Plans with placements for HVAC

Plumbing Plans with Placements

Flooring Plan

Roof Plan

Foundation Plan

For more information on what's included and examples of what your plans will look like, go here -> https://barndominiumplans.com/pages/whats-included

Please Note: We work with many different draftspeople who work in many different ways.  It should be noted that their plans may contain different details. THE SPECIFC DETAILS OF WHAT'S INCLUDED ON THESE PLANS IS CONTAINED IN THE PRODUCT DESCRIPTION. PLEASE SCROLL UP AND YOU WILL FIND IT UNDER "WHAT'S INCLUDED"

What's Not Included

The following items are NOT included:

Architectural or Engineering Stamp. Our plans are engineering-ready! Can take to a local structural engineer, but we are not engineers ourselves. Once you've purchased plans, we can make a recommendation in all 50 states.

Septic Drawings - Handled locally

Metal Truss Plans - These are provided by the truss manufacturer

Wind and Snow Loads - Handled locally!

Delivery

This plan is available as a digital product or printed + shipped.

If you select digital, the plan will be delivered to you via email as a PDF file, no matter what time it is.

If you select printed + shipped, your order will ship in 24x36 format within 1 business day of your order.

We ship from the midwest in order to serve the entire country within 3-5 business days!

Return policy

All barndominium house plan purchases are FINAL. There are no exchanges or refunds due to the digital nature of the product. Please make sure that the plan you have selected is going to fit your needs.

Wondering about modifications, and making sure you like the changes? While all plan sales featuring modifications are also FINAL, here's a bit about how the modification process works:

After your order is placed, our team gets started on your modifications.

First, we send over an initial floor plan draft to make sure the modifications are correct. Any "clarifying changes" are included at no additional cost. Things like "Oh I meant for the door to swing this way, not that way" or "kitchen appliances should be arranged in XYZ way". Any major changes to the plan like adding a bedroom, a second story, or a different foundation are an additional fee. 99% of our customers do not incur an additional fee.

After the floor plan is confirmed, we send over the floor plans + elevations. We do the same process, and once you're good with the elevations, we finish up your final plans.
