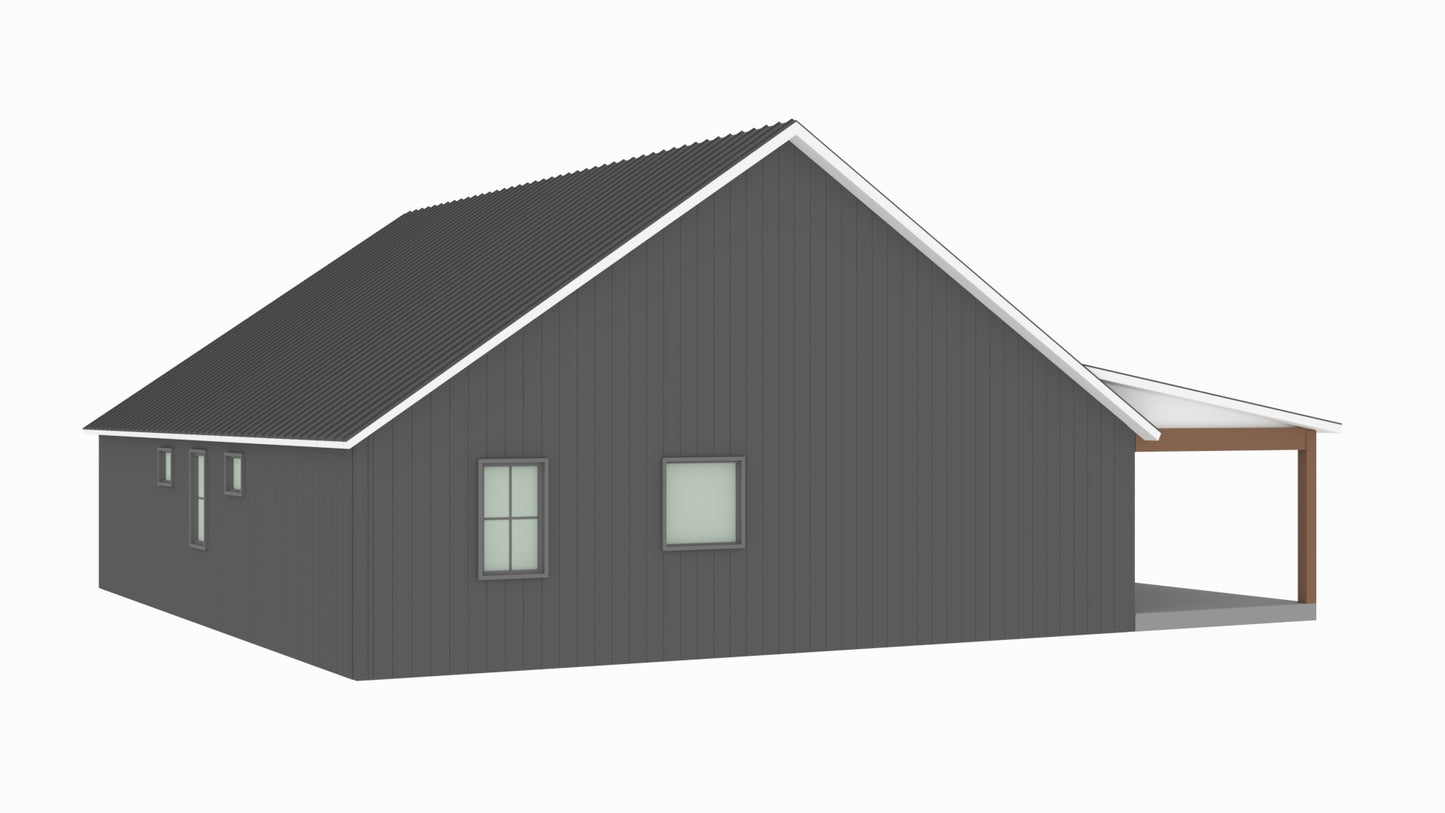

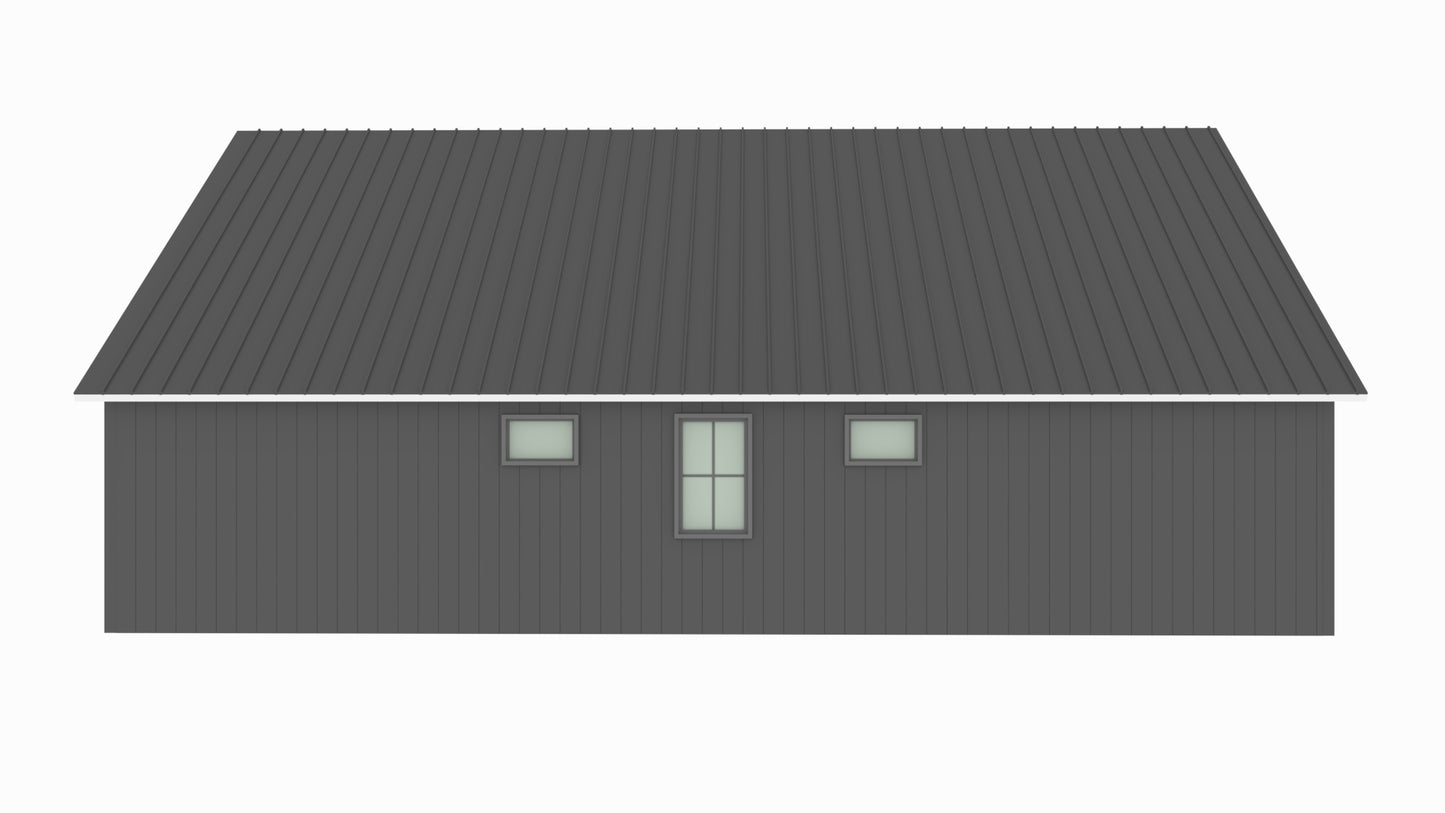

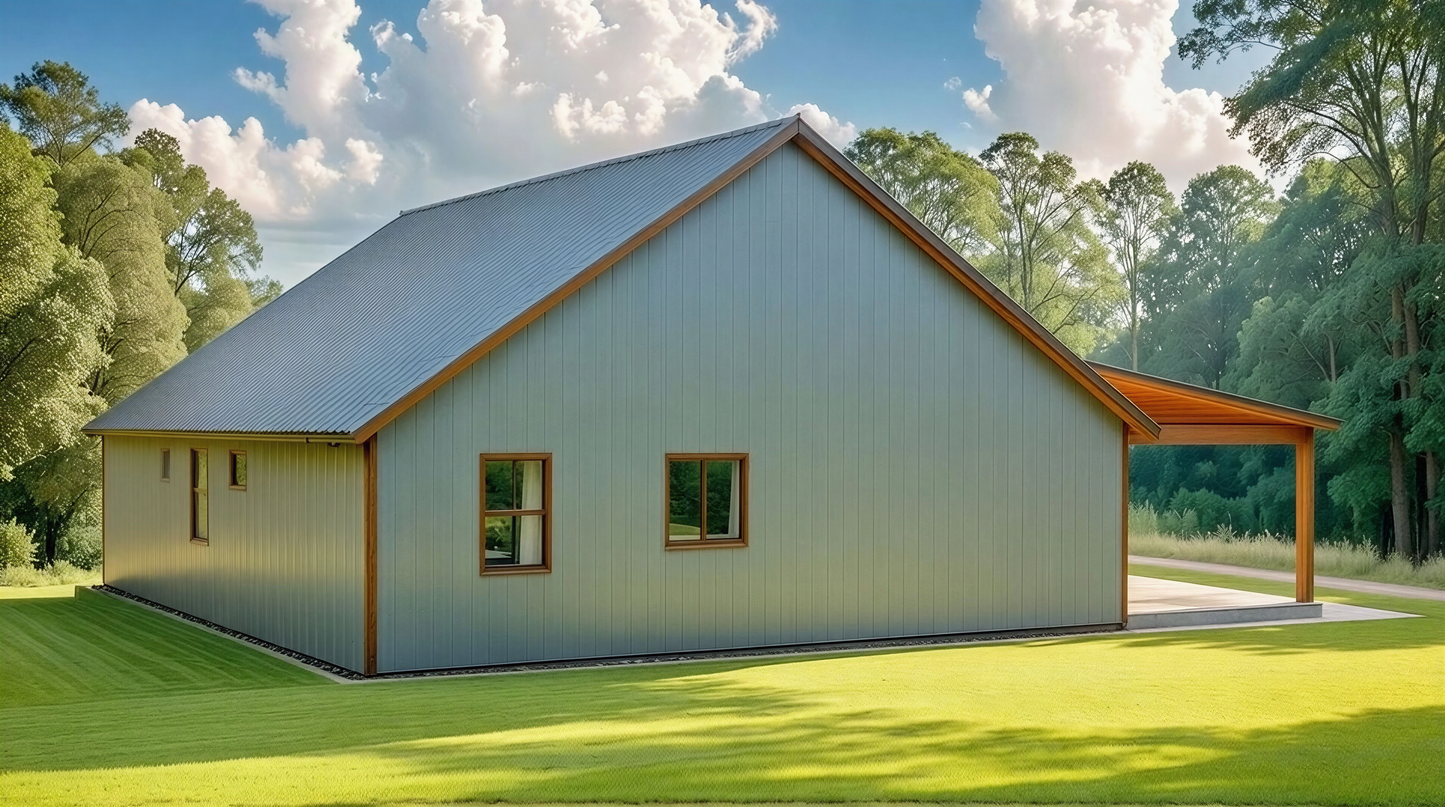

BCO-40041-C Castle Barndominium House Plan

$849.99 USD
$849.99 USD
Sale Sold out
Add To Wishlist
1 11
Bedrooms 3 Bedrooms
Floors 1 Floors
Full Baths 3 Full Baths
Total Heated Area 2,000 SF Total Heated Area

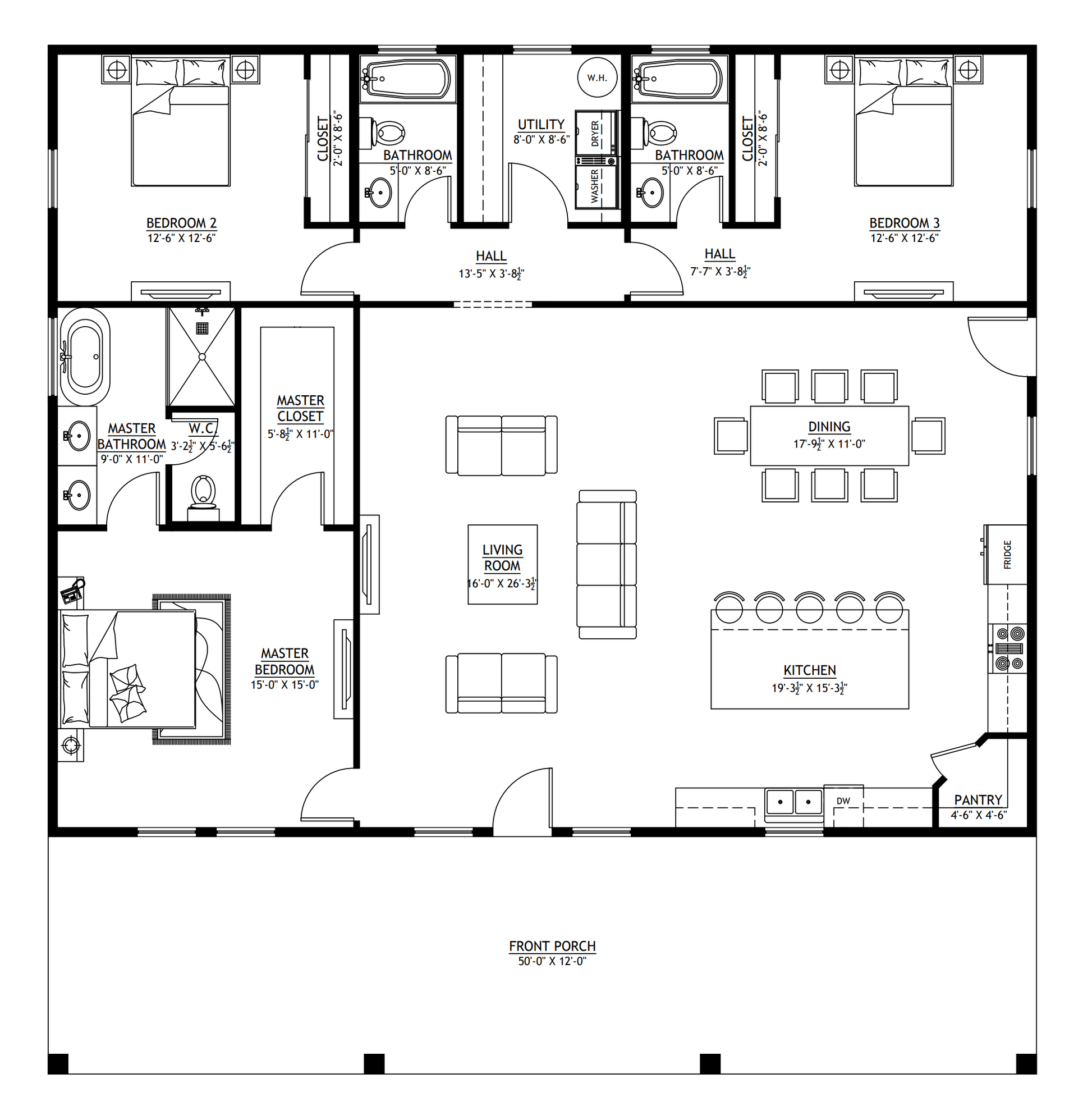

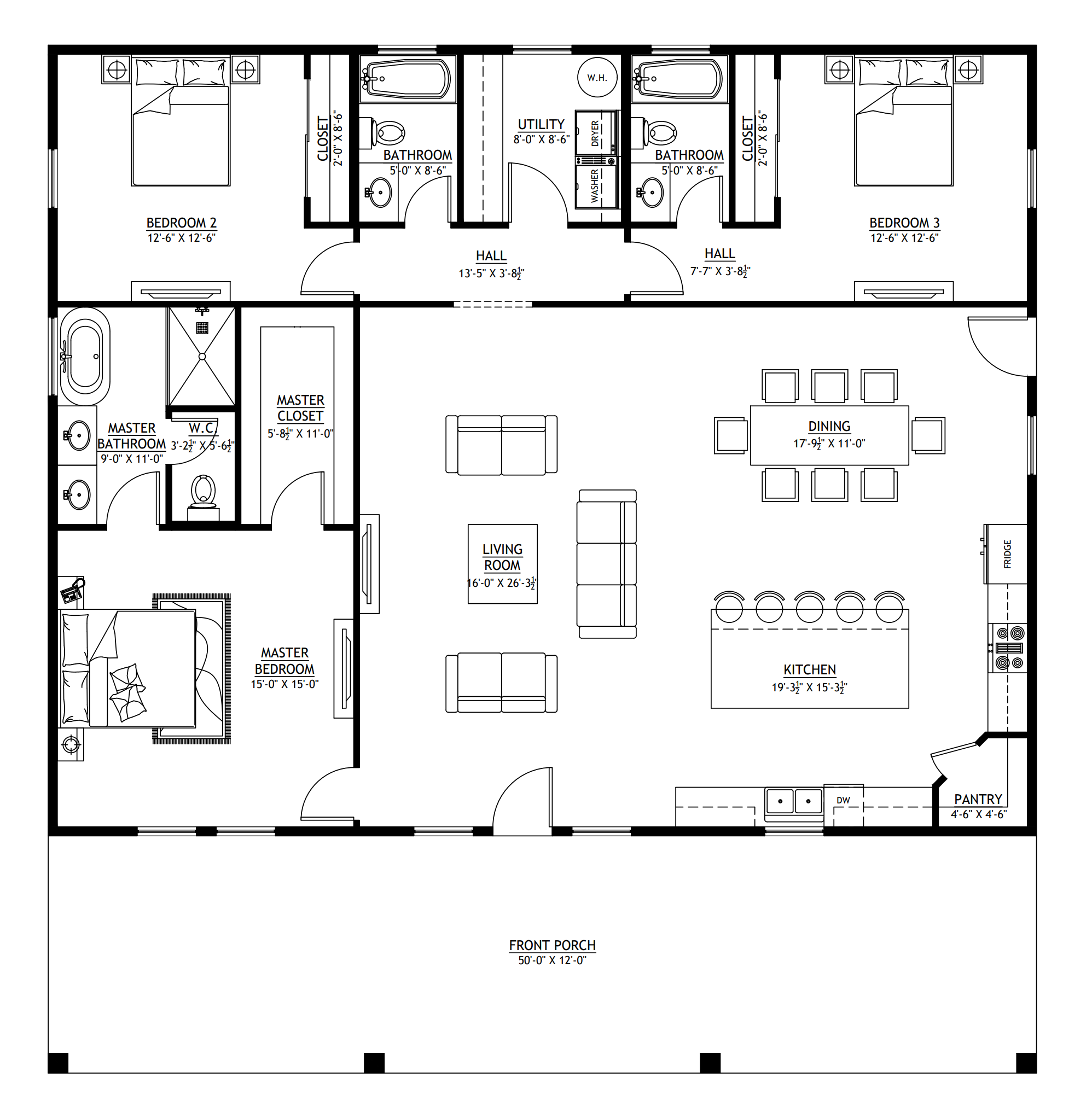

Floor Plan

DETAILS

HEATED SQ FT

First Floor:

2,000 SF

Second Floor:

None

Total Heated Sq Ft:

2,000 SF

UNHEATED SQ FT

Total Unheated Area:

Porch 600 SF

Carport:

None

Bedrooms:

3

Full Baths:

3

Floors:

1

Garage Size:

None

Width:

50'

Depth:

52'

Height:

24'-1 1/2"

Foundation:

Concrete Slab

Main Roof Pitch:

8:12

Exterior Framing:

Stick Frame

CEILING HEIGHTS

First Floor:

9'

BCO-40041-C Castle Barndominium House Plan



About this barndominium house plan:

  • 2000 Heated Square Feet
  • 3 Bedrooms
  • 3 Bathrooms
  • Single Story
  • Open concept
  • Utility room
  • Front porch



  • A comfortable 2,000 sq ft single-story layout designed for open living and easy day-to-day flow.
  • Three well-sized bedrooms and hree full bathrooms offering privacy and flexibility for family members or guests.
  • A dedicated utility room that keeps laundry and household tasks organised and out of sight.
  • A wide front porch that adds charm and creates a welcoming space to relax and enjoy the outdoors.



For more barndominium floor plans, check out our complete collection of 3-bedroom barndominium floor plans.



Need to make changes? Submit a modification request using the button that says Modify This Plan. We will get you a free price quote within 72 hours.

What's Typically Included

THE SPECIFC DETAILS OF WHAT'S INCLUDED ON THESE PLANS IS CONTAINED IN THE PRODUCT DESCRIPTION. PLEASE SCROLL UP AND YOU WILL FIND IT UNDER "WHAT'S INCLUDED"

Our house plan sets typically have the following details:

4 Elevations – Front, Back, Both Sides

Detailed Floor Plan Drawing

Electrical Plans with placements for HVAC

Plumbing Plans with Placements

Flooring Plan

Roof Plan

Foundation Plan

For more information on what's included and examples of what your plans will look like, go here -> https://barndominiumplans.com/pages/whats-included

Please Note: We work with many different draftspeople who work in many different ways.  It should be noted that their plans may contain different details. THE SPECIFC DETAILS OF WHAT'S INCLUDED ON THESE PLANS IS CONTAINED IN THE PRODUCT DESCRIPTION. PLEASE SCROLL UP AND YOU WILL FIND IT UNDER "WHAT'S INCLUDED"

What's Not Included

The following items are NOT included:

Architectural or Engineering Stamp. Our plans are engineering-ready! Can take them to a local engineer in your state.

Site Plan - We can provide this if needed for $300 additional.

Materials List - handled locally when required

Energy calculations - handled locally when required

Snow load calculations - handled locally when required

Delivery

This plan is available as a digital product or printed + shipped.

If you select digital, the plan will be delivered to you via email as a PDF file, no matter what time it is.

If you select printed + shipped, your order will ship in 24x36 format within 1 business day of your order.

We ship from the midwest in order to serve the entire country within 3-5 business days!

Return policy

All barndominium house plan purchases are FINAL. There are no exchanges or refunds due to the digital nature of the product. Please make sure that the plan you have selected is going to fit your needs.
