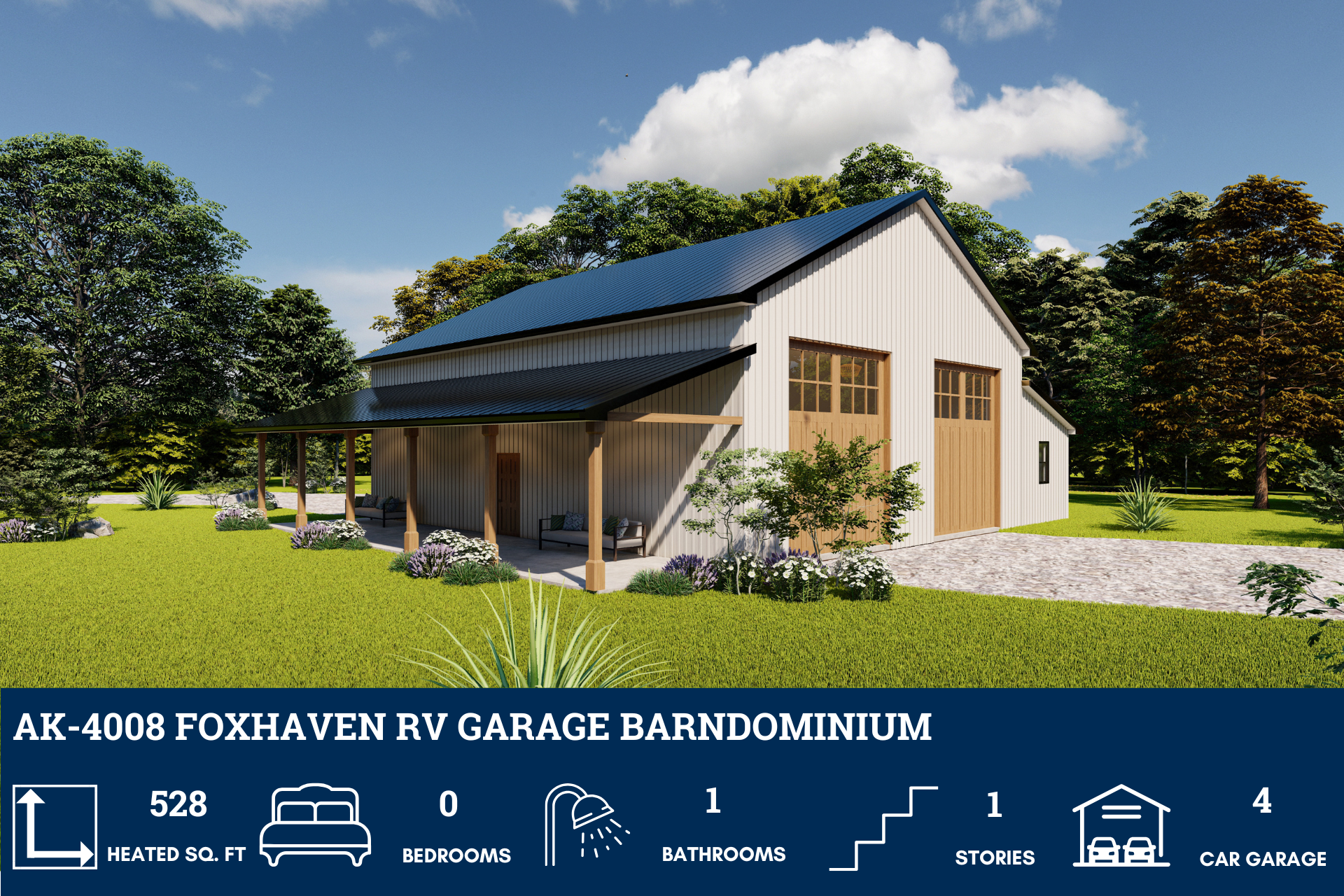

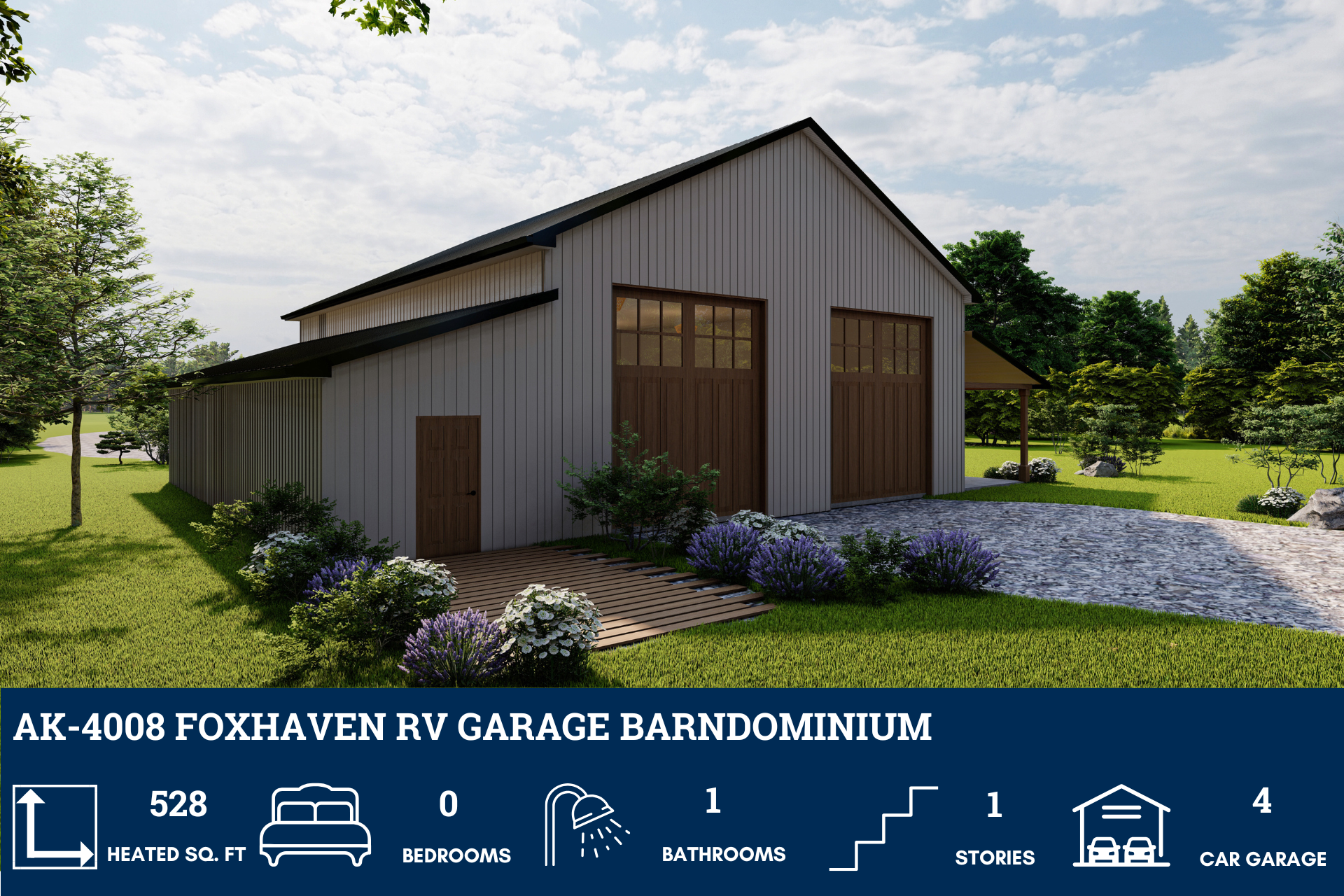

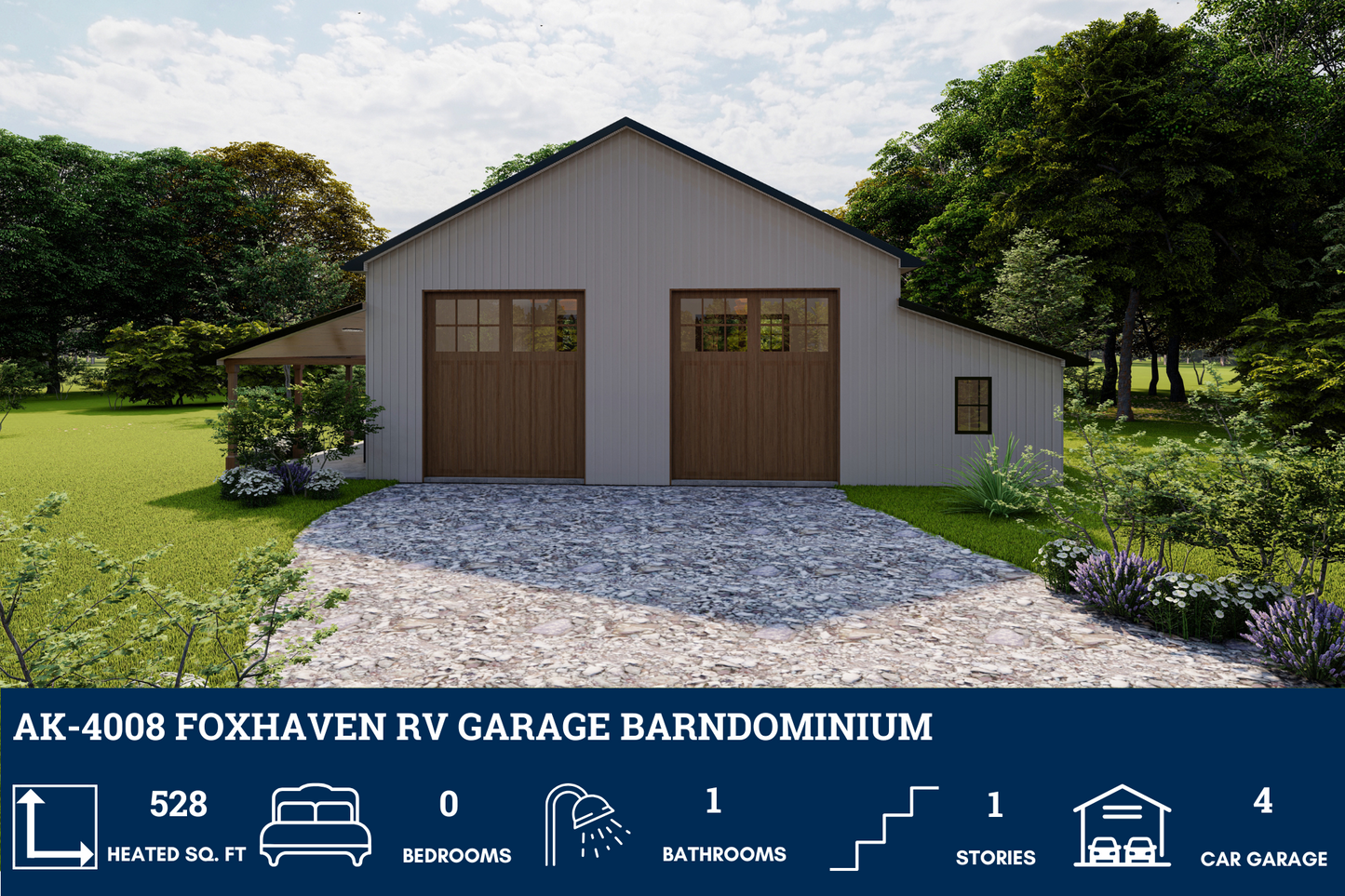

AK-4008 Foxhaven Barndominium House Plan

$800.00 USD
$800.00 USD
Sale Sold out
1 8

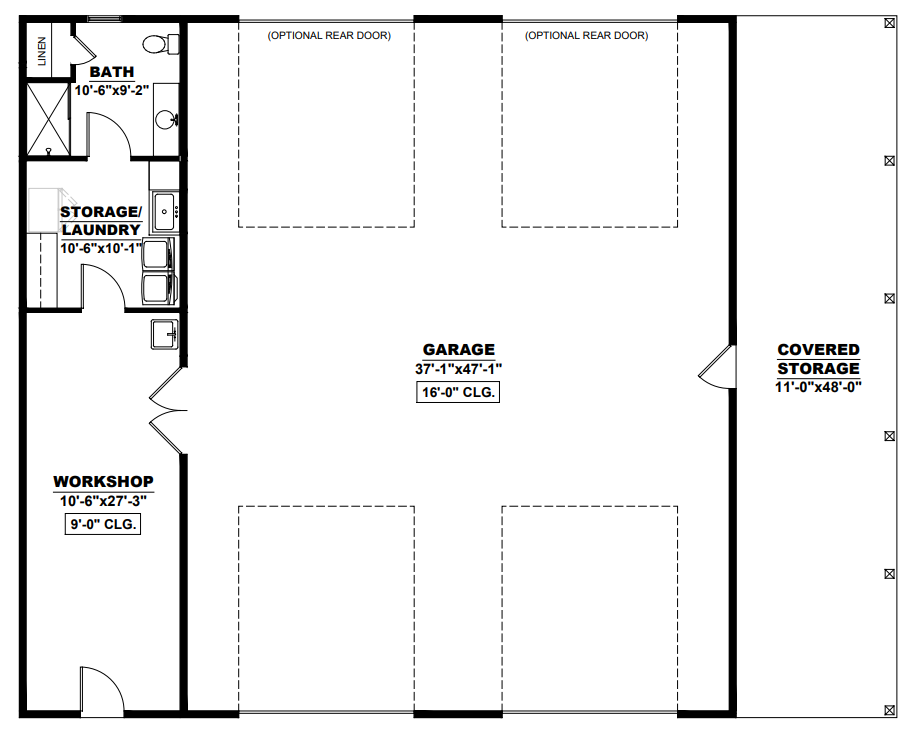

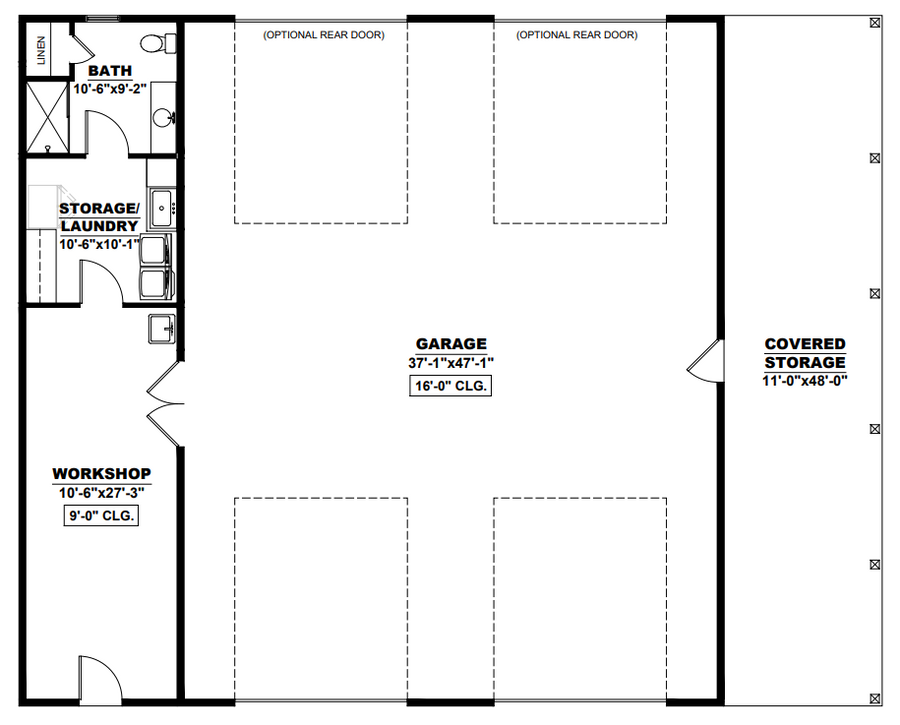

Floor Plan

DETAILS

HEATED SQ FT

First Floor:

528 SF

Second Floor:

None

Total Heated Sq Ft:

528 SF

UNHEATED SQ FT

Total Unheated Area:

Garage 1,824 SF, Covered Storage 528 SF = TOTAL 2,352 SF

Carport:

None

Bedrooms:

0

Full Baths:

1

Floors:

1

Garage Size:

1,824 SF

Width:

60'

Depth:

48'

Height:

25'-10"

Foundation:

Concrete Slab

Main Roof Pitch:

8:12

Exterior Framing:

2x4 Stick Frame

CEILING HEIGHTS

First Floor:

16'

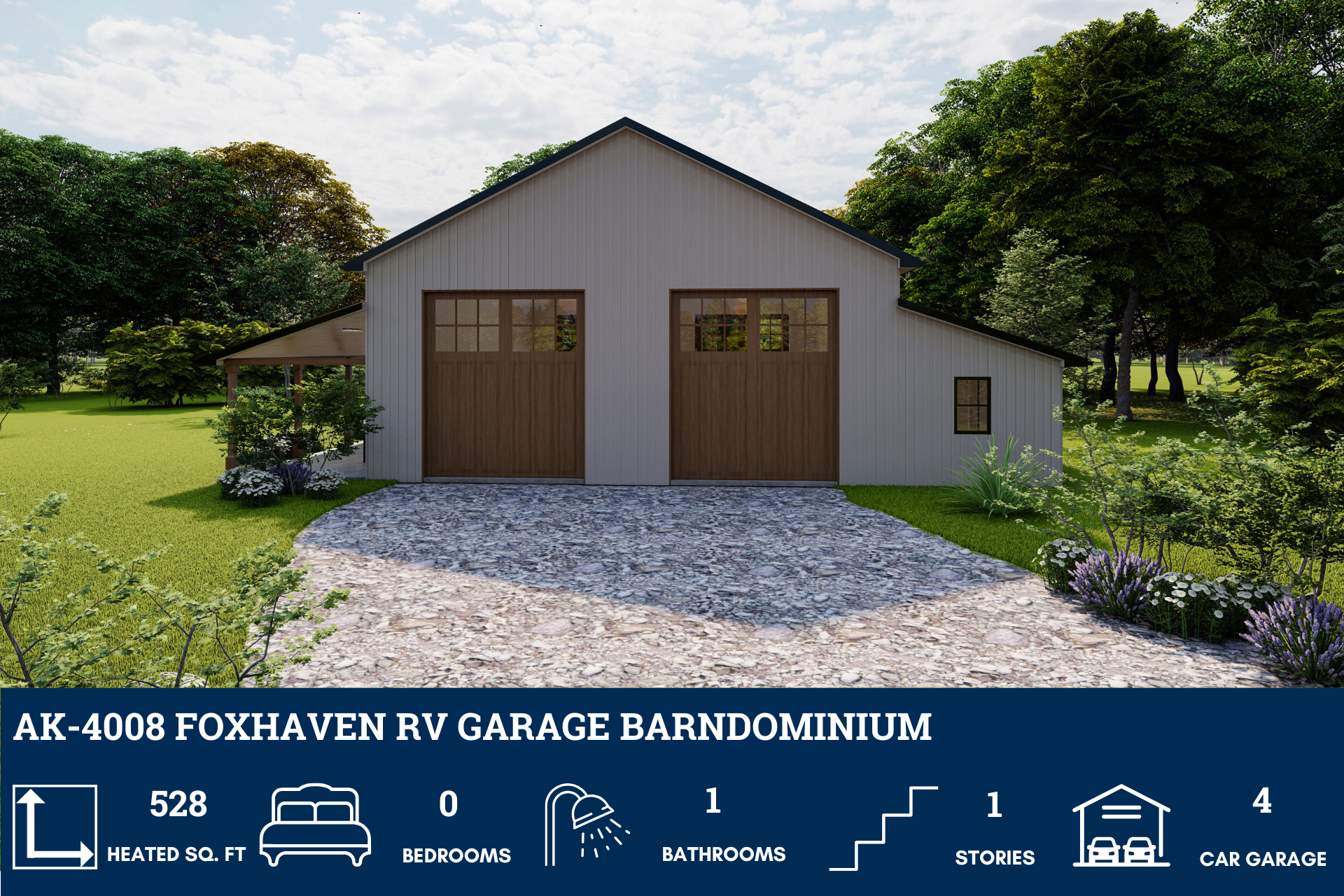

AK-4008 Foxhaven Barndominium House Plan

About this barndominium house plan:

  • 528 Heated Sq Ft
  • 1824 S Ft RV Garage
  • 1 Bathroom
  • Workshop
  • Covered storage

  • A towering RV garage built to house your home-on-wheels with pride—because your adventures deserve a space as bold as your journey.
  • Compact yet mighty, this 528-square-foot heated space is designed for comfort without excess—ideal for weekend getaways, hobby hideouts, or minimalist living with maximum efficiency. With more than just a workspace, this workshop is a sanctuary for makers, fixers, and dreamers—where sparks fly and ideas come to life.
  • A full bathroom that punches above its weight—sleek, functional, and ready to refresh after a day of tinkering, traveling, or trailblazing.
  • Covered storage that keeps your gear protected and your space uncluttered—ideal for tools, toys, or travel essentials waiting for their next adventure.

What's included in AK-4008:

Cover sheet with General Notes, Area Tabulation, Index, Drawing Symbol Key, Rendering, + Materials Legend
Foundation Plan, Foundation Details + Foundation Notes
Main Level Floor Plan, Upper Level Floor Plan, + Wall Type Legend
Roof Plan + General Roof Plan Notes

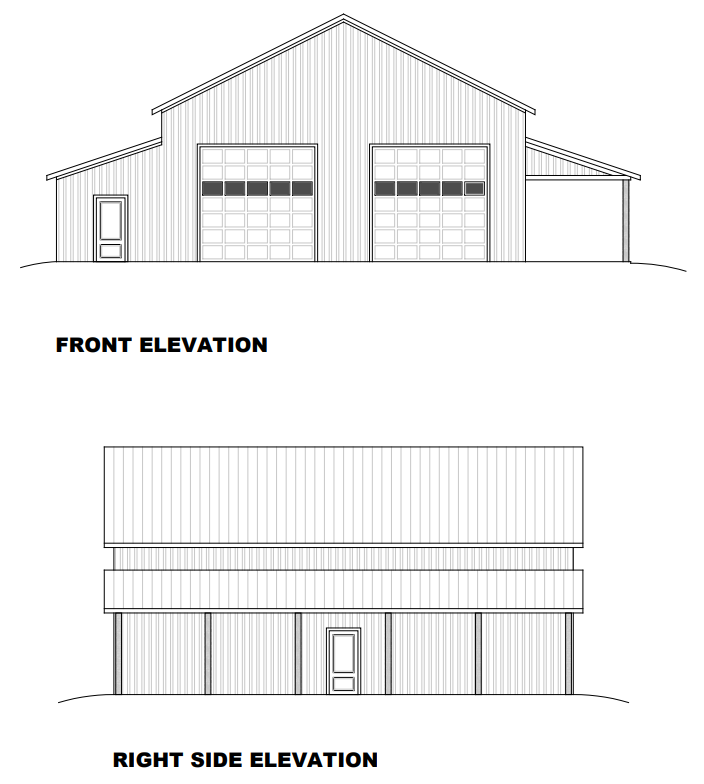

Four Exterior Elevations, General Elevation Notes
Typical Wall Sections
Radon Mitigation Notes + Details
Electrical Lighting Plans, Electrical Legend, + Electrical Notes

Need to make changes? Submit a modification request using the button that says Modify This Plan (below the Add To Cart Button). We will get you a free price quote within 72 hours

Please note all square footage are estimates.

What's Included

Our house plan sets typically have the following details:

4 Elevations – Front, Back, Both Sides

Detailed Floor Plan Drawing

Electrical Plans with placements for HVAC

Plumbing Plans with Placements

Flooring Plan

Roof Plan

Foundation Plan

For more information on what's included and examples of what your plans will look like, go here -> https://barndominiumplans.com/pages/whats-included

Please Note: We work with many different draftspeople who work in many different ways.  It should be noted that their plans may contain different details.

What's Not Included

The following items are NOT included:

Architectural or Engineering Stamp. Our plans are engineering-ready! Can take them to a local engineer in your state.

Site Plan - We can provide this if needed for $300 additional.

Materials List - handled locally when required

Energy calculations - handled locally when required

Snow load calculations - handled locally when required

Delivery

This plan is available as a digital product or printed + shipped.

If you select digital, the plan will be delivered to you via email as a PDF file, no matter what time it is.

If you select printed + shipped, your order will ship in 24x36 format within 1 business day of your order.

We ship from the midwest in order to serve the entire country within 3-5 business days!

Return policy

All barndominium house plan purchases are FINAL. There are no exchanges or refunds due to the digital nature of the product. Please make sure that the plan you have selected is going to fit your needs.

💥 [COUNT] People are currently viewing this product.
Build
PDF (Single Build) $800.00
PDF (Single Build)

Additional Options
Modify this plan? Want to make adjustments? We’ll provide you with a free price estimate within 1 to 3 business days.
Still making a decision? Get an estimate of the construction cost for this house in your area.

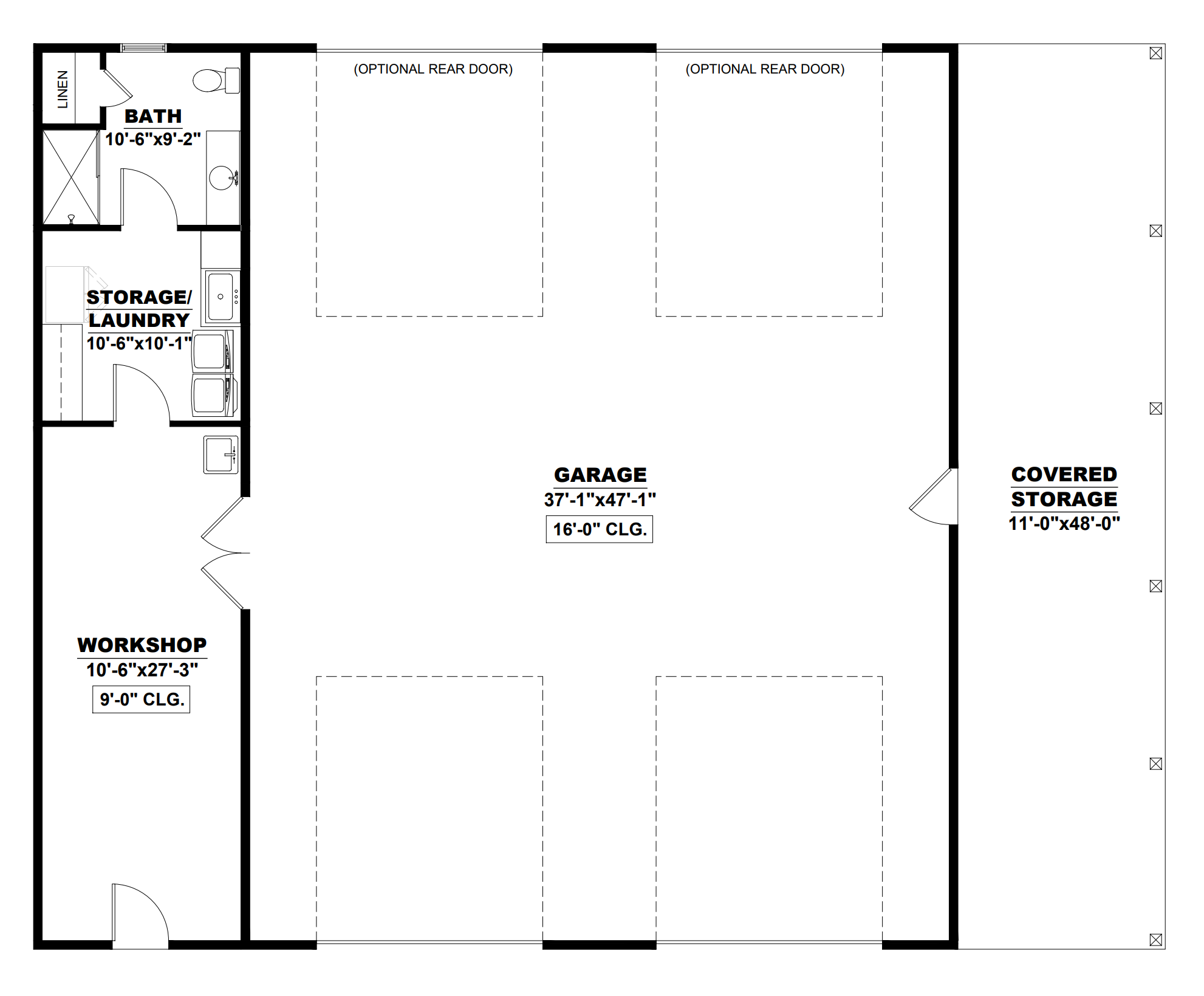

Floor Plan
