AK-4005 Ashford Barndominium House Plan

$1,695.00 USD
$1,695.00 USD
Sale Sold out
Add To Wishlist
1 10
Bedrooms 3 Bedrooms
Floors 1 Floors
Full Baths 2 Full Baths
Total Heated Area 1,970 Total Heated Area

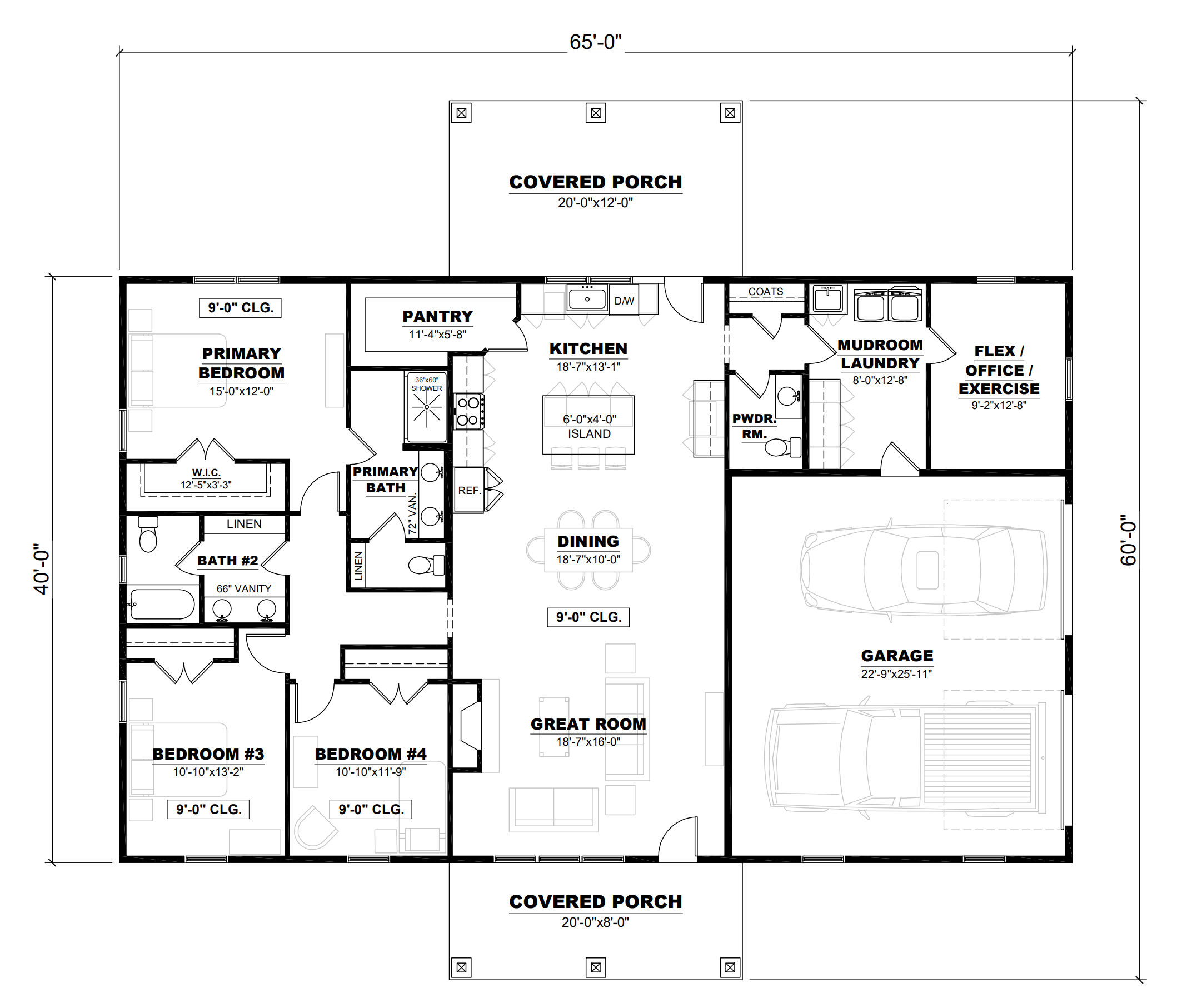

Floor Plan

DETAILS

HEATED SQ FT

First Floor:

1,970 SF

Second Floor:

None

Total Heated Sq Ft:

1,970 SF

UNHEATED SQ FT

Total Unheated Area:

Garage 630 SF, Porches 400 SF = TOTAL 1,030 SF

Carport:

None

Bedrooms:

3

Full Baths:

2.1

Floors:

1

Garage Size:

630 SF

Width:

65'

Depth:

60'

Height:

19'-9"

Foundation:

Crawl Space

Main Roof Pitch:

06:12

Construction Type:

Stick-Frame

CEILING HEIGHTS

First Floor:

9'
