AK-4004 Harrington Barndominium House Plan

$1,795.00 USD
$1,795.00 USD
Sale Sold out
1 11

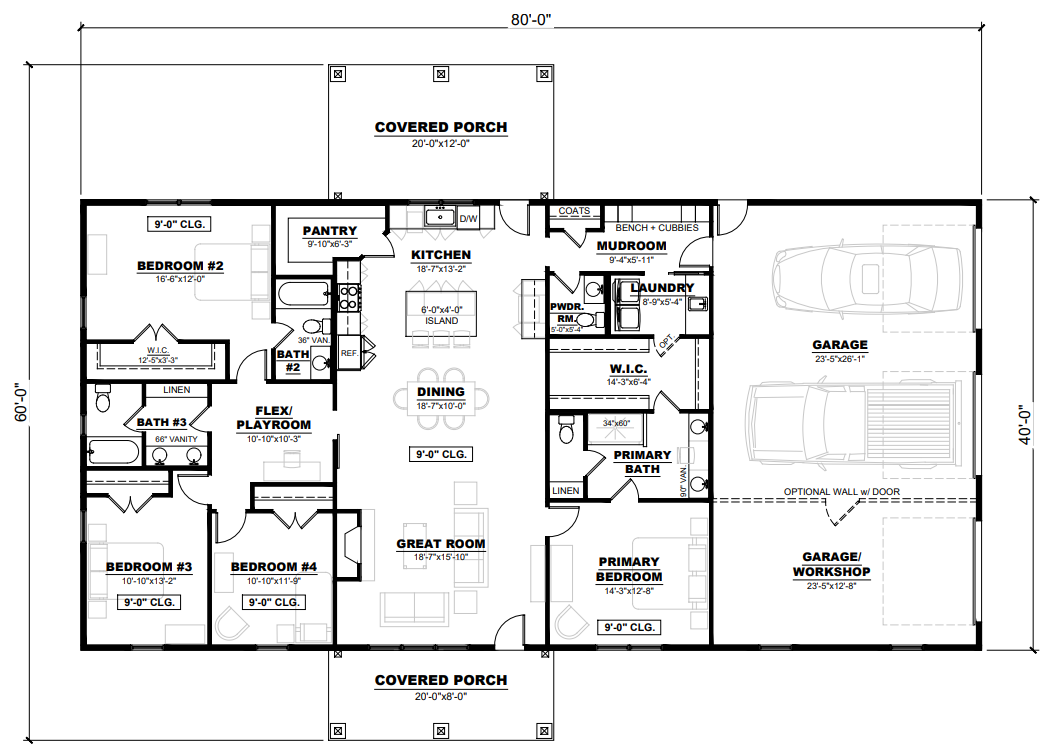

Floor Plan

DETAILS

HEATED SQ FT

First Floor:

2,240 SF

Second Floor:

None

Total Heated Sq Ft:

2,240 SF

UNHEATED SQ FT

Total Unheated Area:

Garage 640 SF, Porches 400 SF, Workshop 320 SF = TOTAL 1,360 SF

Carport:

None

Bedrooms:

4

Full Baths:

3

Floors:

1

Garage Size:

640 SF

Width:

80'

Depth:

60'

Height:

19'-9"

Foundation:

Crawl Space

Main Roof Pitch:

6:12

Exterior Framing:

2x6 Studs

CEILING HEIGHTS

First Floor:

9'

AK-4004 Harrington Barndominium House Plan

About this barndominium house plan:

  • 2240 Heated square feet
  • 40x56 living space dimension
  • 4 Bedrooms
  • 3.1 Bathrooms
  • Single-story
  • Open concept
  • Flex/Playroom
  • Mudroom
  • Laundry Access from Master
  • Front & rear porch
  • 2-3 car, 640 SF attached garage
  • Optional workshop

  • A comfortably spacious layout that balances everyday functionality with room to unwind, all within 2,240 square feet of cozy, climate-controlled living.
  • A room for every dreamer—four serene bedrooms, each offering personal space and privacy for rest.
  • No more morning traffic jams—with three full baths and a guest-friendly powder room, everyone moves with ease.
  • Light, airy, and connected—the heart of the home opens wide for effortless entertaining and modern family living.
  • A space that bends to your rhythm—create a playroom, home office, or creative studio in this adaptable bonus area.
  • Tidy up in style—this hardworking entry keeps clutter out of sight and every adventure organized.
  • Skip the hallway shuffle—enjoy direct laundry access from the primary suite for ultimate convenience.
  • From morning coffee to twilight chats, enjoy outdoor living front and back with covered porches that invite you to linger.
  • Room for the daily drivers plus weekend toys—this 640-square-foot garage fits up to three vehicles with ease.
  • DIYers rejoice! An optional workshop gives you space to tinker, craft, and create to your heart’s content.

What's included in AK-4004:

Cover sheet with General Notes, Area Tabulation, Index, Drawing Symbol Key, Rendering, + Materials Legend
Main Level Floor Plan + Wall Type Legend
Upper Level Floor Plan + Wall Type Legend
Roof Plan + General Roof Plan Notes
Front + Right Exterior Elevations, General Elevation Notes
Rear + Left Exterior Elevations, General Elevations Notes
Building Section + Interior Kitchen Elevations
Electrical Lighting Plans, Electrical Legend, + Electrical Notes
Foundation Plan, Foundation Plan Notes, + Wall Type Legend
Foundation Details

For more barndominium floor plans, check out our complete collection of 4-bedroom barndominium floor plans.

Need to make changes? Submit a modification request using the button that says Modify This Plan (below the Add To Cart Button). We will get you a free price quote within 72 hours

Please note all square footage are estimates.

What's Included

Our house plan sets typically have the following details:

4 Elevations – Front, Back, Both Sides

Detailed Floor Plan Drawing

Electrical Plans with placements for HVAC

Plumbing Plans with Placements

Flooring Plan

Roof Plan

Foundation Plan

For more information on what's included and examples of what your plans will look like, go here -> https://barndominiumplans.com/pages/whats-included

Please Note: We work with many different draftspeople who work in many different ways.  It should be noted that their plans may contain different details.

What's Not Included

The following items are NOT included:

Architectural or Engineering Stamp. We work with a third party to provide an engineering stamp in most states.

Site Plan - We can provide this if needed for $300 additional.

Materials List - handled locally when required

Energy calculations - handled locally when required

Snow load calculations - handled locally when required

Delivery

This plan is available as a digital product or printed + shipped.

If you select digital, the plan will be delivered to you via email as a PDF file, no matter what time it is.

If you select printed + shipped, your order will ship in 24x36 format within 1 business day of your order.

We ship from the midwest in order to serve the entire country within 3-5 business days!

Return policy

All barndominium house plan purchases are FINAL. There are no exchanges or refunds due to the digital nature of the product. Please make sure that the plan you have selected is going to fit your needs.

đź’Ą [COUNT] People are currently viewing this product.
Build
PDF (Single Build) $1,795.00
PDF (Single Build)

Additional Options
Modify this plan? Want to make adjustments? We’ll provide you with a free price estimate within 1 to 3 business days.
Still making a decision? Get an estimate of the construction cost for this house in your area.

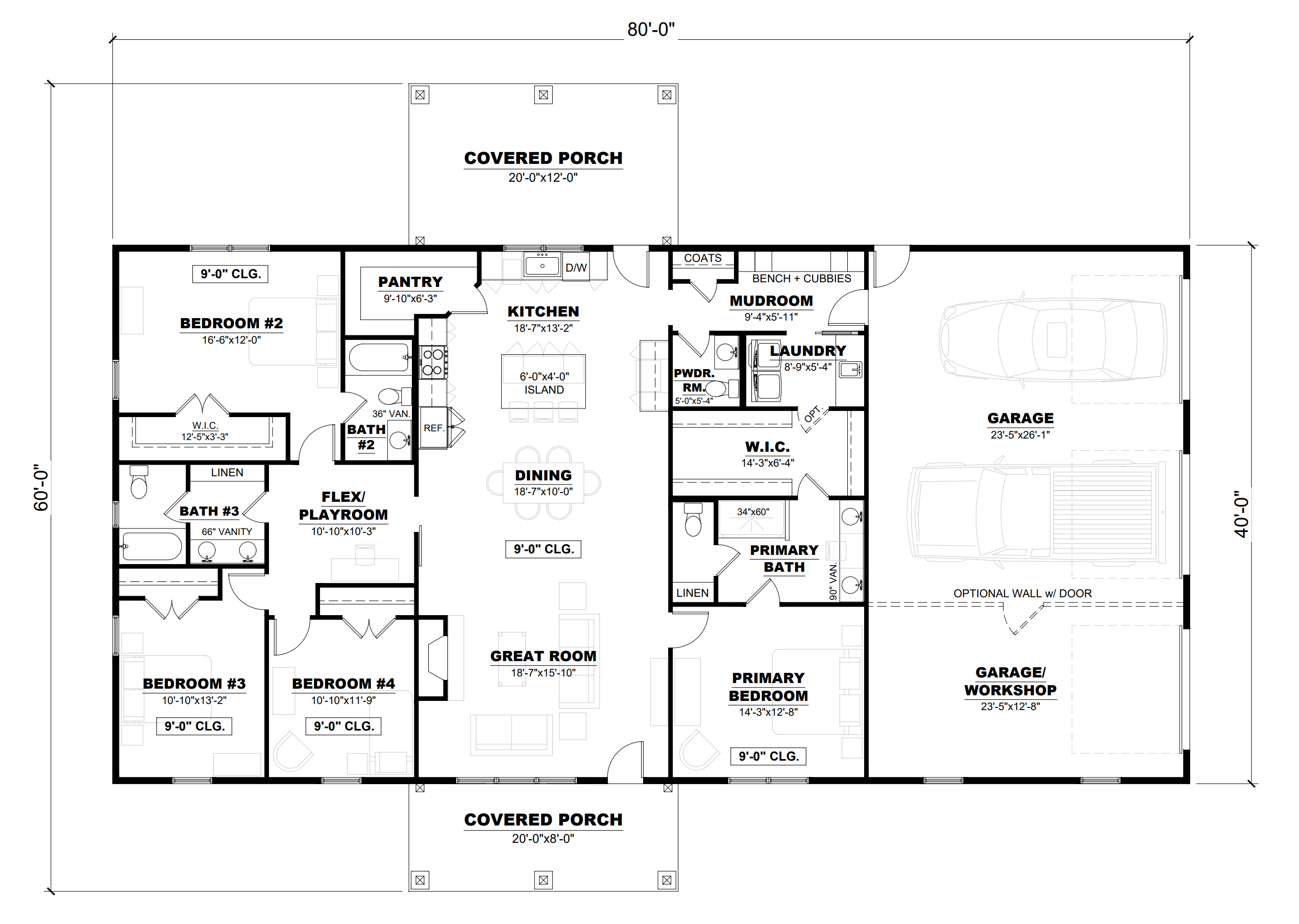

Floor Plan
