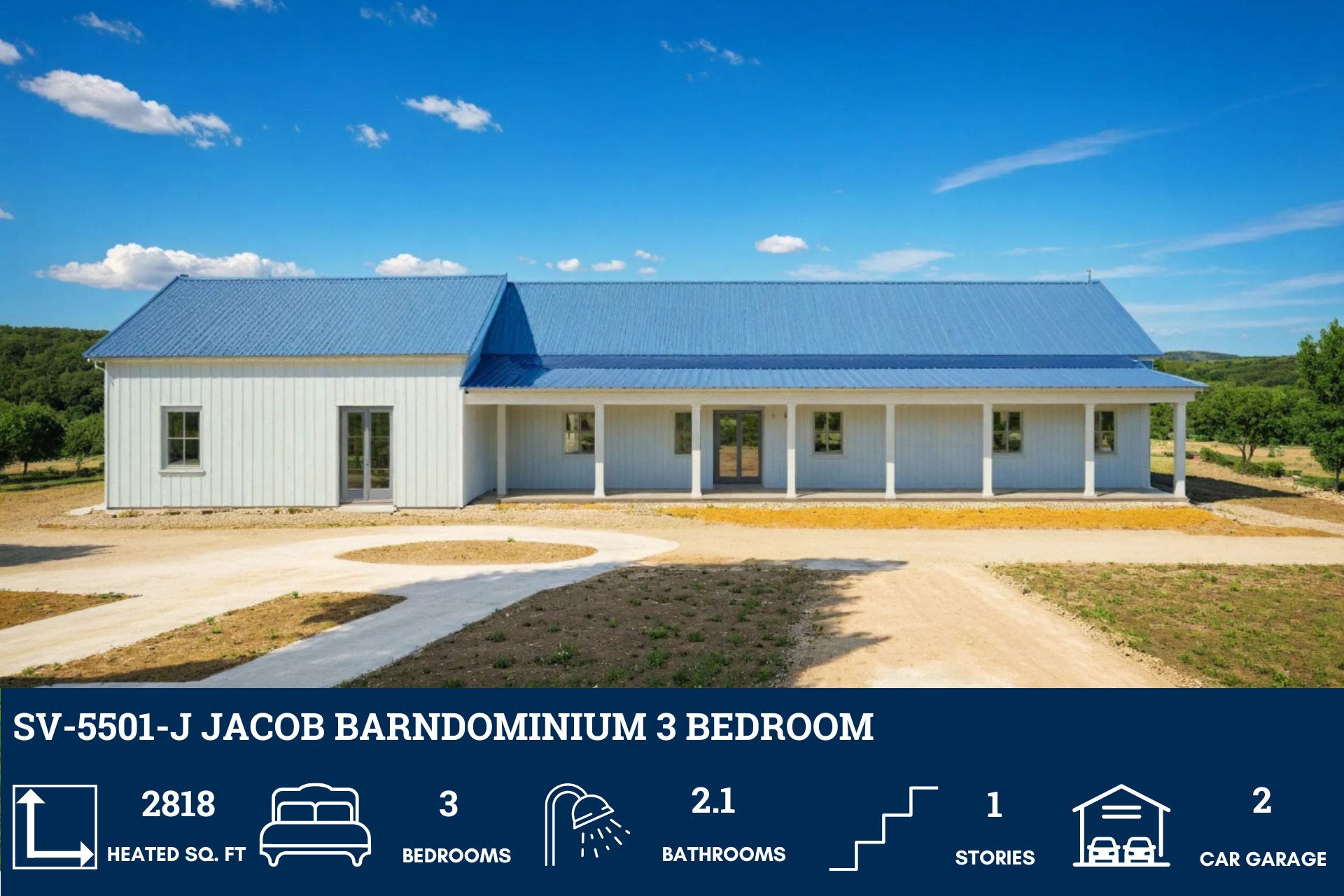

SV-5501-J Jacob Barndominium House Plan

Regular price $849.99 USD
Regular price Sale price $849.99 USD
Sale Sold out
Skip to product information
1 of 11

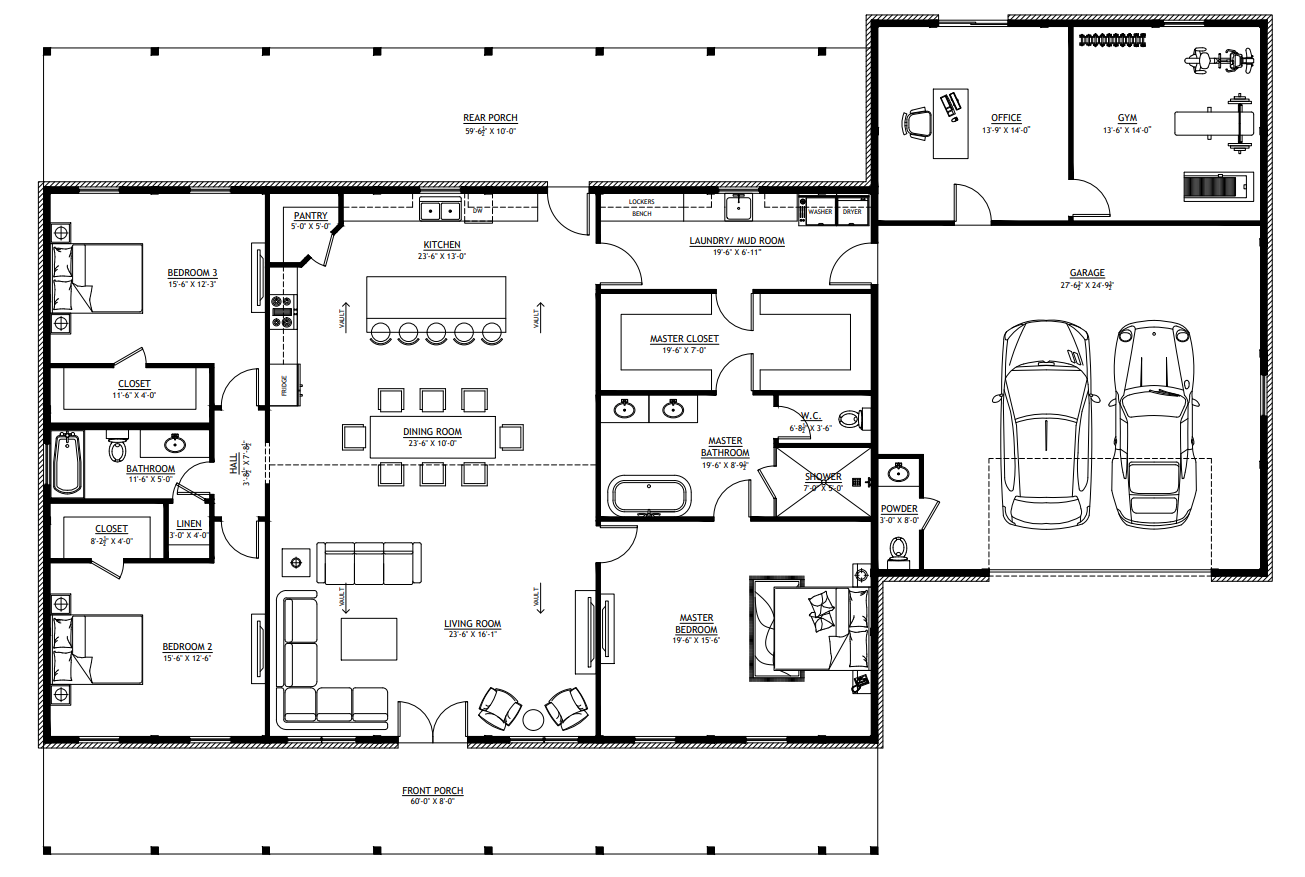

Floor Plan

DETAILS

HEATED SQ FT

First Floor:

2,800 SF

Second Floor:

None

Total Heated Sq Ft:

2,800 SF

UNHEATED SQ FT

Total Unheated Area:

Garage 707 SF, Porches 1,075 SF = TOTAL 1,782 SF

Carport:

None

Bedrooms:

3

Full Baths:

2

Floors:

1

Garage Size:

707 SF

Width:

88'

Depth:

58'

Height:

19'-8 3/8"

Foundation:

Concrete Slab

Main Roof Pitch:

4:12

Exterior Framing:

Post Frame

CEILING HEIGHTS

First Floor:

9'

SV-5501-J Jacob Barndominium House Plan

Looking for this plan, but a bit smaller? Discover a similar floor plan here that's 2400 sq ft.



About this barndominium house plan:

  • 2818 Heated square feet
  • 707 sq ft 2-car Garage
  • Post-frame Construction
  • 3 Bedrooms
  • 2.1 Bathrooms
  • Single-story
  • Open concept
  • Mudroom
  • Office
  • Gym
  • Front and rear porch





  • A generous footprint that invites both movement and mindfulness. With nearly 2,820 square feet of conditioned space, this home offers room to stretch, gather, and grow—without sacrificing intimacy.
  • More than just a place to park—this garage doubles as a workshop, gear haven, or creative zone. With 707 square feet, it’s built to accommodate both vehicles and vision.
  • Engineered for strength and simplicity, post-frame construction delivers wide-open interiors, efficient build times, and enduring structural integrity—ideal for modern living with a timeless backbone.
  • Three distinct sleeping quarters, each designed to offer privacy, comfort, and flexibility. Whether it’s restful nights, remote work, or guest stays, these rooms adapt to your rhythm.
  • Two full baths and a powder room ensure that mornings flow smoothly and guests feel at ease. Function meets finesse in every fixture and finish.
  • Everything you need, all on one level. This single-story design eliminates stairs and maximizes accessibility—perfect for aging in place or simply enjoying seamless movement.
  • A transitional space that works hard behind the scenes. Drop your boots, stash your gear, and keep the rest of the home pristine—this mudroom is both practical and polished.
  • A dedicated workspace tucked away for focus and flow. Whether you're leading meetings or chasing creative sparks, this office is your productivity sanctuary.
  • Your wellness routine, uninterrupted. This personal gym space offers the freedom to move, stretch, and sweat—without ever leaving home.
  • Two porches, endless possibilities. Greet the day from the front, unwind in the back, and enjoy outdoor living that’s as versatile as it is inviting.



What's included in SV-5501-J:

Cover Page
Floor Plan
Roof Plan

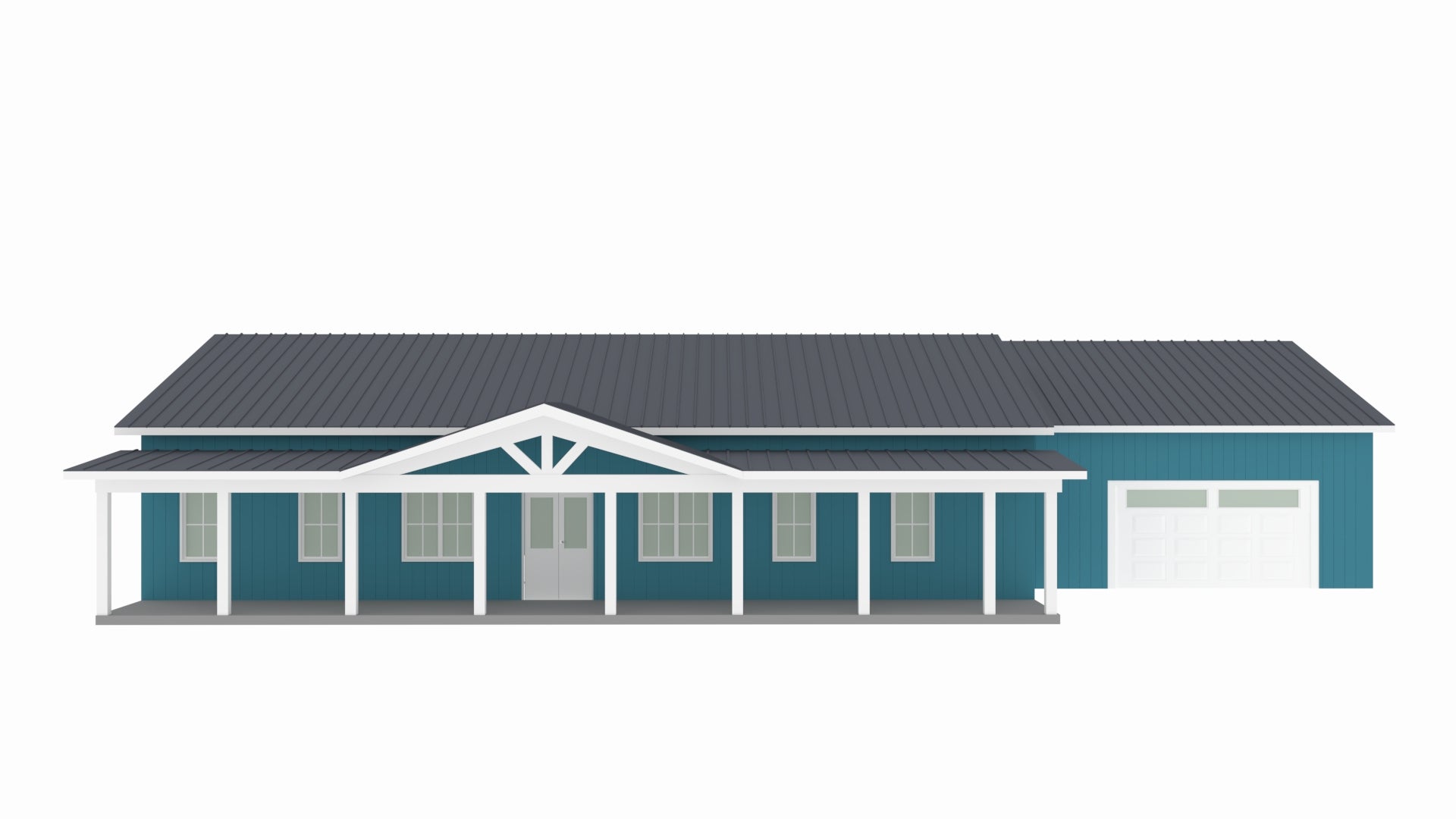

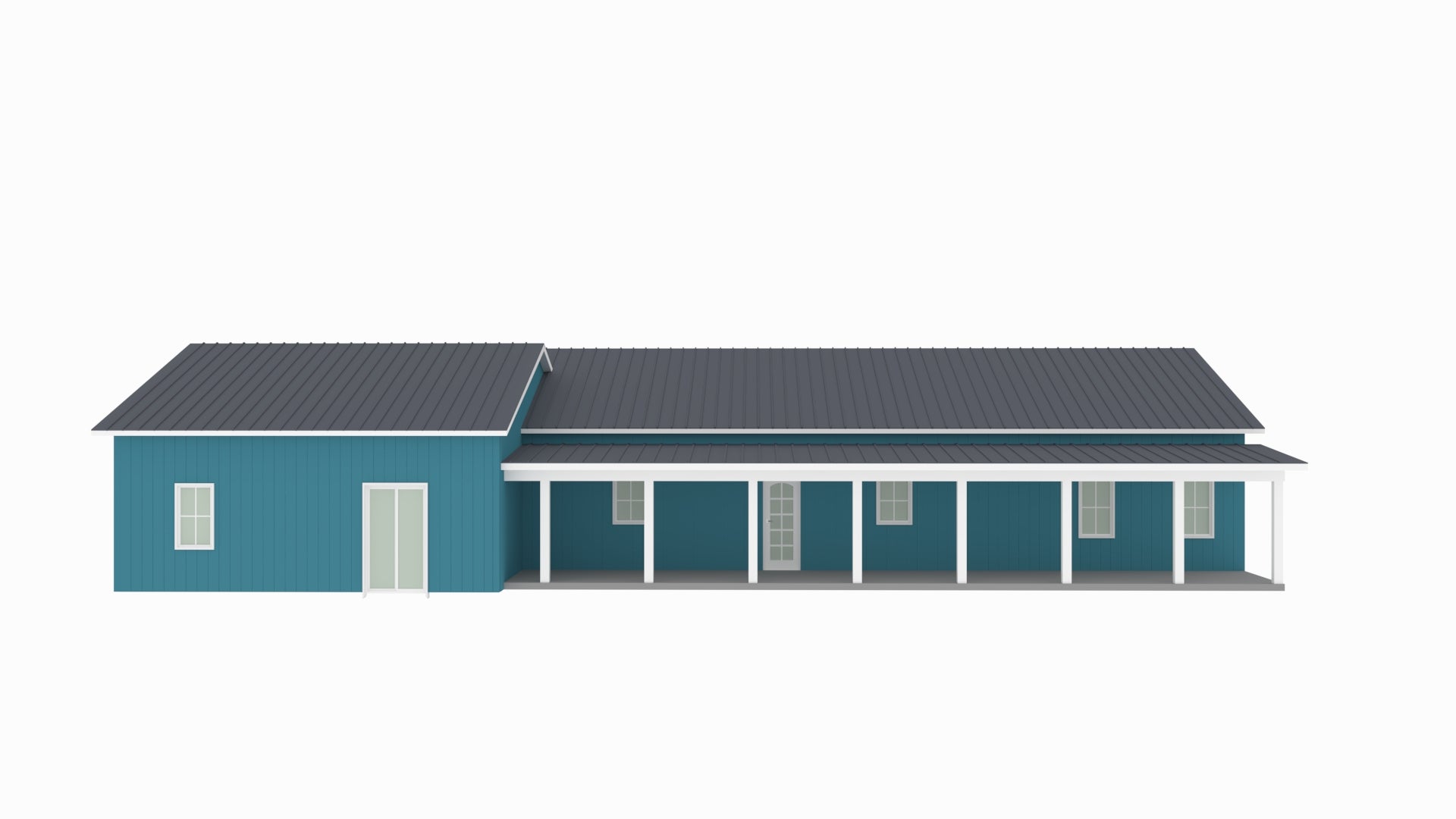

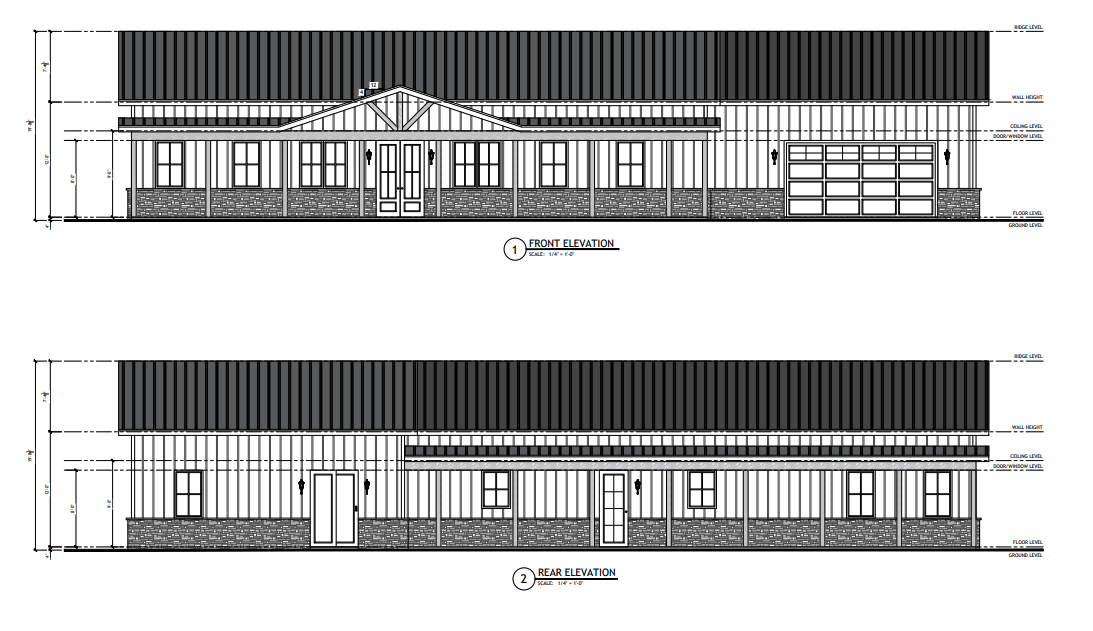

Front And Rear Elevation

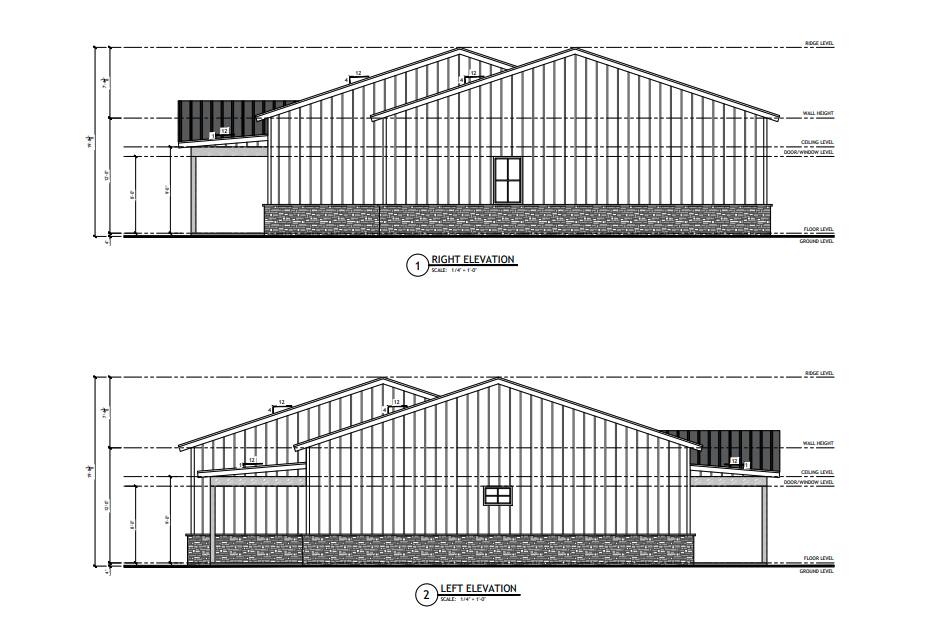

Right And Left Elevation
Electrical Plan
Plumbing Plan
Hvac Plan
Roof Framing Plan
Foundation Plan
Slab Detail
Porch Post Detail
Wall Section



For more barndominium floor plans, check out our complete collection of 3-bedroom barndominium floor plans.



Need to make changes? Submit a modification request using the button that says Modify This Plan (below the Add To Cart Button). We will get you a free price quote within 72 hours

Please note all square footage are estimates.

What's Included

Our house plan sets typically have the following details:

4 Elevations – Front, Back, Both Sides

Detailed Floor Plan Drawing

Electrical Plans with placements for HVAC

Plumbing Plans with Placements

Flooring Plan

Roof Plan

Foundation Plan

For more information on what's included and examples of what your plans will look like, go here -> https://barndominiumplans.com/pages/whats-included

Please Note: We work with many different draftspeople who work in many different ways.  It should be noted that their plans may contain different details.

What's Not Included

The following items are NOT included:

Architectural or Engineering Stamp. Our plans are engineering-ready! Can take them to a local engineer in your state.

Site Plan - We can provide this if needed for $300 additional.

Materials List - handled locally when required

Energy calculations - handled locally when required

Snow load calculations - handled locally when required

Delivery

This plan is available as a digital product or printed + shipped.

If you select digital, the plan will be delivered to you via email as a PDF file, no matter what time it is.

If you select printed + shipped, your order will ship in 24x36 format within 1 business day of your order.

We ship from the midwest in order to serve the entire country within 3-5 business days!

Return policy

All barndominium house plan purchases are FINAL. There are no exchanges or refunds due to the digital nature of the product. Please make sure that the plan you have selected is going to fit your needs.

💥 [COUNT] People are currently viewing this product.
Build
PDF (Single Build) $849.99

Additional Options

Still making a decision? Get an estimate of the construction cost for this house in your area.
Modify this Plan? Want to make adjustments? We’ll provide you with a free price estimate within 1 to 3 business days.

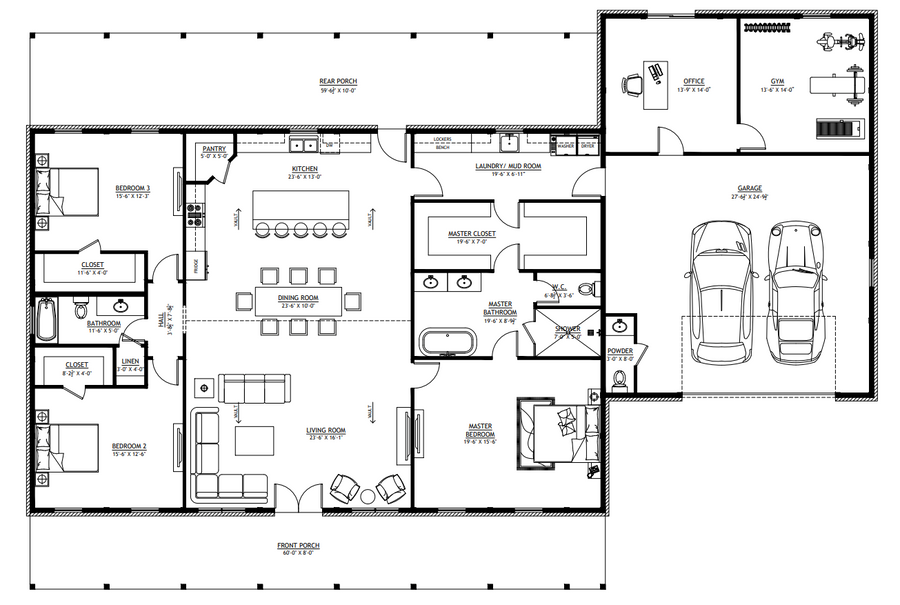

Floor Plan
