SS-30045 Barndominium House Plan

$1,349.99 USD
$1,349.99 USD
Sale Sold out

These plans are in final stages of production. Orders will be fulfilled within 5-7 days.

Add To Wishlist
1 2

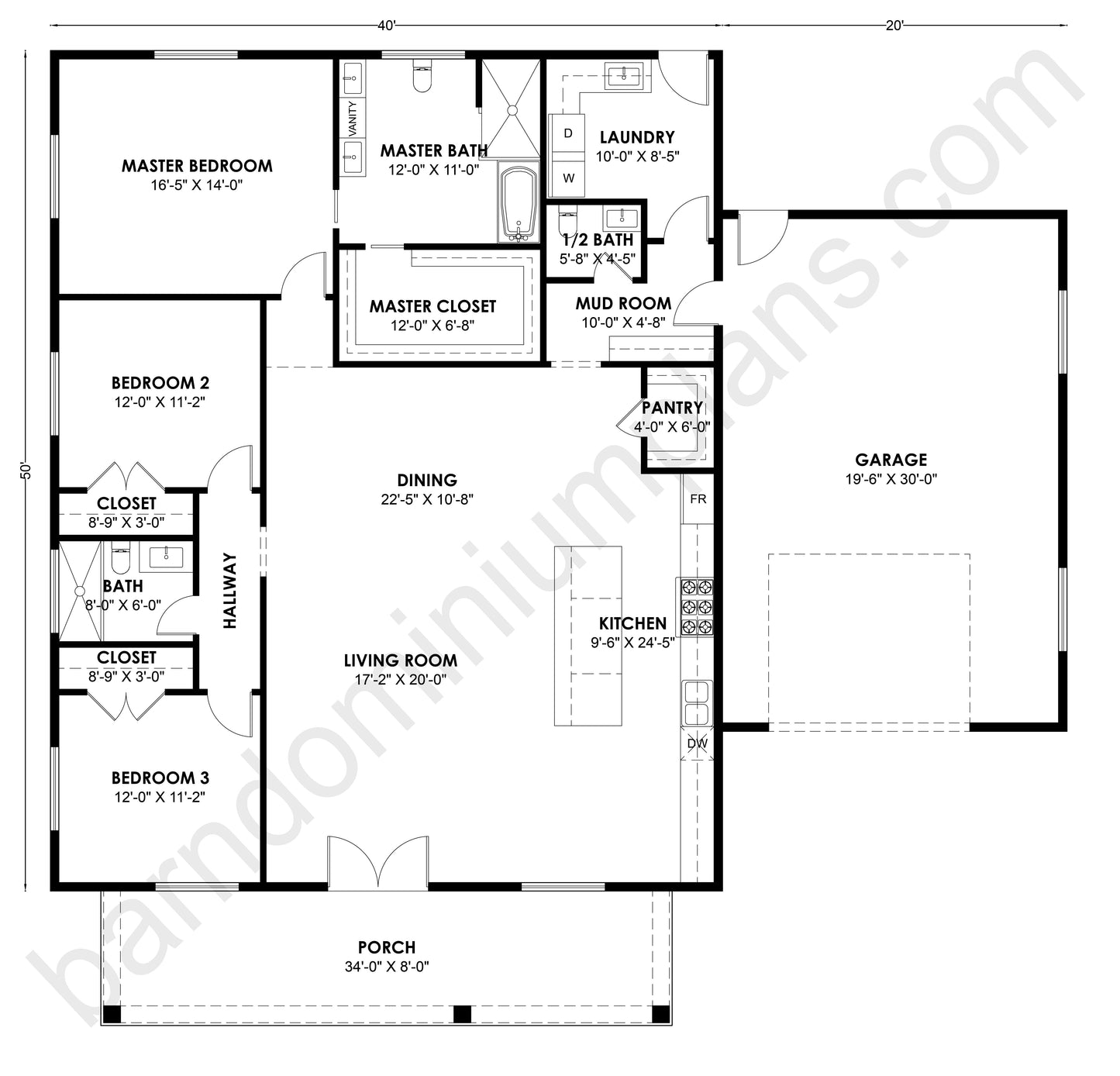

Floor Plan

DETAILS

SS-30045 Barndominium House Plan



About this barndominium house plan:

  • The 19'-6" x 30'-0" attached garage provides perfect shelter to a large vehicle while leaving ample rear space for a dedicated workshop or deep storage cabinets.
  • The center of the home features a spectacular 17'-2" x 20'-0" living room that flows continuously into an expansive 22'-5" x 10'-8" dining zone.
  • The primary suite is highly upgraded with an enormous 12'-0" x 6'-8" walk-in closet positioned directly off the master bathroom.
  • The left side of the layout hosts a quiet secondary hallway servicing two identical, spacious suites both equipped with 8'-9" x 3'-0" built-in wardrobes.
  • Includes the luxury master ensuite, a centralized 8'-0" x 6'-0" full shared bathroom, and a 5'-8" x 4'-5" powder room.
  • Arrivals from the garage pass through a side entry door into a 10'-0" x 4'-8" mudroom hallway, with immediate access to a 4'-0" x 6'-0" walk-in kitchen pantry.
  • Measuring 10'-0" x 8'-5", the dedicated laundry hub features side-by-side washer and dryer hookups, folding counter potential, and a direct exterior-access.

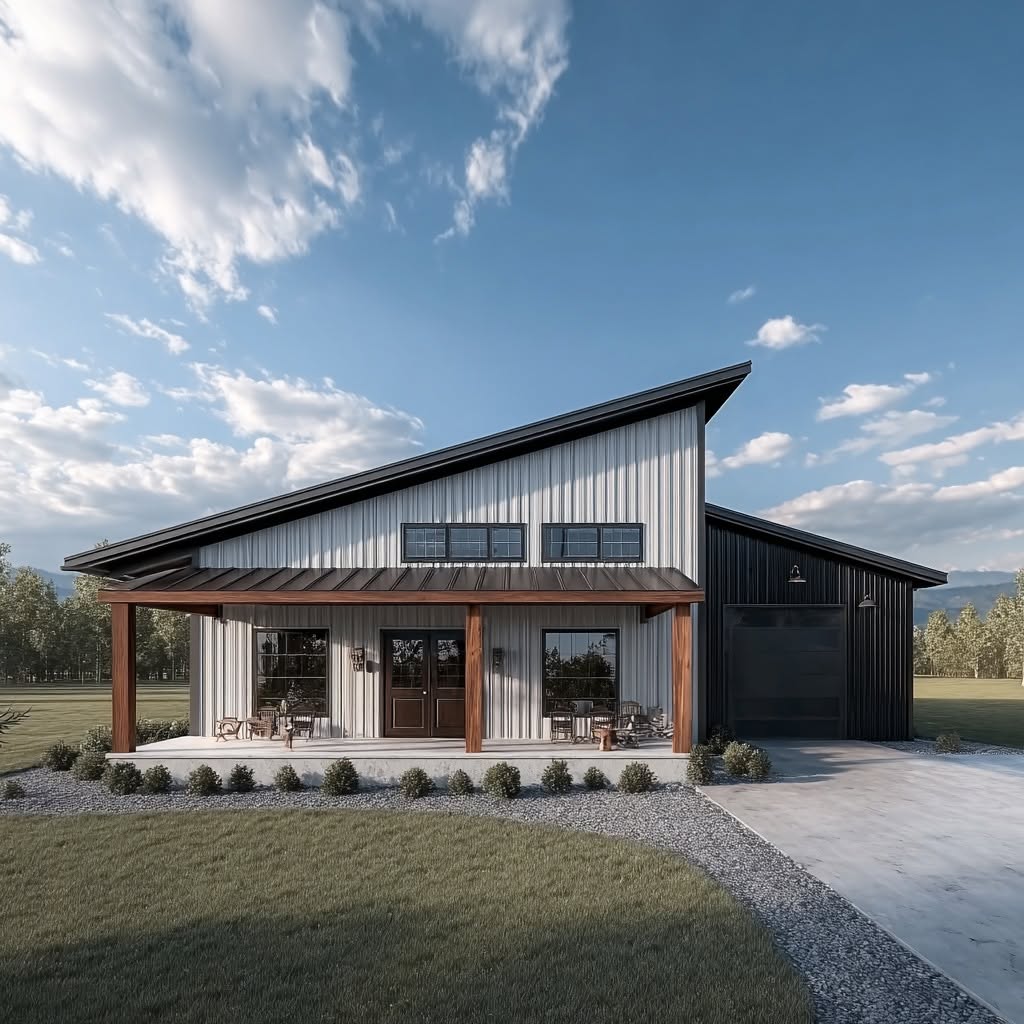

  • A deep 34'-0" x 8'-0" covered porch frames the primary double-door entryway, adding beautiful rustic curb appeal.



For more barndominium floor plans, check out our complete collection of 3-bedroom barndominium floor plans.



Need to make changes? Submit a modification request using the button that says Modify This Plan. We will get you a free price quote within 72 hours.

What's Included In These Plans

Our house plan sets have the following details:

4 Elevations – Front, Back, Both Sides

Detailed Floor Plan Drawing

Electrical Plans

Plumbing Plans

Wall Section

Roof Plan

Roof Framing Plan

Foundation Plan

For more information on what's included and examples of what your plans will look like, go here -> https://barndominiumplans.com/pages/whats-included

What's Not Included

The following items are NOT included:

Architectural or Engineering Stamp - handled locally if required. We can help you find a structural engineer locally

Site Plan - handled locally when required

Energy calculations - handled locally when required

Snow load calculations - handled locally when required

Delivery

This plan is available as a digital product or printed + shipped.

If you select digital, the plan will be delivered to you via email as a PDF file.

If you select printed + shipped, your order will ship in 24x36 format within 1 business day of your order.

We ship from the midwest in order to serve the entire country within 3-5 business days!

Return policy

All barndominium house plan purchases are FINAL. There are no exchanges or refunds due to the digital nature of the product. Please make sure that the plan you have selected is going to fit your needs.

🔥 [COUNT] shoppers are looking at this plan right now
PDF (Single Build) $1,349.99
PDF (Single Build)

Additional Options

Modifications
Wondering Cost To Build? Get an estimate of the construction cost for this house in your area.
Modify this plan? Want to make adjustments? We’ll provide you with a free price estimate within 1 to 3 business days.

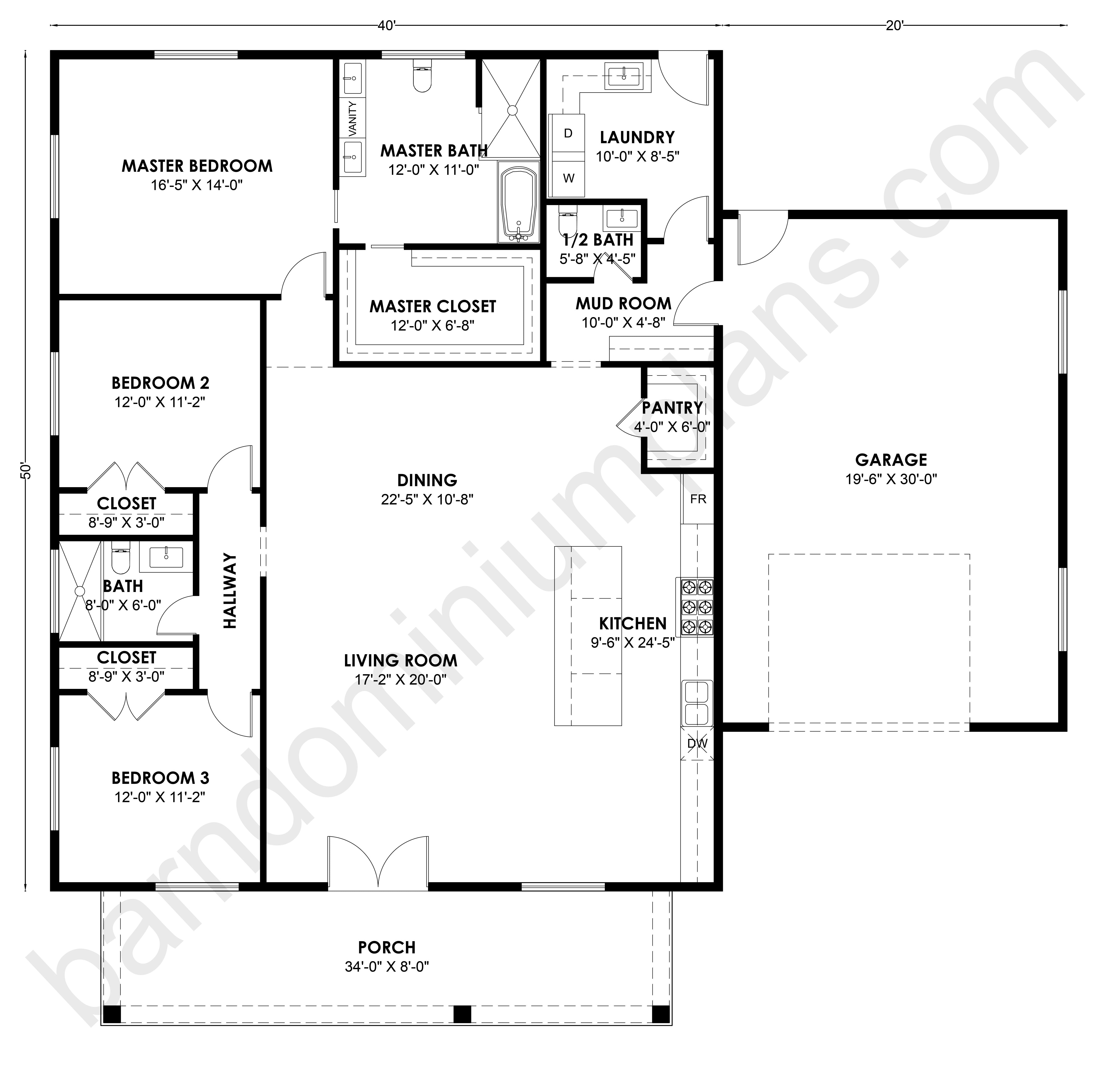

Floor Plan
