PL-71101-A Alejandra Barndominium House Plan

$1,349.99 USD
$1,349.99 USD
Sale Sold out
Add To Wishlist
1 11
Bedrooms 3 Bedrooms
Floors 1 Floors
Full Baths 4 Full Baths
Total Heated Area 3,729 Total Heated Area

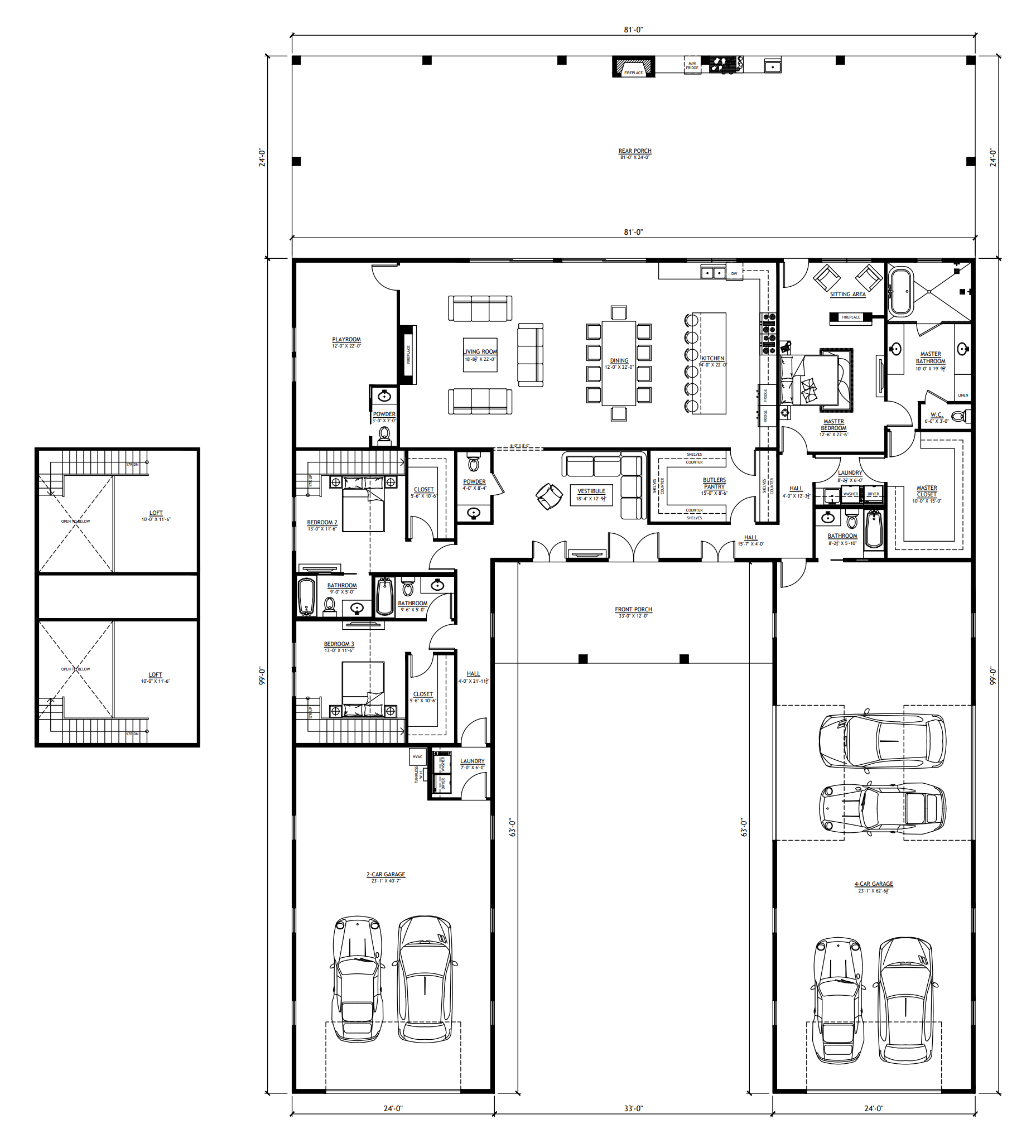

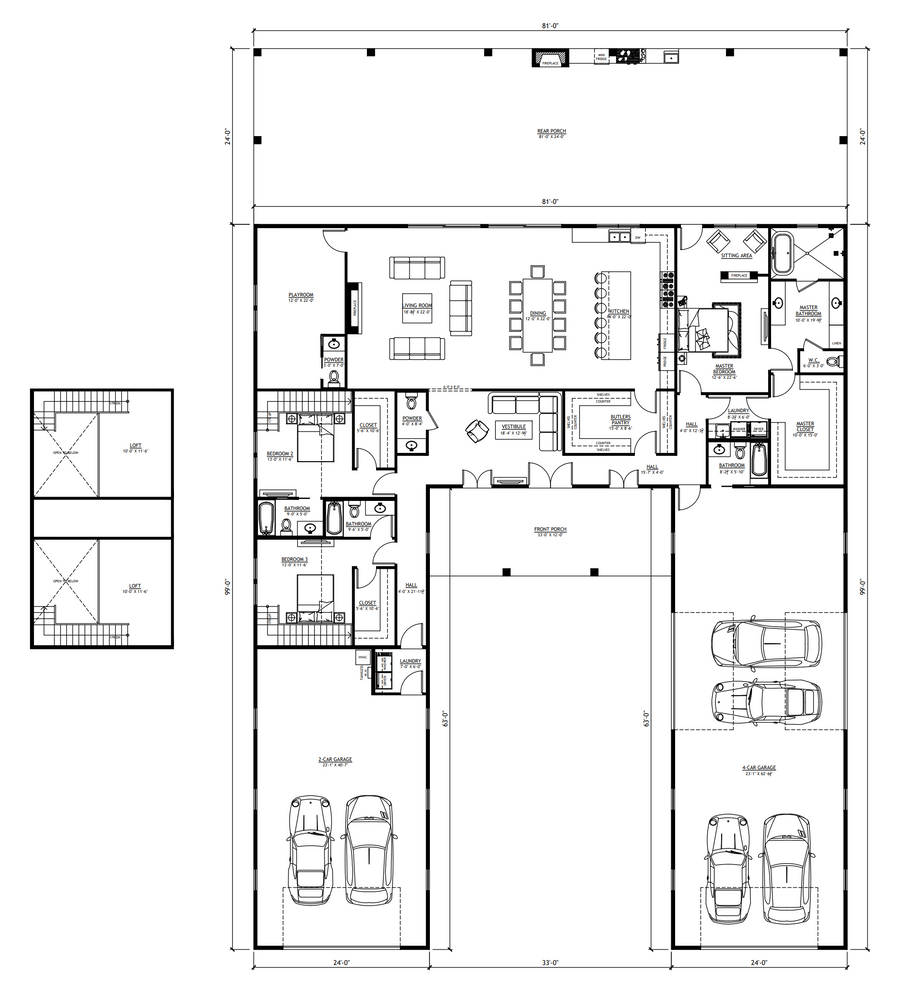

Floor Plan

DETAILS

HEATED SQ FT

First Floor:

3,443 SF

Second Floor:

286 SF

Total Heated Sq Ft:

3,729 SF

UNHEATED SQ FT

Total Unheated Area:

Garages 1,003 SF, Porches 1,368 SF, Loft 286 SF = TOTAL 2,657 SF

Carport:

None

Bedrooms:

3

Full Baths:

4

Floors:

1

Garage Size:

Two Garages: 1,003 Total SF

Width:

81'

Depth:

123'

Height:

30'-3 1/4"

Foundation:

Concrete Slab

Main Roof Pitch:

7:12

Construction Type:

Stick Frame

CEILING HEIGHTS

First Floor:

9'

PL-71101-A Alejandra Barndominium House Plan

Ā

About this barndominium house plan:

  • 3443 Heated Square Feet
  • 3 Bedrooms
  • 4.2 Bathrooms
  • Single Story
  • Multi-generational living
  • Open concept
  • Loft
  • Vestibule
  • Playroom
  • Butler's Pantry
  • Outdoor Fireplace
  • Outdoor Kitchen
  • Front & Rear Porch
  • 1003 Total Sq Ft Garage

Ā

  • This 3,729 SF heated layout offers grand-scale living with specialized zones, including two distinct bedroom wings for maximum privacy and comfort.
  • Features a primary master sanctuary with a dedicated sitting area and fireplace, alongside two additional spacious bedrooms, each equipped with its own private ensuite bathroom and walk-in closet.
  • The home is incredibly well-appointed with 4 full bathrooms and 2 powder rooms, ensuring convenience for residents and guests on both levels.
  • Premium culinary space features a massive island and is supported by a large butler's pantry with dual counters and extensive shelving.
  • Includes a specialized playroom off the main living area, perfect for children or a customized hobby studio.
  • A central vestibule creates a formal and inviting transition from the front porch into the heart of the home.

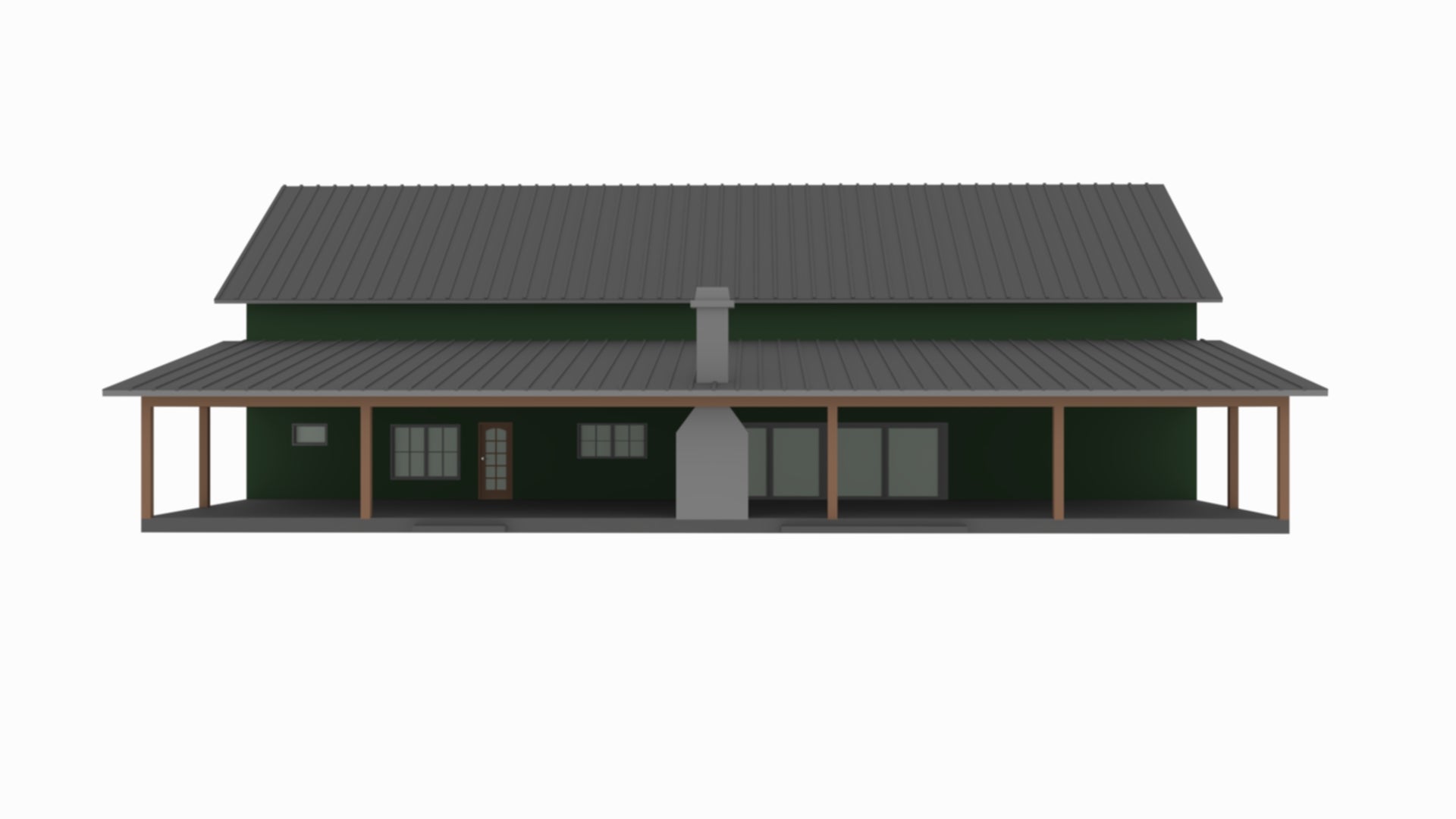

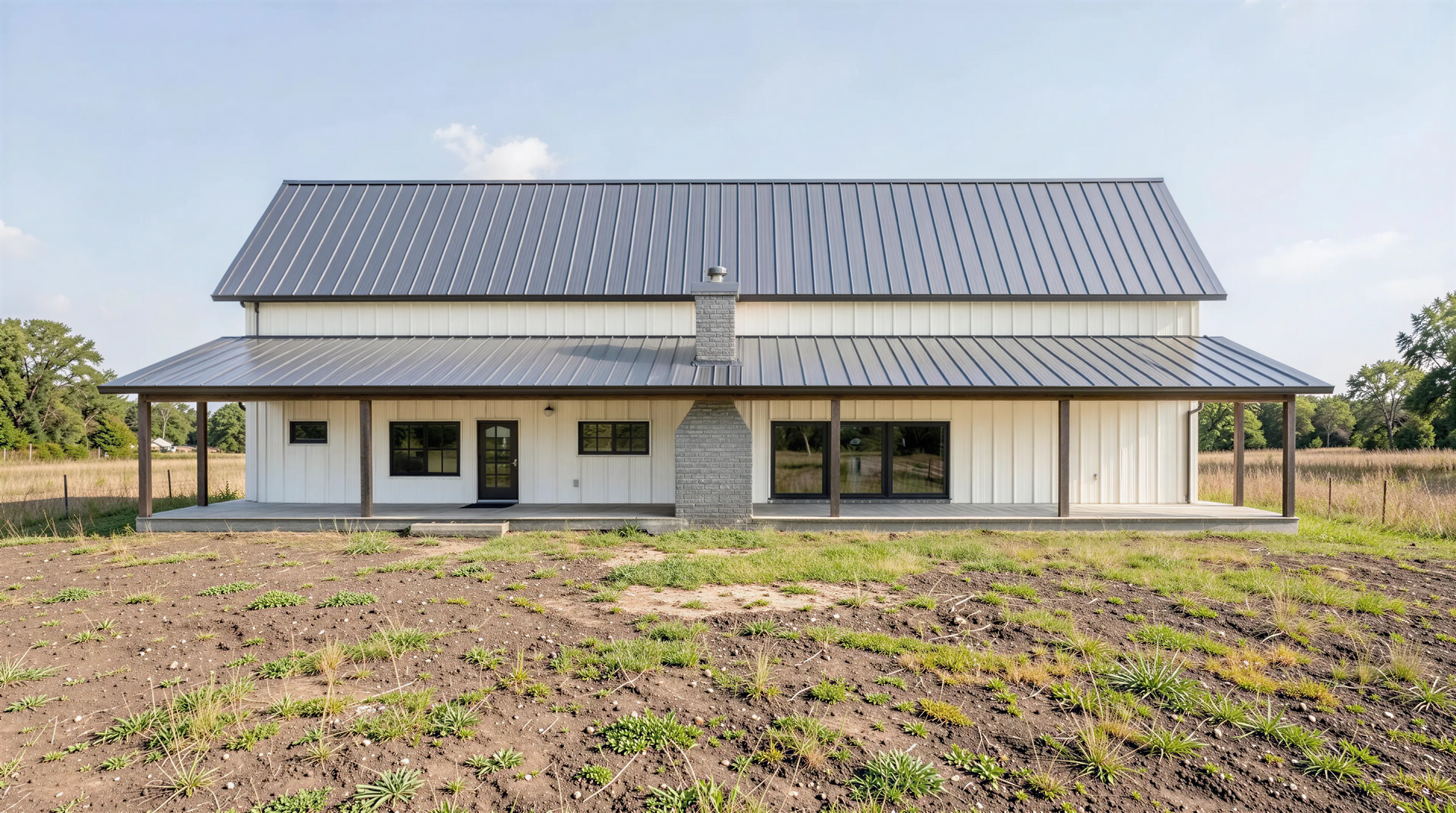

  • The massive rear porch is a true outdoor living room, featuring a built-in outdoor kitchen and a dedicated outdoor fireplace.

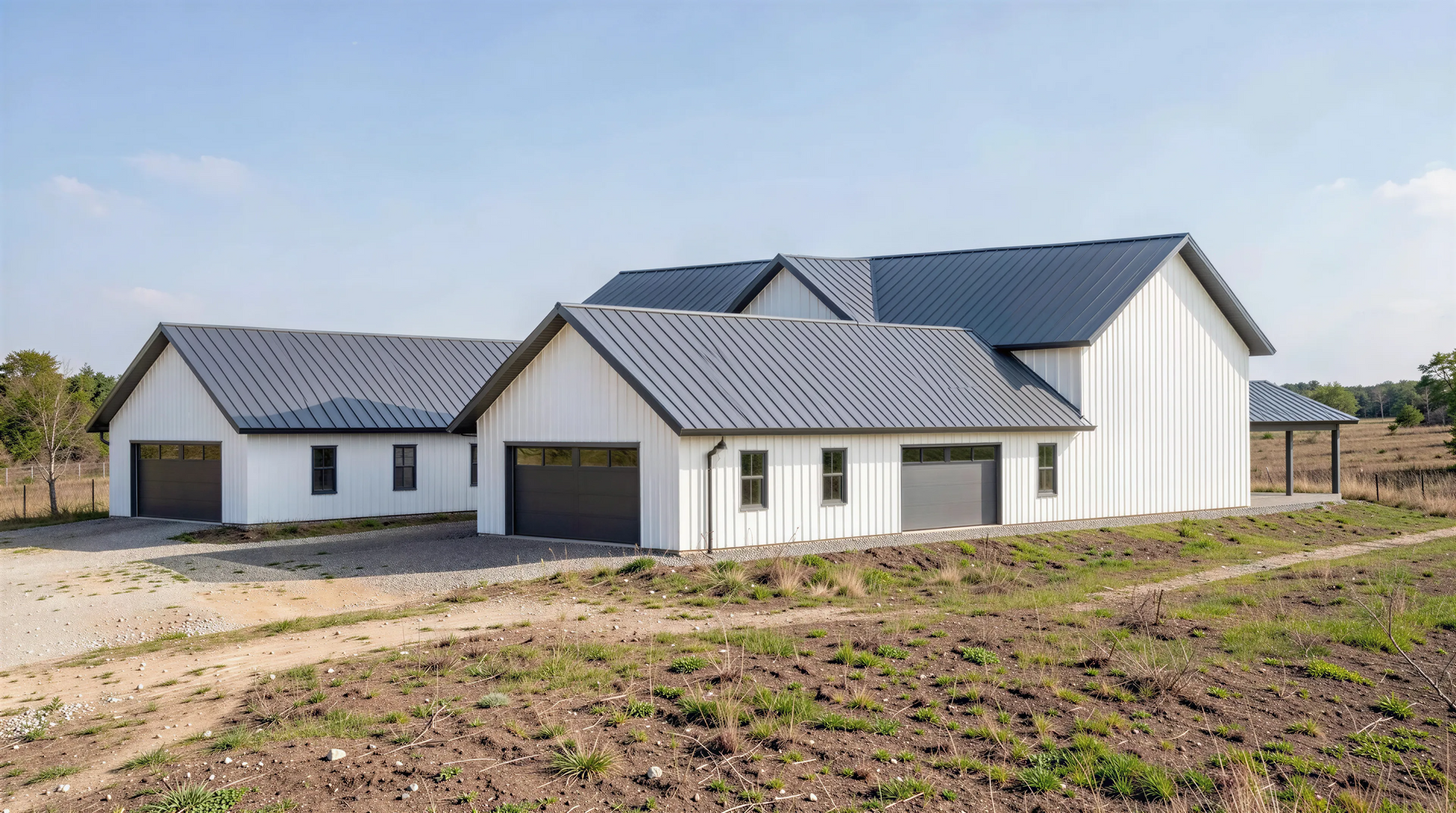

  • Two separate garage wings provide a combined 1,003 SF of space, including a 2-car garage on one side and a larger 4-car garage wing on the other.
  • Features two separate laundry areas and multiple walk-in closets to keep the expansive home organized.

Ā

Ā

What's included in PL-71101-A:

Cover PageĀ
Main Floor PlanĀ
Loft Floor Plan
Roof PlanĀ
Elevations
Main Floor Electrical PlanĀ
Loft Floor Electrical PlanĀ
Main Floor Plumbing PlanĀ
Main Floor HVAC PlanĀ
Loft Floor HVAC PlanĀ
Roof Framing PlanĀ
Foundation PlanĀ
Foundation DetailĀ
Interior Bearing FootingĀ
C-Typical Column DetailĀ
Wall Section

Ā

For more barndominium floor plans, check out our complete collection ofĀ 3-bedroom barndominium floor plans.

Ā

Need to make changes? Submit a modification request using the button that saysĀ Modify This Plan. We will get you a free price quote within 72 hours.

Ā

What's Typically Included

THE SPECIFC DETAILS OF WHAT'S INCLUDED ON THESE PLANS IS CONTAINED IN THE PRODUCT DESCRIPTION. PLEASE SCROLL UP AND YOU WILL FIND IT UNDER "WHAT'S INCLUDED"

Our house plan sets typically have the following details:

4 Elevations ā€“ Front, Back, Both Sides

Detailed Floor Plan Drawing

Electrical Plans with placements for HVAC

Plumbing Plans with Placements

Flooring Plan

Roof Plan

Foundation Plan

For more information on what's included and examples of what your plans will look like, go here -> https://barndominiumplans.com/pages/whats-included

Please Note:Ā We work with many different draftspeople who work in many different ways.Ā  ItĀ should be noted that their plans may contain different details.Ā THE SPECIFC DETAILS OF WHAT'S INCLUDED ON THESE PLANS IS CONTAINED IN THE PRODUCT DESCRIPTION. PLEASE SCROLL UP AND YOU WILL FIND IT UNDER "WHAT'S INCLUDED"

What's Not Included

The following items areĀ NOTĀ included:

Architectural or Engineering Stamp. Our plans are engineering-ready! Can take to a local structural engineer, but we are not engineers ourselves.

Metal Truss Plans - These are provided by the truss manufacturer

Wind and Snow Loads - Handled locally!

Delivery

This plan is available as a digital product or printed + shipped.

If you select digital, the plan will be delivered to you via email as a PDF file, no matter what time it is.

If you select printed + shipped, your order will ship in 24x36 format within 1 business day of your order.

We ship from the midwest in order to serve the entire country within 3-5 business days!

Return policy

All barndominium house plan purchases are FINAL. There are no exchanges or refunds due to the digital nature of the product. Please make sure that the plan you have selected is going to fit your needs.

Wondering about modifications, and making sure you like the changes? While all plan sales featuring modifications are also FINAL, here's a bit about how the modification process works:

After your order is placed, our team gets started on your modifications.

First, we send over an initial floor plan draft to make sure the modifications are correct. Any "clarifying changes" are included at no additional cost. Things like "Oh I meant for the door to swing this way, not that way" or "kitchen appliances should be arranged in XYZ way". Any major changes to the plan like adding a bedroom, a second story, or a different foundation are an additional fee. 99% of our customers do not incur an additional fee.

After the floor plan is confirmed, we send over the floor plans + elevations. We do the same process, and once you're good with the elevations, we finish up your final plans.
