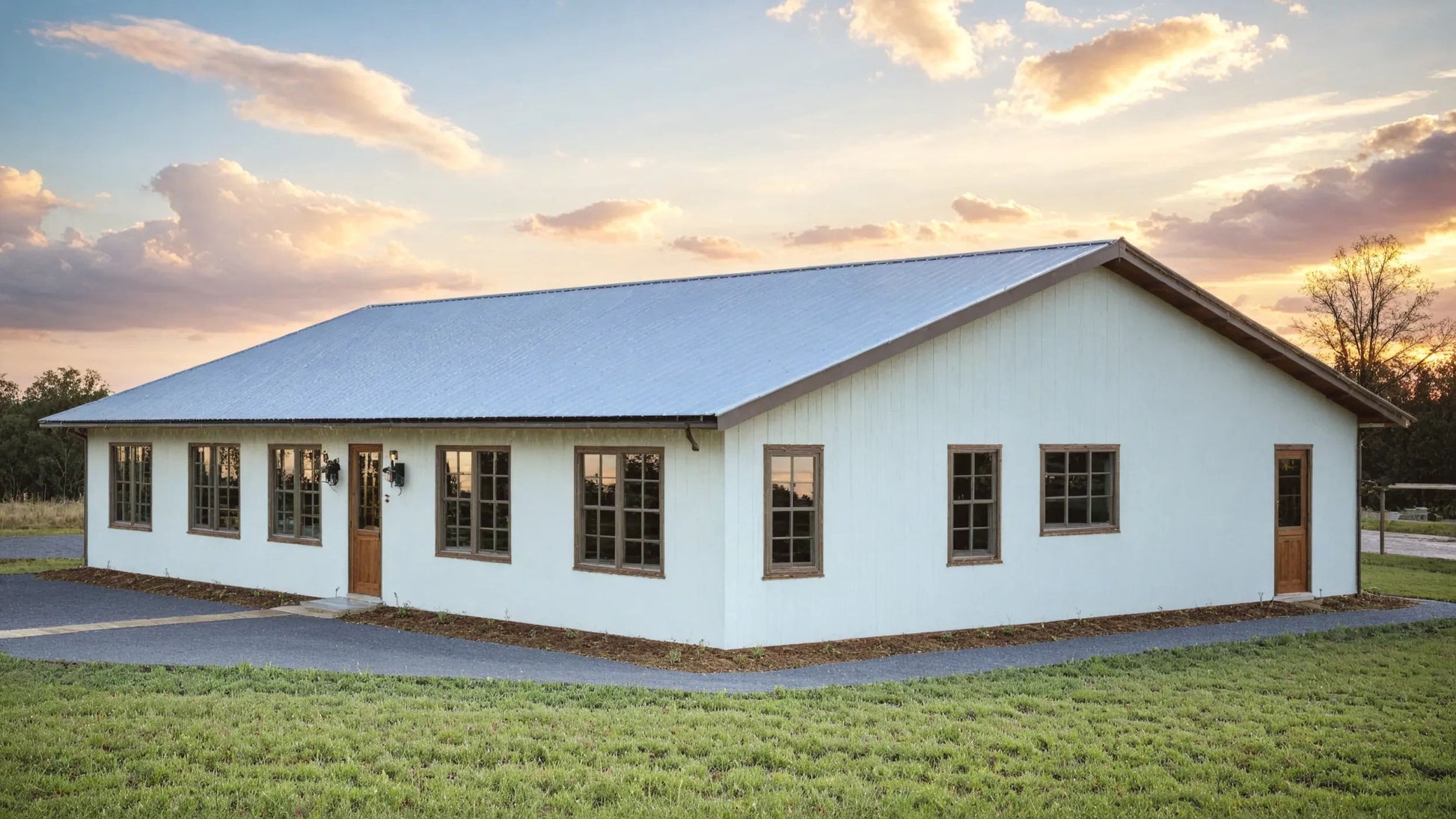

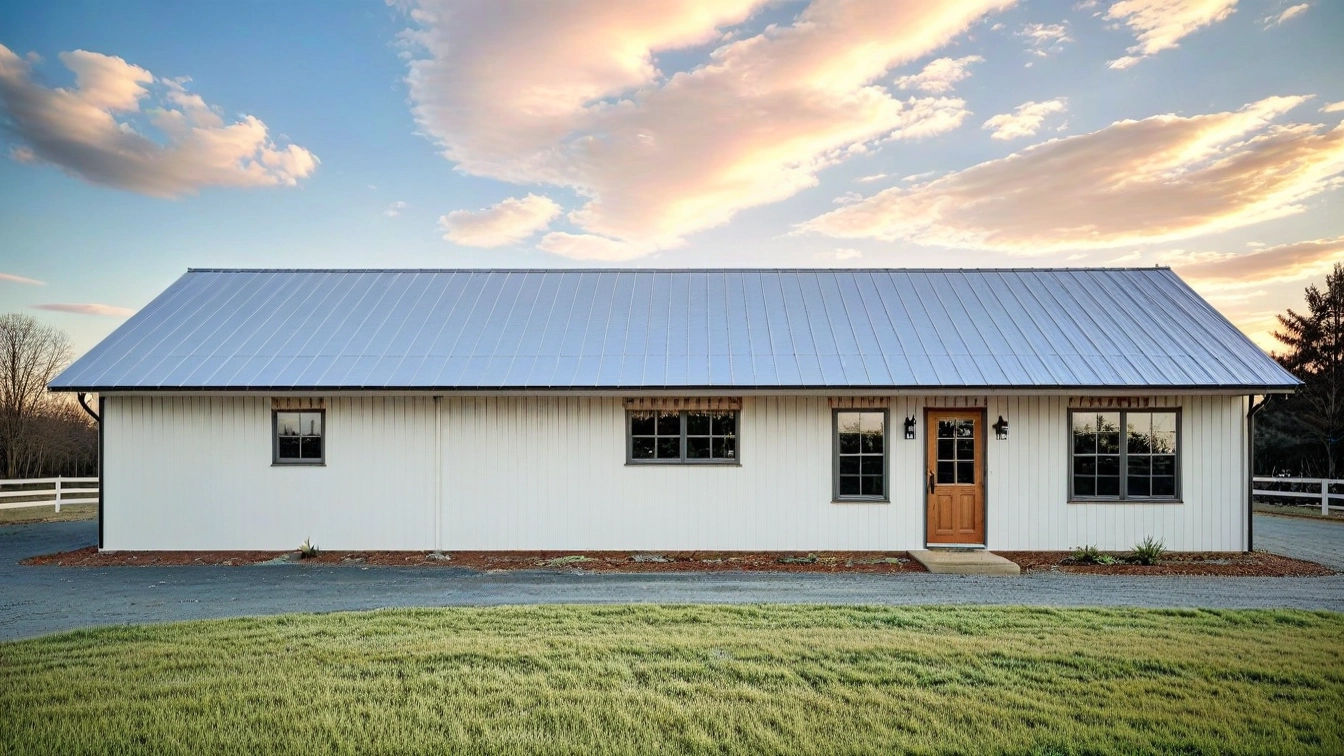

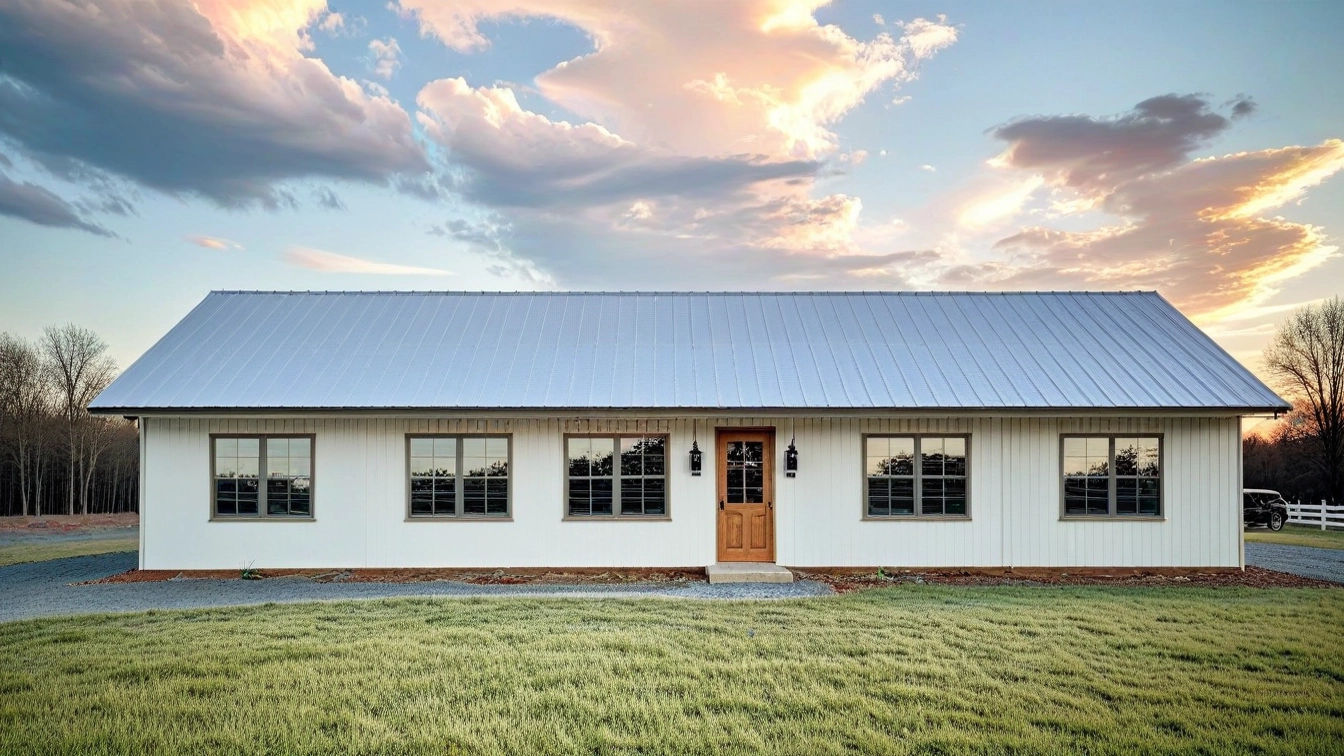

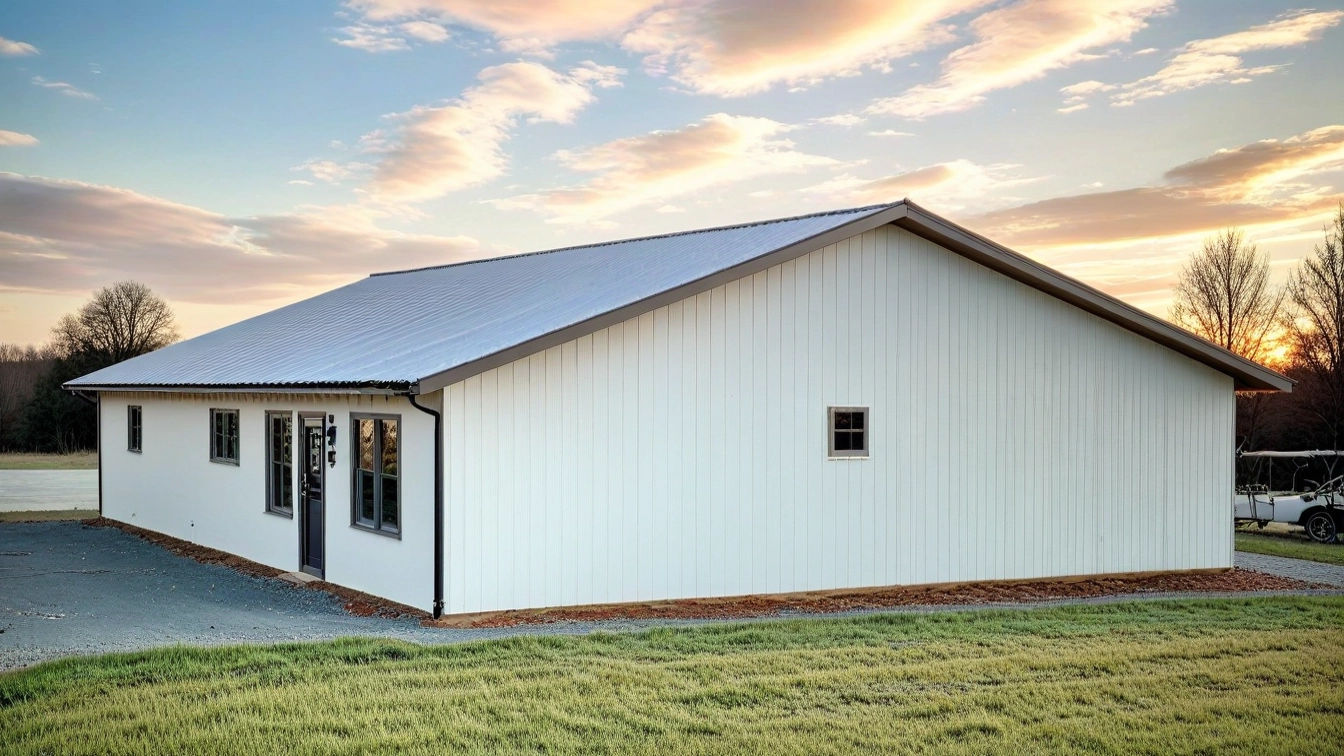

PL-64026 Monica Barndominium House Plan

$849.99 USD
$849.99 USD
Sale Sold out
Add To Wishlist
1 9

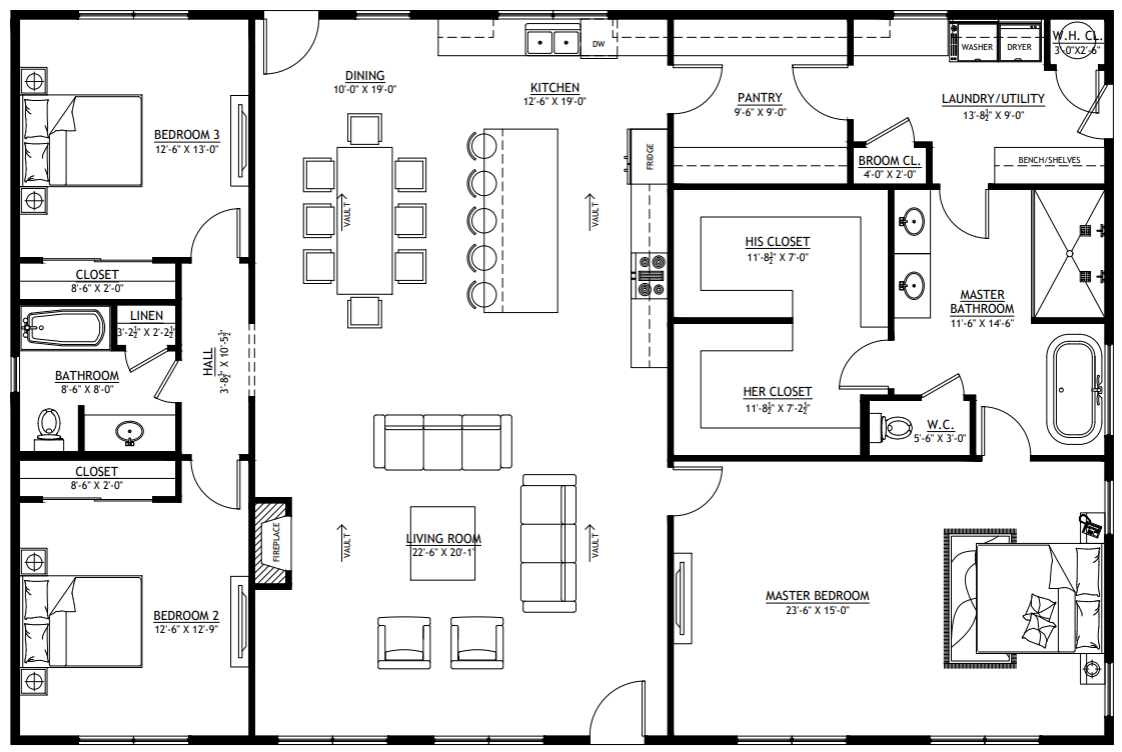

Floor Plan

DETAILS

HEATED SQ FT

First Floor:

1,600 SF

Total Heated Sq Ft:

1,600 SF

UNHEATED SQ FT

Total Unheated Area:

Front Porch 156 SF, Rear Porch 298 SF = TOTAL 454 SF

Carport:

None

Bedrooms:

3

Full Baths:

2

Floors:

1

Width:

70'

Depth:

42'

Height:

14'

Foundation:

Concrete Slab

Main Roof Pitch:

4/12 on the main part of the house and 9/12 on the gable.

Exterior Framing:

Stick-Frame

CEILING HEIGHTS

First Floor:

9'

PL-64026 Monica Barndominium House Plan

About this barndominium house plan:

  • 2,400 Heated Sq Ft
  • 3 Bedrooms
  • 2.5 Bathrooms
  • One Story
  • Open concept
  • Foyer
  • Utility room
  • Bonus room
  • Mudroom
  • Front porch & rear porch

  • This barndominium floor plan features an open-concept living space that seamlessly connects the living room, dining area, and kitchen, making it perfect for entertaining.
  • The kitchen is a chef's dream with a large island and a walk-in pantry for ample storage.
  • The master suite is a private retreat, offering a spacious bedroom, two separate walk-in closets, and a large master bathroom.
  • With two additional bedrooms on the opposite side of the home, this layout provides privacy for the main living areas and the bedrooms.
  • The inclusion of a dedicated laundry/utility room adds practicality and convenience to this functional design.

What's included in PL-64026:

Cover Page
Detailed Floor Plan
Roof Plan

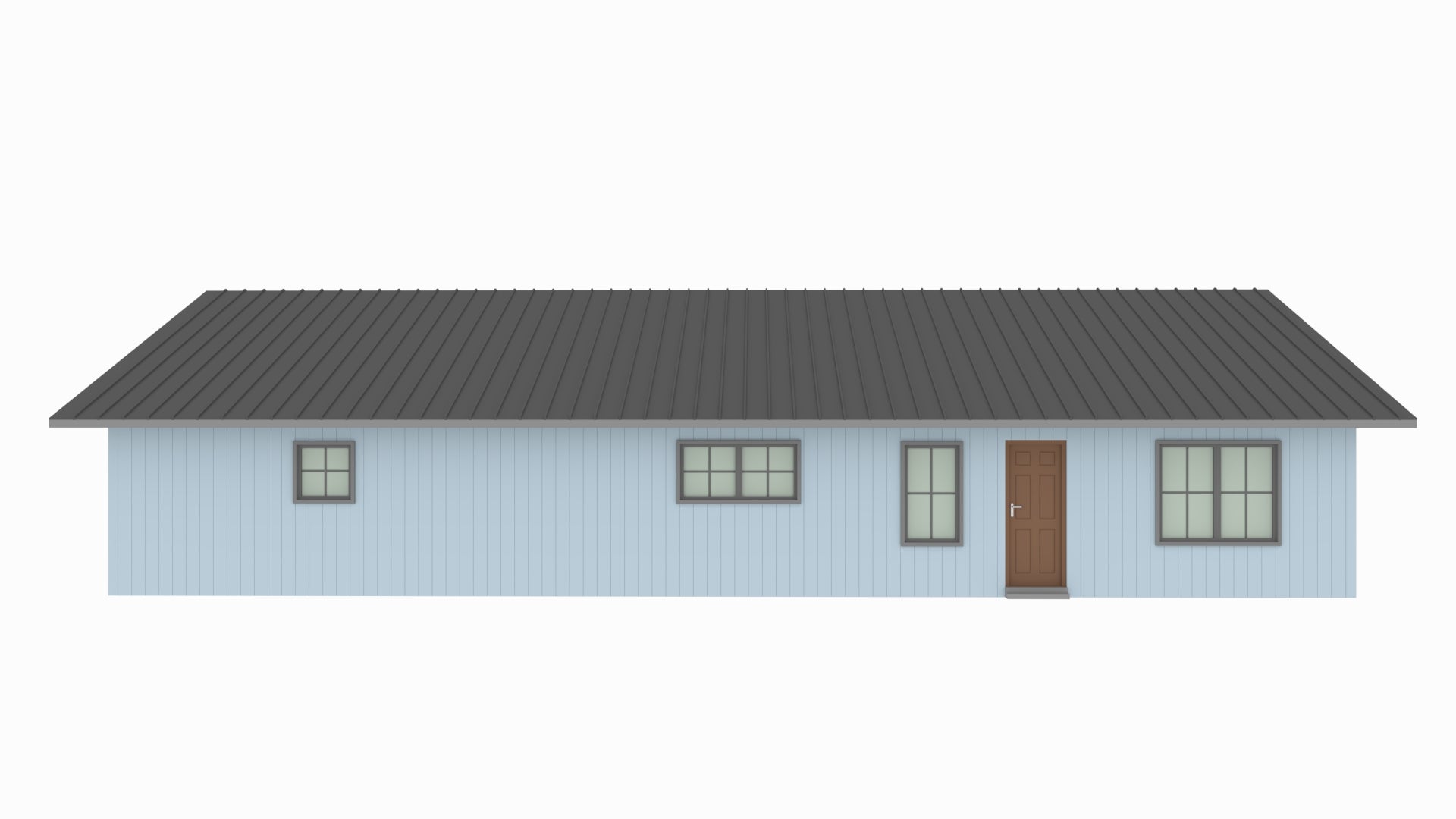

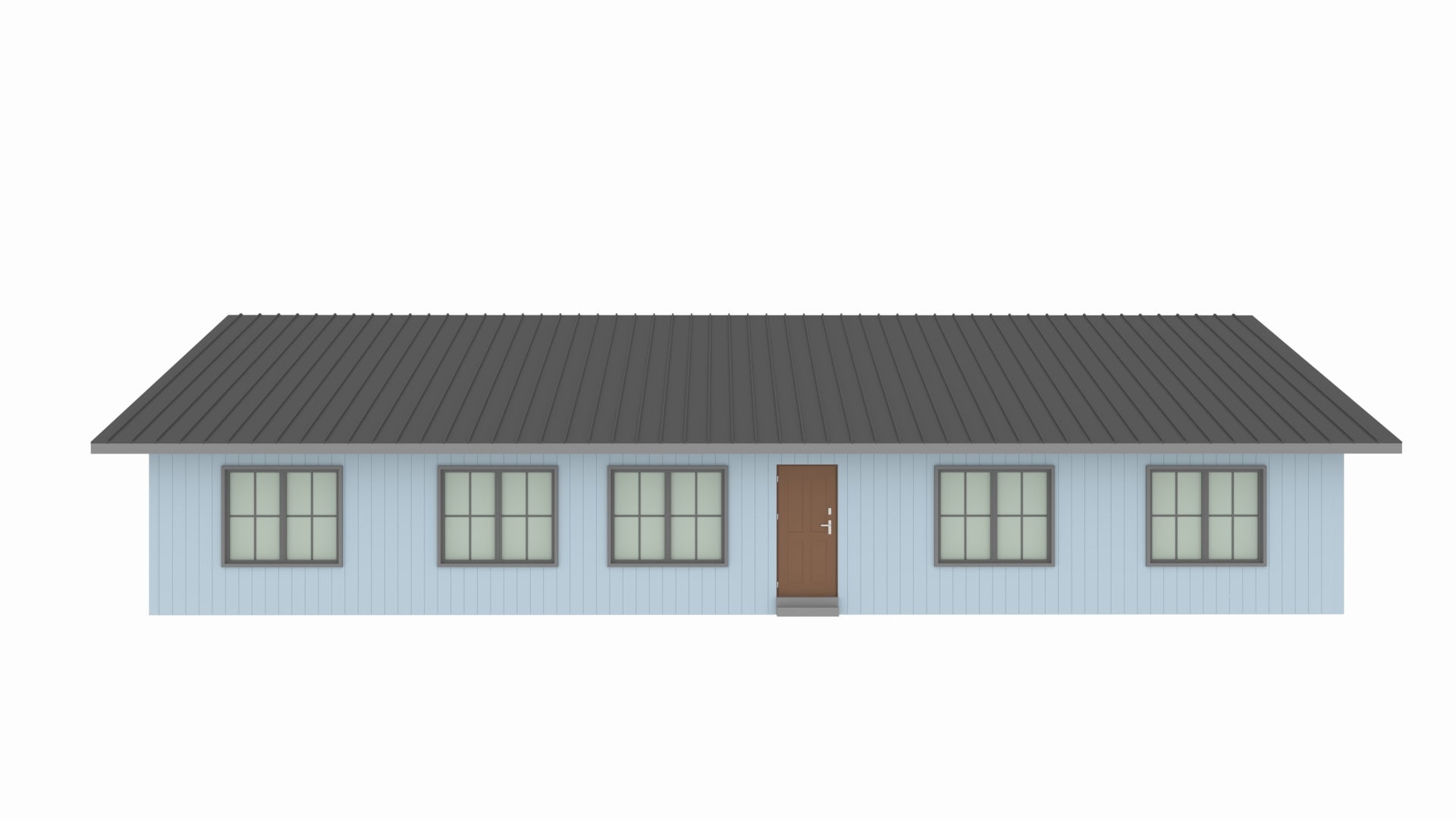

Four Elevations - Front, Back, Left Side, Right Side
Electrical Plan
Plumbing Plan
HVAC Plan
Roof Framing Plan
Floor Wall Framing Plan
Ceiling Joist Plan
Foundation Plan
Foundation Detail
Interior Bearing Footing
C-Typical Column Detail
Wall Section
Section A-A And Section B-B
Typical Framing Details

For more barndominium floor plans, check out our complete collection of 3-bedroom barndominium floor plans.

Need to make changes? Submit a modification request using the button that says Modify This Plan (below the Add To Cart Button). We will get you a free price quote within 72 hours

Please note all square footage are estimates.

What's Included

Our house plan sets typically have the following details:

4 Elevations – Front, Back, Both Sides

Detailed Floor Plan Drawing

Electrical Plans with placements for HVAC

Plumbing Plans with Placements

Flooring Plan

Roof Plan

Foundation Plan

For more information on what's included and examples of what your plans will look like, go here -> https://barndominiumplans.com/pages/whats-included

Please Note: We work with many different draftspeople who work in many different ways.  It should be noted that their plans may contain different details.

What's Not Included

The following items are NOT included:

Architectural or Engineering Stamp. Our plans are engineering-ready! Can take them to a local engineer in your state.

Site Plan - We can provide this if needed for $300 additional.

Materials List - handled locally when required

Energy calculations - handled locally when required

Snow load calculations - handled locally when required

Delivery

This plan is available as a digital product or printed + shipped.

If you select digital, the plan will be delivered to you via email as a PDF file, no matter what time it is.

If you select printed + shipped, your order will ship in 24x36 format within 1 business day of your order.

We ship from the midwest in order to serve the entire country within 3-5 business days!

Return policy

All barndominium house plan purchases are FINAL. There are no exchanges or refunds due to the digital nature of the product. Please make sure that the plan you have selected is going to fit your needs.

💥 [COUNT] People are currently viewing this product.
Build
PDF (Single Build) $849.99
PDF (Single Build)

Modifications

Additional Options
Still making a decision? Get an estimate of the construction cost for this house in your area.
Modify this Plan? Want to make adjustments? We’ll provide you with a free price estimate within 1 to 3 business days.

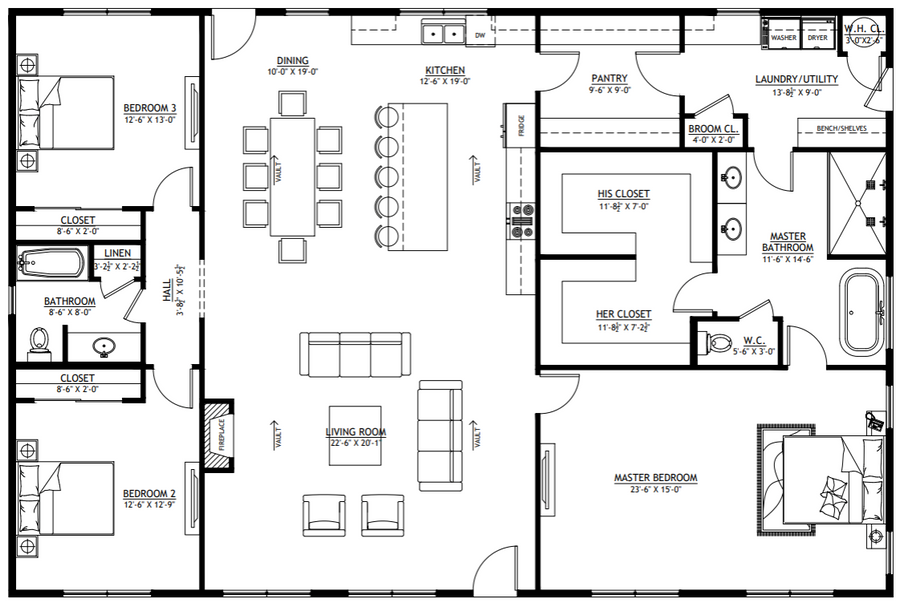

Floor Plan
