PL-64016 Ellis Barndominium House Plan

$849.99 USD
$849.99 USD
Sale Sold out
1 10

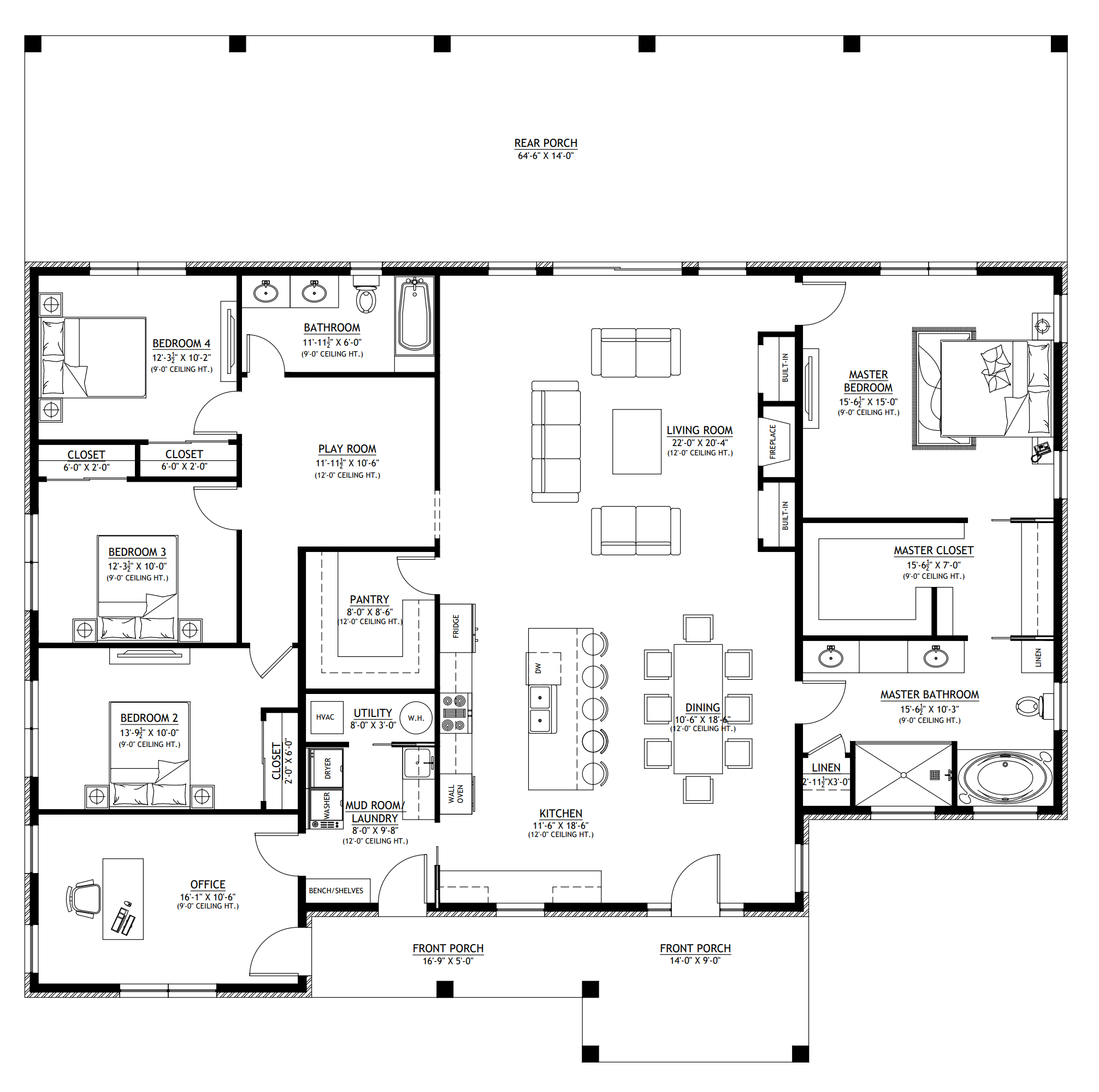

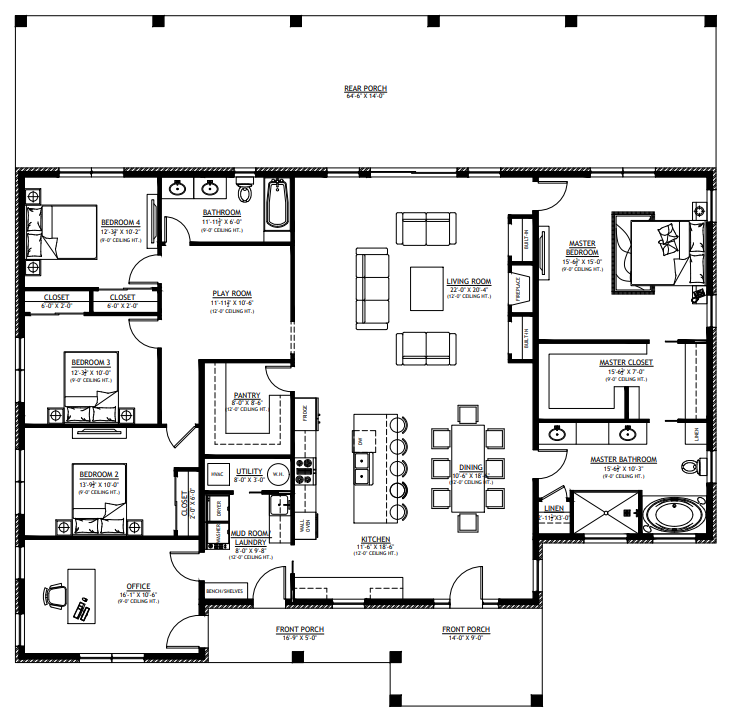

Floor Plan

DETAILS

HEATED SQ FT

First Floor:

2,605 SF

Second Floor:

None

Total Heated Sq Ft:

2,605 SF

UNHEATED SQ FT

Total Unheated Area:

1,113 SF

Carport:

None

Bedrooms:

4

Full Baths:

2

Floors:

1

Garage Size:

63'-6"

Width:

64'-6"

Height:

23'-1 1/2"

Foundation:

Concrete slab

Main Roof Pitch:

5:12

Exterior Framing:

Metal shell

CEILING HEIGHTS

First Floor:

2,605 SF

PL-64016 Ellis Barndominium House Plan



About this barndominium house plan:

  • 2605 Heated Sq Ft
  • 4 Bedrooms
  • 2 Bathrooms
  • Laundry room/mudroom
  • Office
  • Utility room
  • Playroom
  • Open concept
  • Single story
  • Front and back porch



  • A well-balanced 2605 heated sq ft designed for year-round comfort, offering plenty of room to live, work, and unwind.
  • Spacious, inviting, and thoughtfully four bedrooms designed for relaxation, privacy, and personal style.
  • 2 bathrooms that blend of function and convenience, with well-appointed spaces to start and end the day in comfort.
  • Practical buffer between the outdoors and indoors, the laundry room/mudroom keeps everyday routines smooth and organized.
  • Dedicated workspace built for productivity, creativity, and quiet focus.
  • Smartly designed utility room for storage and home essentials, keeping everything running efficiently.
  • Bright and playful space for creativity, fun, and relaxation, the play room is perfect for kids or an entertainment zone.
  • Welcoming outdoor extensions, ideal for morning coffee, casual gatherings, or simply enjoying the fresh air.





What's Included In PL-64016:

Cover Sheet
Detailed Floor Plan Dimensional

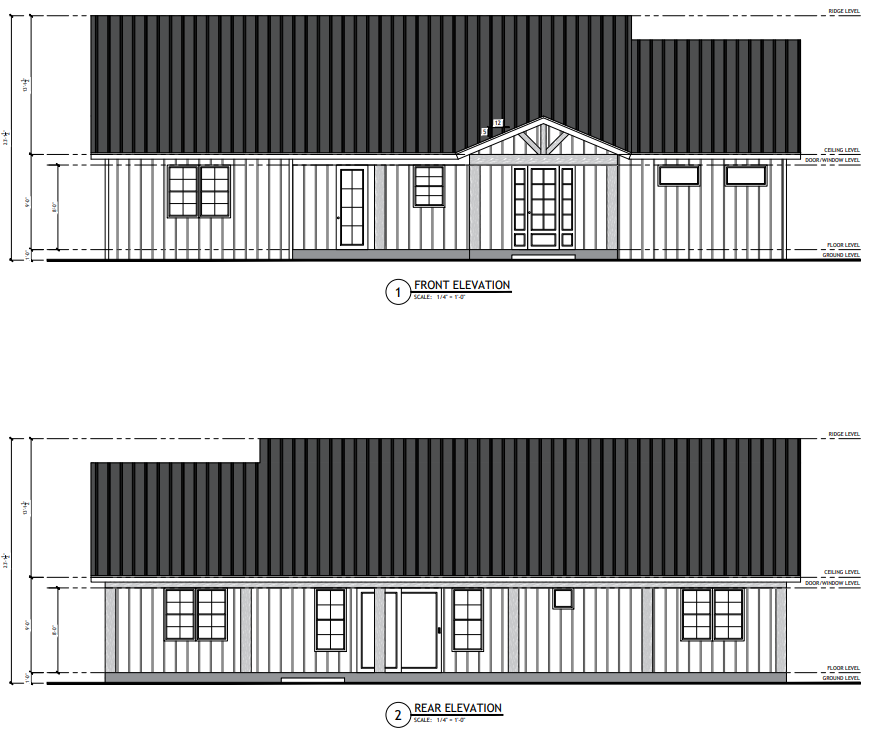

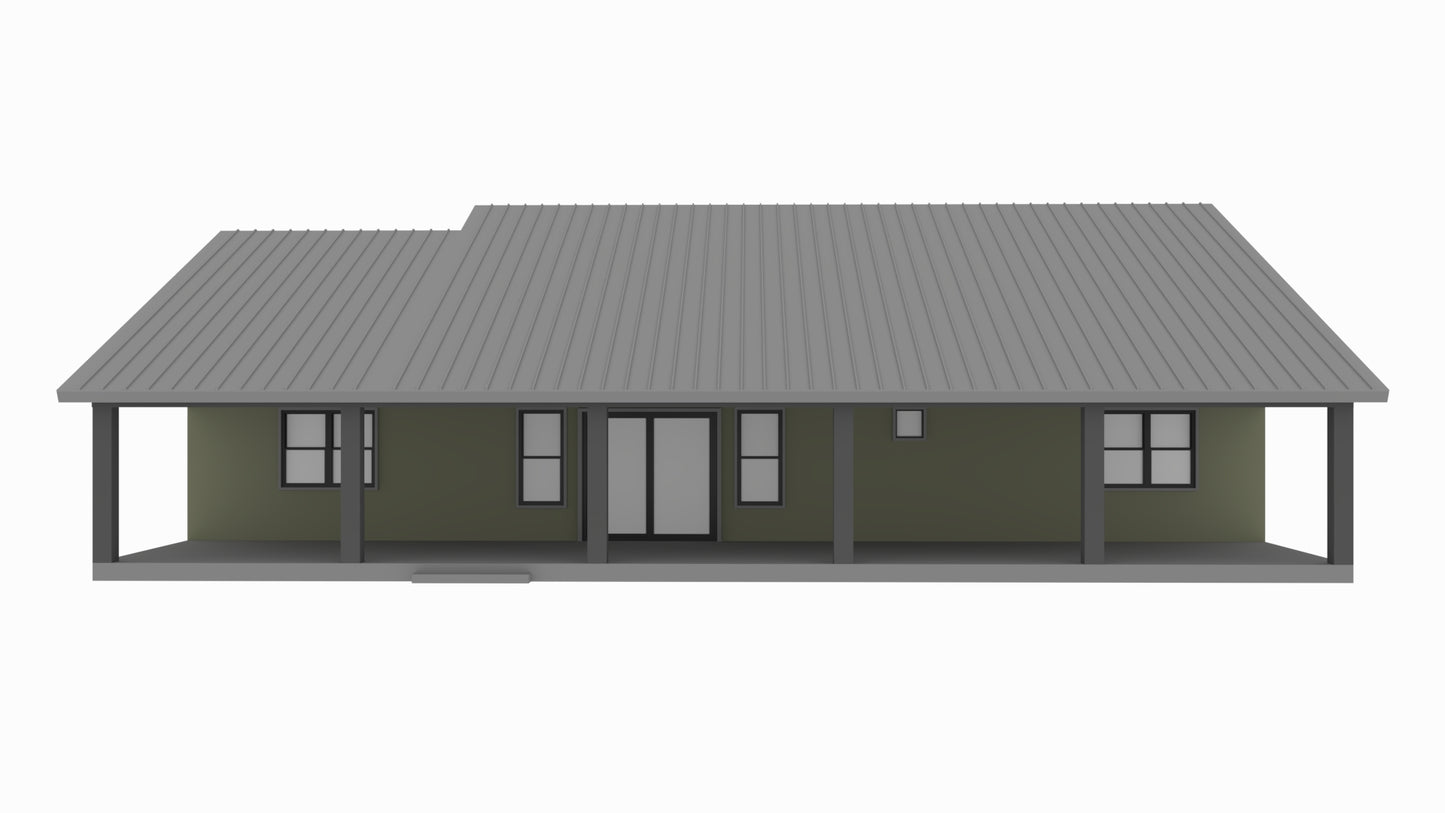

Four Elevations - Front, Back, Left Side, Right Side
Electrical Plan
Plumbing Plan
HVAC Plan
Roof Framing Plan
Foundation Plan
Wall Section





For more barndominium floor plans, check out our complete collection of 4 bedroom barndominium floor plans.



Need to make changes? Email our modification department. We will get you a free price quote within 72 hours.

Please note all square footage are estimates.

What's Included

Our house plan sets typically have the following details:

4 Elevations – Front, Back, Both Sides

Detailed Floor Plan Drawing

Electrical Plans with placements for HVAC

Plumbing Plans with Placements

Flooring Plan

Roof Plan

Foundation Plan

For more information on what's included and examples of what your plans will look like, go here -> https://barndominiumplans.com/pages/whats-included

Please Note: We work with many different draftspeople who work in many different ways.  It should be noted that their plans may contain different details.

What's Not Included

The following items are NOT included:

Architectural or Engineering Stamp. We work with a third party to provide an engineering stamp in most states.

Site Plan - We can provide this if needed for $300 additional.

Materials List - handled locally when required

Energy calculations - handled locally when required

Snow load calculations - handled locally when required

Delivery

This plan is available as a digital product or printed + shipped.

If you select digital, the plan will be delivered to you via email as a PDF file, no matter what time it is.

If you select printed + shipped, your order will ship in 24x36 format within 1 business day of your order.

We ship from the midwest in order to serve the entire country within 3-5 business days!

Return policy

All barndominium house plan purchases are FINAL. There are no exchanges or refunds due to the digital nature of the product. Please make sure that the plan you have selected is going to fit your needs.
